Matek Systems ASDP-4525 Flight control sensor SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: Value 10
Size: As description
Remote Control Peripherals/Devices: Receivers
Recommend Age: 14+y,12+y
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: Matek ASDP-4525
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes

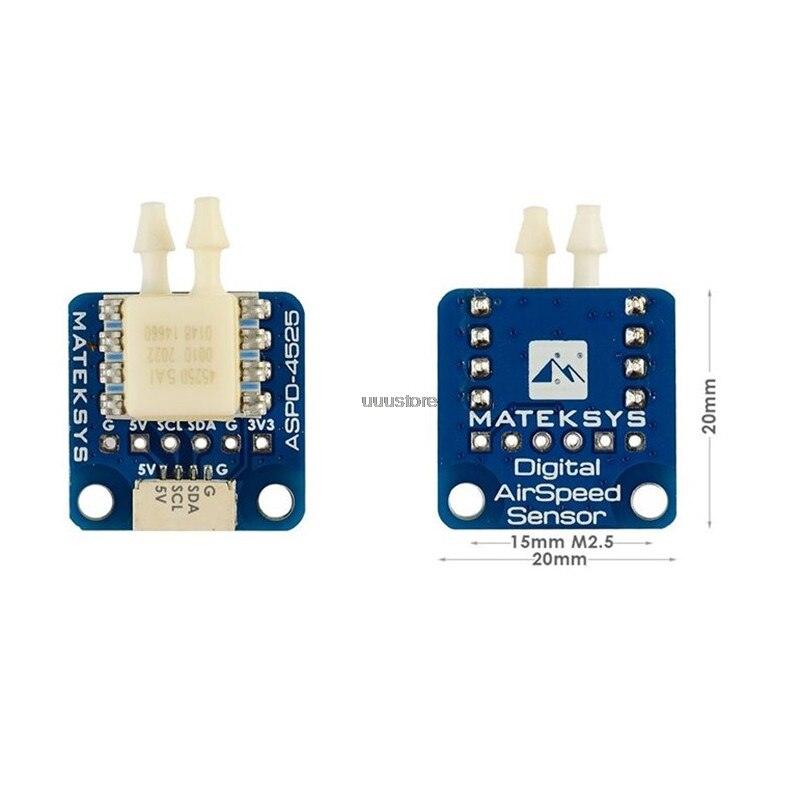

2020 New Matek Systems digital Airspeed Sensor ASDP-4525 Flight control sensor for F4 F7 F722 765 WING IANV Flight Controller

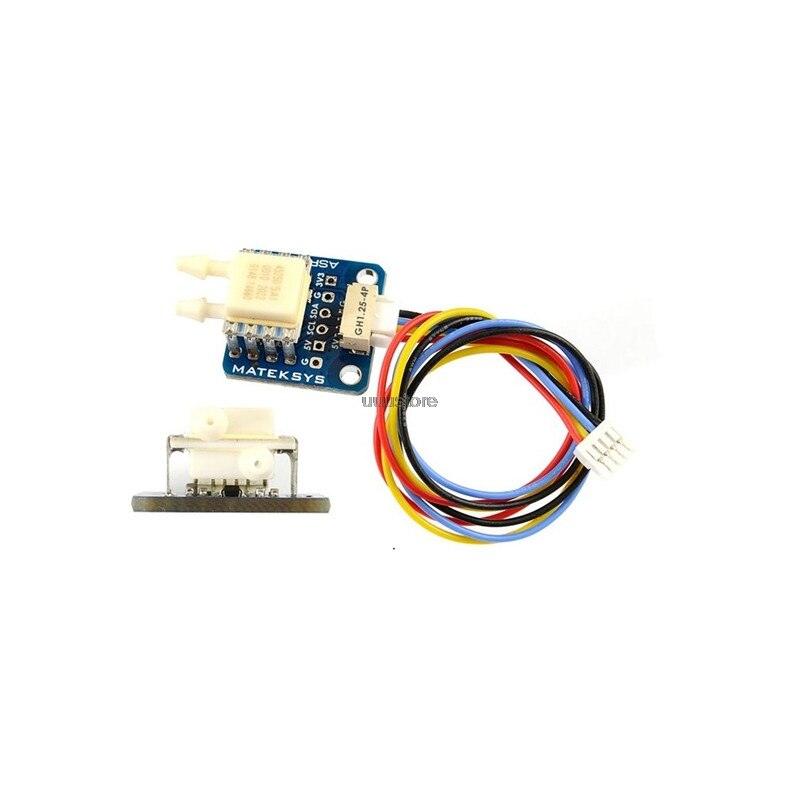

Package include:
ASPD-4525 Sensor Board.
JST-GH to JST-GH 20cm silicon cable.
Pitot Tube.
Clear silicon tubing 40cm
Specifications
   Board Supply voltage: 4~6V DC
   Sensor: MS4525DO
   Working current: 5mA
   Output: I2C (SCL & SDA)
   Pressure Ranges: 1 PSI (6.89kPa)
   Maximum Pressure: 20 PSI (137.9kPa)
   Operating Temperature: -40°C ~ 125°C
   Accuracy: ±0.25% SPAN
   Red LED: power indicator
   JST-GH sequence: 5V, SCL, SDA, GND
   Weight: 3.5g (sensor board)
   Sensor: MS4525DO
   Working current: 5mA
   Output: I2C (SCL & SDA)
   Pressure Ranges: 1 PSI (6.89kPa)
   Maximum Pressure: 20 PSI (137.9kPa)
   Operating Temperature: -40°C ~ 125°C
   Accuracy: ±0.25% SPAN
   Red LED: power indicator
   JST-GH sequence: 5V, SCL, SDA, GND
   Weight: 3.5g (sensor board)
Including
   Wiring
   5V to FC 4~6V
   SCL to FC I2C_SCL
   SDA to FC I2C_SDA
   G to FC GND
   SCL to FC I2C_SCL
   SDA to FC I2C_SDA
   G to FC GND
