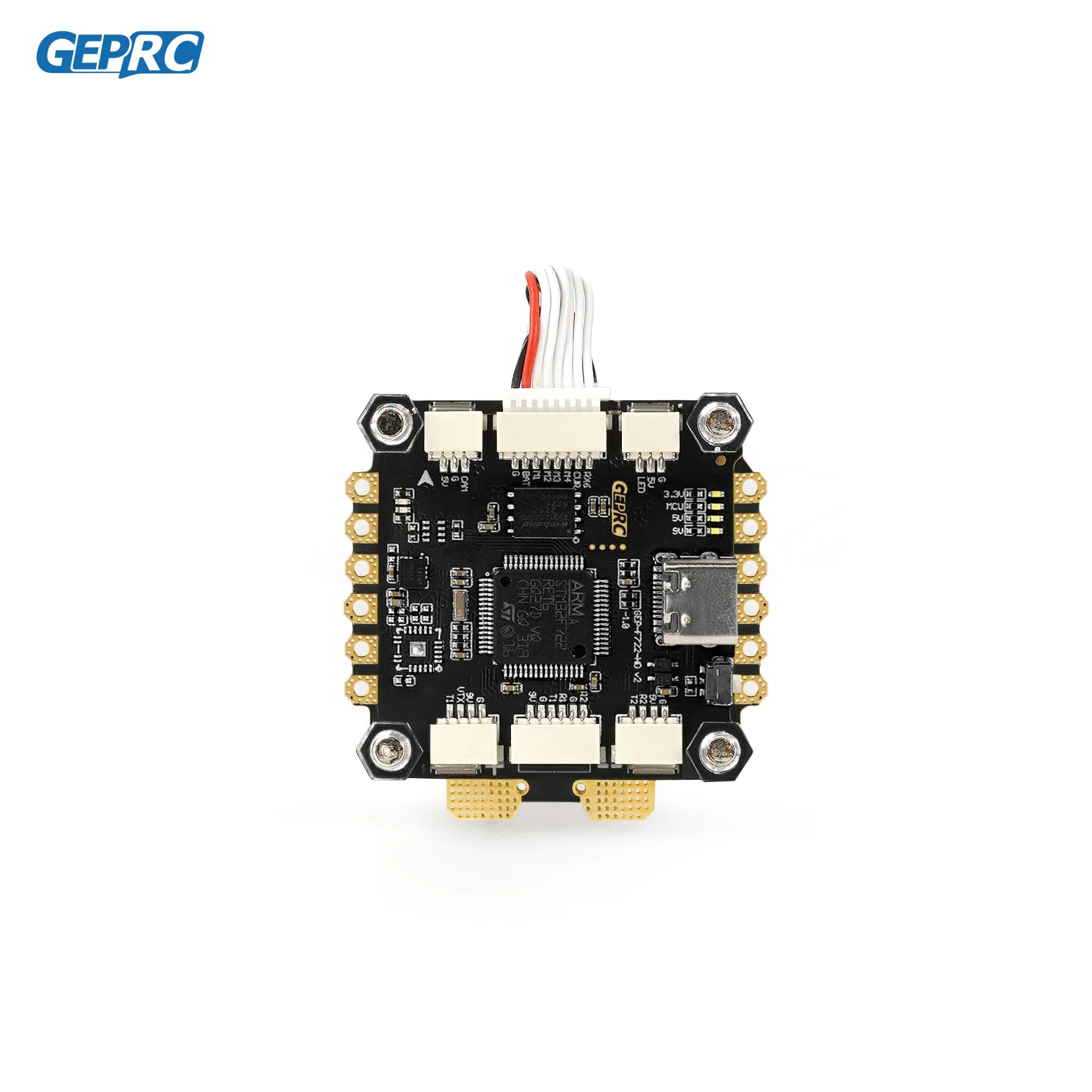

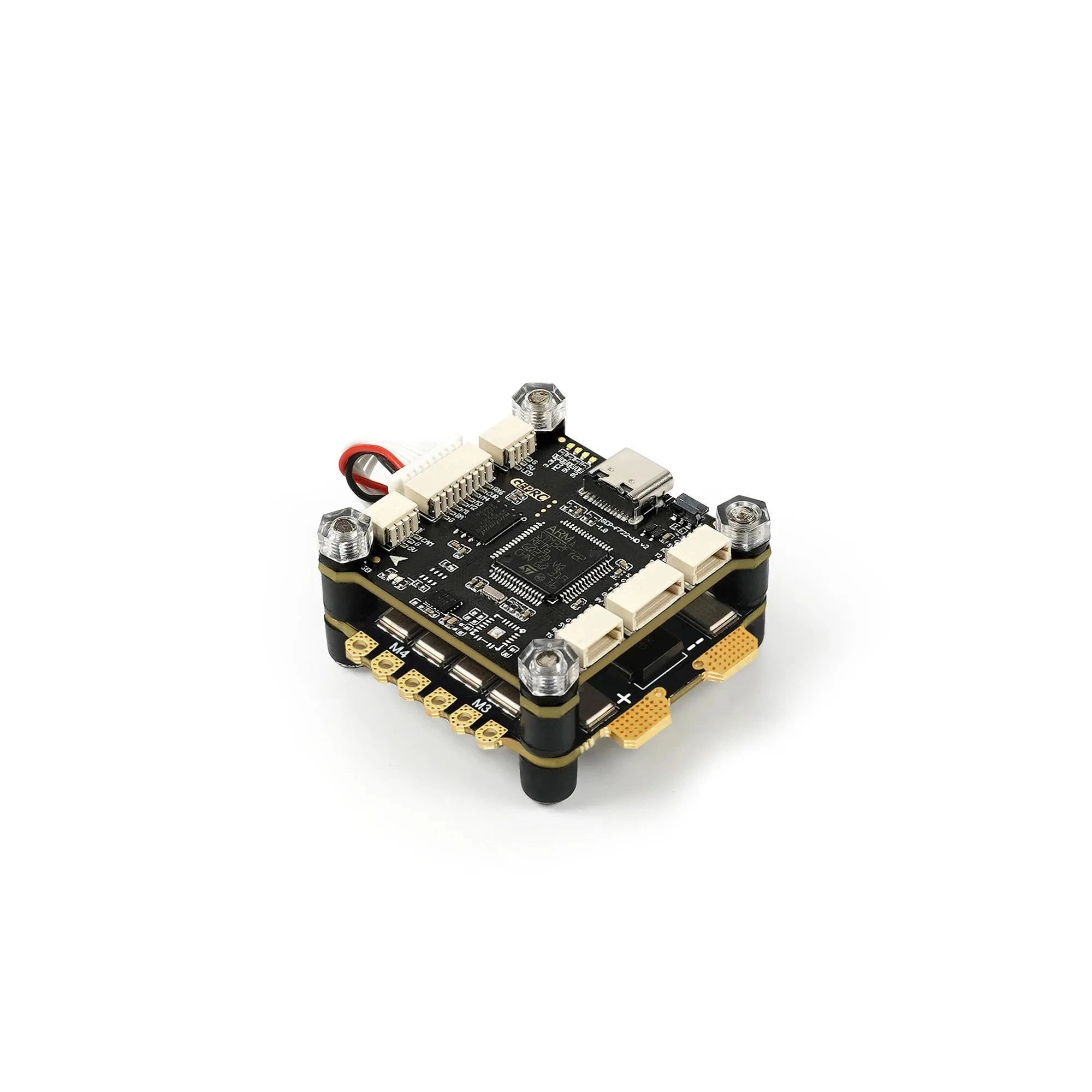

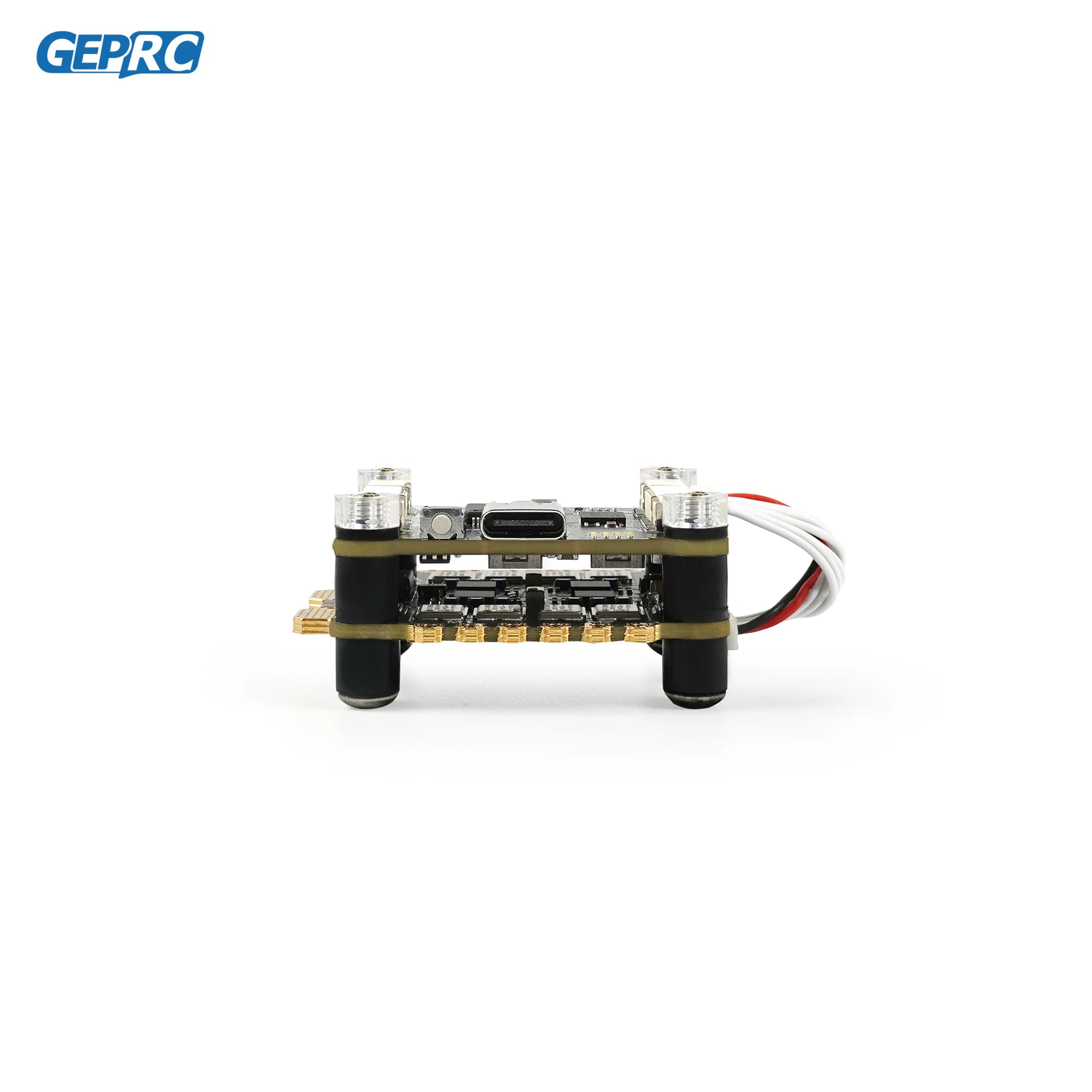

GEPRC TAKER F722 BL32 70A STACK is a plug-and-play flying tower system specially designed for D JI Air Unit.Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and collocation TAKER H70_96K 4IN1 ESC, flight dynamics is strong, have a more delicate hand feeling experience.

The GEPRC TAKER F722 BL32 70A STACK can be directly plugged into the D JI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.


Features

1.Use mainstream STM32F722 chip

2.Equipped with the latest 42688-P gyroscope

3.16M black box storage

4.Integrated LC filter

5.Upgrade type-C USB interface

6.Directly plugged into the D JI Air Unit

7.With TAKER H70_96K ESC, 70A continuous current, strong power, and the feeling of flight is silky

8.Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

9. [email protected] + 5V@3A dual independent BEC


Specifications

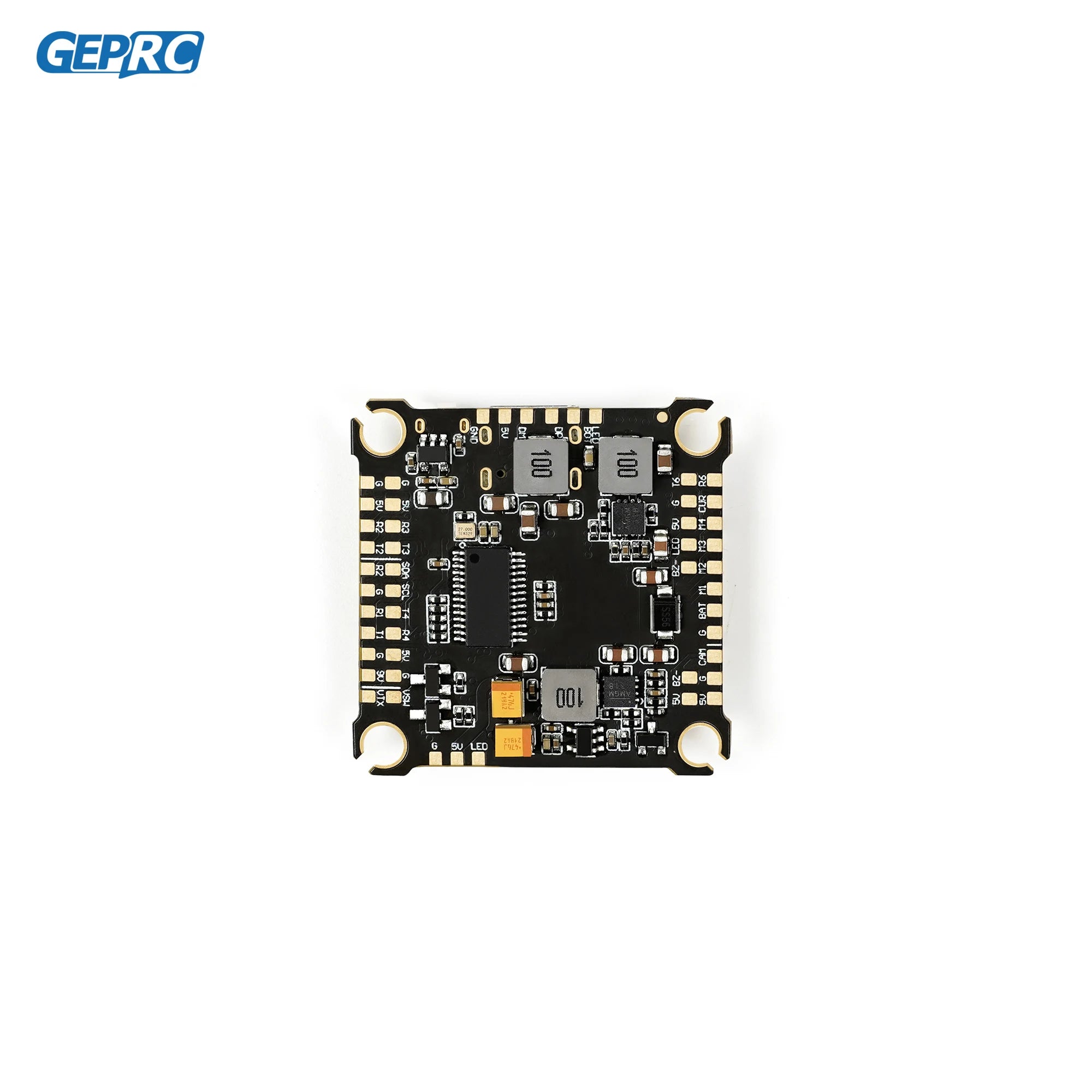

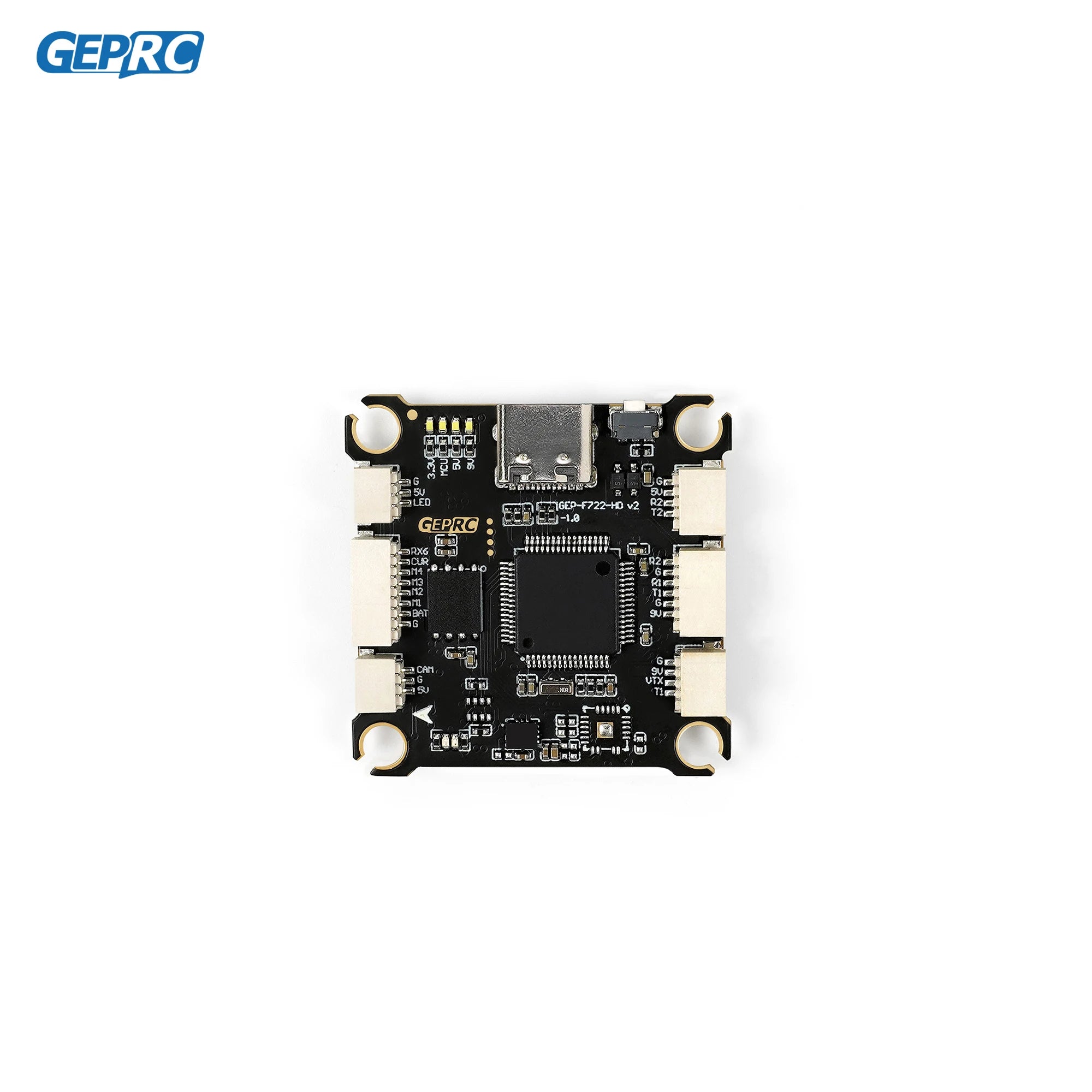

GEP-F722-HD v2 Flight Controller

MCU:STM32F722

IMU:ICM42688-P(SPI)

Air Unit Connection:Direct plugging into D JI Air Unit

Black Box:16M onboard

USB Interface:Type-C

OSD:BetaFlight OSD w/ AT7456E chip

BEC:5V@3A,[email protected] dual BEC

Firmware Target:GEPRCF722

Size:36.85×36.85mm, hole 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

Input Voltage:3-6S LiPo

UART:5

Power Filter:Integrated LC filter

Weight:8.1g

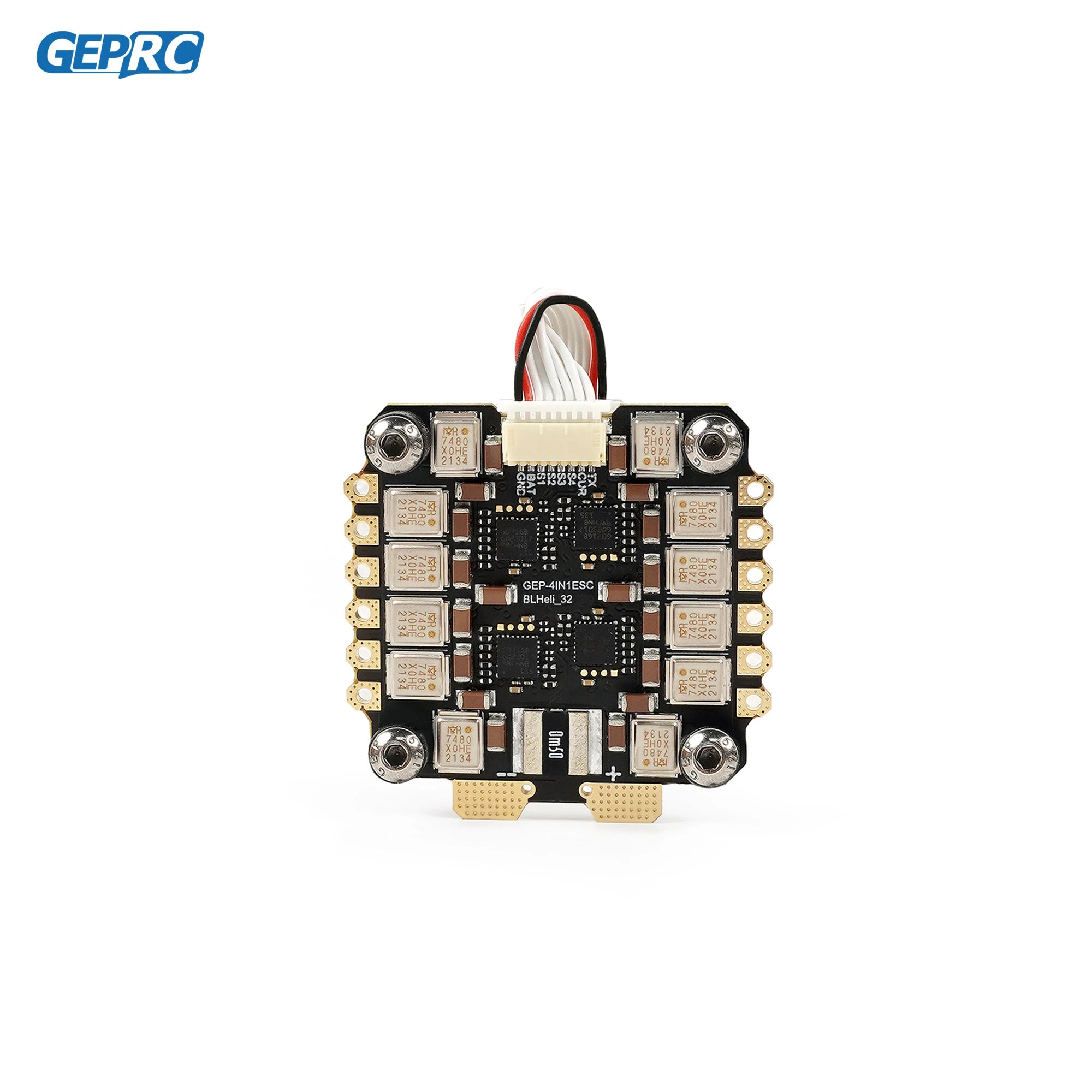

GEPRC TAKER H70_96K ESC

Input Voltage:3-6S Lipo

Galvanometer:Support

PWM frequency: 24~96K

Continue Current:70A

Burst Current:80A(5 second)

Support Protocol:Dshot 150/300/600

Size:42.6*42.1mm,hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.

Weight:12.8g

Target:GEPRC_G071_4IN1_96K


Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x D JI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
