FPV Drone Connector Plug – 5 / 10 Pairs High Quality XT30 XT30U MR30 XT60 XT60H MR60 XT60PW XT90 XT90S Connector Plug for Battery Quadcopter Multicopter

$16.33 – $46.95

+ Free Shipping
10pairs Amass MR30 1
10pairs Amass MR30

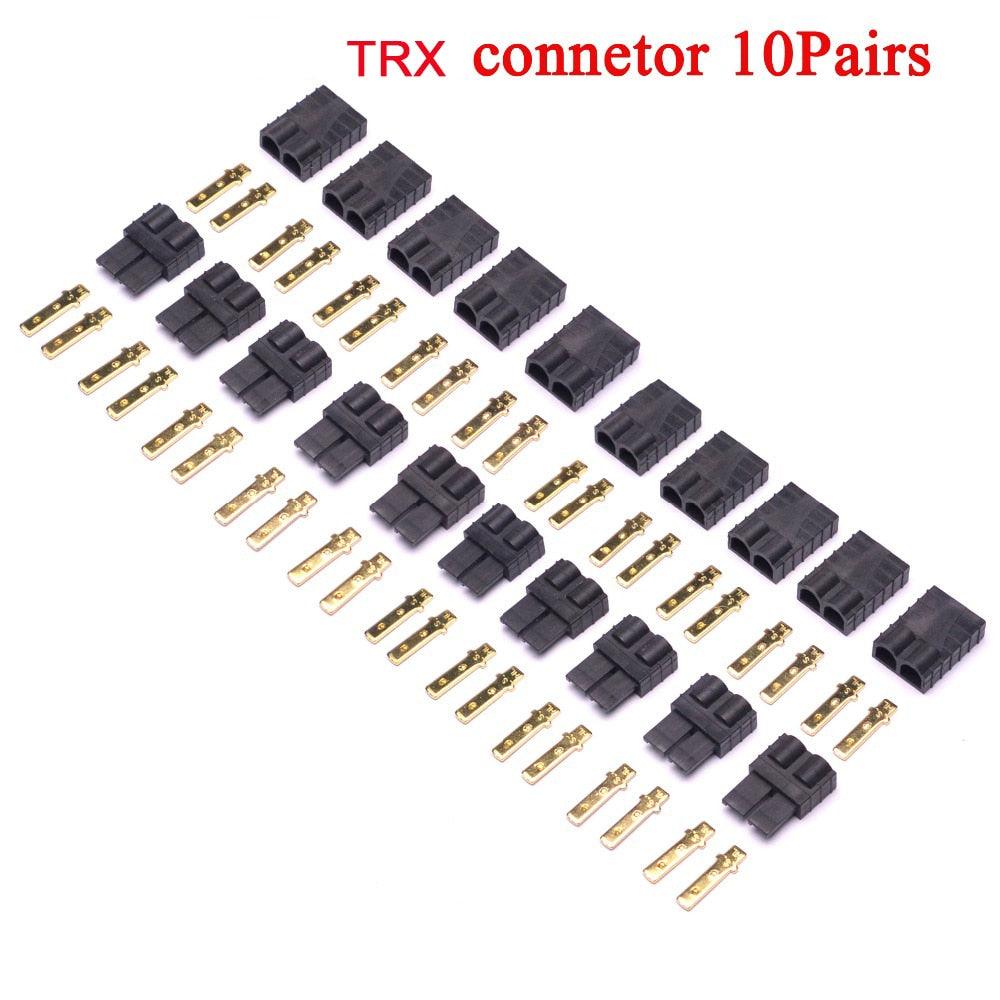

10pair Trx

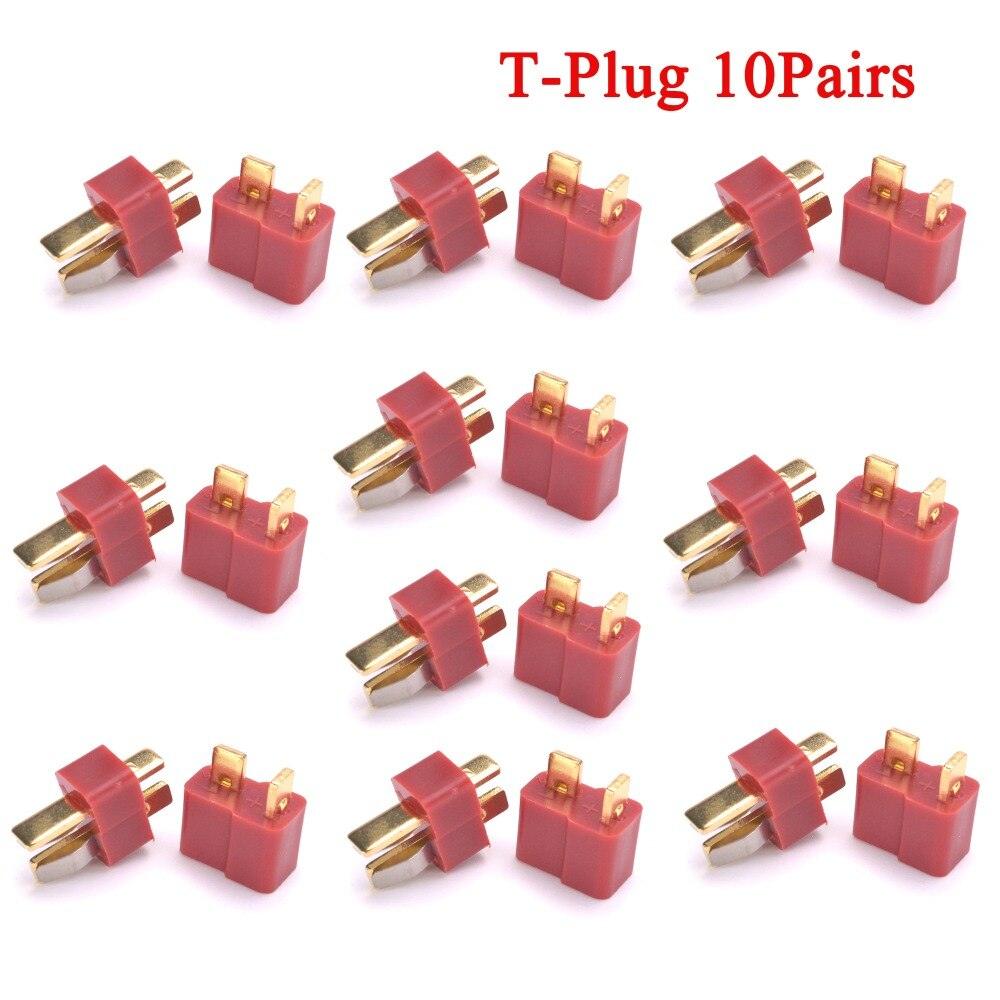

10pair T-plug
10pairAmass T-Plug

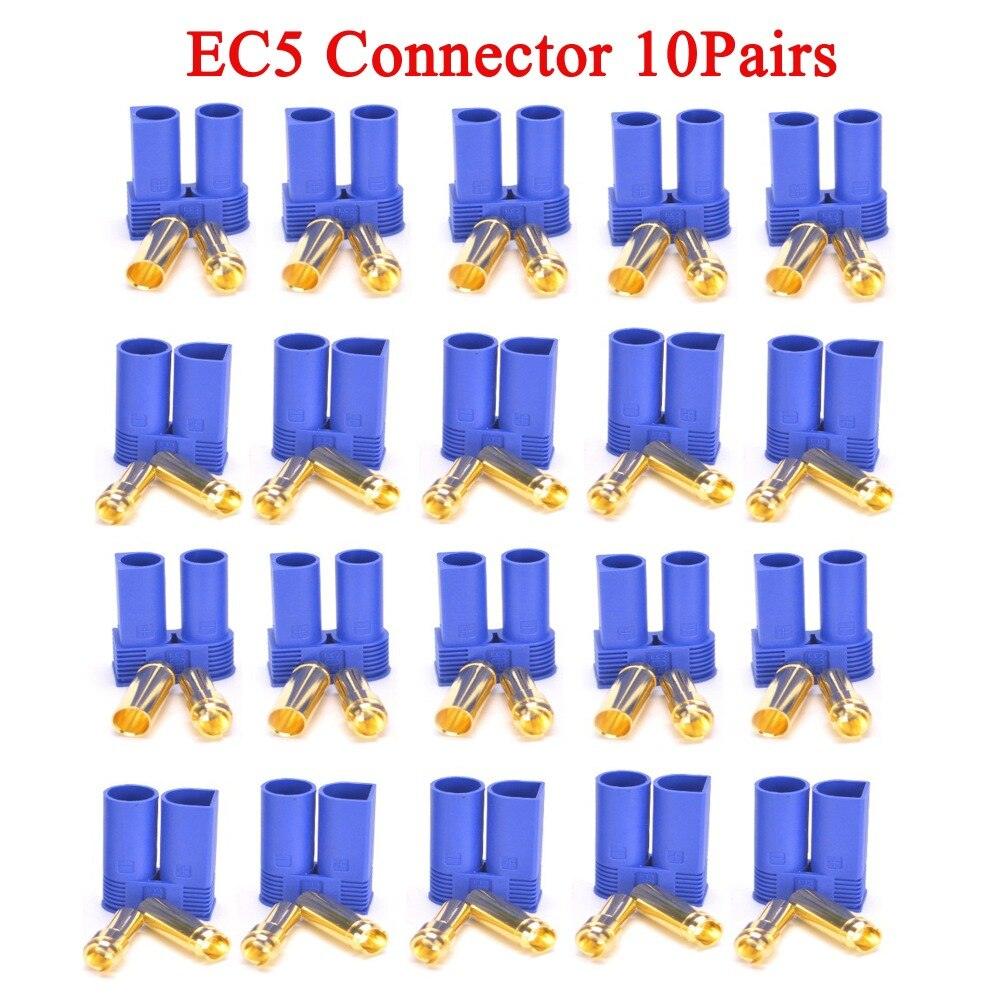

10pair EC5

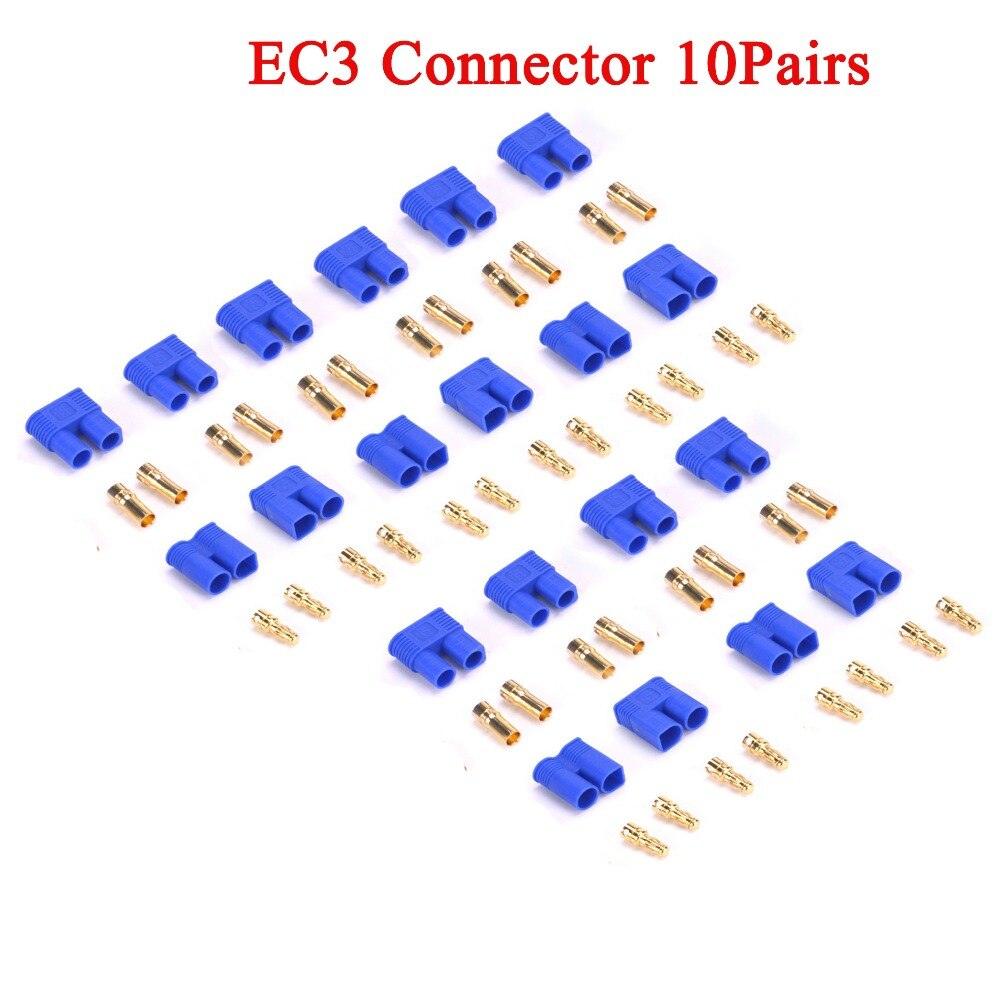

10pair EC3
10pair EC2
10pair Amass XT90S
10pair Amass XT90
10pairAmassXT60PW
10pair Amass XT60H
10pair Amass XT30
10pair XT90 Plug
10pair Blue XT60
10pair Black XT60
10pair Yellow XT60
10pairs Amass MR30 110pairs Amass MR3010pair Trx10pair T-plug10pairAmass T-Plug10pair EC510pair EC310pair EC210pair Amass XT90S10pair Amass XT9010pairAmassXT60PW10pair Amass XT60H10pair Amass XT3010pair XT90 Plug10pair Blue XT6010pair Black XT6010pair Yellow XT60
Clear
SKU: N/A Category:

FPV Drone Connector Plug  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: XT30 XT60 XT90 Connector

Tool Supplies: Cutting

Technical parameters: Value 3

Remote Control Peripherals/Devices: Battery

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Connector

Origin: Mainland China

Model Number: XT30 XT30U XT60 XT60H XT90 XT90s EC2 EC3 EC5 T Plug

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

FPV Drone Connector, readytosky is a professional FPV RC Module accessories company . we will

FPV Drone Connector, Almost all FPV are using 6S even more Li-po battery for Power10pairs x XT30 XT30U / XT60 XT60H XT60PW/  XT90 XT90S / EC2 EC3 EC5 / Traxxas / T-plug Connectors Male/Female for Lipo Battery Amass XT30 XT30U

Connector

100% brand new and high quality.

Hook up brushless motor to electronic speed control.

Low resistance, and gives the best electric flow.

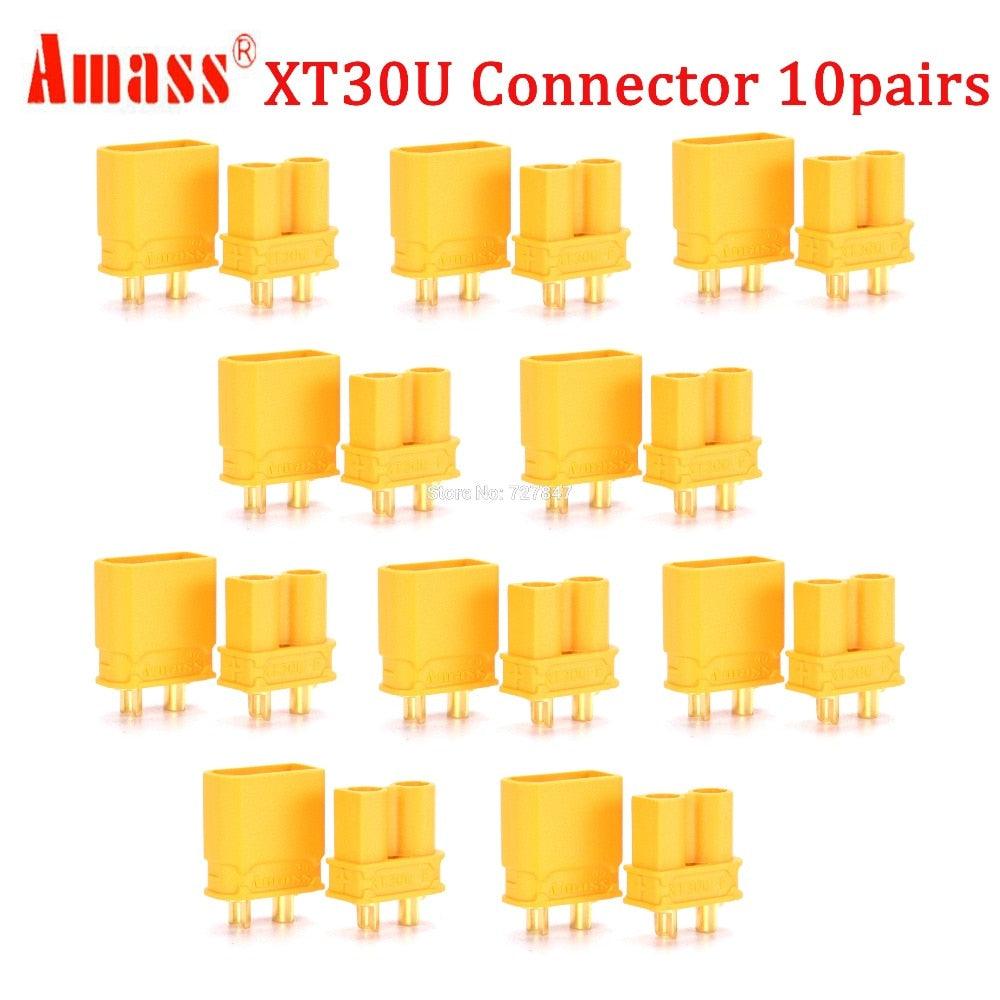

FPV Drone Connector, Au1ass' XT3OU Connector 1Opairs Si

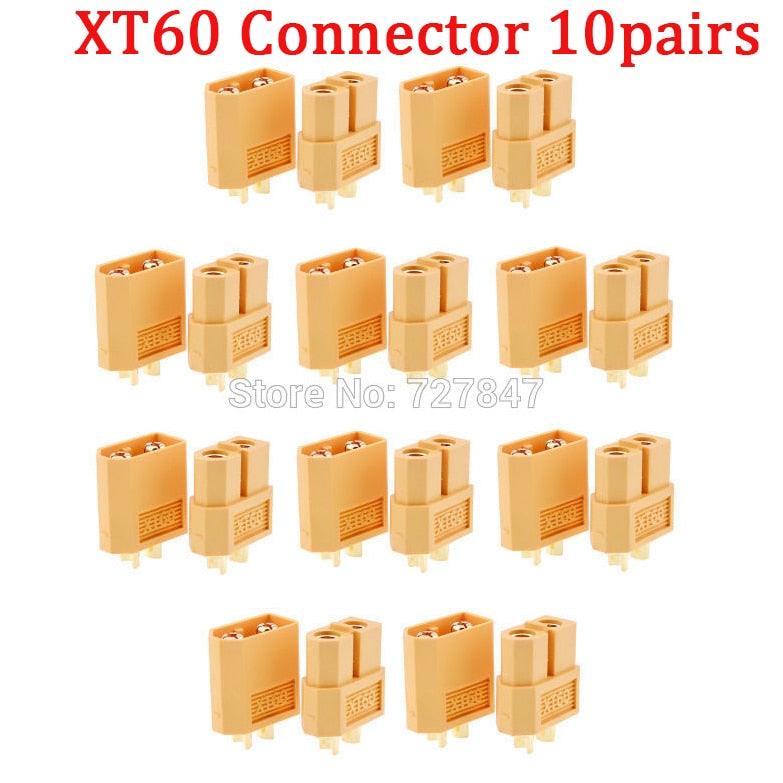

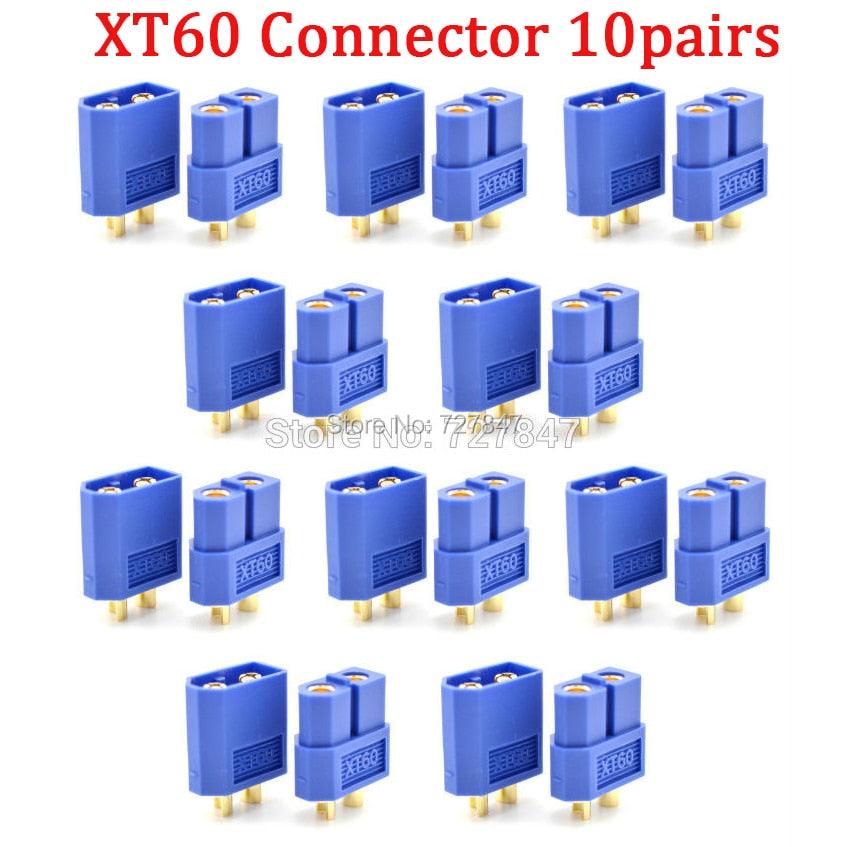

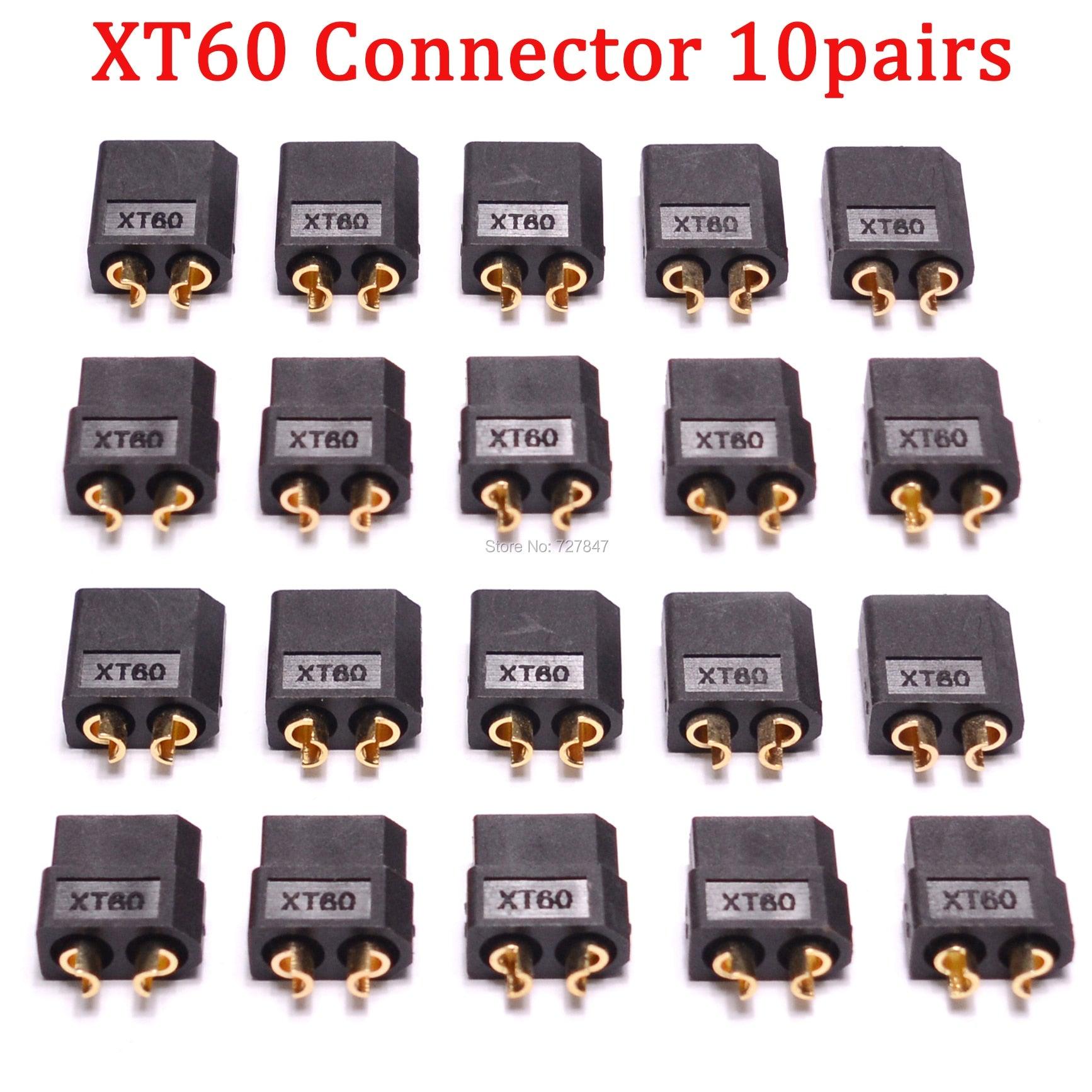

XT60 connector:
100% brand new and high quality.
Hook up brushless motor to electronic speed control.
Low resistance, and gives the best electric flow.
Female Internal Diameter: About 3.5mm / 0.14″
Female Connector Length: About 12mm / 0.47″
Male Internal Diameter: About 4mm / 0.16″
Male Connector Length: About 12mm / 0.47″
FPV Drone Connector, Low resistance, and gives the best electric flow

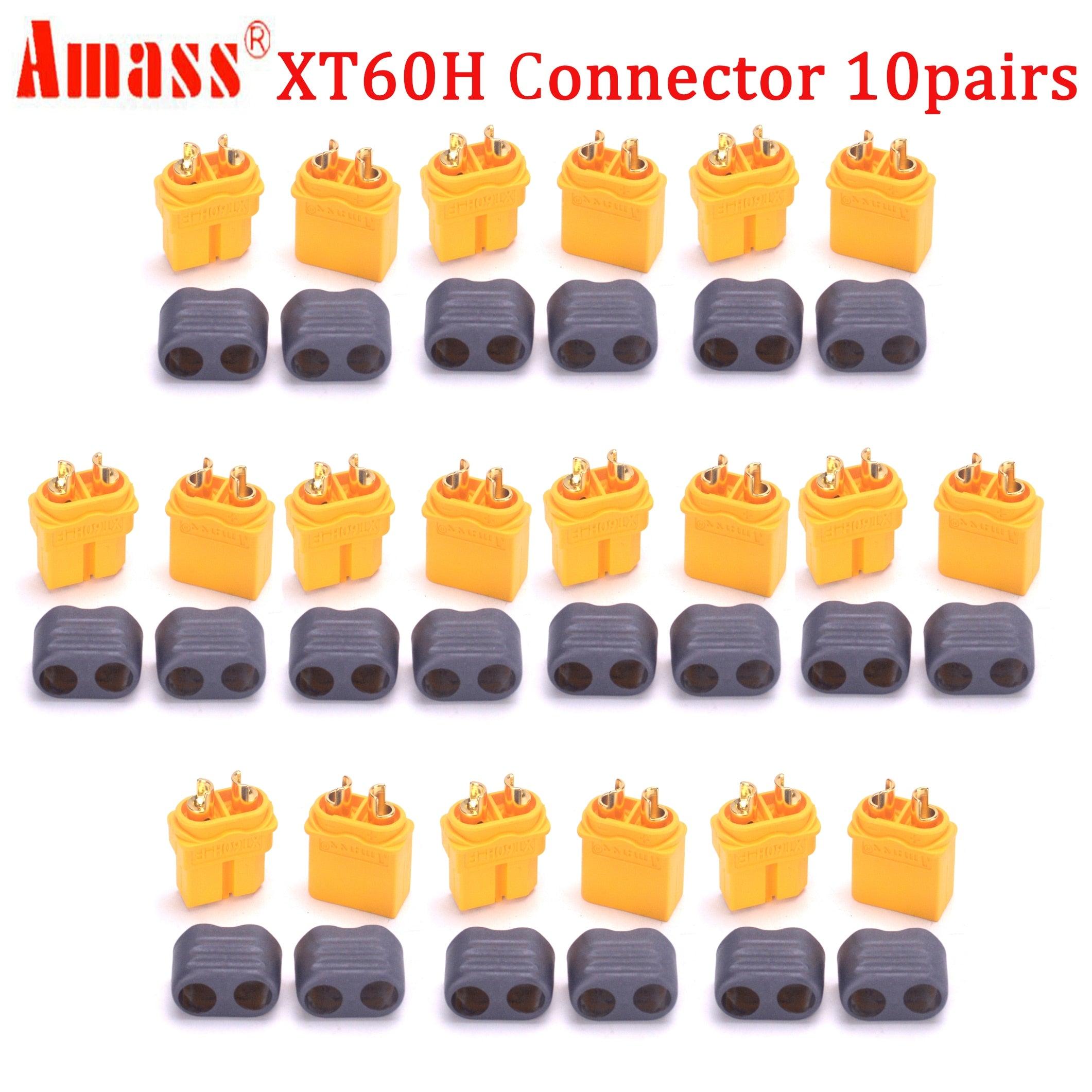

XT60H Connector:
Brand Name: Amass
Item Name: XT60+
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Internal Resistance: 0.8mΩ
Max. RC/MC: 60A/100A
Weight: 7.72g/pcs
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S
Quantity: 10pairsFPV Drone Connector, Aiaas#XT6oH Connector 1Opair
Brand: Amass

Item No: XT60PW
Body Material: Gold-plated copper
Internal Material: PA
Internal Resistance: 0.50Ω
Max. RC/MC: 30A/60A
Rated voltage: DC500V
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: PCB

Features:
A new generation of model plug patent product, female end for battery and male end for charger.
The design of jacket rear concave can make the shrink tube inserted more deeply to protect joints from water vapo r against and easy to solder.
Precision molds processing, connect closely without any gaps, well leakproofness.
Clear “+”-” sign
New style housing and groove slot design looks more beautiful make the connection stronger and avoid any mistake.
Non-slip insulator, easy to connect.

FPV Drone Connector, Low resistance, and gives the best electric flow

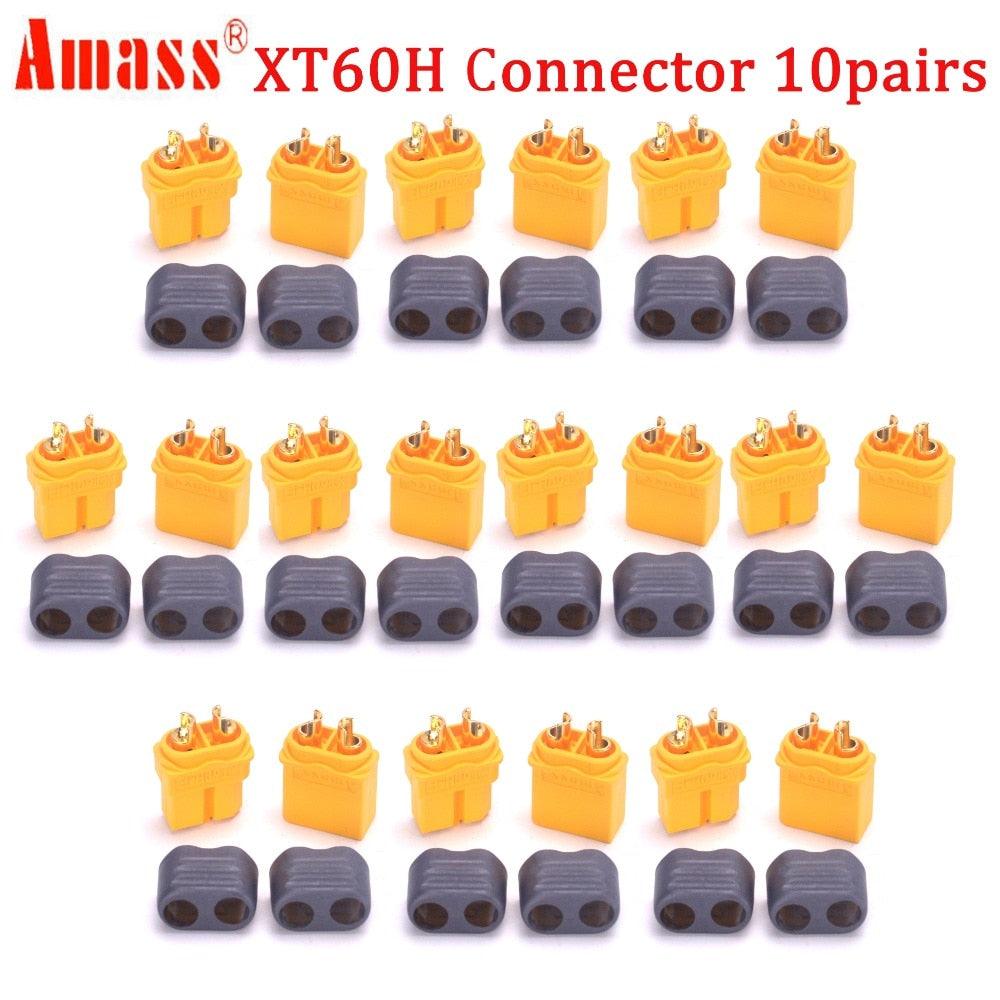

Amass XT60H connector:

Brand Name: Amass
Item Name: XT60+
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Internal Resistance: 0.8mΩ
Max. RC/MC: 60A/100A
Weight: 7.72g/pcs
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S

FPV Drone Connector, 120A Temperature resistant:-30°C 240°C Compatible with AMA
Amass XT60L Connectors plugs With Sheath Housing Male & Female spare parts for DIY Models XT60-L
Body material and surface coating:Brass and gold plated
Insulation Material:PA
Internal Resistance:0.8mΩ
Max RC/MC:60A/100A
Temperature Resistance:-20oC~120oC
Insertion Force/500:3KG
Weight/pair:7.85g per pair
Recommend Use:1000 times
FPV Drone Connector Plug - 5 / 10 Pairs High Quality
FPV Drone Connector, Rated Current Instantaneous Current DC 500v 30A 60A Insulating material Flamm

Rated Specifications: Voltage – 500V, Current – 30A (continuous), Instantaneous Current – 60A; Insulation material meets PA UL94 VO standards. The connector’s metal components are made of copper-plated wire with a gauge of 12AWG. Contact resistance is suitable for frequent use. Operating temperature range: -20°C to 120°C, with an estimated usage count of up to 1000 times.

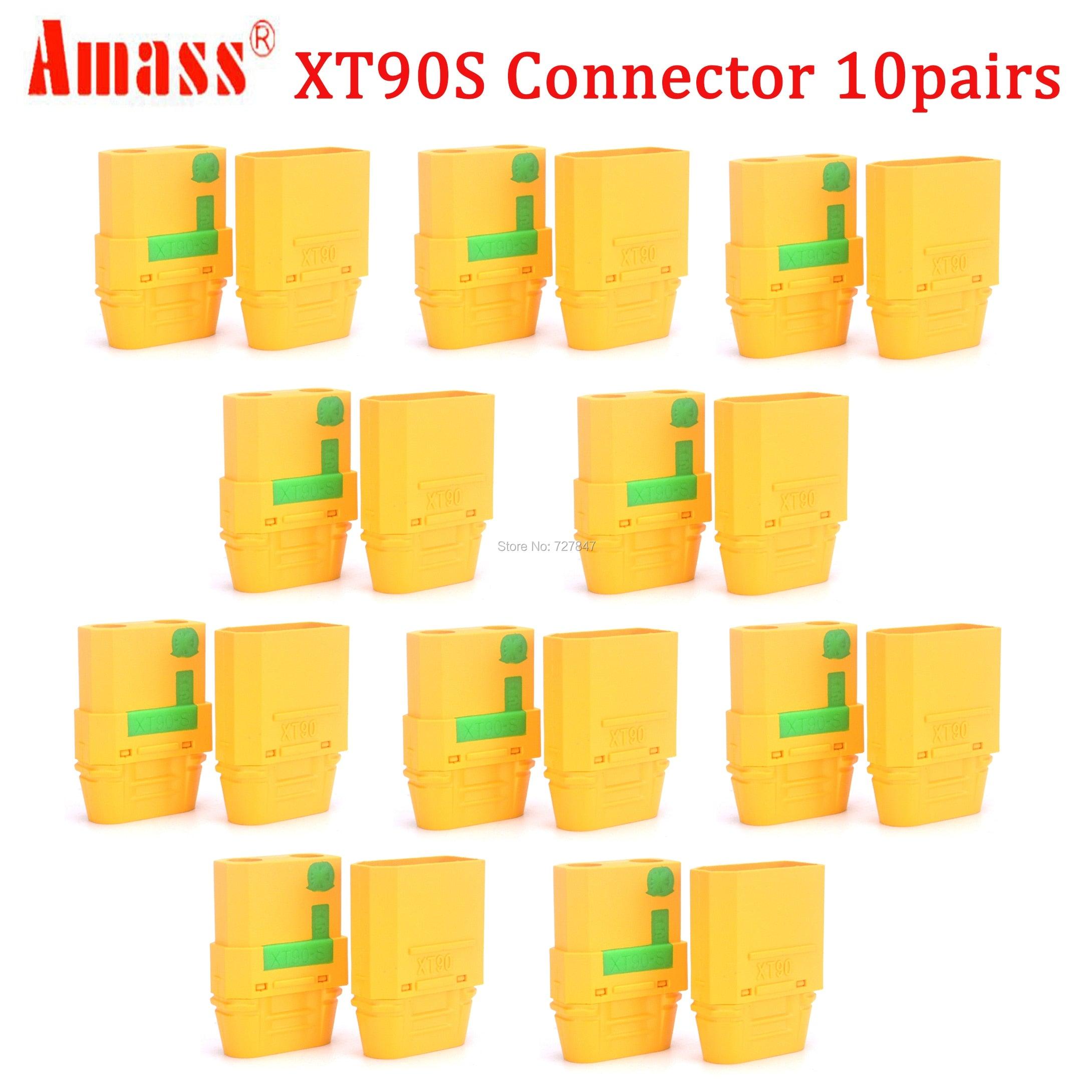

FPV Drone Connector, this XT90-S connector from Amass will solve the problem for you

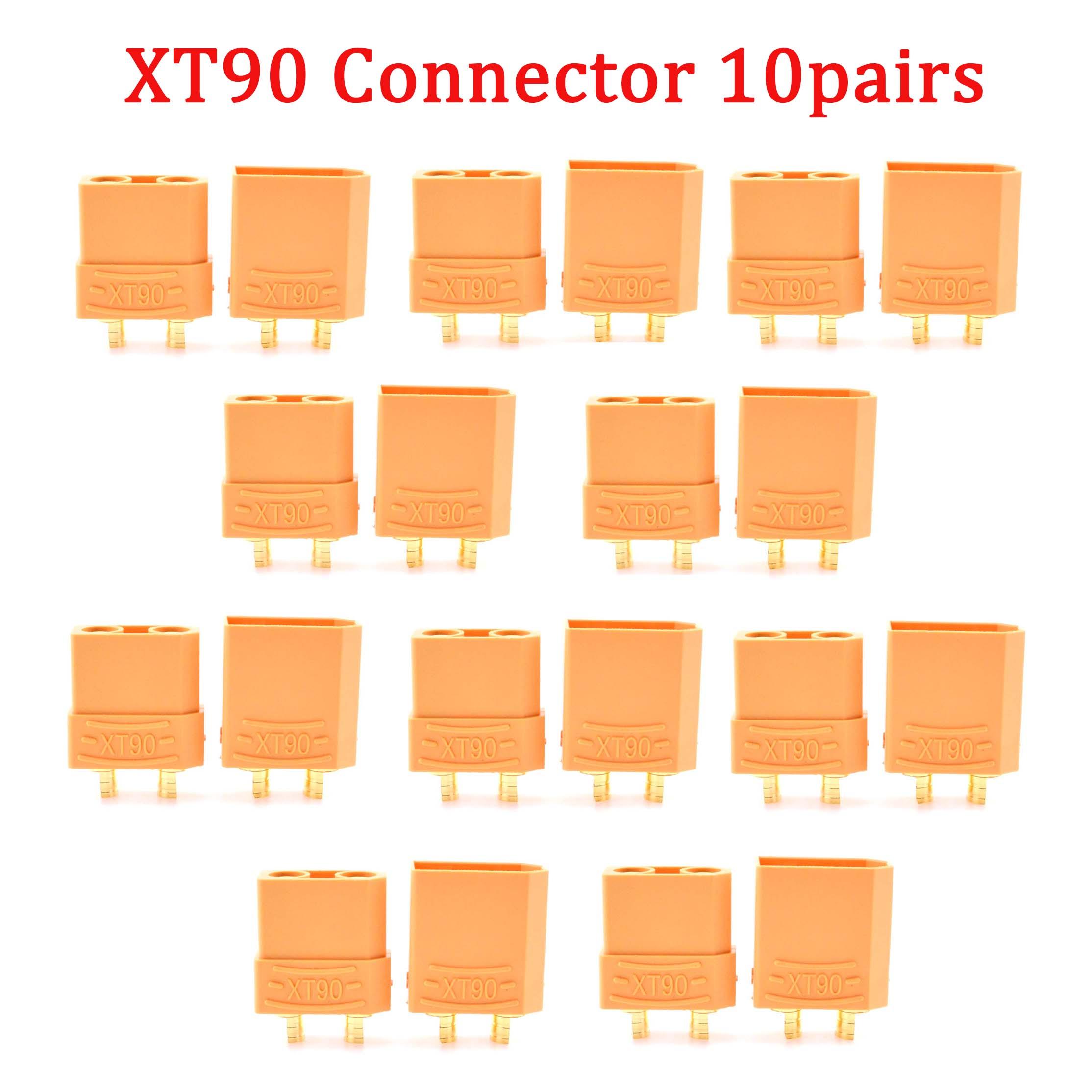

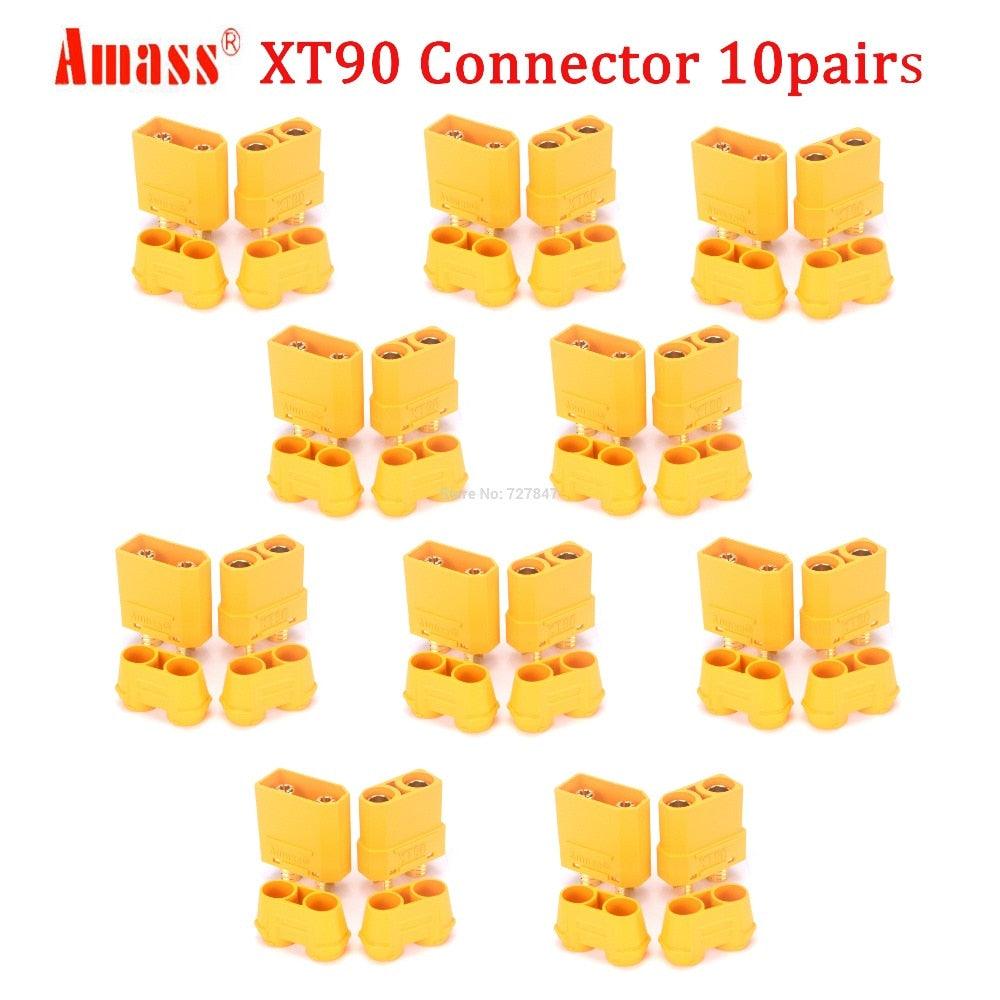

XT90 Connector:
Protected to avoid shorting and reverse polarity
Half open end, easier for welding.
Suit for 90-120A current application.
Metal connector size: 4.5mm
FPV Drone Connector, XT9O Connector 1Opairs T9 Store No; 7278

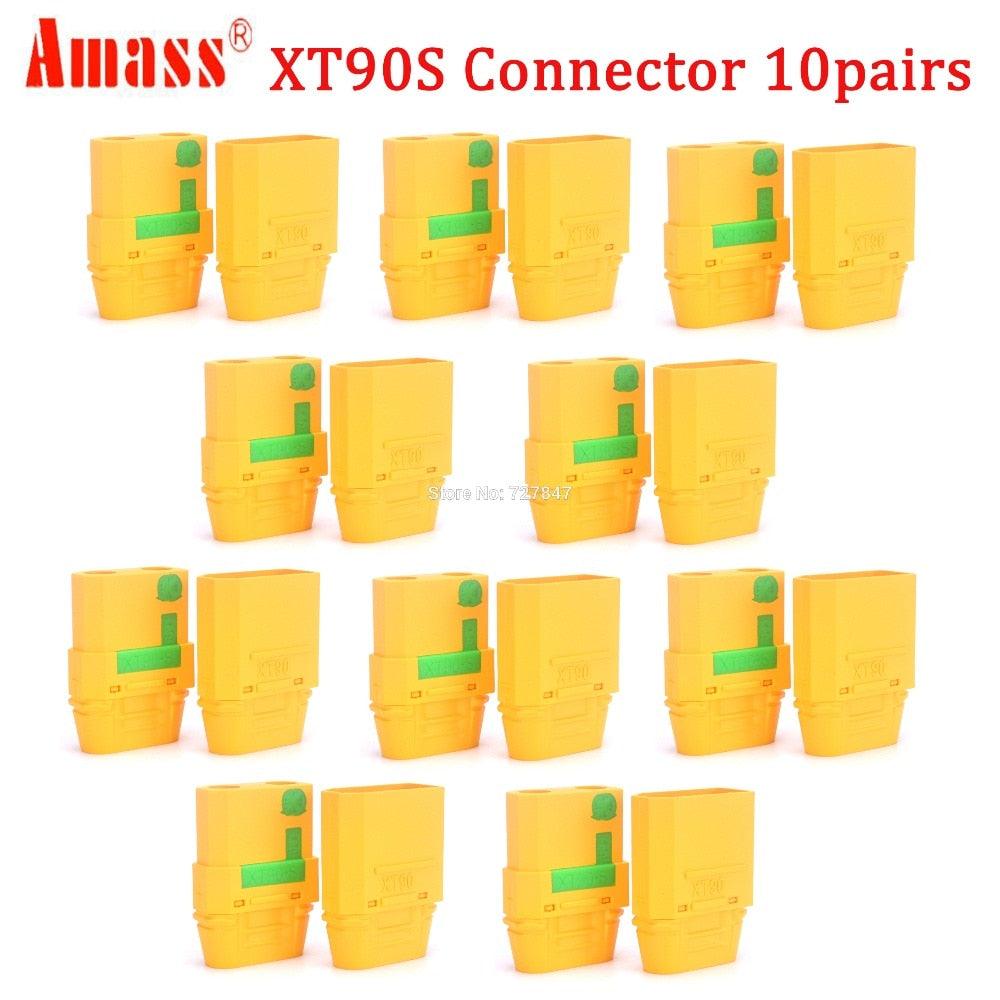

This is AMASS  XT90-S connector,designed and produced by AMASS,beware any imitation,if using imitations,your equipment may be destroyed!
Almost all FPV are using 6S even more Li-po battery for Power System.the most annoying problems is the Sparking during the connect,the sparking will damage the connector! this XT90-S connector from Amass will resolve the problem for you!
Features:
100% Original Amass
AMASS Patented Anti-Spark Design!
Reusable Conector end design for times insert and take off from the Enclosure.
New style design with the shining and safety construction.
Non-slip insulator, easy to connect.
Clear “+” and “-” mark, avoid the mistake.
Accurate size, perfect connection prevent any inside pollution.
Advanced caseting technology,and integrated with banana plugs fully and closely.
The groove slot design make the connection stronger and avoid any mistake when you use it.
2U thickness gold plating, we use the large flow-line design banana plug which have a larger contact area, although 3.5mm banana plugs, but can be sustained a constant current 90A,120A current peak.
Material of Housing: Heat-resistant nylon material(high temperature resistance to 240°C)
Material of connector : 2U thickness Gold hplated copper
Stable current: 90A /Max. 120A
Temperature resistant:-30°C ~ 240°C
Compatible with AMASS XT90 connector
Product id: XT90-S
FPV Drone Connector, Auhn's XT9OS Connector 1Opairs Store No

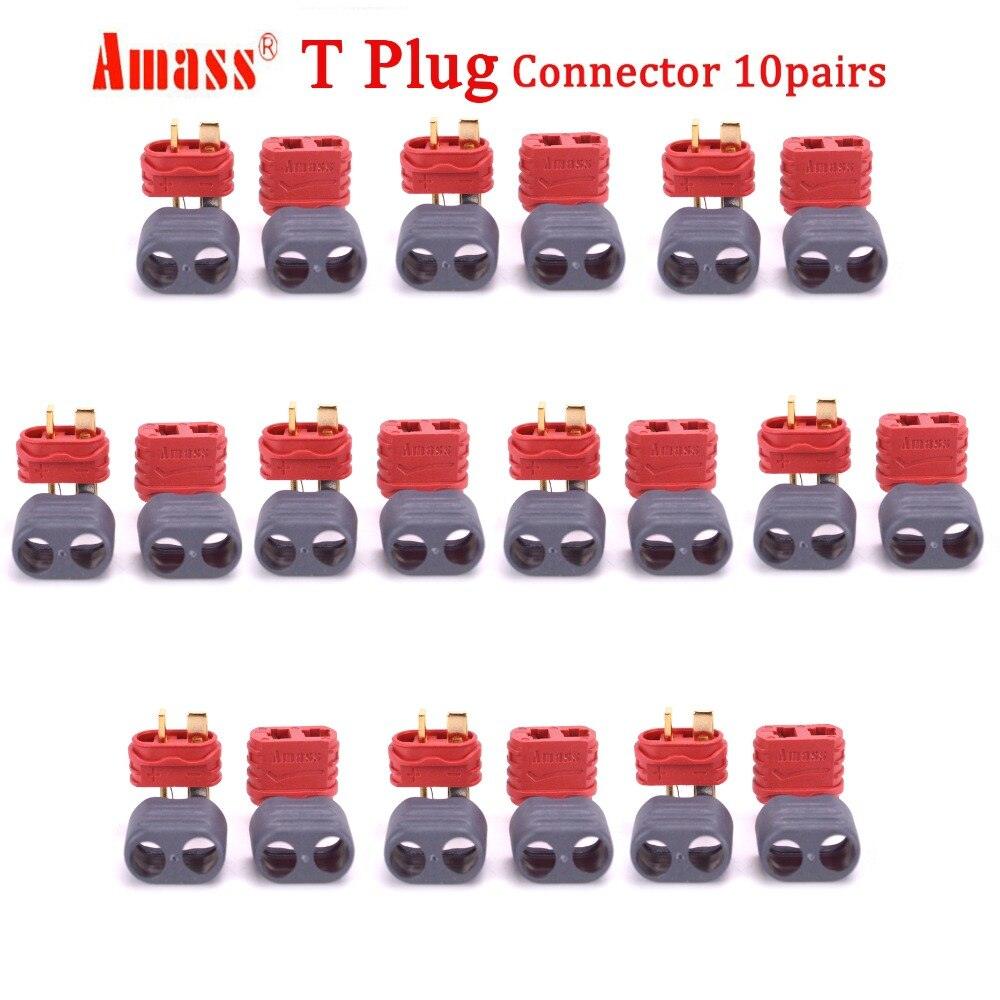

FPV Drone Connector, Auhnn T Connector 1Opairs 4"123.'"13FPV Drone Connector, Low resistance, and gives the best electric flowFPV Drone Connector, 480°C/4S Quantity: 10pairs Brand: AmassFPV Drone Connector, 480°C/4S Quantity: 10pairs Brand: AmassFPV Drone Connector, clear "+"-" sign makes the connection stronger and avoid any mistake.
