Eachine EV800D FPV Goggle SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: FPV Goggles

Tool Supplies: FPV Goggles

Technical parameters: KV1100

Remote Control Peripherals/Devices: FPV Goggles

Recommend Age: 12+y

RC Parts & Accs: FPV Goggles

Origin: Mainland China

Model Number: EV800D 5.8G 40CH

Material: Composite Material

Four-wheel Drive Attributes: FPV Goggles

For Vehicle Type: Helicopters

Brand Name: EACHINE

Eachine EV800D FPV Goggle, EACHINE EV800D FPV Goggle SPECIFICATIONS

Description :
Brand Name : EACHINE
Item Name : EV800D

Appearance

Dimension: 180*145*82mm
Weight: 362g without antenna
Belt : three-way adjustable belt

Specification

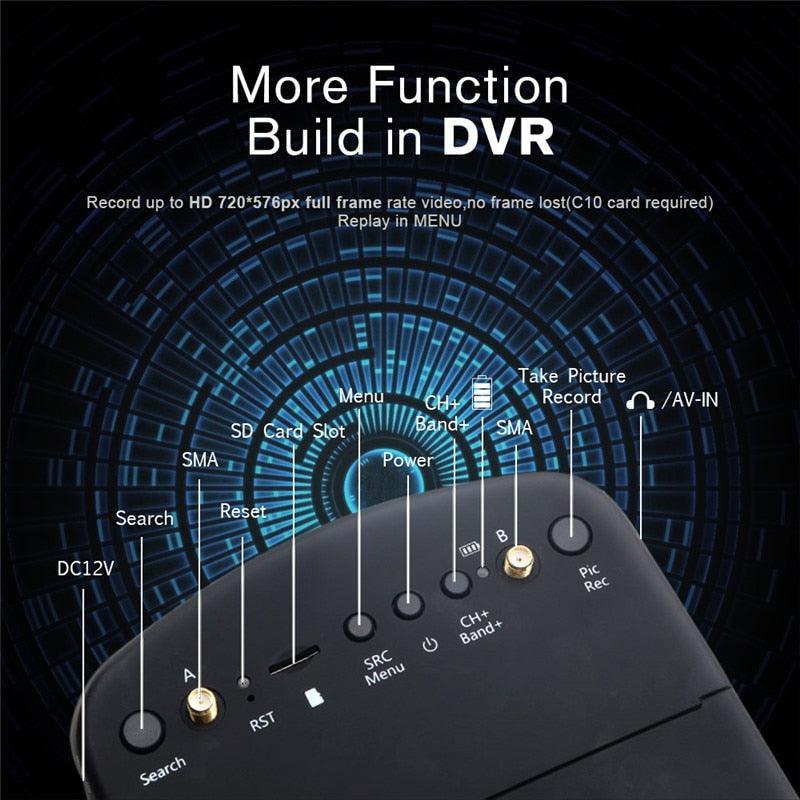

Build in DVR
R ecord up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to r ecord full frame rate


Diversity

-90dB Super sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used

Display

Screen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)


Lens

3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;

Battery

Built-in 7.4V/1200mAh battery;
Each battery circle offer around 2hr working time;
10-22V wide range recharging voltage range, typical recharging voltage is 12V
Charger : 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Frequencies (5.8GHz, with RaceBand)

CH

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

GROUP

A or FR1

5865 MHZ

5845 MHZ

5825 MHZ

5805 MHZ

5785 MHZ

5765 MHZ

5745 MHZ

5725 MHZ

B or FR2

5733 MHZ

5752 MHZ

5771 MHZ

5790 MHZ

5809 MHZ

5828 MHZ

5847 MHZ

5866 MHZ

C or FR3

5705 MHZ

5685 MHZ

5665 MHZ

5645 MHZ

5885 MHZ

5905 MHZ

5925 MHZ

5945 MHZ

D or FR4

5740 MHZ

5760 MHZ

5780 MHZ

5800 MHZ

5820 MHZ

5840 MHZ

5860 MHZ

5880 MHZ

R or FR5

5658 MHZ

5695 MHZ

5732 MHZ

5769 MHZ

5806 MHZ

5843 MHZ

5880 MHZ

5917 MHZ


Features:
Built-in with superHD DVRup to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording)
Work friendly with p ilot-OSD, no block on the important flying OSD information;
Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 7.4V 1200mAh battery, each full charge offer 2 hours working time;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD

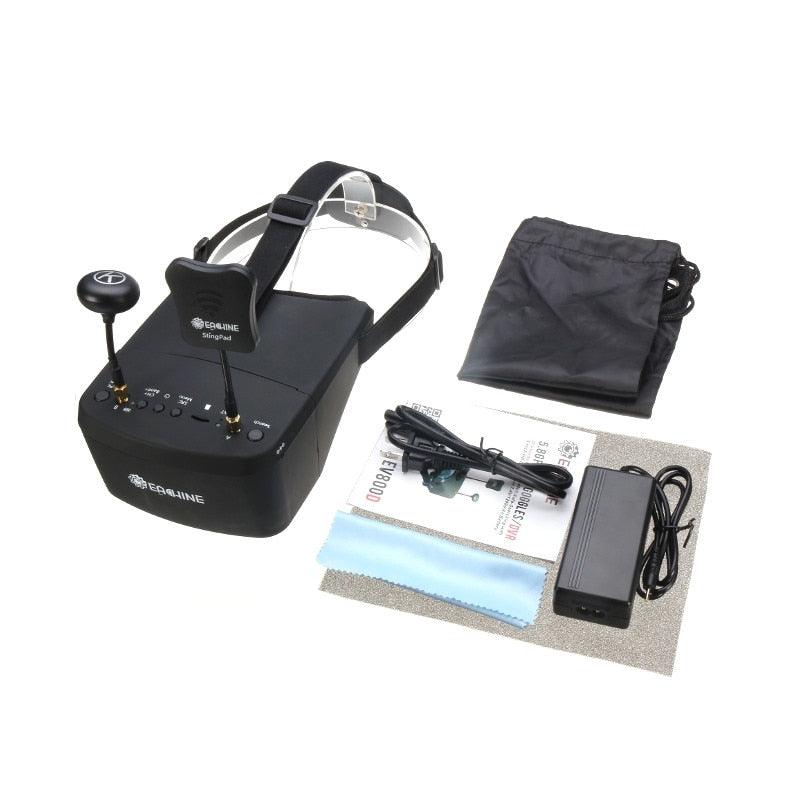

Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
