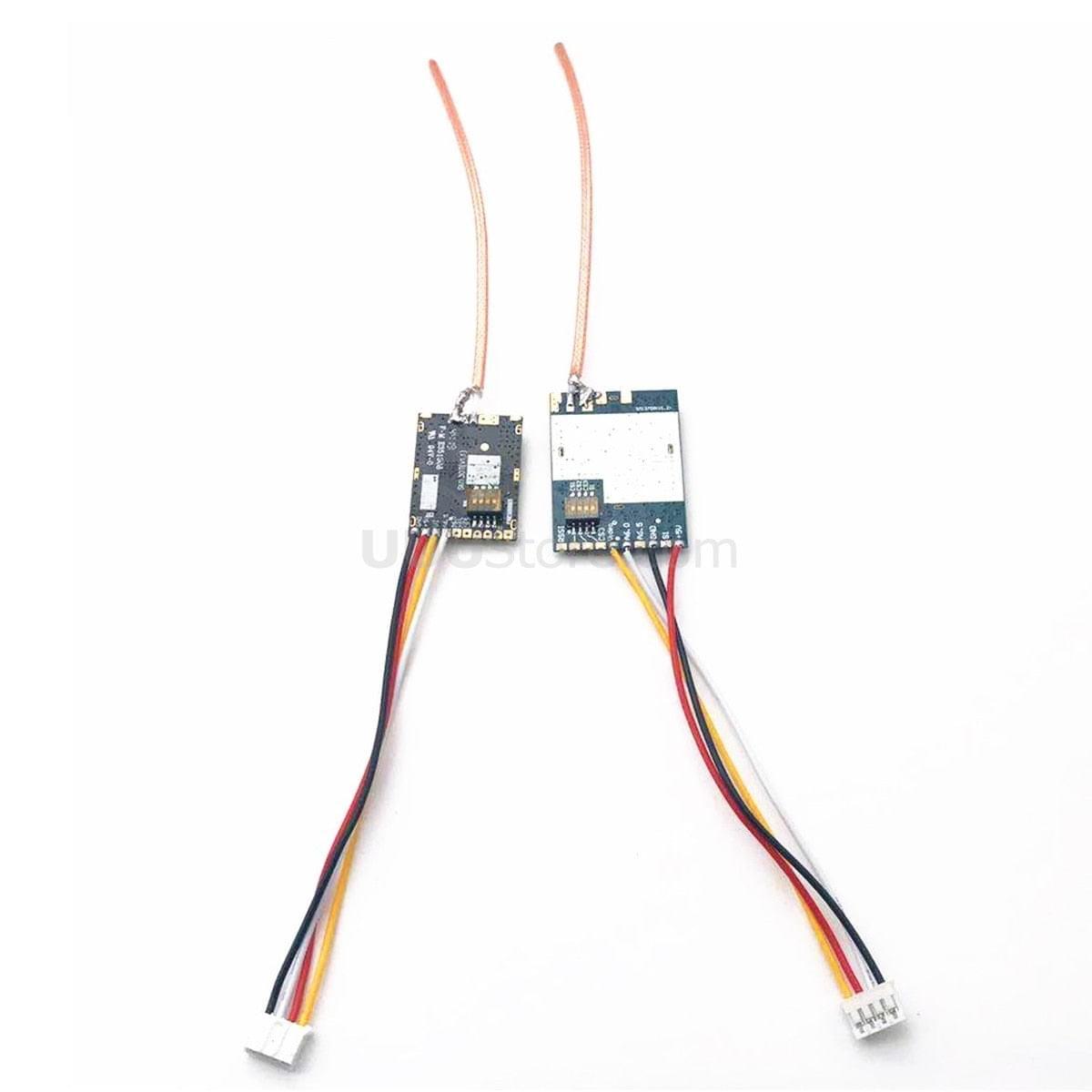

1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 2
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 3
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 4
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 5
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 6
1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane - Image 7
, ,

1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane

Price range: $31.41 through $65.82

+ Free Shipping
Full ComboSingle ReceiverSingle Transmitter
Clear
SKU: N/ACategories: , ,
Ask for more info

1.2G 8CH 700mW AV Analogue Siginal Transmission SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembly Category

Technical parameters: Value 10

Size: as description

Remote Control Peripherals/Devices: Receivers

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: Analogue Siginal Transmission

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

1.2G 8CH 700mW AV Analogue Siginal Transmission FPV System Transmitter Receiver Combo With Antenna For RC FPV Airplane

Description
Item Name : Analogue Siginal Transmission

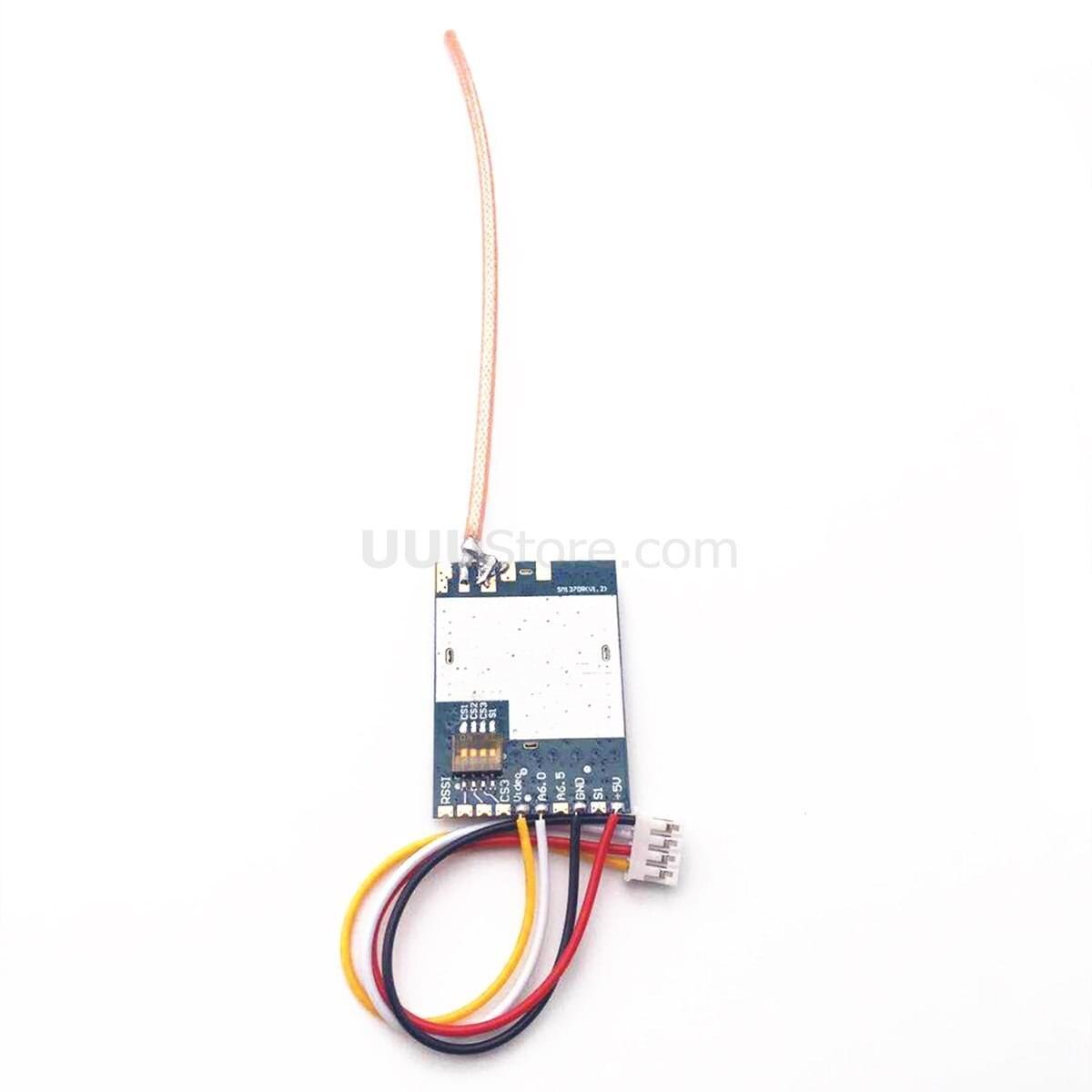

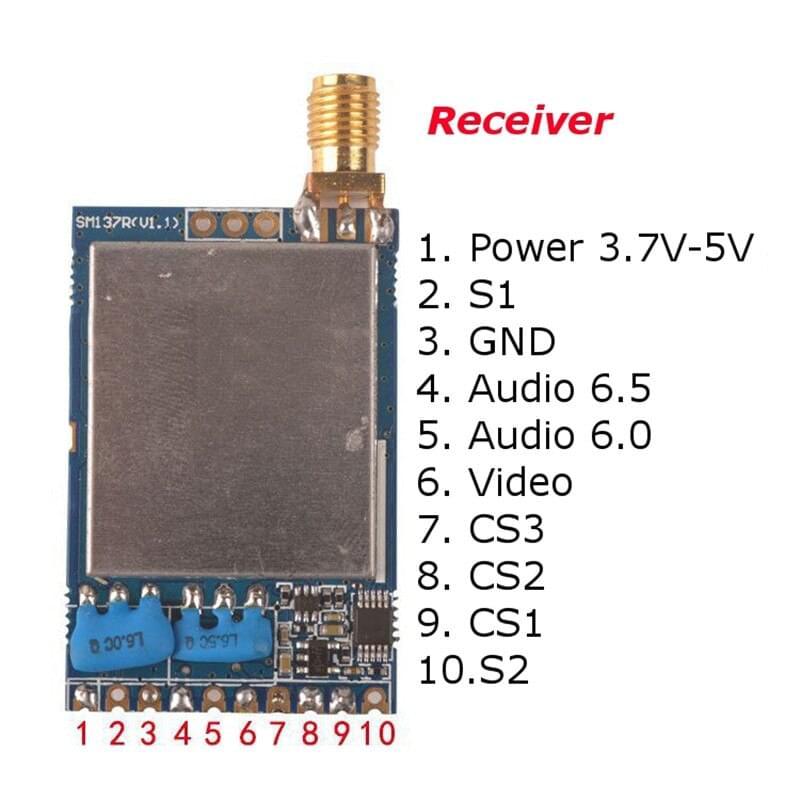

Receiver
Power Supply : 3.3-5V
Temp. : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 52*26mm
Weight : 20g

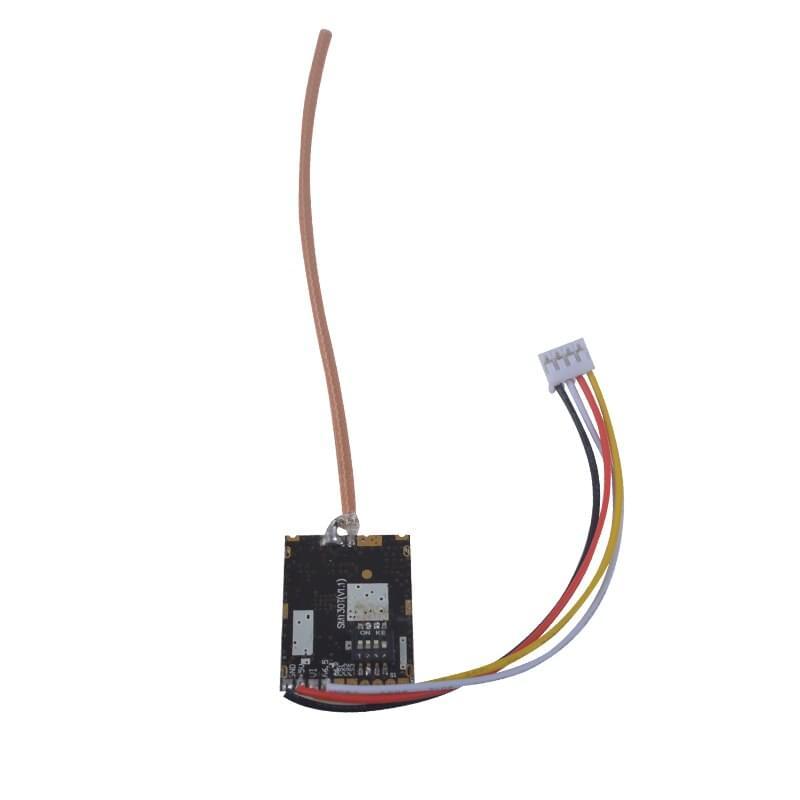

Transmitter
Power : 700mW
Power Supply : 3.3-5v
Working Temp : Temp. : -10~+65°
Frequency : 1000~1380Mhz
Channel : 8CH
Transmission : Video Audio Synchronous Transmission
Connector : SMA Male
Size : 29*21mm
Weight : 10g






-10+65° Frequency : 10001380Mhz Channel
-10+65° Frequency : 10001380Mhz Channel
1.2G 8CH 700mW

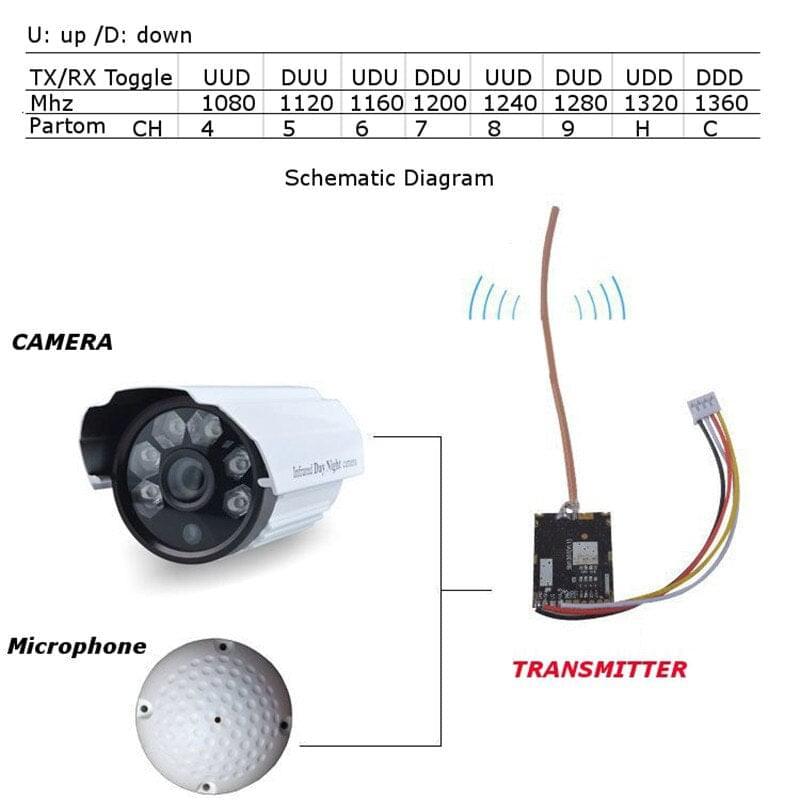

Schematic diagram for 1080-1360 MHz AV analogue signal transmission system, including camera, microphone, and transmitter unit.

-10+65° Frequency : 10001380Mhz Channel

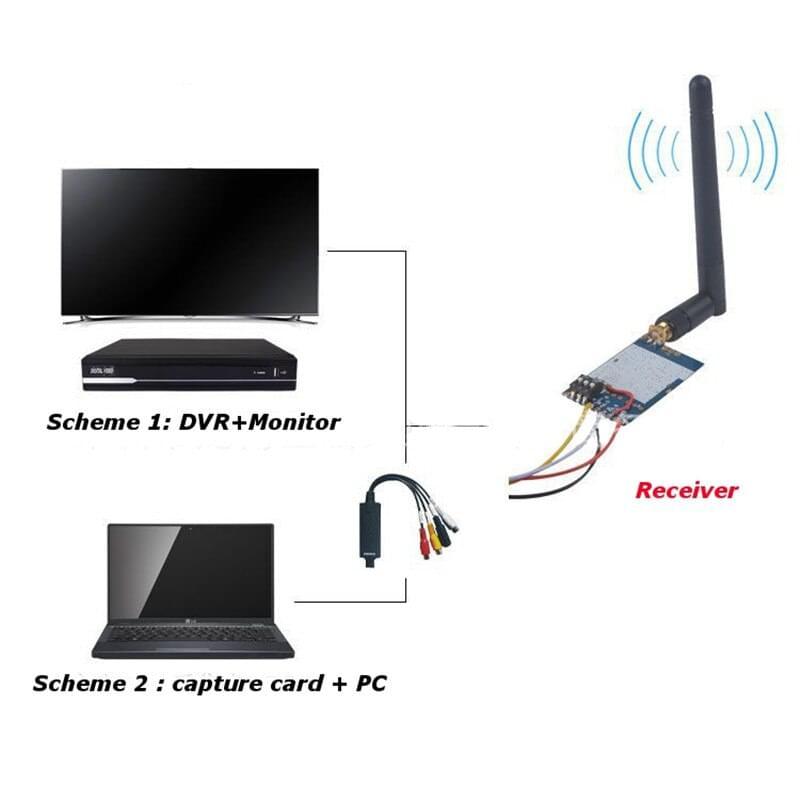

Scheme 1: DVR+Monitor Receiver Scheme 2: capture card PC



Color

Full Combo, Single Receiver, Single Transmitter
