SPECIFICATIONS

Brand Name: Dsservo

Origin: Mainland China

Material: Metal

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Tires

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Cutting

Technical parameters: KV1100

Model Number: DS3218.DS3225.DS3230.DS3235

Four-wheel Drive Attributes: Assemblage

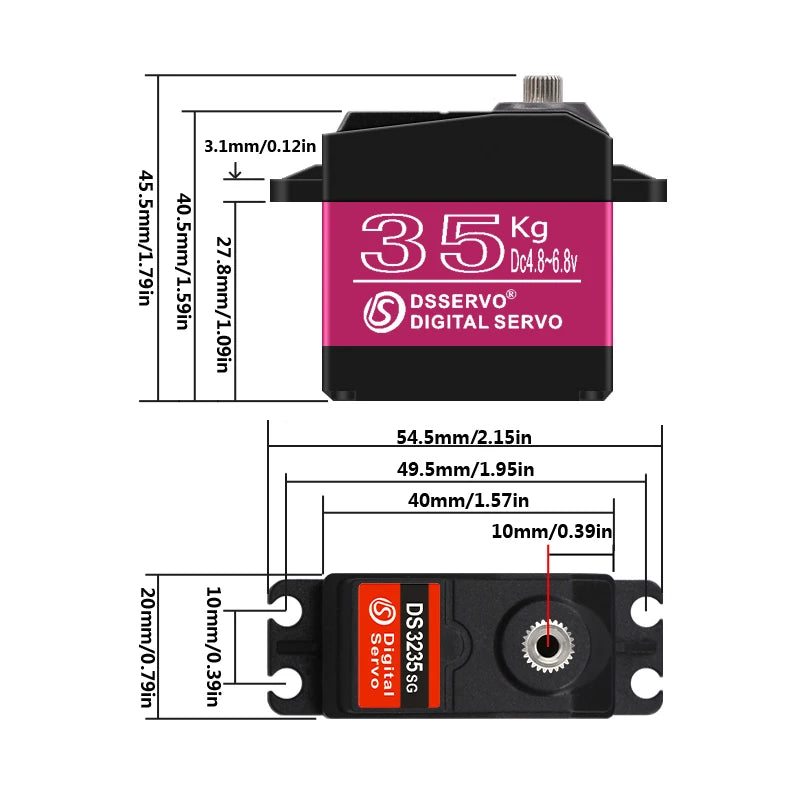

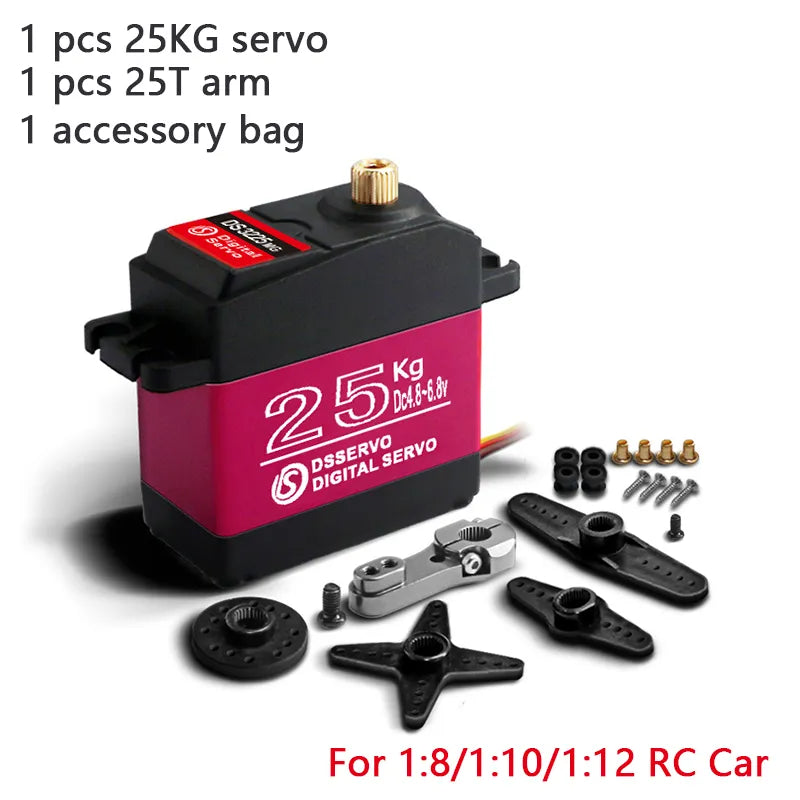

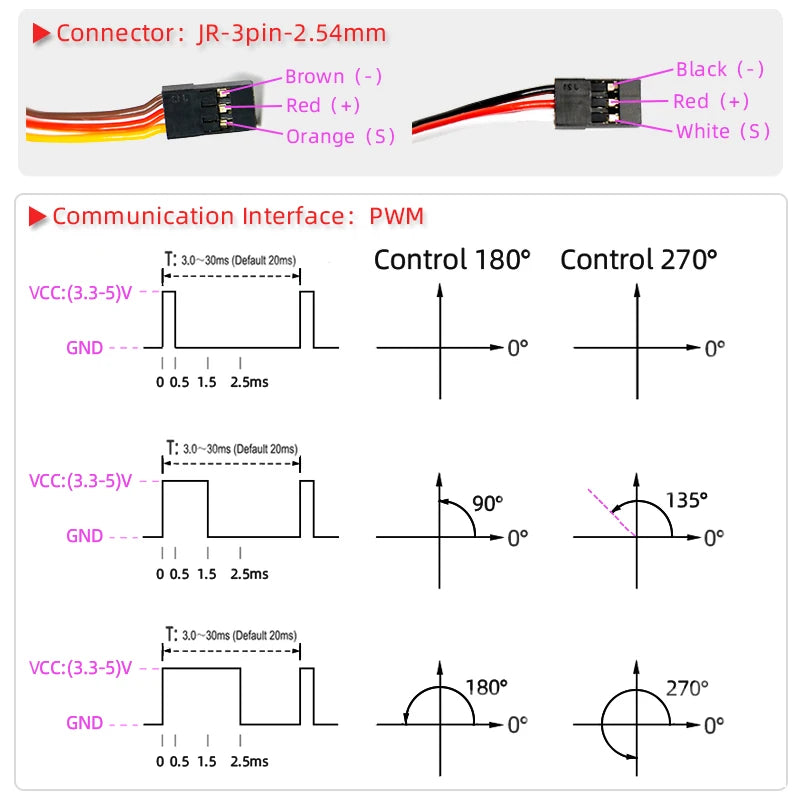

Sepcification: Brand Dsservo (RED) Product Name DS3218 ds3218 PRO ‘DS3225’ DS 3230 dd3230 PRO DS3335 DS3440 DS3640 . Torque 21.5kg .cm@6.8v 23.Skg cm @6. 8v 28kg. c m @ 6.8ve 34.S kg.c . . cm@Sv . Brand: Dsservo Packing List: 1x digital servo 1x 25T adjustable metal servo arm 1x accessory bag Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T   Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Carbon brush motor Electrical Specification: 1.Working voltage range:  4.8 – 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec) 35KG DS3235 Waterproof SSG 2) 32 Kg Deb_8 6666 88 For 1.8/1.10/1.12 RC Car or Robot DSEE 35 DSSERVO” SERVO ‘DIGITAL t If you need to buy more servos, please looking for 4X links in the store for discounts!
