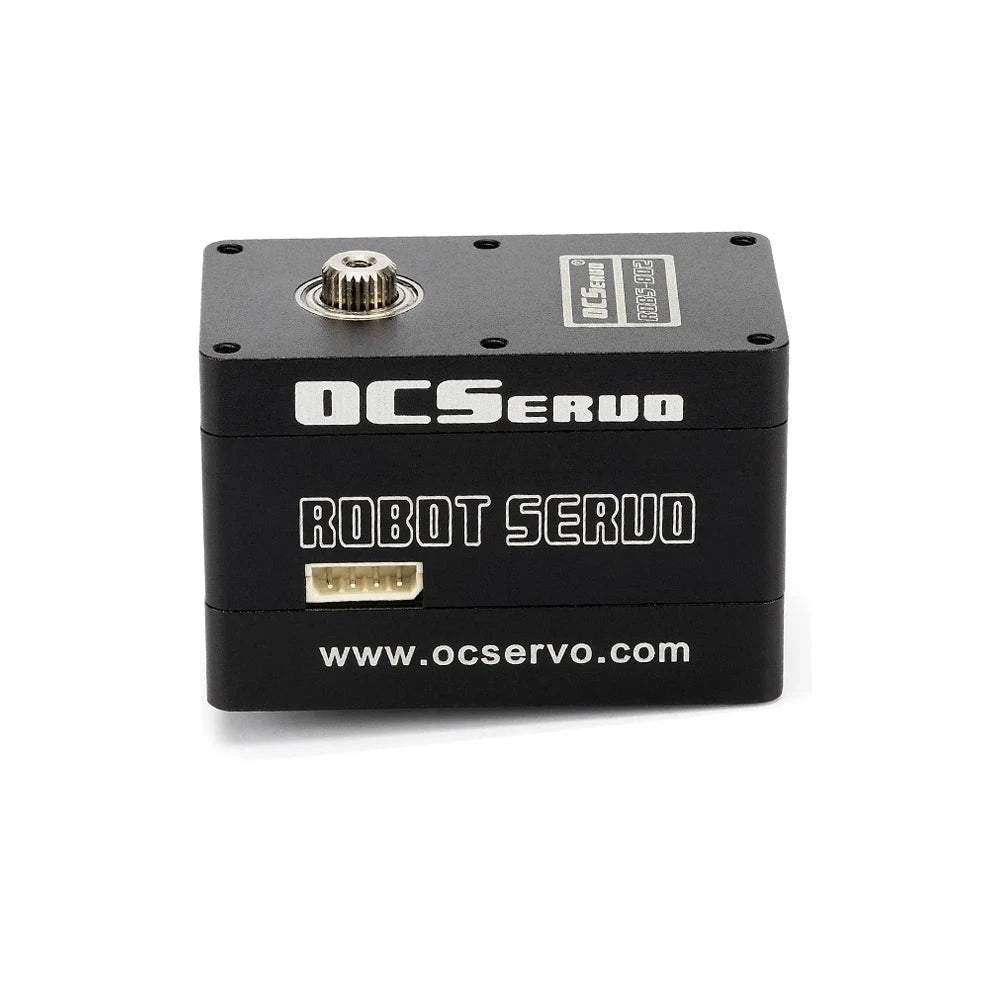

OCServo ROBS-601 – 58kg.cm Servo SPECIFICATIONS
Brand Name: OCSERVO
Origin: Mainland China
Material: Metal
Use: Vehicles & Remote Control Toys
Model Number: ROBS-601
Specification
Operating Voltage | 9.6V | 12.0V | – |
Stall Torque(kg-cm) | 45 | 58 | – |
Stall Torque(oz-in) | 624.9 | 805.5 | – |
Speed (RPM) | 44 | 55 | – |
Size (mm) | 62×34×36 | ||
Weight (g) | 125 g | ||
Resolution | 0.15° | ||
Operating Angle | 360°or Continuous turn | ||
Standby Current | 30 mA | ||
Stall Current | 4800 mA@12V | ||
Operating Temp | -10°C~80°C | ||
Communication | OCS | ||
Protocol Type | Full Duplex Asynchronous serial Communication | ||
Bus Interface | RS-485 | ||
Control System | Bus Packet Communication | ||
Module Limit | 254 (0-253) | ||
Com Speed | 38400bps-1Mbps | ||
Position FB | Yes | ||
Temp FB | Yes | ||
Load FB | Yes | ||
Speed FB | Yes | ||
Input Voltage FB | Yes | ||
Current Measurement | Yes | ||
Material | Metal Gear&Metal Body | ||
Motor | Carbon Brush Coreless Motor | ||
Manual Download | ROBS-601 Manual(PDF) | ||
The Drawings | ROBS-601 Drawing(PDF) | ||
