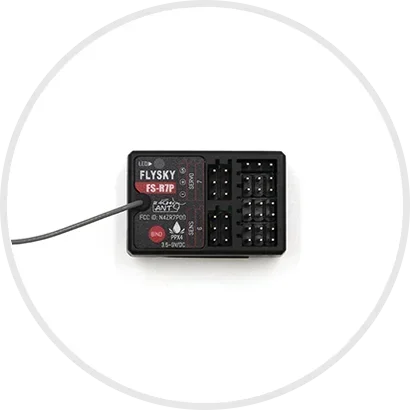

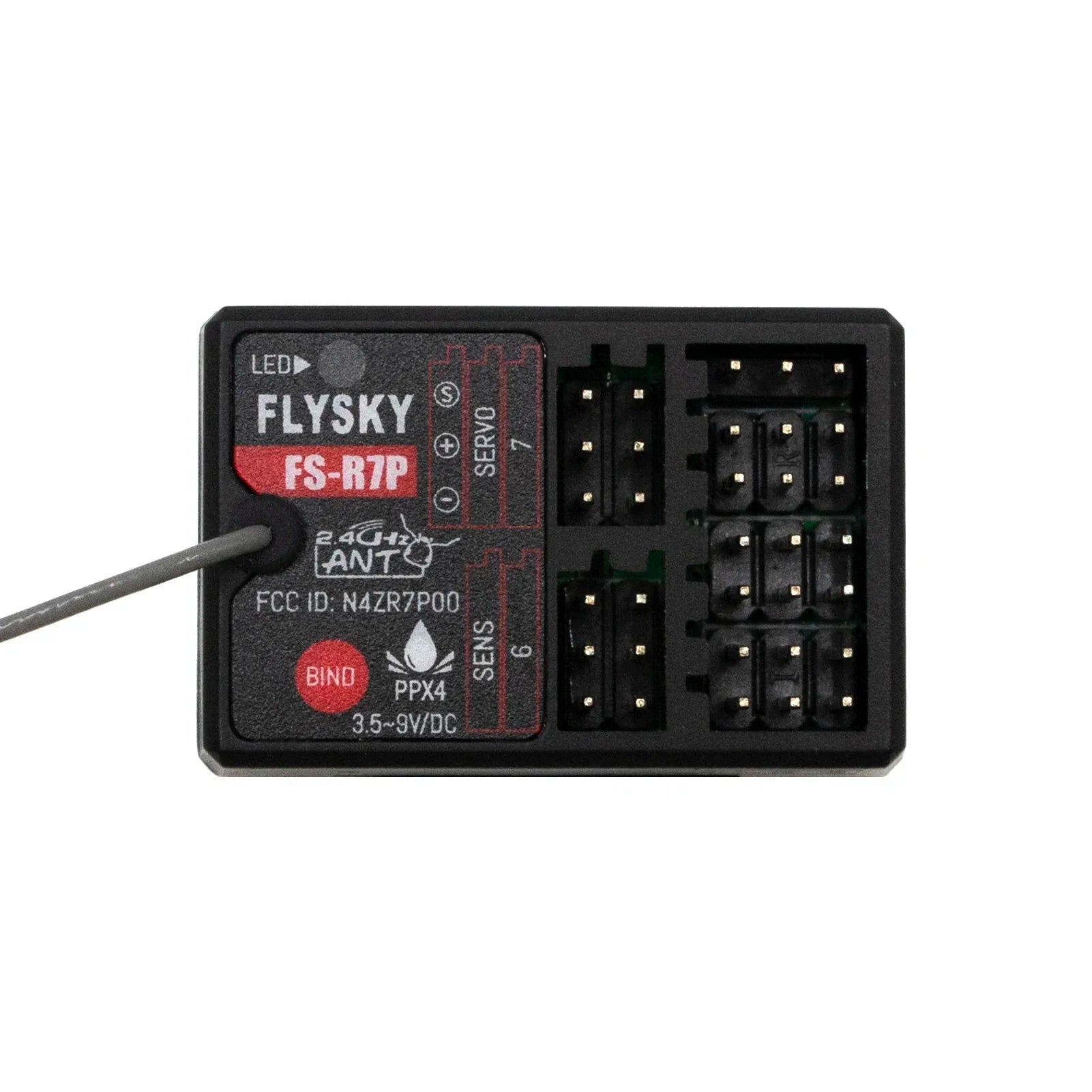

Product Model:  FS-R7P (G7P ST8 compatible)
PWM Channels: 7
RF: 2.4GHz
Protocol:  ANT
Range: >300M(Ground)
Antenna:  Single  Antenna
Input Power:  3.5-8.4V
RSSI: Support
Data Output:  PWM
Temperature Range:  -10℃-+60℃
Humidity Limit:  20%-95%
Waterproof Level:PPX4
Online Update:  Yes
Dimensions:  35*23.3*13.3mm
Weight: 8g
Certification:  CE,FCC ID:2A2UNR7P00

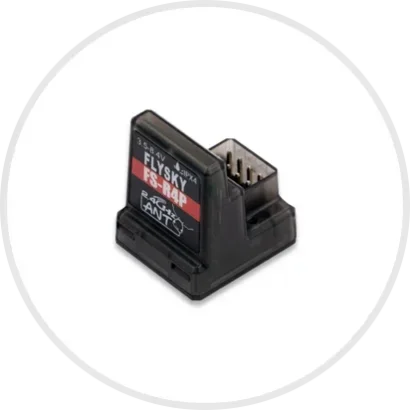

Product Model: FS-R4P (G4P G7P ST8 compatible)
PWM Channel: 4
Wireless Frequency: 2.4GHz
Wireless Protocol: ANT
Range: 100~300m (Ground)
Antenna Type: Built-in single antenna
Power: 3.5-8.4V
RSSI: Not Supported
Data port: PWM
Temperature range: -10 ℃ – + 60 ℃
Humidity range: 20% -95%
Online Update: No
Dimensions: 22.6*20.6*25.5mm
Weight: 6g
Certification: CE,FCC

Product Model:  FS-R4D Mini car (G4P G7P compatible)
PWM Channels: 4
Light Interface:4
RF: 2.4GHz
2.4G Protocol:  ANT
Range: 100~300M(Ground)
Antenna:  Built-in Single  Antenna
Input Power:  3.5-8.4V
RSSI:Not Support
Data Output:  PWM
Temperature Range:  -10℃-+60℃
Humidity Limit:  20%-95%
Online Update:  No
Dimensions:  34*18.4*11.5mm
Weight: 3.4g
Certification:  CE,FCC

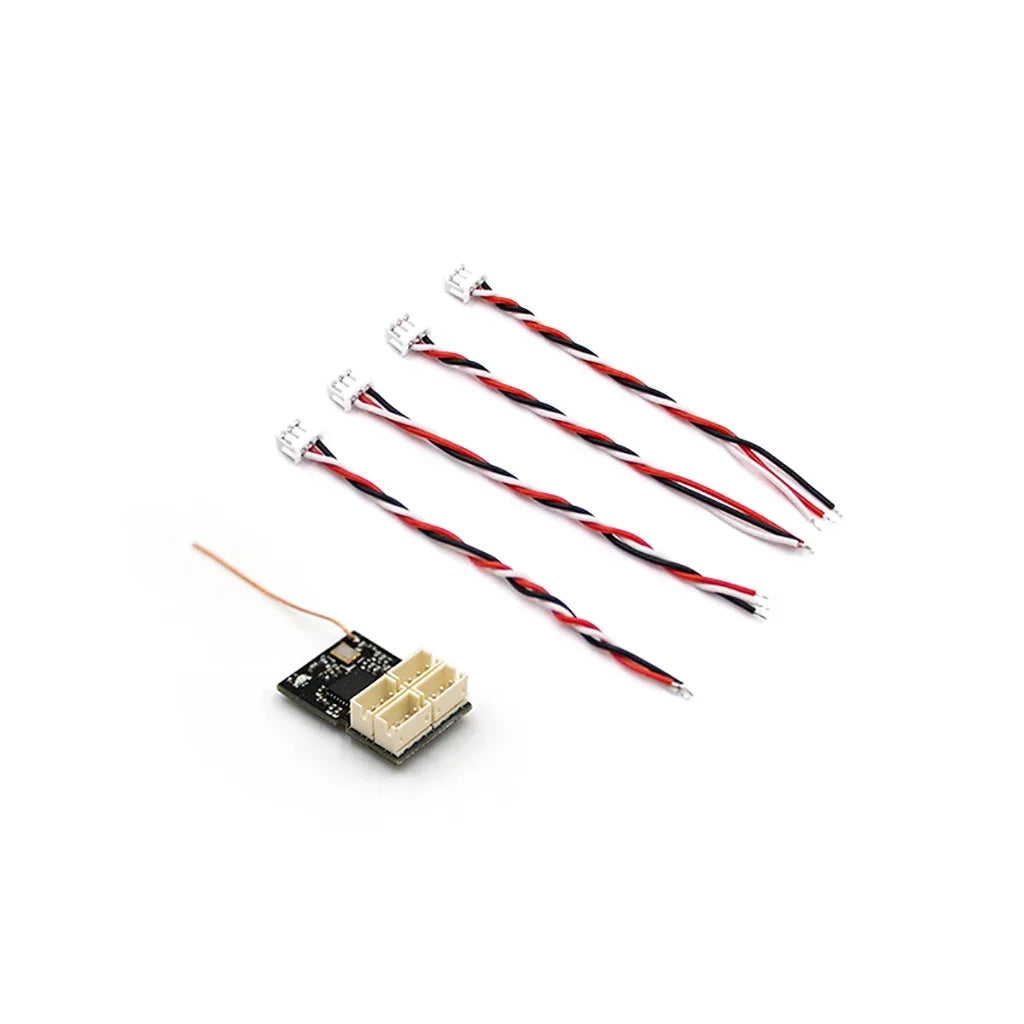

Product Model: FS-R4M (G7P compatible)
Adaptive transmitters: Transmitters with ANT protocol, such as FS-G7P
Adaptive Models: Mini/micro cars
Numbers of Channels: 4
 RF: 2.4GHz ISM
Maximum Power: < 10dBm(e.i.r.p.) (EU)
Antenna: Single Antenna
Distance: >50m(ground)
2.4G Protocol: ANT
Resolution: 1024
Data Output: PWM
Input Voltage Range: 3.5-9V/DC
Online Update: Yes
Temperature Range: -10℃ ～ +60℃
Humidity Limit: 20% ～ 95%
Dimensions: 20.0*13.0*7.2mm
Weight: 3g
Certification: CE, FCC ID: 2A2UNR4M0

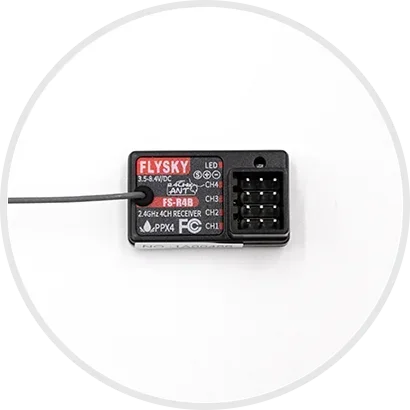

Product Model:  FS-R4B (G7P ST8 compatible)
PWM Channels: 4
RF: 2.4GHz
Protocol:  ANT
Range: 100~300M(Ground)
Antenna:  Single  Antenna
Input Power:  3.5-8.4V
RSSI: Support
Data Output:  PWM
Temperature Range:  -10℃-+60℃
Humidity Limit:  20%-95%
Online Update:  Yes
Dimensions:  30.2*18.0*13.0mm
Weight: 5g
Certification:  CE,FCC

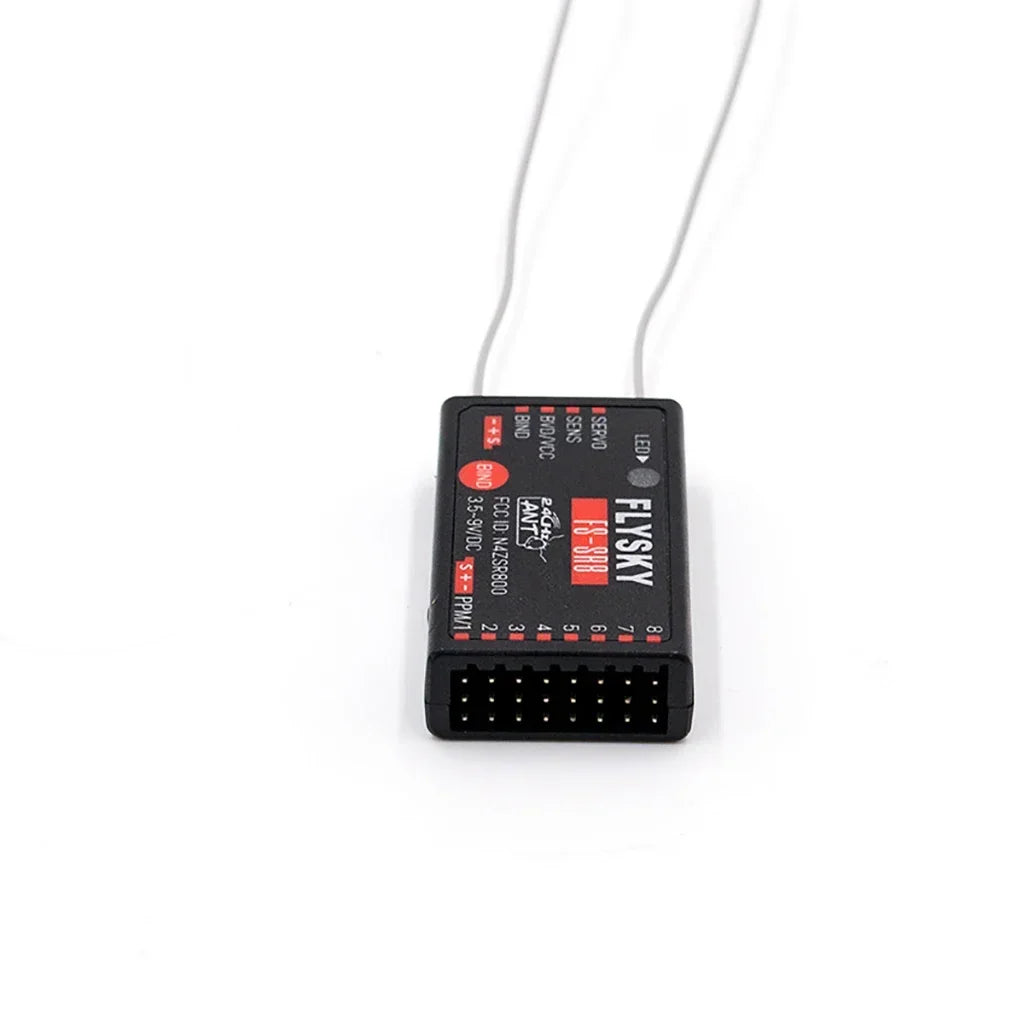

Product Model:  FS-SR8 (8 Channels ST8 compatible)
PWM Channels: 8
RF: 2.4GHz
Protocol:  ANT
Range: >1000m(in the air)
Antenna:  Dual  Antenna
Input Power:  3.5-8.4V
RSSI: Support
Data Output:  PWM,PPM,i.BUS,s.BUS
BVD Function :Yes, 0-70V
Temperature Range:  -10℃-+60℃
Humidity Limit:  20%-95%
Online Update:  Yes
Dimensions:  44.8*26.6*11.3mm
Weight: 10g
Certification:  CE,FCC ID:2A2UNSR800

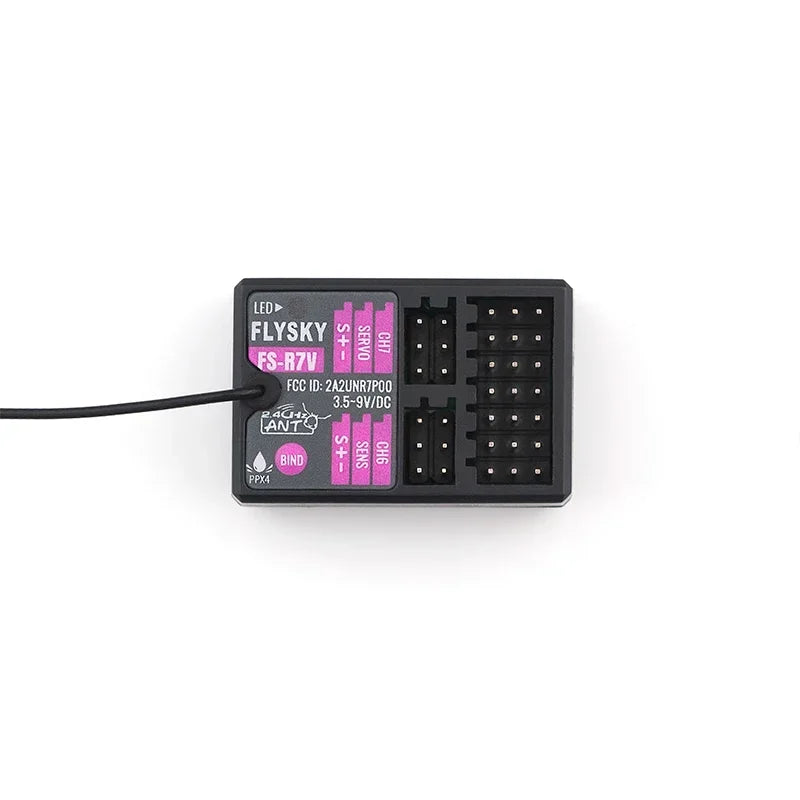

Product Name: FS-R7V (Built-in Gyro)
Compatible Transmitters: FS-G7P( Adapts surface transmitters with ANT protocol)
Compatible Models: Cars or boats
PWM Channels: 7
RF: 2.4GHz ISM
Maximum Power: <20dBm (e.i.r.p.) (EU)
Antenna: Single antenna
Distance: ≥ 300m (Ground distance without interference)
2.4G Protocol: ANT
Resolution: 4096
Data Output: PWM/PPM/i-BUS/S.BUS
Input Power: 3.5 ~ 9V/DC
Online Update: Yes
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95%
WaterProof: PPX4
Dimensions: 35.0mm*23.3mm*13.3mm
Weight: 8.0g
Certifications: CE, FCC ID: 2A2UNR7P00

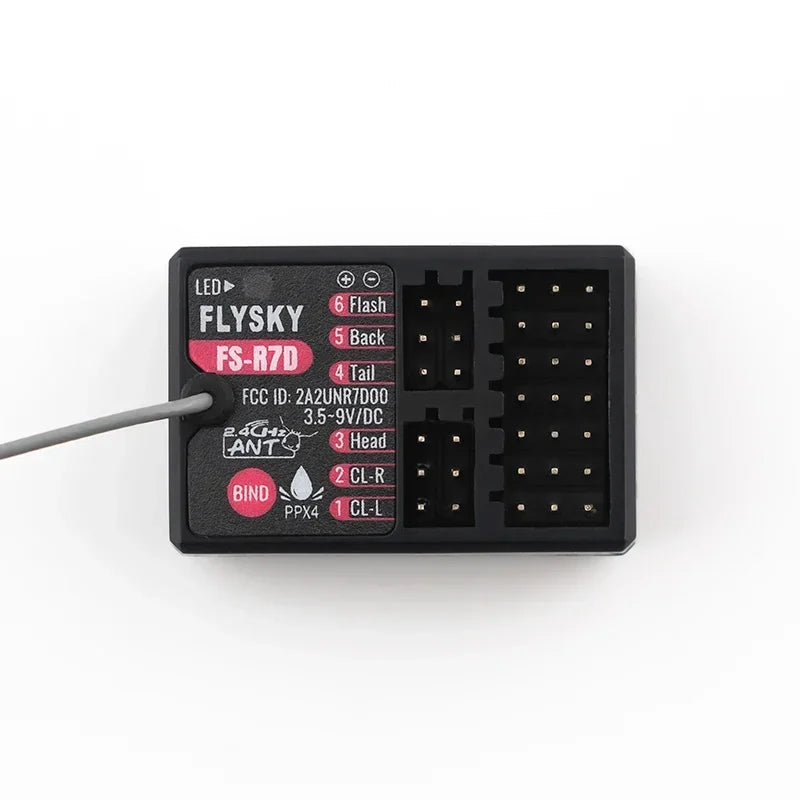

Product Model: FS-R7D (With LED Control)
Compatible Transmitters: FS-G7P(Surface transmitters with ANT protocol)
Model Type: Cars
PWM Channels: 7
Numbers of Light Interface: 6
RF: 2.4GHz ISM
2.4G Protocol: ANT
Antenna: Single external antenna(Coaxial)
Input Power: 3.5 ～ 9V /DC
Working Current: < 90mA(5V)
Data Output: PWM/PPM
Maximum Power: < 20dBm (e.i.r.p.) (EU)
Distance: >300m(Ground distance without interfence)
Online Update: Yes
Water Proof: PPX4
Color: Black
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20%~95%
Dimensions: 35*23.3*13.3mm
Weight: 8g
Certifications: CE, FCC ID:2A2UNR7D00

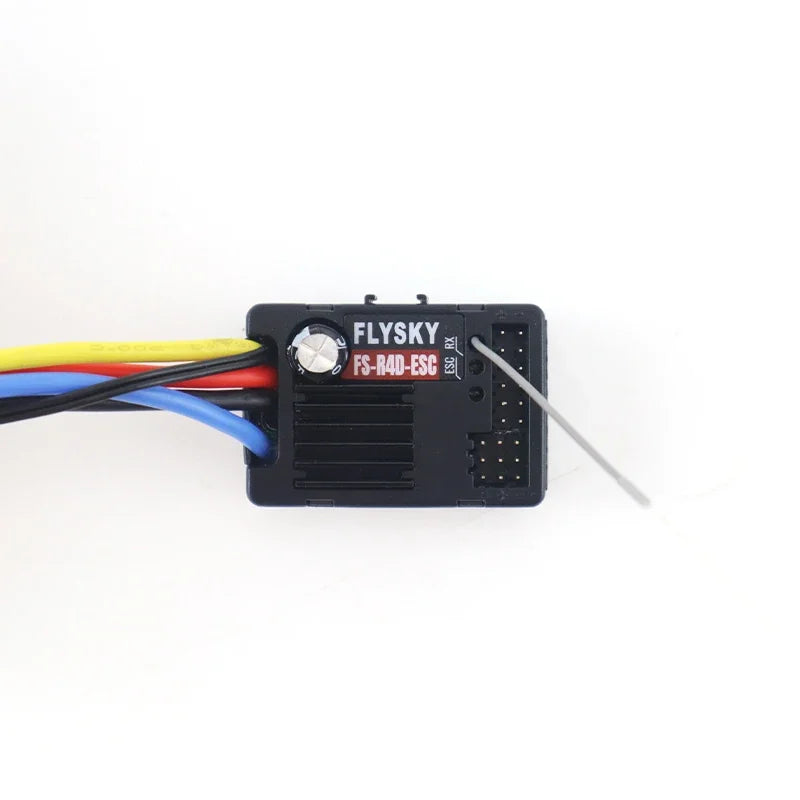

Product Model:  FS-R4D-ESC
Compatible transmitters:  FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)
Model Type:  1/10 crawler, on-road car, off-road short course truck, and truck
Number of Channels: 4
Number of Light Interfaces: 6
RF: 2.4GHz ISM
2.4G Protocol:  ANT
Antenna:  Single External Antennas
Input Power:  LiPo (2-3S)/ NiMH(5-9Cell)
BEC Output:  6V/3A
Continuous/Peak Current: 40A/200A
Motor Type: Brushed Motor
Applicable Motors: 550, 540, 390, 370 or 280 Brushed Motor
Data output: PWM
Resolution: 4096
Temperature Range:  -10℃ to +60℃
Humidity Limit:  20%-95%
Distance: >150m(Ground Distance without interference)
Waterproof: PPX7
Online Update:  None
Dimensions:  44*30*16.7mm
Weight: 43g (Without pin header)
Certification: CE,FCC ID: 2A2UNR4DESC

the FS-RZV Q 352 based on ANT protocol is a receiver which provides seven channels and bidirectional transmission . it fea- tures an external single antenna with built-in gyroscope and compact design .

Intoducton FS RTvba FS-RTvX-Rrmant edr,E47amaroiku : bidirector Azrrn= SineEl, I98 PwM ppwi-Bus BUS anocome 68- RitS7x J*rs#rvrnrwrca .

Specifications for FlySky FS-R8 Receiver:

* Channels: 8 (PWM)
* RF Frequency: 2.4GHz
* Protocol: ANT
* Range: >100m (in air)
* LED Indicator: FLYSKY
* Input Power: 3.5-8.4V
* Supported Systems: FO-BHB SENS RSSI
* Supported Protocols: BVO-NCC

The FlySky FS-R7D receiver is a light group receiver that complies with the ANT protocol. It features an external single antenna design, supporting bidirectional (2-way) transfer-back functionality. Additionally, its compact design makes it adaptable to various vehicle models.

FCC compliance frequency: 243.3 MHz. Data output: PWM (8-bit). Operating temperature range: 10°C -80°C. Frequency tolerance: ±2 C/ dBm (EU). Dimensions: 25 x 23.3 x 12.3 mm. Weight: 8g. Certifications: CE, FCC ID: 2-ZUNRTDCD.

LED indicator has 6 flash modes. Compatible with FLYSKY products, including FS-RZD tail section. FCC ID: 2-AZUNRTDOO. Operating voltage: 3.5-9V DC. Input current: 24mA. ANT head compatible with CL-R ‘BIND’ PPX4 module.

FS-R7D is a high-quality antenna box, widely used by many hobbyists and professionals alike.

Note: FlySKY TS-R7p, dimensions 40 x 23.3 mm, compatible with CANIC. FCC ID: NazRZPUO. Power requirements: 8V DC @ 30mA. Compatible with BIND PPX4 module. Dimensions (length): 13.3 mm. Part number: 1F13654.

FS- R4B Receiver Specifications:
* PWM Channels: 4
* Radio Frequency (RF): 2.4 GHz
* Protocol: ANT
* Range: 100m – 3000m (ground)
* Antenna: Yes
* Data Output: PWM
* Temperature Range: -10°C to +60°C
* Humidity Limit: 20% – 95%
* Online Update: Yes
* Dimensions: 30.2 x 18.0 x 13.0 mm
* Weight: 50g
* Certification: CE, FCC

FS- R4D Receiver Specifications:
* PWM Channels: 4
* Light Interface: None
* Radio Frequency (RF): 2.4 GHz
* Protocol: ANT
* Range: 100m – 3000m (ground)
* Antenna Input Power: 3.5-8.4V
* RSSI Support: No
* Data Output: PWM
* Temperature Range: -10°C to +60°C
* Humidity Limit: 20% – 95%
* Online Update: No
* Dimensions: 34 x 18.4 x 11.5 mm
* Weight: [No weight specified]
* Certification: CE, FCC

FlySky FS-R7V Receiver Specifications:
* A miniature, 4-channel receiver that utilizes the ANT protocol
* Equipped with an external single antenna for improved signal reception
* Compact design makes it suitable for small-scale vehicles such as mini-z models

FlySky FS-RAM Receiver Specifications:
* Designed for use with adaptive transmitters in miniature cars that utilize the ANT protocol
* Radio Frequency (RF): 2.4 GHz, ISM band
* Maximum Power: 10 dBm (1 mW)

FlySky FS-RAP Receiver Specifications:
* PWM Channels: 4
* Wireless Frequency: 2.4 GHz
* Wireless Protocol: ANT
* Range: 100-3000m (ground)
* Antenna Type: Built-in single antenna
* Power Input: 3.5-8.4V
* RSSI Support: Not Supported
* Data Port: PWM
* Temperature Range: -10°C to 60°C
* Humidity Range: 20% – 95%
* Online Update: No
* Dimensions: 22.6 x 20.6 x 25.5mm
* Weight: 6g
* Certification: CE and FCC compliant

FlySky FS Receiver Overview:
* Frequency: 2.4 GHz
* Protocol: ANT (Automatic Network Technology)
* Features: MAHA (Motor Activity High-Accuracy) and WAM (Wireless Antenna Module)
* Compatible with VHB (Vibration-Resistant) systems
* 131H115% receiver overview online available

FS-RAD-ESC Receiver Compatibility:
* Compatible with transmiters from FlySky, including FS-HW-GAP, FZ-MG4, FS-GTP, and MG-T
* RF Frequency: 2.4 GHz, ISM band (2.4 GHz)
* Protocol: ANT
* Antenna Size: 44mm
* Input Power:
+ LiPo batteries: 2-35V
+ NiMH batteries: 5-9 cells
