CUAV NEW V5+ autopilot flight controller – base on FMU V5 Open source hardware for FPV RC Drone Quadcopter Helicopter Pixhawk

$554.59$671.30

+ Free Shipping
FC with GPS
Only FC
FC with GPSOnly FC
Clear
SKU: N/A Category:

SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Flight controller

Tool Supplies: Assembled class

Technical parameters: Value 10

Size: as description

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,18+

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: CUAV NEW V5+ autopilot flight controller

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

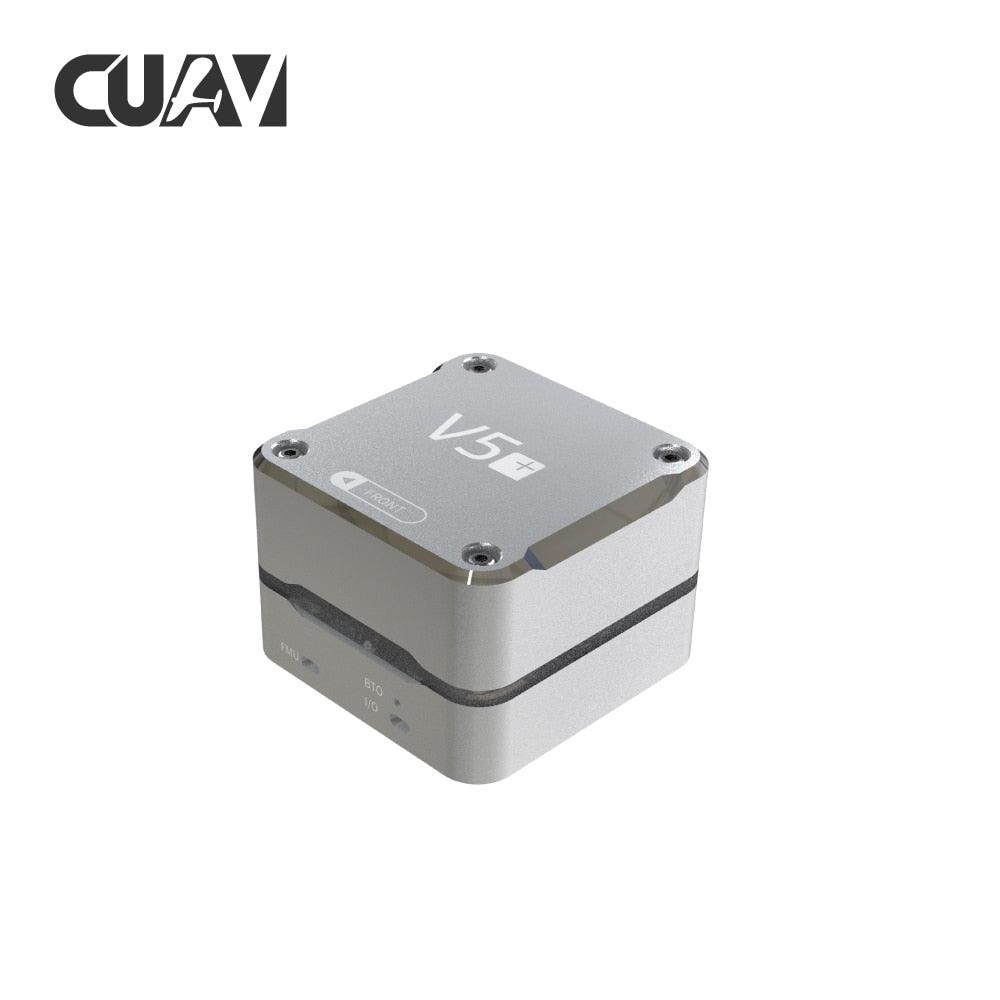

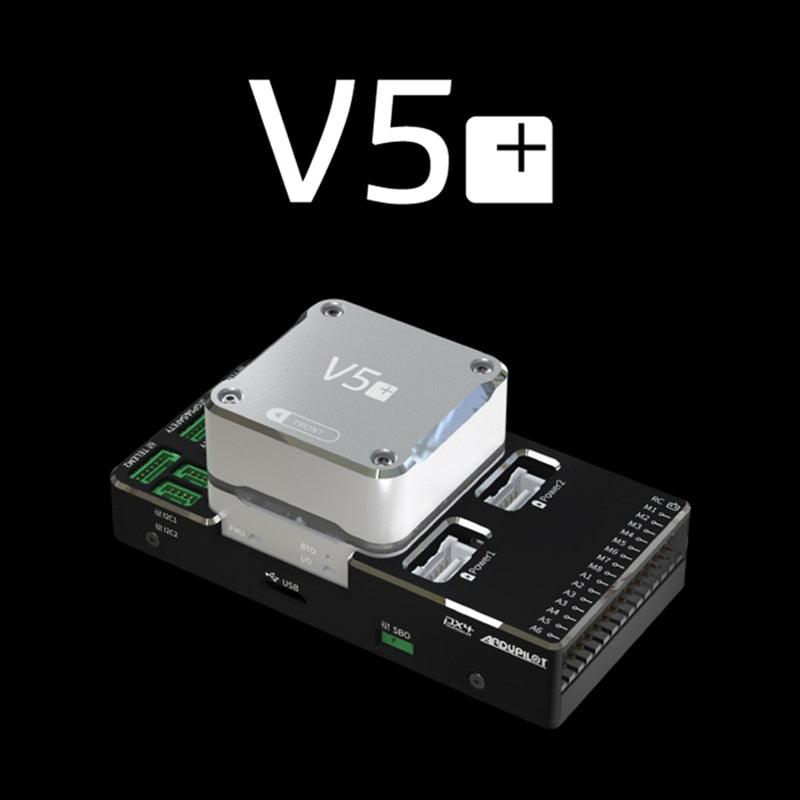

CUAV NEW V5+ autopilot flight controller base on FMU V5 Open source hardware for FPV RC Drone Quadcopter Helicopter Pixhawk

V5 + AutoPilot
V5+ AutoPilot® is an advanced autopilot designed and made in CUAV® . The board is based on the FMUv5open hardware design, the external interface uses the Dronecode standard pinouts, and the modular design allows the user to design its backplane. It is fully compatible with PX4 and ArduPilot firmware. Mainly used for academic and business development.



Quick Summary
Main FMU Processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
IO Processor: STM32F100
32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
On-board sensors:

Accelerometer/Gyroscope: ICM-20689
Accelerometer/Gyroscope: BMI055
Magnetometer: IST8310
Barometer: MS5611
Interfaces:

8-14 PWM outputs (6 from IO, 8 from FMU)
3 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for PPM and S.Bus
analog / PWM RSSI input
S.Bus servo output
5 general purpose serial ports
4 I2C ports
4 SPI buses
2 CANBuses with serial ESC
Analog inputs for voltage / current of 2 batterie
Power System:
Power: 4.3~5.4V
USB Input: 4.75~5.25V
Servo Rail Input: 0~36V
Weight and Dimensions:
Weight: 90g
Dimensions: 85.5*42*33mm
Other Characteristics:
Operating temperature: -20 ~ 80°c(Measured value)


CUAV NEW V5+ autopilot flight controller, VSm AUtopilot High performance STM32F765 main processor Multiple sets

Featuring a high-performance STM32F765 main processor, this autopilot system boasts multiple sets of redundant sensors and a rich I/O interface. Its modular design allows for easy customization to suit your specific needs.

HTB1J9jHXACy2eVjSZPfq6zdgpXaWCUAV NEW V5+ autopilot flight controller, new FMUS Hardware Design VS+is a new high-performance flight control system

The CUAV NEW V5+ autopilot flight controller features an advanced, high-performance flight control system built upon open-source hardware. Compared to its predecessor, the FMU V3, it boasts a more powerful processor, increased FLASH storage, and enhanced RAM capabilities.

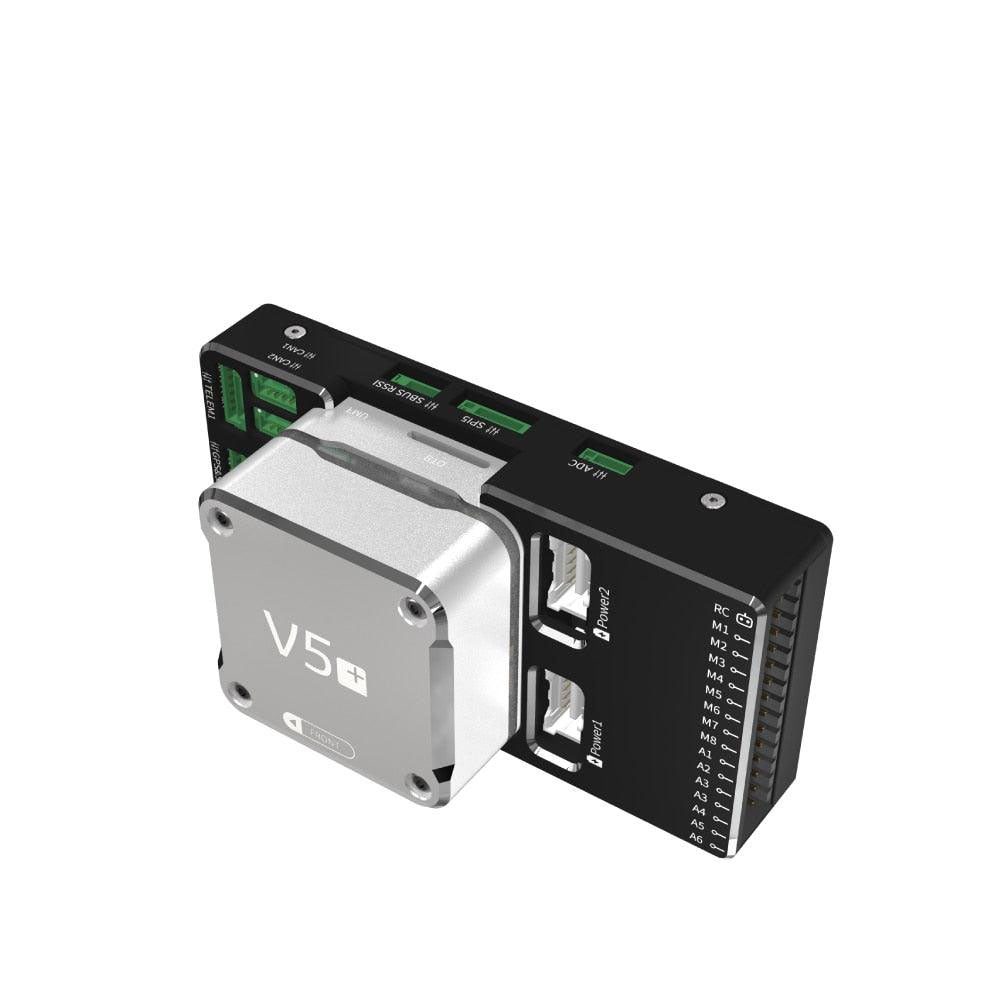

CUAV NEW V5+ autopilot flight controller, VS+ adopts a modular design, which is convenient for user integration . the

The CUAV NEW V5+ autopilot flight controller features a modular design that facilitates easy user integration. The detachable backplane serves solely as a carrier for external interfaces, providing a convenient means to connect peripherals and accessories.

CUAV NEW V5+ autopilot flight controller, built-in shock absorption system to adapt to various severe environments . the applicability

The CUAV NEW V5+ autopilot flight controller features a built-in shock absorption system designed to adapt to various severe environmental conditions, providing enhanced durability and reliability in extreme settings.

CUAV NEW V5+ autopilot flight controller, VS+ hardware and interfaces are based on the Dronecode/PX4

CUAV is dedicated to advancing the PX4 ecosystem, with the CUAV NEW V5+ autopilot flight controller designed in accordance with the Dronecode/PX4 standard. The VS+ hardware and interfaces are built around this industry-leading framework.

CUAV NEW V5+ autopilot flight controller, the flight controller monitors the multi-channel sensor data in real time . it performs

The CUAV NEW V5+ autopilot flight controller continuously monitors multi-channel sensor data in real-time, instantly performing redundant switching in the event of a fault to ensure optimal flight safety and stability.

CUAV NEW V5+ autopilot flight controller, VS+ selects the faster STM3ZF 765 processor with better performance

The CUAV NEW V5+ autopilot flight controller features the advanced STM32F765 processor, which provides significant performance enhancements compared to previous models. This upgrade offers increased clock speeds, expanded RAM capabilities, and overall improved processing speed for enhanced system performance.

Package inclued:

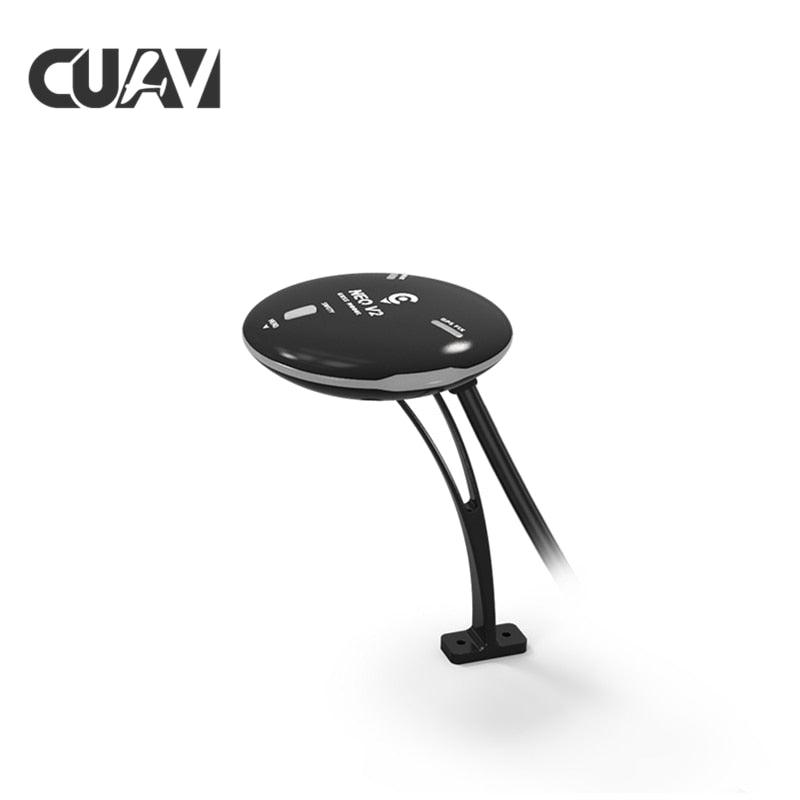

FC with GPS :

initpintu_副本

Product picture :

HTB1mSJDV3TqK1RjSZPhq6xfOFXaxHTB1SrhQVYrpK1RjSZTEq6AWAVXatHTB1A1BPV9zqK1RjSZFpq6ykSXXaaHTB14gRGV9zqK1RjSZFLq6An2XXaiHTB1f3JNV7voK1RjSZFDq6xY3pXaZHTB1KMFNV7voK1RjSZFDq6xY3pXaMHTB1O2BsVY2pK1RjSZFsq6yNlXXaXHTB1DCRxV6TpK1RjSZKPq6y3UpXa4HTB1mZkrBHSYBuNjSspfq6AZCpXasHTB1dyTUBHuWBuNjSszgq6z8jVXavHTB1Z7p6B_tYBeNjy1Xdq6xXyVXaRHTB1M.KQB.R1BeNjy0Fmq6z0wVXaB

The CUAV NEW V5+ autopilot flight controller features a robust and reliable hardware architecture, incorporating the Pixhawk 2.0 platform with separate modules for integrated processing. The MCU is based on the STM32F427 chip, running at a frequency of 168MHz, with RAM capacities of 256KB, 512KB, and FLASH storage of 2MB. Additionally, the system includes an array of sensors, including the L3GDZOH, ICM20602, LSM303D, ICM20689, MPU9250, MPU6000, IST8310, and MS5611.






Color

FC with GPS, Only FC
