3DR Radio V5 Telemetry SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: 3DR RADIO
Tool Supplies: Battery
Technical parameters: Value 6
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y,14+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: 3DR RADIO V5
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: TEAEGG
We have tested the radio telemetry and can connect normally. We have uploaded the firmware. Please do not upload the firmware. Different firmware will cause the firmware to be incompatible. Please do not modify the parameters. Wrong parameters may not work.
Wifi Telemetry can be used for PIXHAWK or APM flight controller,it is same as 3DR radio telemetry.
wifi Telemetry for APM is used for APM flight controller.
wifi Telemetry for pixhawk is used for pixhawk 2.4.8

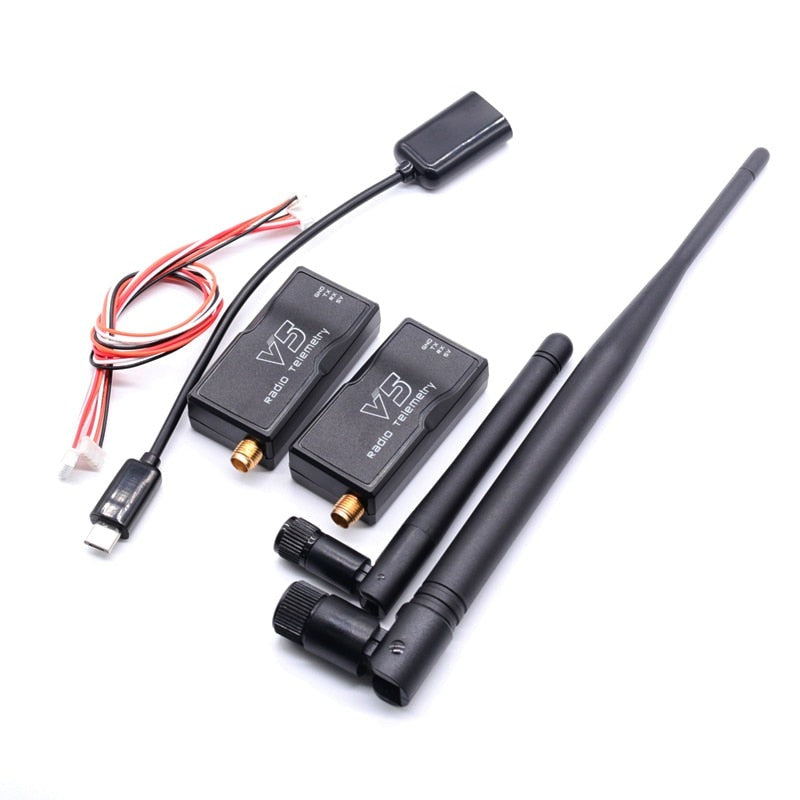

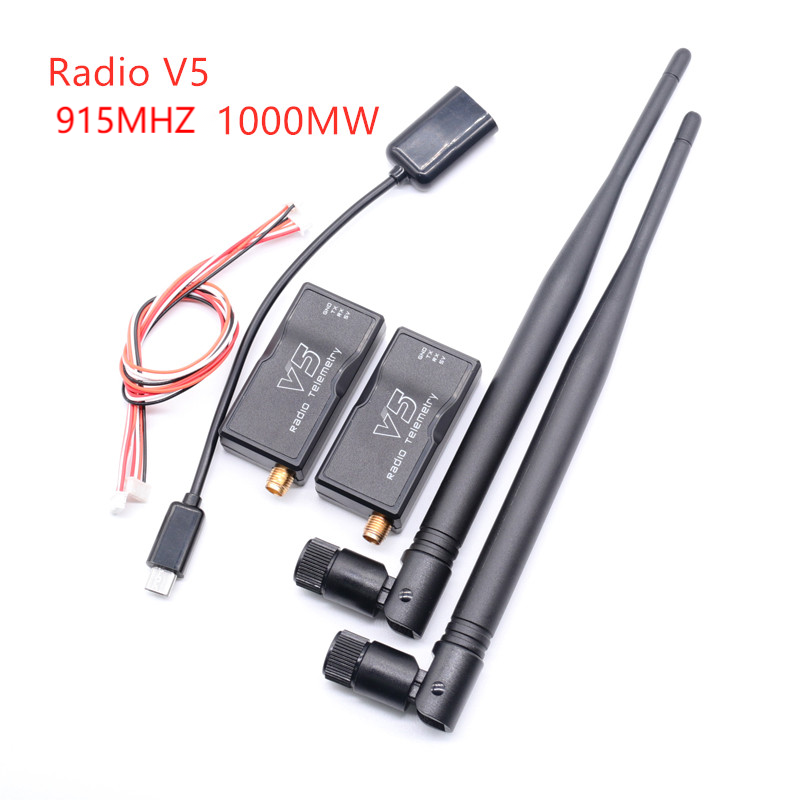

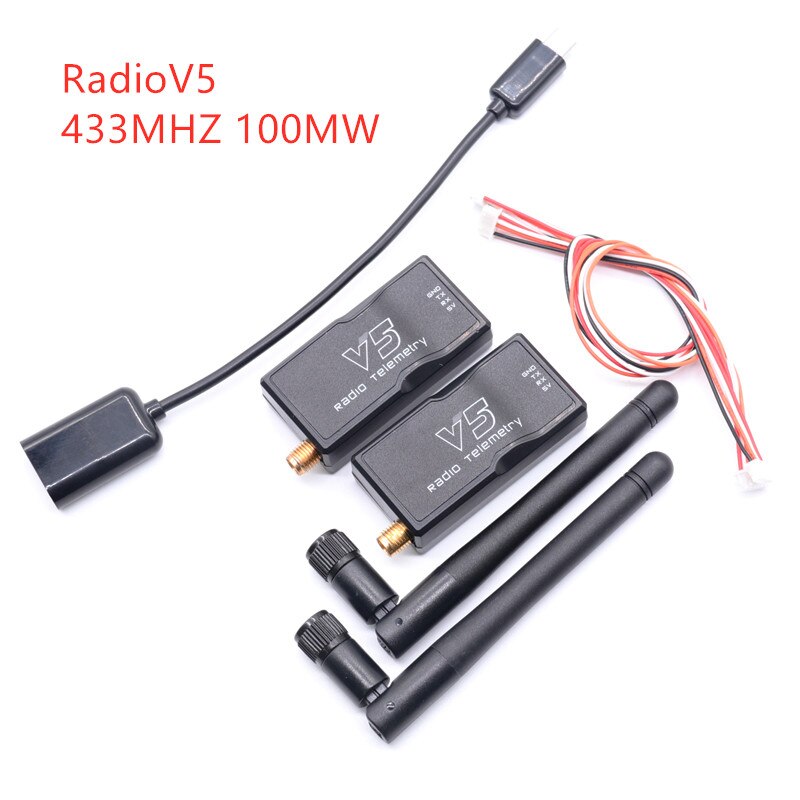

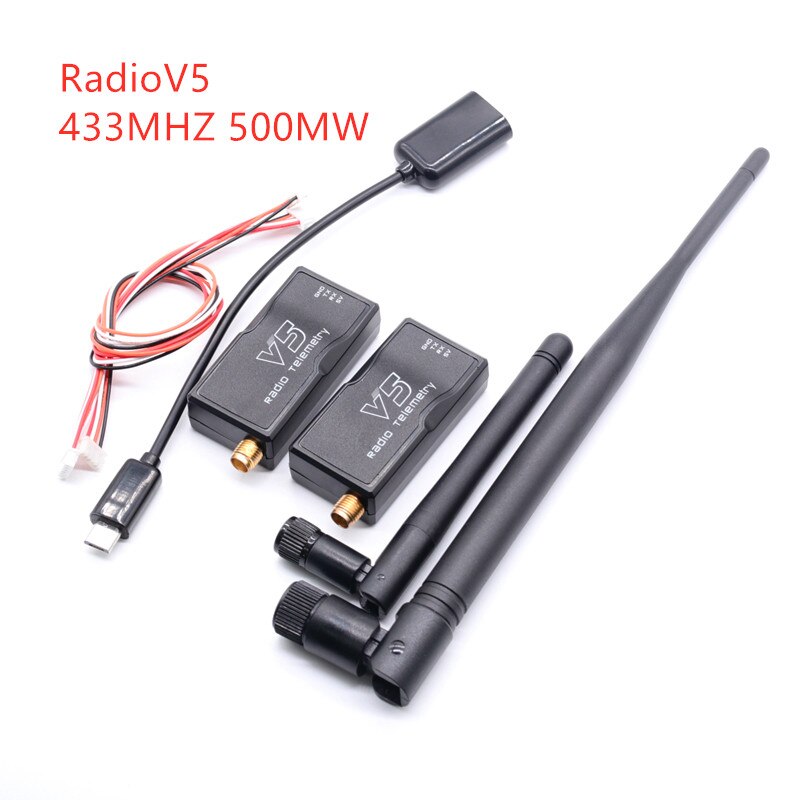

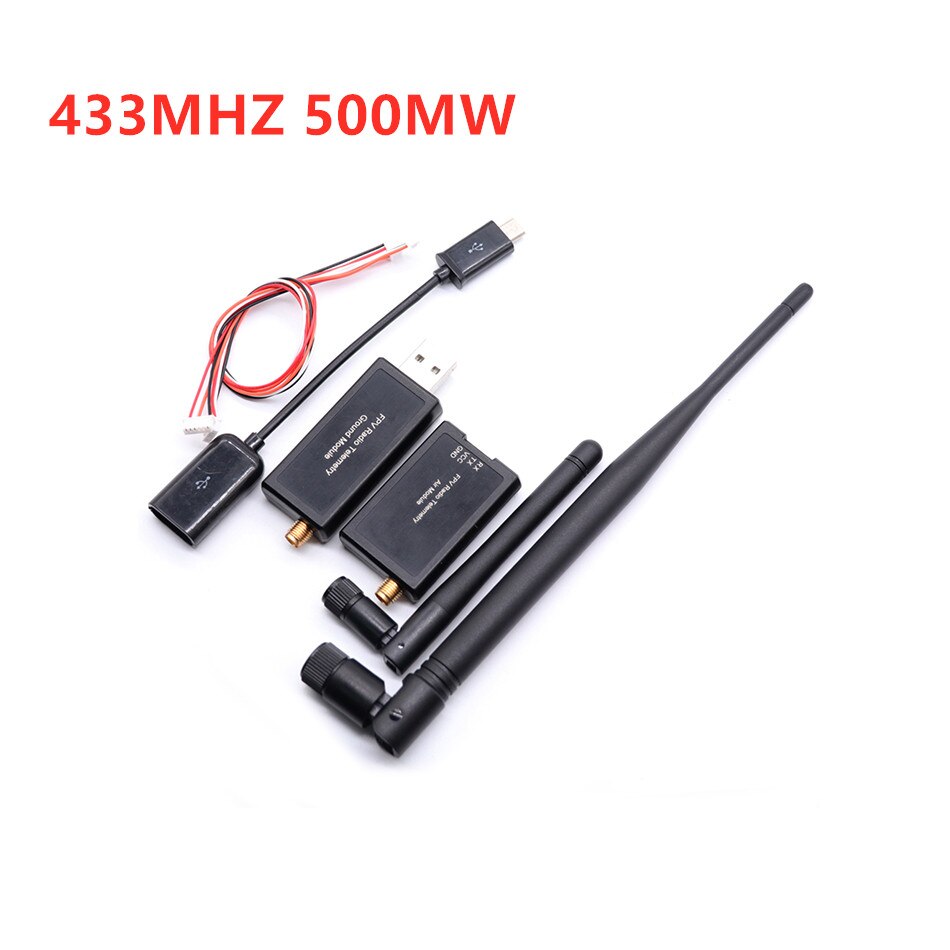

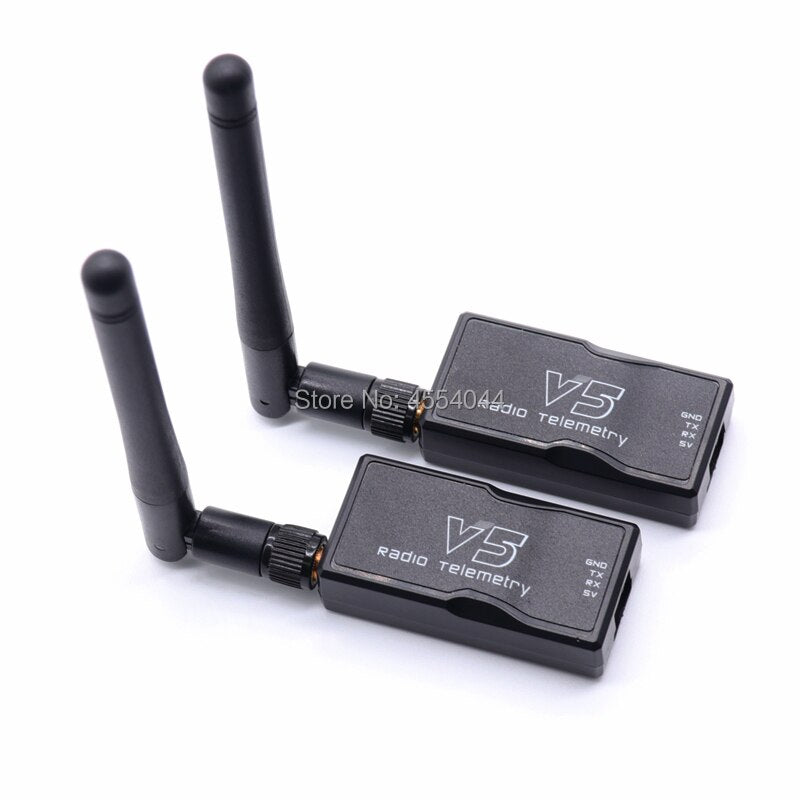

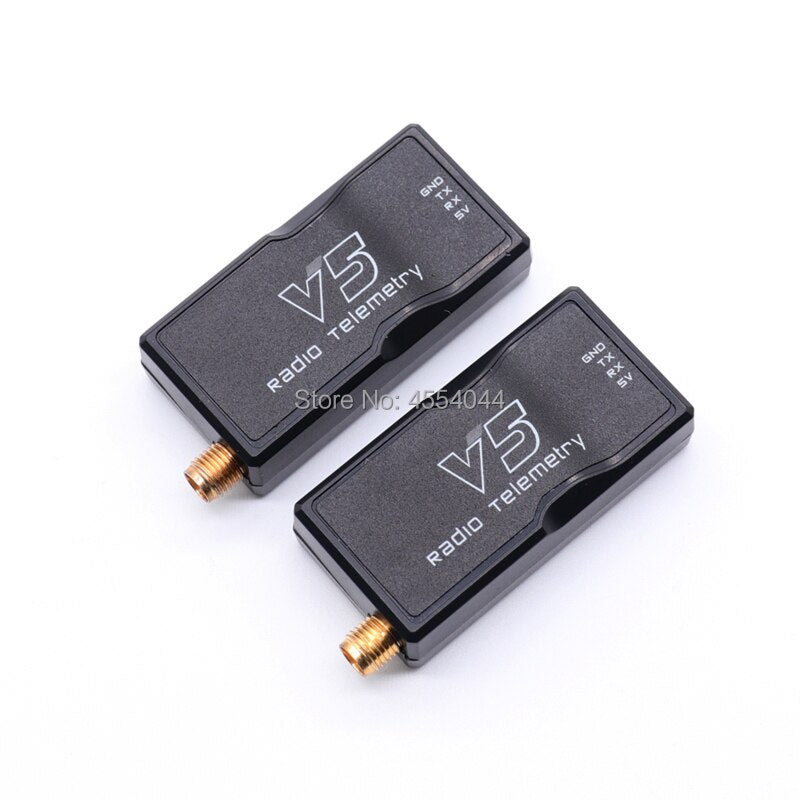

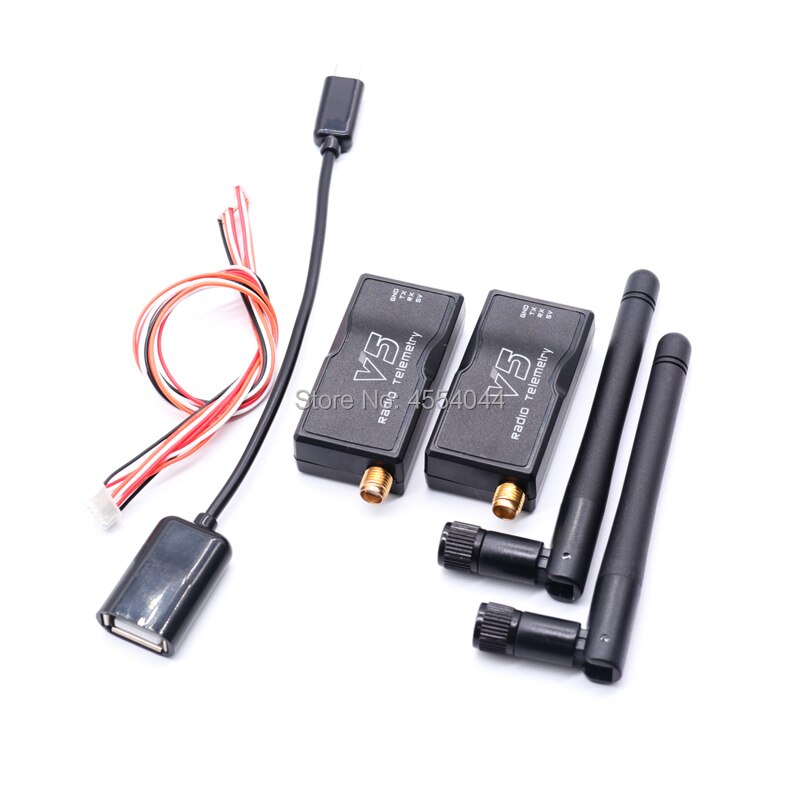

Radio V5 Telemetry is new type, Either one can be used as ground or air terminal

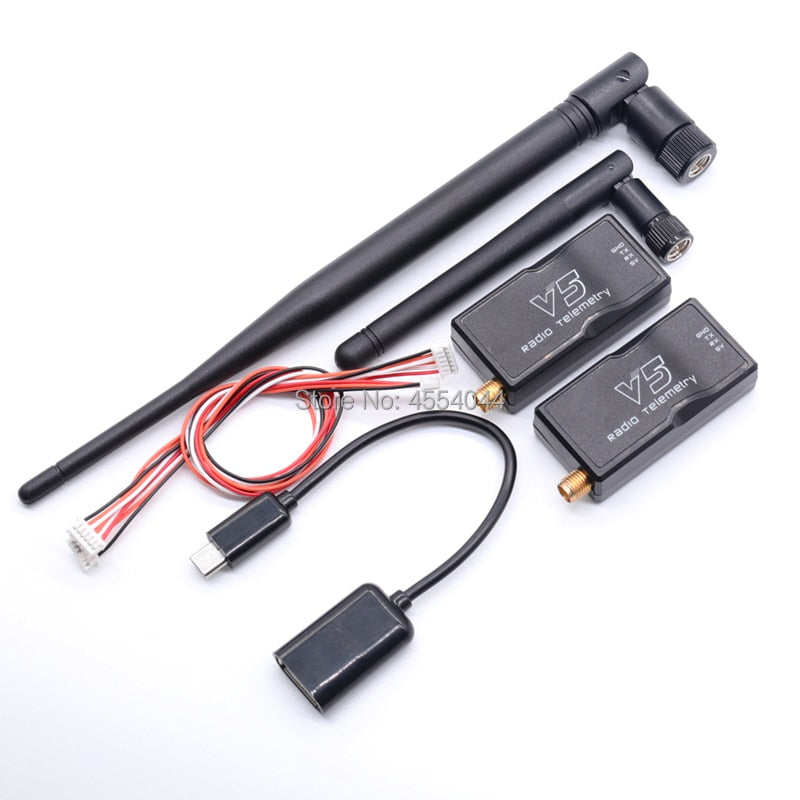

V5 has interchangeable functions, it can be used as ground terminal or air terminal: V5 Radio Talemetry Radio Tale
![3DR Radio V5 Telemetry, [4] [1] [2] [3] Radio Talemet](https://rcdrone.top/cdn/shop/files/Se888e7b6abd54def8a6cc8819de18cf6Q.webp?v=1714815991)

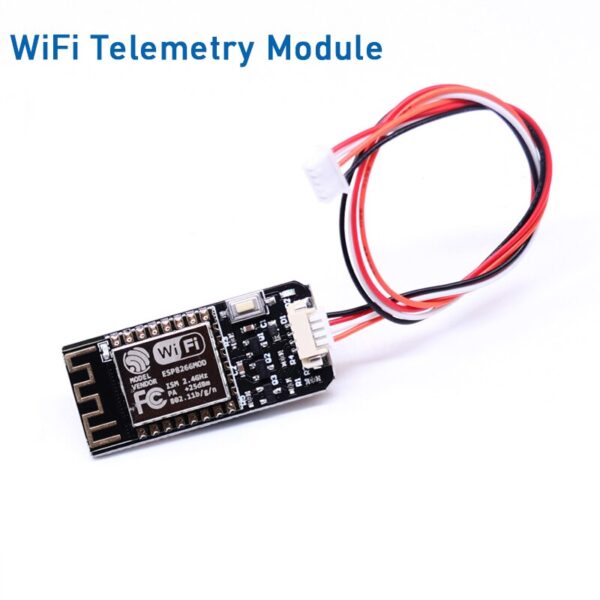

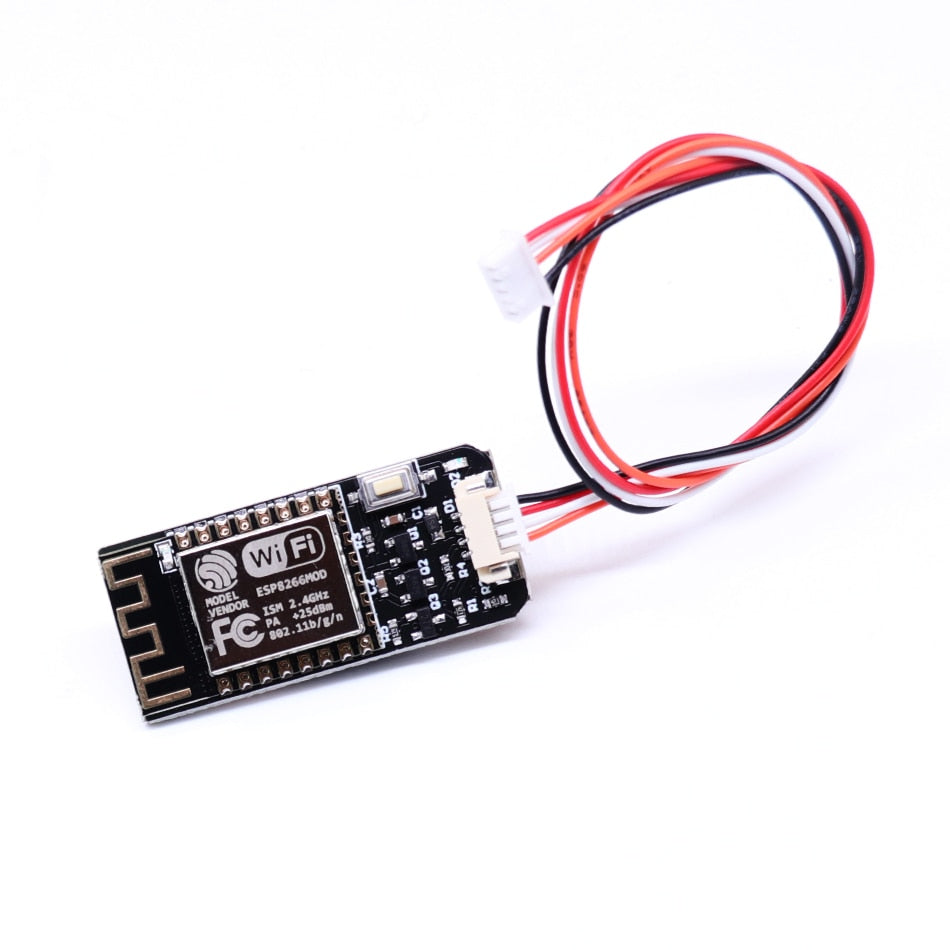

WiFi Telemetry Module for 2.4GHz, featuring ESP8266 module, supports ISM protocol, with a data transmission rate of 6Pa (#z5d0m), compatible with firmware versions 802.11b/e/0.8.
Stock Number: 4554044. This product is an ISA (Internal Starter Assembly) version 2.8, featuring ESP-8266 module, with AGHI model, from vendor Aun, part number 015d06. Includes 7 cables.
How to use Radio Telemetry For PIXHAWK flight controller?
1.use 6P line connects to pixhawk flight controller.
Due to the different firmware, some firmware, two ports can be used, some firmware can only use one of the ports. So find one of the available ports for the connection.
IF you use PX4 firmware ,only TELEM1 can be used ,can not use TELEM2.
IF you use ardupilot firmware, find one of the available ports for the connection.
2.Please note：
-
When using Radio Telemetry connection, it must use 3DR Power Module or 5V ESC to supply power to the flight control. USB cannot be inserted because USB priority is higher than Radio Telemetry . If USB cable is plugged in, it cannot be used for radio telemetry transmission.
-
The default baud rate of the Radio Telemetry is 57600, not 115200. Select the correct COM port and do not select AUTO.
-
If there is a driver problem, download from here:pix.rctoysky.com/CP210x_VCP_Windows.rar
