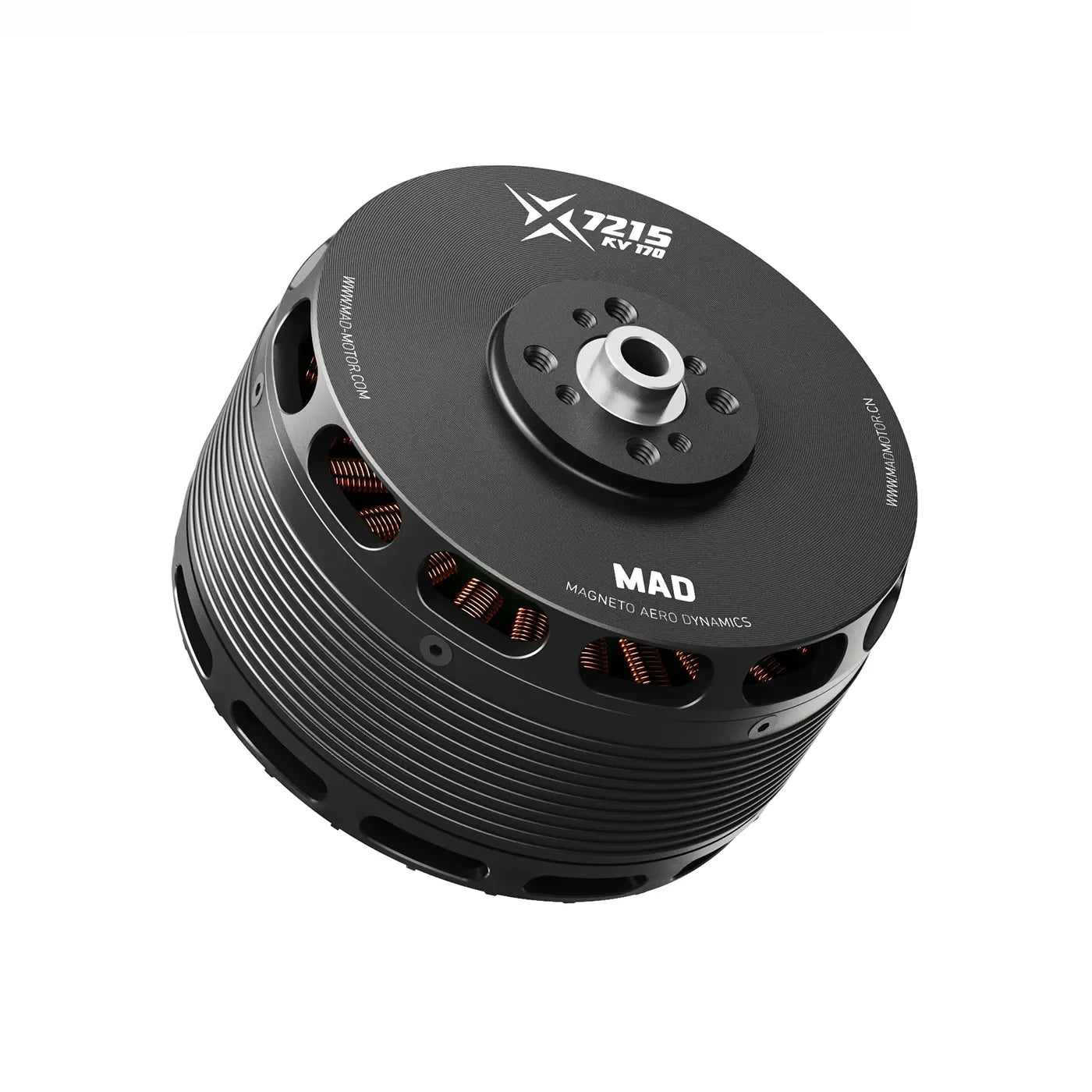

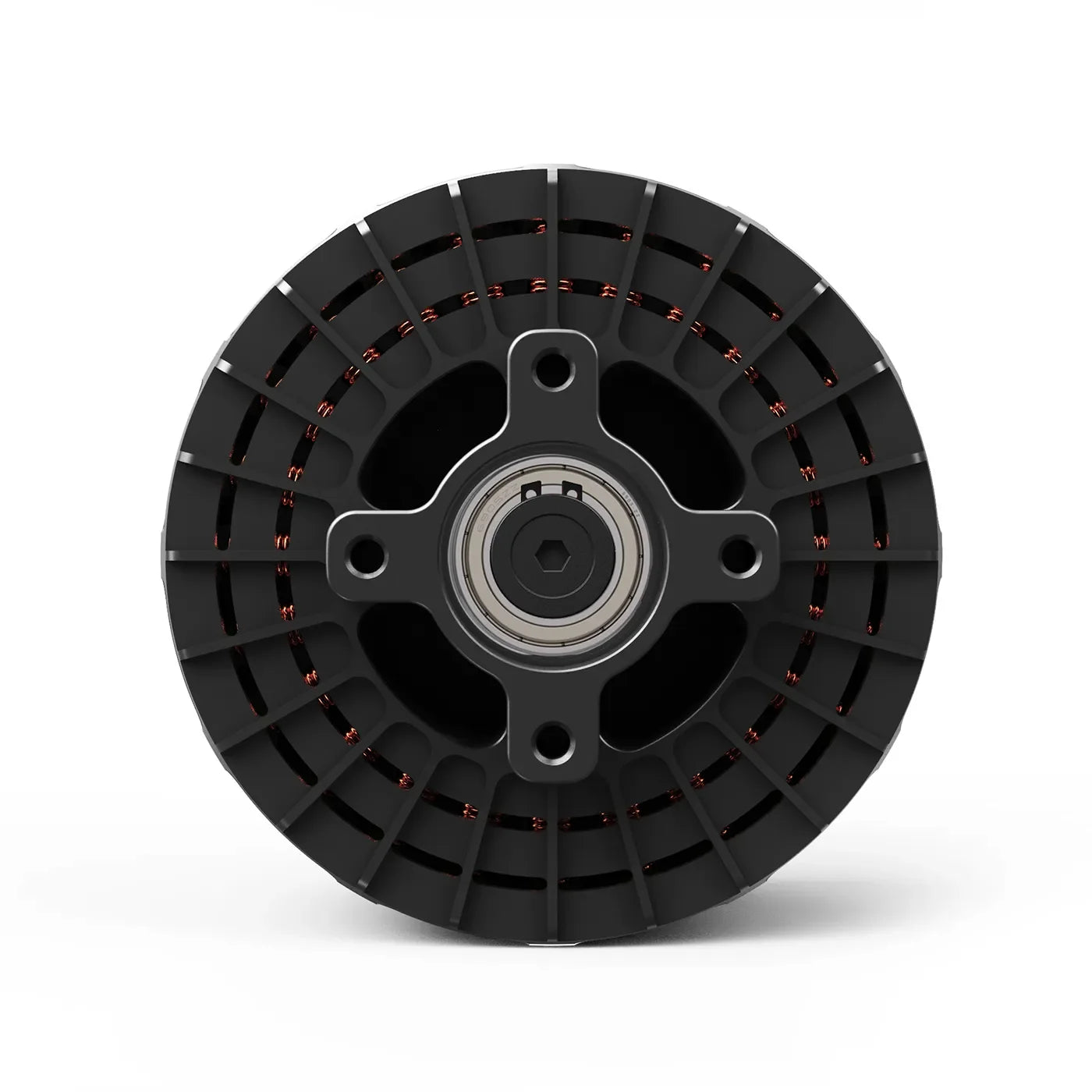

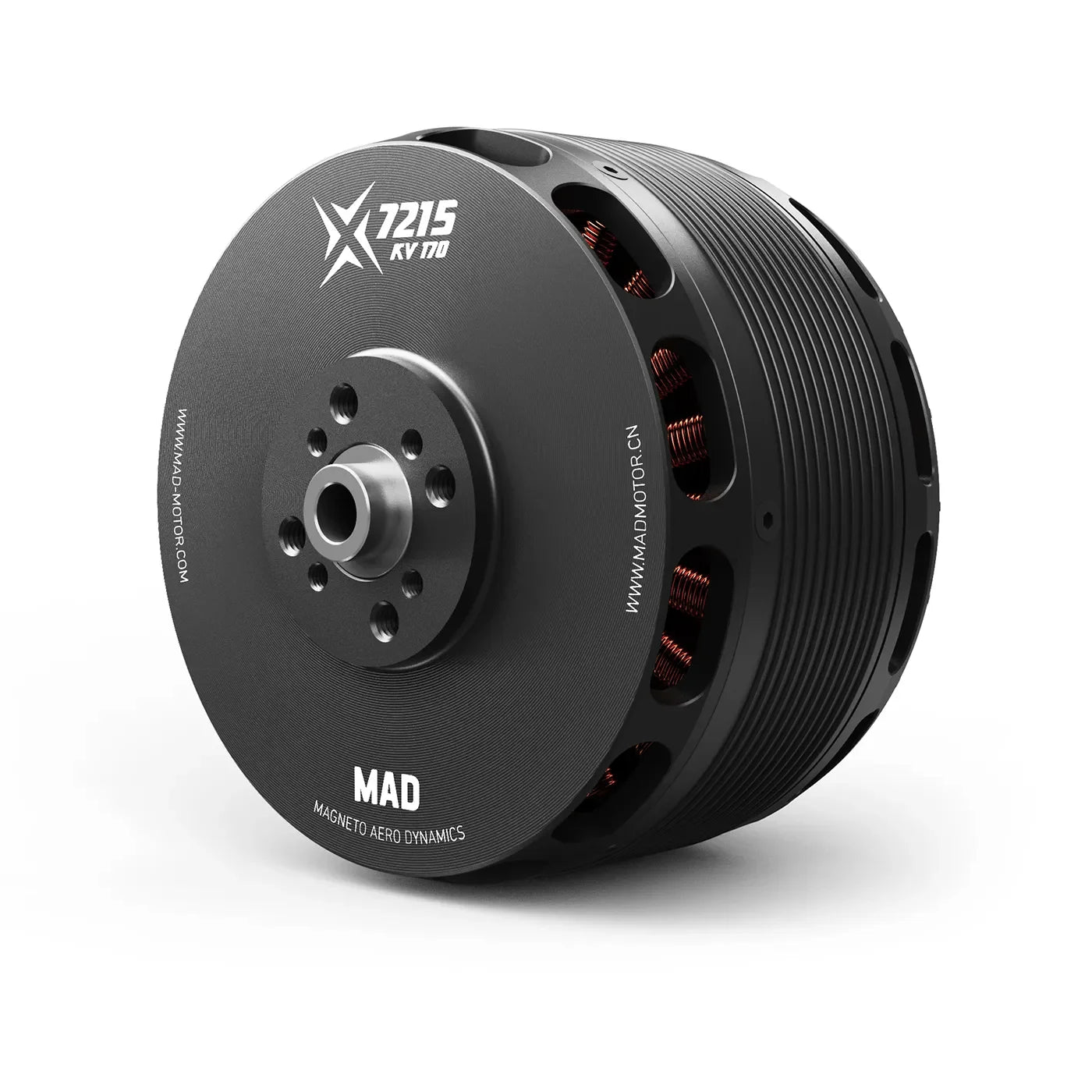

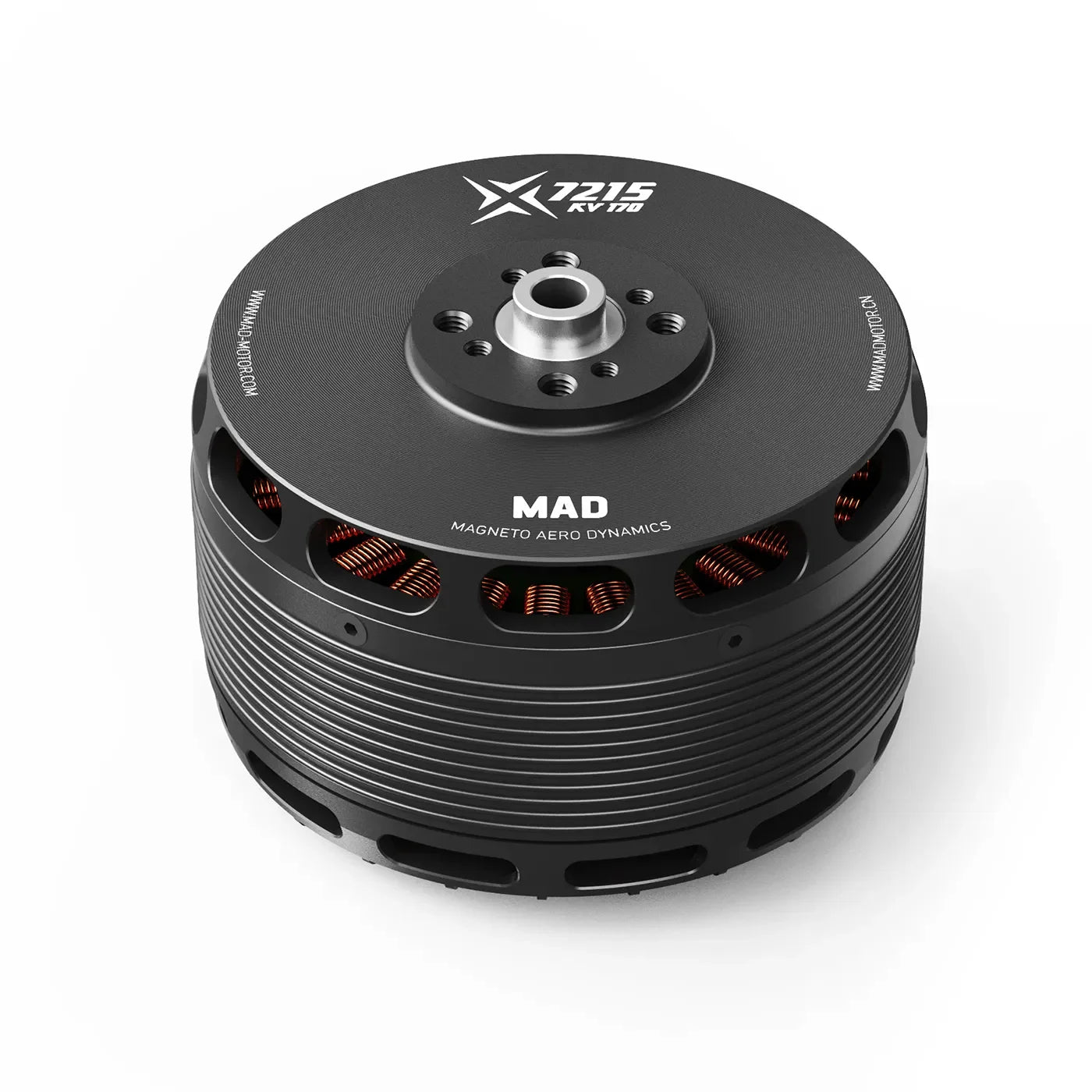

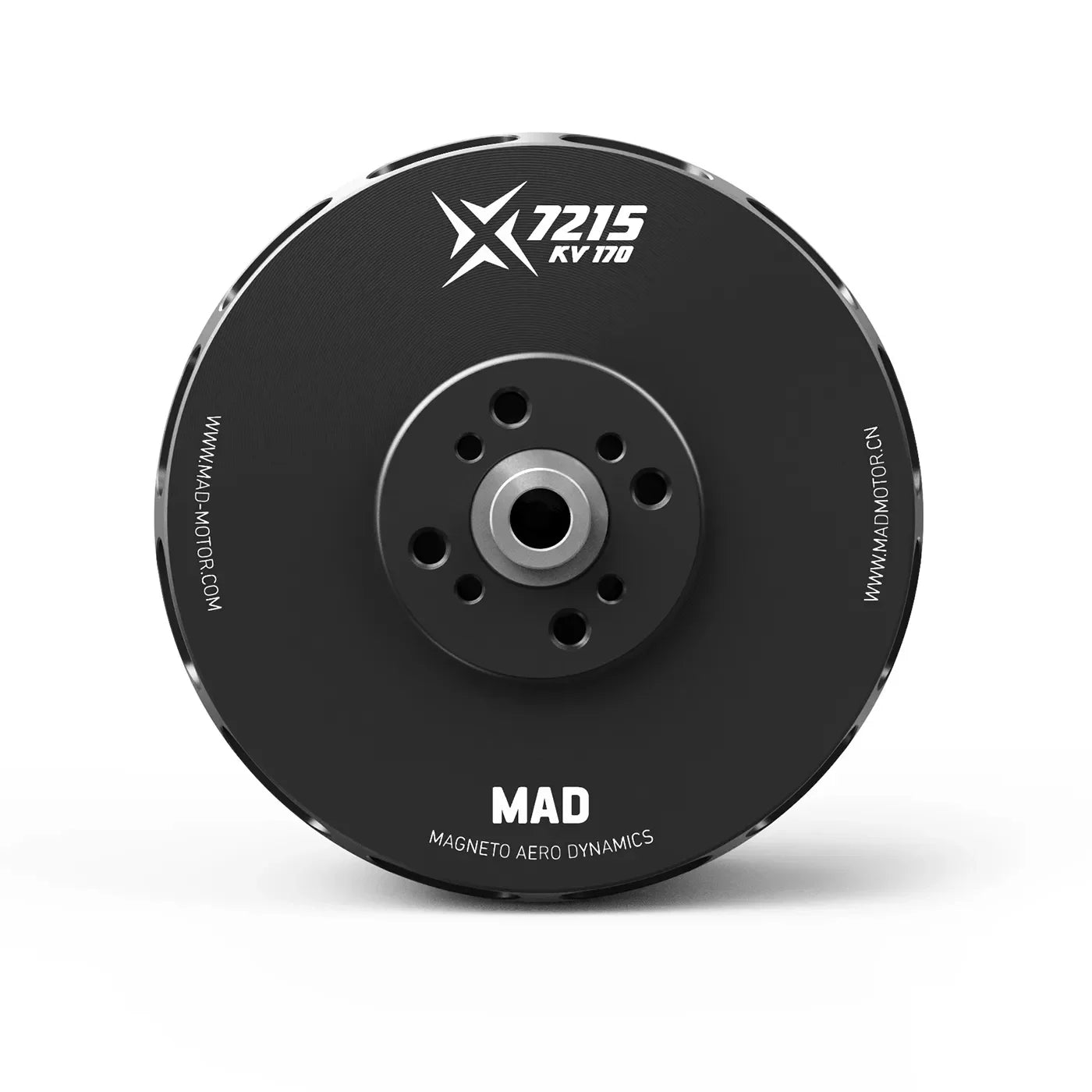

MAD X7215 VTOL Airplane Drone Motor - 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC
MAD X7215 VTOL Airplane Drone Motor - 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC - Image 2
MAD X7215 VTOL Airplane Drone Motor - 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC - Image 3
MAD X7215 VTOL Airplane Drone Motor - 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC - Image 4
MAD X7215 VTOL Airplane Drone Motor - 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC - Image 5
,

MAD X7215 VTOL Airplane Drone Motor – 220KV Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC

$250.42

+ Free Shipping
220KV
Clear
SKU: N/ACategories: ,
Ask for more info

MAD X7215 VTOL Airplane Drone Motor Overview

MAD X7215 is Suitable for 120E-170E aircraft, equivalent to petrol engine of about 30-40CC, these are very high efficiency VTOL engines. Various mounting options suitable for aircraft and multicopters. Optimised for best performance. Max thrust 14.8kg, more powerful and efficient than the same thrust motors in the market.Waterproof and dustproof. IP35 protection class.

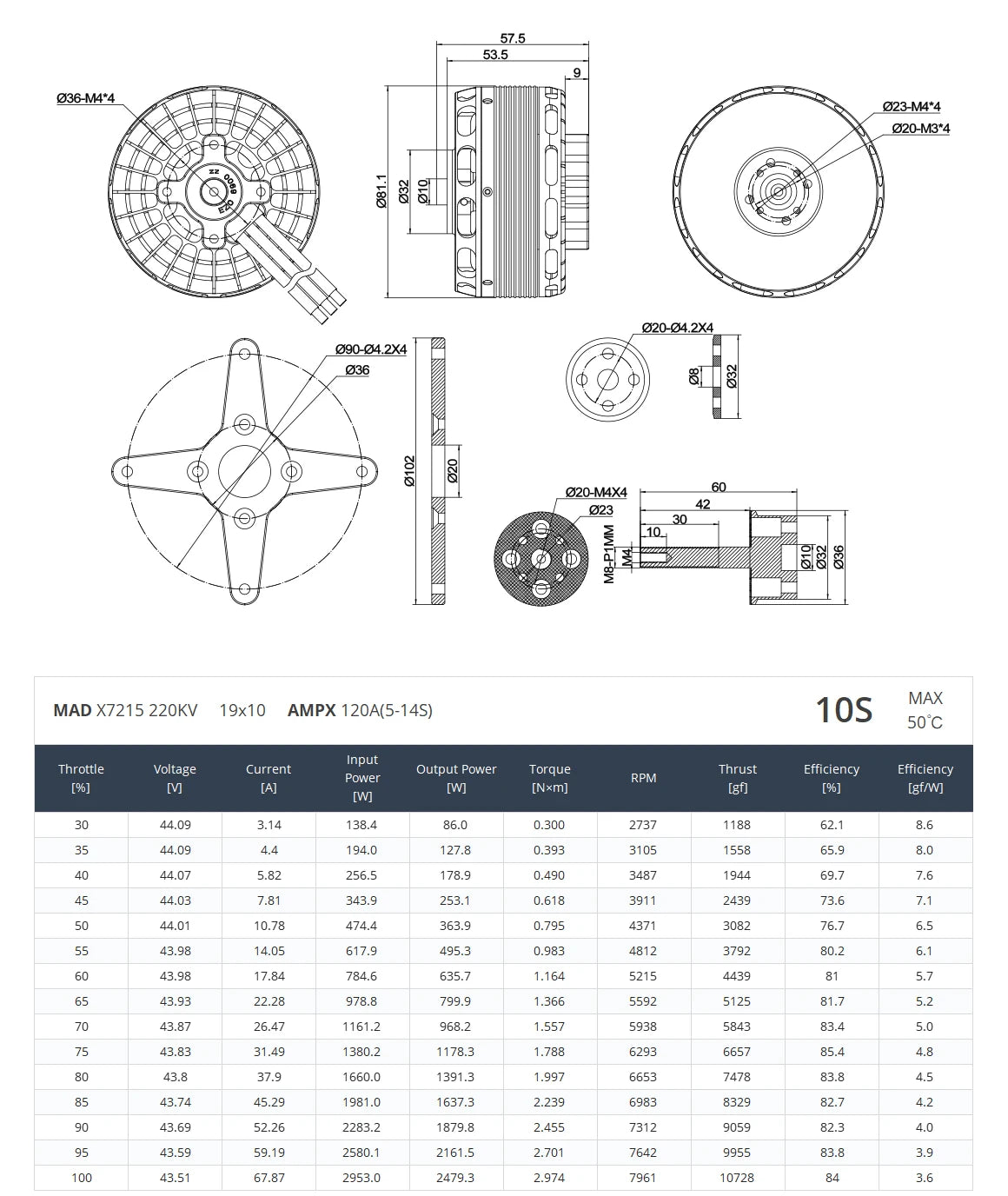

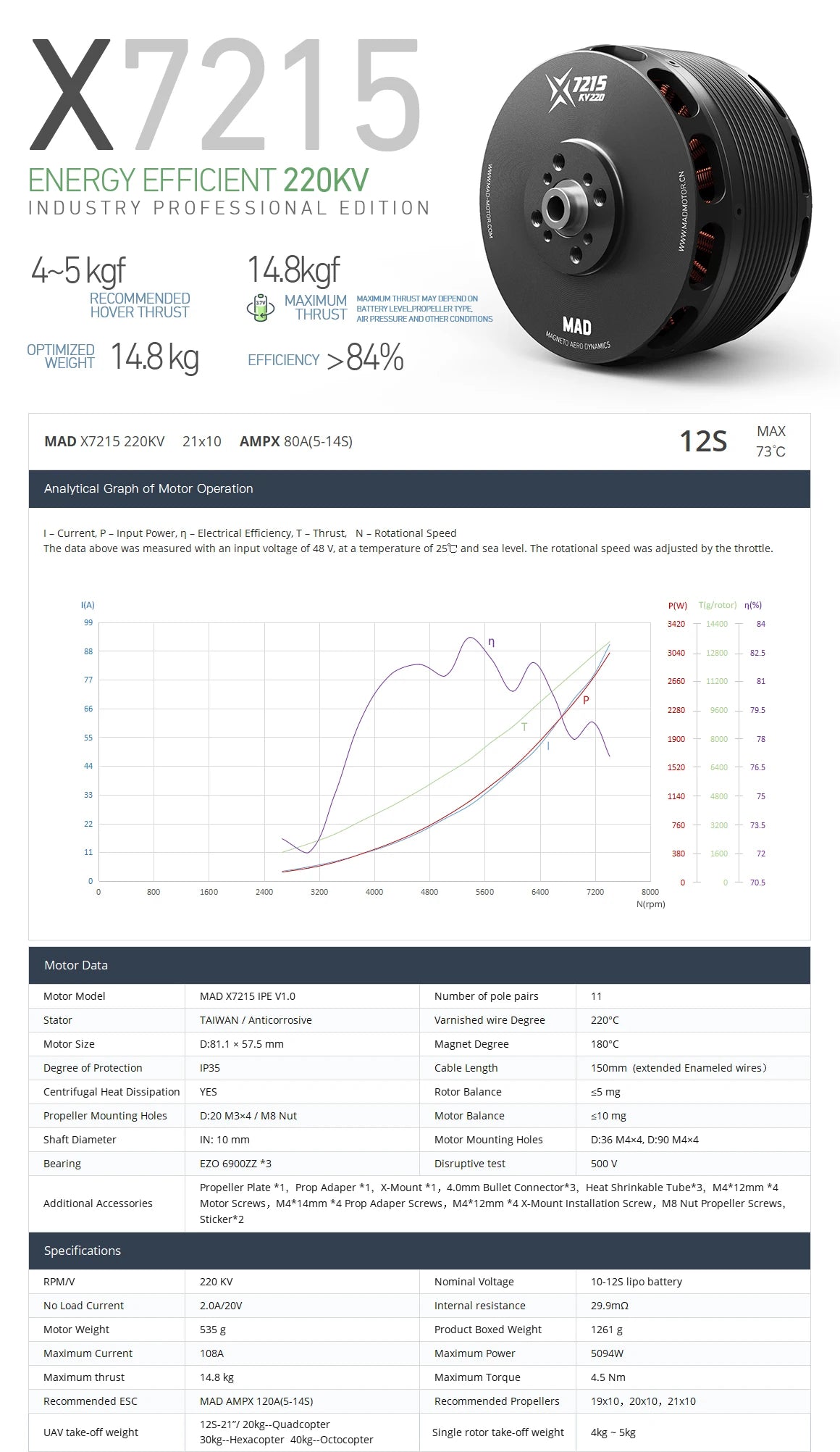

MAD X7215 Drone Motor Specifications

Motor Data

Motor ModelMAD X7215 IPE V1.0Number of pole pairs11
StatorAnticorrosiveVarnished wire Degree220°C
Motor SizeD:81.1 × 57.5 mmMotor Balance180°C
Degree of ProtectionIP35Cable Length150mm  (extended Enameled wires）
Centrifugal Heat DissipationYESRotor Balance≤5 mg
Propeller Mounting HolesD:20 M3×4 / M8 NutMotor Balance≤10 mg
Shaft DiameterIN: 10 mmMotor Mounting HolesD:36 M4×4, D:90 M4×4
Bearing6900ZZ *3Disruptive test500 V



MAD X7215 220KV:

SpecificationsDetailsSpecificationsDetails
RPM/V220 KVNominal Voltage10-12S lipo battery
No Load Current2.0A/20VInternal Resistance29.9mΩ
Motor Weight535 gProduct Boxed Weight1261 g
Maximum Current108AMaximum Power5094W
Maximum Thrust14.8 kgMaximum Torque4.5 Nm
Recommended ESCMAD AMPX 120A (5-14S)Recommended Propellers19×10, 20×10, 21×10
UAV Take-off Weight12S-21″ 20kg–QuadcopterSingle Rotor Take-off Weight4kg ~ 5kg
30kg–Hexacopter
40kg–Octocopter



MAD X7215 VTOL Airplane Drone Motor, Brushless motor suitable for 120E-170E aircraft, equivalent to 30-40cc gasoline engine.MAD X7215 VTOL Airplane Drone Motor, High-performance motor for VTOL airplanes, equivalent to a 30-40cc gasoline engine.MAD X7215 VTOL Airplane Drone Motor, High-performance drone motor for VTOL aircraft, suitable for 120-170cc models.MAD X7215 VTOL Airplane Drone Motor, MAD X7215: High-efficiency VTOL drone motor suitable for 120E-170E aircraft, similar to 30-40CC petrol engine.
