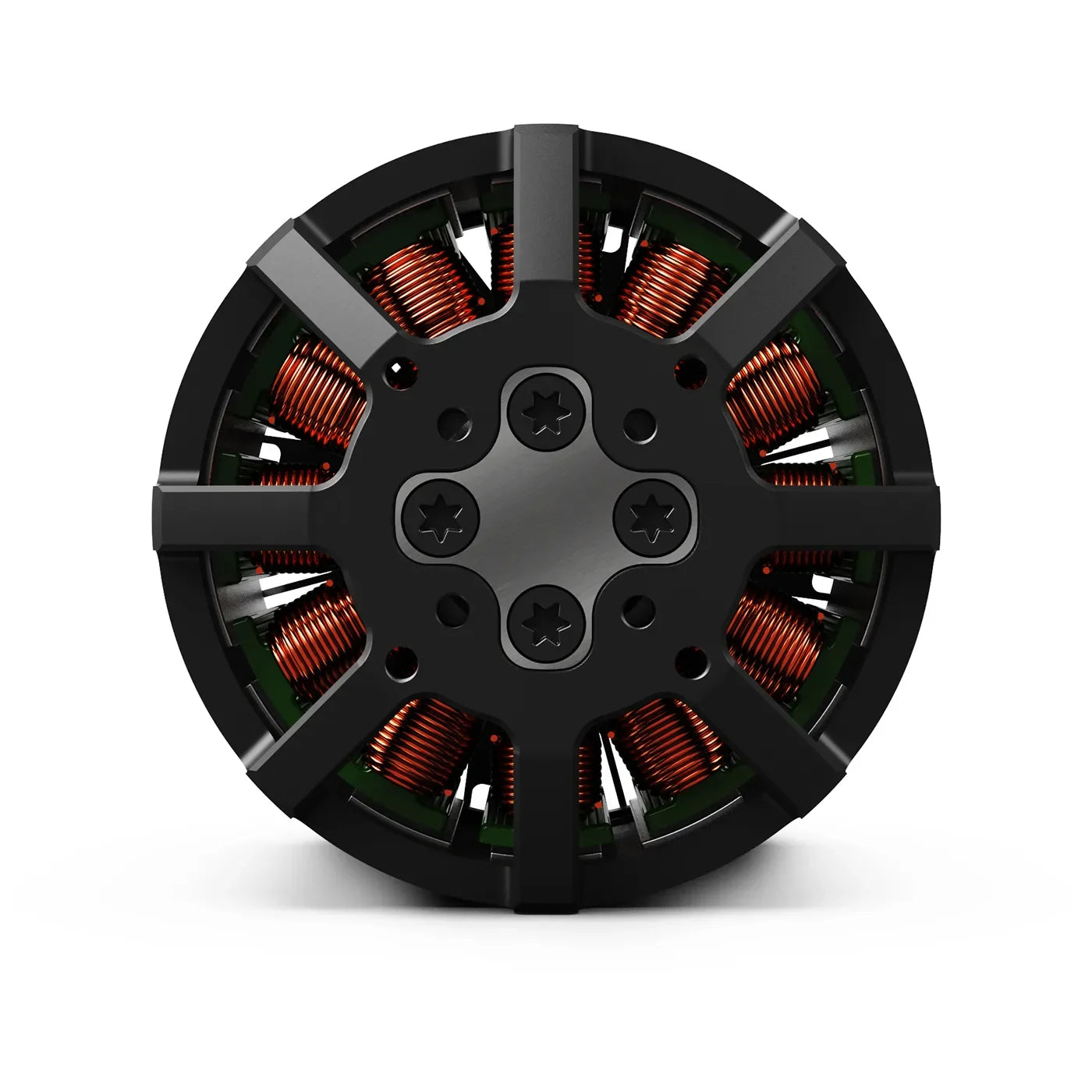

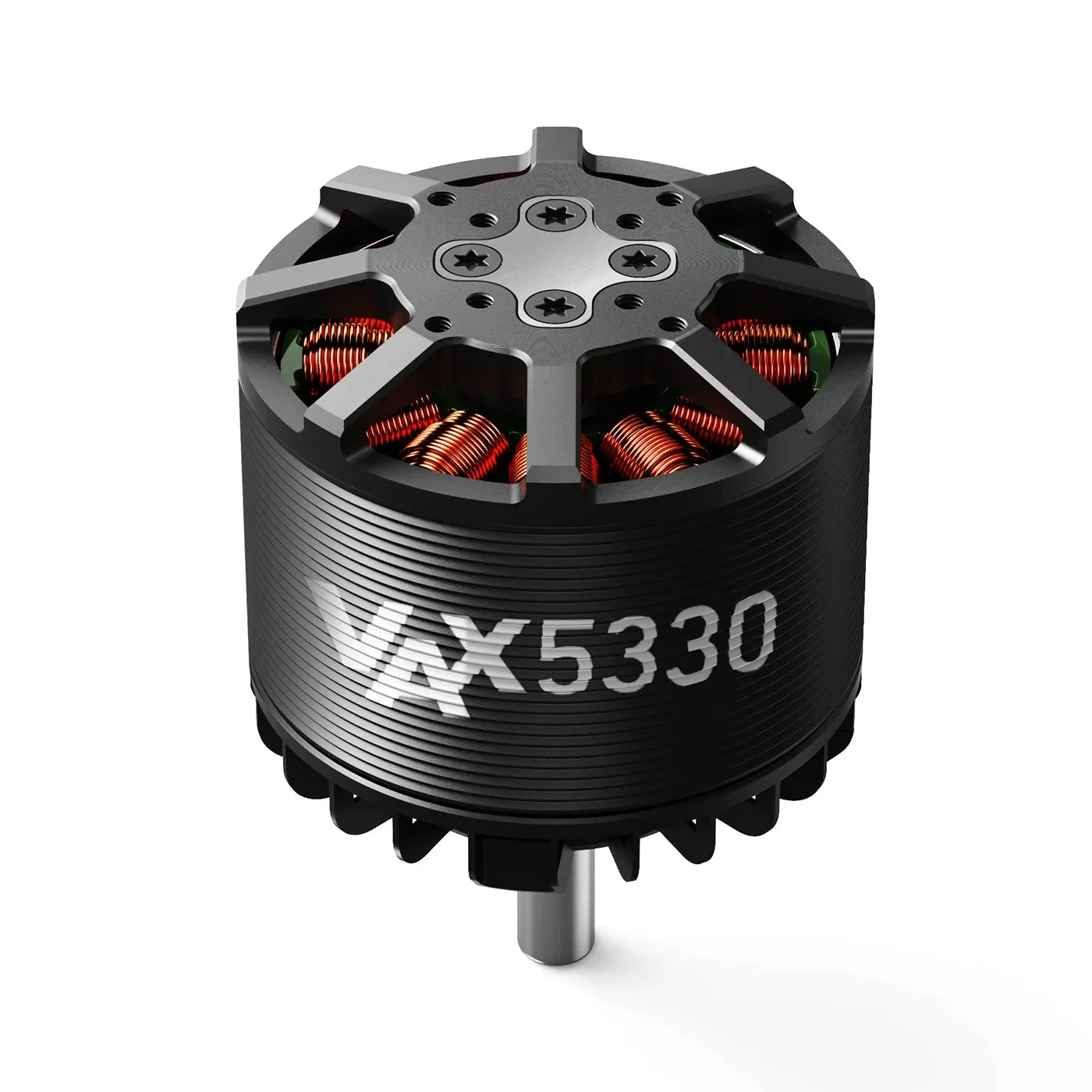

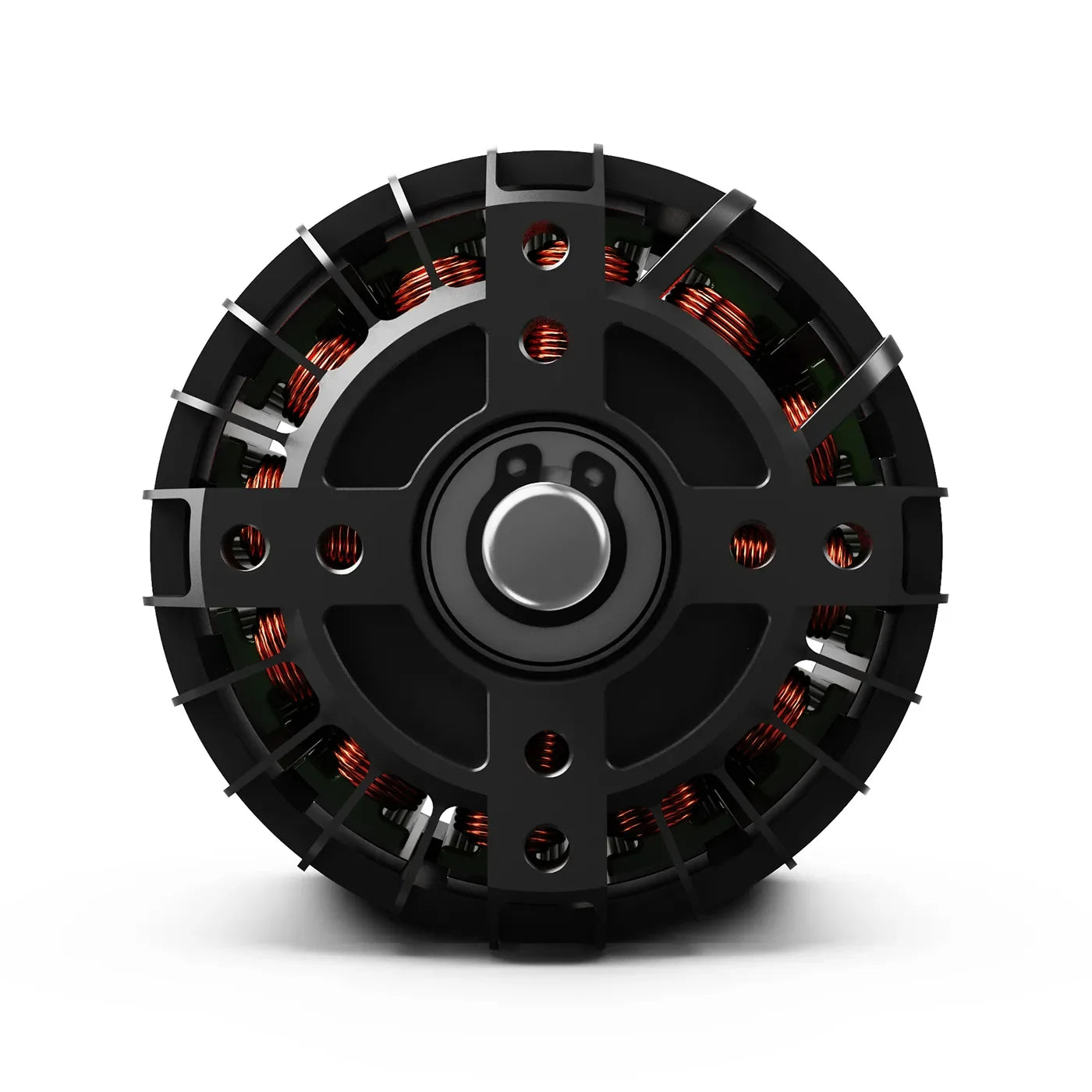

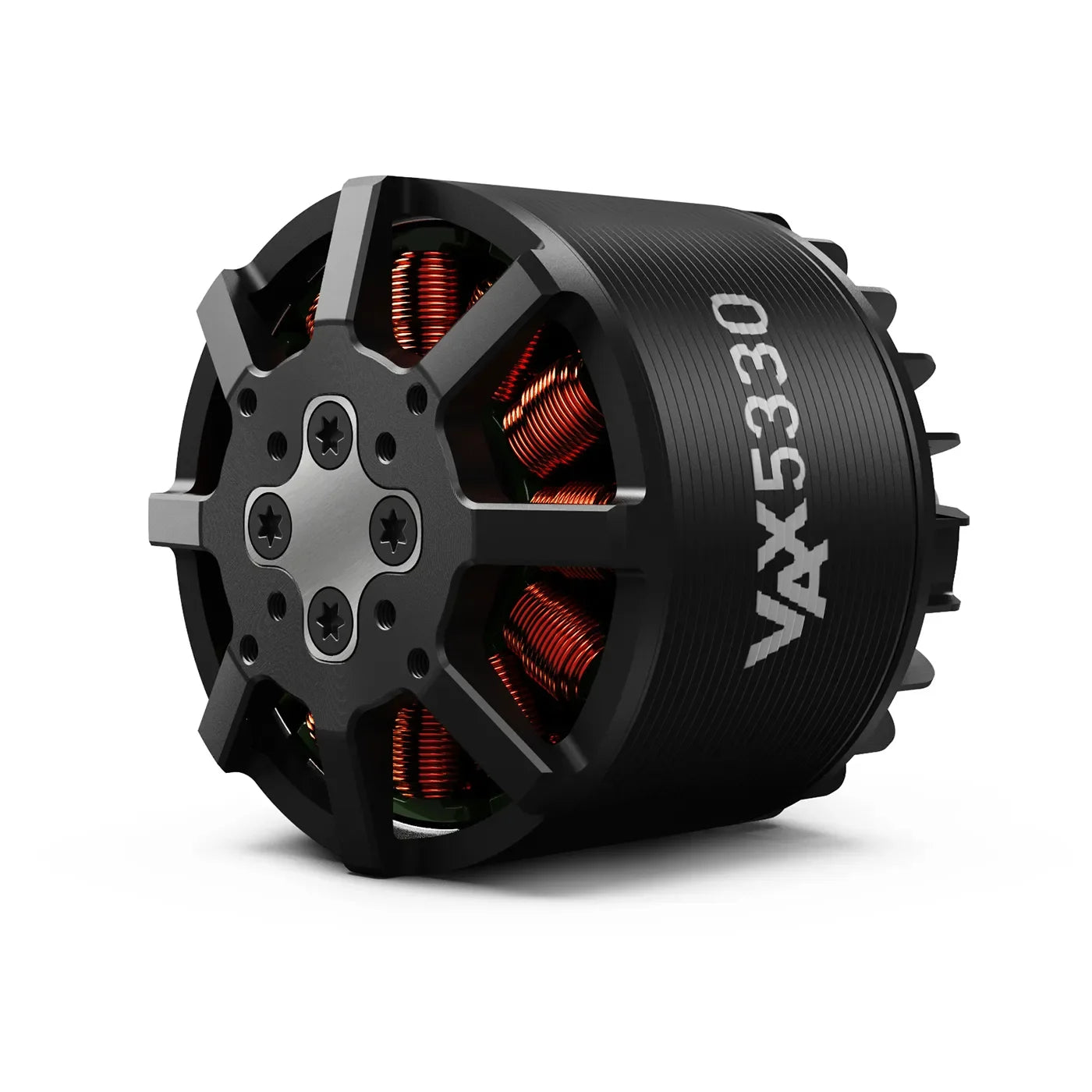

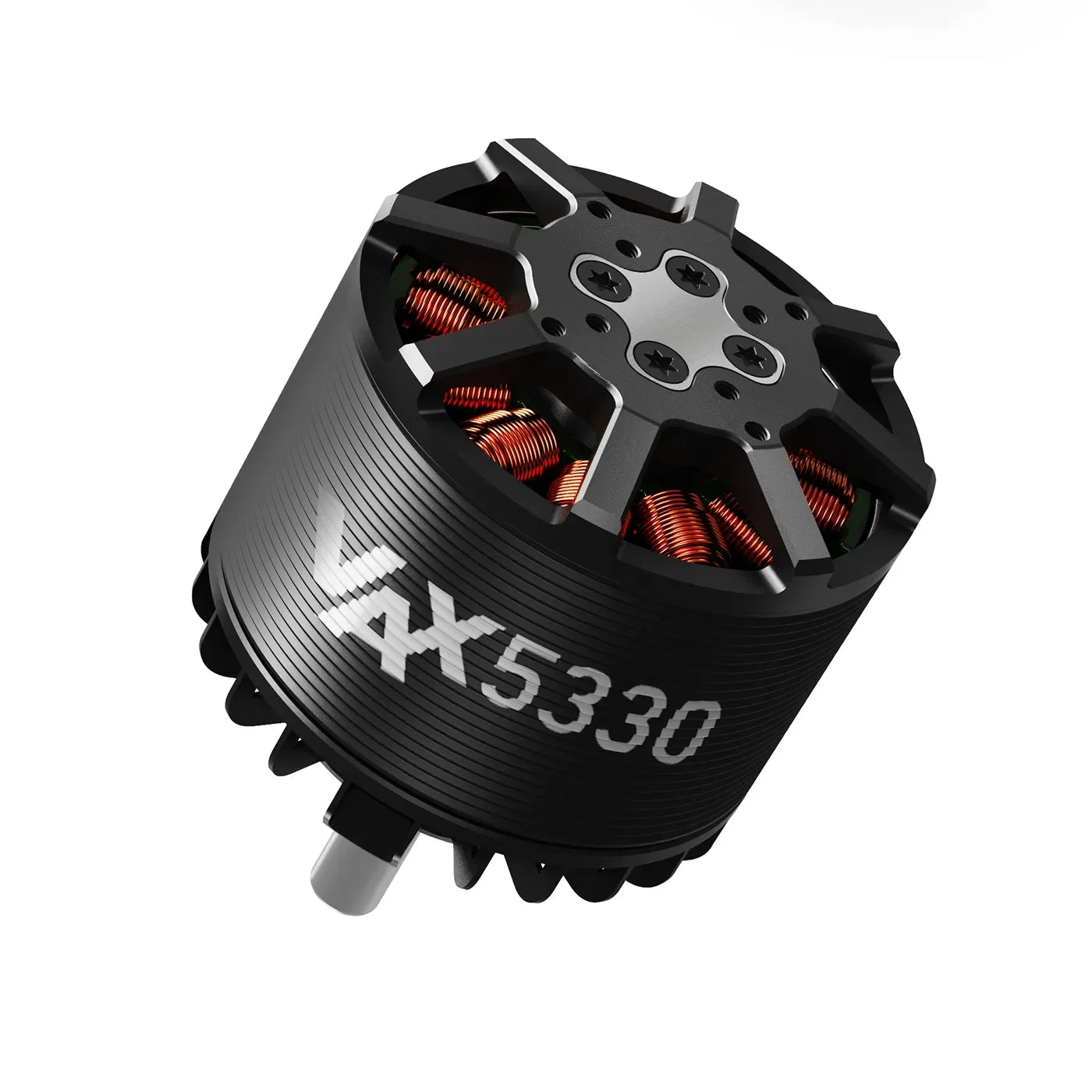

MAD VAX 5330 VTOL Drone Motor Summary
The MAD VAX 5330 VTOL Airplane Drone Motor is a high-performance motor designed for UAV applications. It features a robust design with anti-corrosive stator material and rain protection, making it suitable for various environmental conditions. The motor is available in two KV ratings (220KV and 260KV), each offering different specifications tailored to specific needs.
220KV Motor:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 70.8A
- Maximum Thrust: 11.2 kg
- Maximum Power: 3263W
260KV Motor:
- Nominal Voltage: 12S lipo battery
- Maximum Current: 97A
- Maximum Thrust: 12.8 kg
- Maximum Power: 4377W
Both versions are equipped with high-quality bearings, independent centrifugal heat dissipation, and excellent balance. They are designed for heavy-lift drones, supporting take-off weights up to 44 kg for octocopters.
MAD VAX 5330 VTOL Drone Motor Specifications
Motor Data
| Parameter | Value |
|---|---|
| Motor Model | MAD VAX 5330 EEE V1.0 |
| Number of Pole Pairs | 7 |
| Stator | TAIWAN / Anticorrosive |
| Varnished Wire Degree | 180°C |
| Motor Size | D: 61.1 × 84 mm |
| Magnet Degree | 150°C |
| Degree of Protection | Rain protection |
| Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent |
| Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D: 31 M3×4, D: 20 M3×4 |
| Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm |
| Motor Mounting Holes | D: 30 M4×4, D: 44 M4×4 |
| Bearing | EZO 688ZZ2 / NMB 19801 |
| Disruptive Test | 500 V |
| Additional Accessories | Prop Adapter(M8) 1, Propeller Plate 1, 4.0mm Bullet Connector3, Heat Shrinkable Tube3, M412mm 4 Motor Screws, M38mm 4 Prop Adapter Fixing Screws, M8 Nut1, Sticker1 |
MAD VAX 5330 220KV 260KV Specifications
| Parameter | 220KV | 260KV |
|---|---|---|
| RPM/V | 220KV | 260KV |
| Nominal Voltage | 12S lipo battery | 12S lipo battery |
| No Load Current | 1.35A / 30V | 1.6A / 20V |
| Internal Resistance | 45mΩ | 21mΩ |
| Motor Weight | 570 g | 564 g |
| Product Boxed Weight | 750g (110 x 110 x 65 mm) | 732g (110 x 110 x 65 mm) |
| Maximum Current | 70.8 A | 97 A |
| Maximum Power | 3263W | 4377W |
| Maximum Thrust | 11.2 kg | 12.8 kg |
| Maximum Torque | 3 Nm | 3.5 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | MAD AMPX 120A (5-14S) |
| Recommended Propellers | 18×12, 19×10, 20×10, 17x8X3 | 18×12, 19×10, 20×10, 17x8X3 |
| UAV Take-off Weight | 12S-20”/ 17kg–Quadcopter<br>25.5kg–Hexacopter<br>34kg–Octocopter | 12S-20”/ 22kg–Quadcopter<br>33kg–Hexacopter<br>44kg–Octocopter |
| Single Rotor Take-off Weight | 4kg ~ 5kg | 5kg ~ 6kg |
