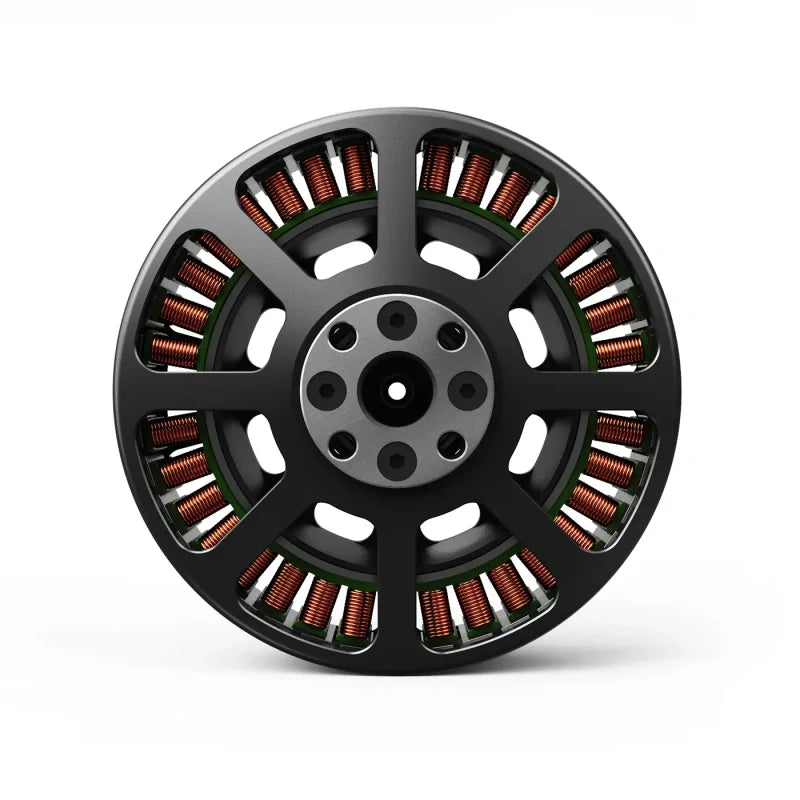

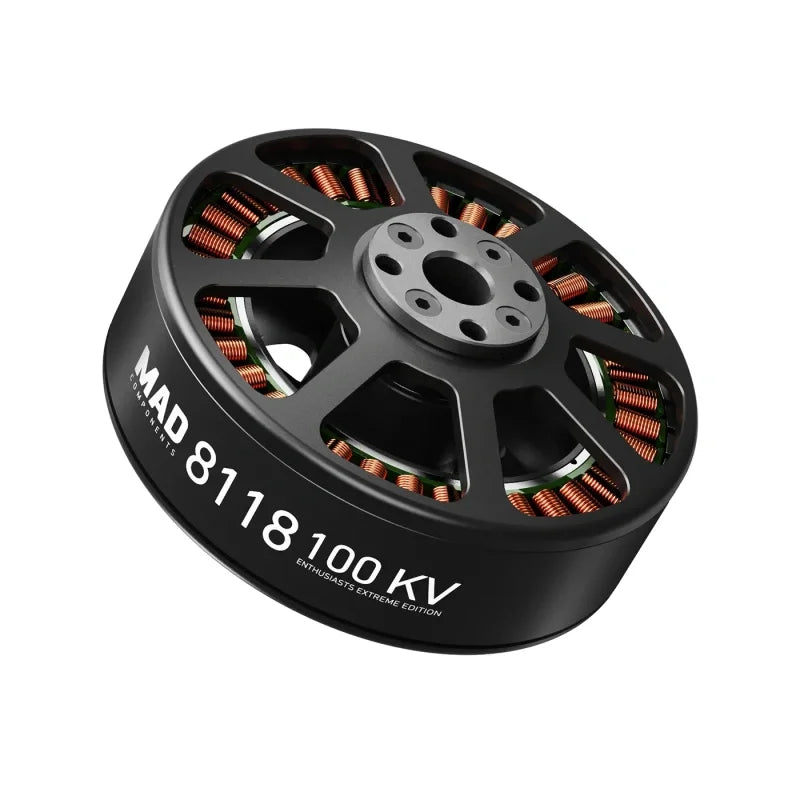

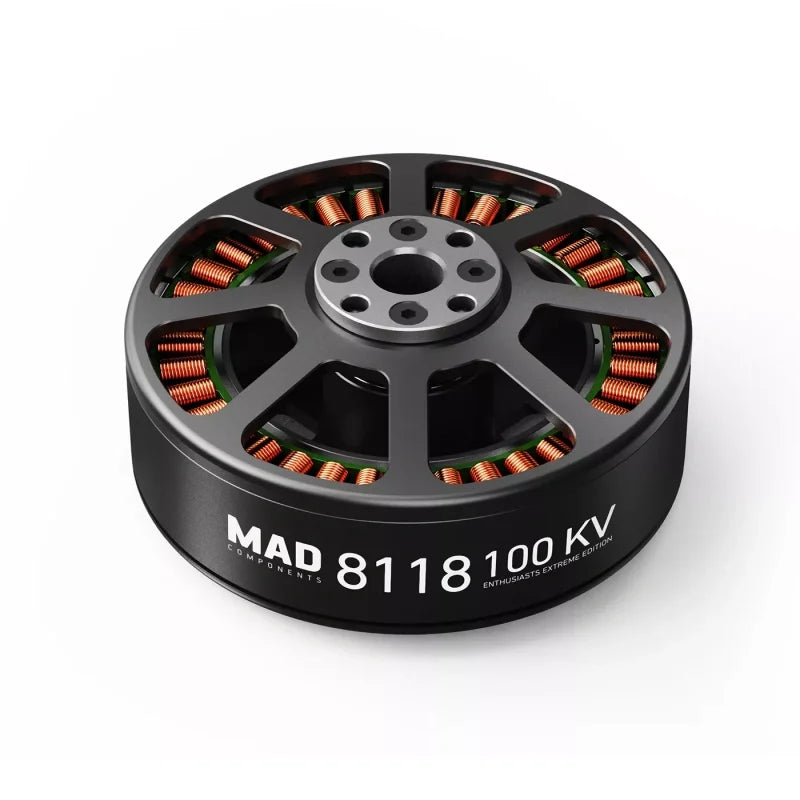

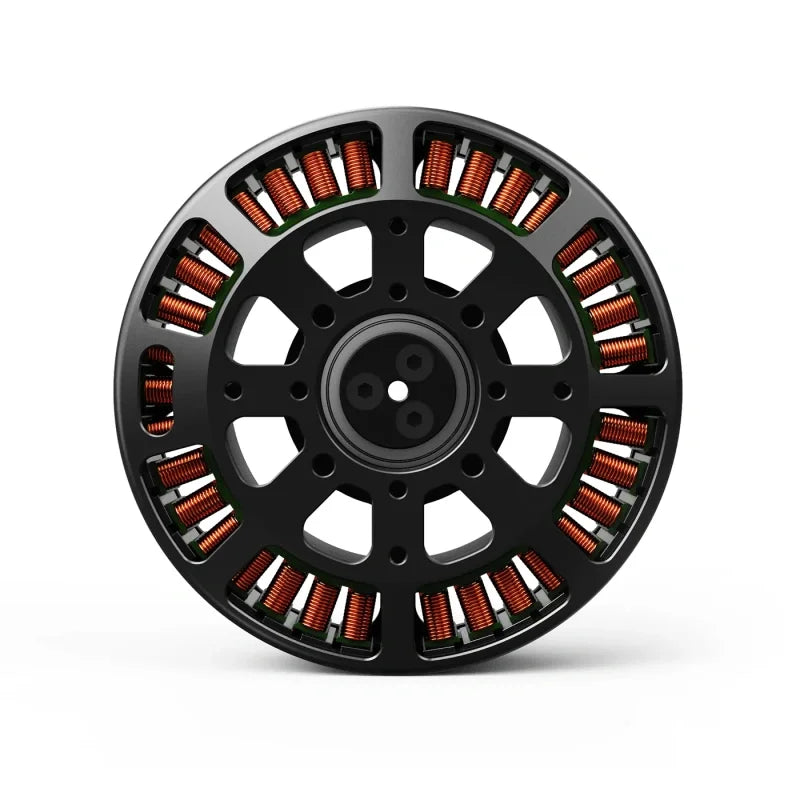

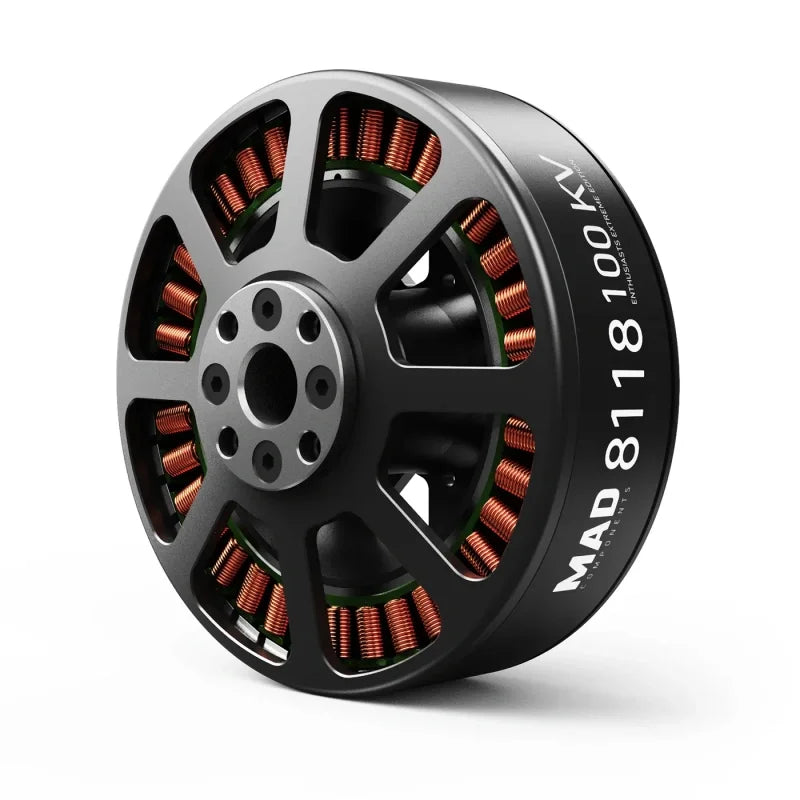

MAD 8118 EEE Drone Motor Overview
The MAD 8118 EEE V1.0 Brushless Drone Motor is a high-performance motor designed for heavy-lift drones, featuring a 100 KV rating, a maximum thrust of 14.5 kg, and a maximum power of 2962W. It operates efficiently with a 12S lipo battery, has a motor weight of 620 g, and provides excellent durability with IP45 rain protection and anticorrosive stator materials. Ideal for large UAVs, it supports quadcopters up to 22kg, hexacopters up to 33kg, and octocopters up to 44kg, ensuring powerful and reliable performance for demanding aerial applications.
MAD 8118 EEE Drone Motor SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
Size: 88.6x38mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: RoHS
Upgrade Parts/Accessories: Motor
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembled class
Quantity: 1 pcs
Model Number: MAD 8118 EEE
Four-wheel Drive Attributes: Motors
MAD 8118 EEE Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 8118 EEE V1.0 | Number of pole pairs | 20 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Bearing | EZO 6802ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, Paddle seat1, M3*10mm 4 Paddle seat Screws, M410mm 4 Motor Screws, M314mm 4 Propeller Screws, Sticker2 |
| Specifications | |||
|---|---|---|---|
| RPM/V | 100 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 1.1A / 20V | Internal resistance | 61 mΩ |
| Motor Weight | 620 g | Product Boxed Weight | 920g (110 x 110 x 65 mm) |
| Maximum Current | 62 A | Maximum Power | 2962W |
| Maximum thrust | 14.5 kg | Maximum Torque | 5.1 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 28×8.4, 29×8.7, 30×10.0 |
| UAV take-off weight | 12S-30″/22kg–Quadcopter | ||
| 33kg–Hexacopter | |||
| 44kg–Octocopter | |||
| Single rotor take-off weight | 4.5kg ~ 6.5kg |
Â
Products Description
8108 motor is the most classical product among UAV motors. MAD 8108 EEE is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, Archaeology, Remote sensing surveying, Mapping etc. Endurance flight time varies from 30-120mins.
MAD 8112,8116 & 8118 are upgraded versions based on MAD8108 this efficient motor, pulling larger powerful thrust by increasing stator height. And also widely used on many multirotor applications.
*Open body design for better passive heat dissipation.
*Propeller installation compatibility.
*Reduced motor weight.
*Motor mounting holes standarization.
