MAD 8116 EEEÂ SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motor Components
Size: 150*150*70mm
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: RoHS
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembled class
Quantity: 1 pcs
Model Number: MAD 8116 EEE
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Configuration: 36N42P
Motor Dimension: 87.2x39mm
KV: 100KV
Degree of protection: IP14
Motor Weight: 460g
Wire: 150mm
Rated Voltage: 12 S
Maximum Power: 1822W
Maximum Thrust: 11502g
Package: Color Box
MAD 8116 EEE Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 8116 EEE V1.0 | Number of pole pairs | 21 |
| Stator | Japan / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.2 × 39 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Bearing | EZO 6802ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate *1, 3.5mm Bullet Connector *3, Heat Shrinkable Tube *3, Paddle seat 1, M410mm 4 Paddle seat Screws, M310mm 4 Motor Screws, M314mm *4 Propeller Screws, Sticker *2 |
MAD 8116 EEE 100KV Specifications
| Specifications | |||
|---|---|---|---|
| RPM/V | 100 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 0.9A/20V | Internal resistance | 80mΩ |
| Motor Weight | 460 g | Product Boxed Weight | 760g (110 x 110 x 65 mm) |
| Maximum Current | 38 A | Maximum Power | 1822W |
| Maximum thrust | 11.5 kg | Maximum Torque | 4.1 Nm |
| Recommended ESC | MAD AMPX 40A (5-14S) | Recommended Propellers | 28×8.4, 29×8.7, 30×10.0, 32×9.6 |
| UAV take-off weight | 12S-30″/16kg–Quadcopter | ||
| 24kg–Hexacopter | |||
| 32kg–Octocopter | |||
| Single rotor take-off weight | 3.0kg ~ 5.0kg |
 Products Description
The MAD 8116 EEE is designed to carry payloads of 4000~5400g, with a 28-32 “carbon propeller, with max thrust is 11.5kg and motor weight of 460g. MAD 8116 IPE is a multi-rotor brushless motor for agricultural plant protection and professional aerial photography applications.With large load, high efficiency and excellent reliability.
* Open body design for better passive heat dissipation.
* Propeller installation compatibility.
* Reduced motor weight.
* Motor mounting holes standarization.

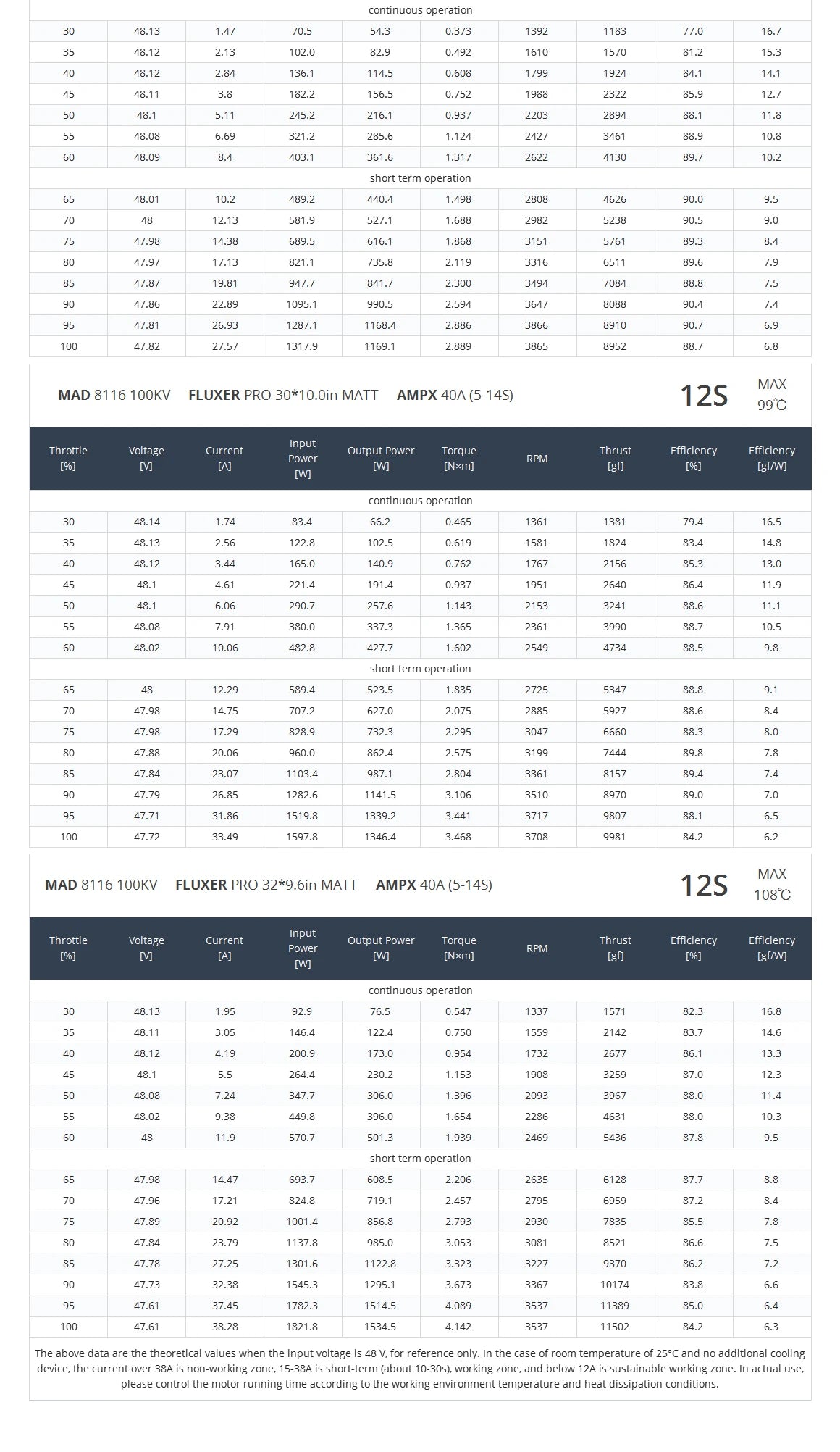

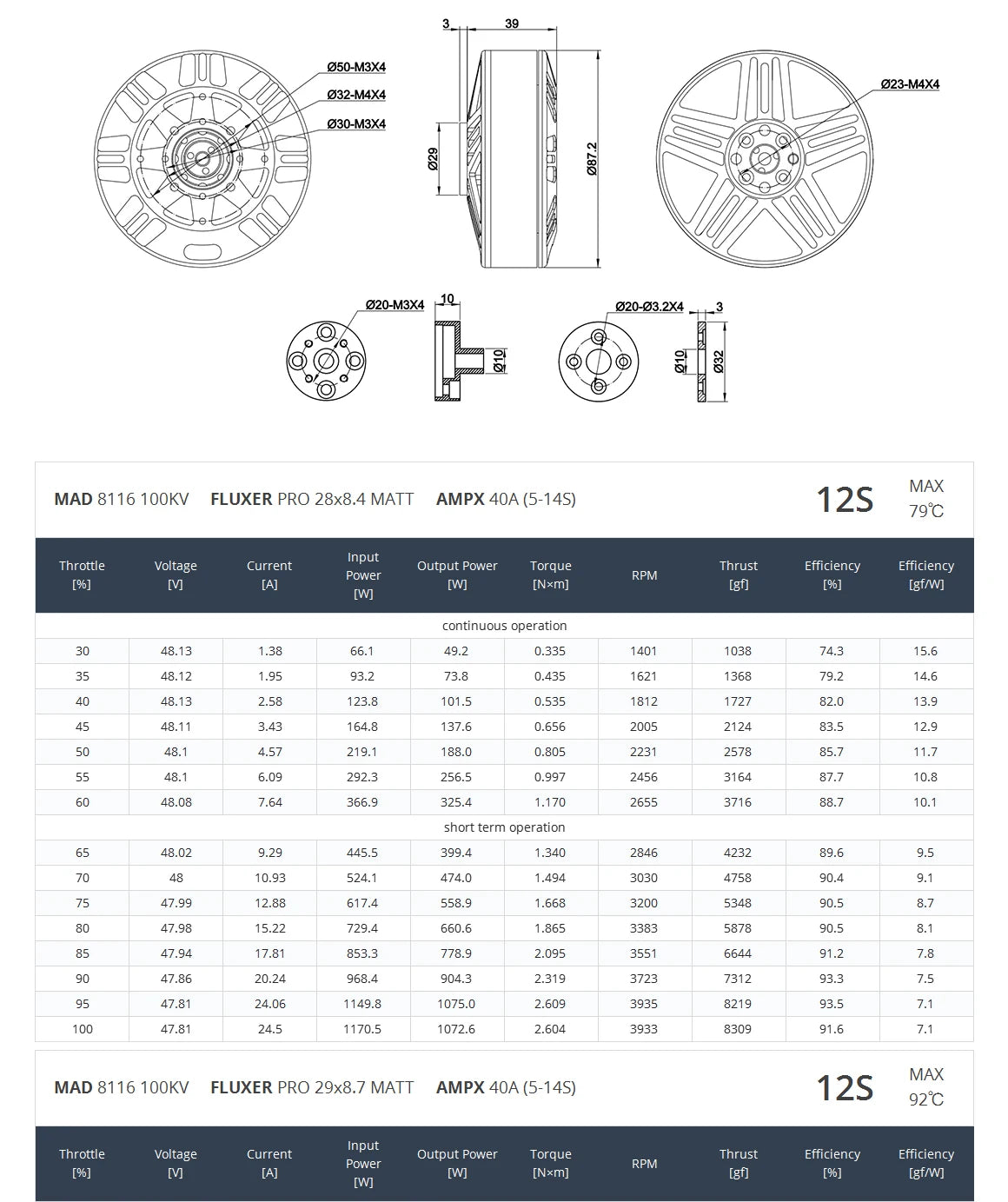

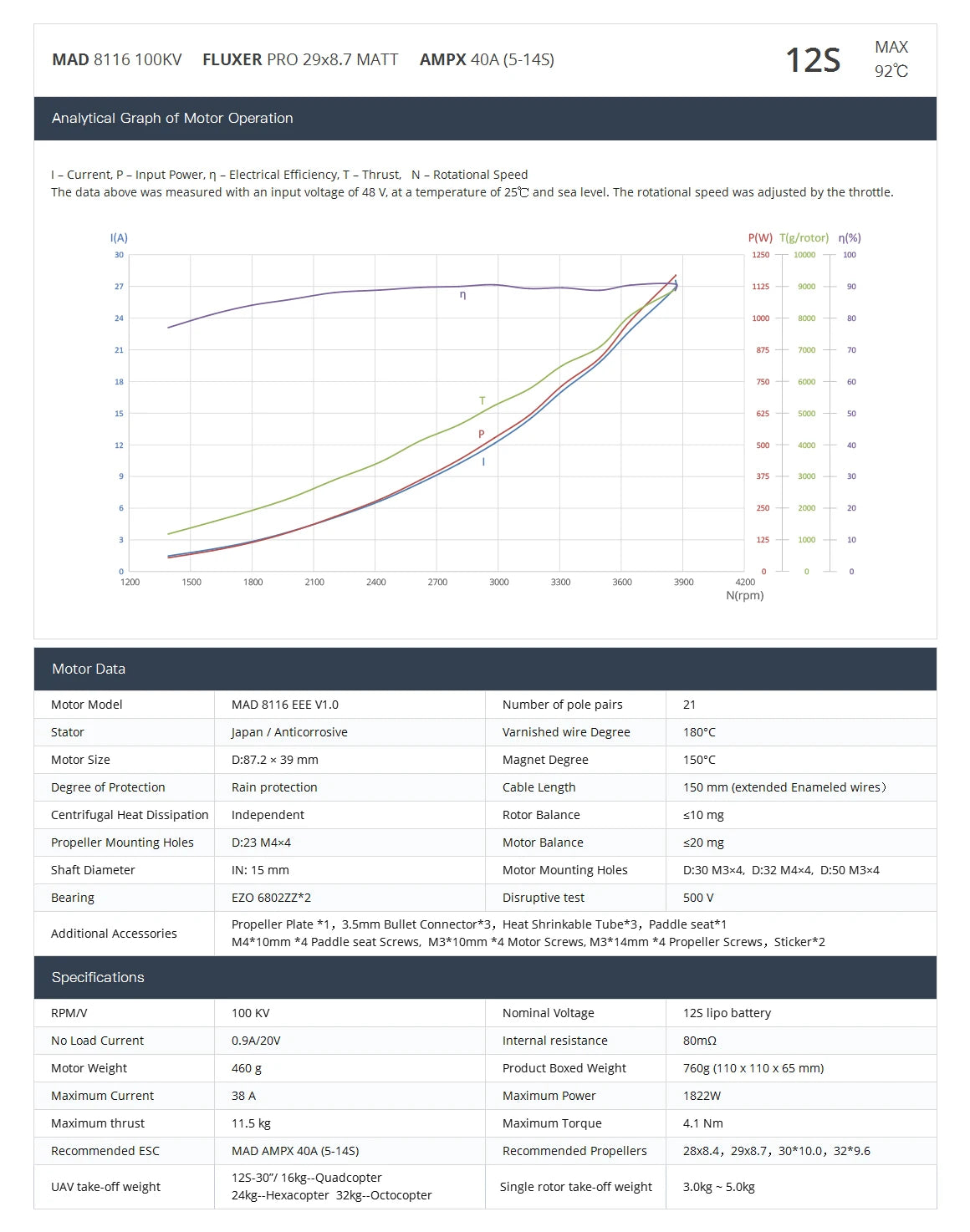

 Motor Test Benchmarks
