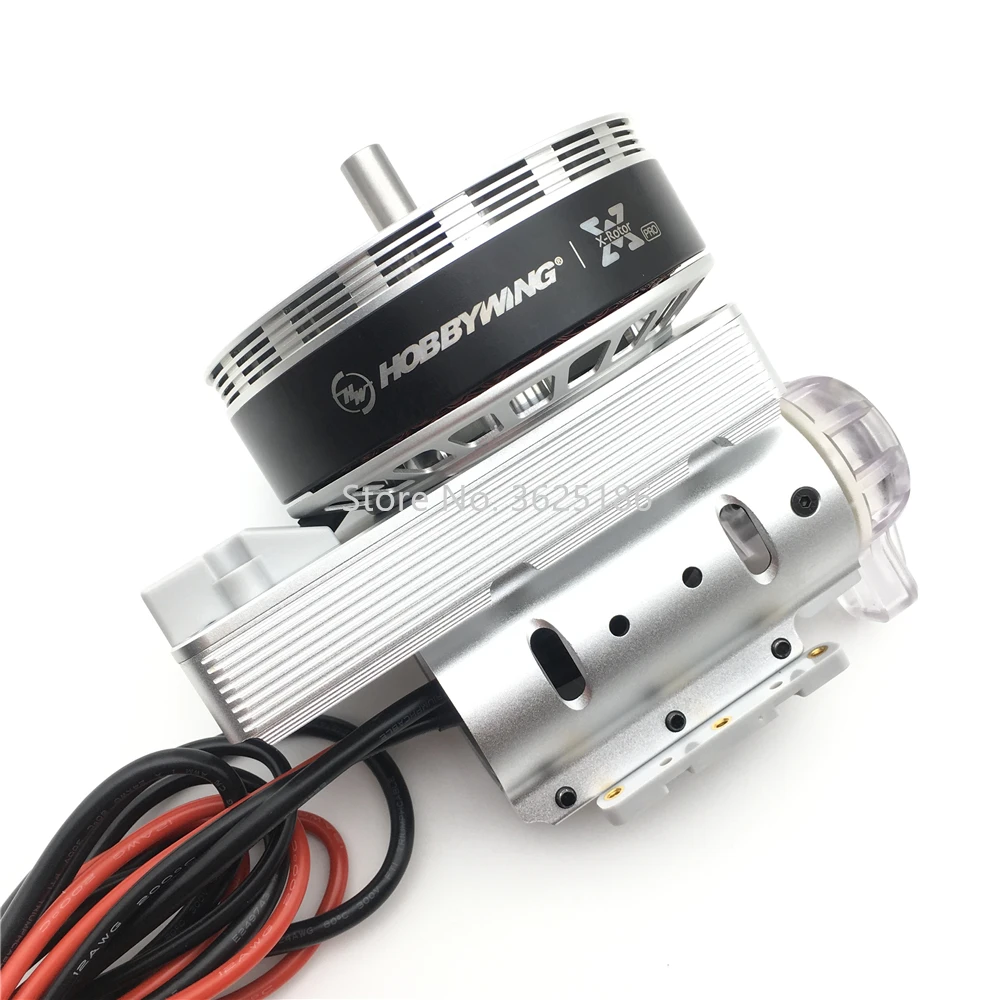

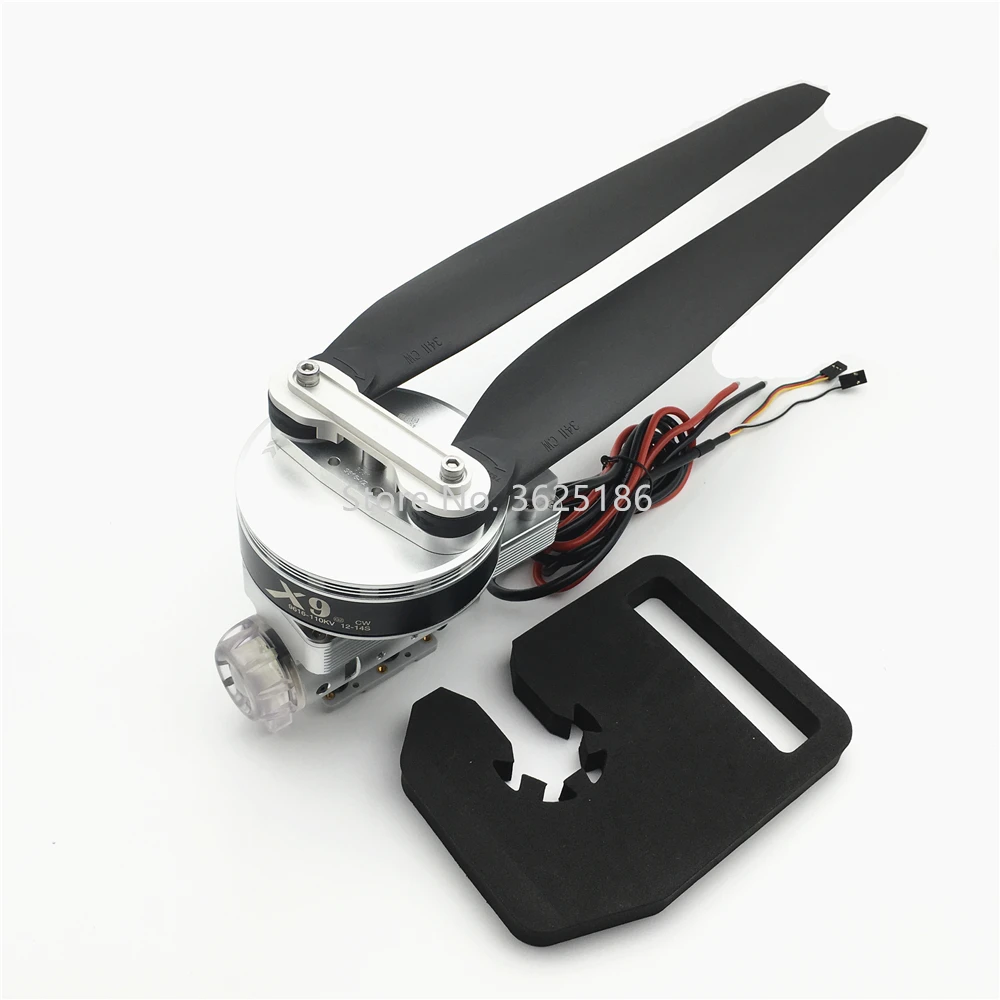

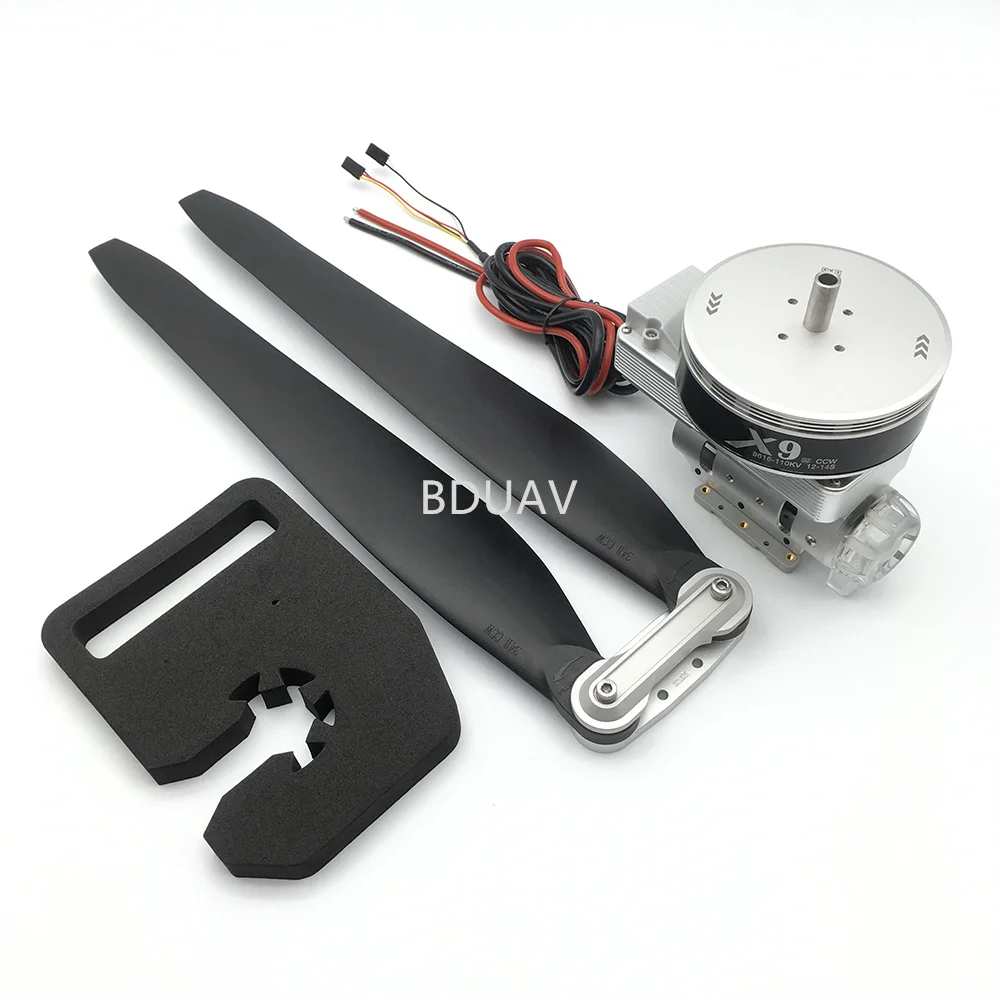

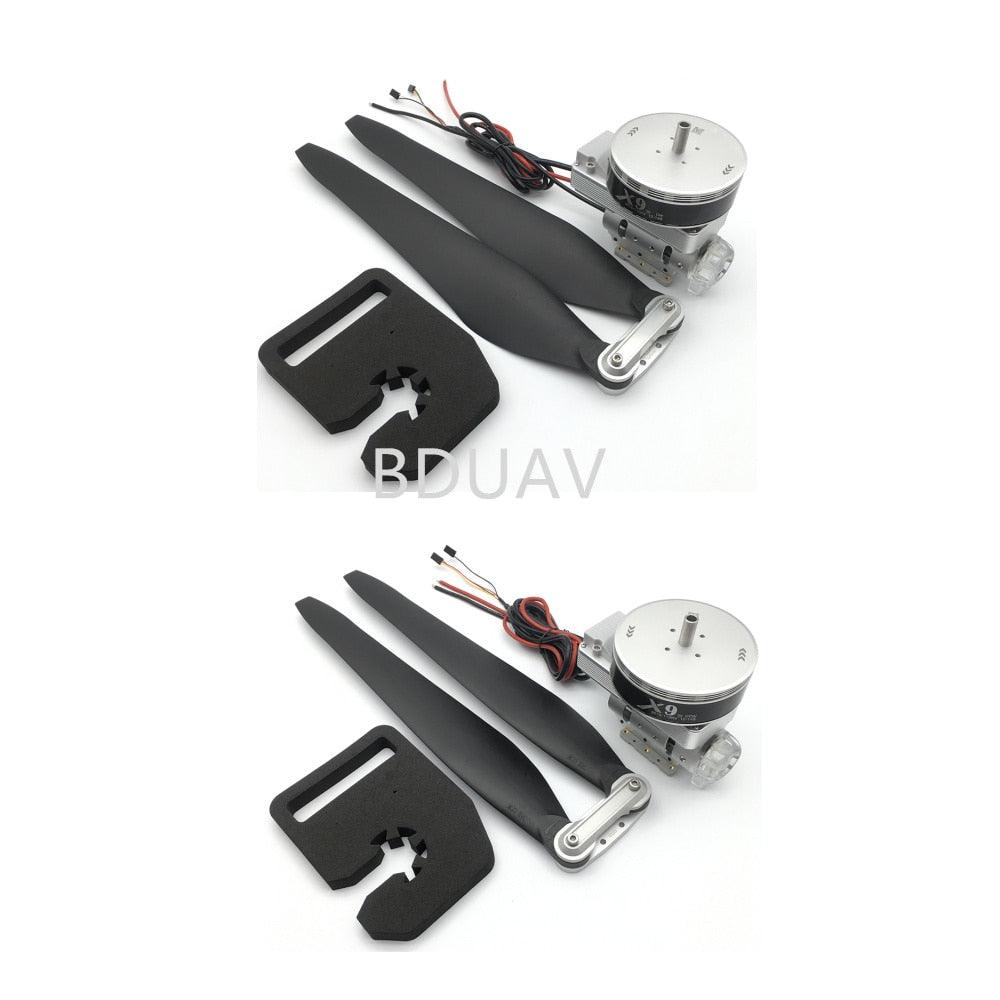

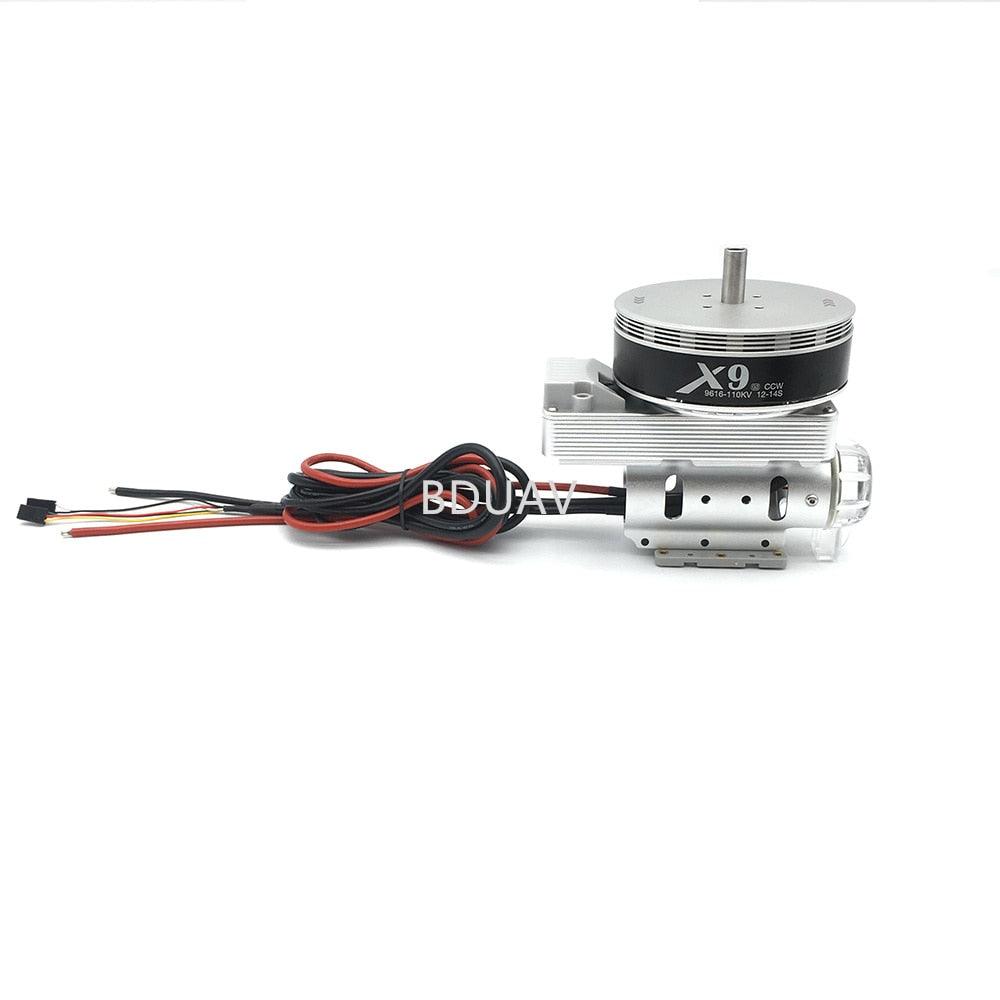

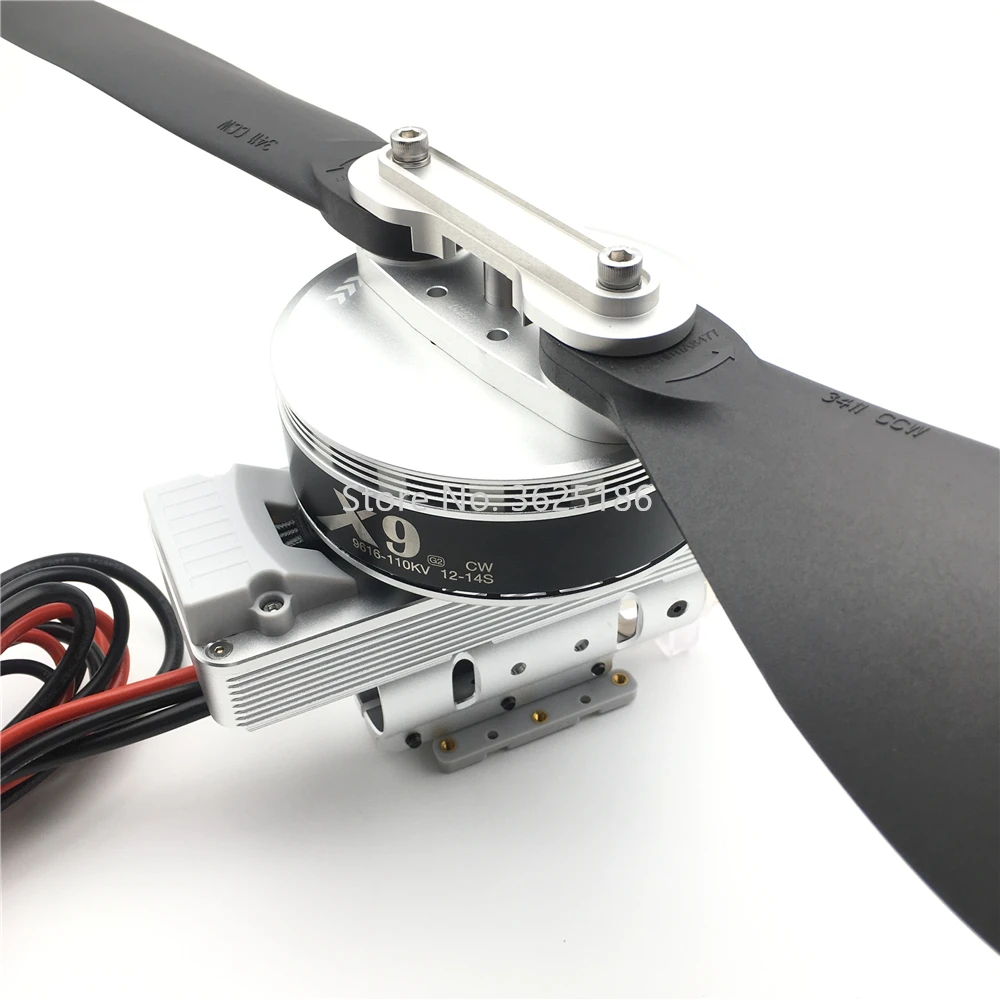

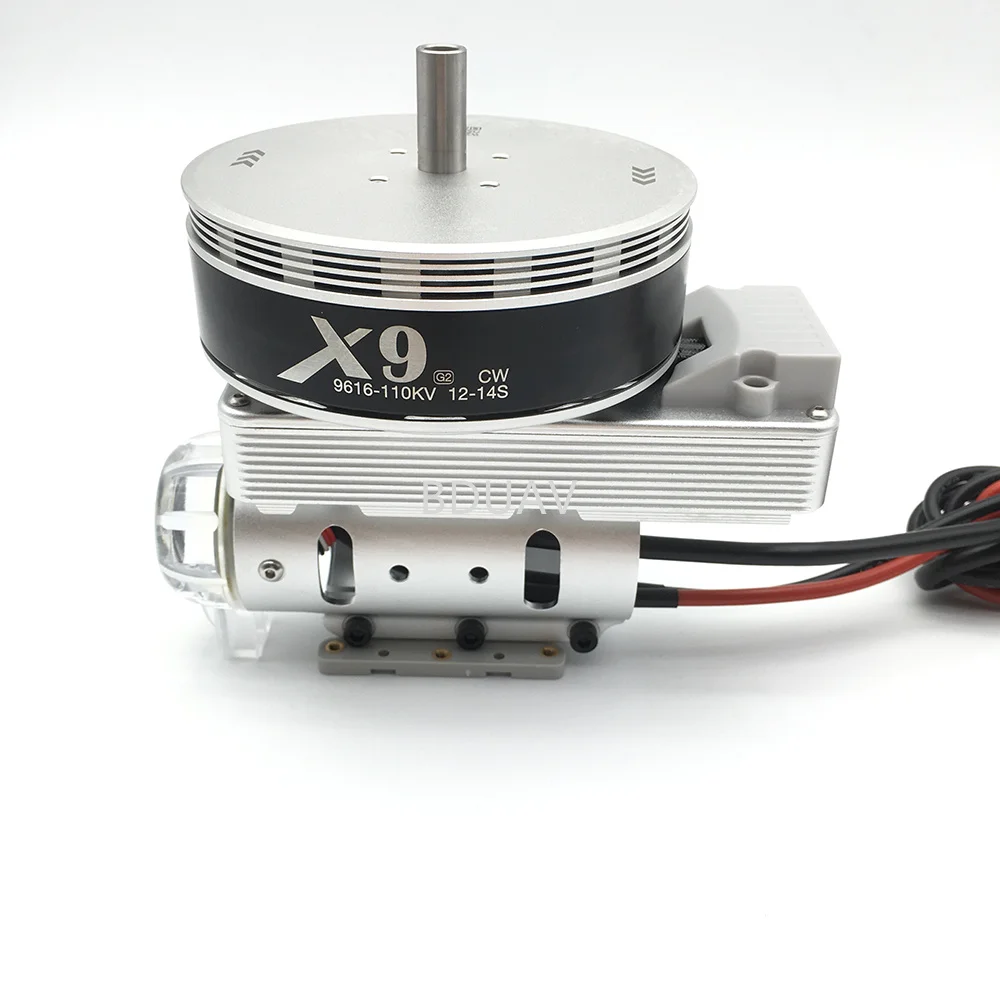

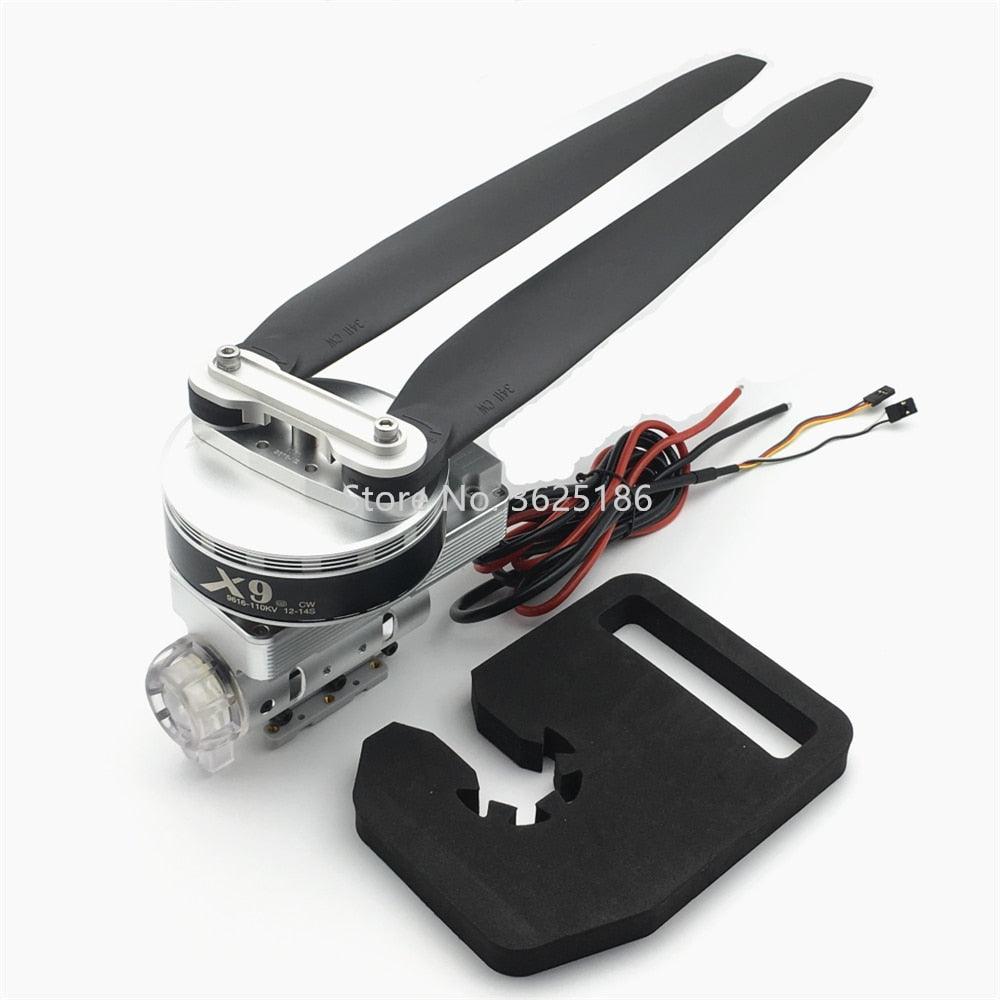

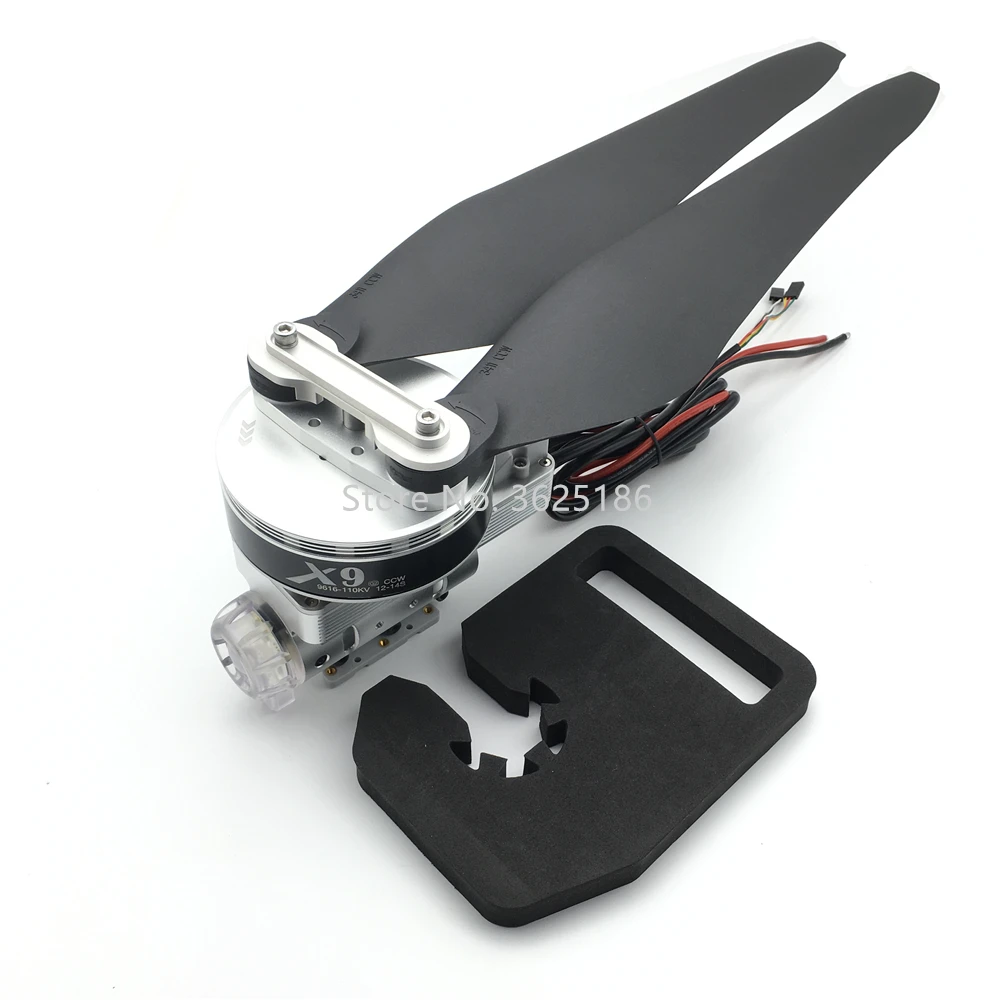

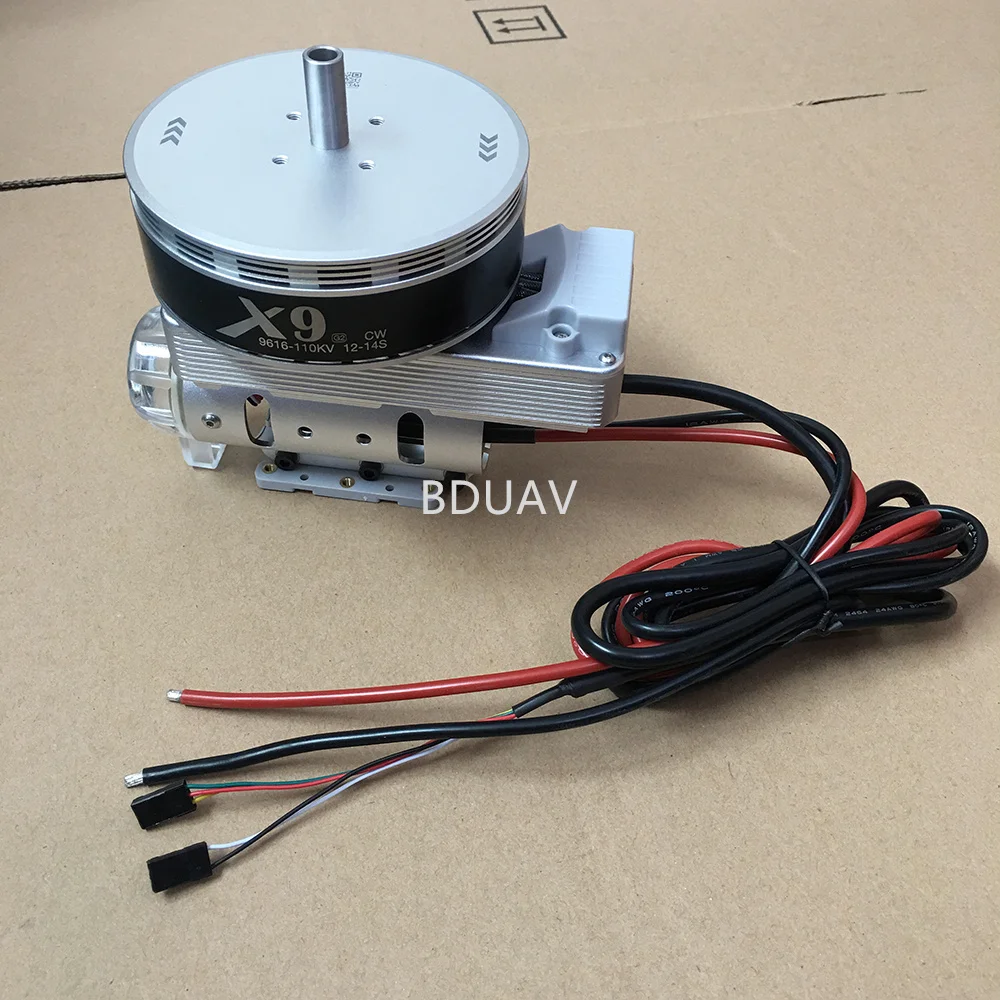

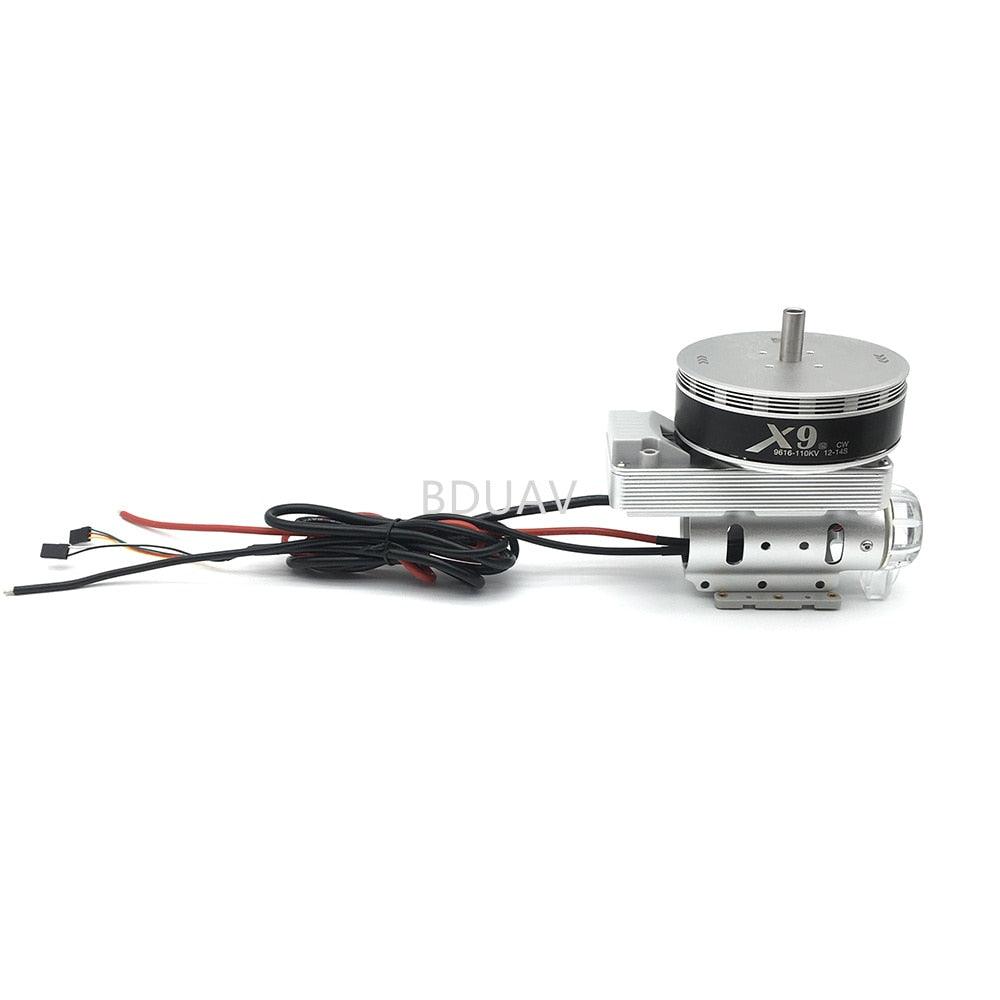

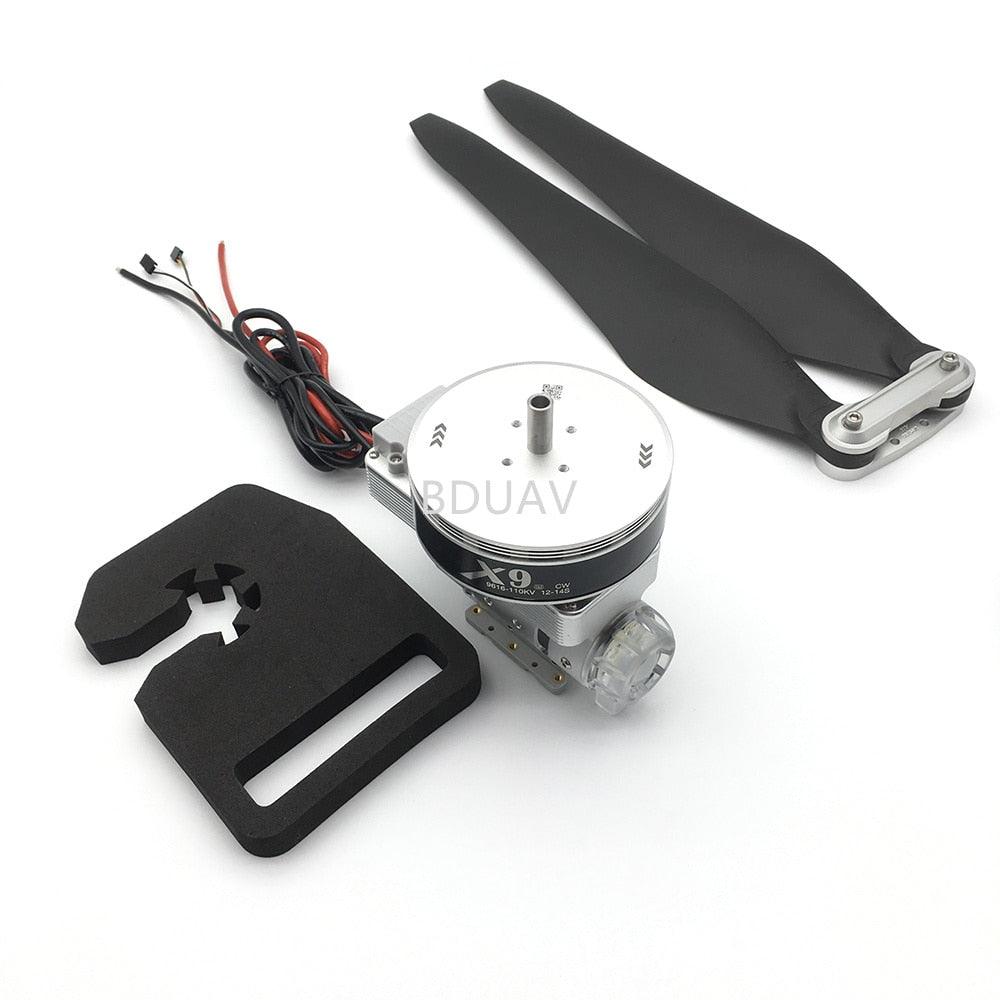

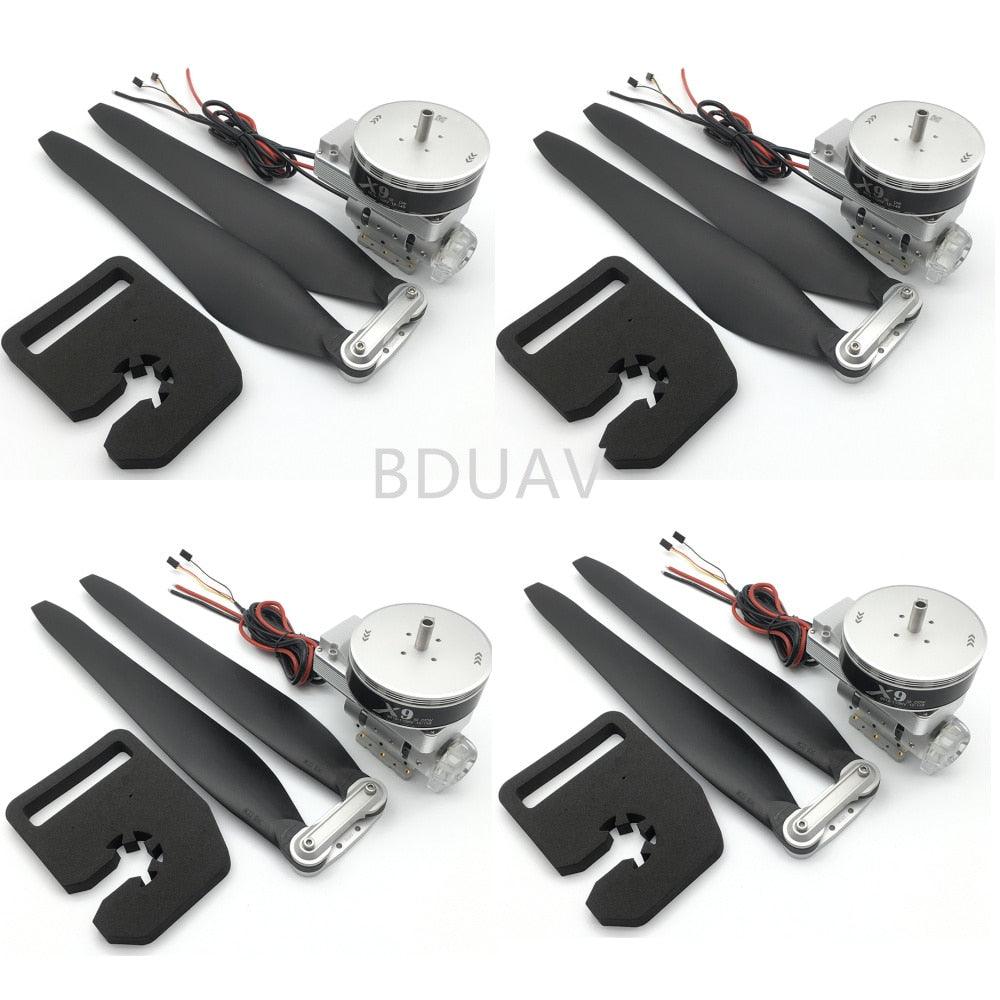

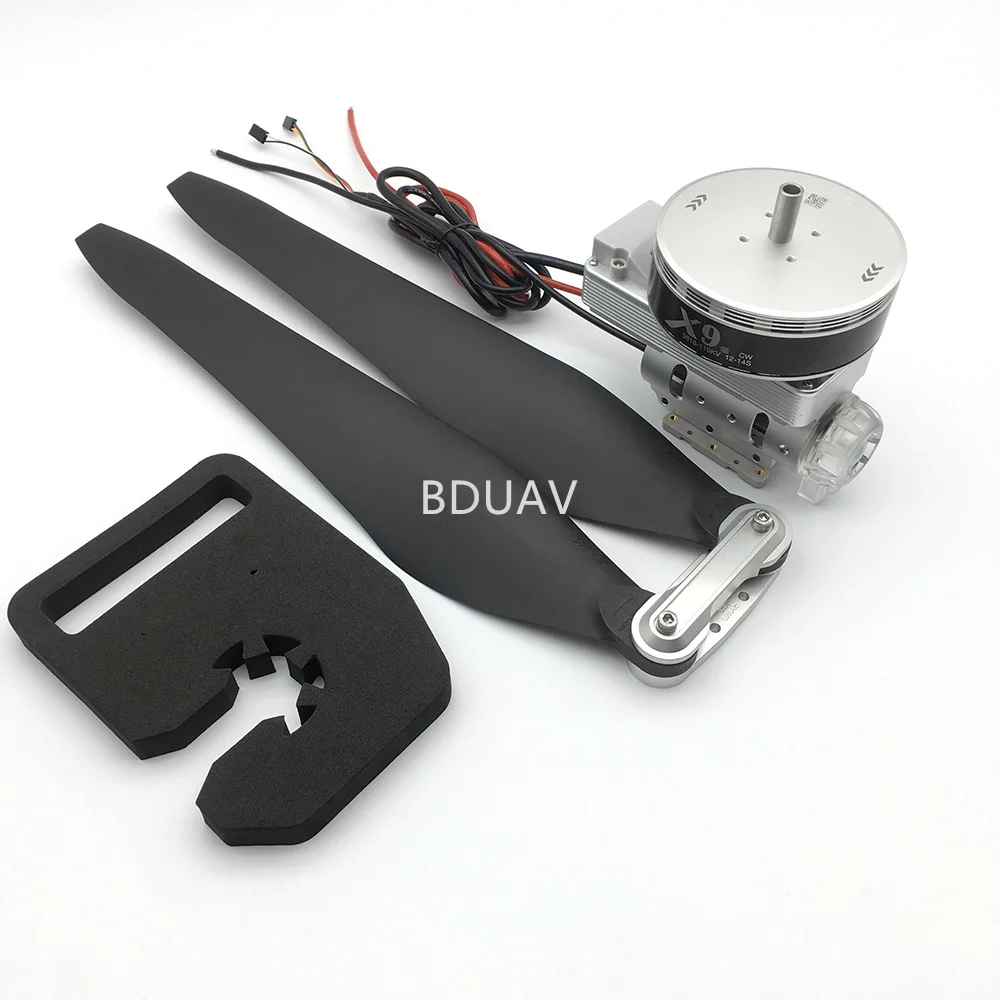

Hobbywing X9 Power System – 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone

Hobbywing X9 Power System SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: power

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: x9

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Engines

Quantity: 1 pcs

Origin: Mainland China

Model Number: X9

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Dear. There are two versions of this Hobbywing X9 power set. The voltage of the new version is 12-14S. The old version is 6-12S. The new version and the old version cannot be used together. Please pay attention to the distinction. Thank you

Specifications:

Technical Parameters

Maximum pulling force: 21.5KG/axis

Recommended battery: 12S lipo

Recommended takeoff weight (single axis): 7.0-9.5KG

Weight (including propeller) 1450g

Dimensions: 151.2×133.3mm

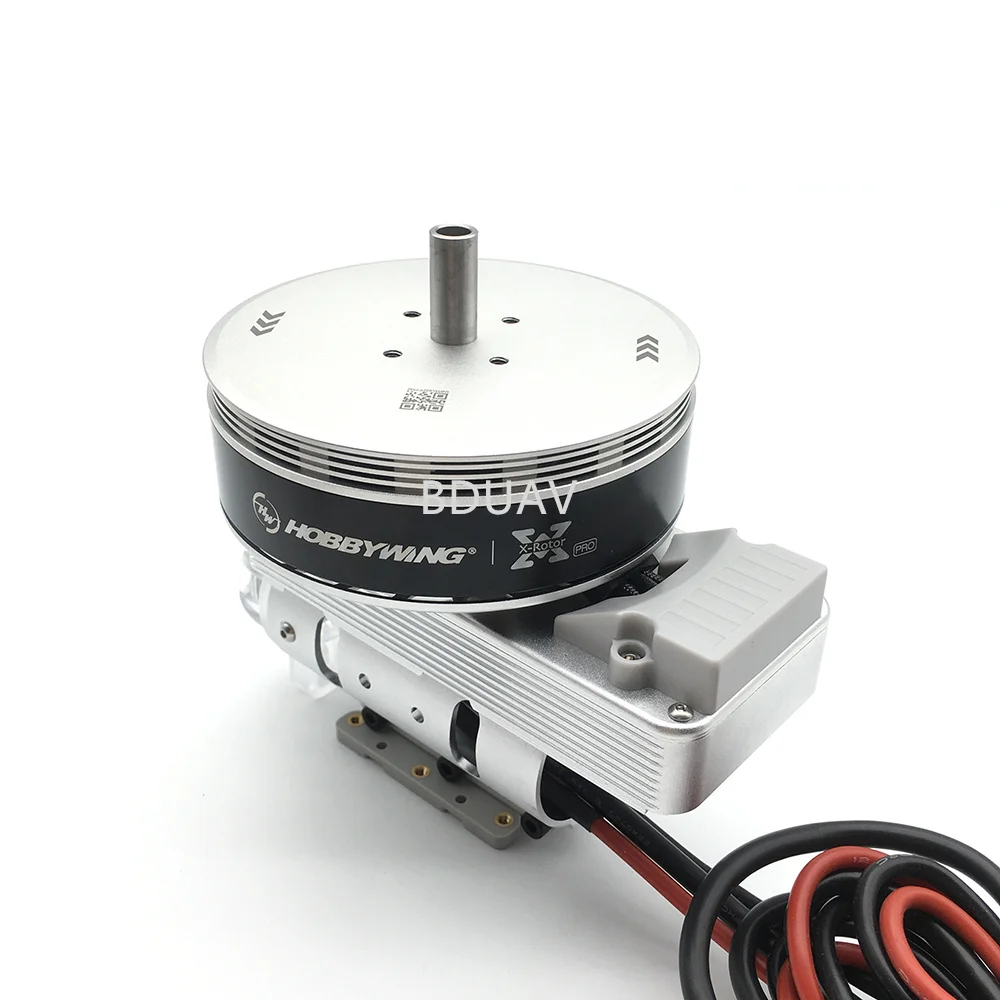

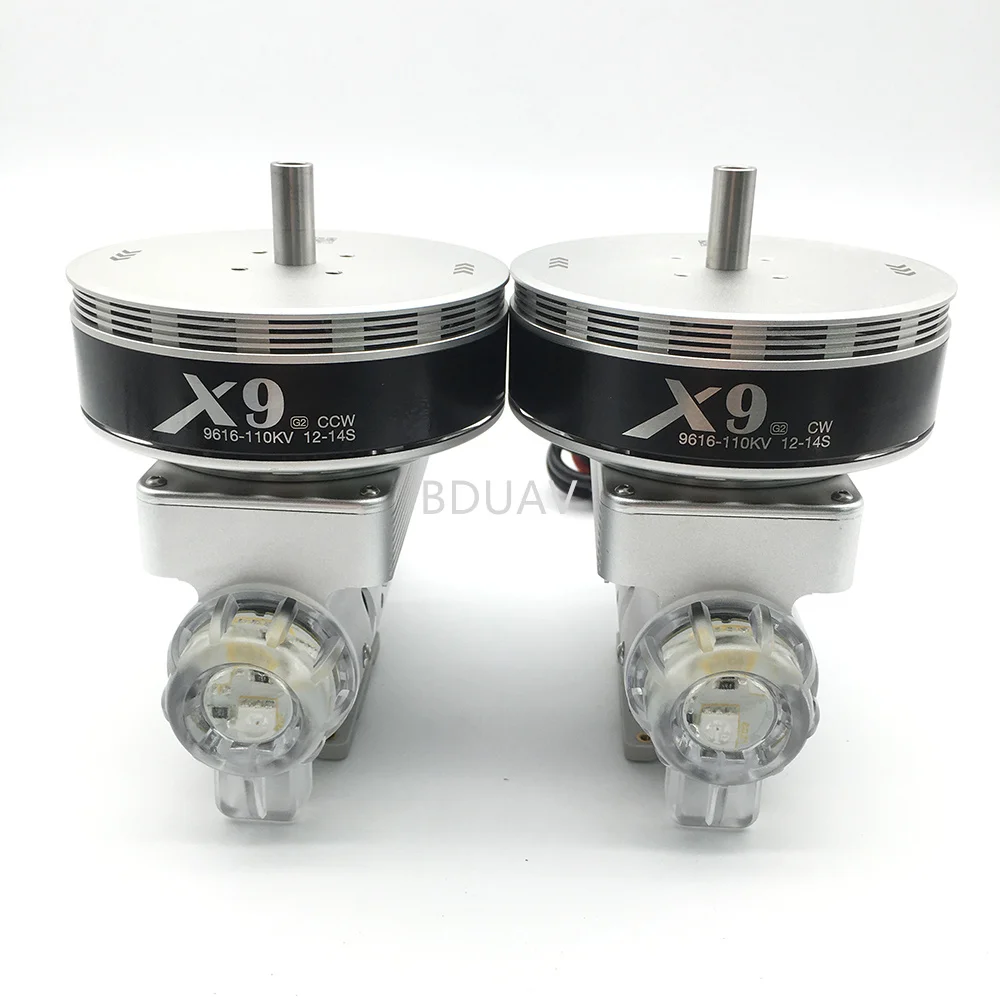

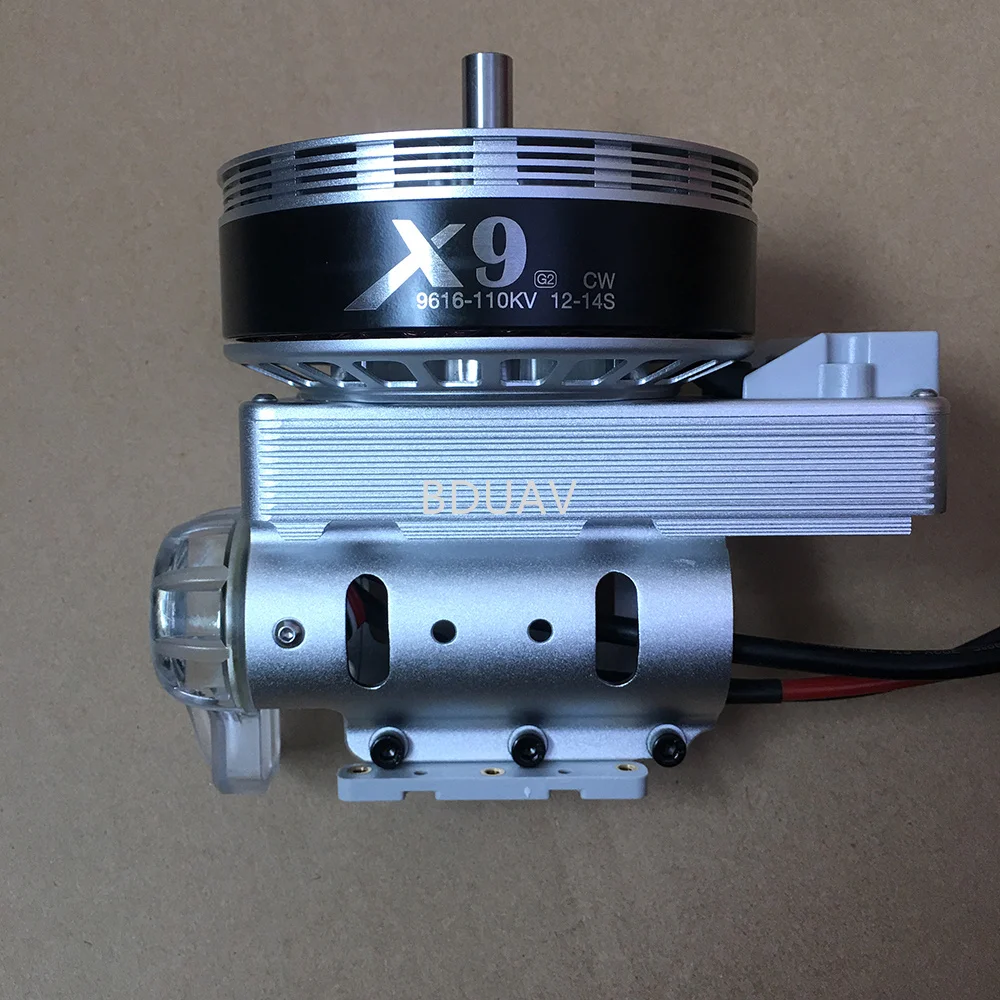

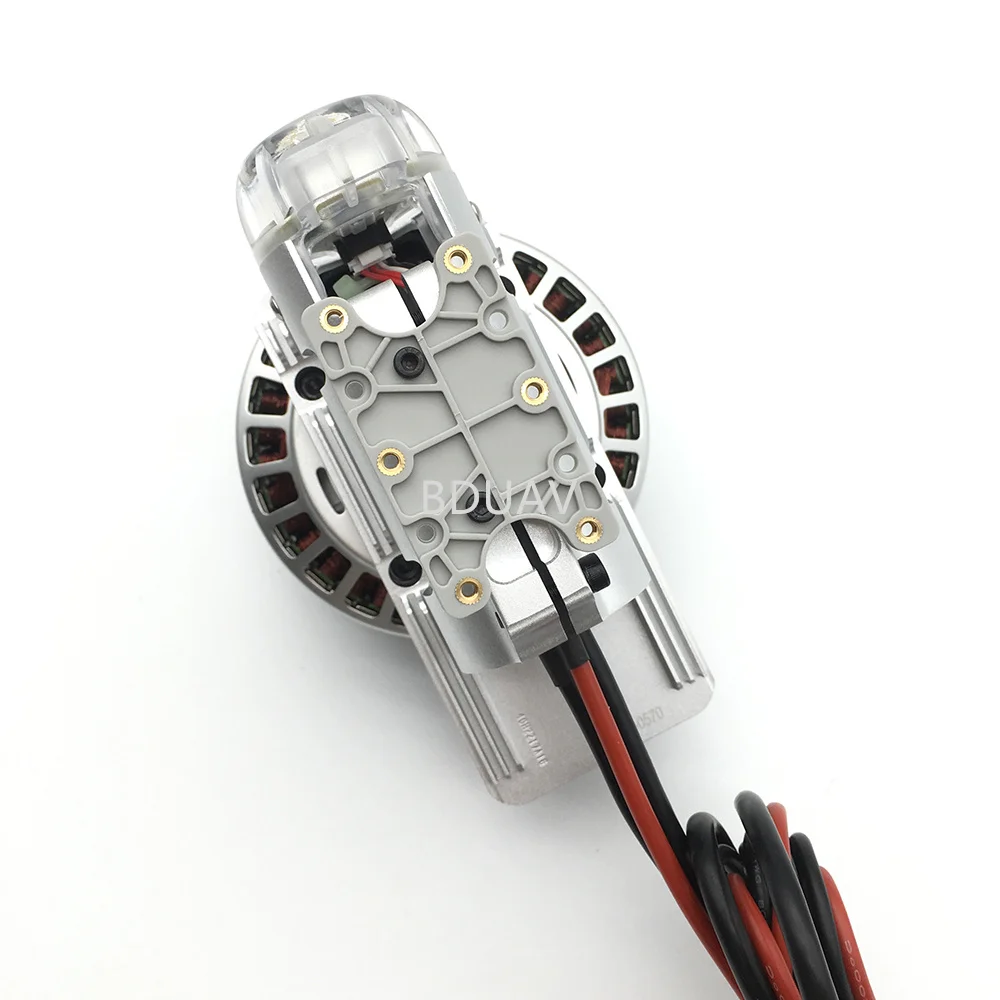

Motor

Stator size: 96x16mm

KV value: 110rpm/V

Internal resistance: 0.031ΩBE

Maximum current: 100A

Motor outer diameter: Φ103.5mm

Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3

Bearing: imported ball bearing (waterproof)

Applicable carbon tube outer diameter: 40mm

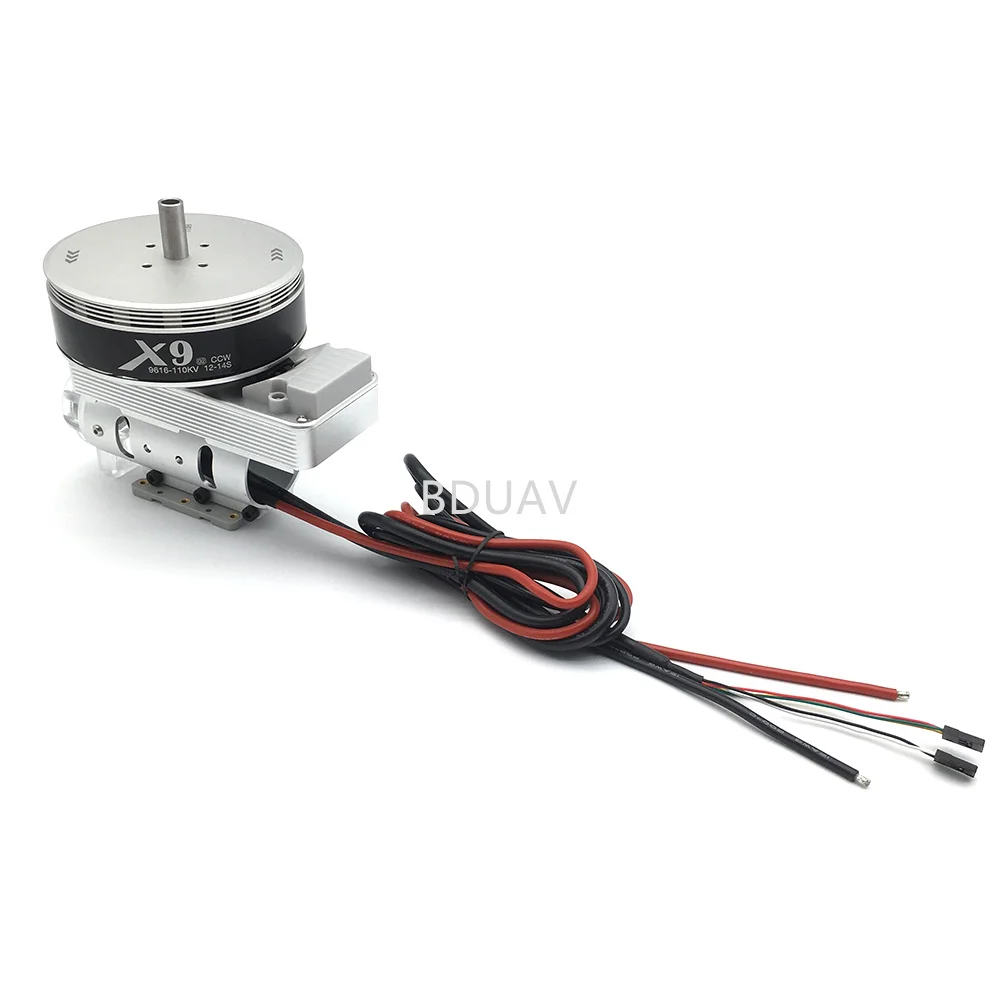

ESC

Model: X-rotor/120A-FOC

Battery: 12-14S lipo

PWM input signal level: 3.3V/5V

Working pulse width: 1100μs-1940μs (curing, calibration is not supported)

Maximum allowable voltage: 52.2V

Maximum allowable current (continuous): 120A

Maximum allowable peak current (3 seconds): 150A

BEC: none

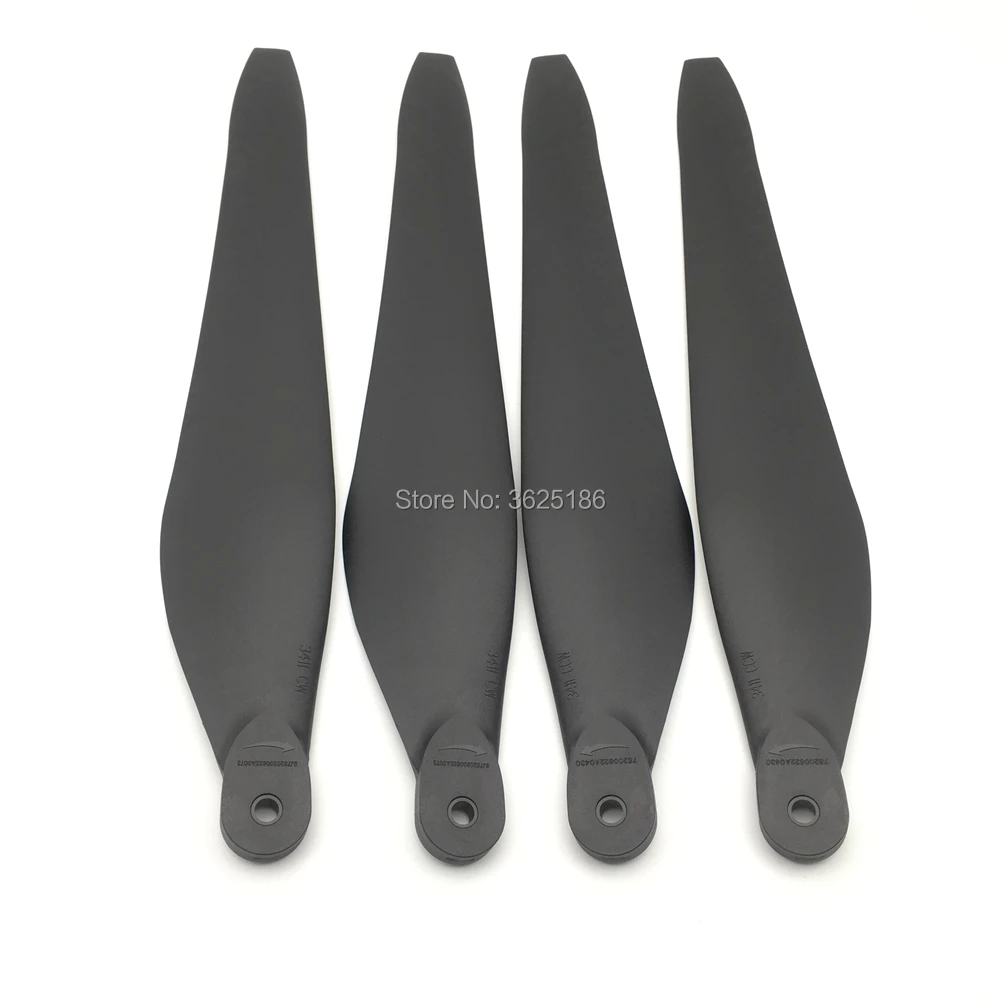

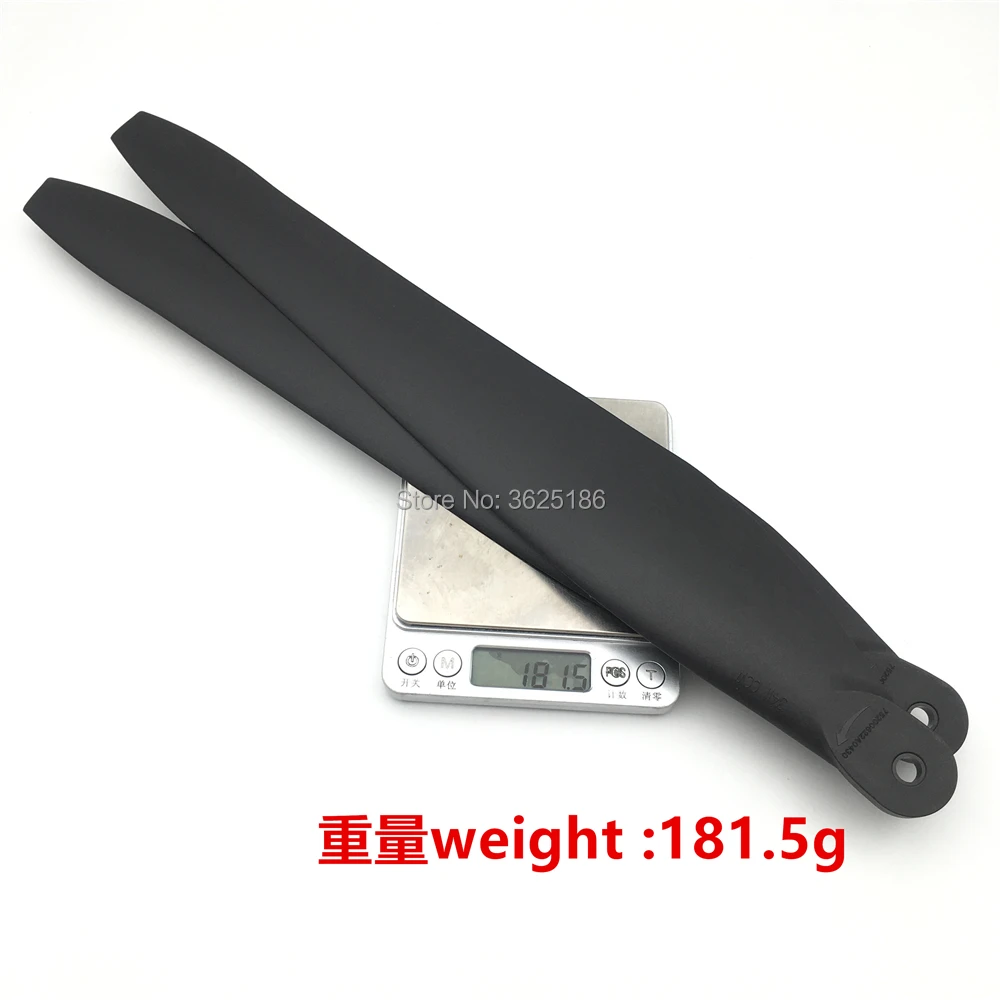

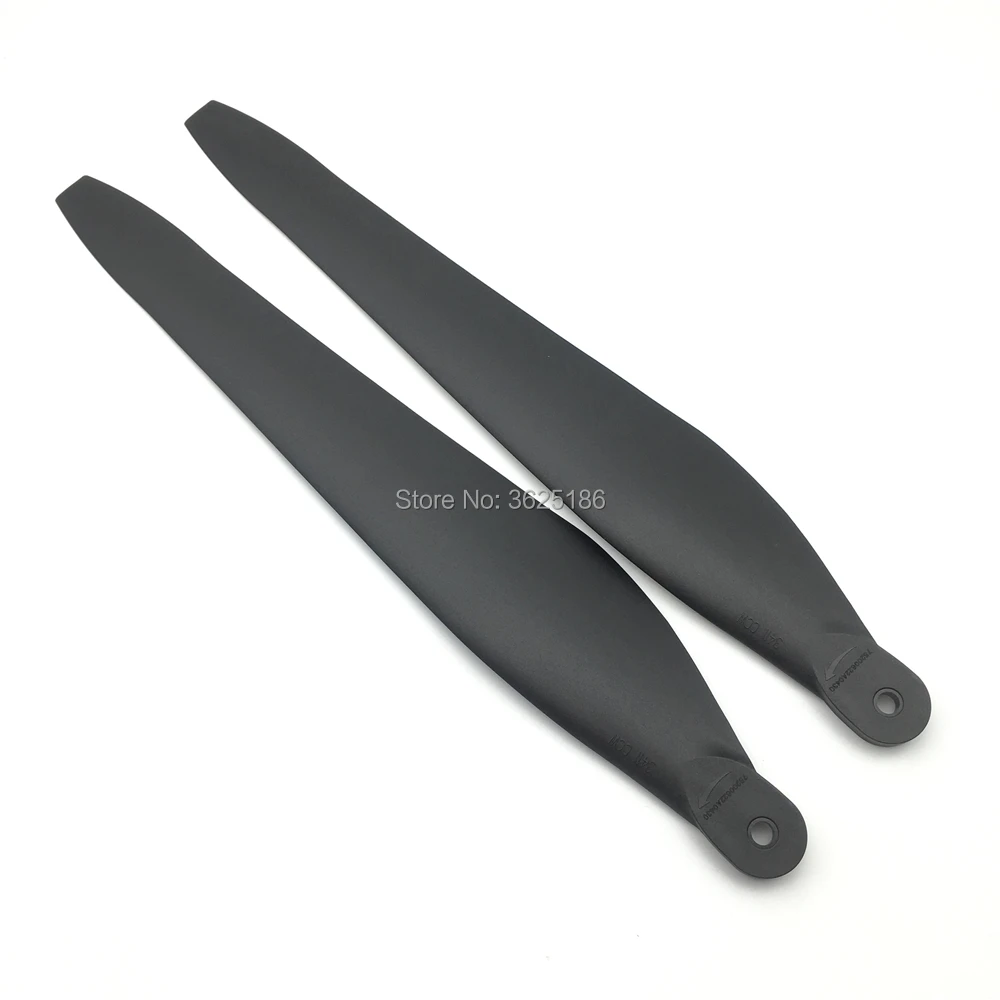

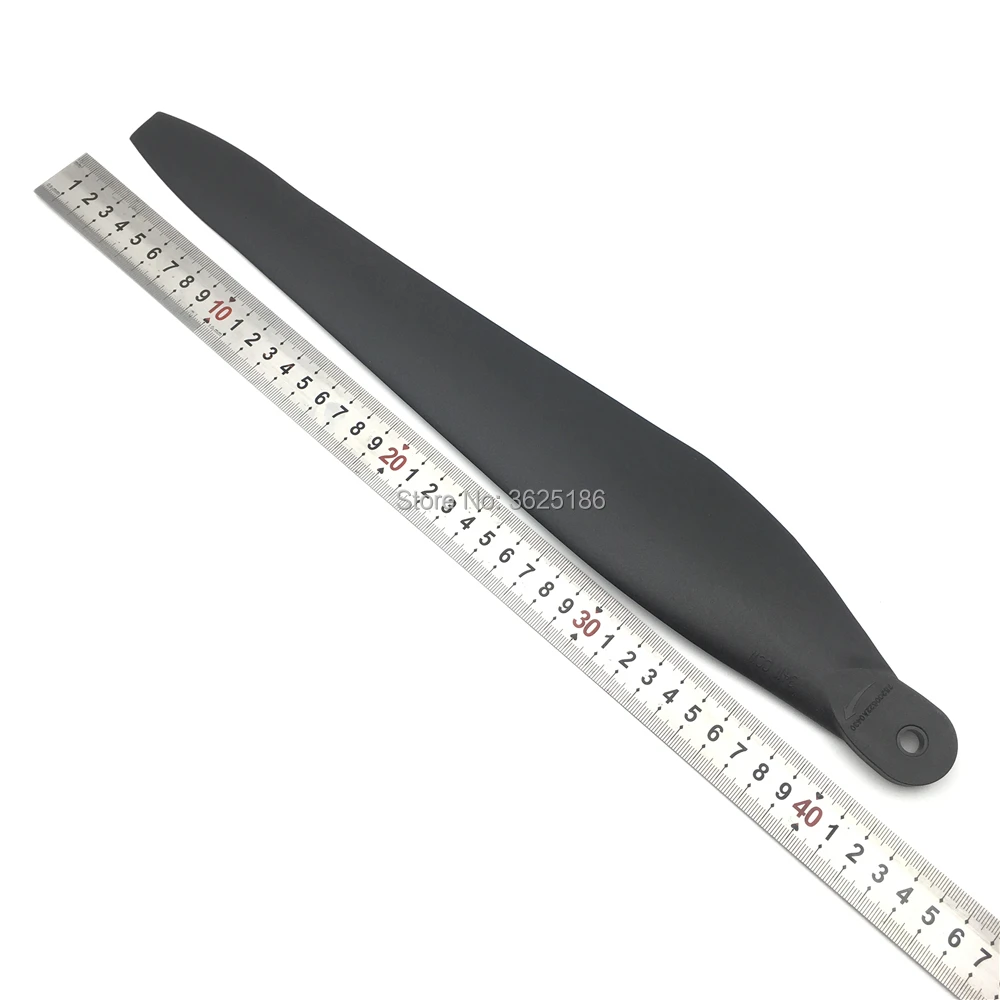

propeller:

Diameter / pitch: 34×11 inch

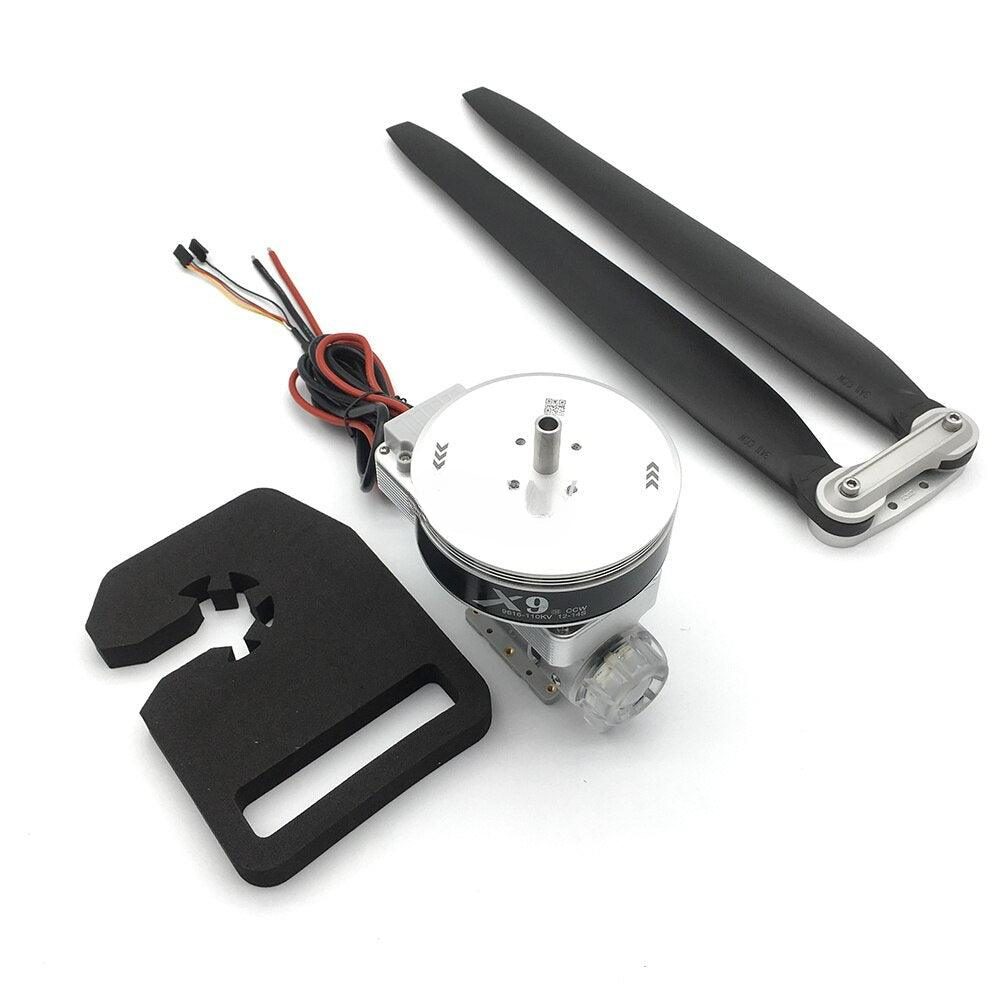

Hobbywing X9 Power System Combo – Propulsion System for Multirotor Agriculture Drone, Includes: ESC, Motor, and Propeller (22L, suitable for 10-16L multi-rotors), powered by 12S LiPo battery or compatible with 6-12S Lipo battery, with a maximum weight capacity of 93kg.
