Pandarc VT5804M L1 VTX SPECIFICATIONS
Brand Name: PandaRC
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
Certification: none
body {
font-size: 75%;
color: #000;
font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,”宋体”;
line-height: 1.3;
}
dl {
margin: 0px;
width: 480px;
float: left;
}
dt {
width: 100px;
height: 15px;
float: left;
}
dd {
width: 240px;
height: 15px;
float: left;
}
dl dt {
margin: 0px;
line-height: 22px;
color: #474747;
font-size: 14px;
font-family: tahoma;
}
#product-desc {
width: 100%;
height: 209px;
}
#description {
width: 100%;
height: 50%;
}
#details {
width: 100%;
height: 50%;
}
.ui-box-title {
height: 30px;
font-size: 15px;
font-family: tahoma;
font-weight: bold;
background-color: #ddd;
text-anchor: inherit;
padding-top: 8px;
margin: 0px;
}
.ui-box-body {
margin: 0px;
}
#tbspecifics {
border-right: 1px solid black;
border-bottom: 1px solid black;
}
#tbspecifics tr {
height: 30px;
}
#tbspecifics td {
width: 100px;
border-left: 1px solid black;
border-top: 1px solid black;
}

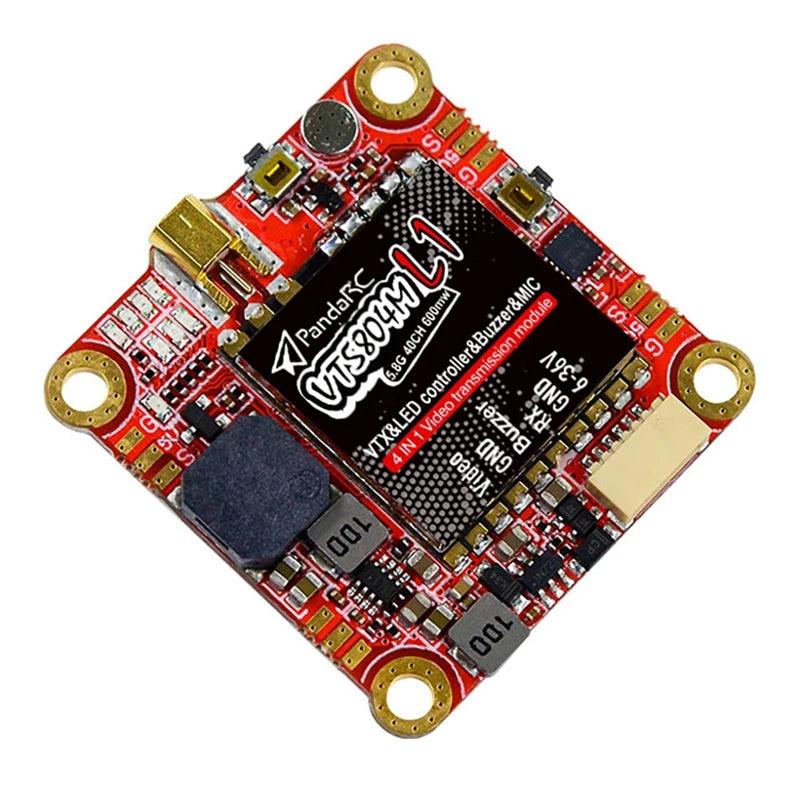

PandaRC VT 5804 ML1 VTX 600mW/4 in 1 (VTX +LEDbars+ Buzzer t MIC) mmcx;
Frequency: 5.8Ghz 40CH , including A/B/E/F/R groups ,R group is the race band
Output power : PIT/25mW/100mW/200mW/400mW/600mWConnect :MMCx ;Video Format : NTSC/PAL ;
Radio Frequency Output Impedance: 75 Ohm ;
Power consumption : 3.5W@600mW
Smart Audio : IRC-Tramp ;
LED controller specification
Each Drone arm can hold Max 8 Leds ;
16 Leds states can be controlled by one button ;
Default : closed(Each Drone Arm led can be controlled by FC). Build in Buzzer (85dB)
Build in Microphone
Colour:black+gold+red
Material:Metal+Electronic Components+ABS
Package Contents:
1 * interface controller
1 set * accessories package
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

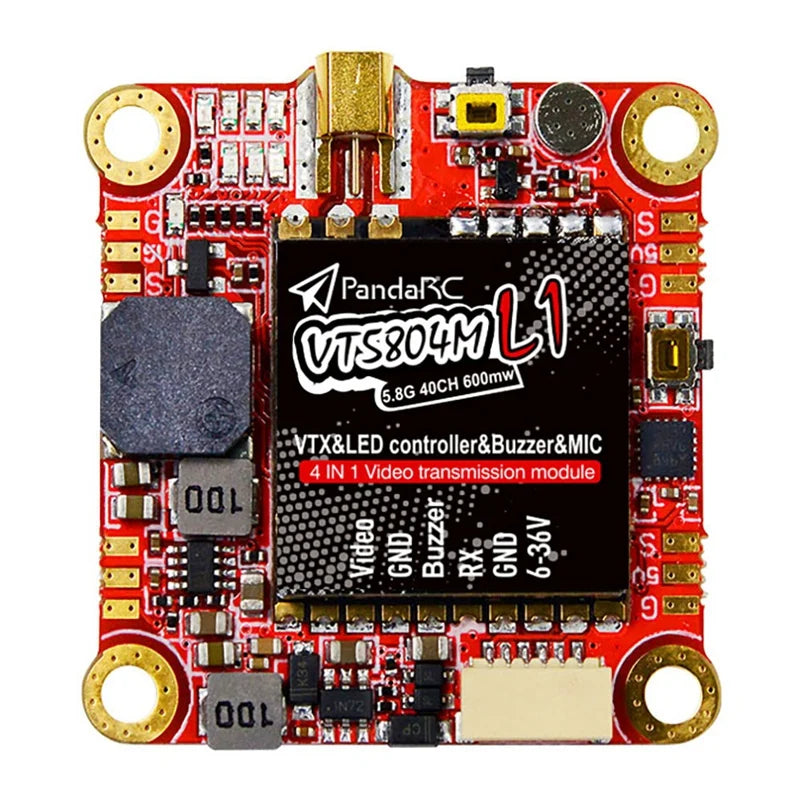

S SQ ng PandaKc WsgoqlI 6.86 VTXBLED controller&Buzzer&MIC 4 IN 1 Video transmission module O0L 33233 00L 60Omw 40

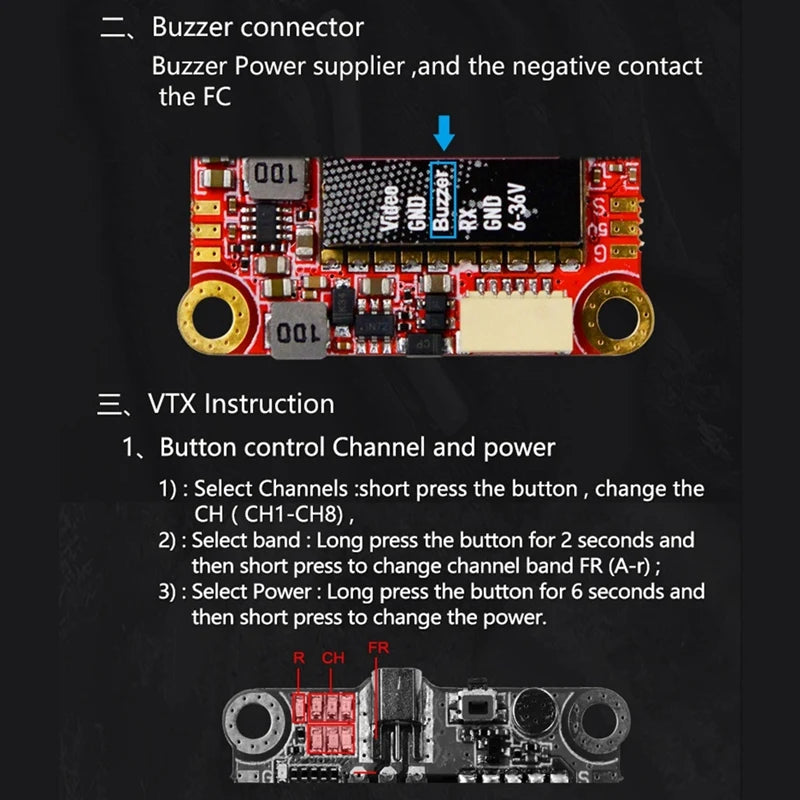

long press the button for 2 seconds and then short press to change channel band FR (A-r) ; 3) : Select power . long press button for 6 seconds and short press . to change the power: FR CH CH CH .

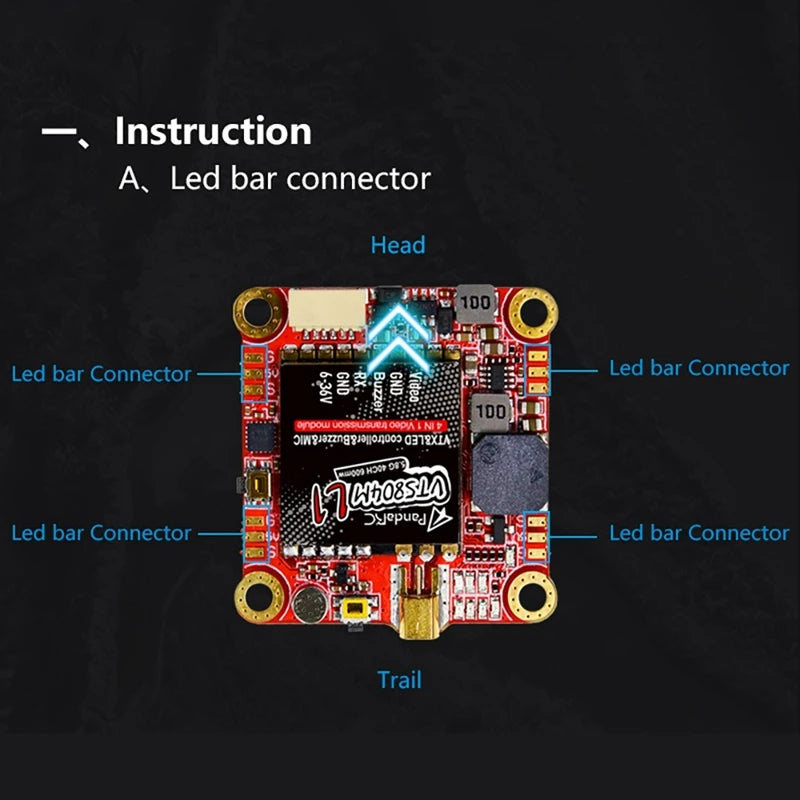

Instruction A Led bar connector Head 100 [Wbossw Jycpued_ Ledbar Connector] 2 I82 100 aa 3inR43r7ngr48[/on0o)

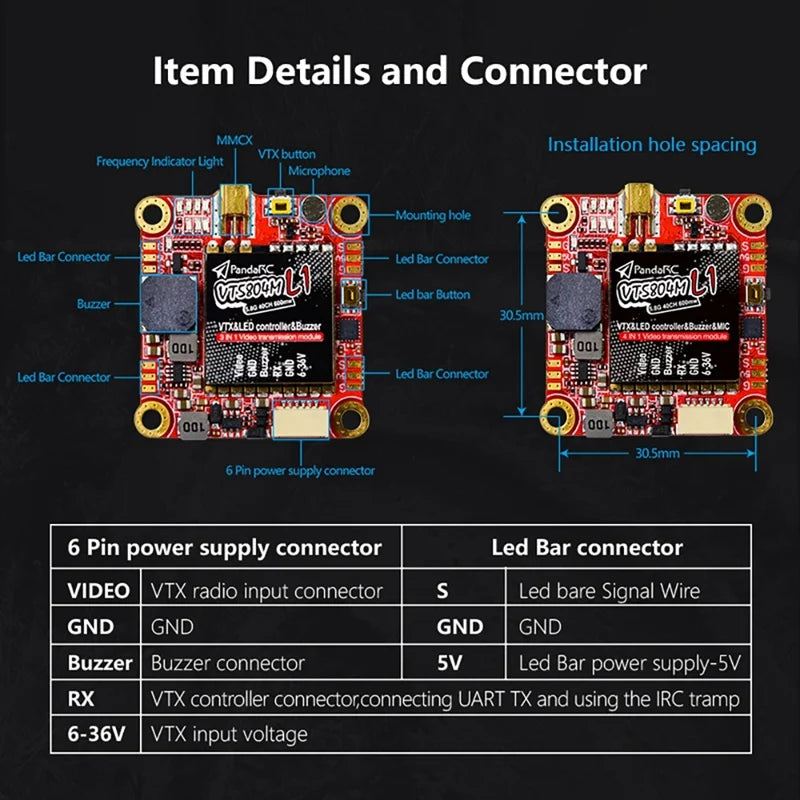

Led Bar Connector MMC Installation hole spacing ViXbutton Frequency Indicator Light Mictophone Mountnghole Ledbar Button Buzzer 30Smm MMILED tobolttoBat MauEo cod tollB .

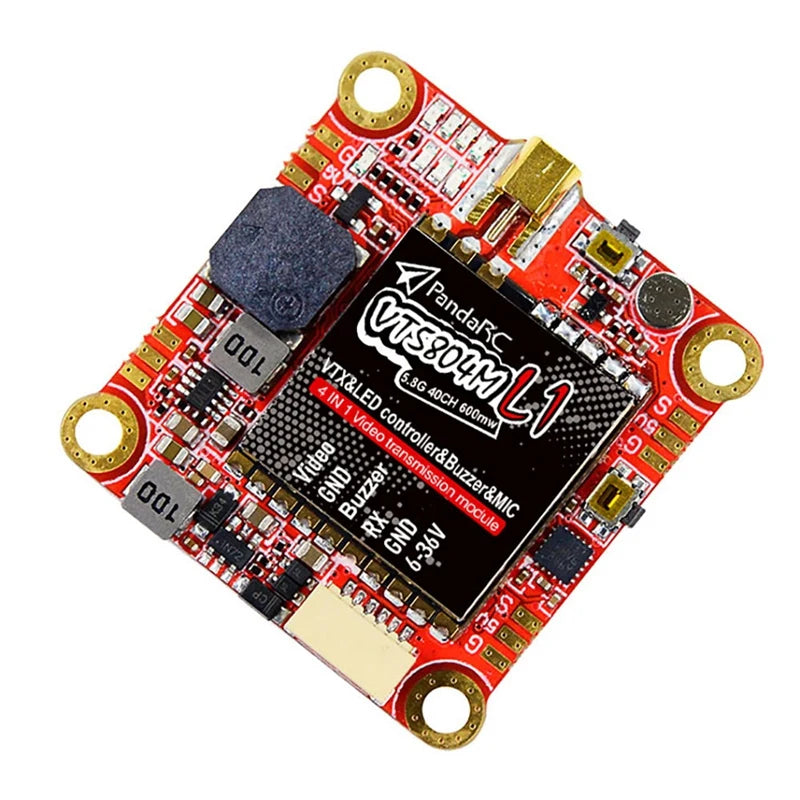

VIXBLED € JaocH L 6o0mw] controller8Buzzer&MIC Video transmission Video: 1 3 00L mocule 3D . |
