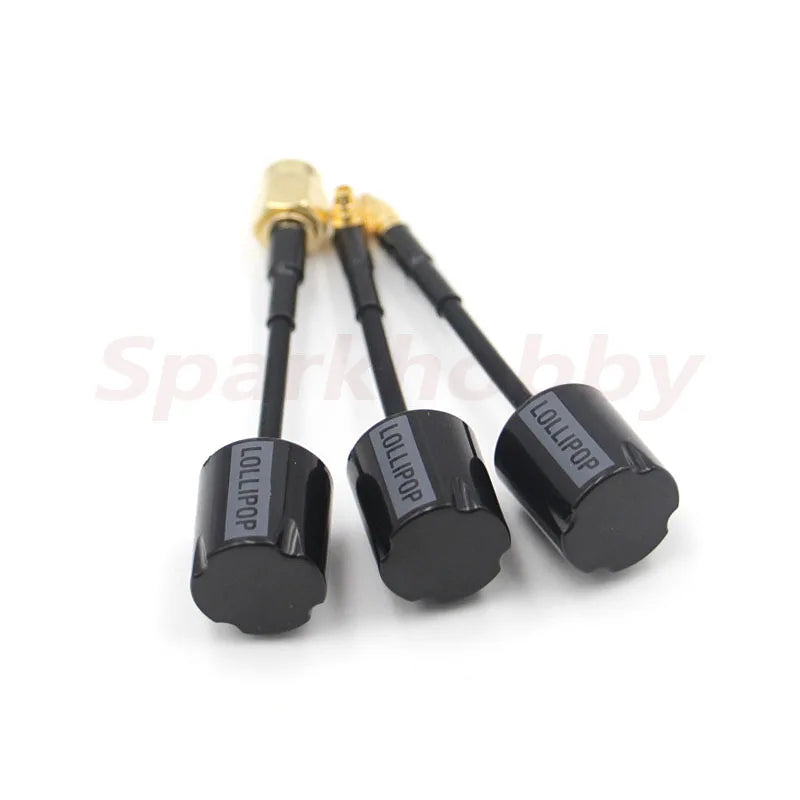

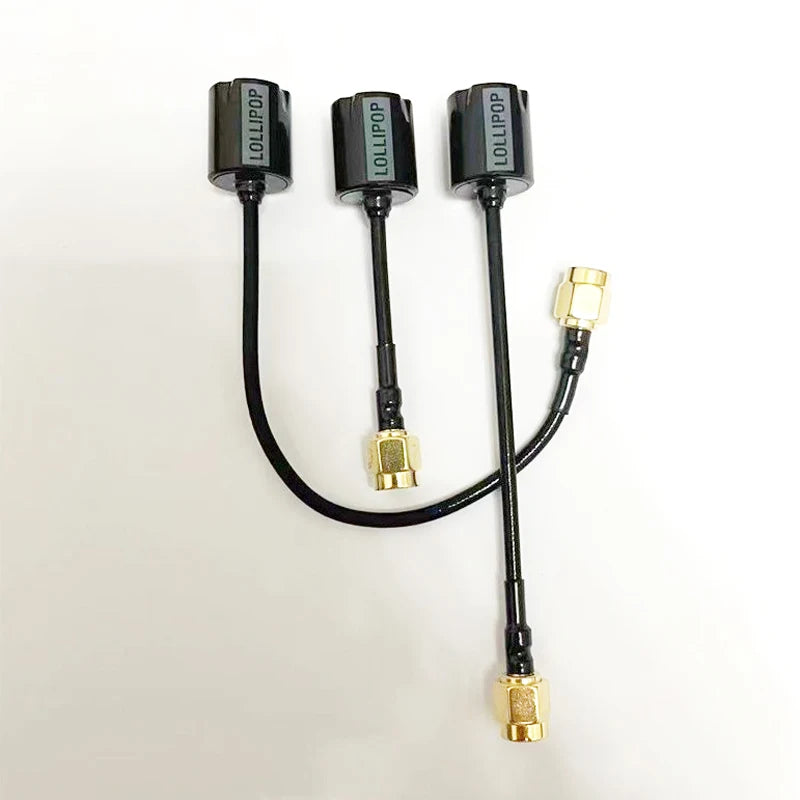

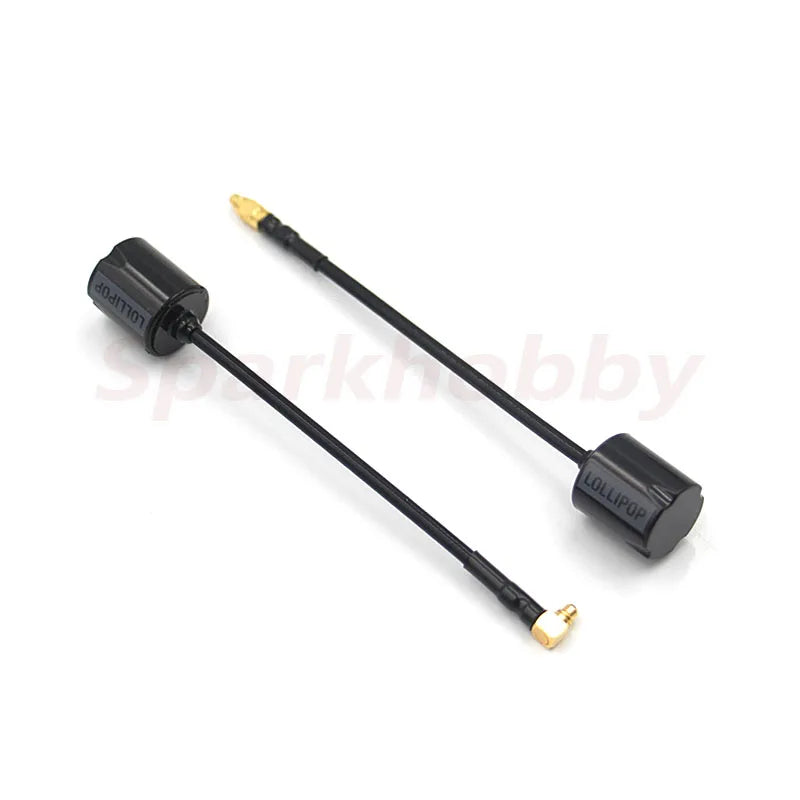

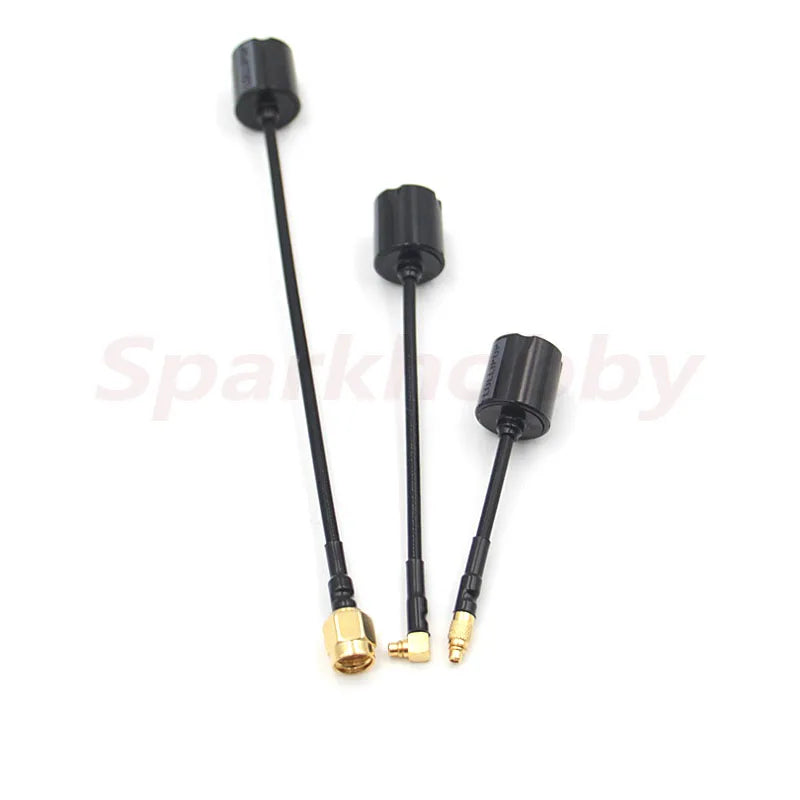

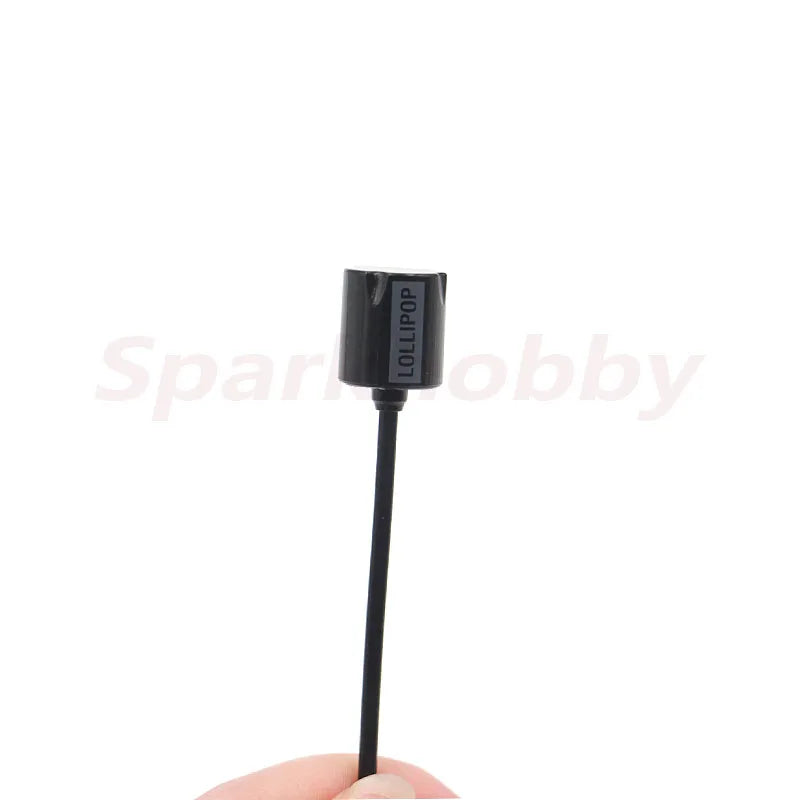

Micro Lollipop 5.8G RHCP Image Transmission Antenna SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Size: 60mm 105mm 145mm
Recommend Age: 18+
RC Parts & Accs: Antennas
Origin: Mainland China
Model Number: Micro lollipop 5.8G
Material: Composite Material
For Vehicle Type: Airplanes
Brand Name: SPARKHOBBY
Item:Micro lollipop 5.8G image transmission Antenna
Parameters:
Frequency Range (MHz):5325-5950
Bandwidth (MHz):100
Input Impendence (Ω):50
V.S.W.R:≤1.5
Gain (dBi):2.5
Polarization Type: RHCP
Power Capacity (w):50

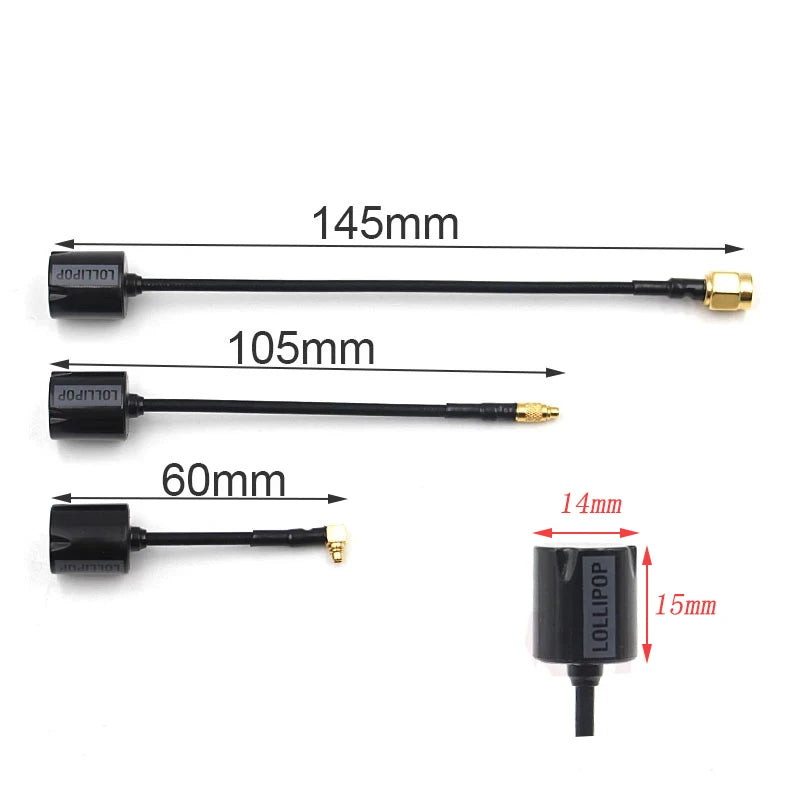

Antenna Length (mm):60/105/145
Radiator: Cuprum

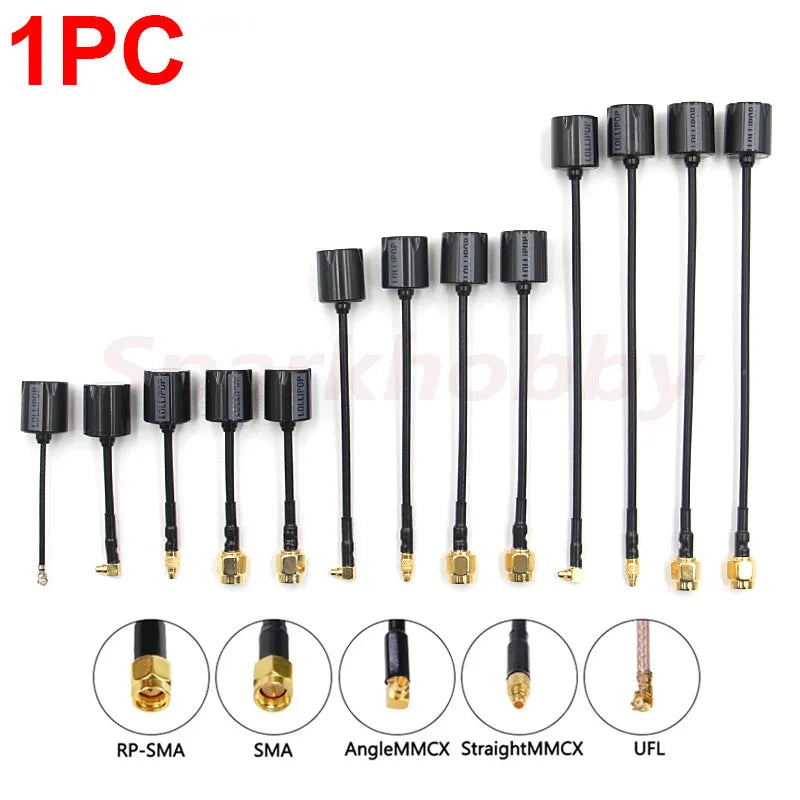

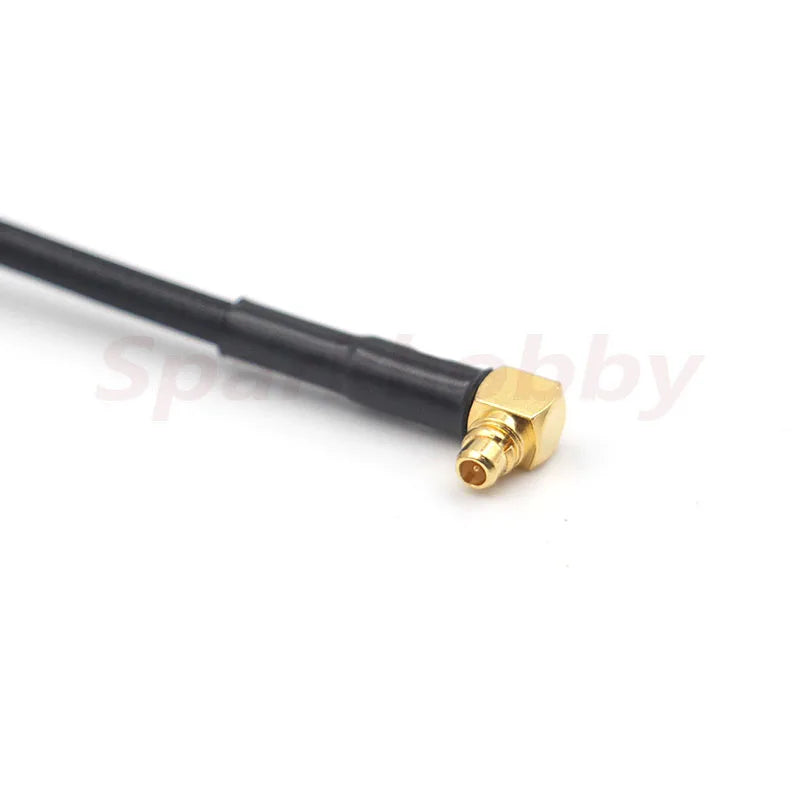

Connect Type: SMA/RPSMA/MMCX/UFL
Working Temp(℃):-40~60
Radome Color: Black
| model | length | weight |
| SMA/RPSMA | 60mm | 5.5g |
| SMA/RPSMA | 105mm | 6.3g |
| SMA/RPSMA | 145mm | 7.1g |
| Straight/Angle MMCX | 60mm | 3.5g |
| Straight/Angle MMCX | 105mm | 4.2g |
| Straight/Angle MMCX | 145mm | 5.0g |
| UFL | 60mm | 2.4g |
- Package Included:
- 1 X Micro lollipop
