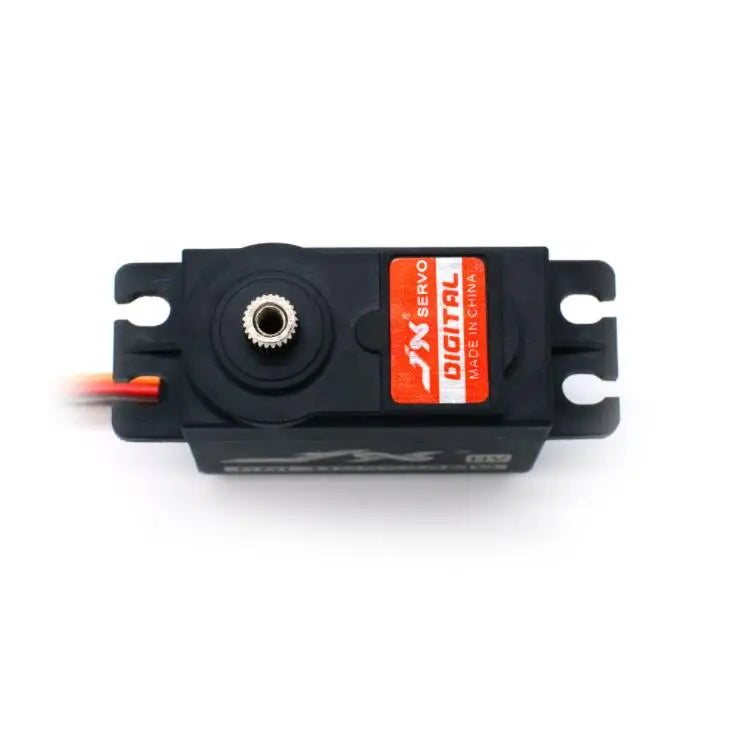

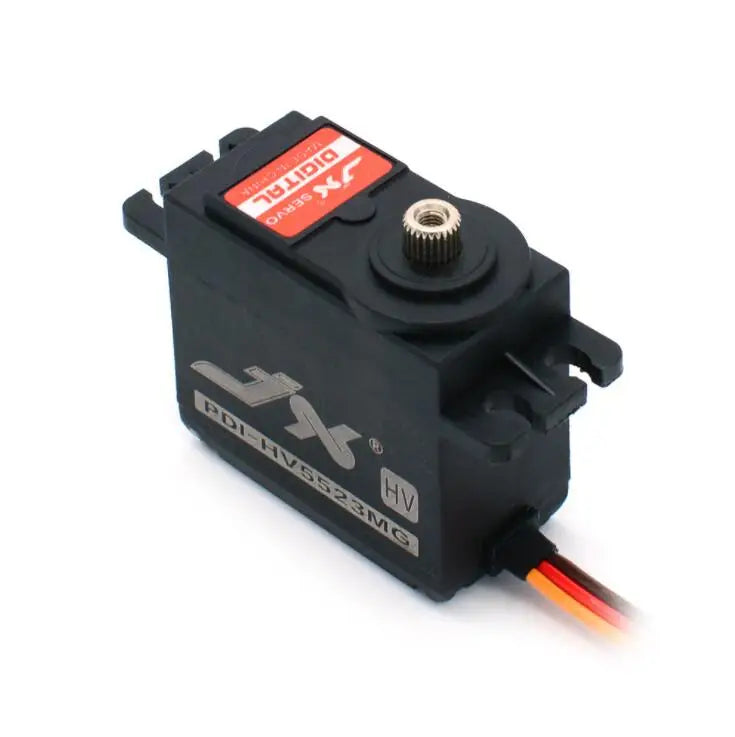

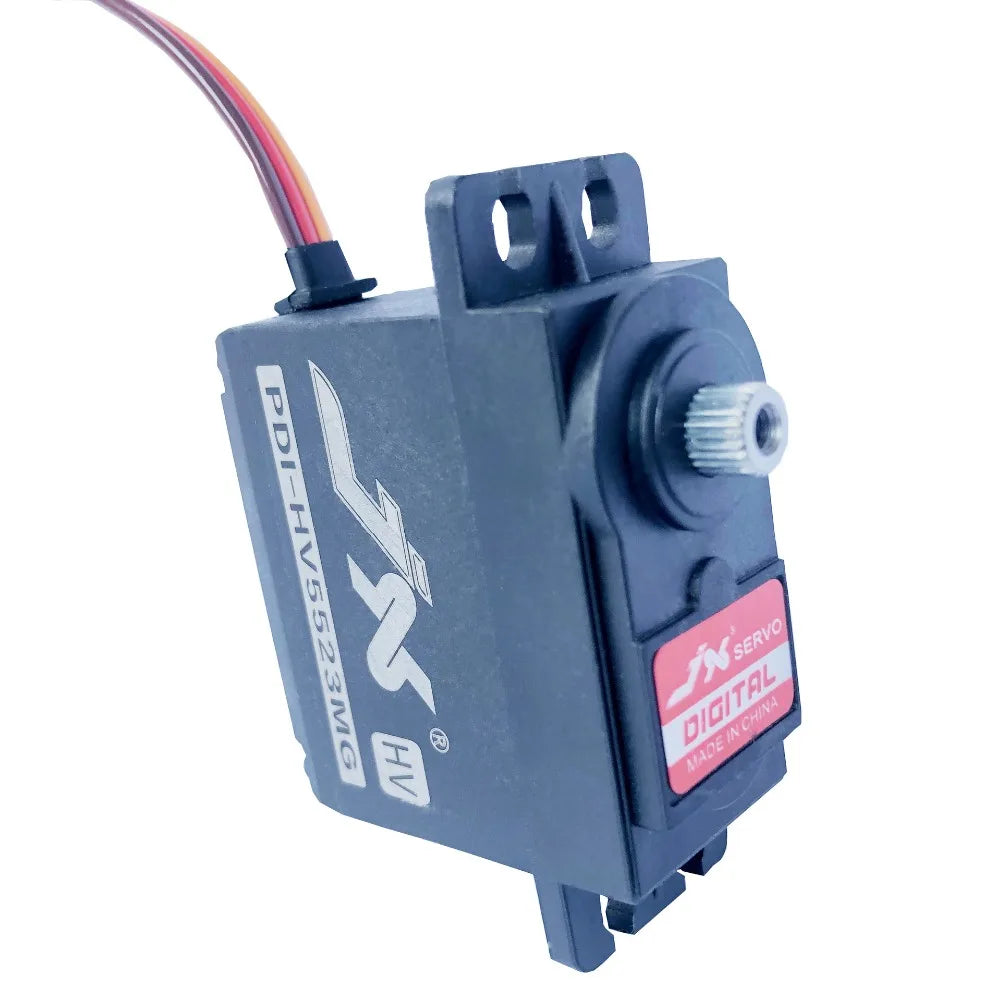

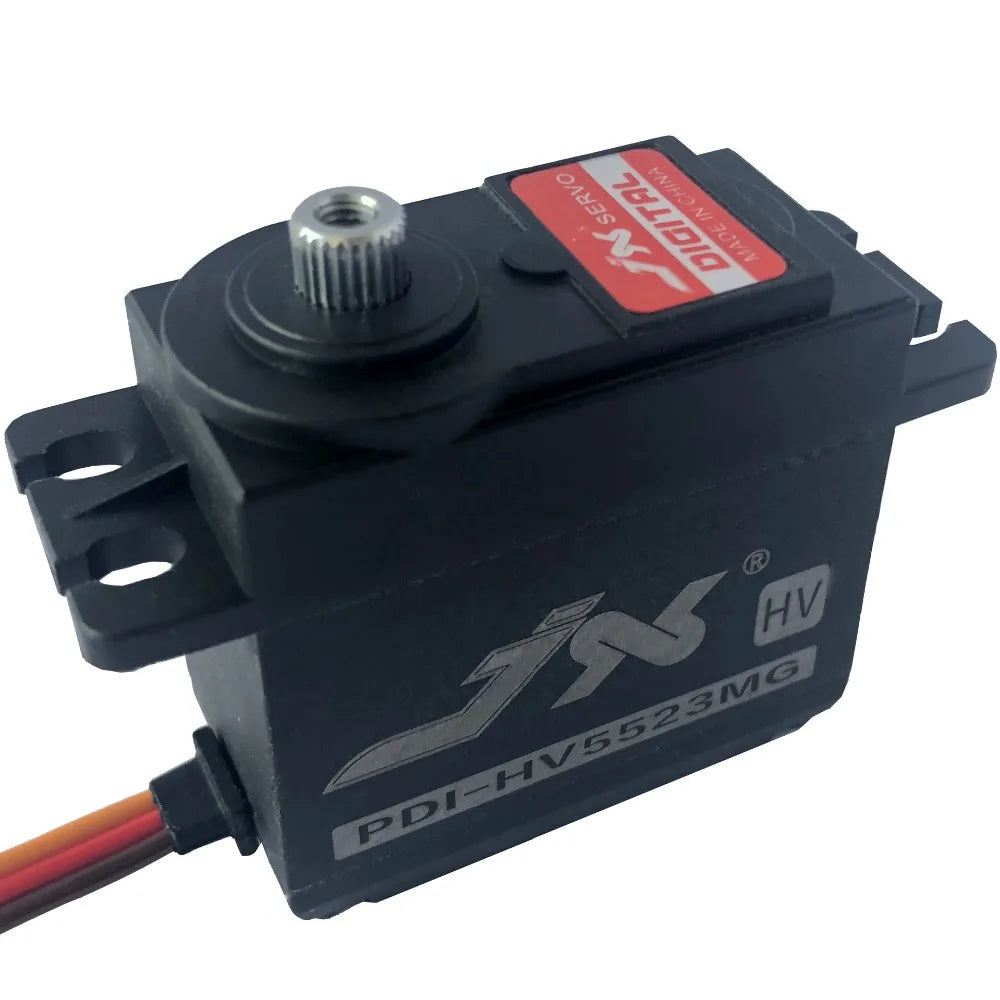

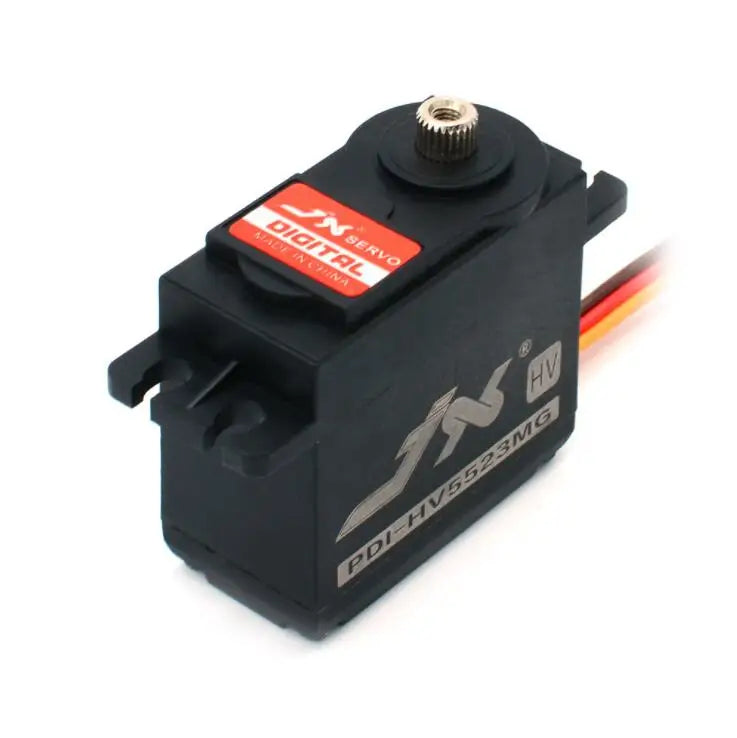

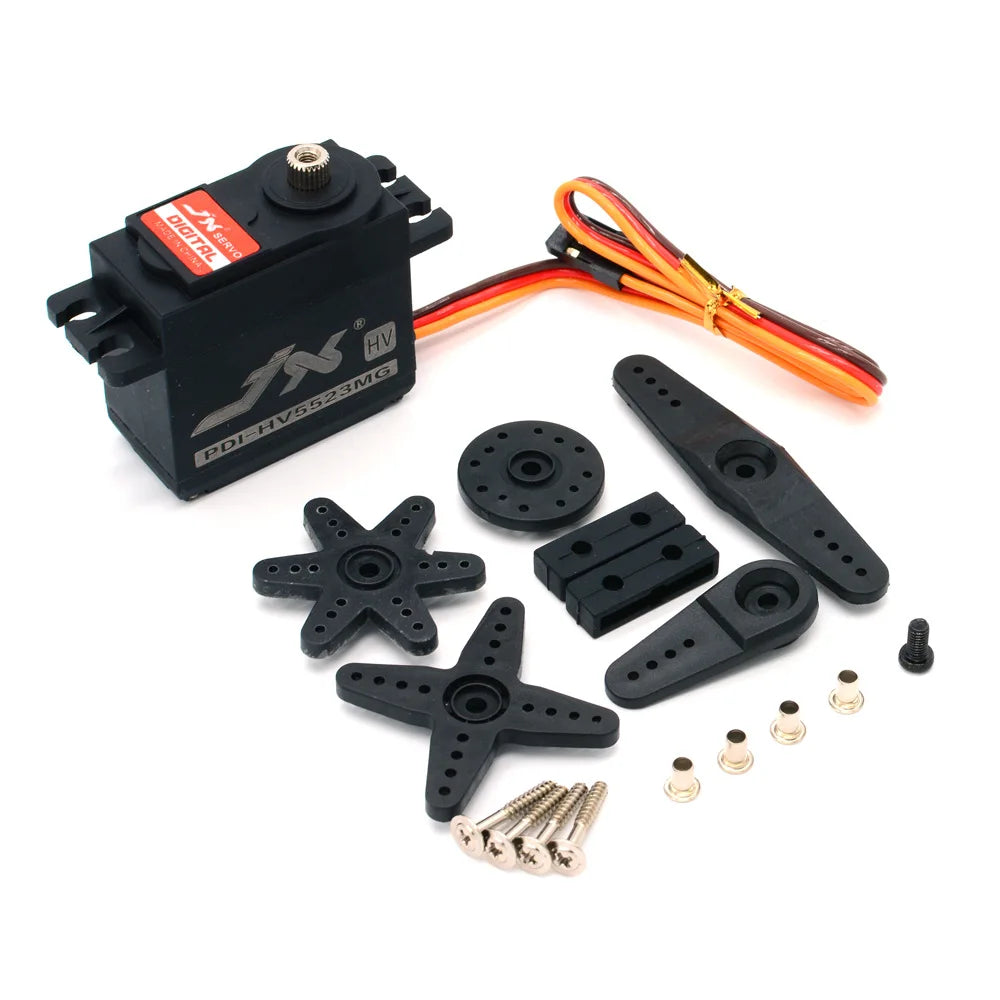

JX Servo PDI-HV5523MG SPECIFICATIONS

Brand Name: Mitoot

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servos

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: Servos

Tool Supplies: Putty class

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: JX PDI-HV5523MG Servos

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

— High performance HV digital standard servo

— High-precision Taiwan-made aluminium gears with hard anodizing

— Dual ball bearings

SPECIFICATIONS:

Dead band: 2μs

Working frequence: 1520μs / 330hz

Operating Speed (6.0V): 0.18 sec/60°

Operating Speed (8.4V): 0.16 sec/60°

Stall Torque (6.0V): 19.2 kg.cm

Stall Torque (8.4V):  23 kg.cm

Dimensions: 40.5X20.2X38mm

Weight:  55.6 g

Connector Wire Length: JR  265 mm

Bearing: 2BB
