SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 40.5X20.2X38mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: PDI-HV5523MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm
Features
— High performance HV digital standard servo

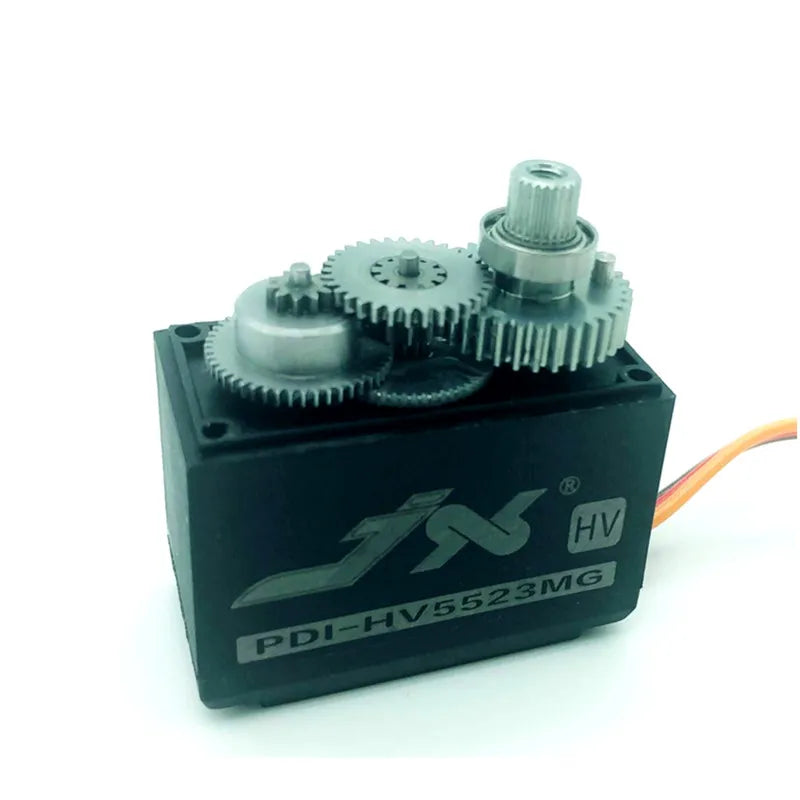

— High-precision Taiwan-made aluminium gears with hard anodizing
— Dual ball bearings

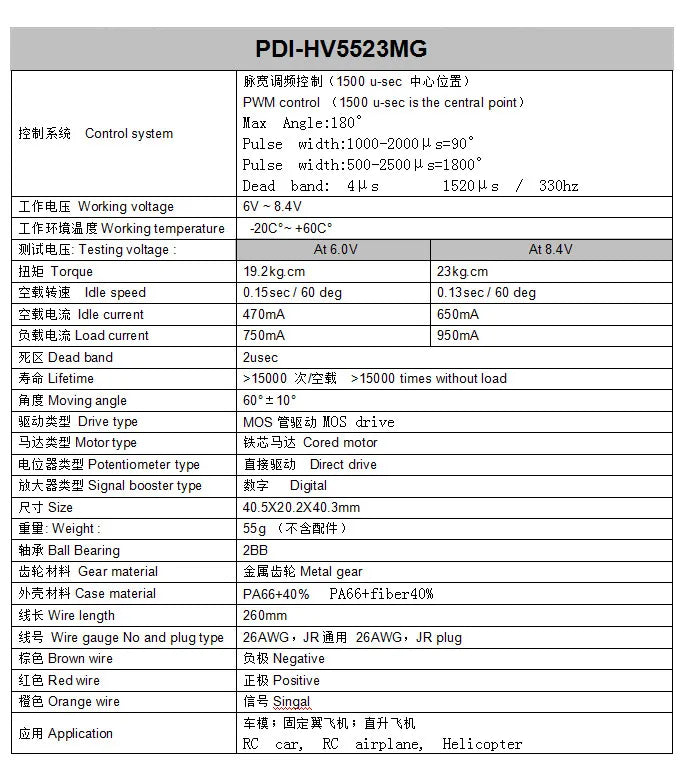

Product Details
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16 sec/60°
Stall Torque (6.0V): 19.2 kg.cm
Stall Torque (8.4V): 23 kg.cm

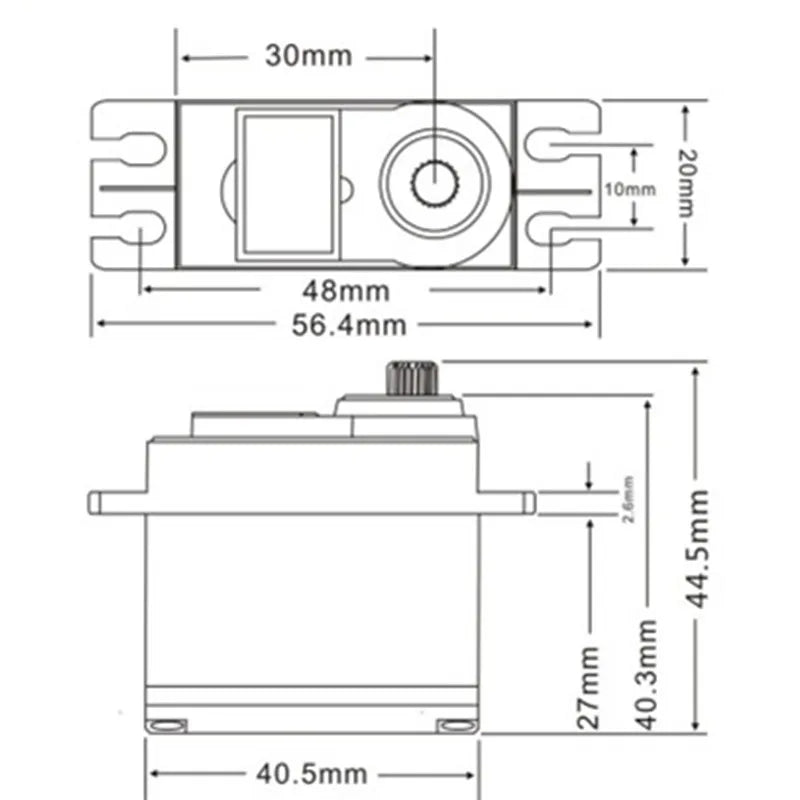

Dimensions: 40.5X20.2X38mm
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Item Packing

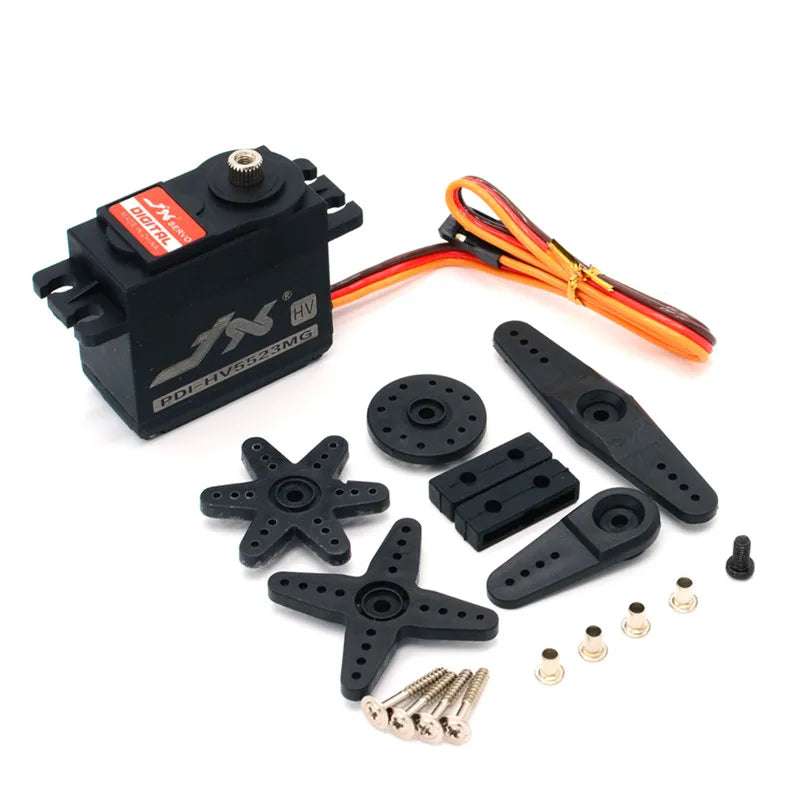

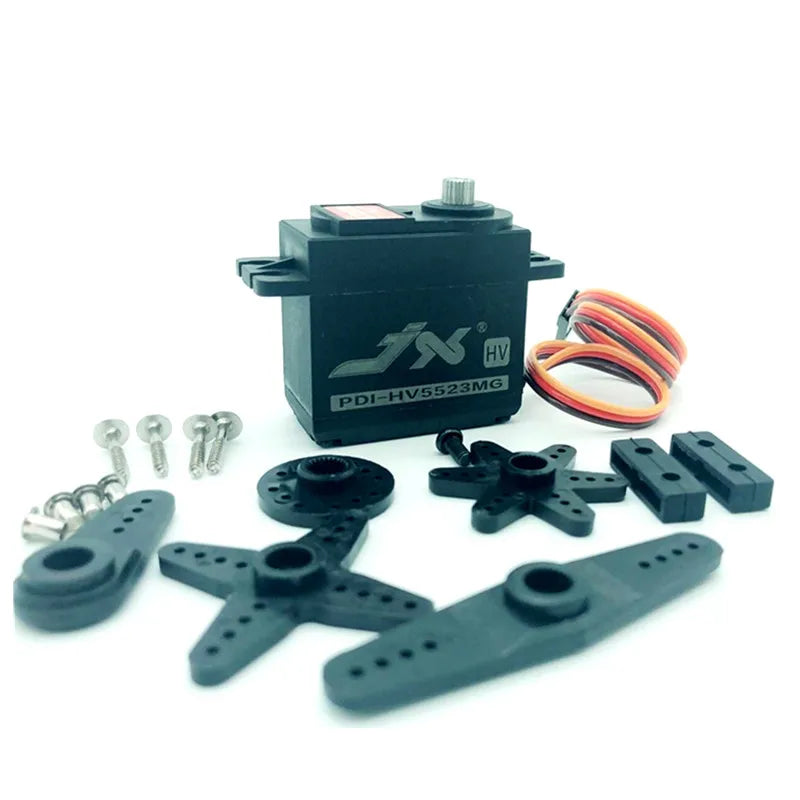

1 x Servo 1 x Set of Accessories
Detailed Images
Maximum moving angle: 60° + 10°. Drive type: Metal Gear. Motor type: Coreless.
