iFlight Battery Balance Charger – M4 AC 30W 1-4S 2.5A AC Smart Battery Balance Charger XT30 Output for FPV Battery

المواصفات:

• Input: AC100-240V@MAX30W
• Battery Type: LiPo LiHV LiFe @1-4S
• Charging Power: 0.5-2.5A@25W
• Bal Cur. : 200mA @2-4S
• Charging accuracy: <0.005V
• Display: LCD IPS 1.54 inch 240*240 resolution

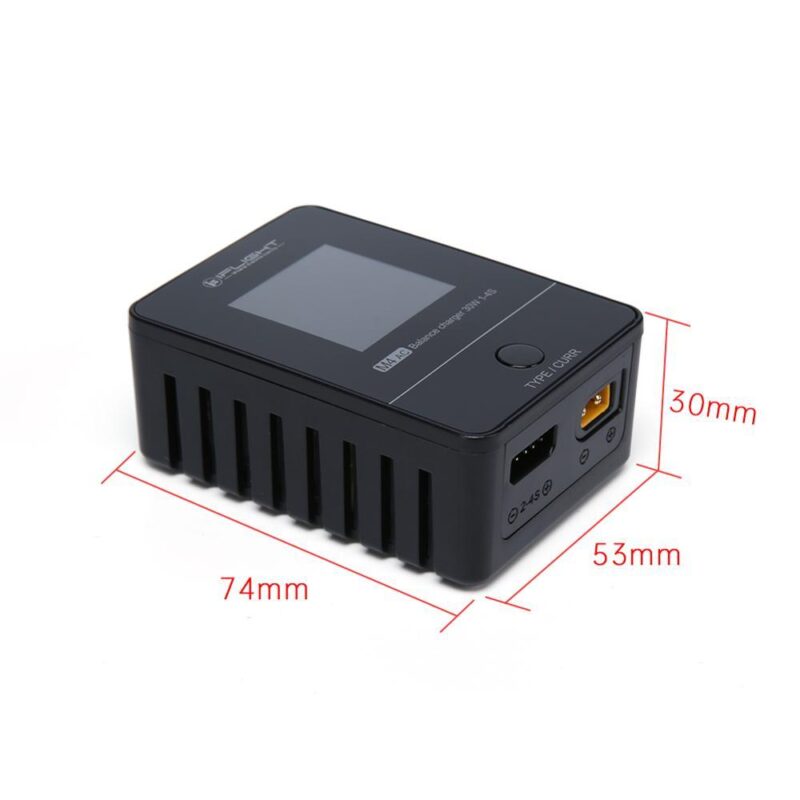

• Size: 75mm*54mm*30mm
• Weight: 120g

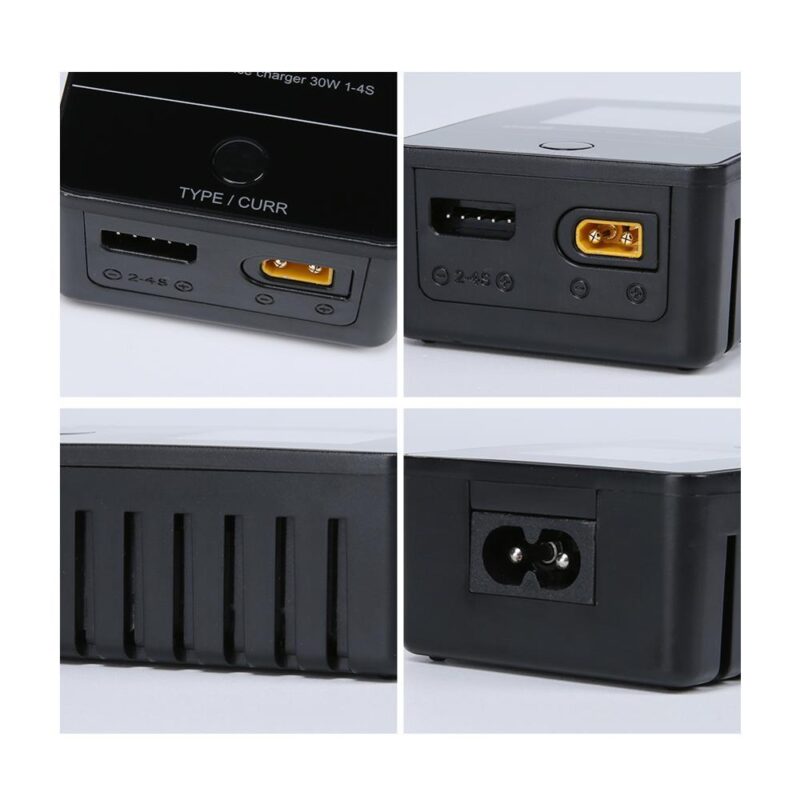

• Connector: XT30
• Suitable for 4S 350mAh~850mAh LiPo Battery. For the bigger battery, please choose the ISDT Q6 NANO

Using Instructions

• Connect the power cord，and after booting， enter the main interface
• Press and hold the button for 2 seconds to select the battery cut-off voltage.
• Press the button once to select the charging current.

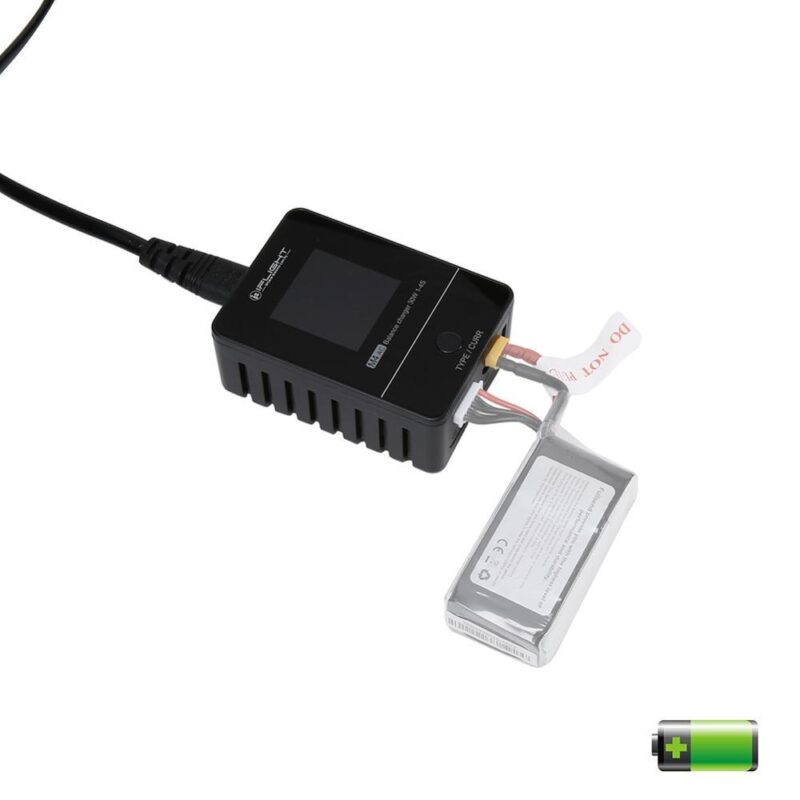

• Connected to the battery main port and balance port，the charger will automatically start charging after detecting that the battery voltage is normal.
• After each power on, you need to press the key once to unlock it before it starts charging automatically.

Safety

• M4AC allows input AC 100-240V， please use normal voltage.
• Do does not use this product in heat，moisture, flammable or explosive atmospheres.
• Make sure that the product is running under the attendance of the user.
• Please unplug the input power when not using this product.

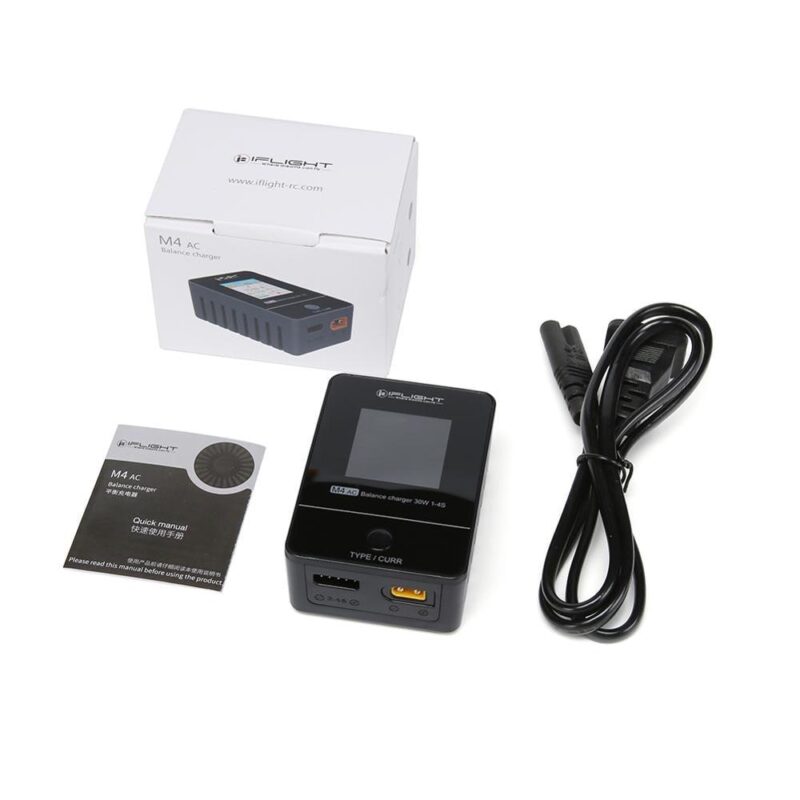

Packaging included:

• 1X iFlight M4AC Charger
• 1x AC cable
• 1x manual
