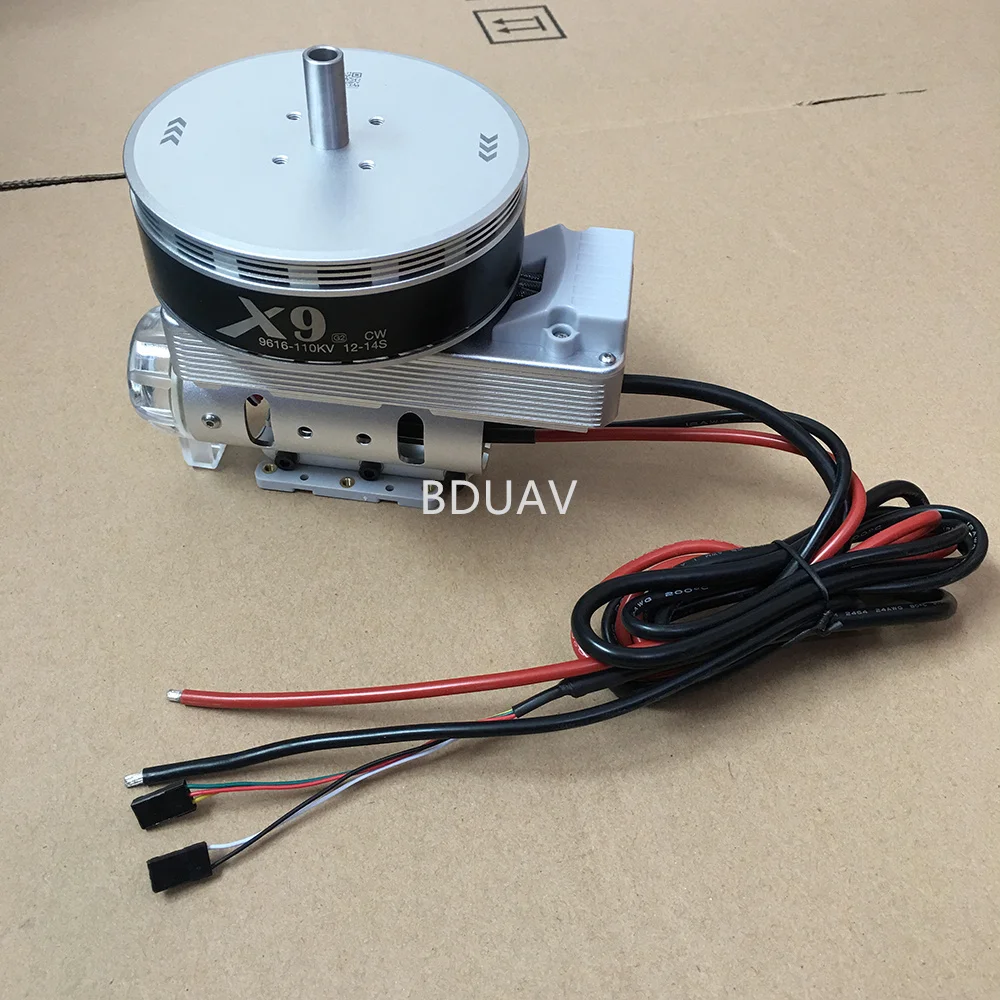

Hobbywing X9 Power System SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: power
Tool Supplies: Assembled class
Technical parameters: Value 2
Size: x9
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Engines
Quantity: 1 pcs
Origin: Mainland China
Model Number: X9
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes

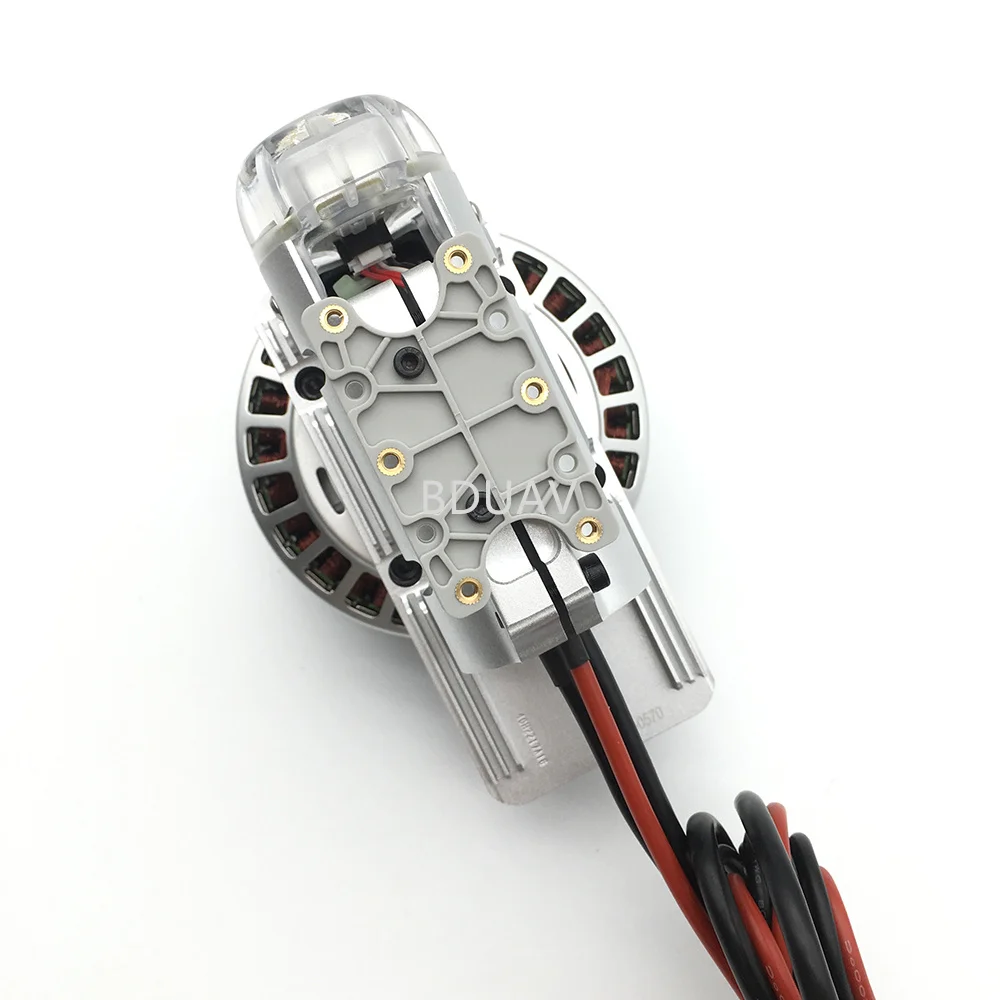

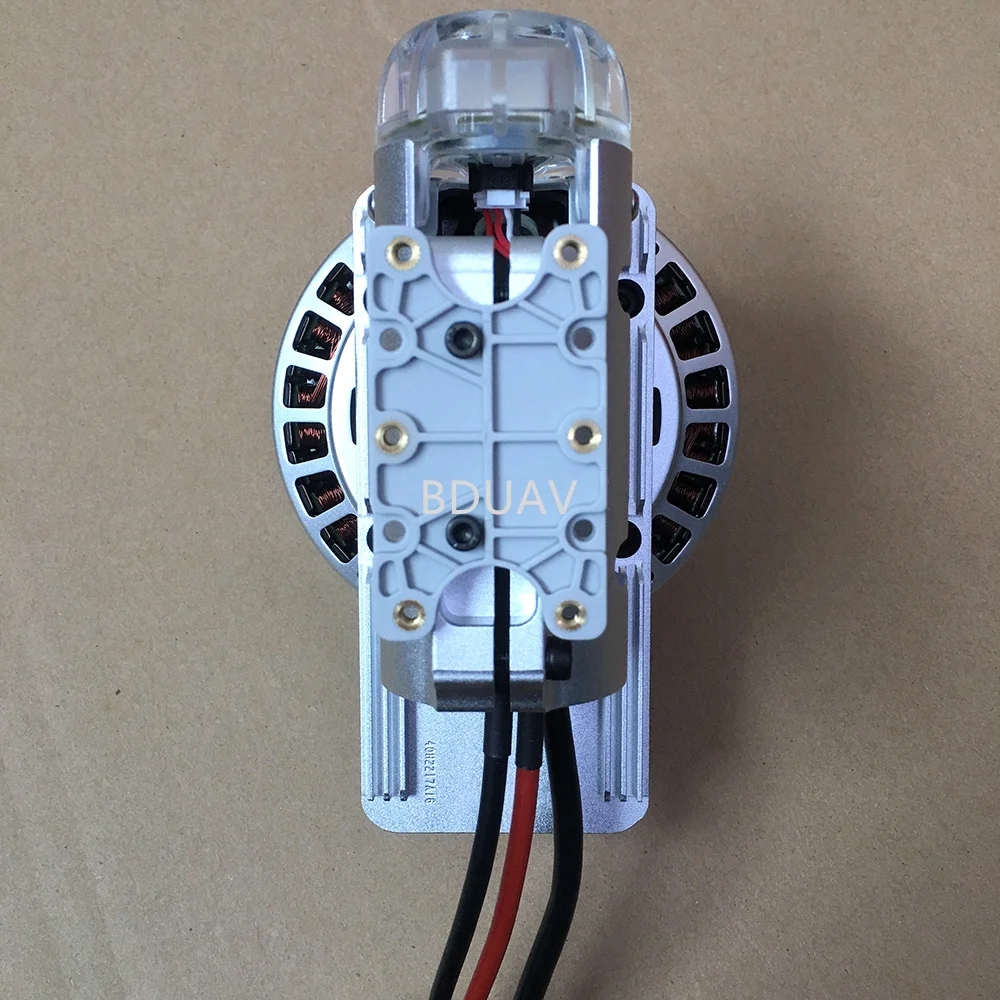

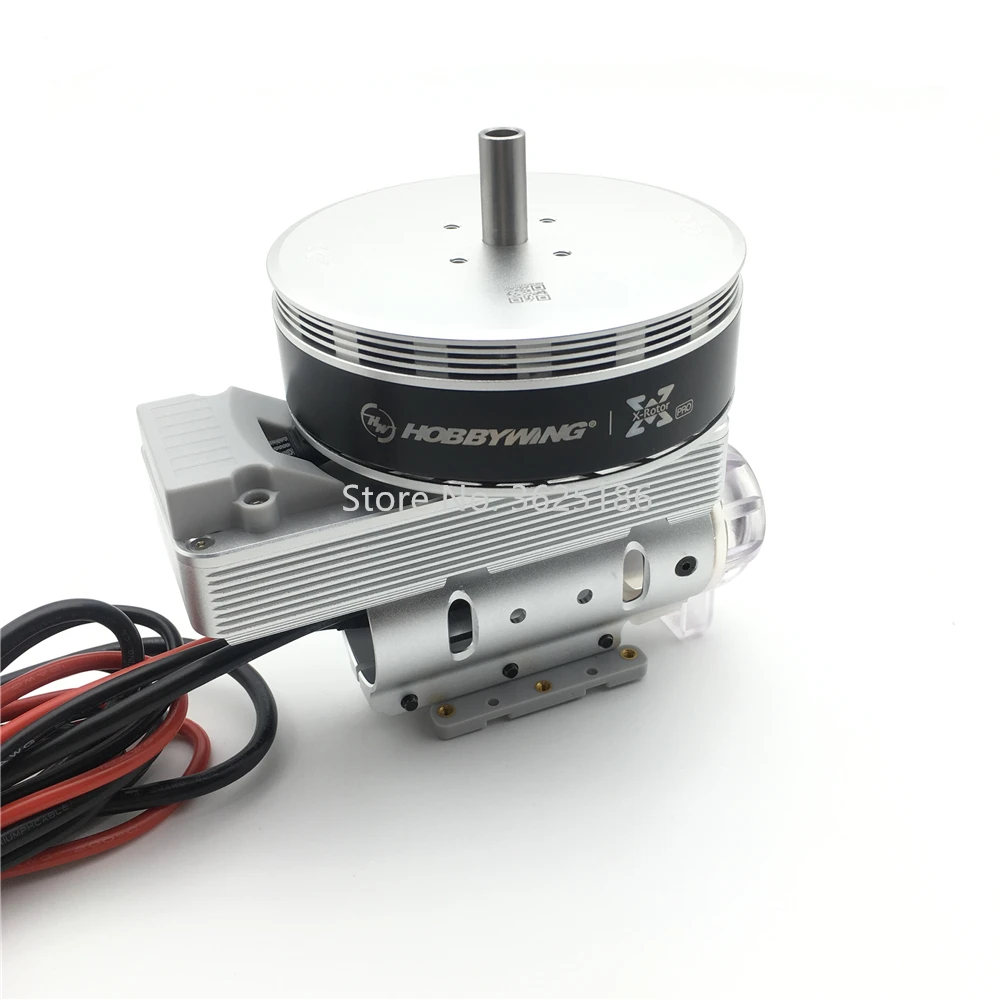

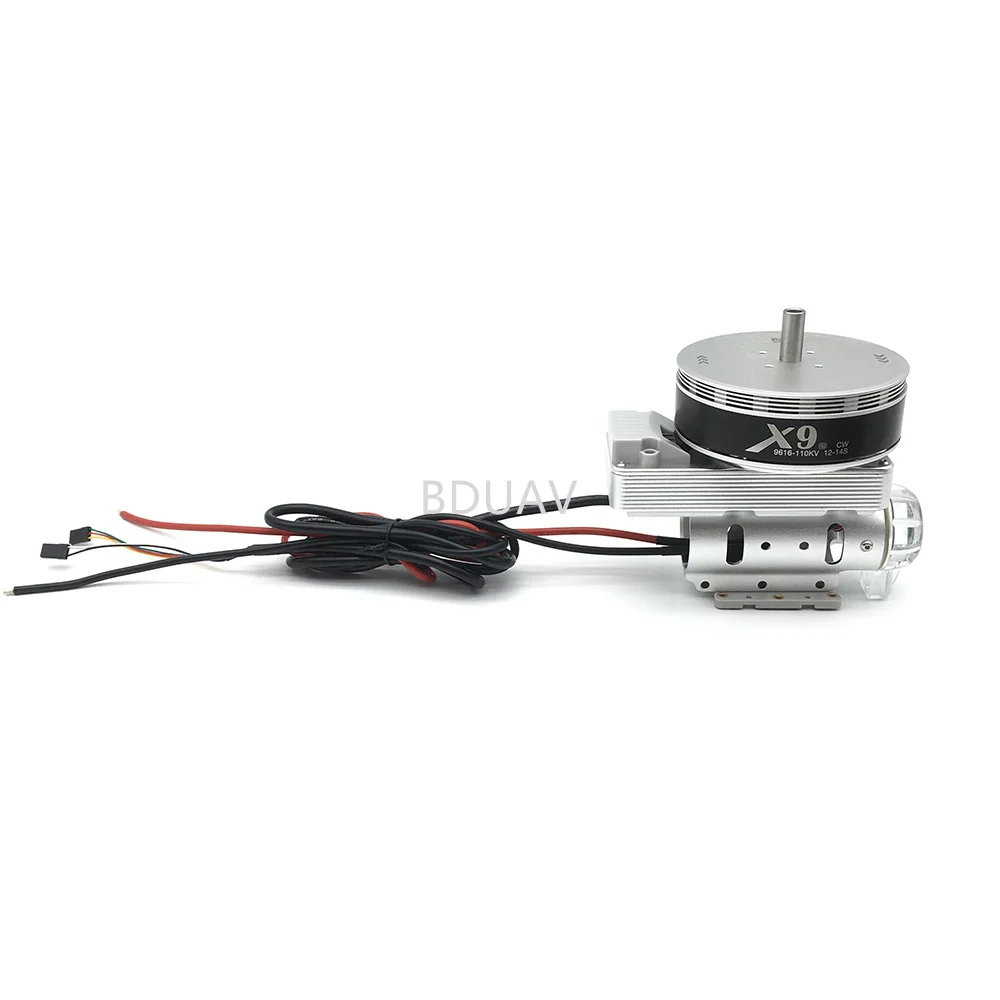

Dear. There are two versions of this Hobbywing X9 power set. The voltage of the new version is 12-14S. The old version is 6-12S. The new version and the old version cannot be used together. Please pay attention to the distinction. Thank you
Specifications:

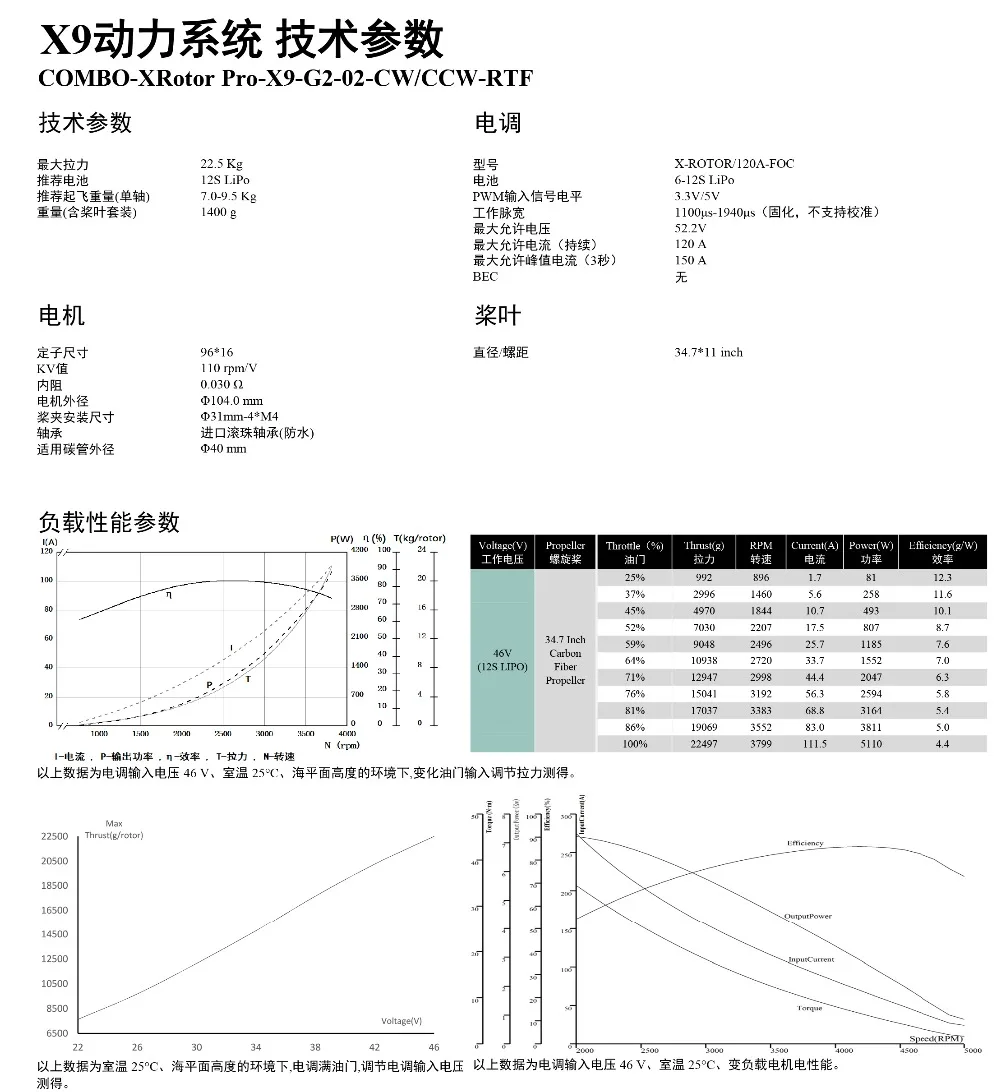

Technical Parameters
Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2×133.3mm

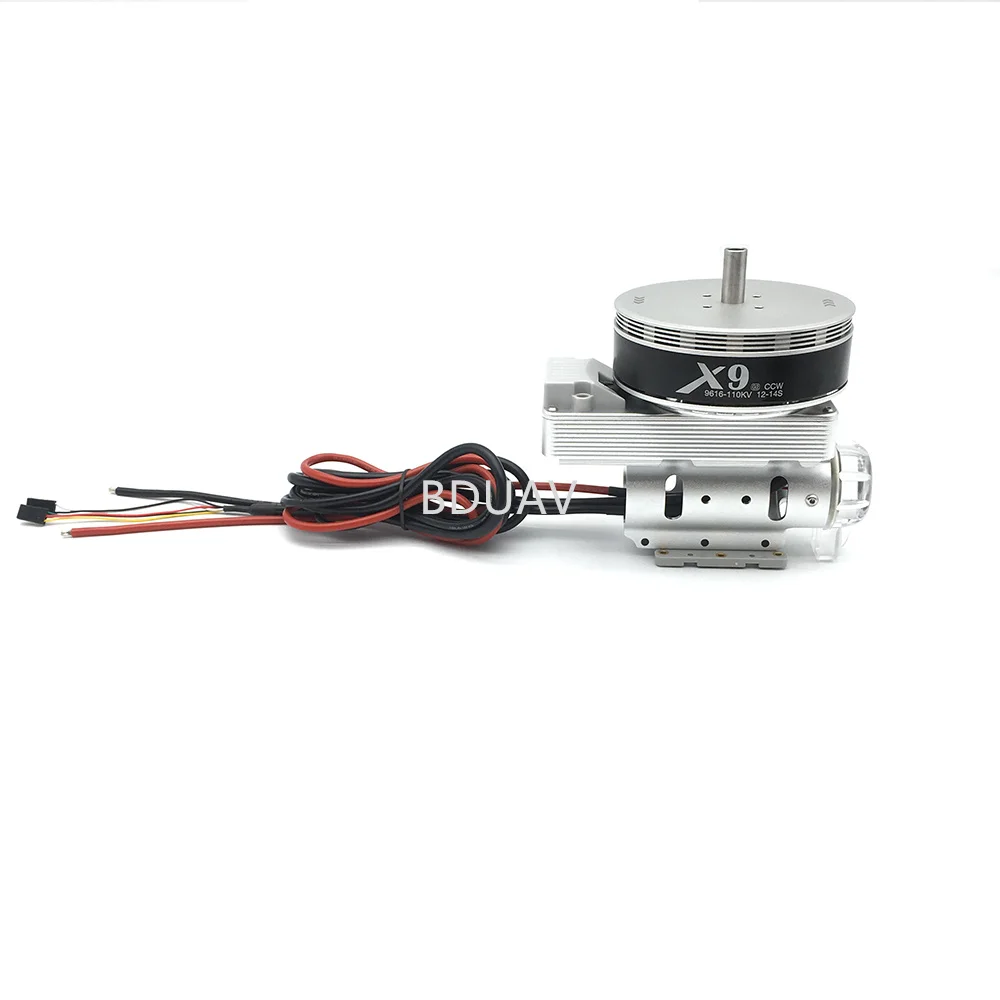

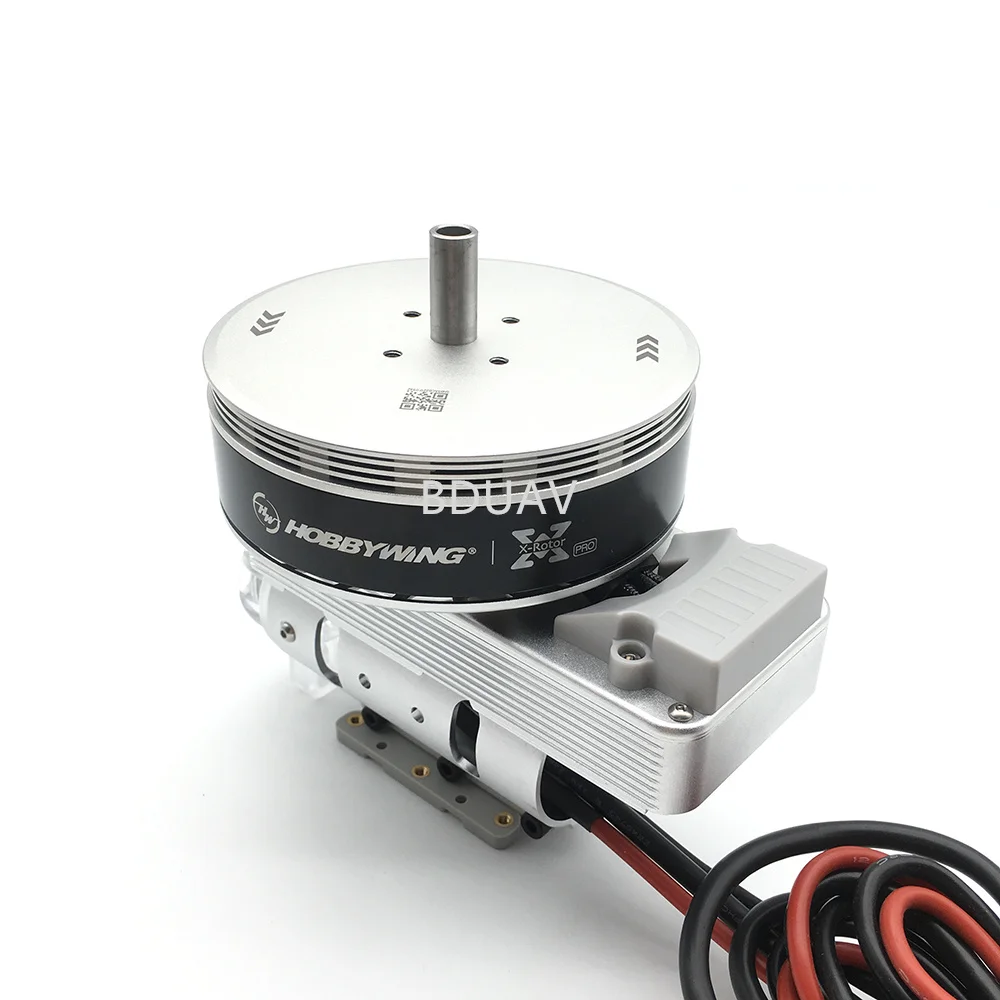

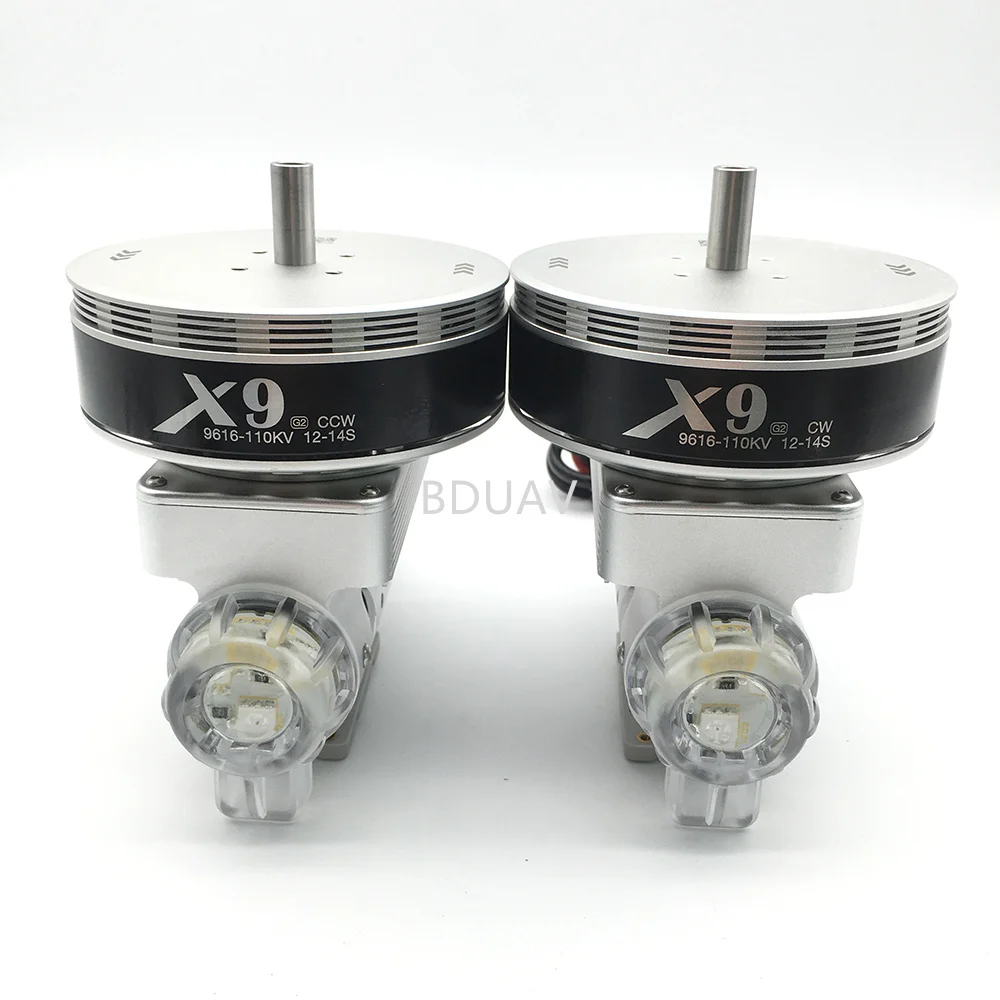

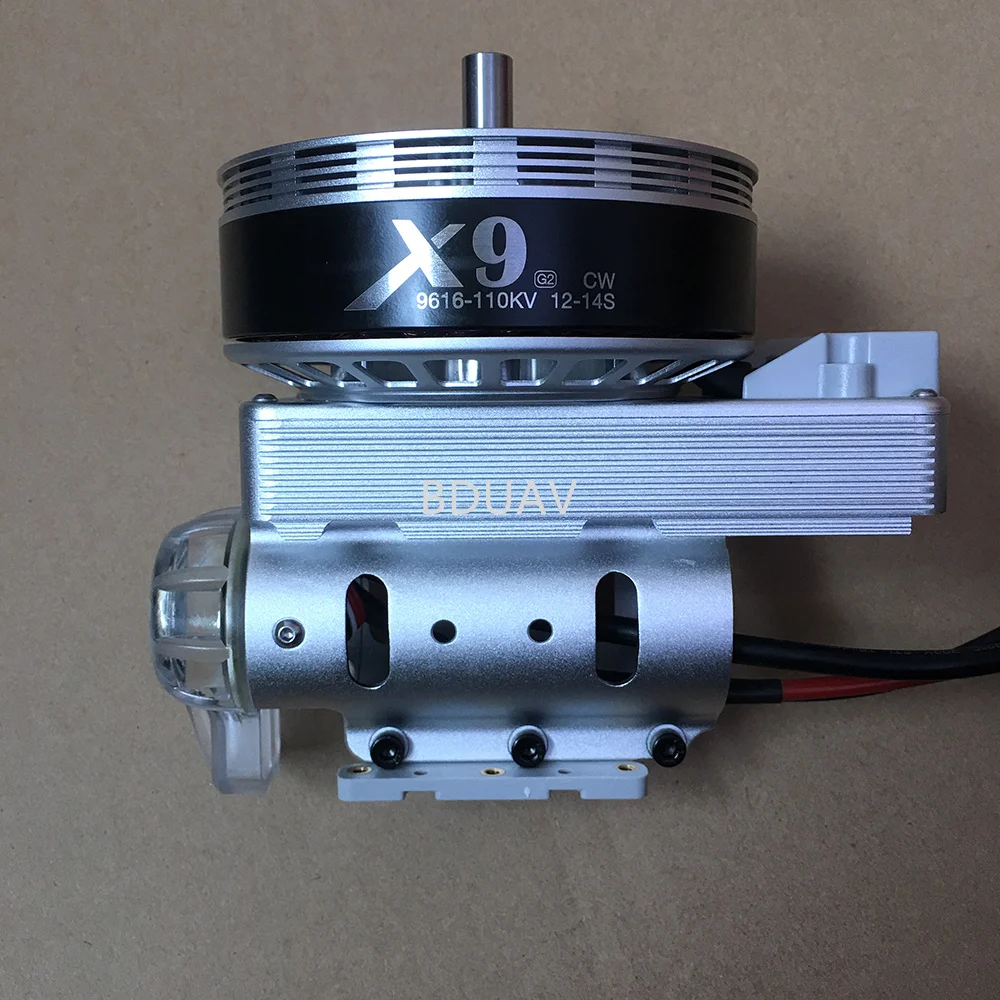

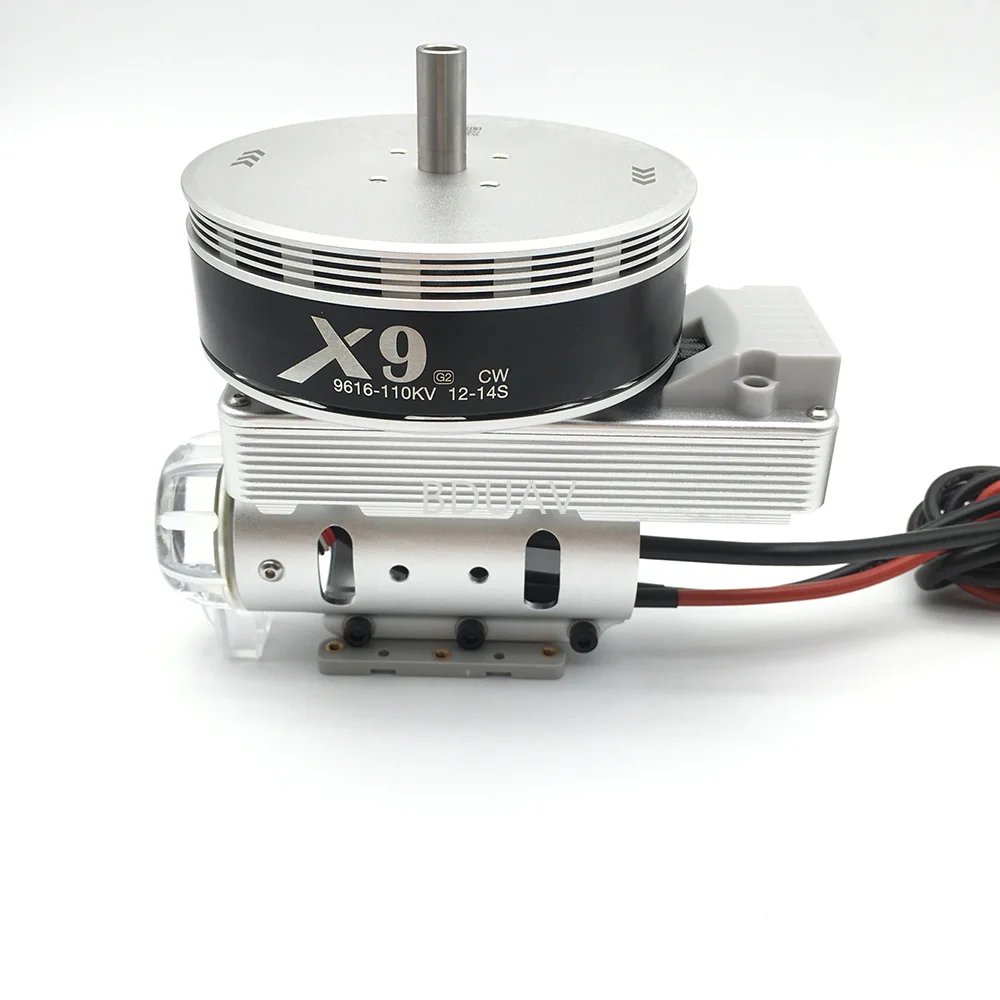

Motor
Stator size: 96x16mm
KV value: 110rpm/V
Internal resistance: 0.031ΩBE
Maximum current: 100A
Motor outer diameter: Φ103.5mm
Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3
Bearing: imported ball bearing (waterproof)
Applicable carbon tube outer diameter: 40mm

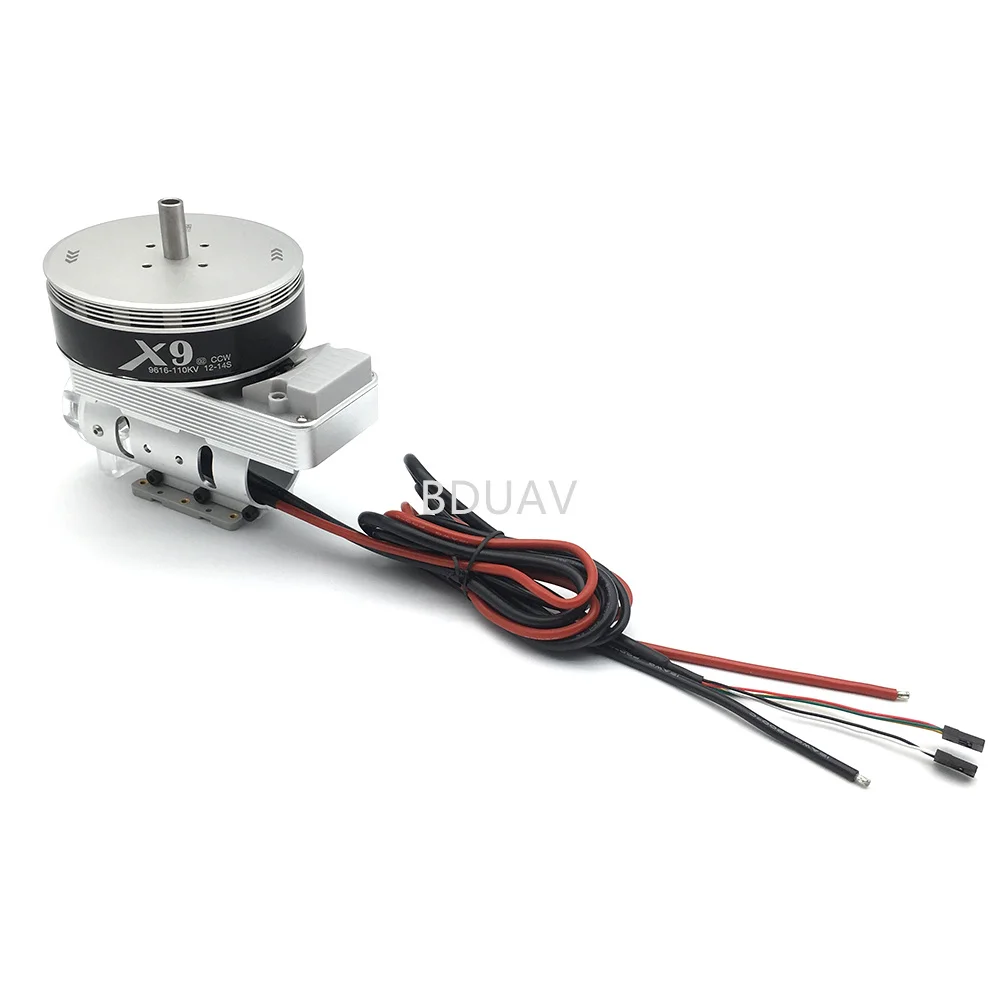

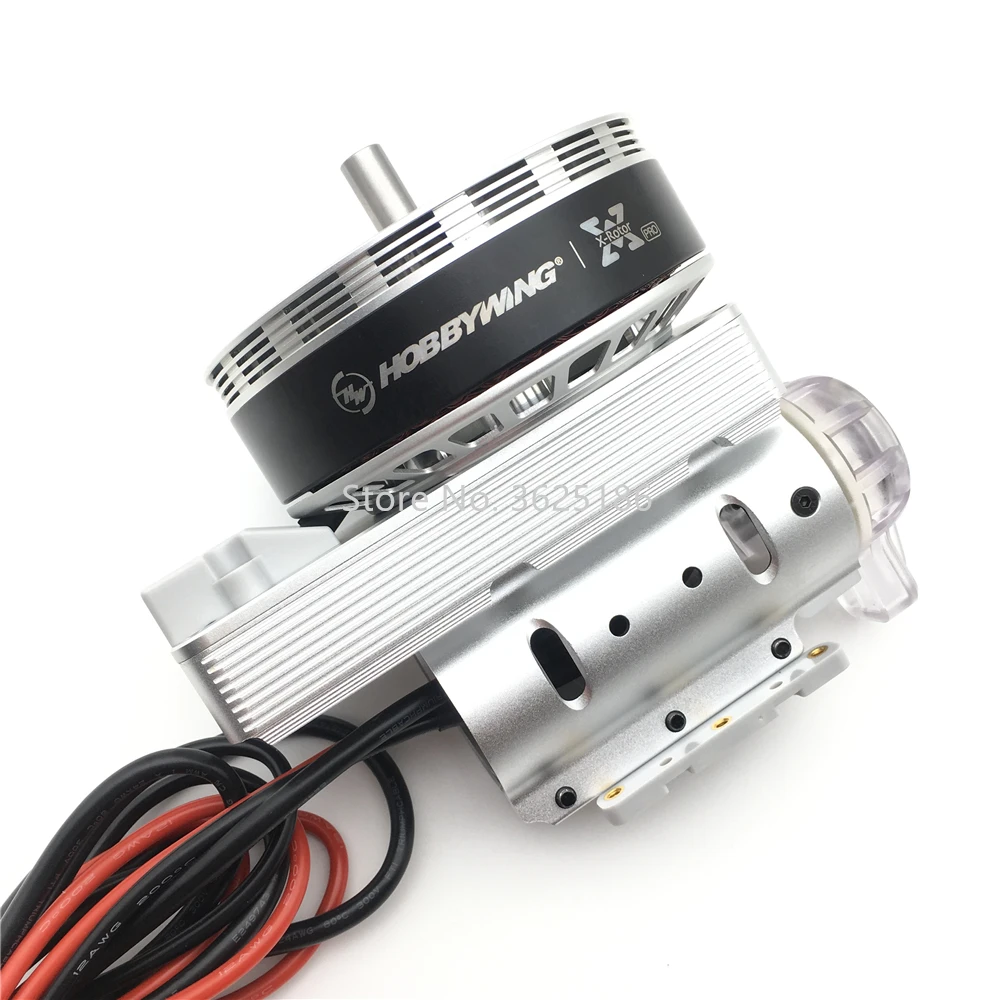

ESC
Model: X-rotor/120A-FOC
Battery: 12-14S lipo
PWM input signal level: 3.3V/5V
Working pulse width: 1100μs-1940μs (curing, calibration is not supported)
Maximum allowable voltage: 52.2V
Maximum allowable current (continuous): 120A
Maximum allowable peak current (3 seconds): 150A
BEC: none

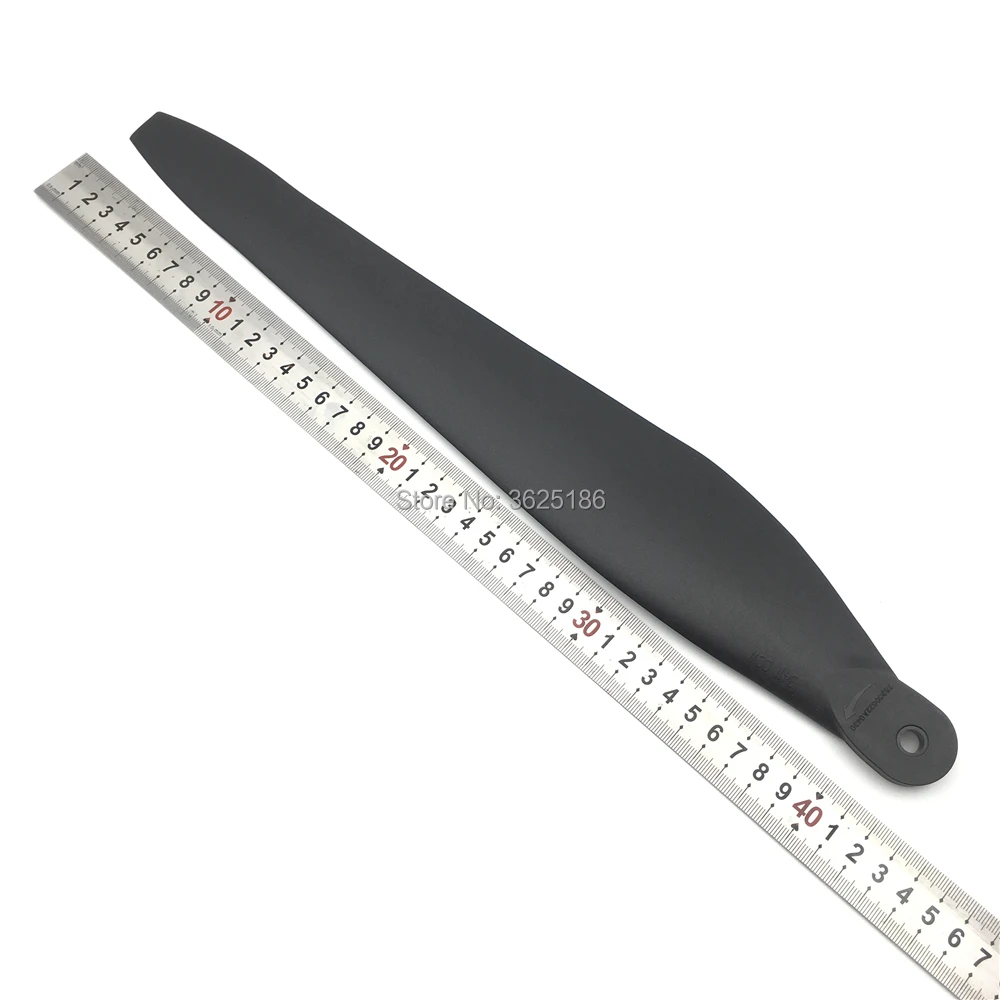

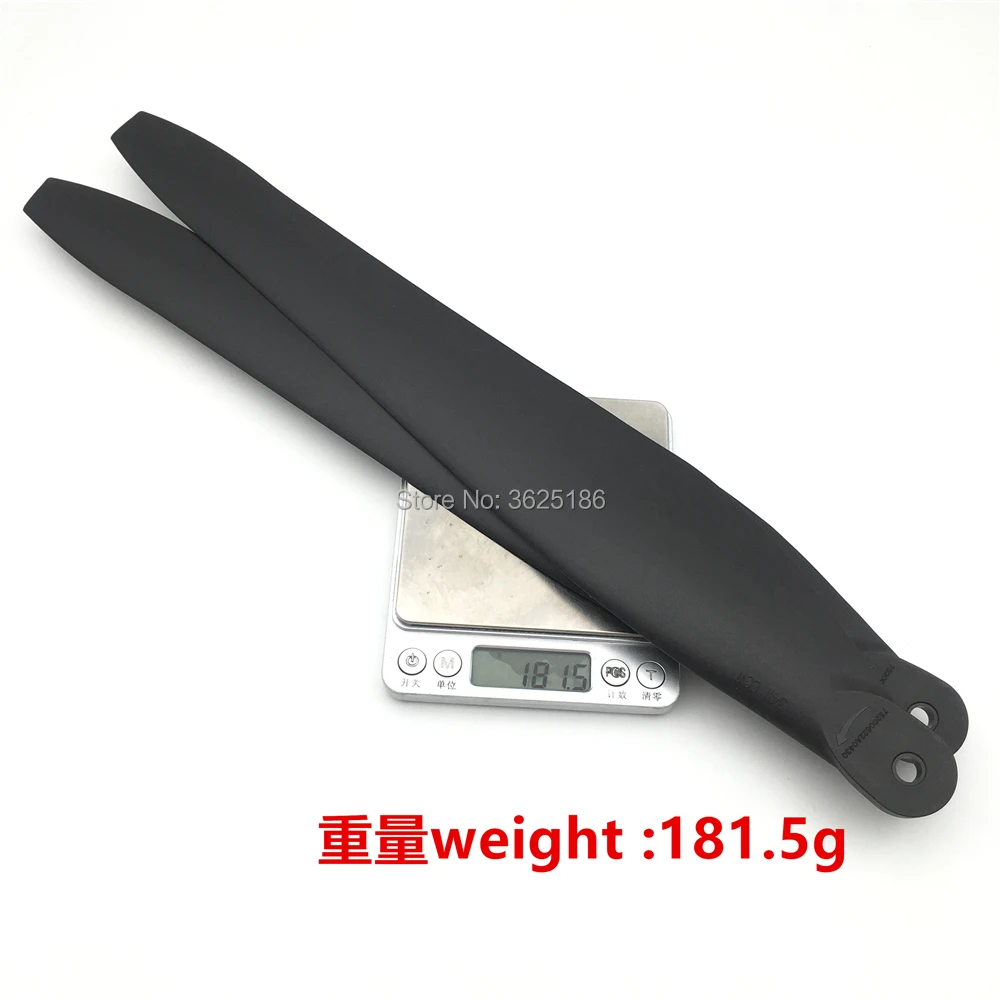

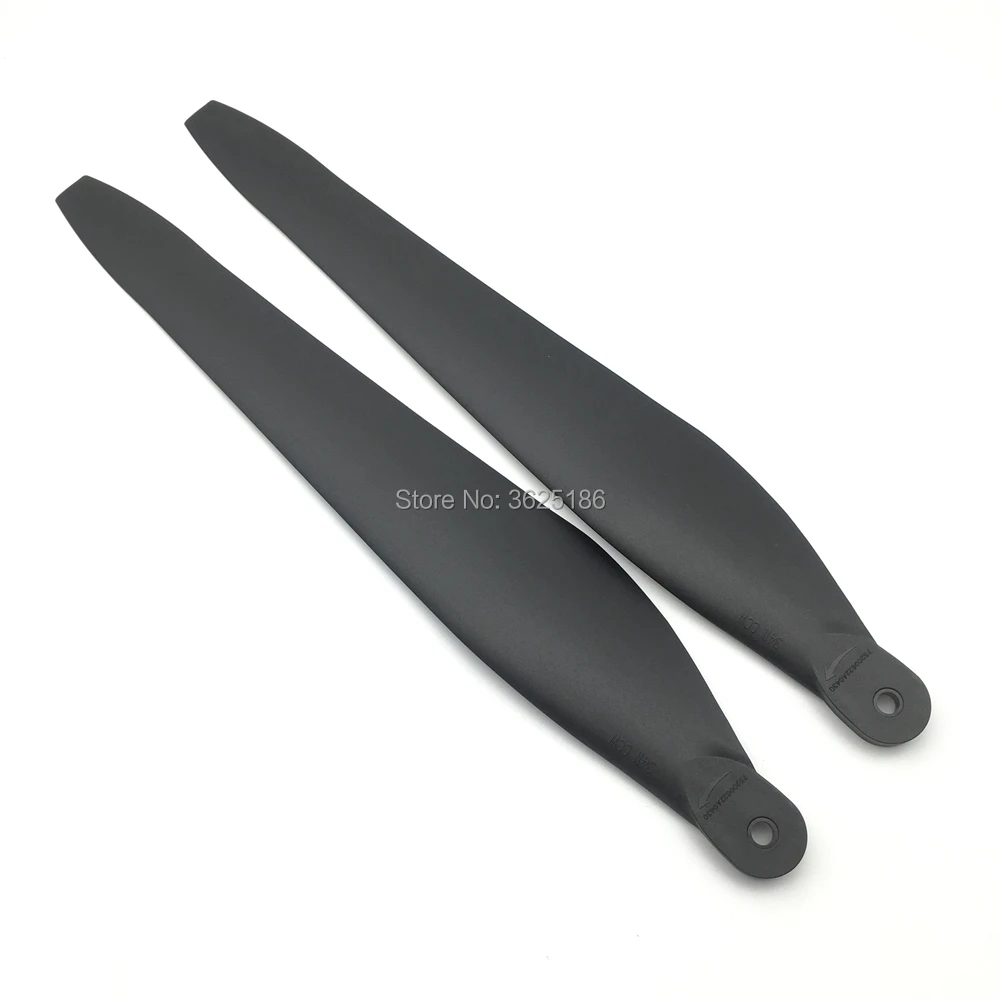

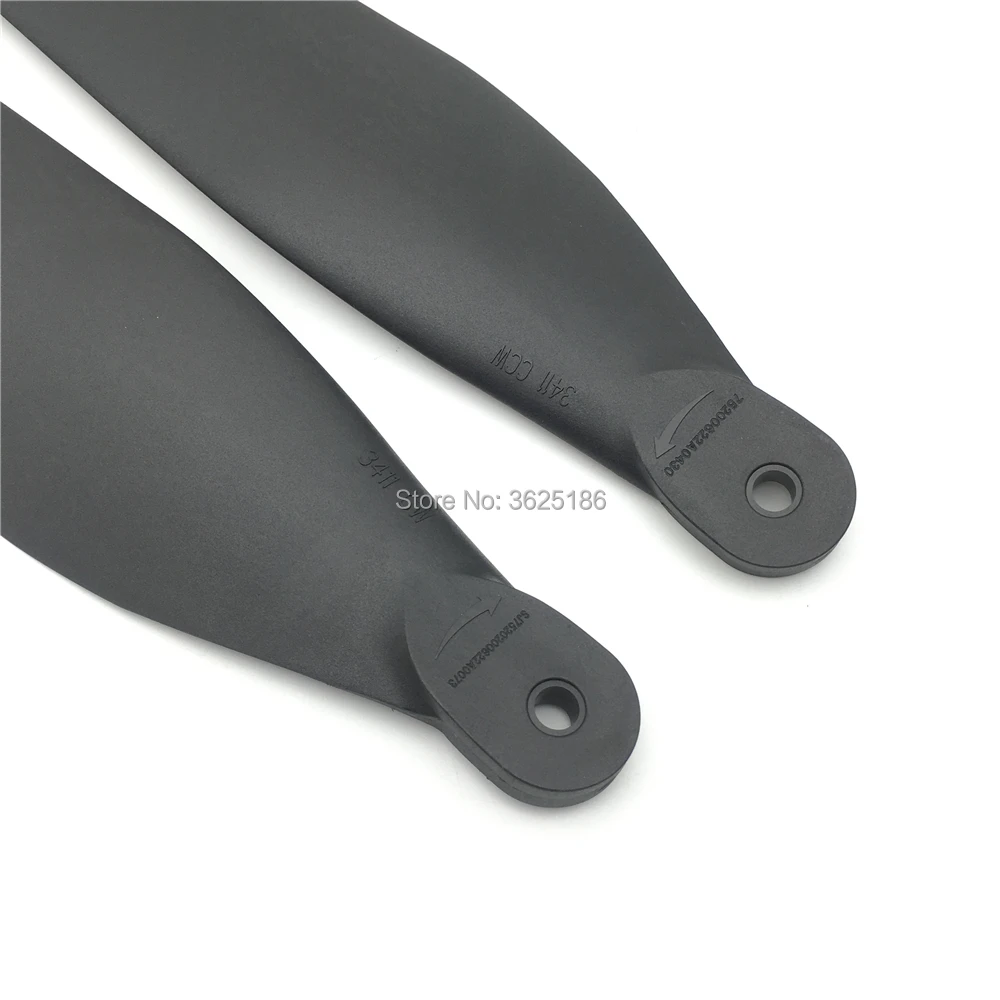

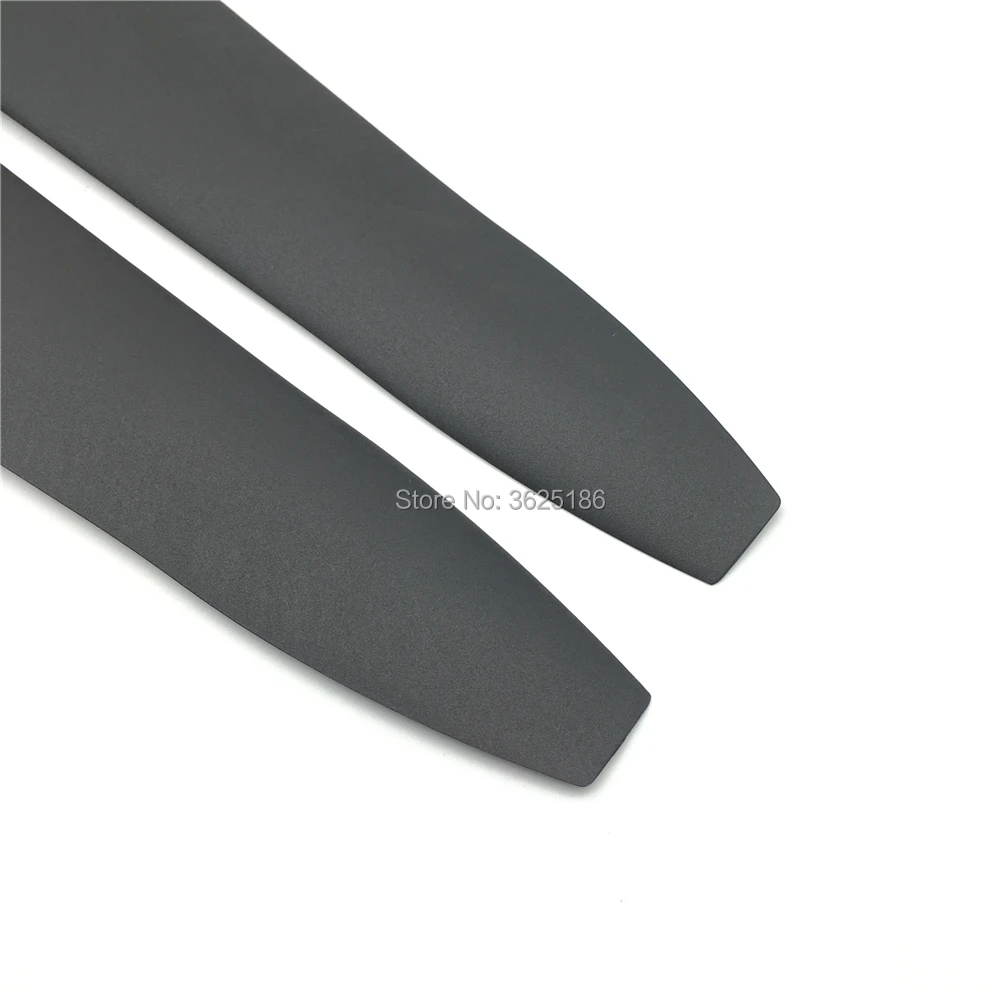

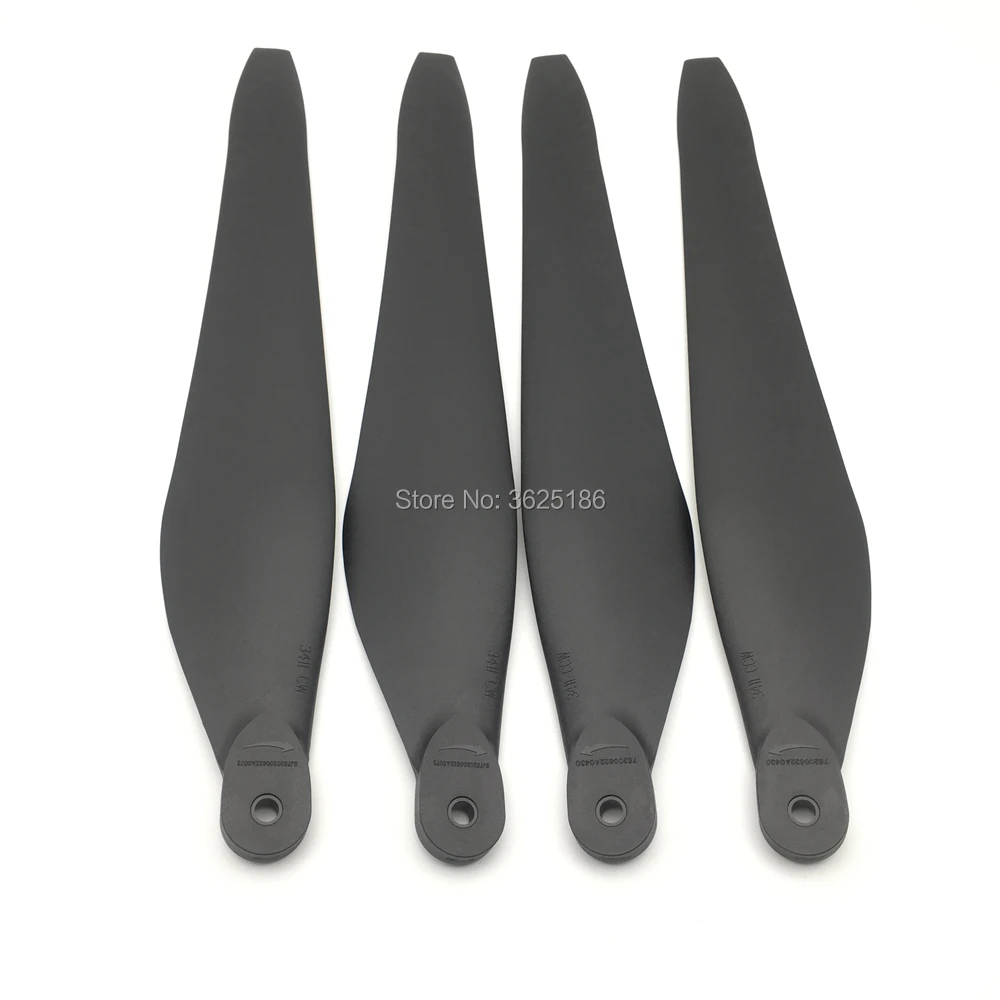

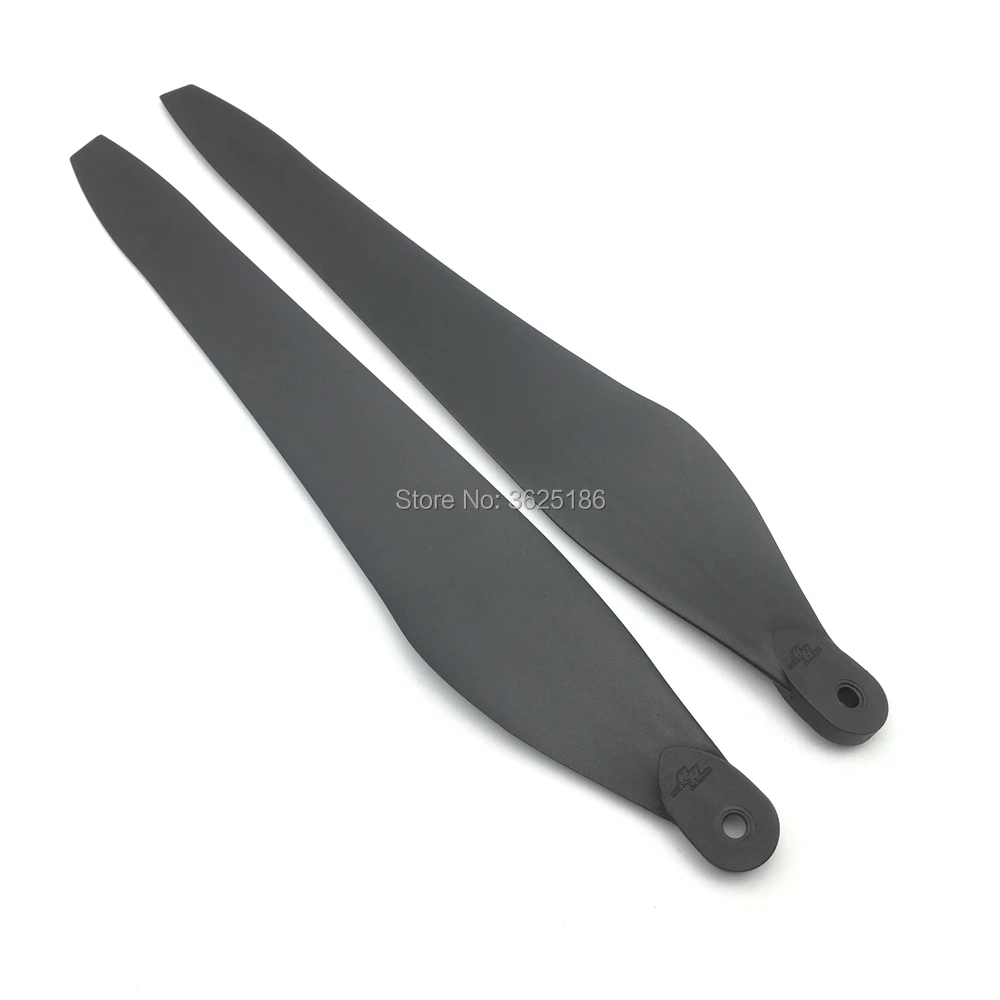

propeller:
Diameter / pitch: 34×11 inch

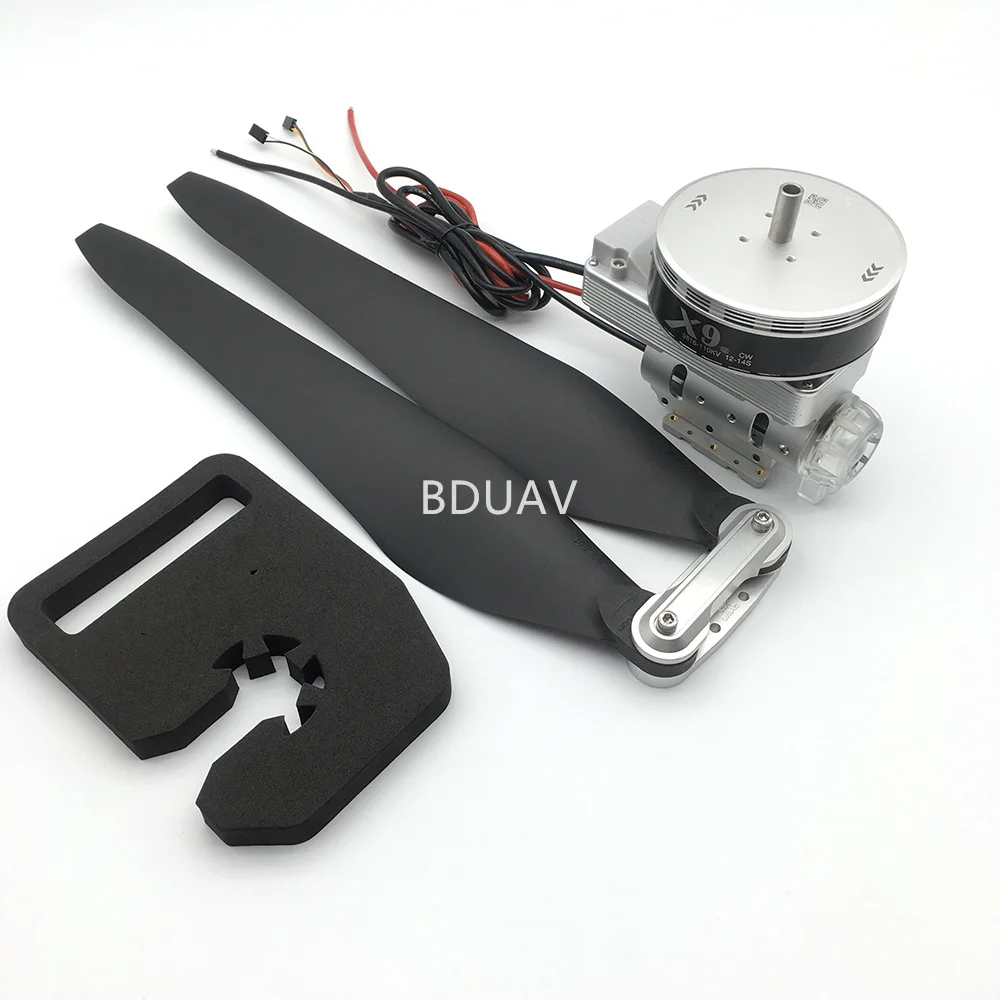

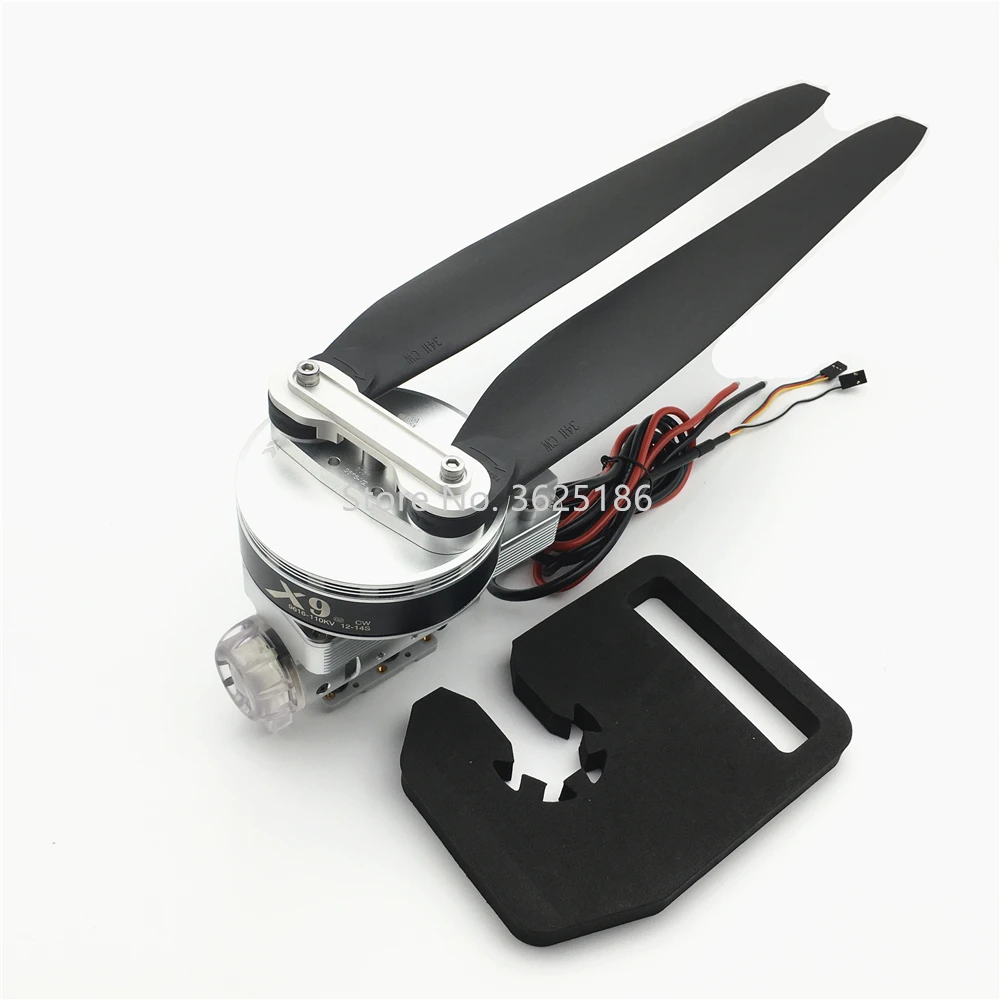

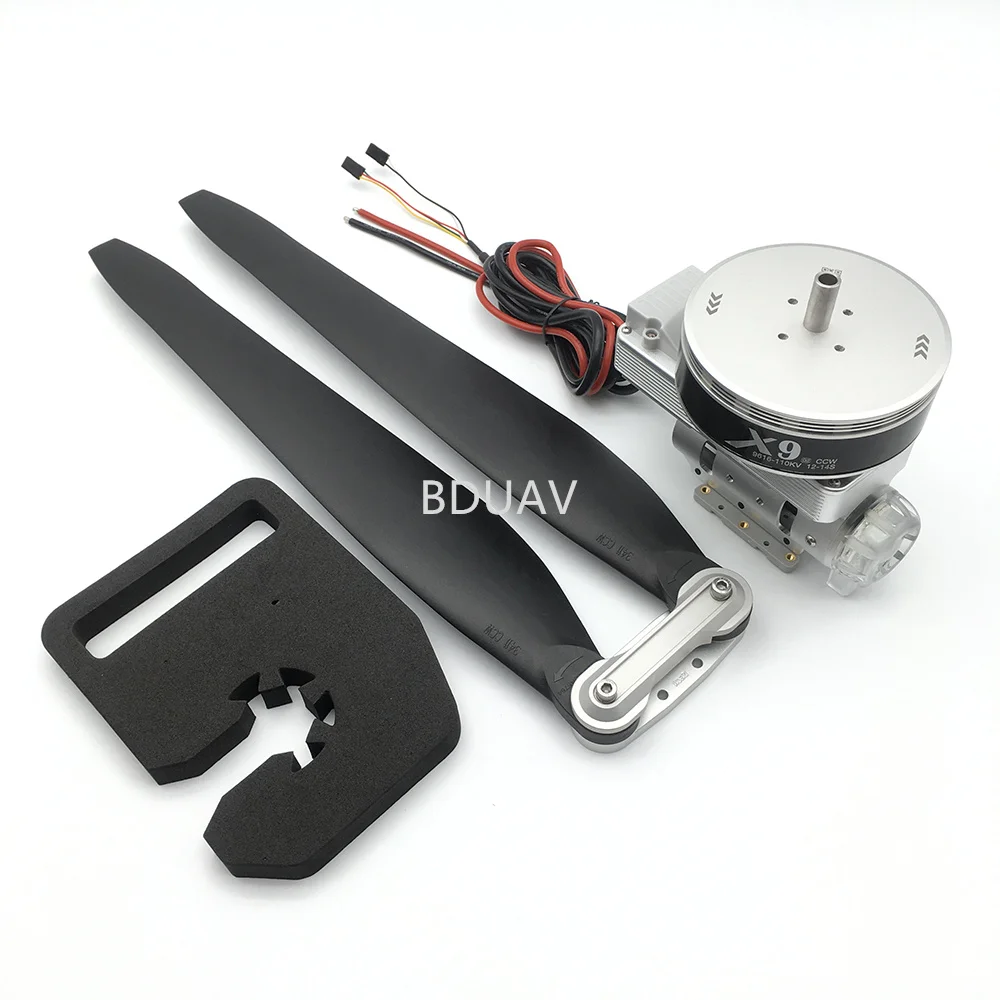

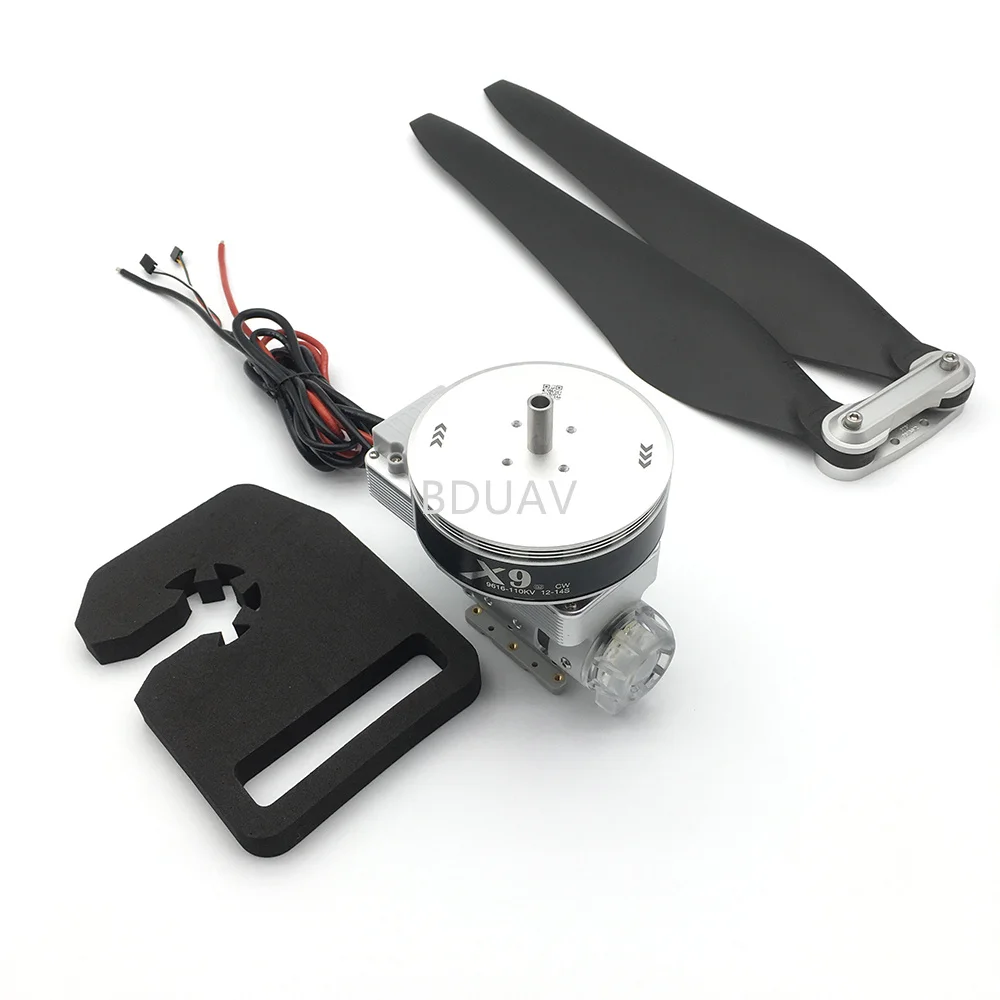

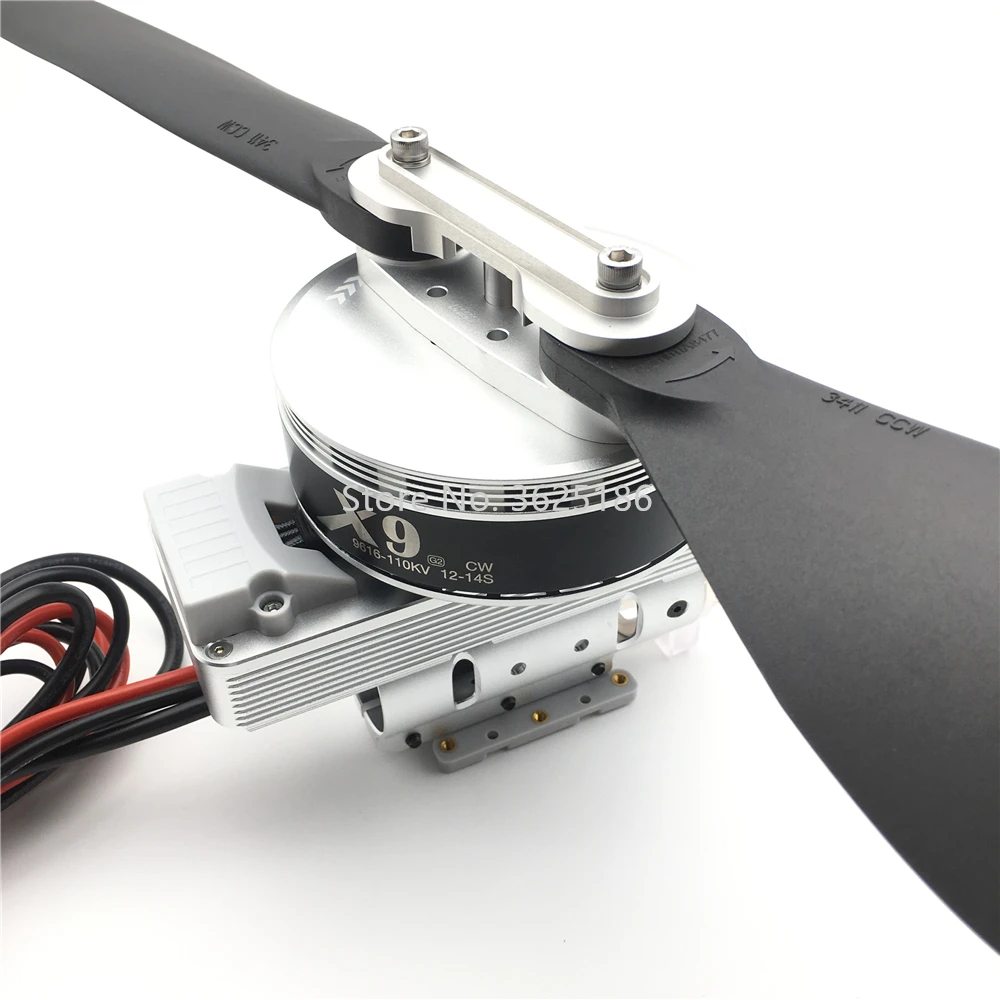

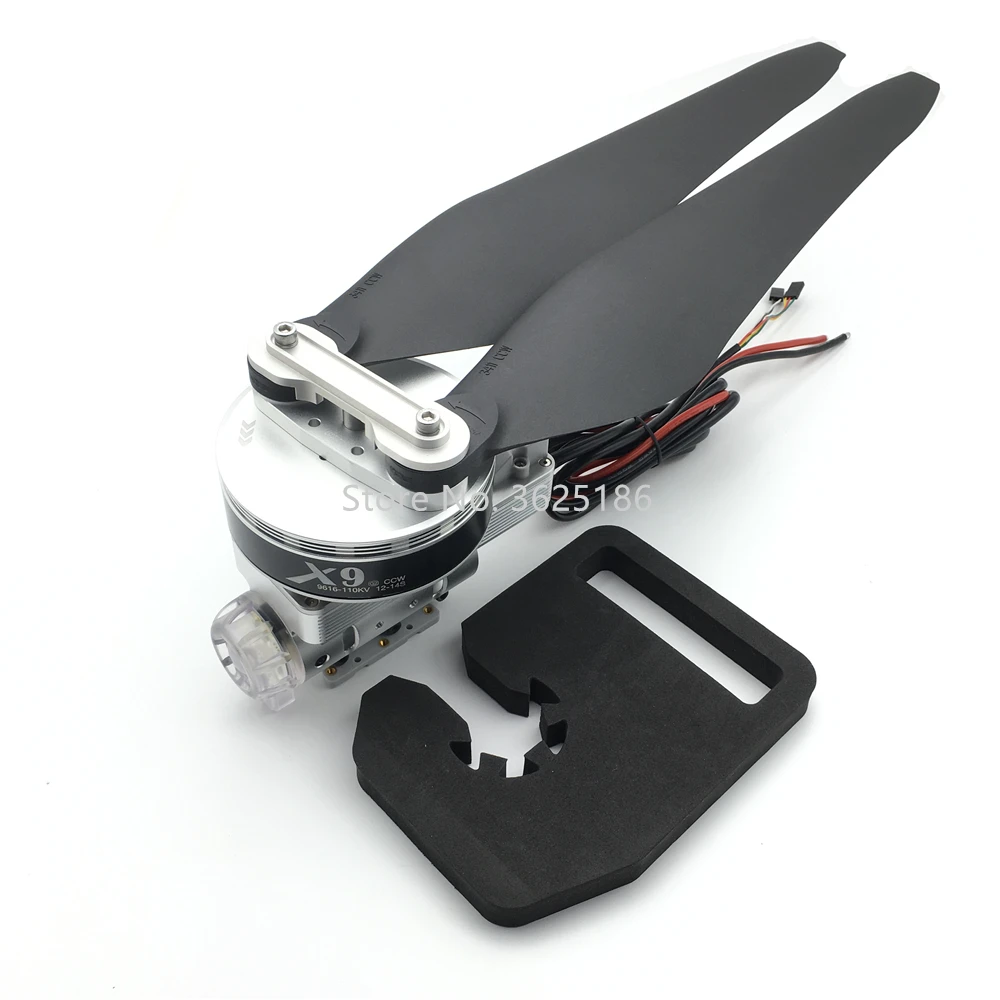

Hobbywing X9 Power System Combo – Propulsion System for Multirotor Agriculture Drone, Includes: ESC, Motor, and Propeller (22L, suitable for 10-16L multi-rotors), powered by 12S LiPo battery or compatible with 6-12S Lipo battery, with a maximum weight capacity of 93kg.
store no. 3625186 mjj u+c 1 8 cloovtzeoozozsl

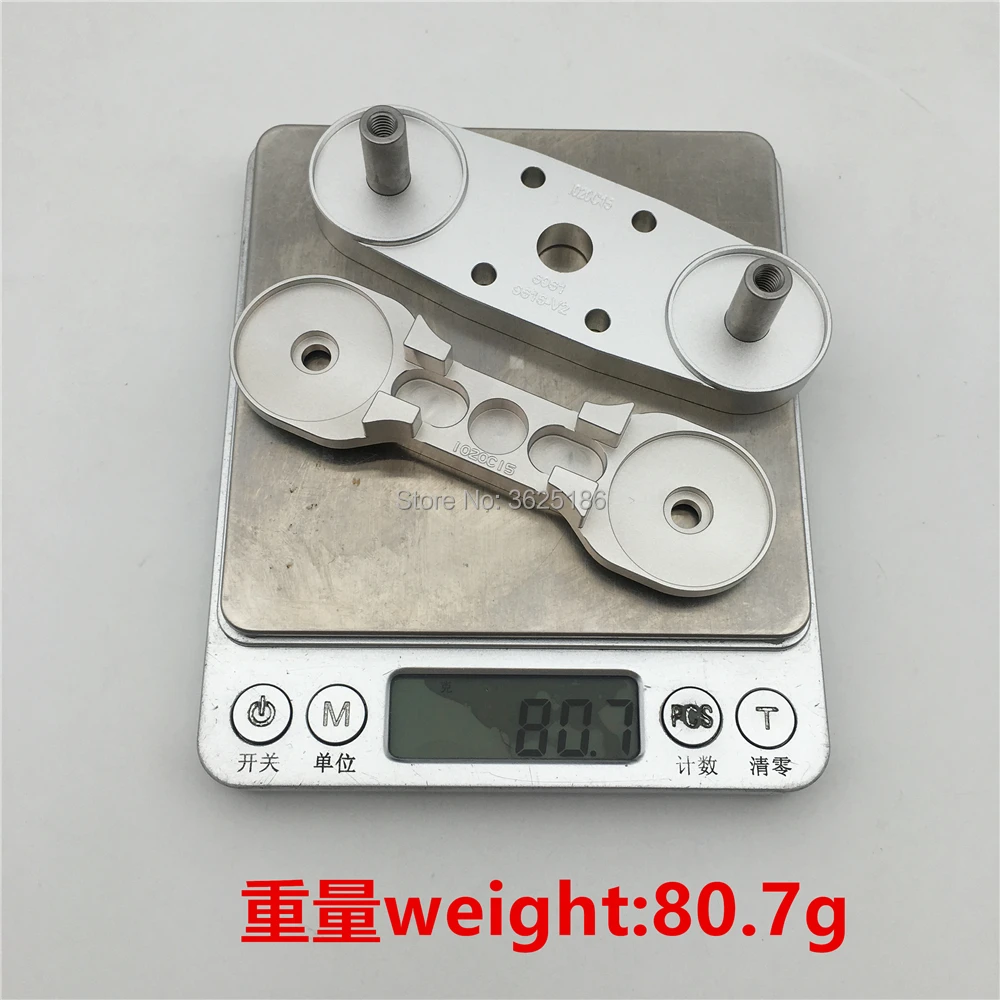

store no; 362 m acs #s #0 i% ias eeweight:80.7g ‘ n
