GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna SPECIFICATIONS
Brand Name: GEPRC
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Board
Size: 1 inch
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Board
Tool Supplies: Assembly Category
Quantity: 1 pcs
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
specification
Center frequency: 5.8 GHz
Bandwidth: 660 MHZ (5.47-6.13ghz)
Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
Axial ratio: < 1.3
DBi antenna gain: 9.4
Half power beam width: 55 ° (horizontal and vertical)
Radiation efficiency: 83.5%

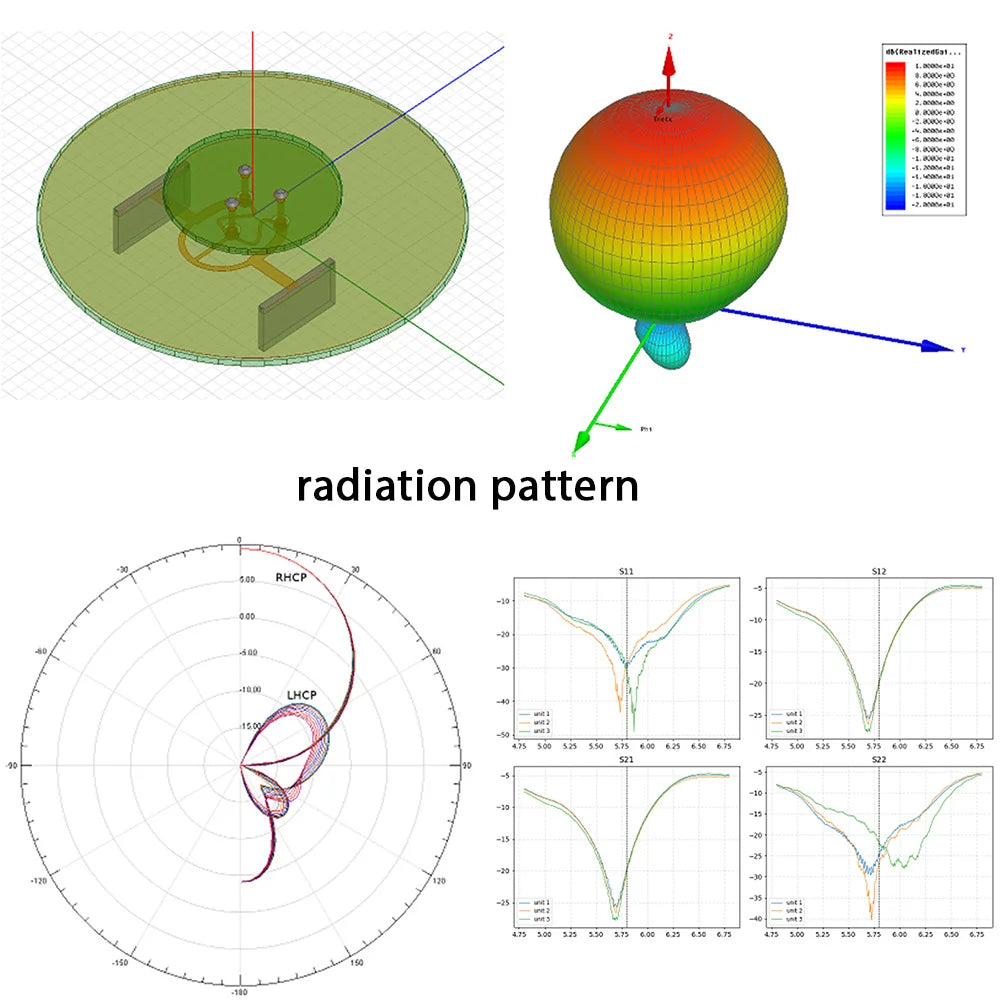

These values are based on simulation and the actual measurements are as follows (they are very similar).
Due to the change of the FR4 dielectric constant, the center frequency may be transferred between batches.
And not all FR4 brands have the same dielectric constant.
The frequency conversion to 100 MHz is normal.
