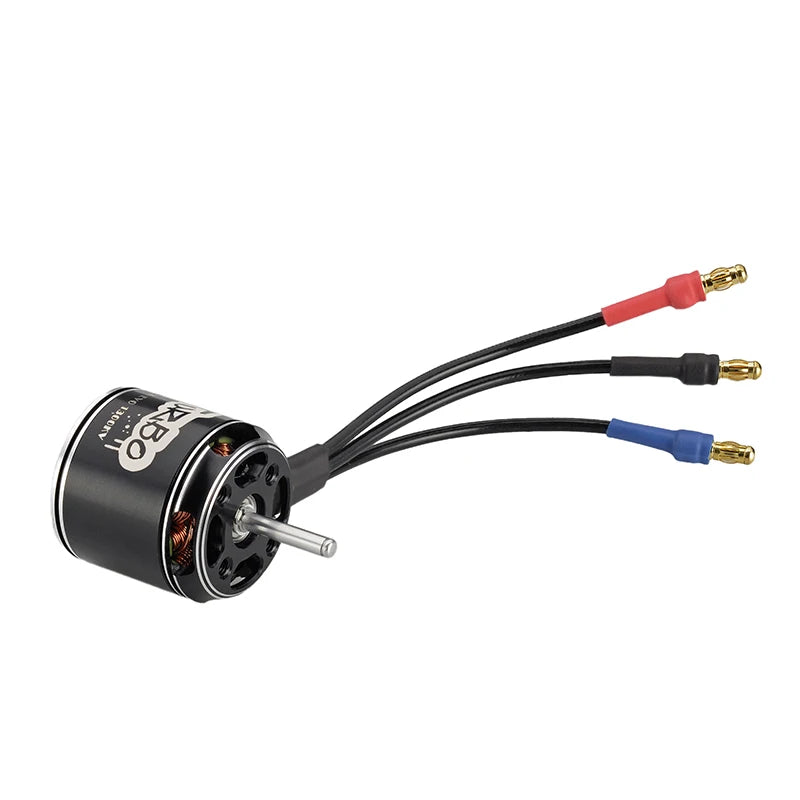

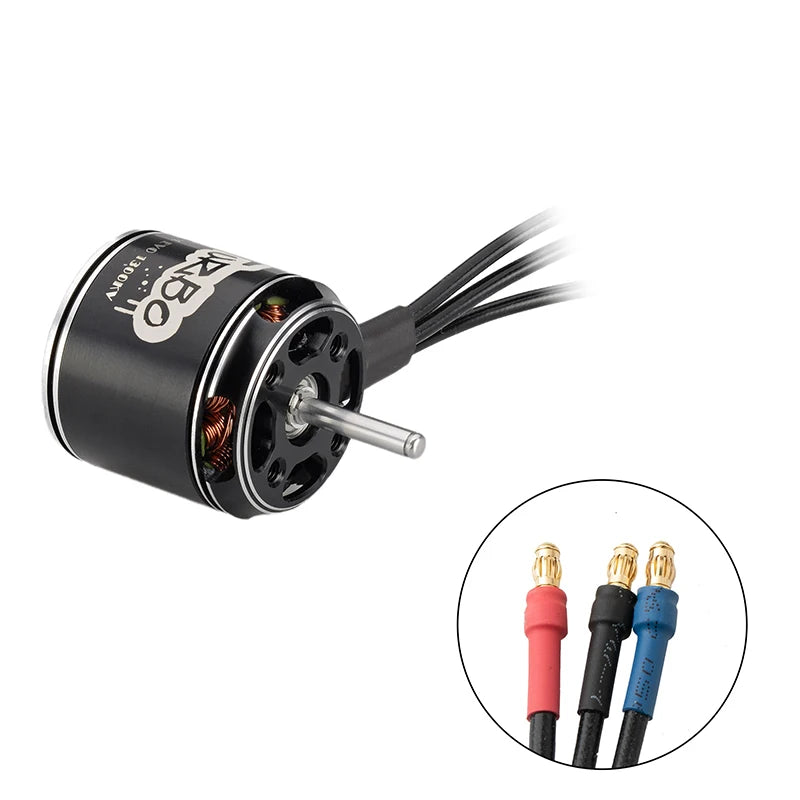

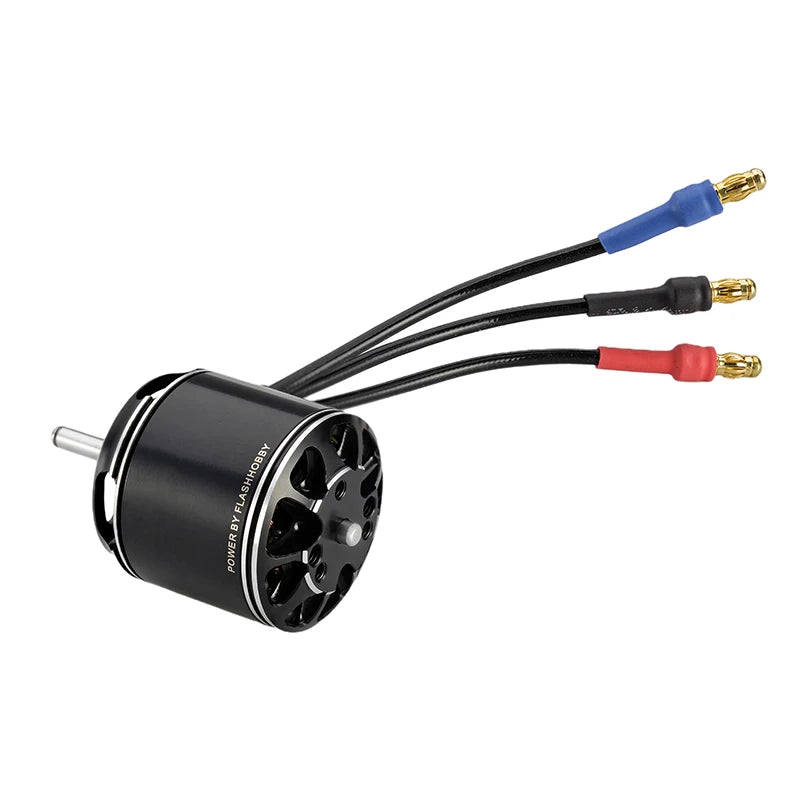

FLASHHOBBY D2830EVO 2830 750KV 850KV 1000KV 1300KV RC Brushless Motor SPECIFICATIONS
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Motor
Tool Supplies: Grinded
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: D2830
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: Skyquist
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

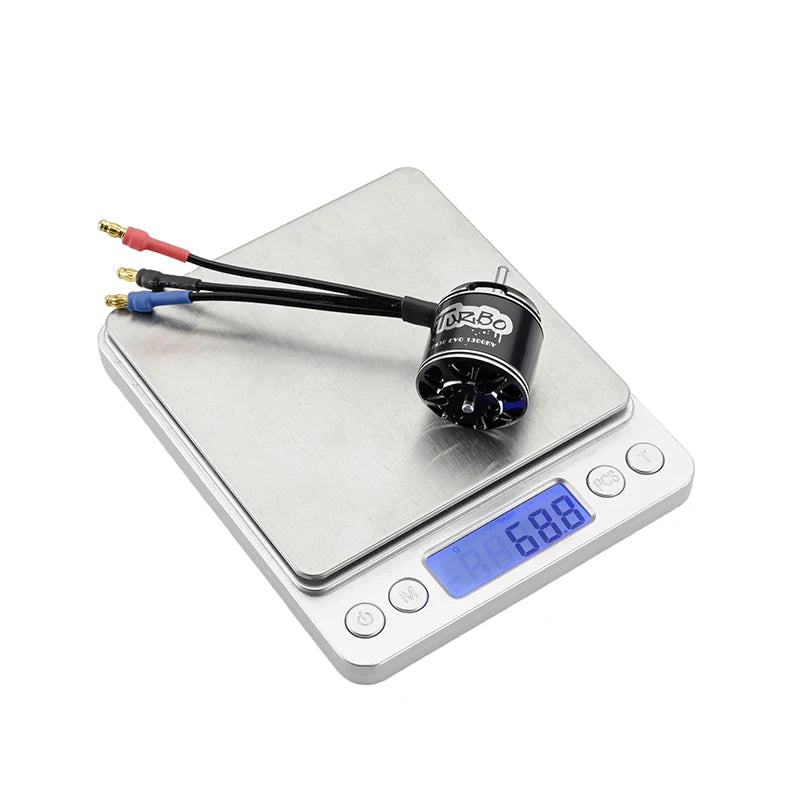

Weight: 68.1g(Including wires)

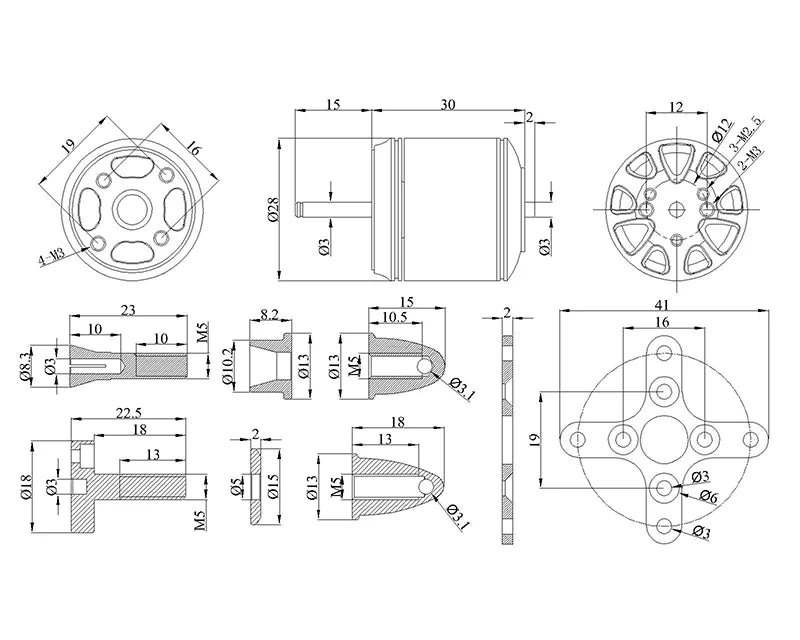

Motor Size: 28 x30mm
Shaft Size: 3.0*47.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 750KV, 850KV,1000KV,1300KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 750KV
Max watts: 175.4W
Max Current: 10.78A
No Load current: 0.6A
Resistance: 168.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 850KV
Max watts: 195W
Max Current: 15.87A
No Load current: 0.68A
Resistance: 145.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 11 inch prop
KV: 1000KV
Max watts: 196.6W
Max Current: 16.8A
No Load current: 0.86A
Resistance: 92.8mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1300KV
Max watts: 324.4W
Max Current: 28.3A
No Load current: 1.24A
Resistance: 63mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
FlashHobby, a professional motor manufacturer, presents the D2830EVO motor, featuring 2830 series brushless motors with Kv options at 750KV, 850KV, 1000KV, and 1300KV, suitable for UAV aircraft, multicopters, and RC planes/helicopters.
