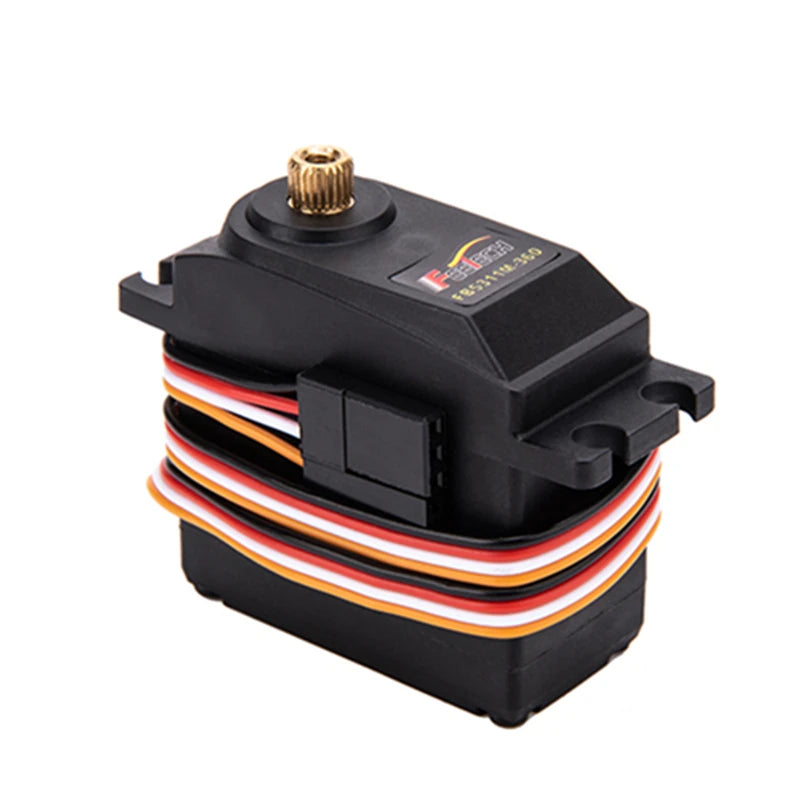

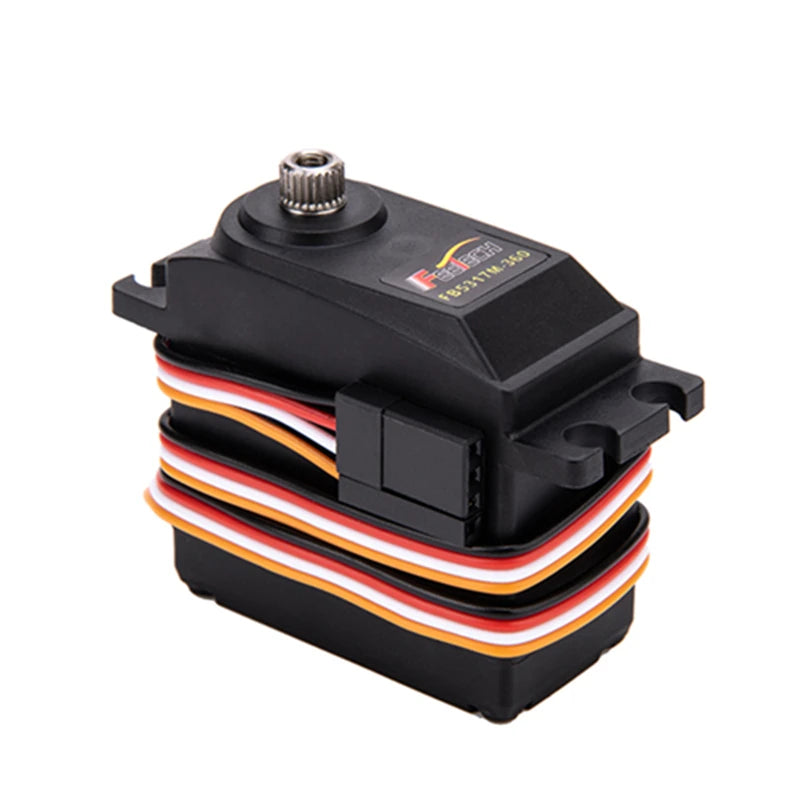

FEETECH FB5317M – 8.4V 15kg/17kg 360 Degree Servo SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
Size: 54×20.1×44.3
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: FB5317M-360
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Features
-Standard digital programmable Metal gears servo,2BB -High quality core motor, no limits can 360 degree rotation -Two working mode (servo mode and 360 degree continue rotation mode) -Operating Voltage: 4.8V-8.4V -Dead band width: 2usc -Interface: (like JR) -Wire length: 30cm
Product Details

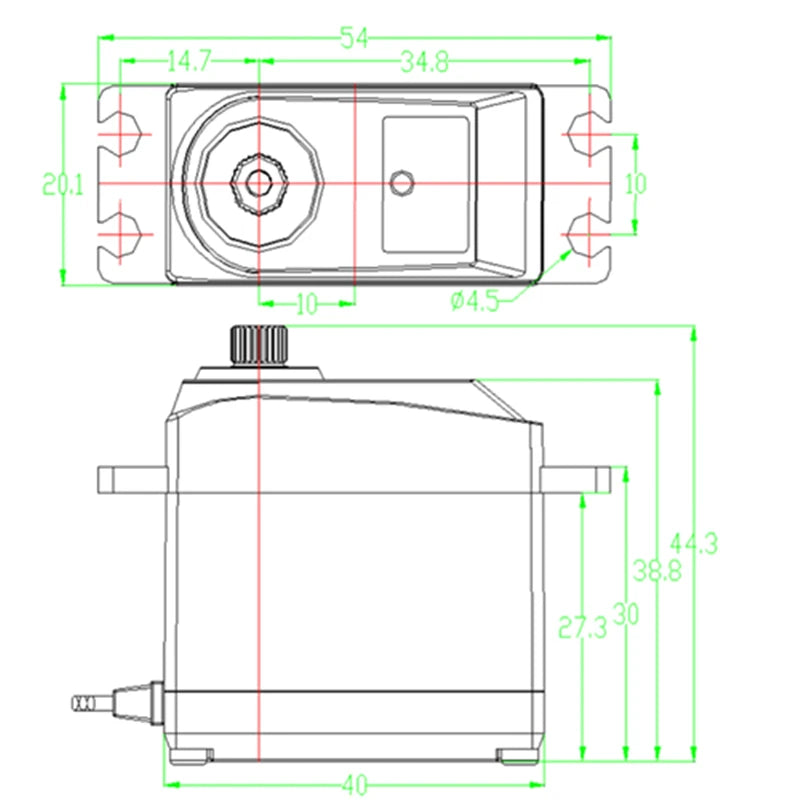

Model：FB5311M-360/FB5317M-360 Storage Temperature Range：-30℃～80℃ Operating Temperature Range：-15℃～70℃ Size：A：40mm B：20.1mm C：38.8mm D：54mm Weight FB5311M-360：64g FB5317M-360：65g Gear type FB5311M-360：Copper Gear FB5317M-360：Steel Gear Limit angle：No limit Bearing：2 Ball bearings Horn gear spline：25T(5.9mm) Horn type：Plastic,POM Case：Nylon & Fiberglass Connector wire：300mm ±5 mm(Black ,Red,white and Orange) Motor：Metal brush motor Operating Voltage Range FB5311M-360：4.8-6V FB5317M-360：6-7.4V Idle current(at stopped)：5mA No load speed FB5311M-360：50RPM@6V FB5317M-360：62RPM@6V Runnig current(at no load)：150 mA @6V Peak stall torque FB5311M-360：15.5kg.cm@6V FB5317M-360：17.5kg.cm@6V Rated torque FB5311M-360：5kg.cm@6V FB5317M-360：6kg.cm@6V Stall current：1800mA@6V Running degree：360°Continuous rotation Rotating direction：clockwise (when 1500～2000 µsec)；Stop (1500±20 µsec)；Counter clockwise (when 1500～1000 µsec) Feedback Voltage：0V-3.3V For 0°~360°(when 1500～2000 µsec)
Item Packing

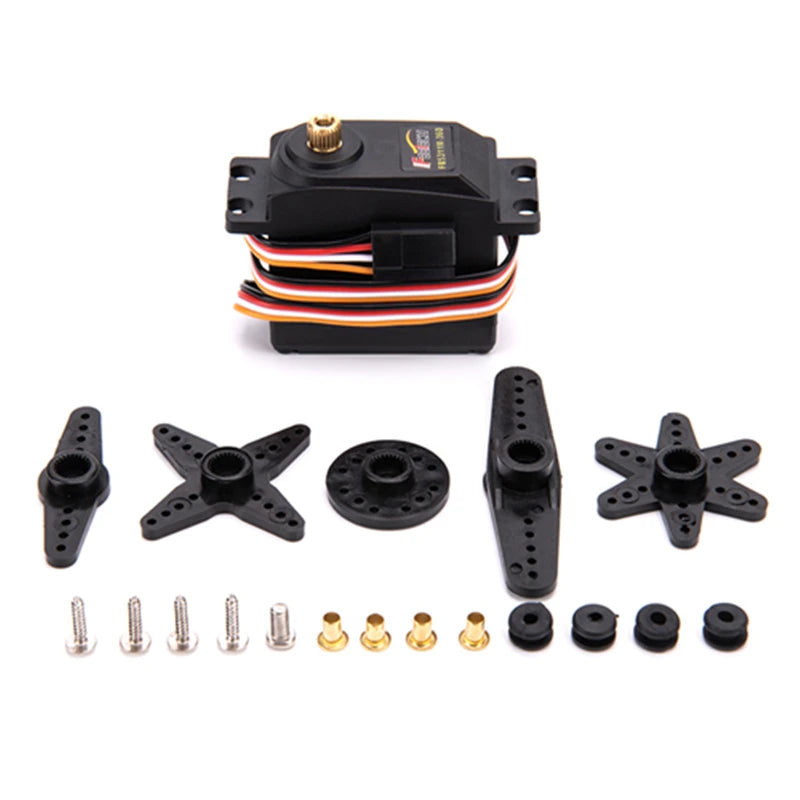

Digital Servo x 1 Accessories x 1
Detailed Images
