Fatshark 700TVL CMOS CAMERA SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembled class
Technical parameters: Value 10
Size: As description
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
Origin: Mainland China
Model Number: Fatshark 700TVL CMOS
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
Description:
Brand Name: Fat Shark

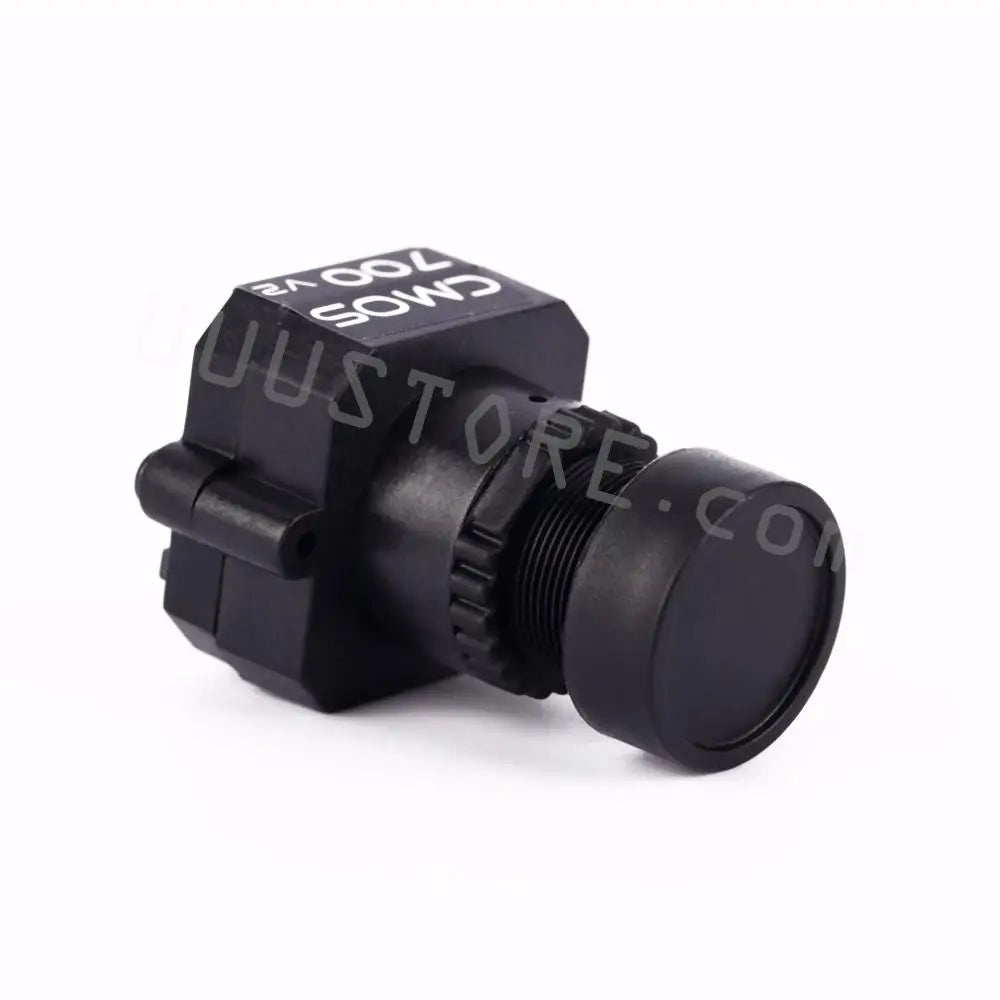

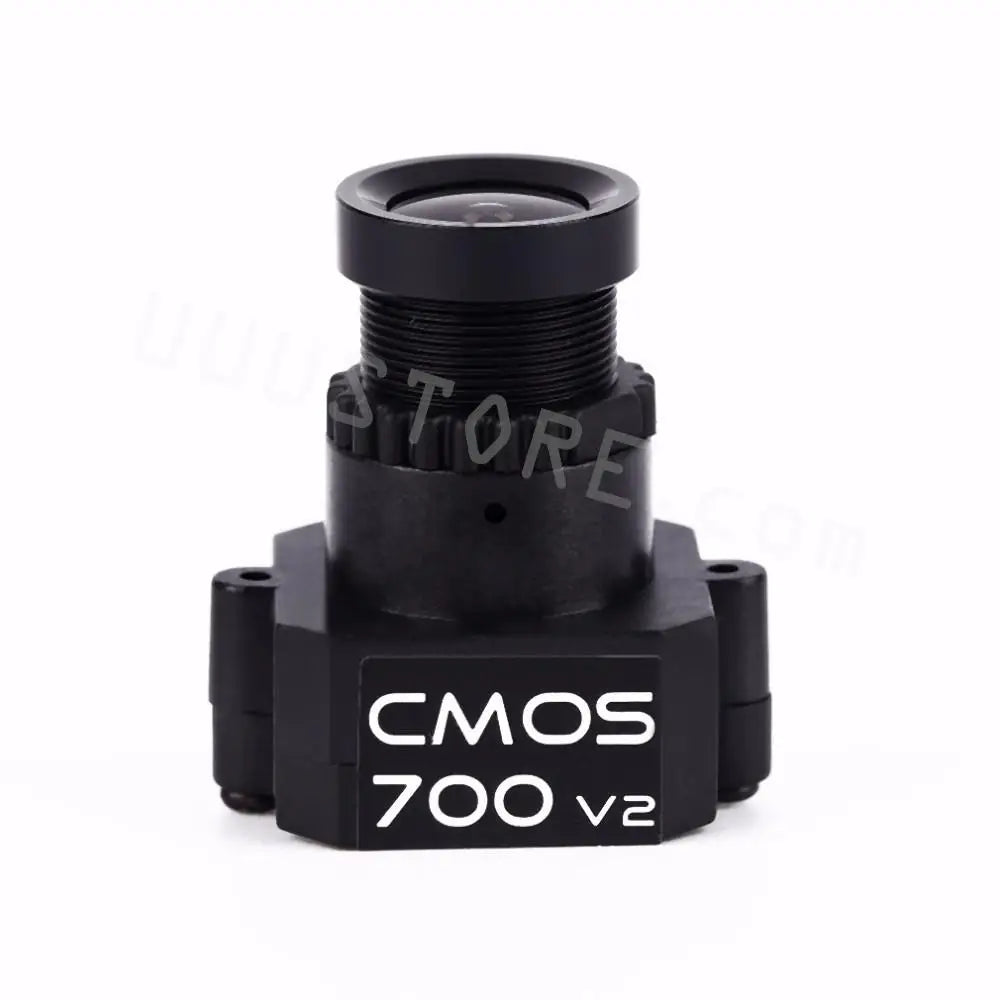

Item Name: 700TVL CMOS Fixed Mount FPV Camera
Input Voltage: 3.5~5V
Power Consumption: 60mA@5V
Sensor: 1/3″ Sony Super HAD CCD sensor
Picture Elements: 726(H) x 582(V)
Resolution: 700TVLines
Scanning System: 2:1 interlaced
Minimum Illumination: 0.08Lux/F1.2
S/N Ratio: More than 52dB
Format: NTSC/PAL (selectable)

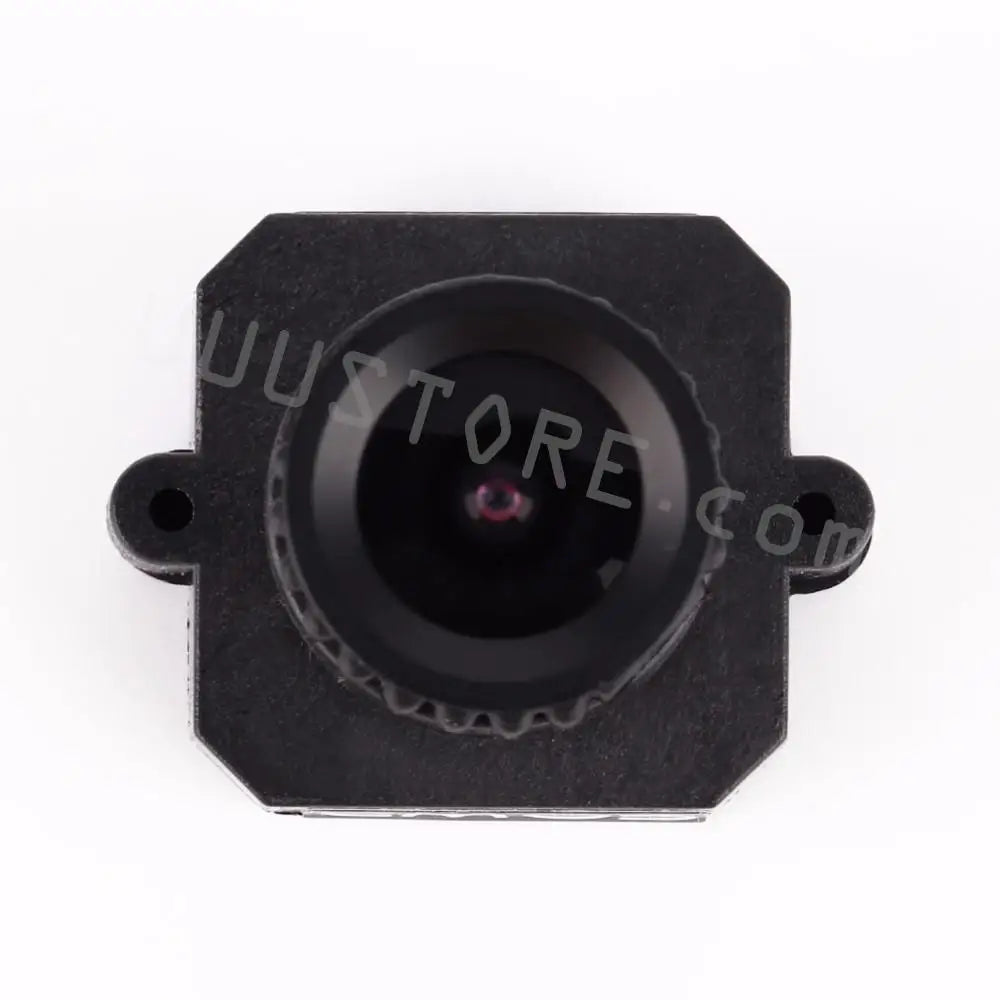

Board Lens: f2.8mm lens
Dimensions: 32 x 26 x 21mm
Weight: 15g with lead
Features:

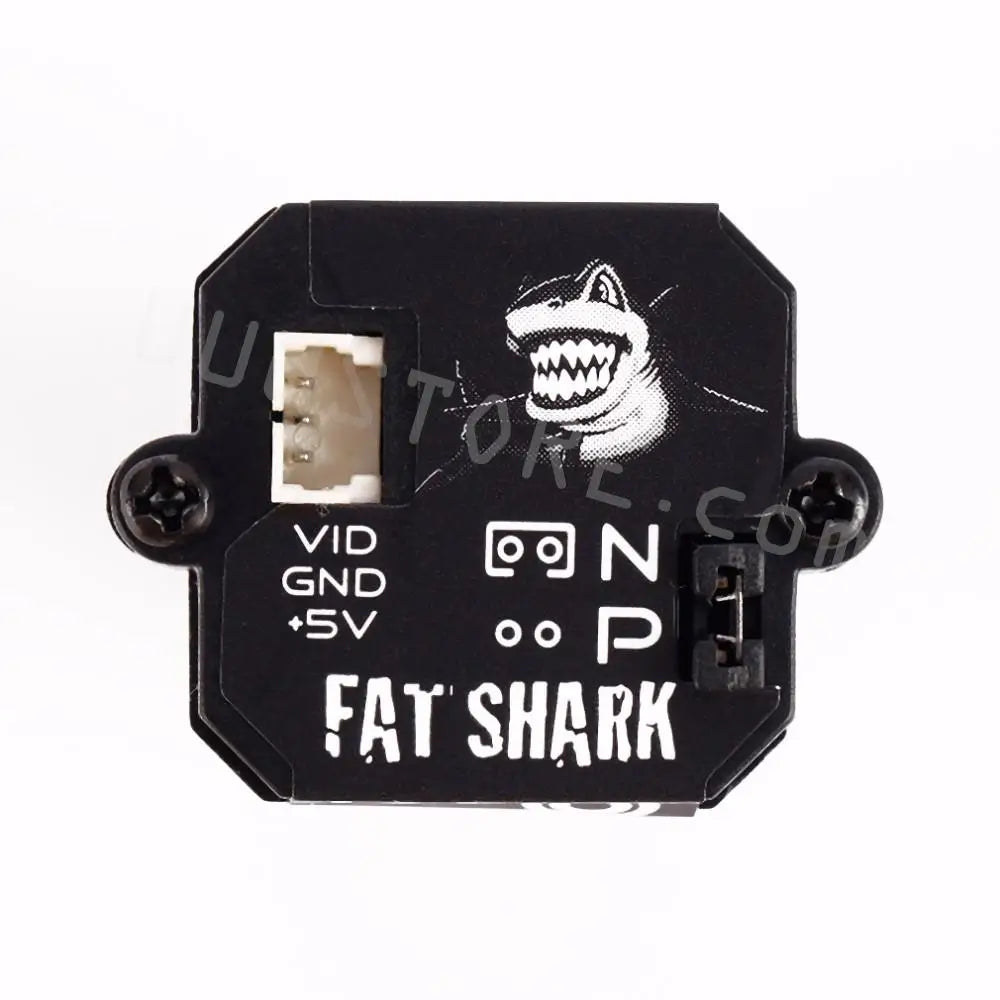

NTSC or PAL – selectable by jumper. It ships with the jumper on (NTSC) to use it as PAL please remove the jumper from the back of the camera.
Replacing the 420 line “CCD Killer” CMOS Camera from Fatshark.
The new 600 line sensor outperforms any and rivals many CCD cameras.
Fantastic light handling and crisp image.
Low power and light weight make it a perfect choice for smaller aircraft.

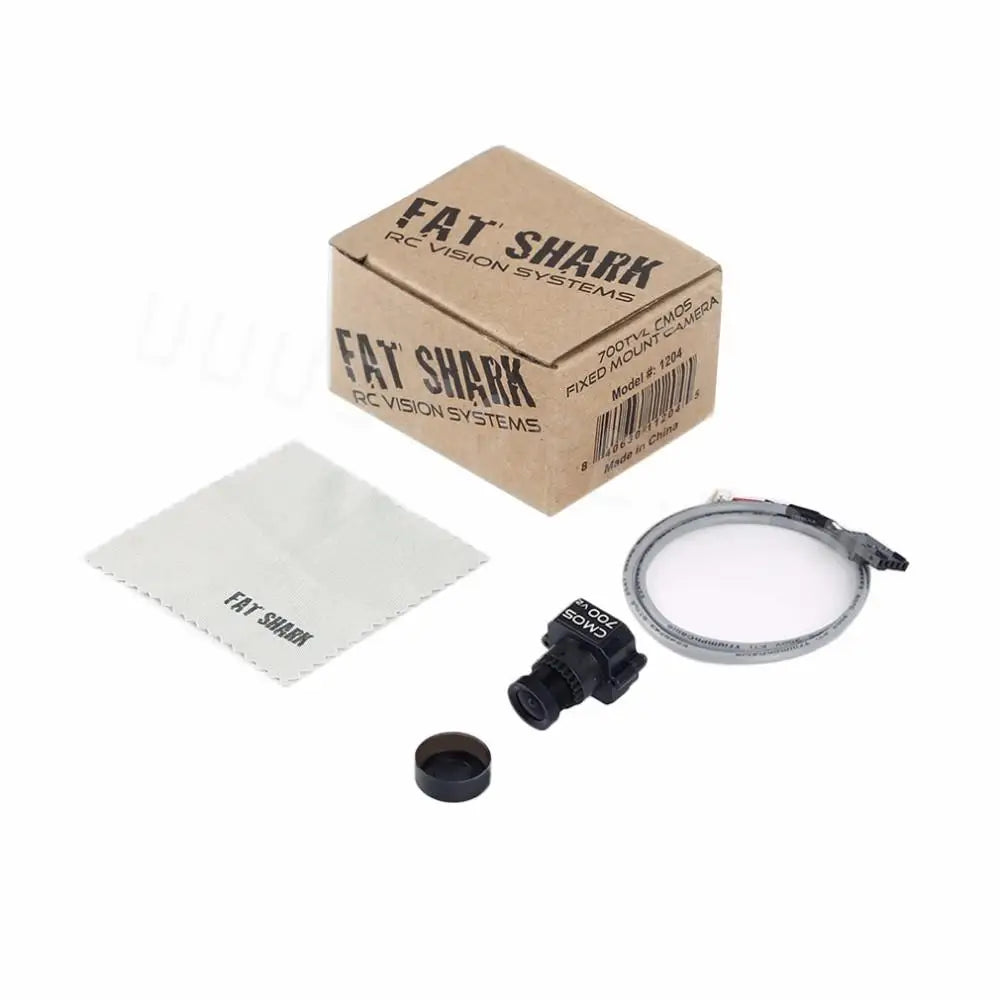

Package Included:
1 x 700TVL CMOS Fixed Mount FPV Camera
1 x Cable
FAx SHHw Rc 21 9 FAT’ RC SHARK Vision SySTeMS MERA ze3un+Mose 41204 FiXed _ Model VISION SysteMS Isows “SHARK
‘
