SPECIFICATIONS
Brand Name: EMAX
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Quantity: 1 pcs
Model Number: ES3059MD

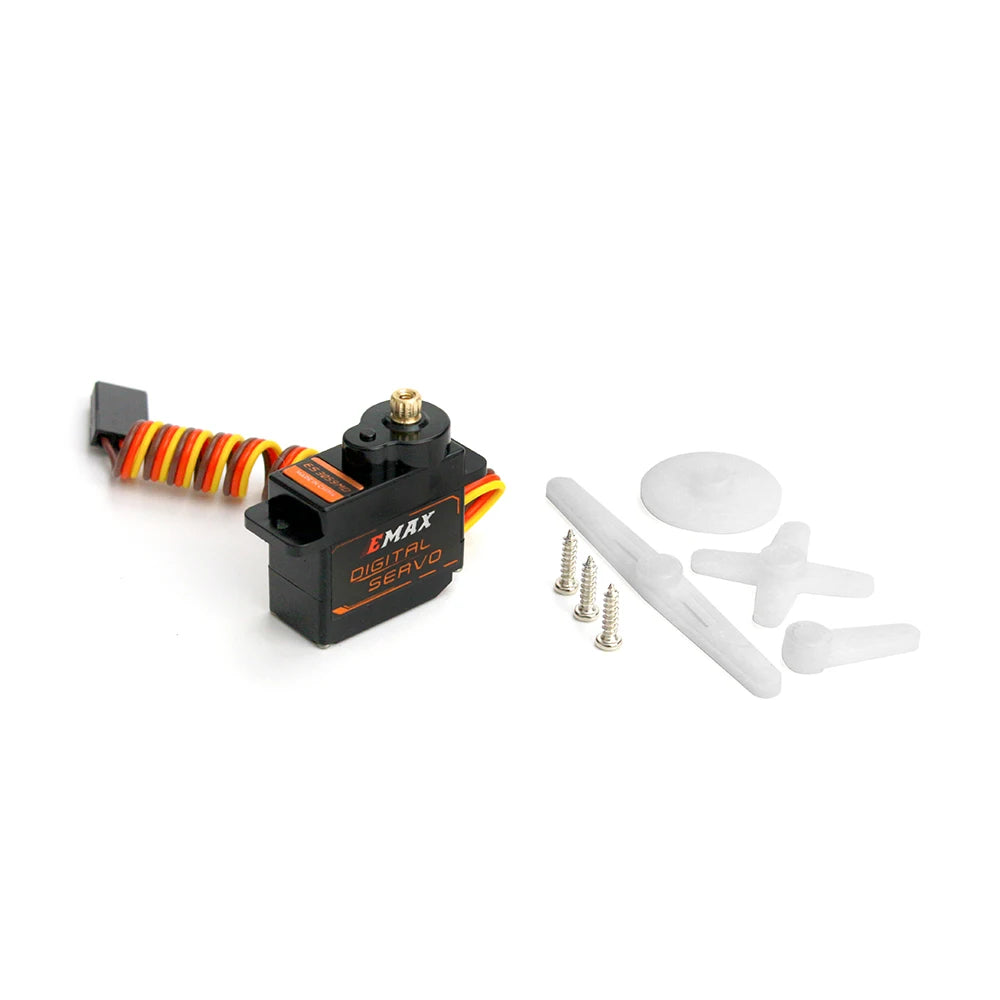

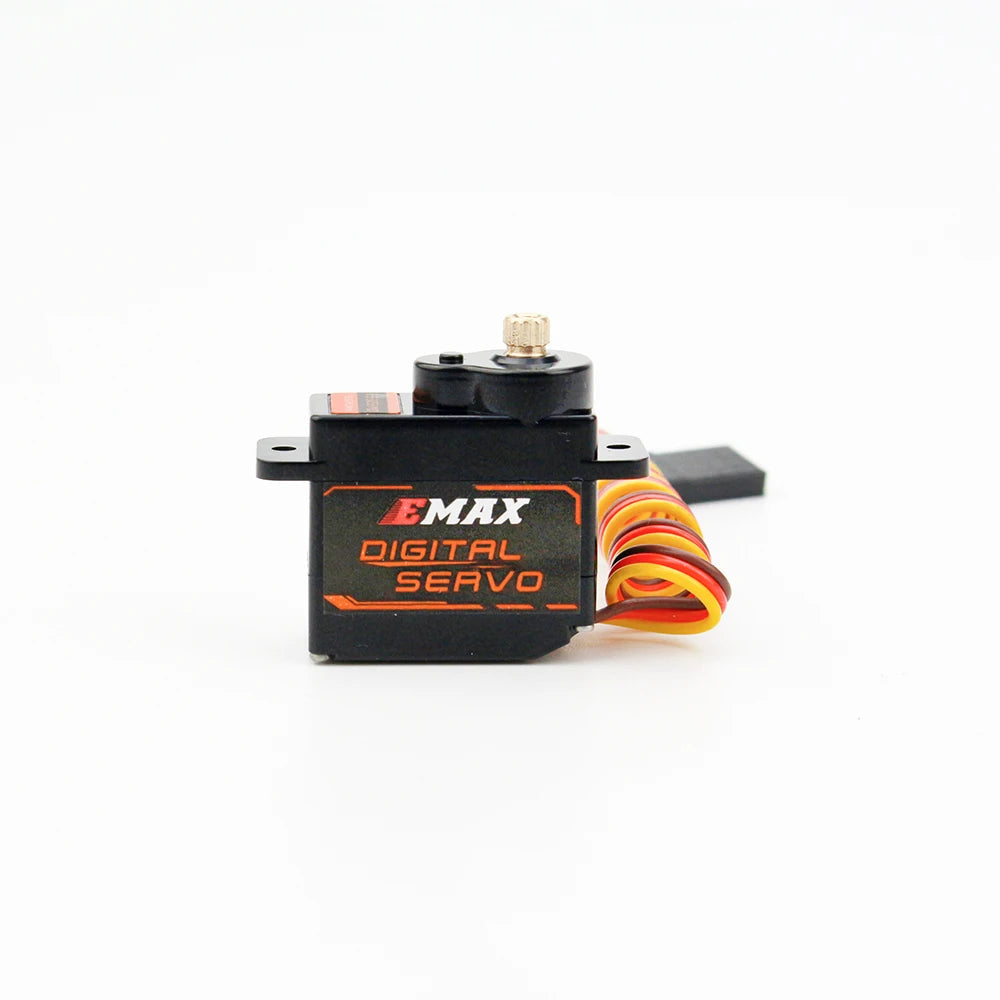

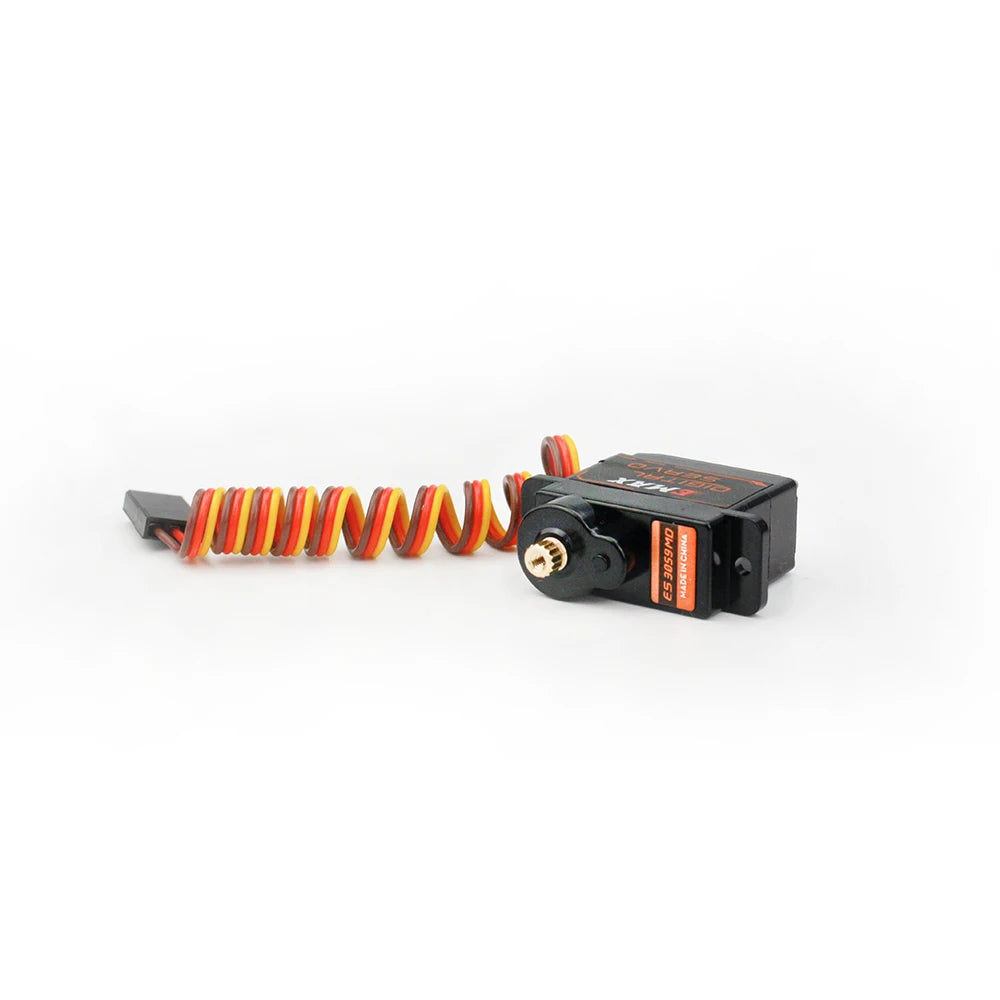

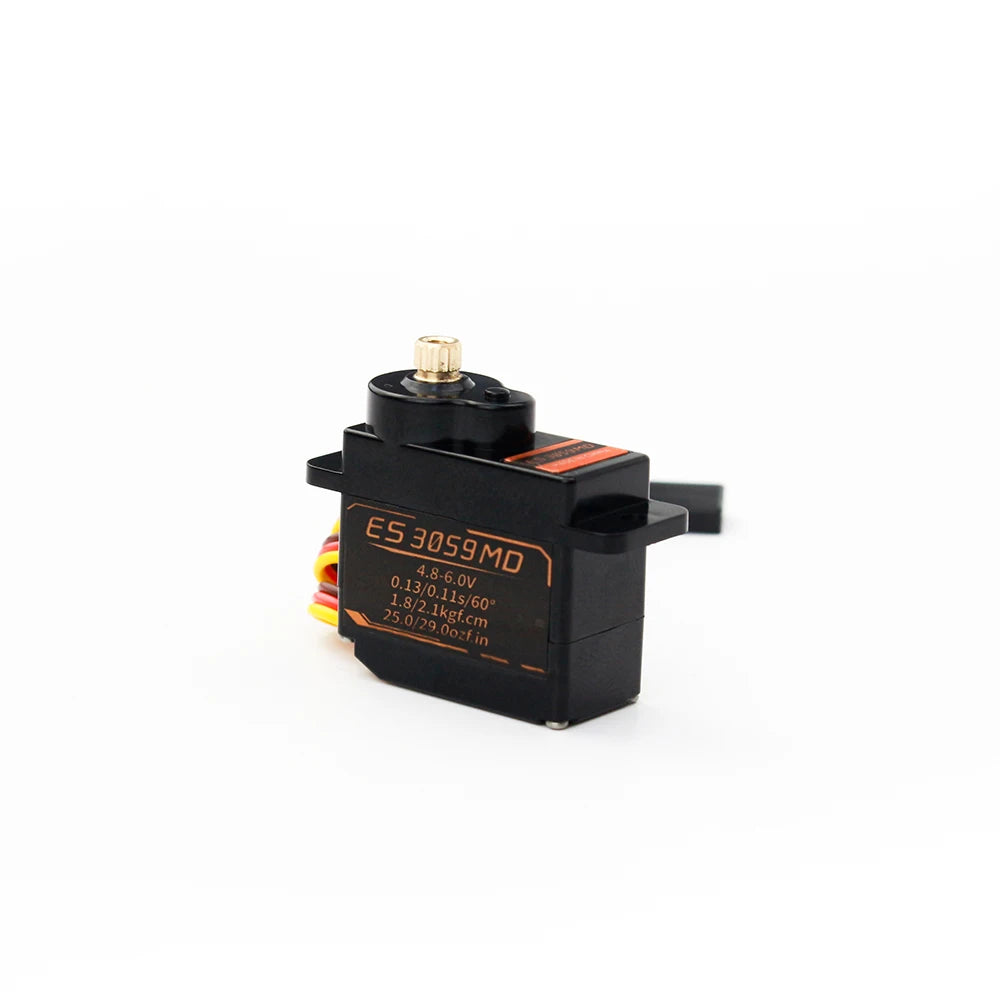

Emax Official ES3059MD 12g Metal Digital for RC Model and Robot PWM Actuator

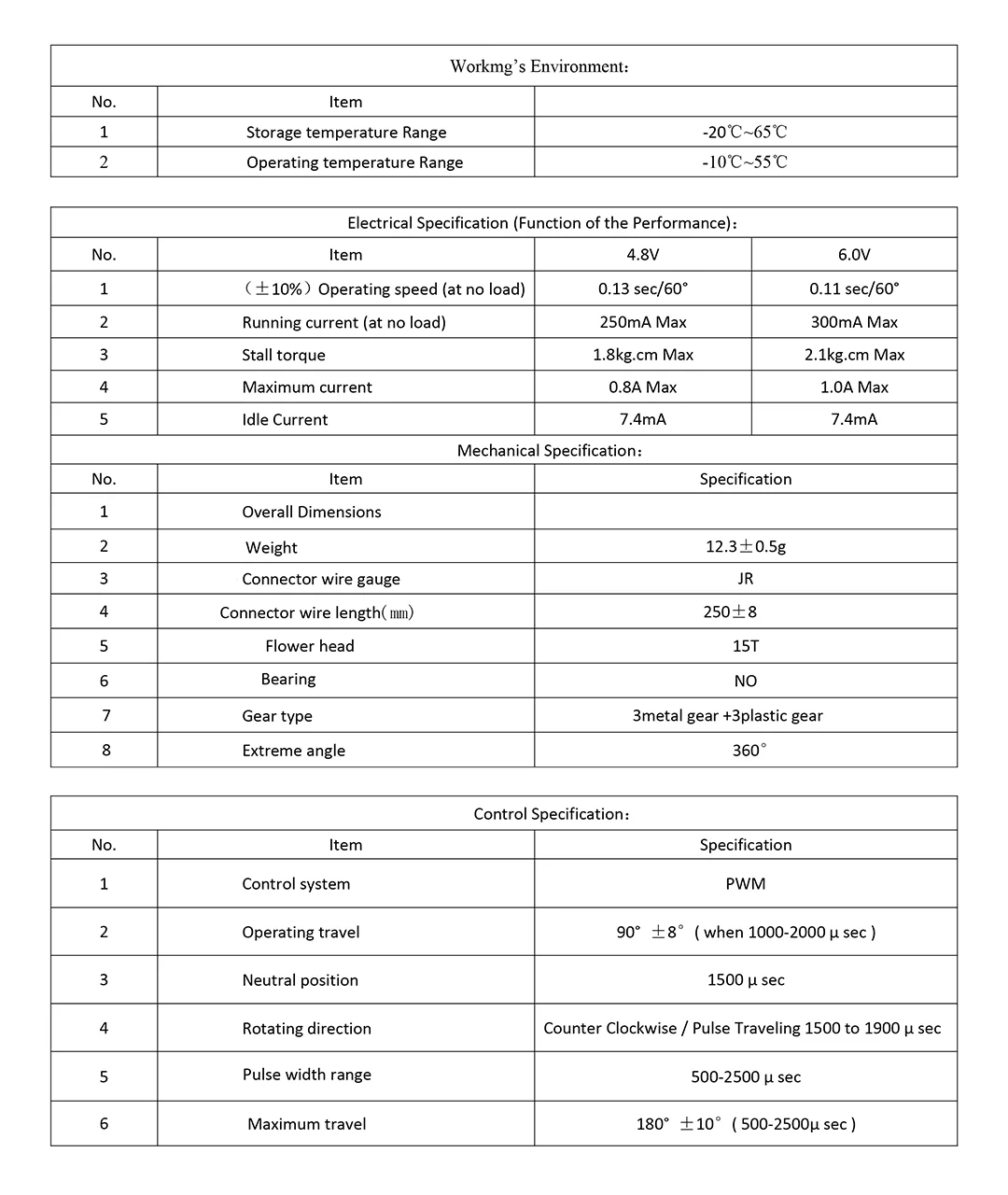

Product Specifications:
* Operating Voltage: 4.8V to 6.0V (+10% at no load)
* Response Time:
+ At 60% duty cycle: 0.13 seconds
+ At 60% duty cycle (stall): 0.11 seconds
* Stall Torque: 1.8 kg·cm
* Maximum Torque: 2.1 kg·cm
* Maximum Current: 0.8 A or 1.0 A
* Idle Current: 7.4 mA
Mechanical Specifications:

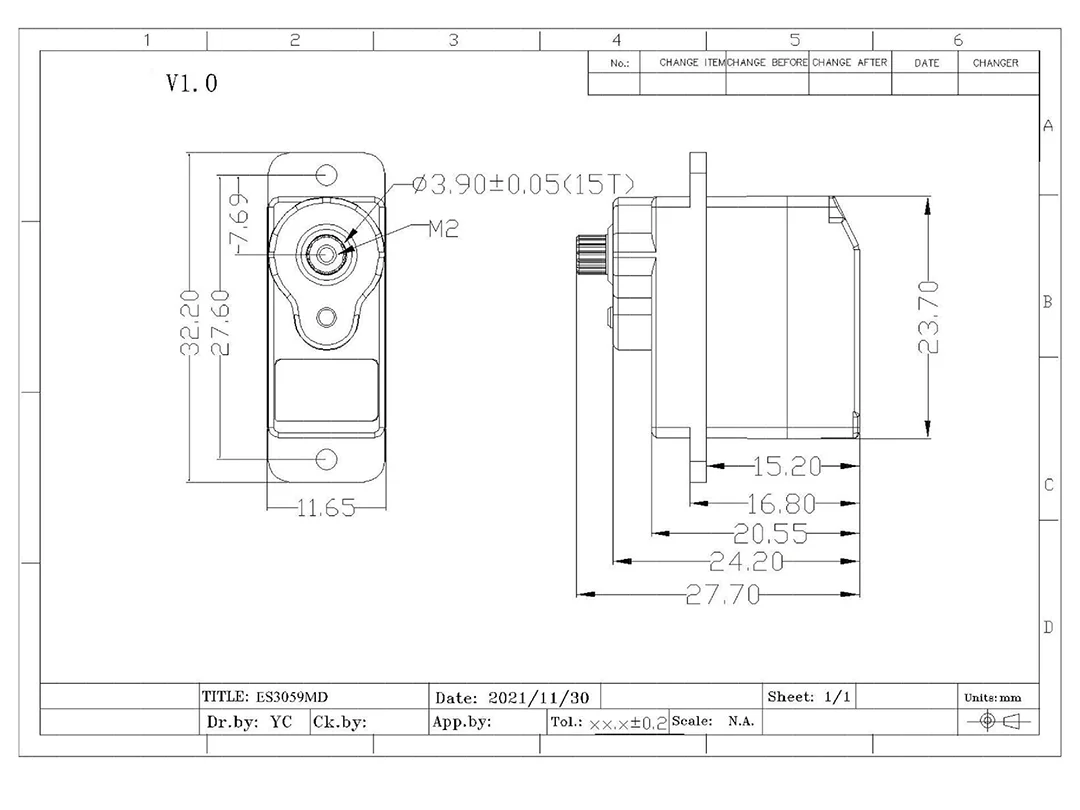

* Overall Dimensions:
+ Length (including connector): 12.3 mm ± 0.5 mm
+ Weight: 12 g
* Connector: JR
* Wire Gauge: N/A
* Connection Wire Length: 250 mm ± 8 mm
* Flower Head: 15T Bearing
* Gear Type: N/A
Yinyan Electric Technology Ltd is a leading supplier in design, research and development, and manufacturing of high-end brushless motors and sets for the unmanned aerial vehicle (UAV) industry, as well as other applications. EMAX is renowned for its high-quality products used in radio-controlled models and first-person view (FPV) racing areas.
Payment Methods: Visa, Wallet, WebMoney, Hacwetkbin, Nrarenbhbix Boletol, SOFORT giro pay, OBIRIlisung, PJ#PI. Safety Payment Options: Mercado E8 Doku, THHH Bansfer VISA. Shipping: Items are shipped within 3 business days of full payment settlement.

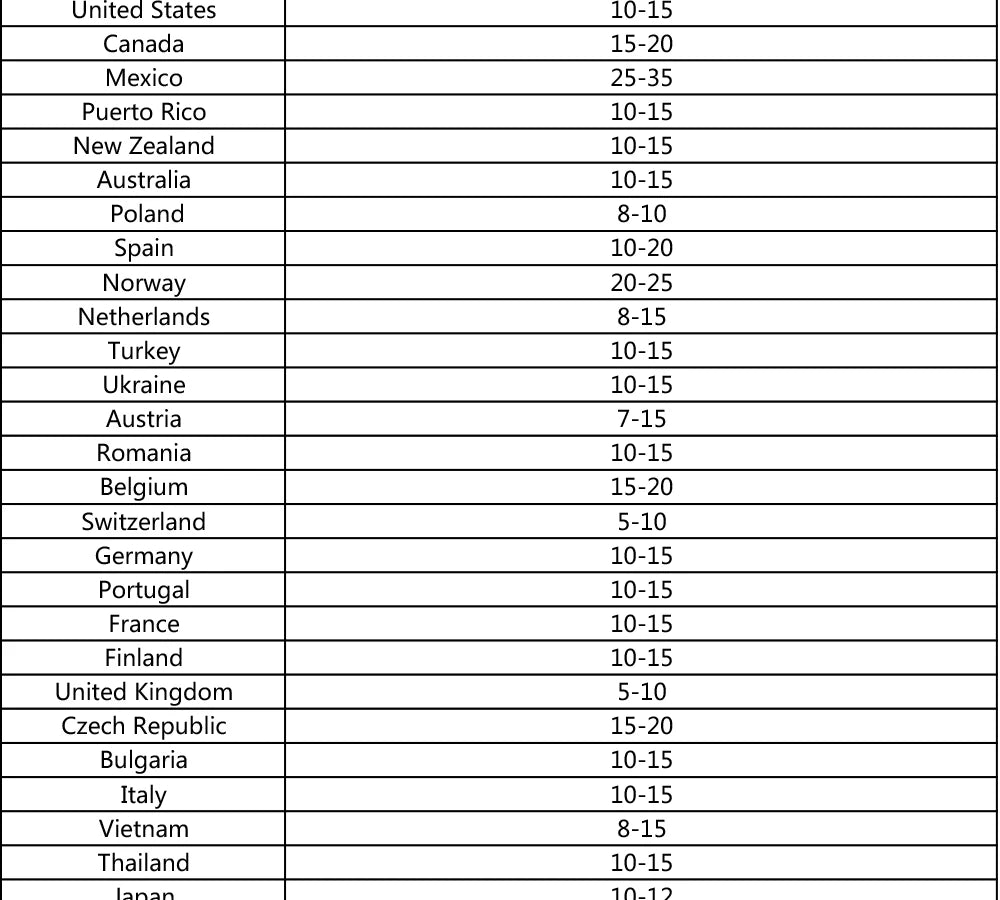

Estimated Shipping Times:
