CUAV SX Radio Specifications
| CUAV® SX RF | |
|---|---|
| Function | |
| Frequency range | 902 ~ 928 MHz |
| Transmitted power（Software selection） | up to 30 dBm |
| CHANNELS | 10 frequency hopping sequences share 50 frequency points |
| RF date rate | Low data rate：10 kb/s;， Intermediate data rate:110kb/s; high data rate：250 kb/s |
| Maximum data volume | 120kb/s |
| Available channel frequency | Low and medium data rates：101; high data rate：50 |
| Receiver sensitivity | Low data rate：-113 dBm; Medium data rate：-106 dBm; high data rate：-103 dBm |
| Transmission distance | Reference distance: 40km |
| Network and security | |
| Modulate | Gaussian Frequency Shift Keying |
| FHSS | Frequency Hopping Spread Spectrum (FHSS) |
| Net topology | Point-to-point DIGImesh network relay |
| Encrypt | 256bits AES |
| Power System | |
| Operating Voltage | 4.75~5v |
| Receive current | 40mA |
| Transmission current | 900mA@30dBm; 640mA@27dBm; 330mA@20dBm |
| Sleep current | 2.5uA |
| GENERAL | |
| Size | 58*31*23mm |
| Weight | 39g（no antenna）；</br>60g（include) |
| Antenna interface | RPSMA |
| Interface Protocol | TTL(UART) |
| Operating temperature | -40°C to 85°C |
| REGULATORY APPROVALS | |
| United States certification | FCC ID: MCQ-XBPSX |
| Canadian certification | IC: 1846A-XBPSX |
| Australian certification | RCM |
CUAV SX Radio Details
Summary

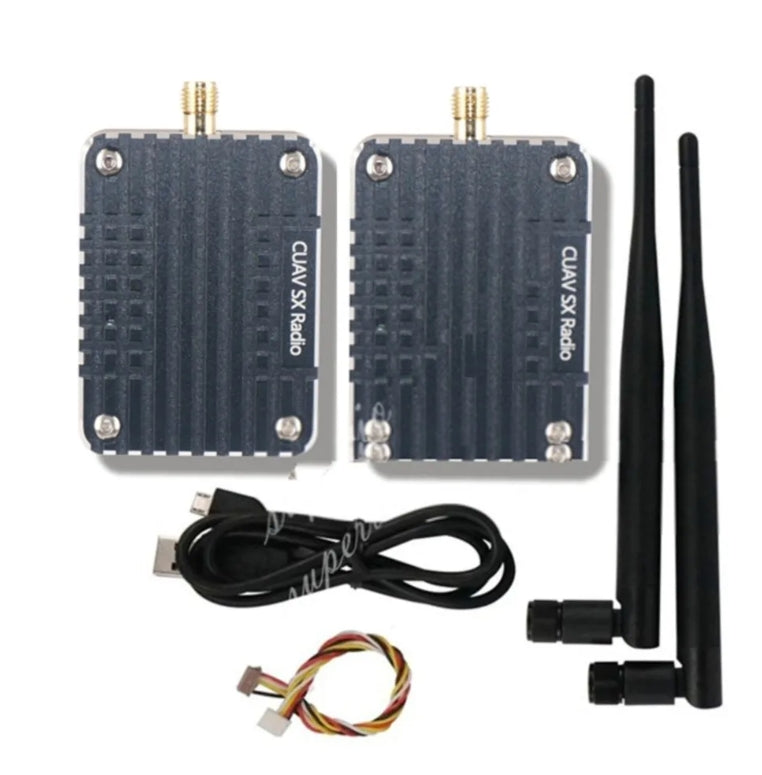

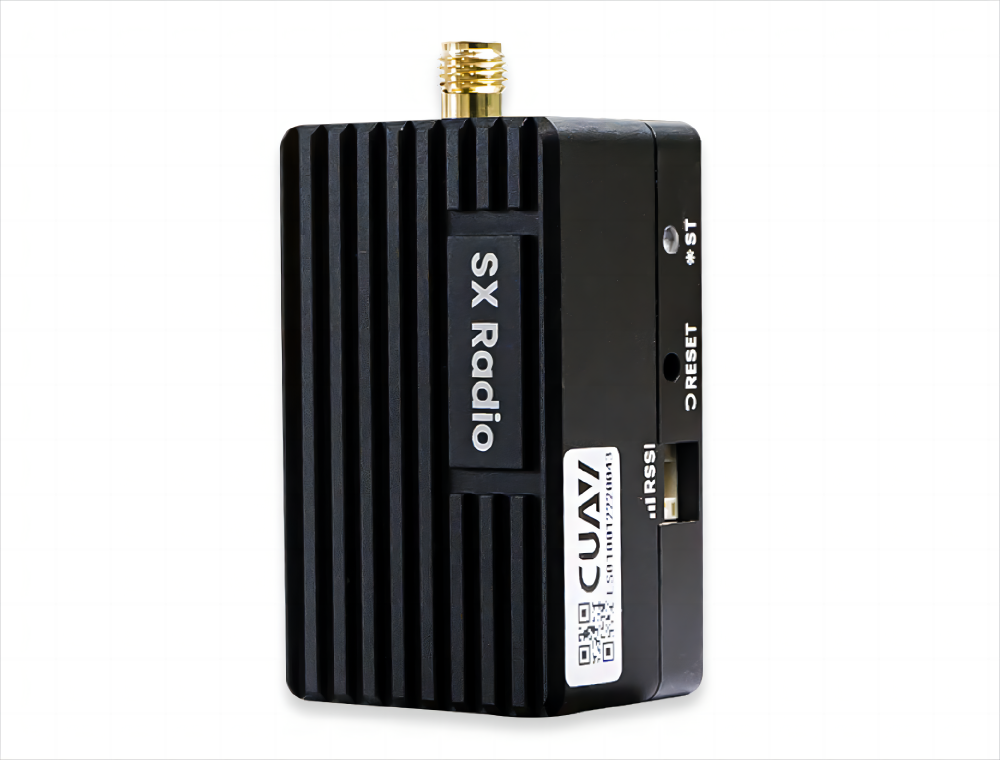

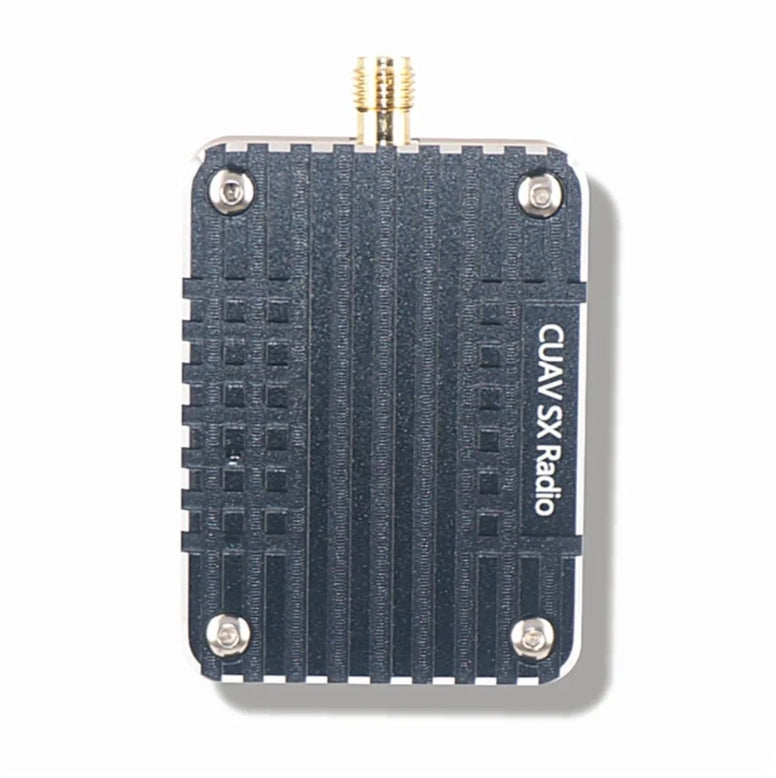

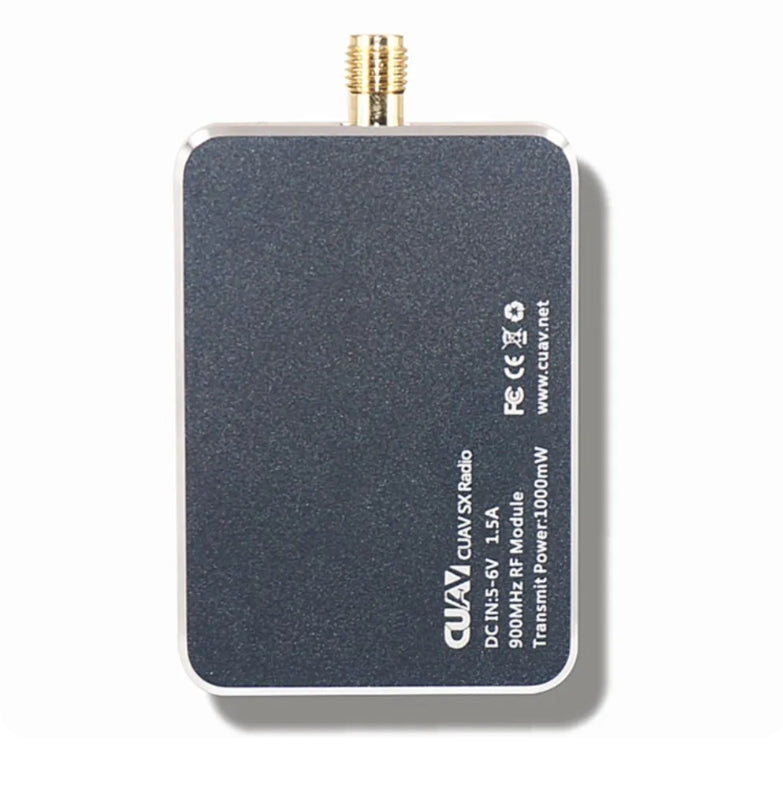

The CUAV SX Radio is a high-power, high-speed data transmission module with exceptional reception sensitivity.
Featuring a built-in SDI RF module from DIGI, USA, this device boasts a transmit power of 1000mw and operates on the legal ISM 900MHZ frequency. It supports a variety of advanced network configurations and topology modes.
The CUAV SX Radio module provides an unmatched range of affordable wireless data solutions. It’s user-friendly and ideal for unmanned unit networks and point-to-point over-the-horizon transmissions, ensuring stable and critical data transmission between drones and equipment. Its compact design optimizes on-board space usage.
Features
- High Power and Adjustable: Transmit power adjustable from 1mw to 1000mw.
- Ultra High Receiver Sensitivity: Maximum receiver sensitivity of -113 dBm in low-rate mode.
- Security Encryption: Supports 256-bit AES encryption for secure data communications.
- CNC Integrated Shell: Aerospace aluminum alloy one-piece CNC housing, lightweight, robust, aesthetically pleasing, and resistant to interference.

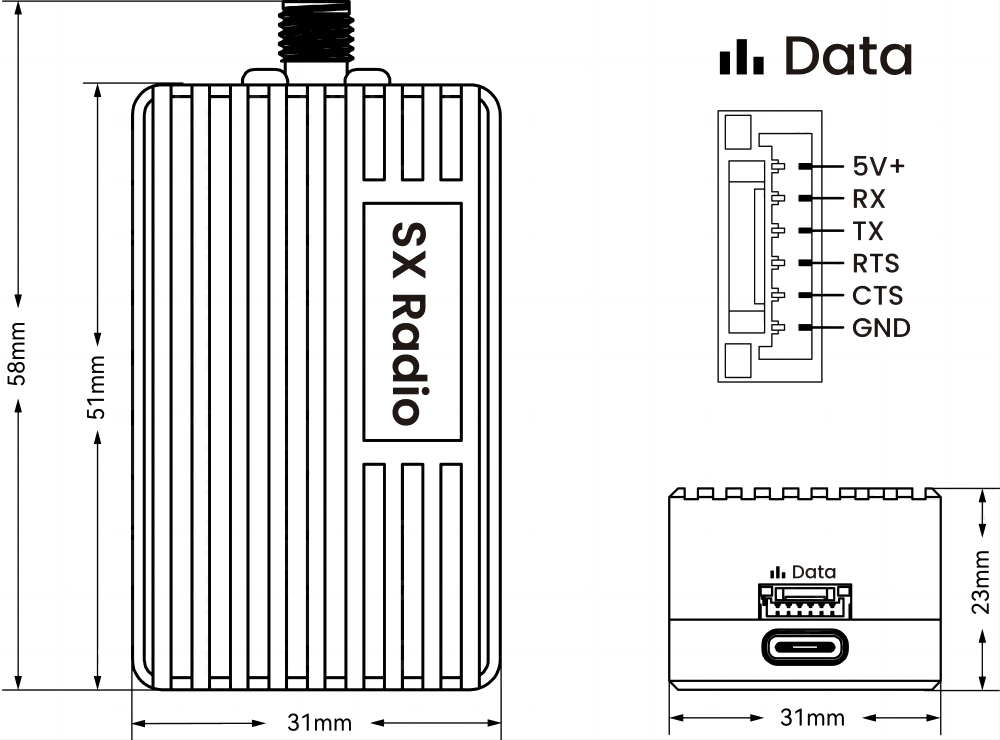

Pinouts

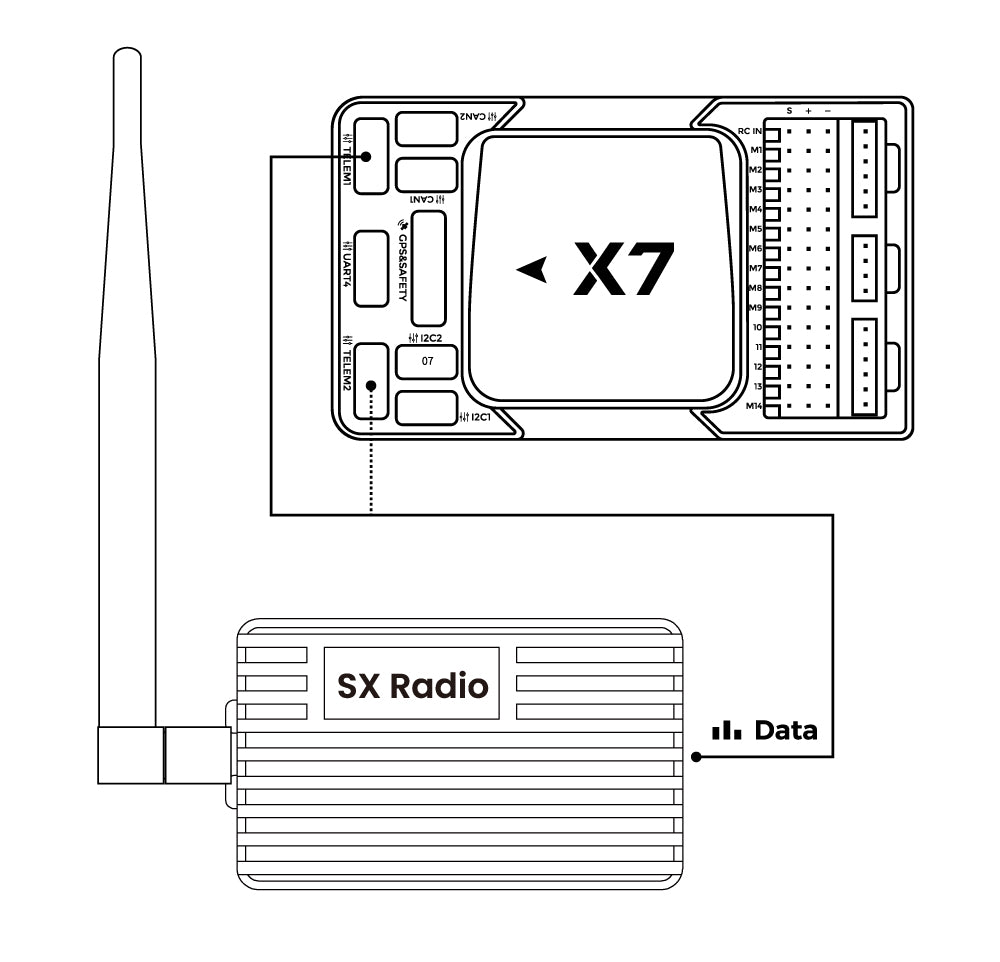

Connection to FlightController
Mission Planner

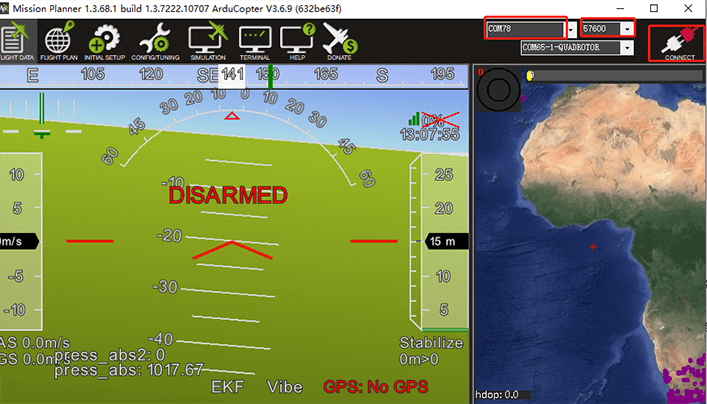

- After connecting the hardware, select the corresponding device port, set the baud rate to 57600, and click Connect.
QGroundcontrol
- After connecting the hardware, open the QGC ground station and the ground station will automatically connect.
