(1MB FLASH) GOKU GN 745 40A AIO SPECIFICATIONS
Brand Name: FLYWOO
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Gyros
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Tool Supplies: Assembled class
Quantity: 1 pcs
FLYWOO new top GOKU series AIO are finally here! GOKU GNF745 40A FC is currently the highest level of all-in-one FC, which can meet all your FPV needs.
Use powerful F745 BGA chip and BLHELI_32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.
This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for ultralight quad! It will be the most powerful FC AIO board in 2021.
Main Changelog from V1 to V1.2 :
Improve the land layout. Increase the pad spacing, easier to sol
Upgrade to 1MB flash
Features
F745 MCU
Barometer
Dual BEC 5V/9V
Black Box
40A 32Bit ESC
7 UARTS

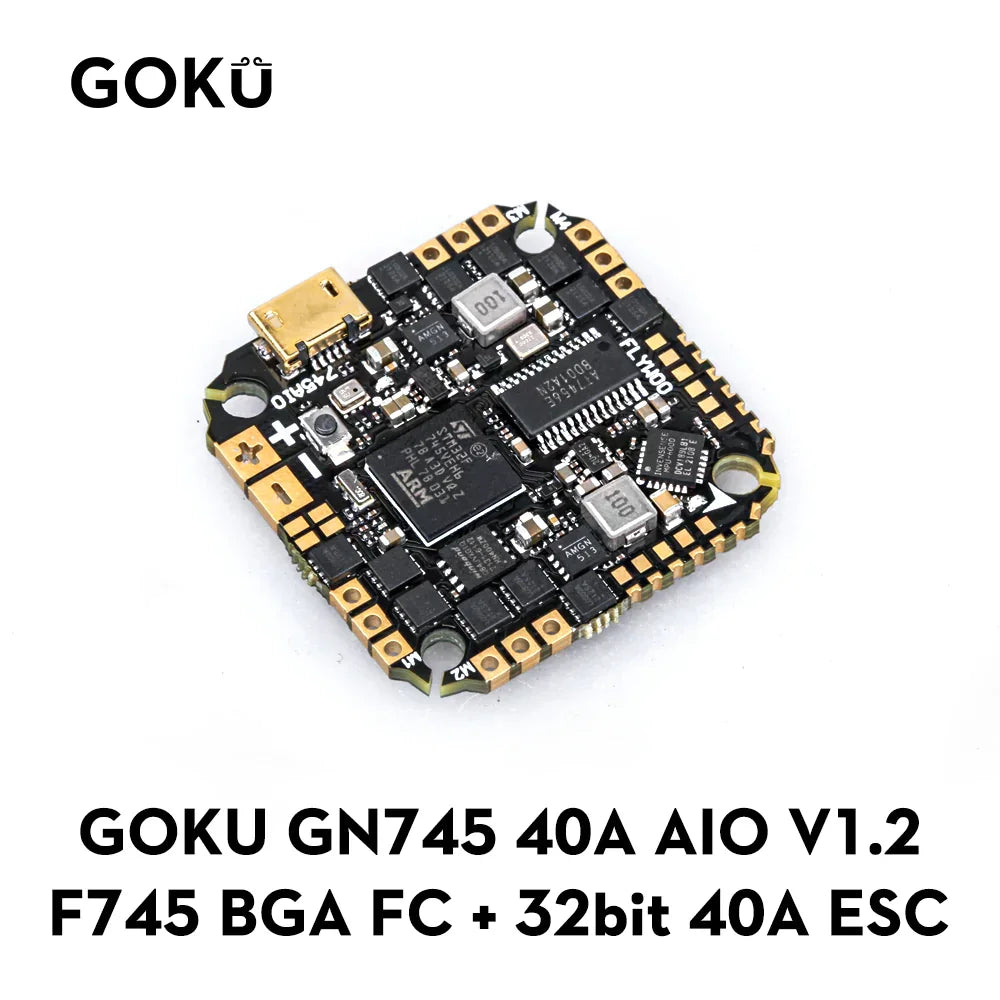

GN745 AIO Flight Controller
MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
IMU: MPU6000 (SPI)
Barometer: BMP280
Onboard LED：WS2812*4
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
9V Power Out: 1.5A max
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 33.5×33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
Weight: 8.5g
Built-in 40A BL_32 4in1 ESC
Support BLheli / BLHELI_32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 40A
Firmware: BLHELI_32
Q&A :
1、 Betaflight Firmware target: FLYWOOF745
2、INAV Firmware target: FLYWOOF745
3、GOKU GN 745 40A AIO BL_32 Wiring Diagram 🙁LINK)
