Caddx Turbo S1 600TVL Camer SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Other
Unit Type: piece
Tool Supplies: Other
Technical parameters: Value 10
Remote Control Peripherals/Devices: Other
Recommend Age: 18+,12+y
RC Parts & Accs: Other
Package Weight: 0.02kg (0.04lb.)
Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
Origin: Mainland China
Model Number: Caddx Turbo S1 600TVL Camera
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
CADDX.US Turbo S1 1/3 CCD 600TVL IR Blocked FPV Camera Yellow/Green NTSC/PAL DC 5V-40V Wide Voltage
Description
| Model | Turbo S1 |
| Image Sensor | 1/3″ CCD Sensor |
| Horizontal Resolution | 600 TVL |
| TV System | NTSC/PAL |
| Synchronization | Internal |
Ratio 4:3
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 2.5mm ,FOV 130° |
| Lens Screw Diameter | M10 |
| Min. Illumination | 0.01Lux@ F1.2 |
| Auto Gain Control | YES |
| BLC | YES |
| FLY OSD | Voltage/time/horizontal line/title |
| Camera OSD | YES |
| WDR | D-WDR |
| DNR | 2 DNR |
| Day/Night | Auto/Color/B&W |
| Connector | Molex PicoBlade 1.25mm 4P |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20°~+60° |
| Work Humidity | 20%~80% |
| Dimension | 22mm*22mm*27mm |
| Weight | 12g (N.W.)/ (G.W.) |
Package Included
1 x Caddx Turbo S1 600TVL Camera
1 x 5D-OSD Menu Board
1 x ABS+PV Bracket
1 x Aluminum Bracket
1 x 4pin FPV silicone cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
1 x Screws set
1 x Manual

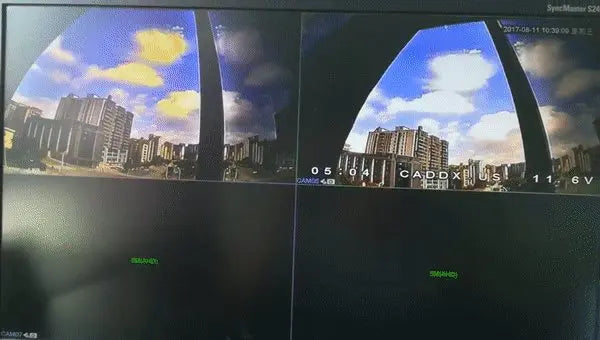

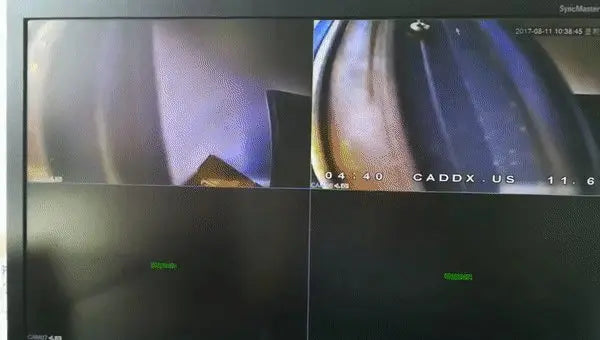

Compare with other camera:

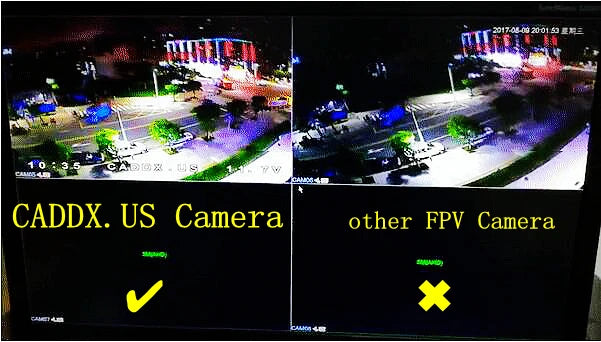

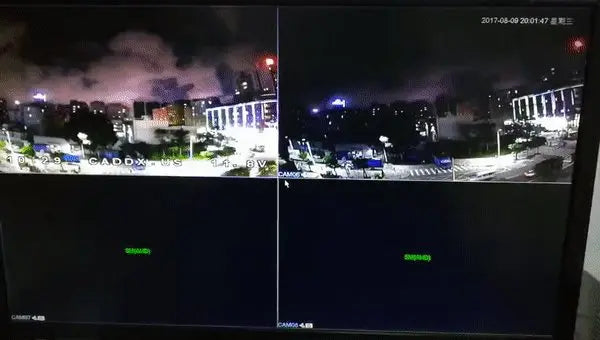

Night(Caddx on Left ):

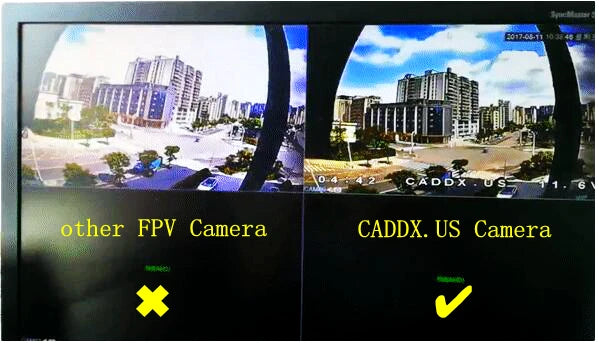

Daytime (Caddx on right ):
‘
