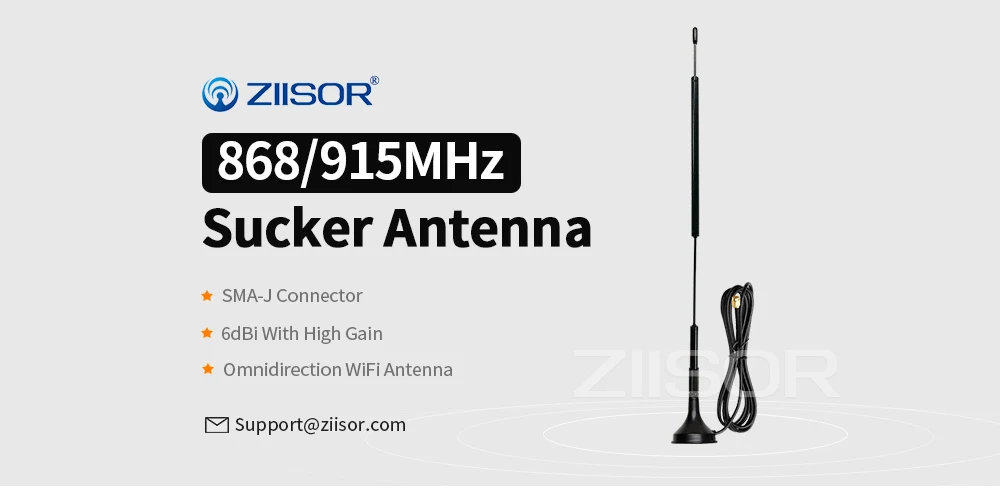

868 MHz LoRa Antenna SPECIFICATIONS
Origin: Mainland China
Gain(dB): 6dBi
Brand Name: ZIISOR
About Us：Chengdu Ziisor Technology Co., Ltd.
We are a technology company that specializes in R&D and production of antennas. We have a professional R&D team and technical strength. Our antennas have reliable quality and performance. If you have antenna usage problems or need antenna specifications, you can contact us at any time: support@ ziisor.com

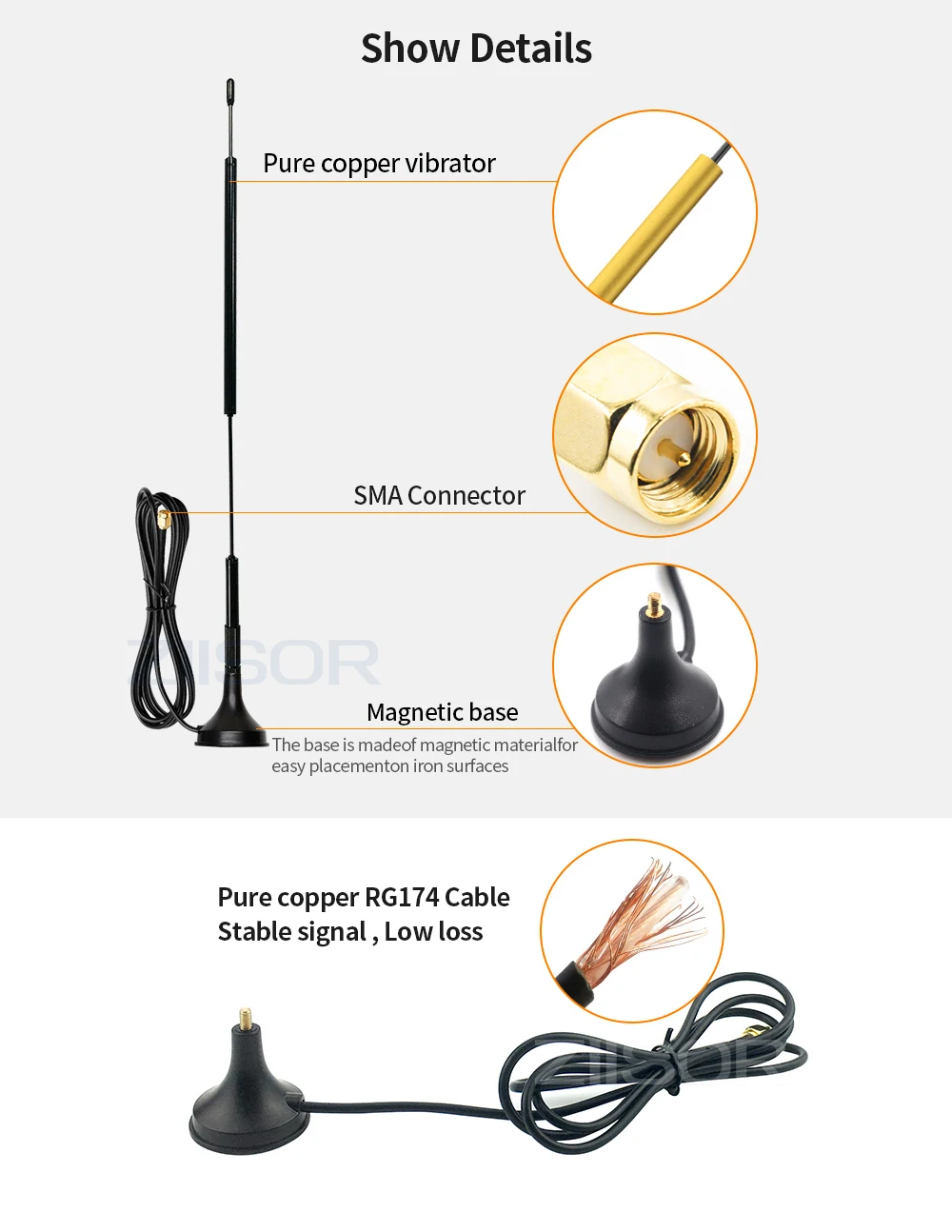

Material: Carbon Steel+ ABS

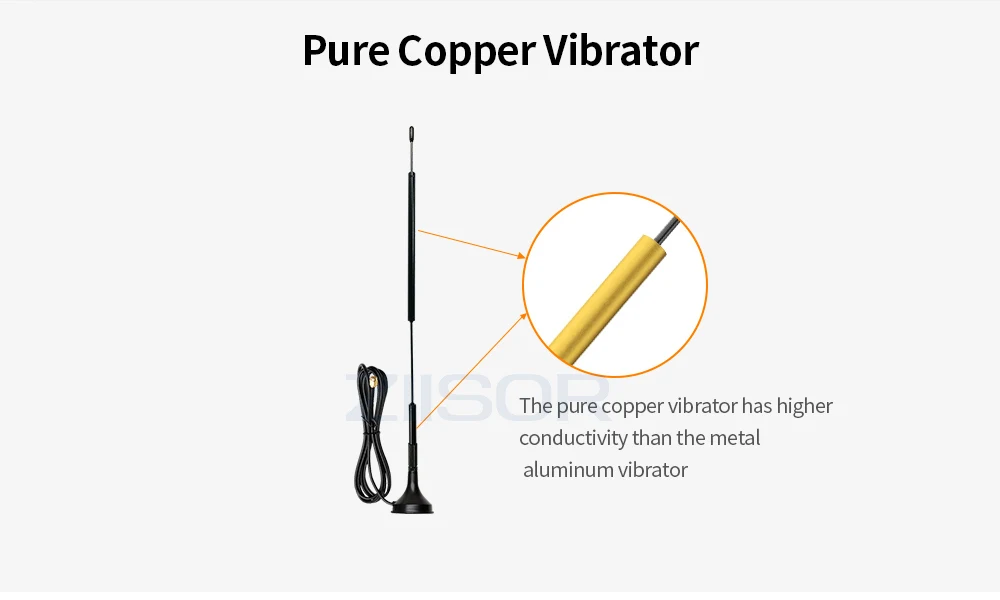

Material of Radiator: Copper
Connector Type: SMA-male, RP SMA male
Colour：Black

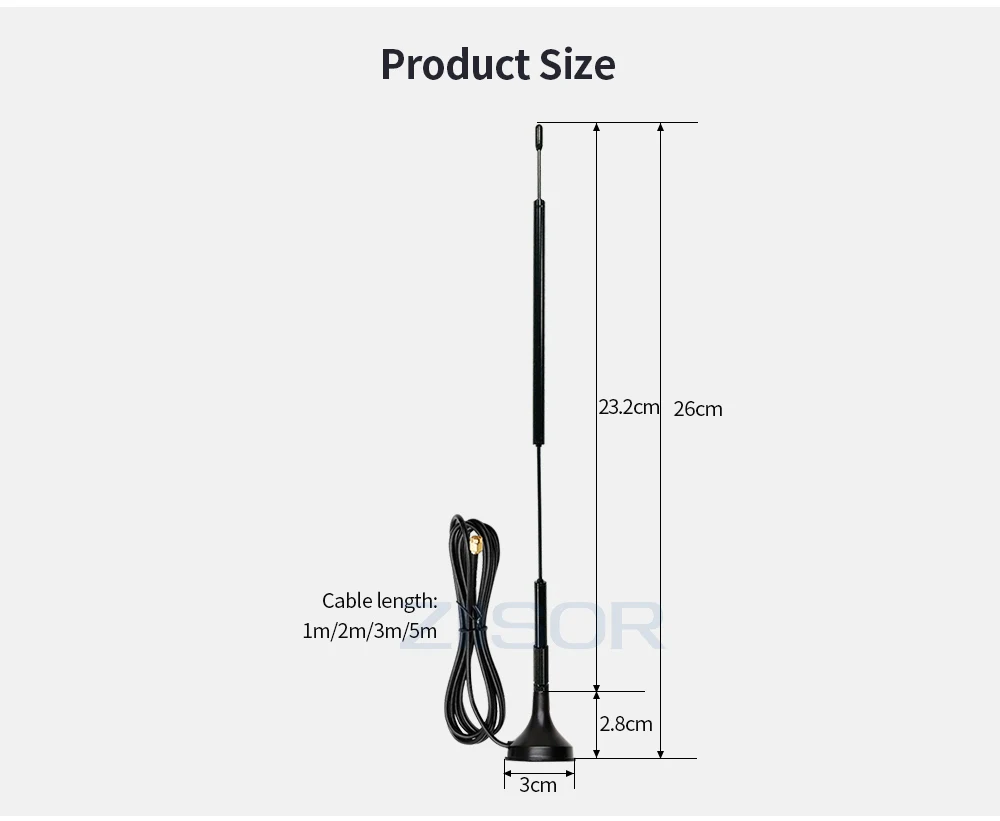

Antenna Height: 260mm

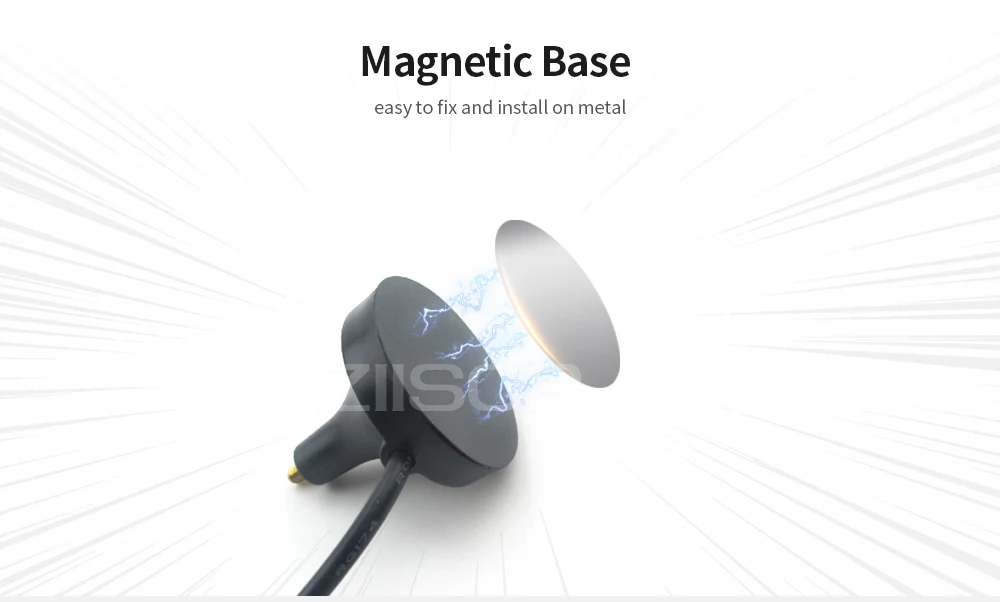

Sucker Diameter:30mm
Cable Length:1m/2m/3m/5m
Cable Material:RG174
Frequency: 868/915MHz
Max Gain: 6dBi(Actual test data)
Radiation type: Omnidirectional
Polarization: Vertical
Nominal Impedance: 50 Ohm
Max Input Power: 50W

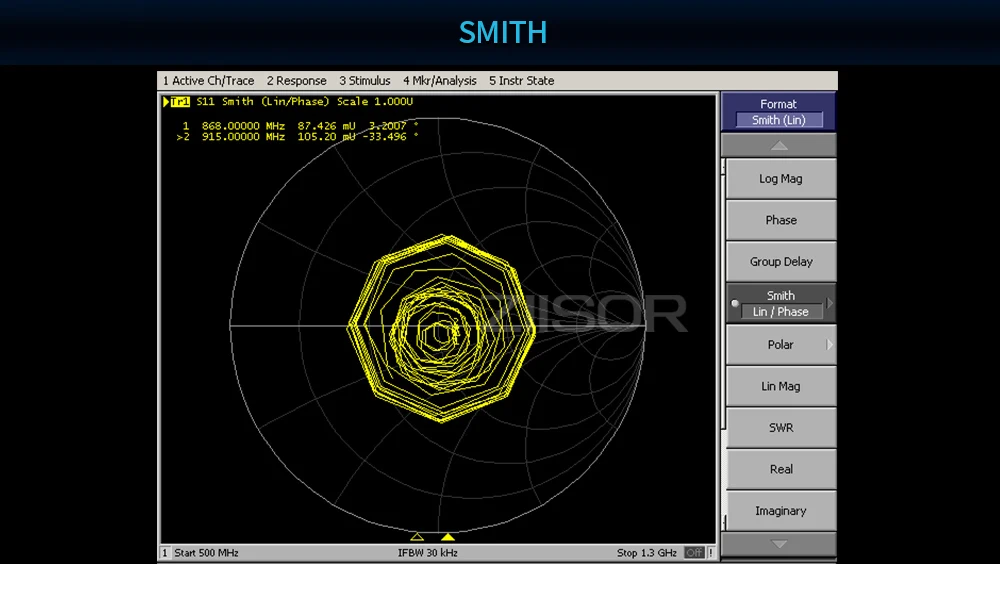

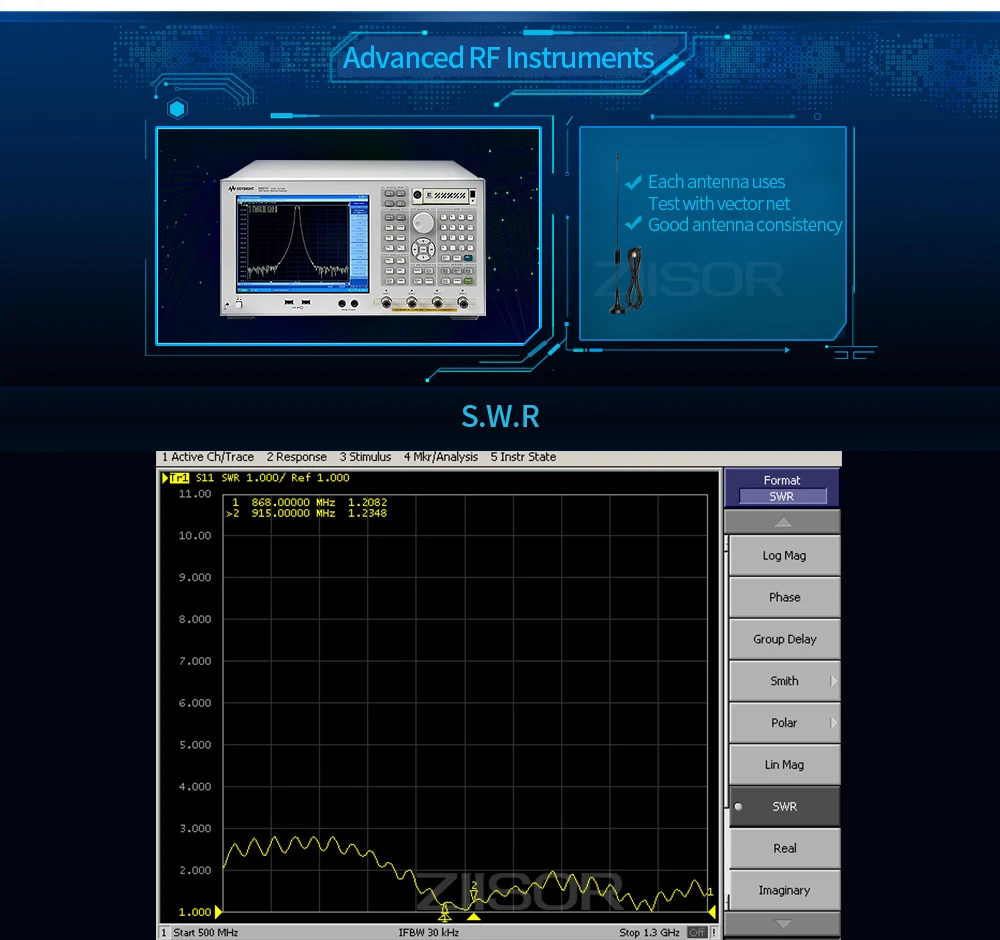

S.W.R.: ≤1.5

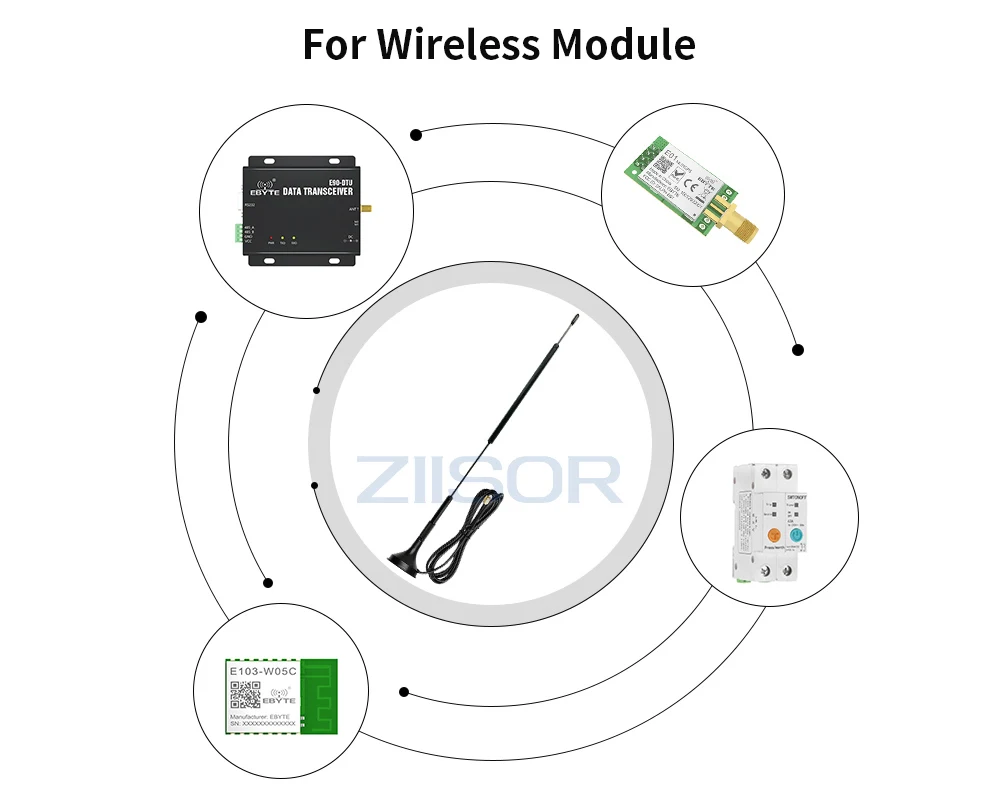

Application: 868/915MHz Wireless module/Router/WiFi Signal Enhancement

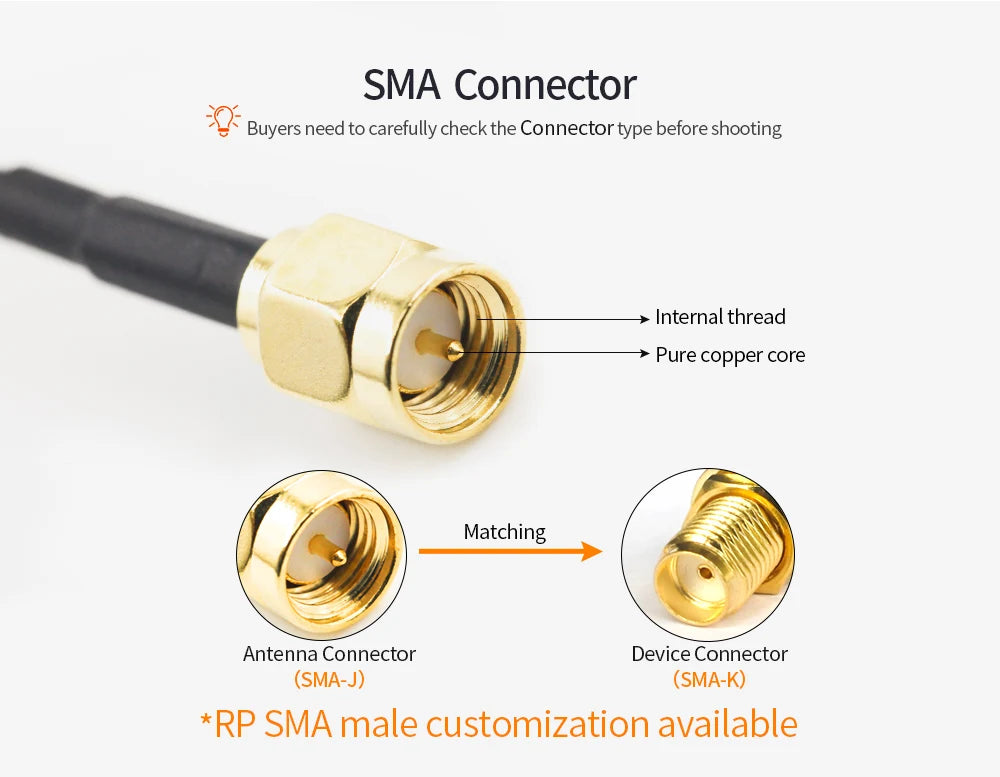

Important note for buyers: Please verify the connector type before purchasing, as custom RP SMA male options are available.
