700TVL FPV Focus Zoom Camera SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Tool Supplies: Battery
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Receivers
Origin: Mainland China
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

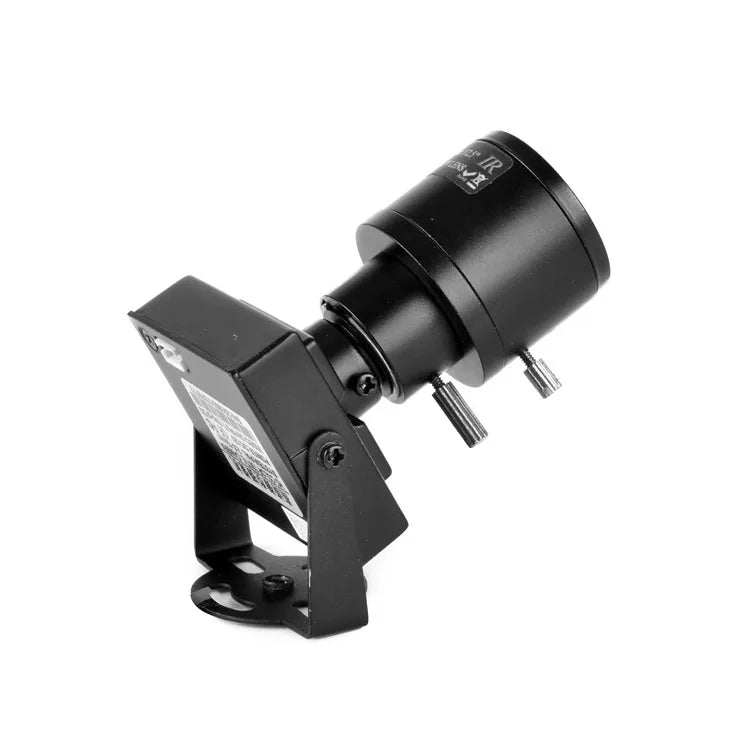

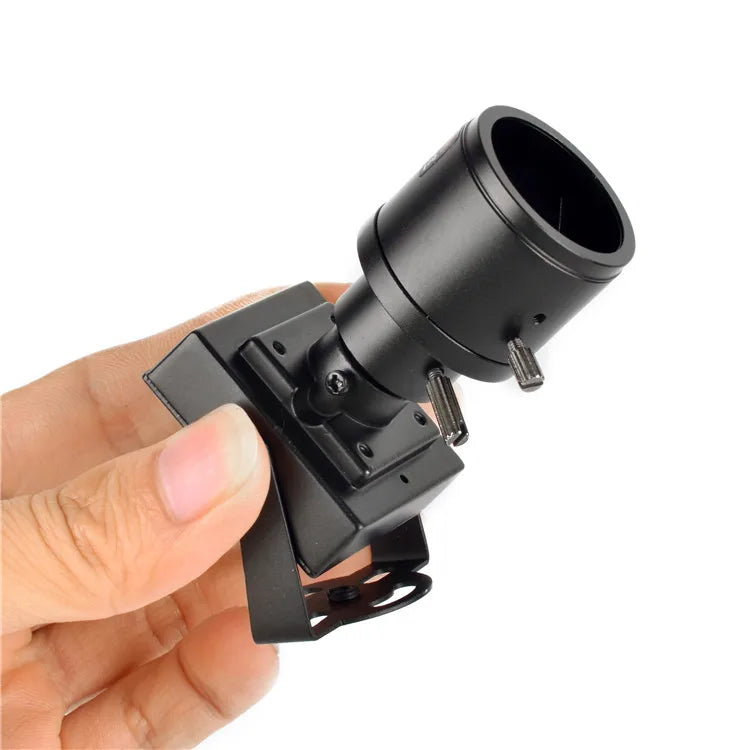

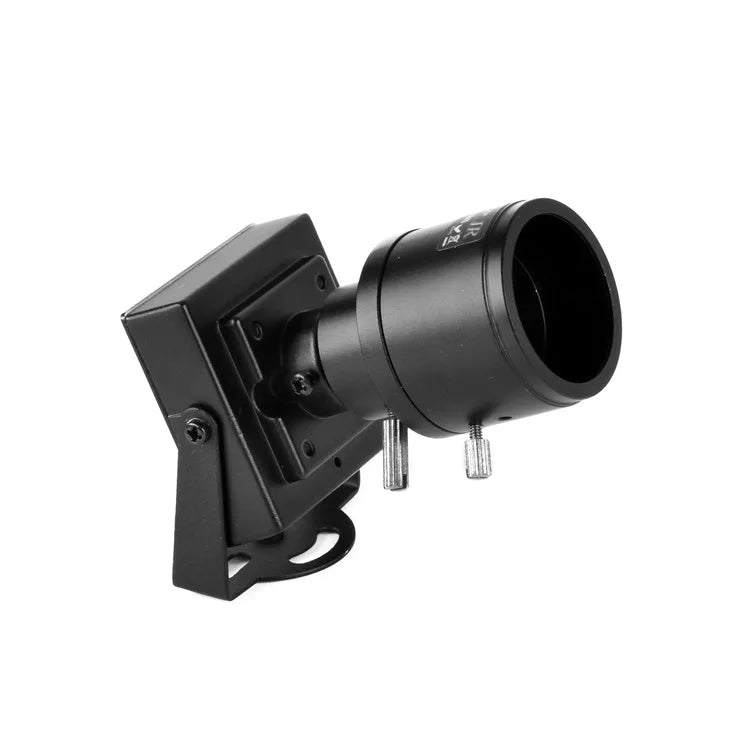

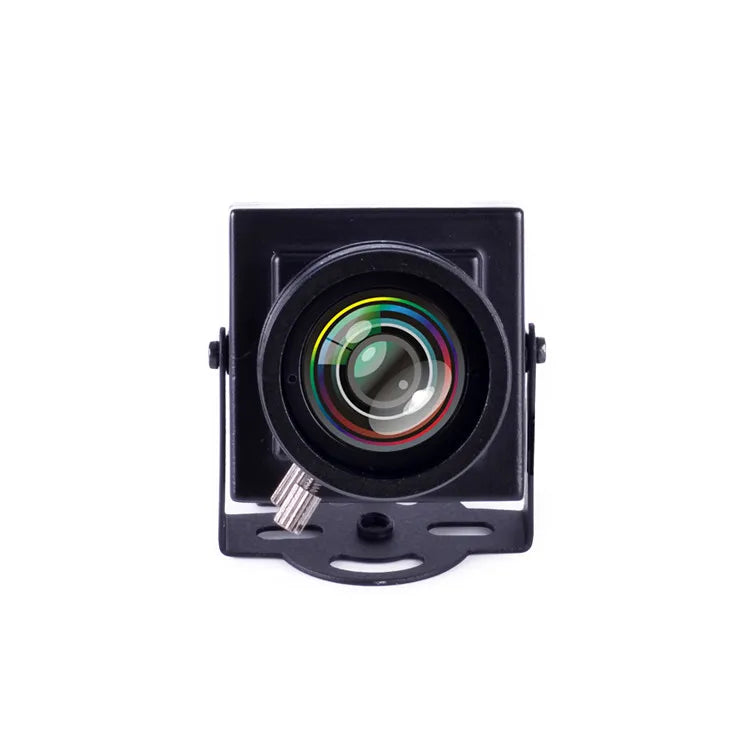

700TVL CCD Mini CCTV Security FPV Focus Zoom Camera OSD D-WDR 2.8-12mm Mega Pixel Lens for FPV UAV Aerial Photography
Features:
-DSP: Next chip 2090, 700TVL high resolution
-2.8-12mm Manual Focus Zoom lens
-D-WDR: digital wide dynamic range
-2D NR: 2D digital noise reduction
-White dot restore
-Image adjustment
-HLC: high light control
-Privacy mask
-Astern guides line
-Dual modes: color, black
-OSD control menu
Specification
Image Device Resolution: 700TVL
Min. Illumination: 0.1 Lux / F1.2
S/N Ratio: More than 48dB
Electronic Shutter: 1/50(60) to 1/100,000
DWDR: on/ off
2D NR: on/ off
AGC: Auto
Color: Black
BLC: on/ off
Privacy Mask: on/ off (8 setting areas)
Sync. System: Internal synchronism
Video Output: 1 Vp-p / 75 Ohm
Power Requirements: DC 12V ±10%
Power Consumption: 80 mA
Operating Temp.: -10C to +50C ( 14F to 122F )
Operating Humidity: 20 to 80 %
Storage Temp: -40’C to +60’C ( -40’F to 140’F )
Storage Humidity: 20 to 95 %
Dimension: 32 x 32mm + 38 x 38mm

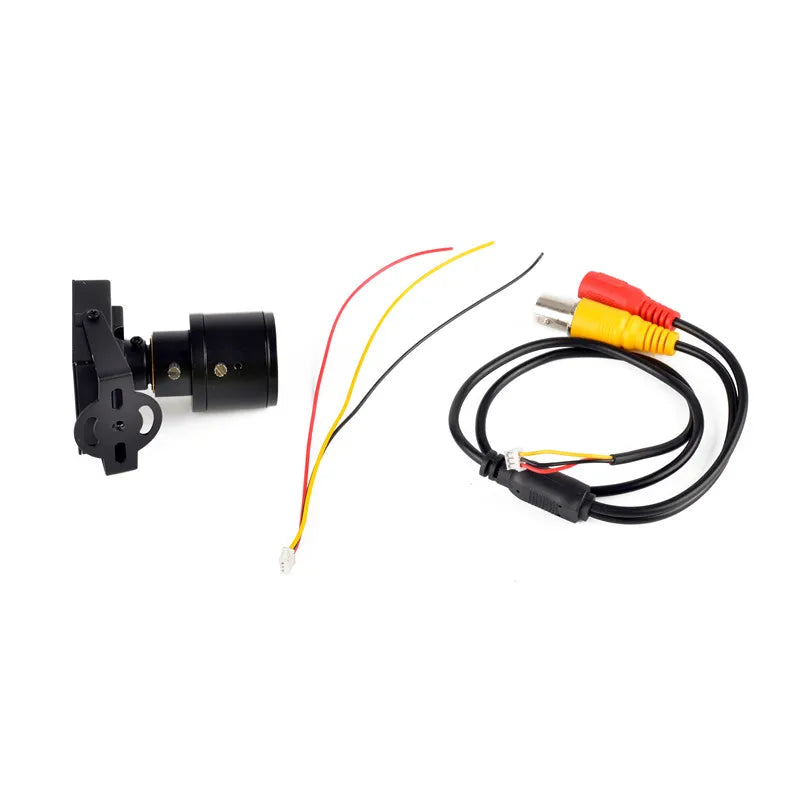

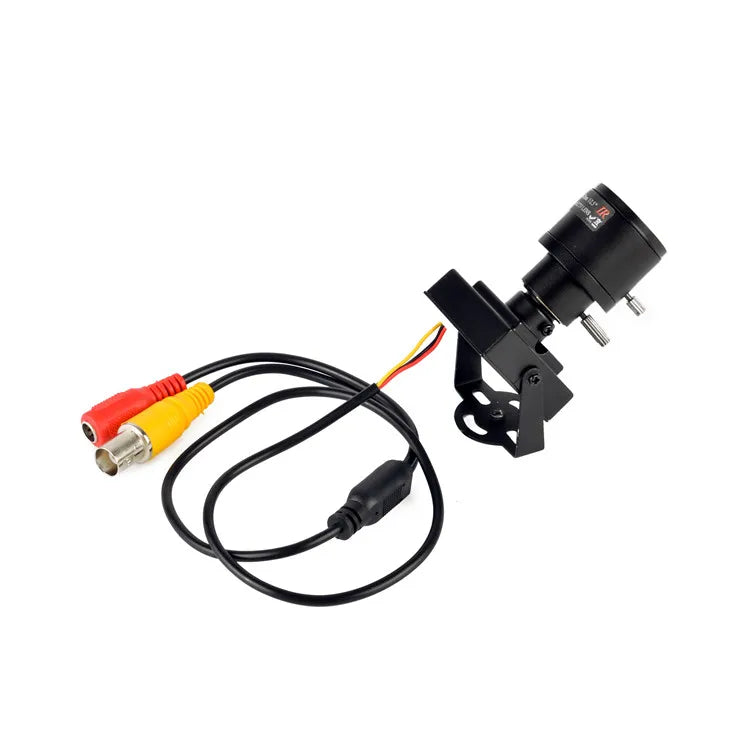

Package included:
1 x Camera

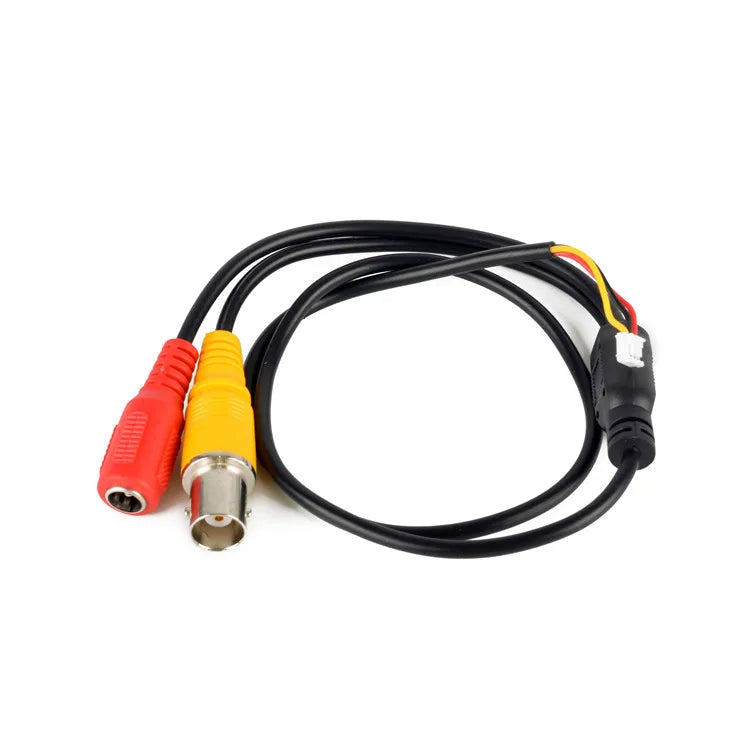

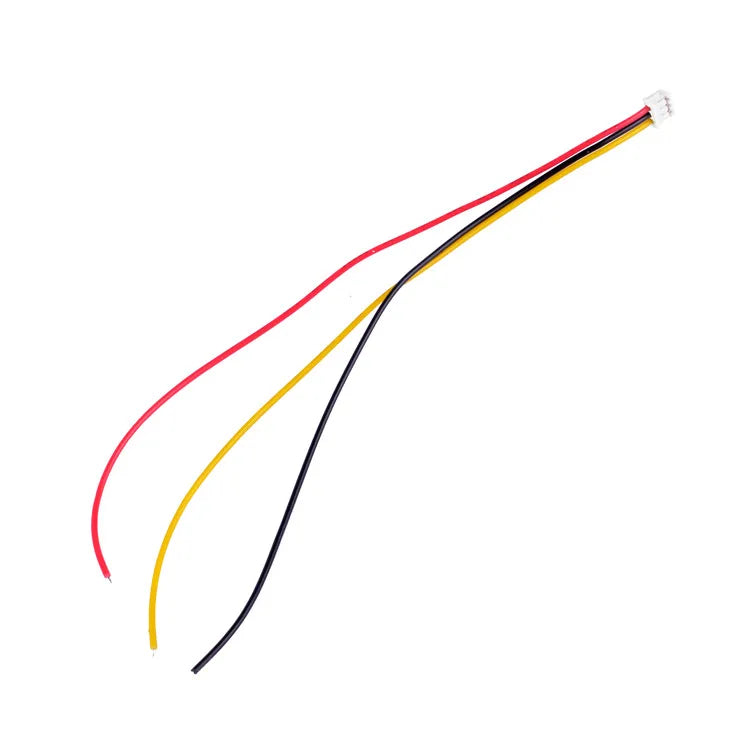

2 x Cable
