SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Triple Feed Patch Antenna

Tool Supplies: Grinded

Technical parameters: Value 3

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,14+y

RC Parts & Accs: Antenna

Quantity: 1 pcs

Origin: Mainland China

Model Number: OEM

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Readytosky

Features:

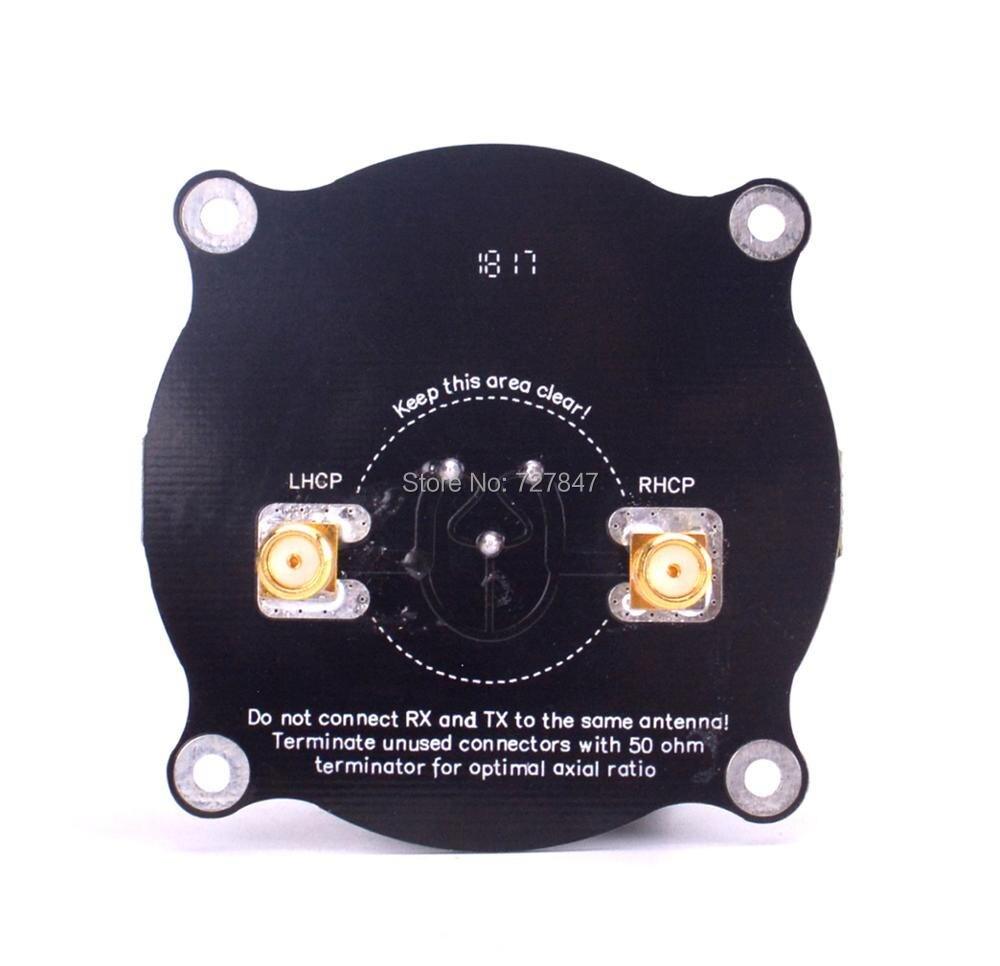

The Triple Feed Patch antenna is a directional circularly polarized antenna.

Good radiation efficiency.

Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.

Good axial ratio, not just directly perpendicular to the patch but also off-center.

Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Description:

Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Specifications:

Center frequency: 5.8 GHz

Bandwidth: 660 MHz (5.47 – 6.13 GHz)

Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)

Axial ratio: < 1.3

Antenna gain: 9.4 dBi

Half power beam width: 55° (horizontal and vertical)

Radiation efficiency: 83.5%

Weight:20.7g

Color: black

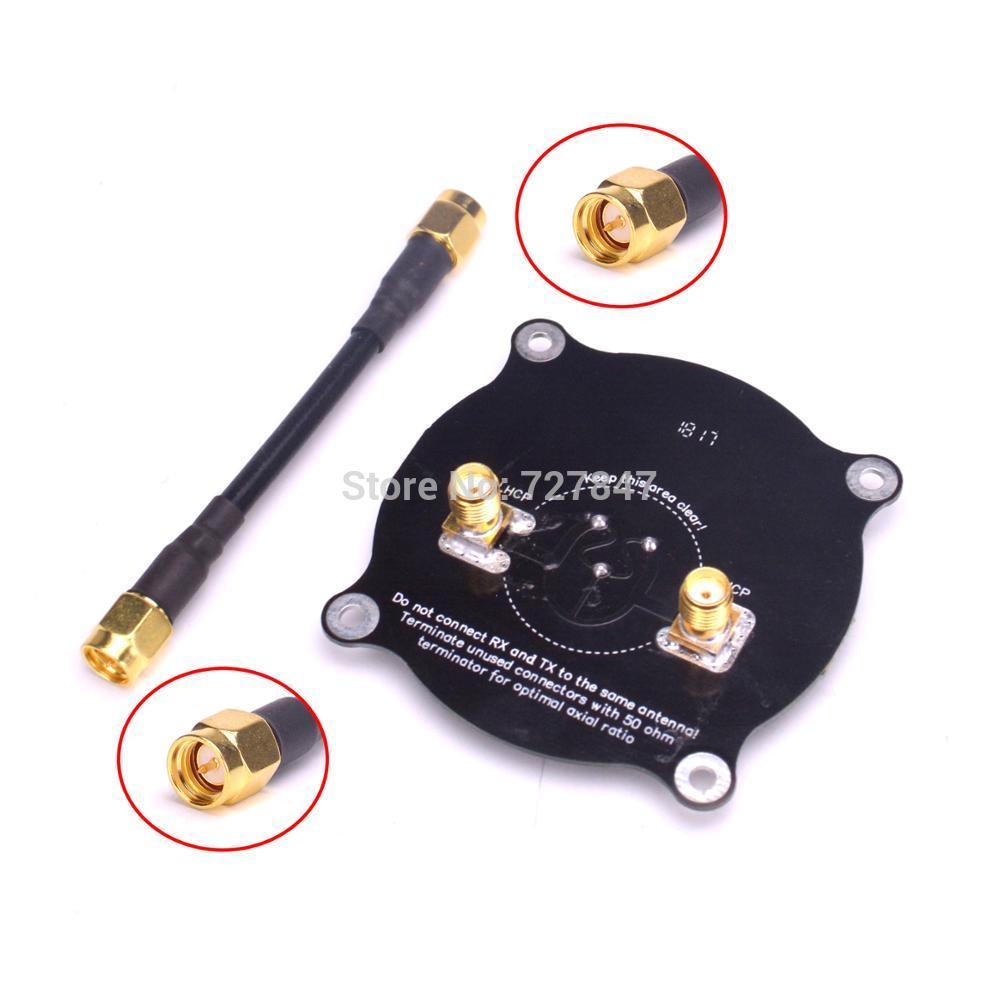

1 x Black Triple Feed Patch Antenna

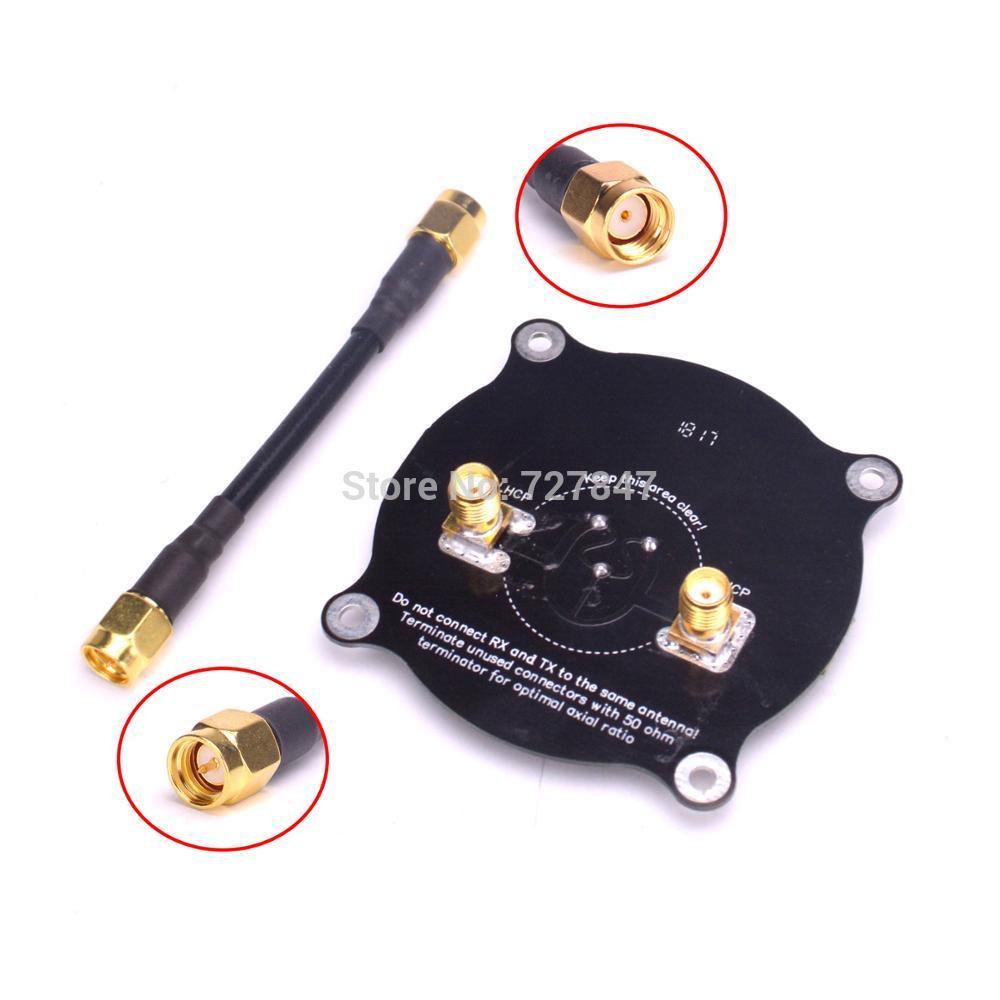

1 x semi-rigid coax (SMA male – SMA male/ RP SMA male – SMA male as  your choice)

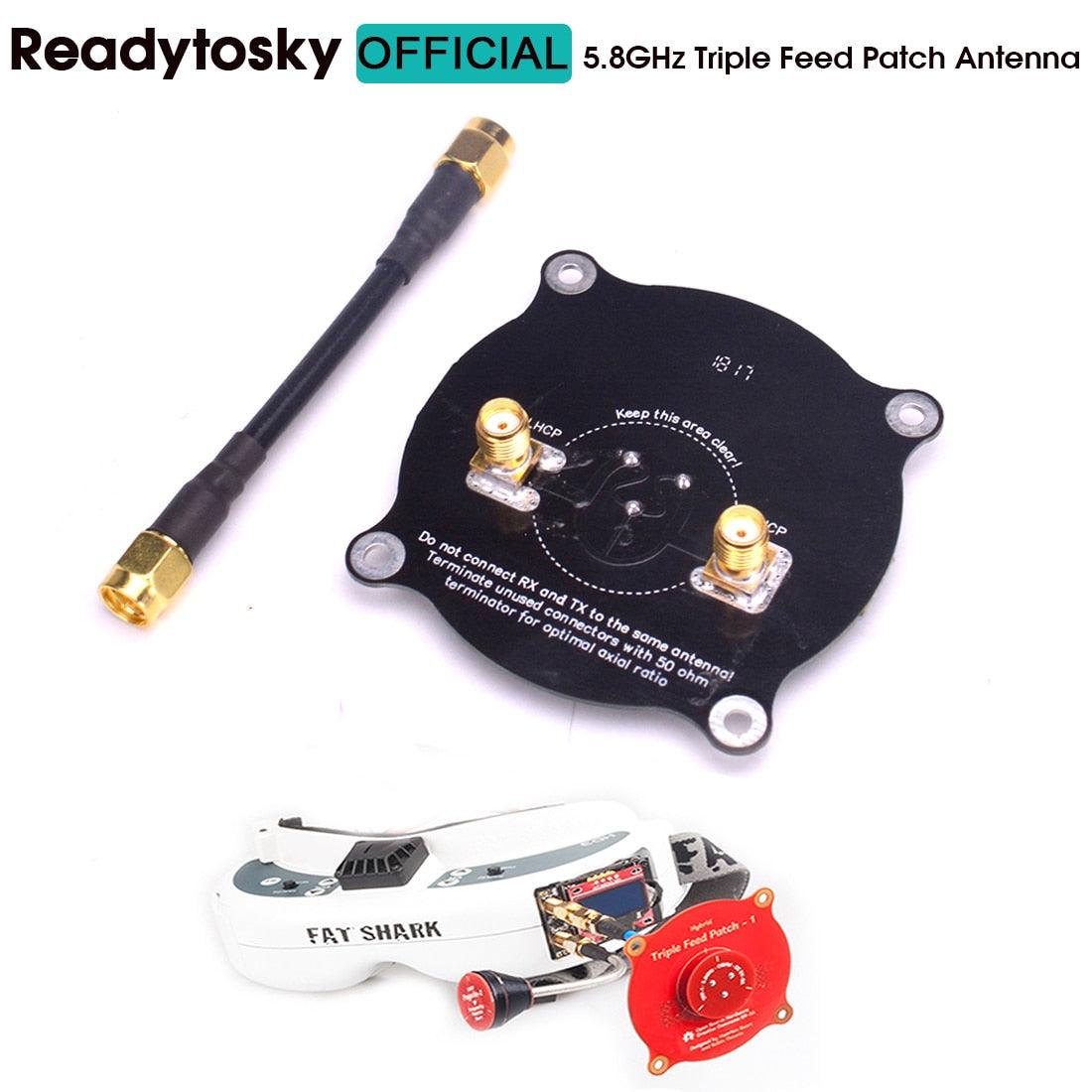

Note:  Fatshark Goggles and other component is not included.
