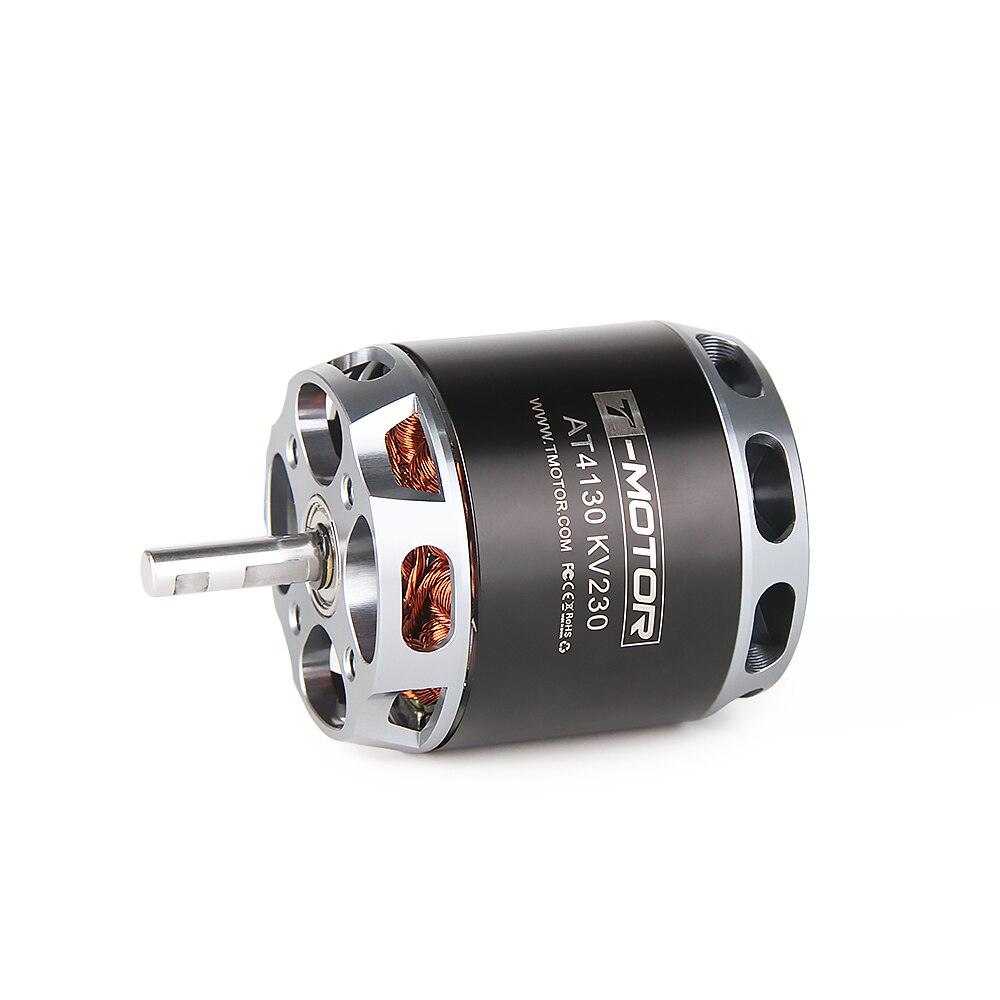

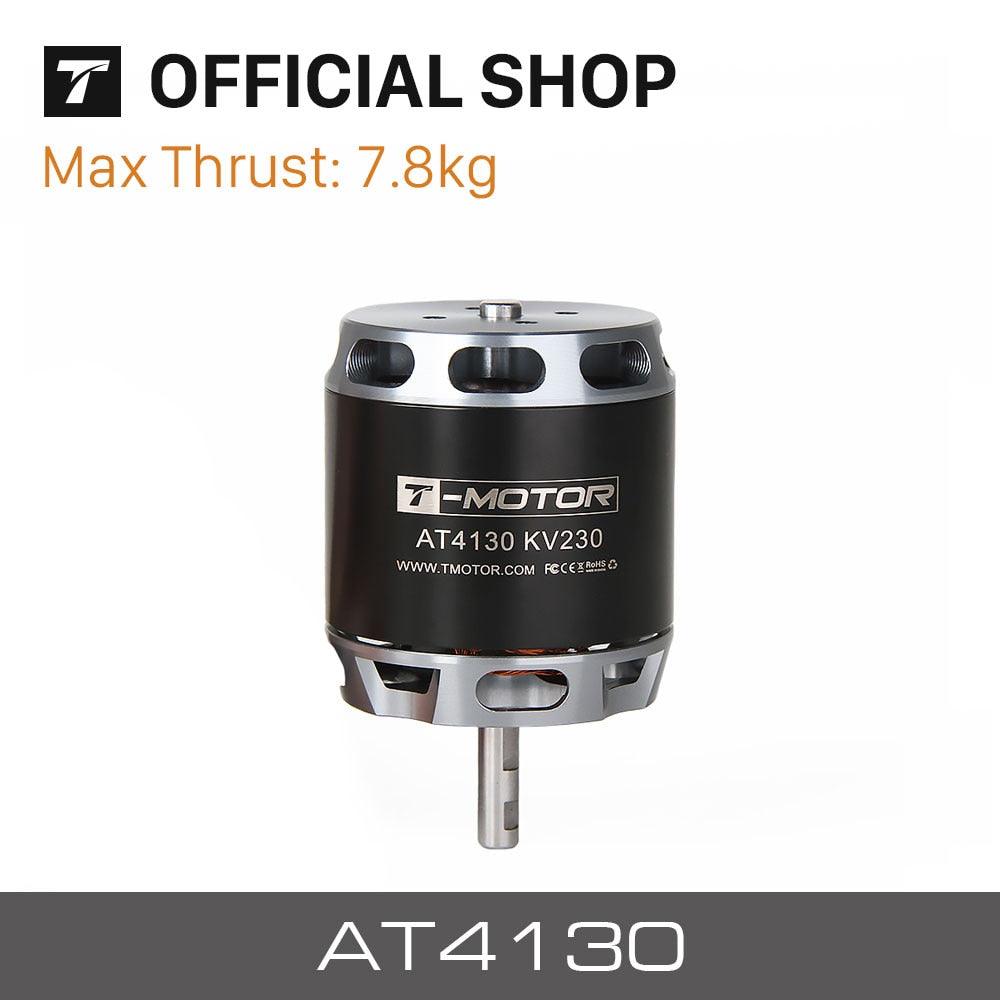

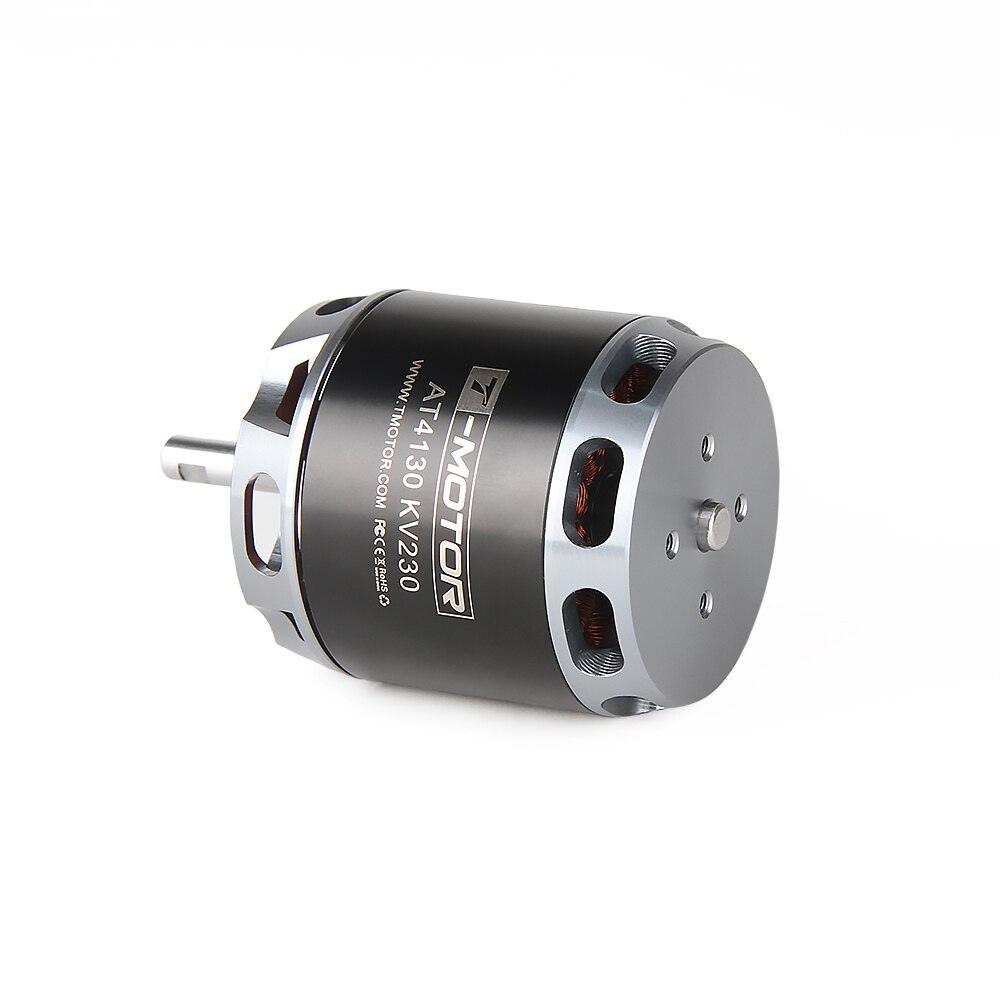

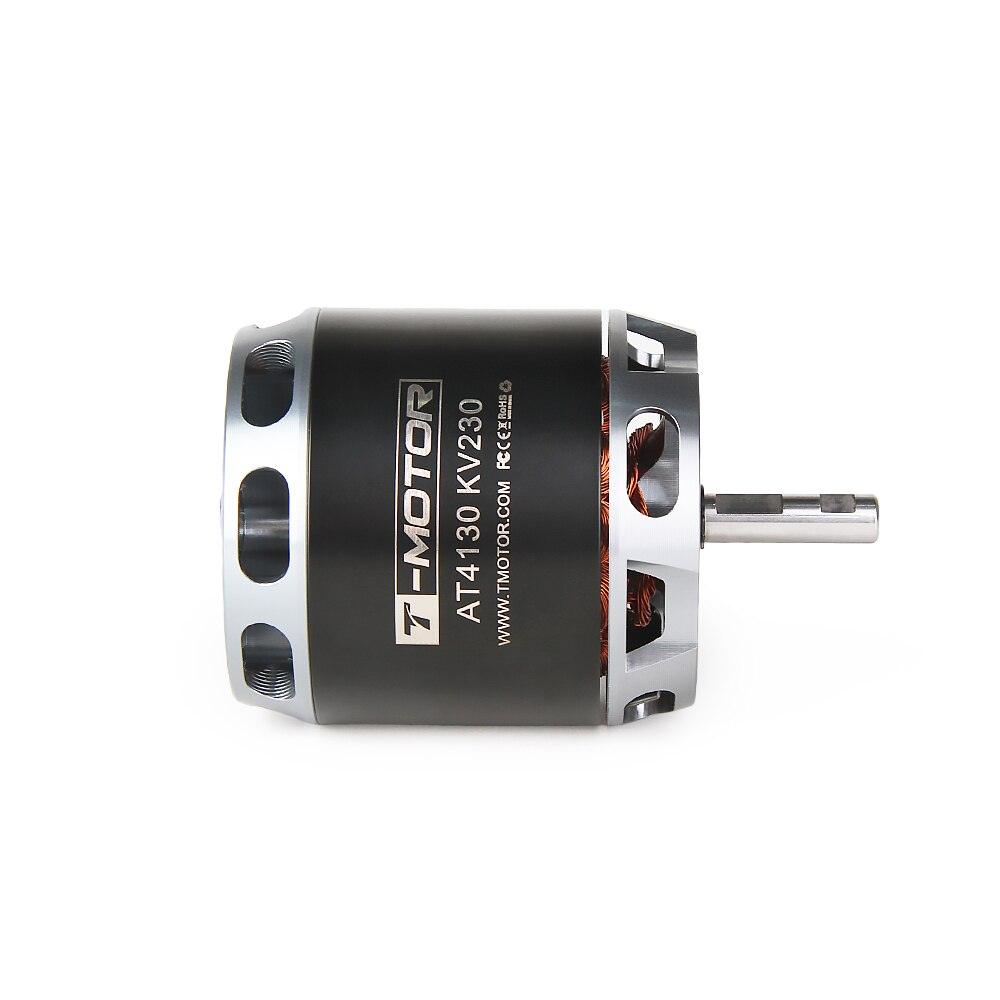

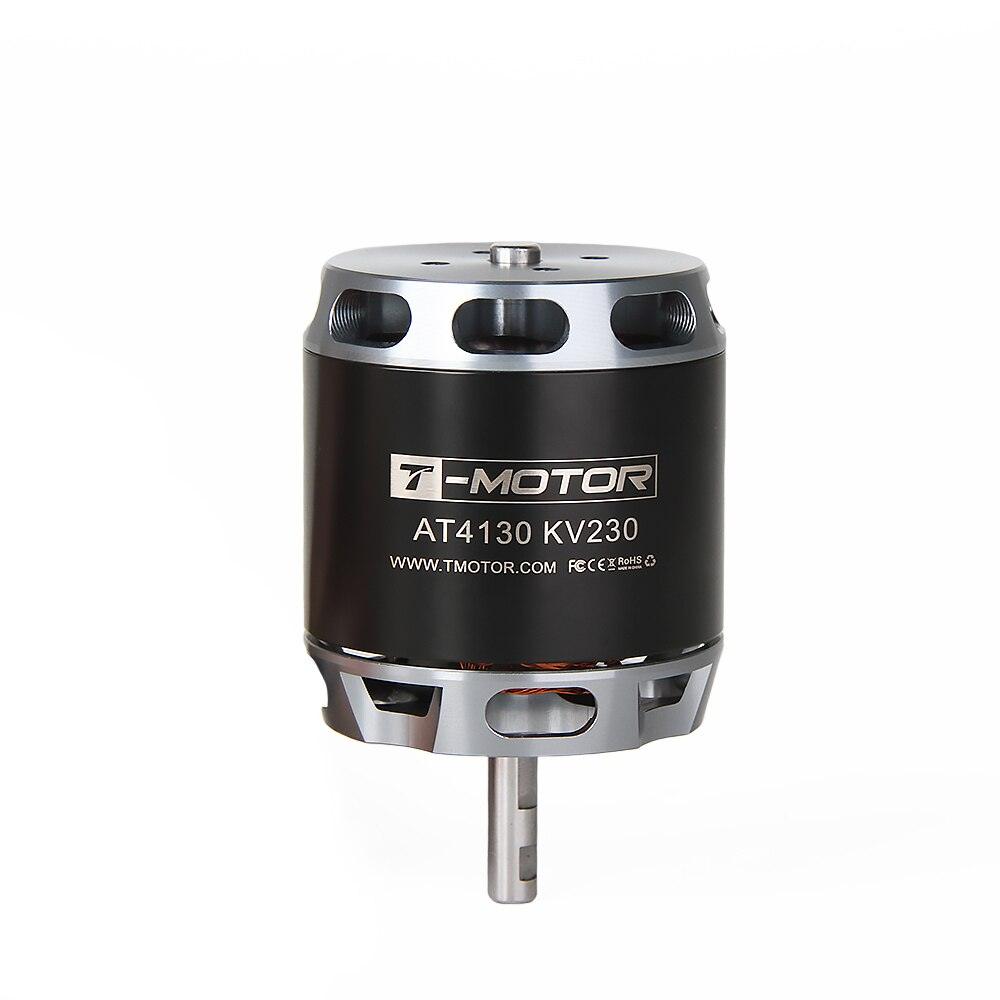

T-MOTOR AT4130 Brushless Motor SPECIFICATIONS
Колесная база: Винты
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: Адаптер
Поставки инструментов: Аккумулятор
Технические параметры: KV1100
Размер: 4130
Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления
Рекомендуемый возраст: 18+
Запчасти и принадлежности RC: Двигатели
Происхождение: Материковый Китай
Номер модели: AT4130 KV230 300KV 450KV
Материал: Металл
Атрибуты полного привода: Моторы
Для типа автомобиля: Самолеты
Название бренда: T-MOTOR
AT4120 KV56O Kei0 9 THE UPGRADED AT SERIES The upgraded AT Series are designed for fixed-wing model; VTOL UAV: See 1 leap in quality after well-grounded development .
The design features a lateral outlet hole and internal heat dissipation structure, which forms a semi-box-shaped configuration. This enhances the motor’s strength and heat dispersal performance, while also incorporating 5S efficiency and military-grade wiring for added reliability.
Enhanced Safety Features for Rotor Stability: Our anti-stripping design incorporates a linear shaft, C-clip lock shaft, and shaft collar to ensure the motor’s reliability and stability during high-speed rotation. This double-layered safety mechanism prevents the rotor from loosening, allowing for safe and reliable flight without worrying about unexpected rotor detachment.
Features superb craftsmanship and premium materials, incorporating high-quality components and meticulous attention to detail.
This high-performance motor features triple-bearing support, providing greater stability, efficiency, and strength under heavy loads, making it suitable for use in large-scale drones (above 28 series) that require a more durable and reliable power source.

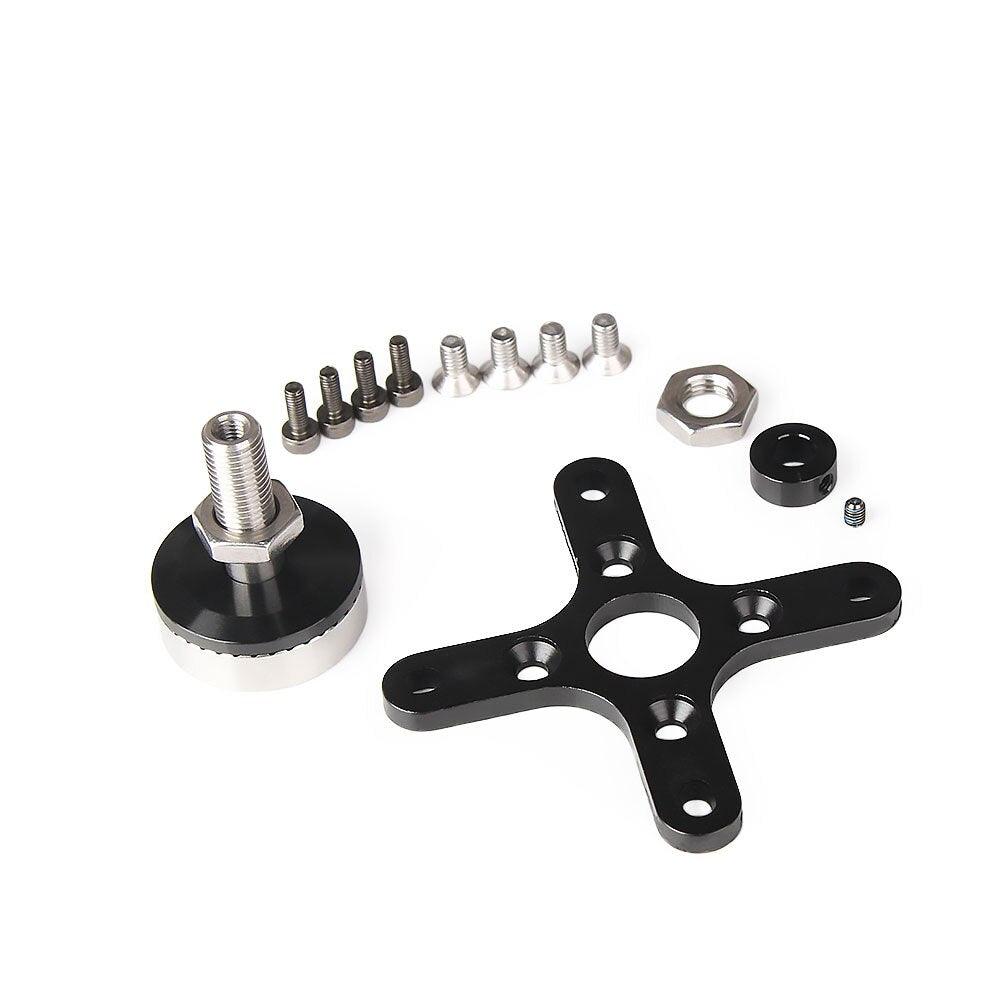

The propeller adapter and cover plate feature an embossed design for enhanced mounting security. As part of our second-generation AT series, we will be gradually introducing a comprehensive product range catering to various applications, including 3D, trainer, glider, and larger-scale fixed-wing drones.
Specifications Test Item Long Shaft KV230 Weight (including cable): 408g Motor Dimensions: 50mm x 79mm Internal Resistance: 16.8mΩ Lead Enameled Wire: 10mm Configuration: 12N14P Input Shaft Diameter: 6mm Rated Voltage (Lithium): 2.5V Peak Current (180s): 75A Maximum Power (180s): unknown
