865-965MHz 900MHz 0.9G Anti Drone Module SPECIFICATIONS
Название бренда: NoEnName_Null
Тип предмета: original
Происхождение: Материковый Китай
Номер модели: 0.9GHz blocking

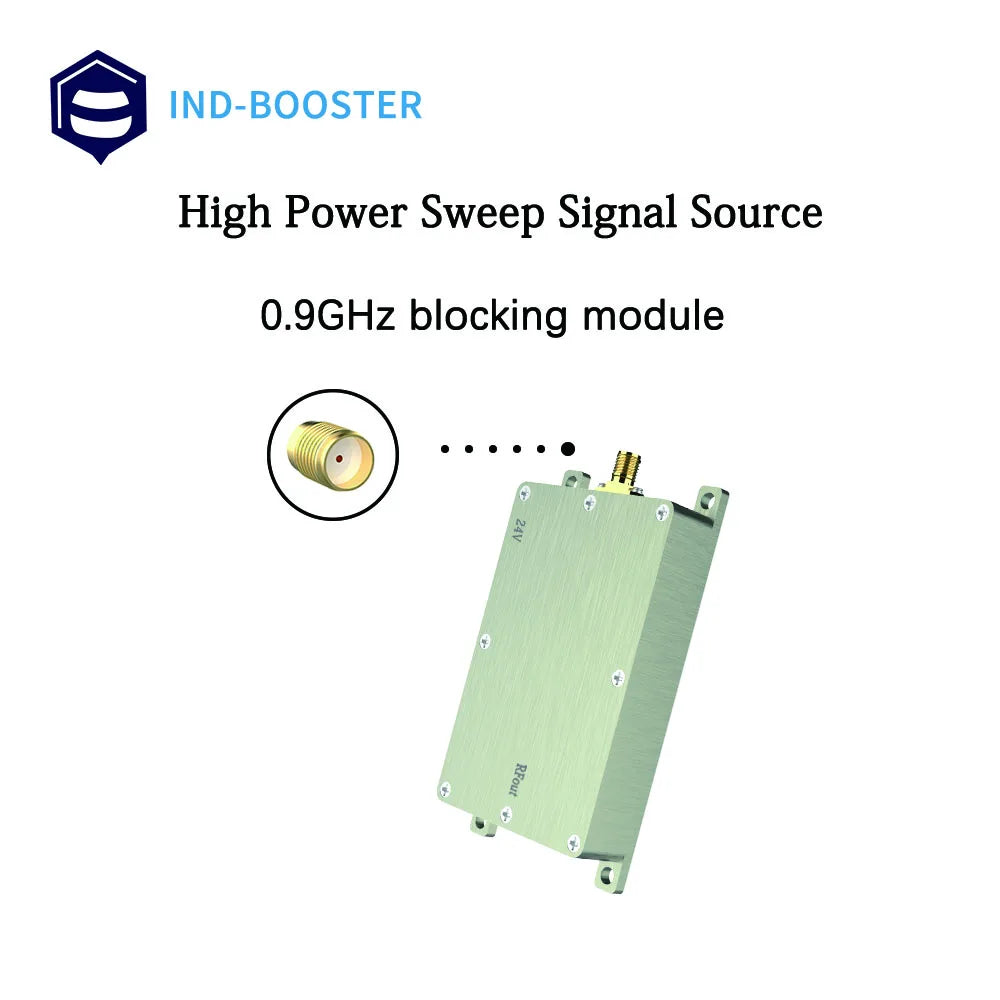

0.9GHz Sweep Signal Source FOR Anti-WiFi/ DRONE
High Power VCO For Blocking Drone Flying
Frequency:0.8GHz-1.0GHz
RFOUT POWER=46dBm(40W)
IND-BOOSTER 5.2GHz Sweep Signal Source FOR Anti-WiFi/ DRONE
No. |
Items |
Технические характеристики |
1 |
Диапазон частот |
800-1000MHz |
2 |
Рабочее напряжение |
20-24V(customizable28-32V) |
3 |
Flatness |
±0.5dB |
4 |
Выходная мощность |
46dBm |
5 |
Текущий |
3.7.0A @24V, 46dBm |
6 |
Эффективность |
45%@46dBm |
7 |
LED State |
Красный |
8 |
Рабочая температура |
-30℃~85℃ |
9 |
Температура хранения |
-40℃~150℃ |
10 |
Operating Humidity |
<95%RH |
11 |
RF PORT |
Output: SMA-F |
12 |

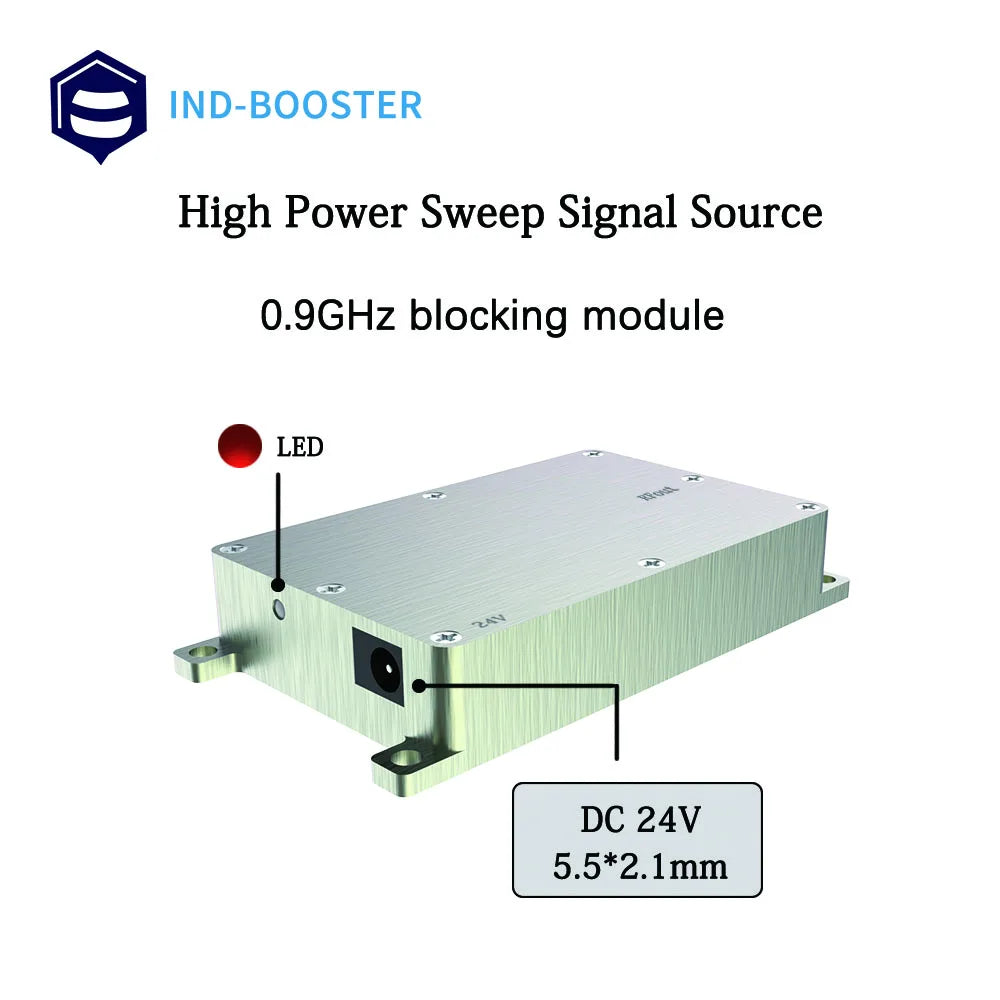

Power Socket |
5.5*2.0mm DC( default ) or 15cm red/black wire |
13 |
Shell Material |
Aluminum |
14 |

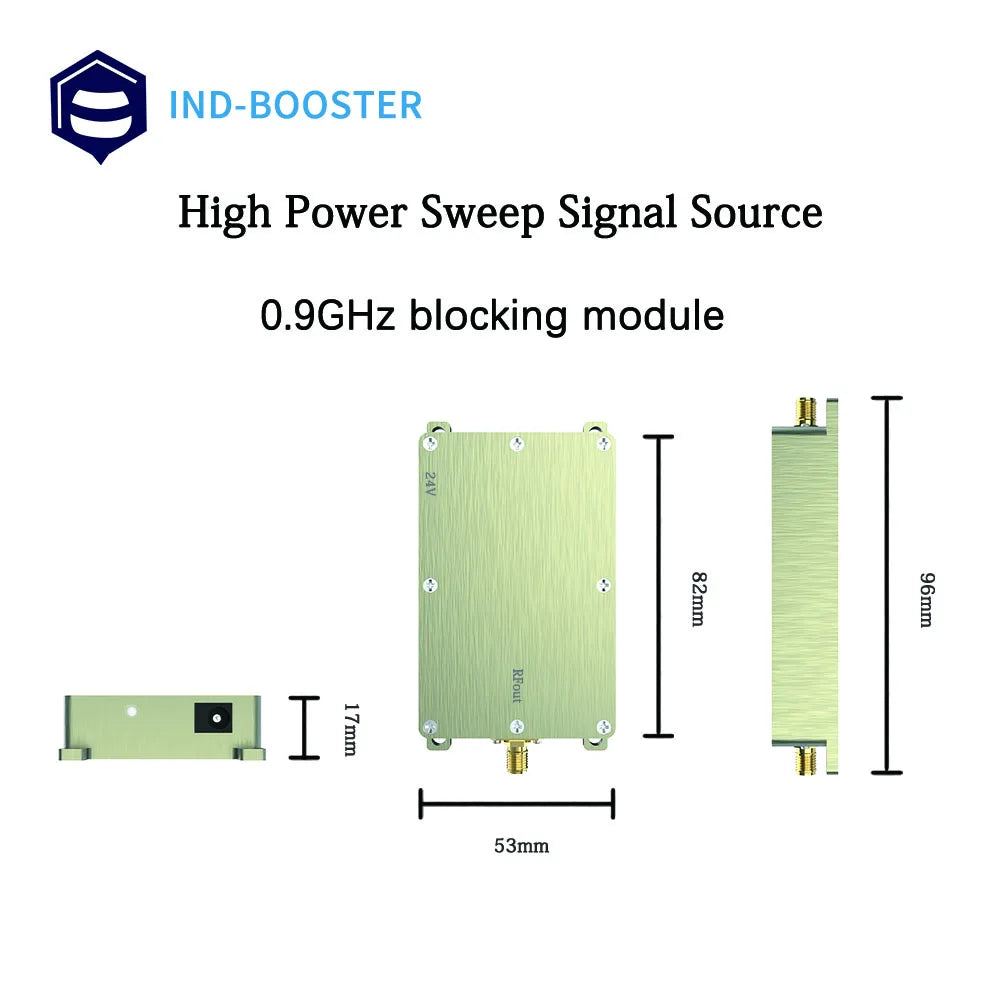

Shell Size |
96*53*17mm |
15 |
Вес нетто |
0.15Kg |
1 24V /4.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter.
