AKK X5 FPV VTX – 5.8Ghz 37CH 25mW/50mW/100mW/200mW Switchable Video Transmitter

AKK X5 FPV VTX 5.8Ghz 37CH 25mW/50mW/100mW/200mW Switchable Video Transmitter(16*16/smart audio)

AKK X5  FPV VTX is among the smallest vtx with smart audio function on the market now, and AKK Nano 2 has a smaller profile, exceptional good tidings for those mini quad players.

Особенности:

• Support 0.01mW PIT-Mode
• 25mW, 50mW, 100mW and 200mW power switchable
• One button frequency and power setup
• OSD configuration using Smart audio (F3/F4/F7 with OSD)

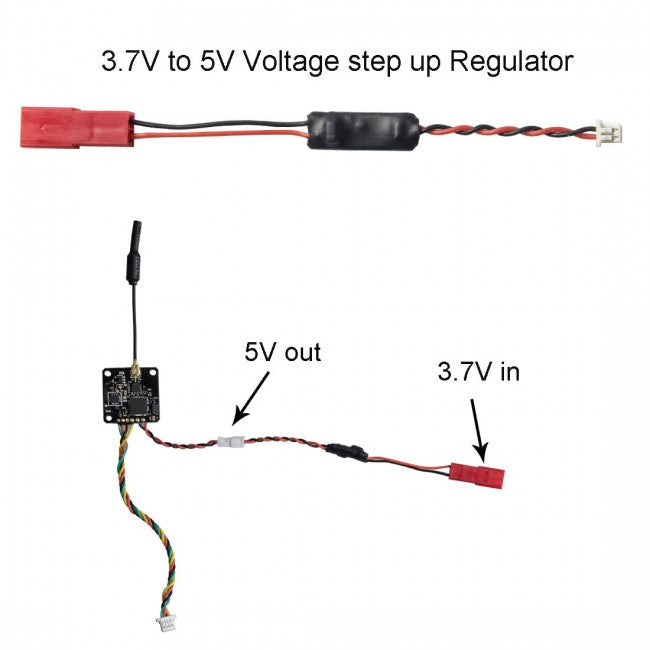

• 5V input with 5V output

IPEX Button 16mm 20mm LED display Smart audio DC 5V +5V Cam GND GND Video Specification Input voltage 5V Smart audio Extra features PitMode Power supply SV Camera under 0.3A max: 25mW: 1OmA s0mw: 120mA Output power 10OmW : 180mA 200mw : 220mA @SV Antenna connector JST, 6pin Dimensions 20 (W) x 20 (D)
