WFLY X9 Radio Remote Controller SPECIFICATIONS

Используйте: Транспортные средства и игрушки с дистанционным управлением

Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления

Рекомендуемый возраст: 12+y,14+y

Запчасти и принадлежности RC: Радиосистемы

Количество: 1 шт.

Тип пластика: ABS

Происхождение: Материковый Китай

Номер модели: X9

Материал: Пластик

Для типа автомобиля: Автомобили

Название бренда: Wfly

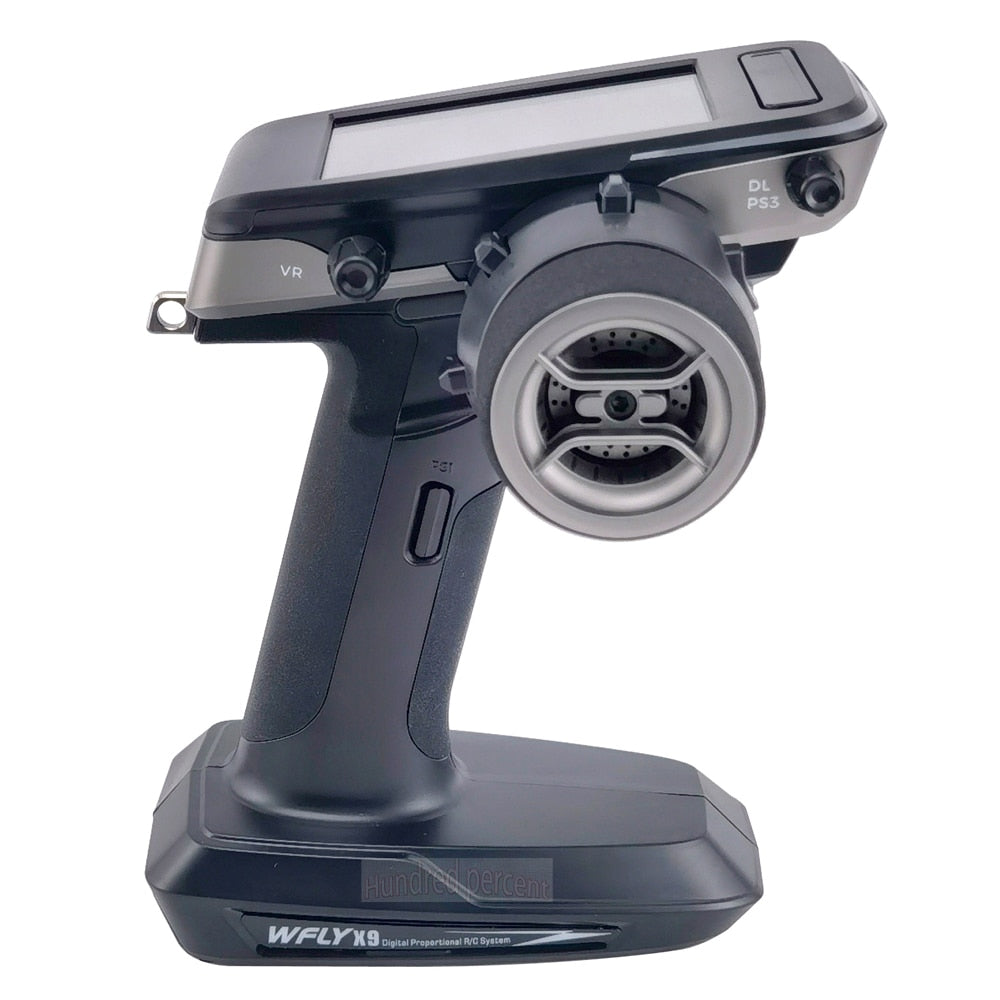

the functions of switches, buttons, trimming, etc. in the schematic diagram can be customized . the labels in the figure are the default functions set at the factory: Digital Trim 1(DT1) Touchscreen LCDJ Digital Trim 2(DT2) Antennae Power switch .

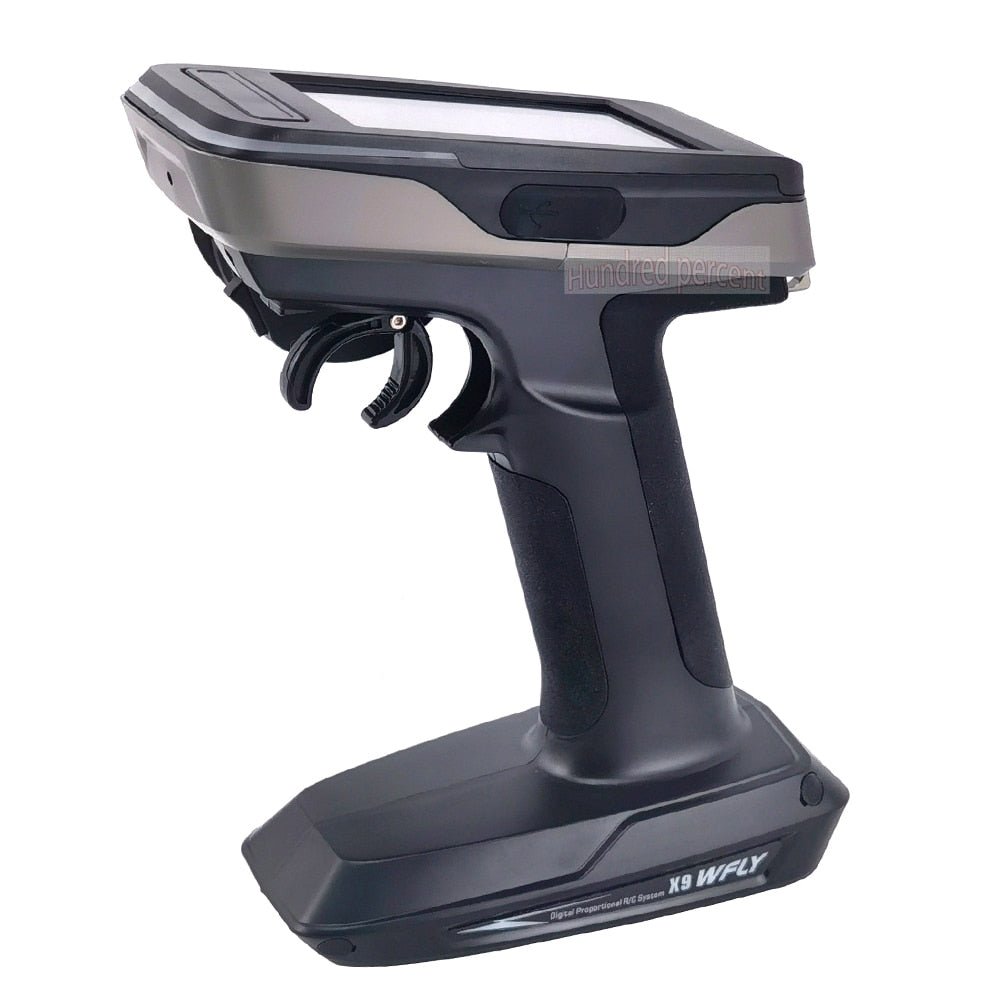

The controller features a three-position switch (SW1), which includes settings for charging, upgrading, and trainer modes. The default channel is set to 5. Additionally, there are two small holes: one for fixing the mobile phone bracket and another for adjusting the trigger position. A screw is provided for adjusting the trigger spring tension. Finally, a PS1 button is included.

Receiver Status Indicators:
* Green: ON – Link established successfully
* Blue Flash: Wireless upgrading mode enabled (no signal)
* Red Flash: No link or low voltage detected
* Orange Slow Flash: Link in progress
Особенности:
* 9-channel PWM control (4096 steps) with dedicated SG01 GPS module for speed measurement
* Upgrade: Supports USB online upgrades
* Working current: 95mA
* Steering engine: compatible with 180° and 270° turning
* Working voltage range: 3.5V to 9.0V
Frequency Band: Operates on 2.4GHz

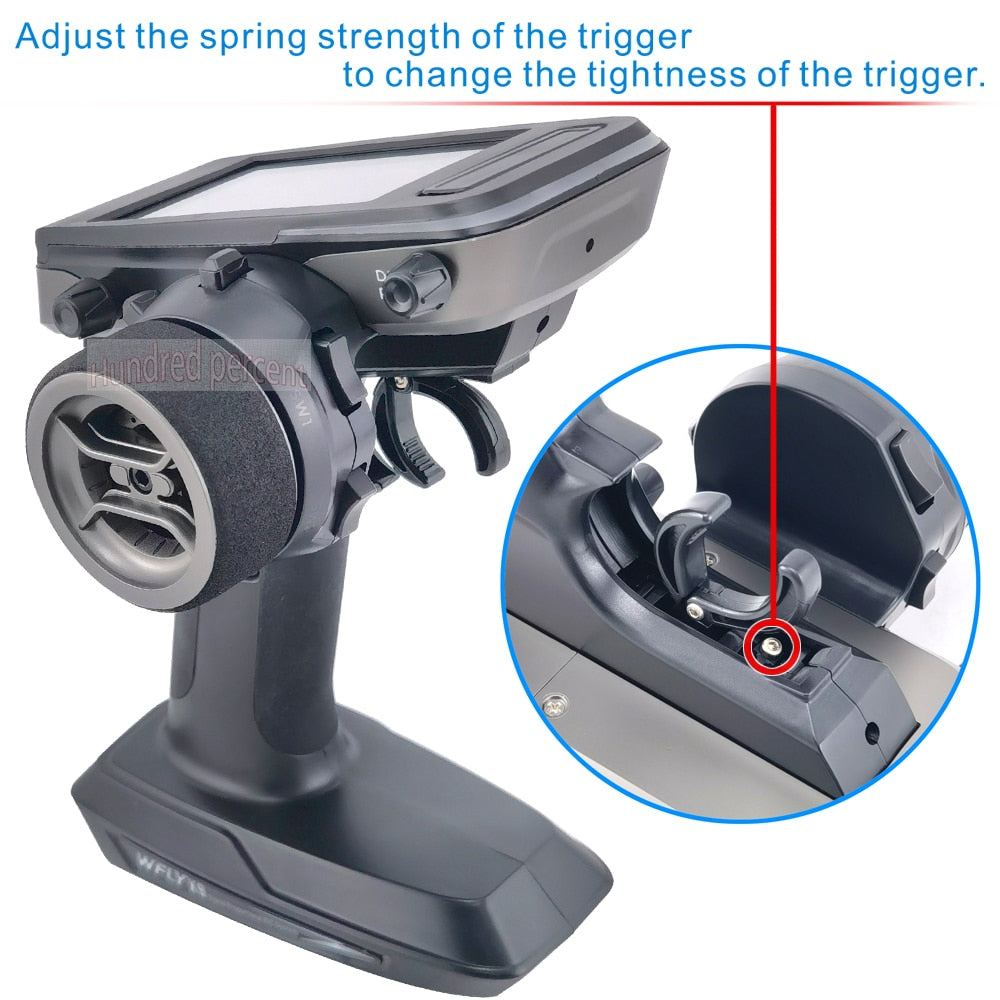

Adjust the spring tension in the trigger to customize the trigger pull weight.

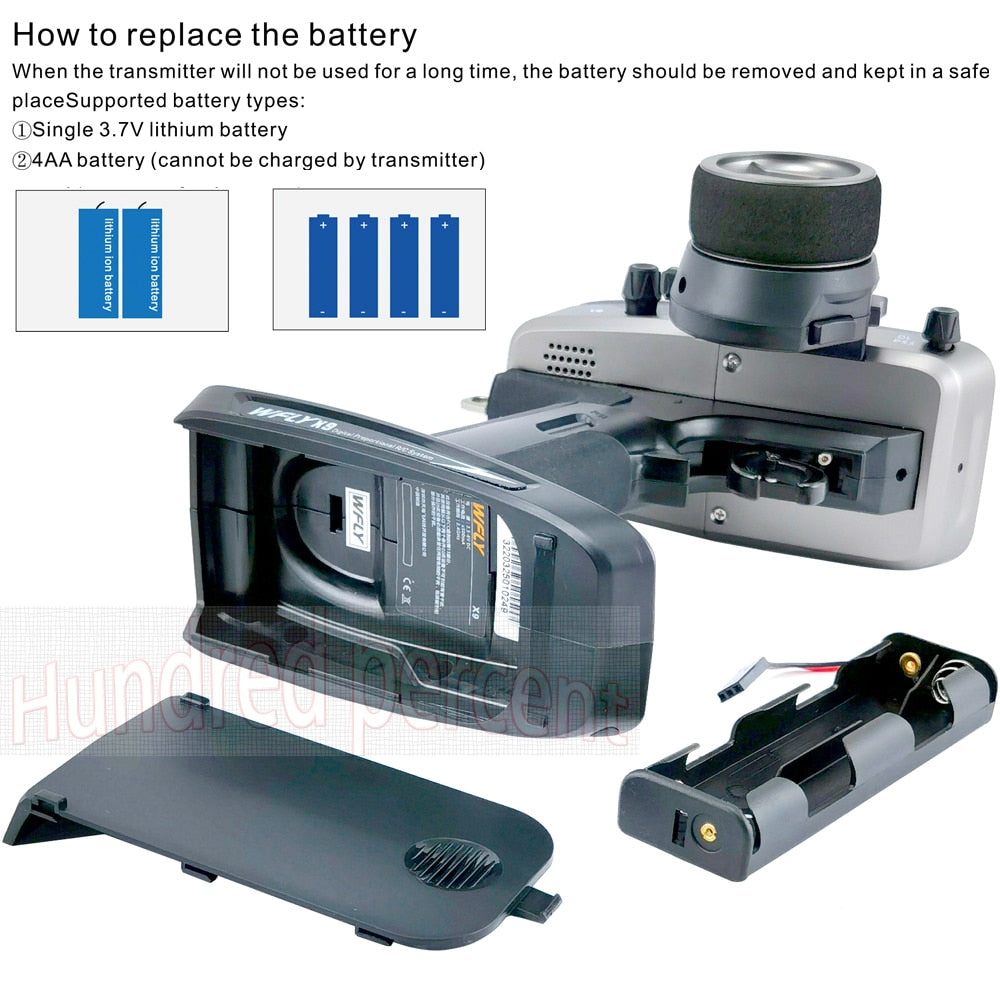

Store the transmitter in a safe location when not in use, and replace the batteries if you plan to store it for an extended period.

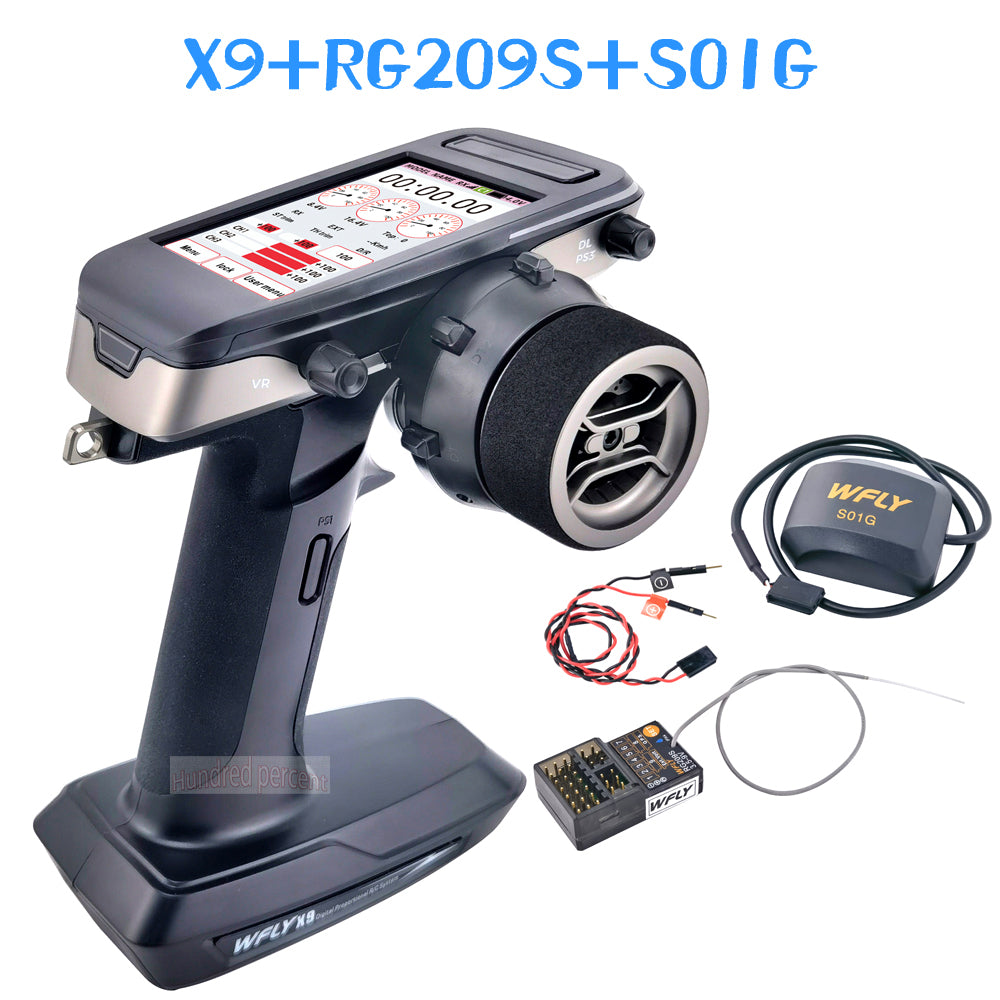

Wireless remote control for WFLY X9 off-road cars and crawlers, utilizing a dedicated SG01 GPS module and 2.4GHz transmitter with RG209S receiver.

Featuring a third-generation proprietary 2.4 GHz automatic frequency-hopping communication protocol, this device employs LoRa wireless technology and a high-performance chip, designed by a professional team that has received a prestigious Red Dot Design Award.

This radio remote controller features an intuitive transmitter interface with customizable color schemes, home screen, user menu, switchable trim settings, and user-definable channels. The new model offers an immersive experience with six different interface styles to choose from, making it easy to navigate and use.

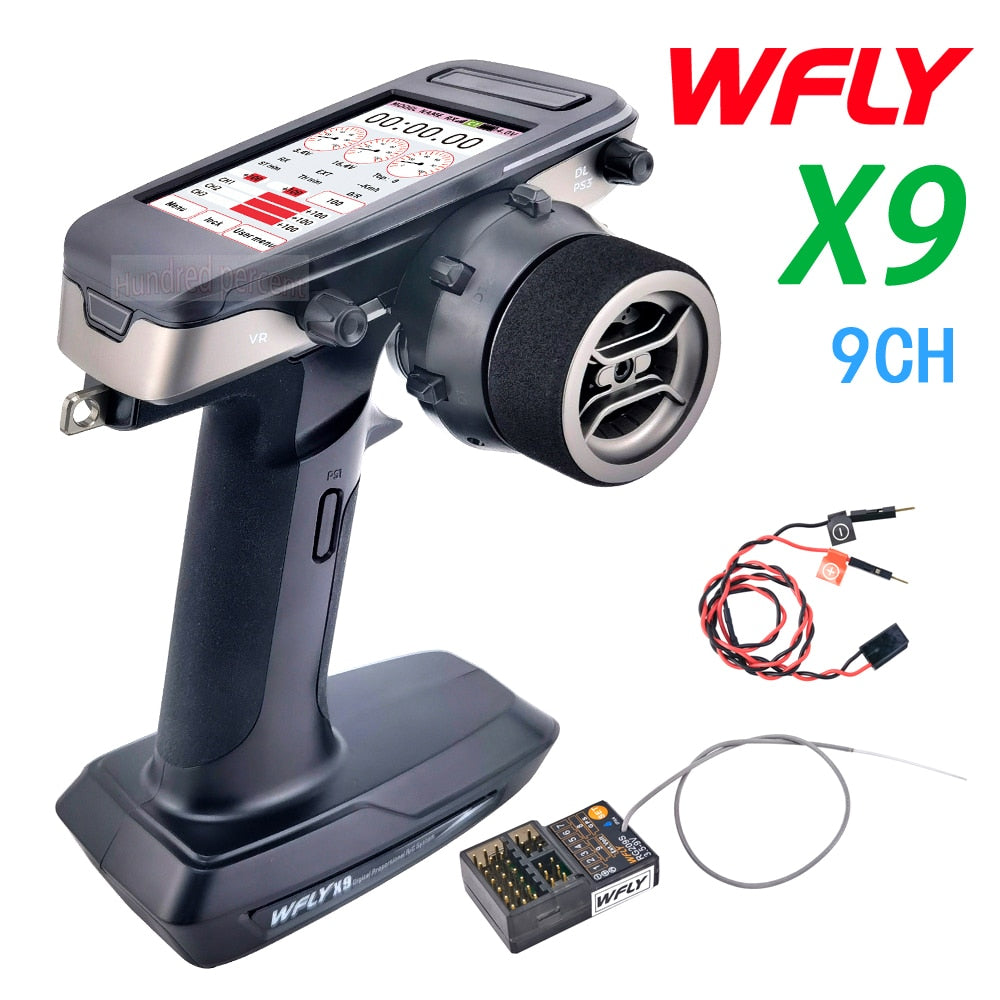

Explore a new level of control! The X9 radio remote controller features a 2.4GHz transmitter with 9-channel capabilities, allowing you to set servo angles and limit channel selection. Long-time protection ensures no mechanical damage occurs. Additionally, GPS speed control provides real-time speed monitoring for an even more enjoyable driving experience.

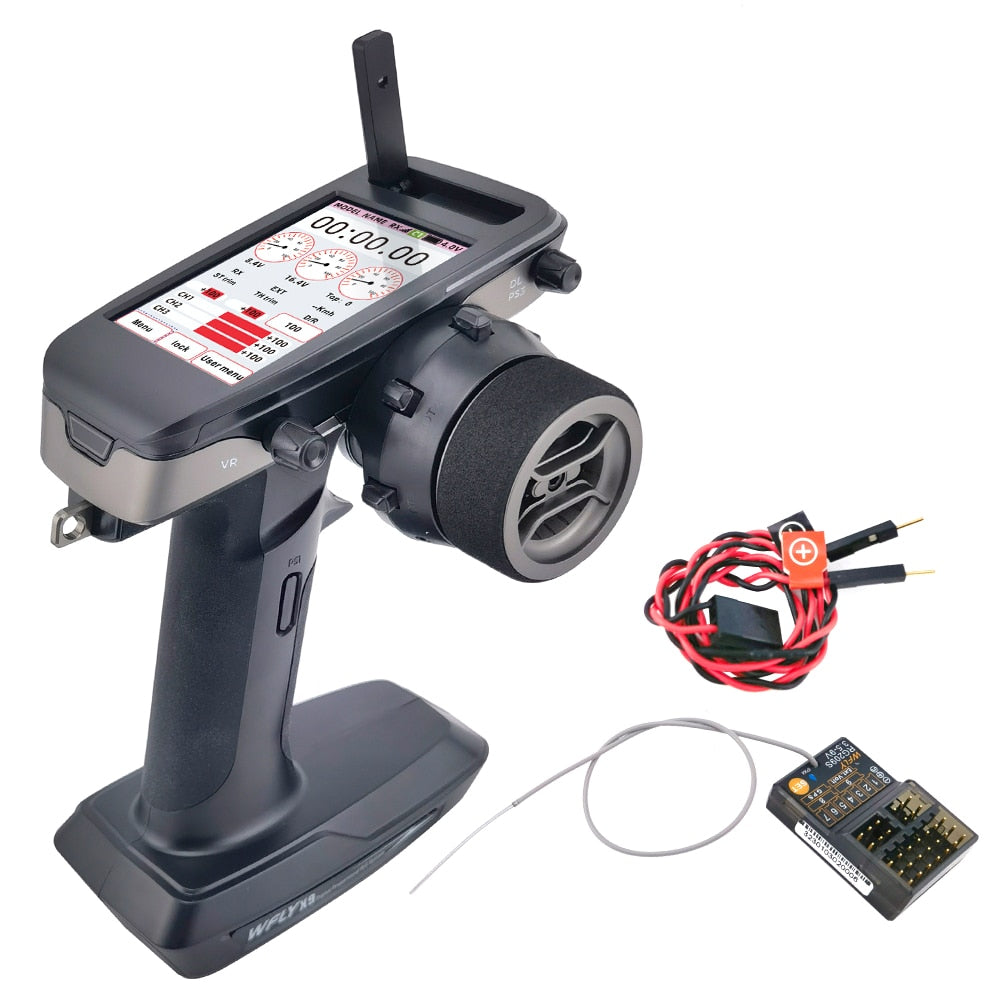

This advanced radio remote controller features a 2.4GHz transmitter with 9 channels, paired with an RG209S receiver. The dedicated X9 transmitter comes equipped with SG01 GPS technology for enhanced racing performance. Additionally, the remote control boasts a touch screen interface with voice commands, allowing for precise broadcasting and smoother control. Key features include top speeds of 120km/h, external voltage monitoring, Chinese and English language support, and a color touchscreen display.

This radio remote controller features the X9 Servo, compatible with 1802/2709 protocols, ideal for use with RC cars, boats, tanks, and robots. The device supports two-way transmission at a frequency of 2.4GHz, as well as voice broadcasts in both Chinese and English languages.

X9 and RG206S RC radio and receiver parameters
Item Name:X9 Transmitter with RG206S Receiver
Transmitter parameters
Radio parameters:
Model Type: X9
Channel: 9 channels
Working voltage: 3.5V~6.0V(1S lipo battery/4×AA dry battery )
Working current: 260~400mA
Frequency Hopping:FHSS
Modulation:LORA
Application: RC cars, boats, tanks, robot,etc.
Resolution: 4096
Frequency band: 2.4GHz (two-way)
Transmission power:≤100mw
Range:＞600m(ideal round)
Temperature:-10℃-+60℃
Simulator interface:3.5mm(PPM)
Storage: 40 models memory
Program mix:5 models
Voice broadcast:Support
Charging :Support 1S lipo battery(Type C)
Language: English
Upgrade: USB online upgrade
Servo:Support 180/270°
Display: 3.5″ 480*320 capacitive touch screen
Dimension:185x147x110mm
Weight:318g

Receiver parameters:
Model name:RG206S
Channel:6 channels(PWM)
Working current: 95mA
Frequency band: 2.4GHz(two way transmission)
Working voltage: 3.5V~9.0V
Modulation:LORA
GPS:Support speed detection
Application: RC cars, boats, tanks, robot,etc.
Resolution: Full channel 4096
Temperature:-10℃-+60℃
External voltage detection:DC 1~36V
Servo:Support 180/270°
W.BUS:support S.BUS
Upgrade: USB online upgrade
Dimension:33.5×22.0x12.5mm
Weight:7.6g

RG209S Receiver parameters:
Model name:RG209S
Channel: channels(PWM)
Working current: 95mA
Frequency band: 2.4GHz(two way transmission)
Working voltage: 3.5V~9.0V
Modulation:LORA
GPS:Support speed detection
Application: RC cars, boats, tanks, robot,etc.
Resolution: Full channel 4096
Temperature:-10℃-+60℃
External voltage detection:DC 1~36V
Fail save:Available
Servo:Support 180/270°
Upgrade: USB online upgrade
Dimension:36.0×22.8×12.6mm
Weight:8.3g

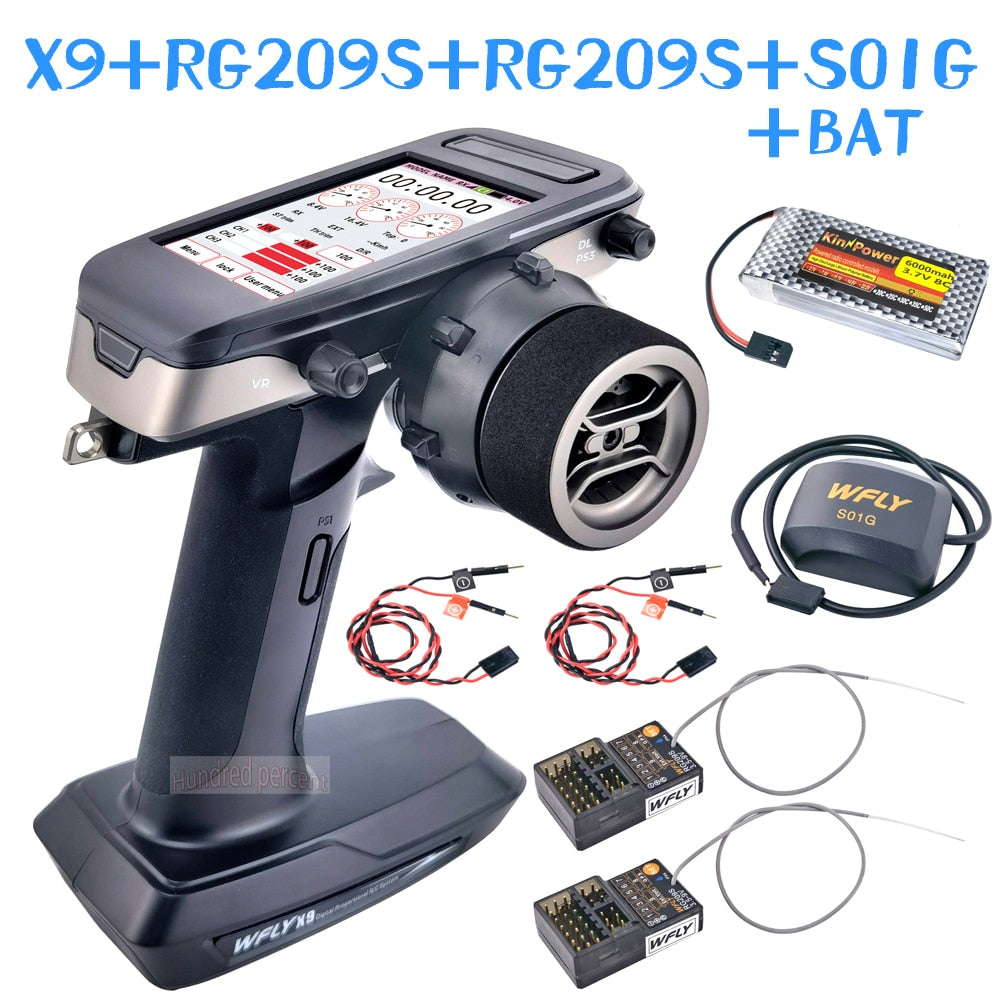

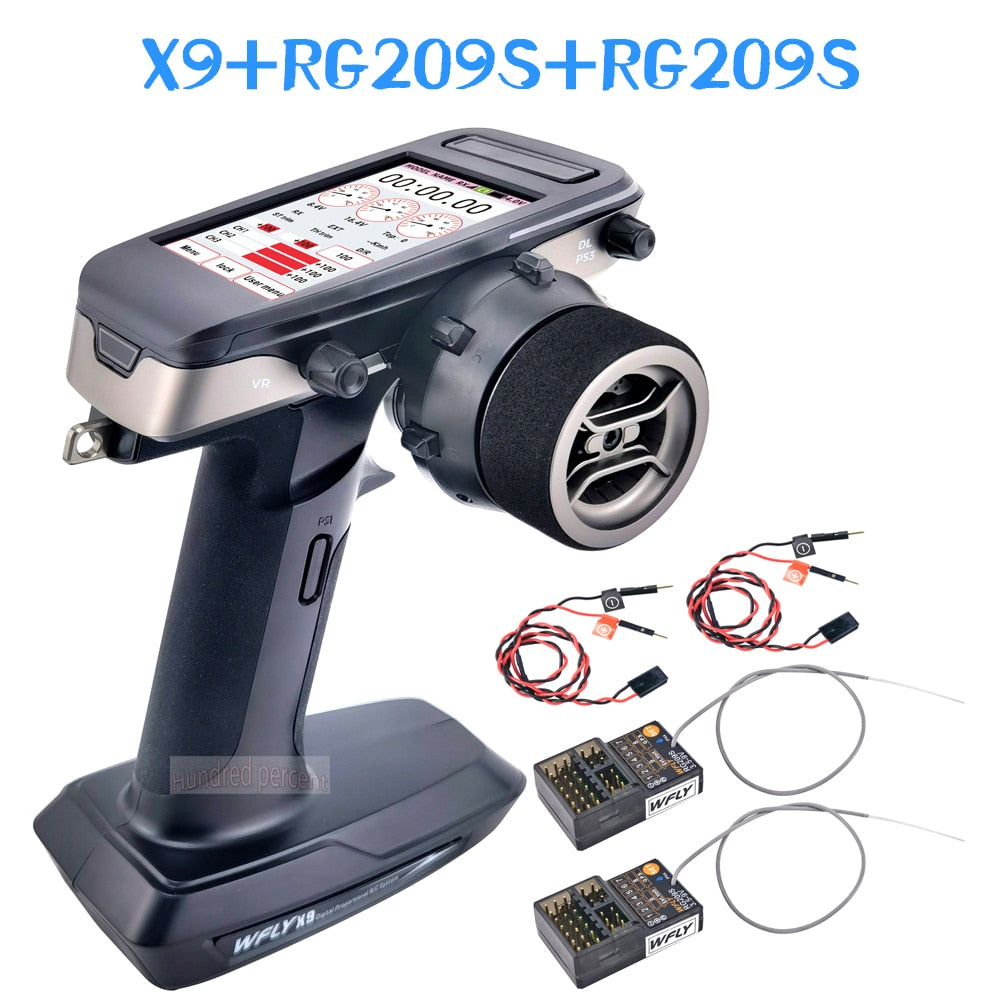

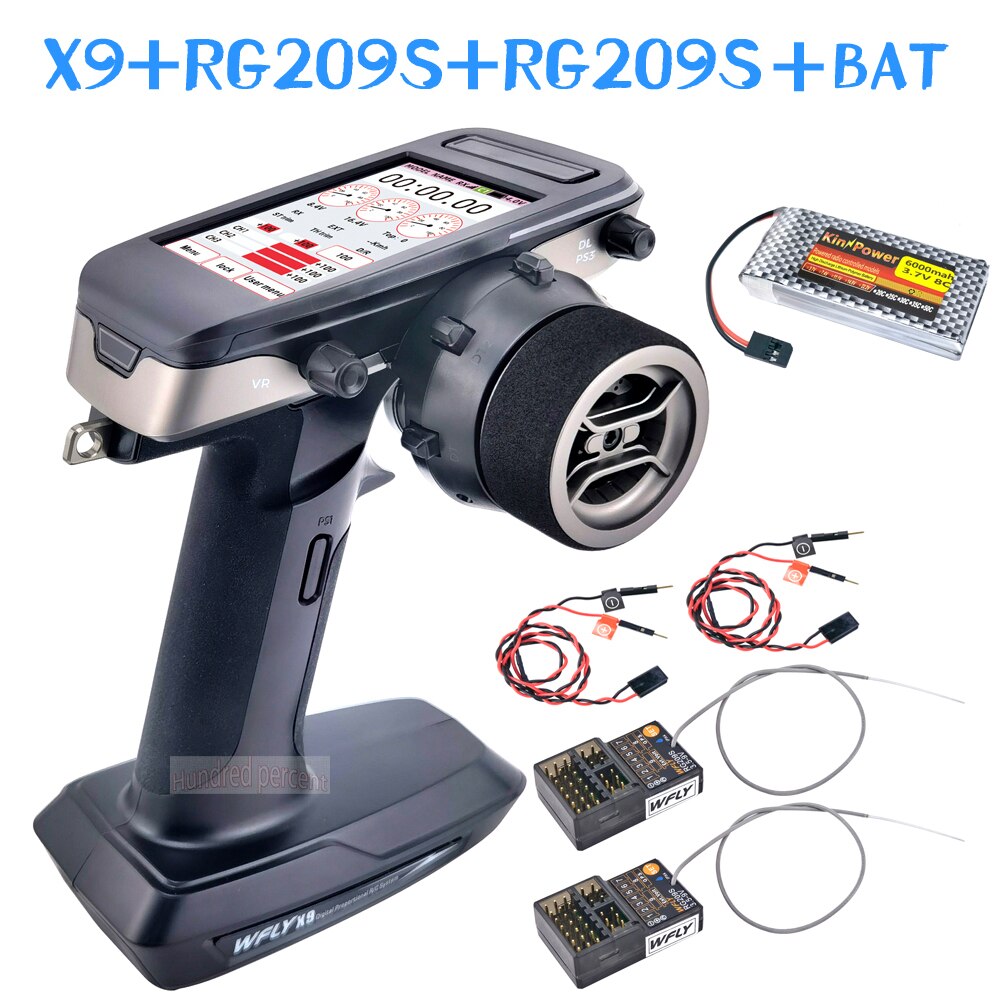

В комплект входят:

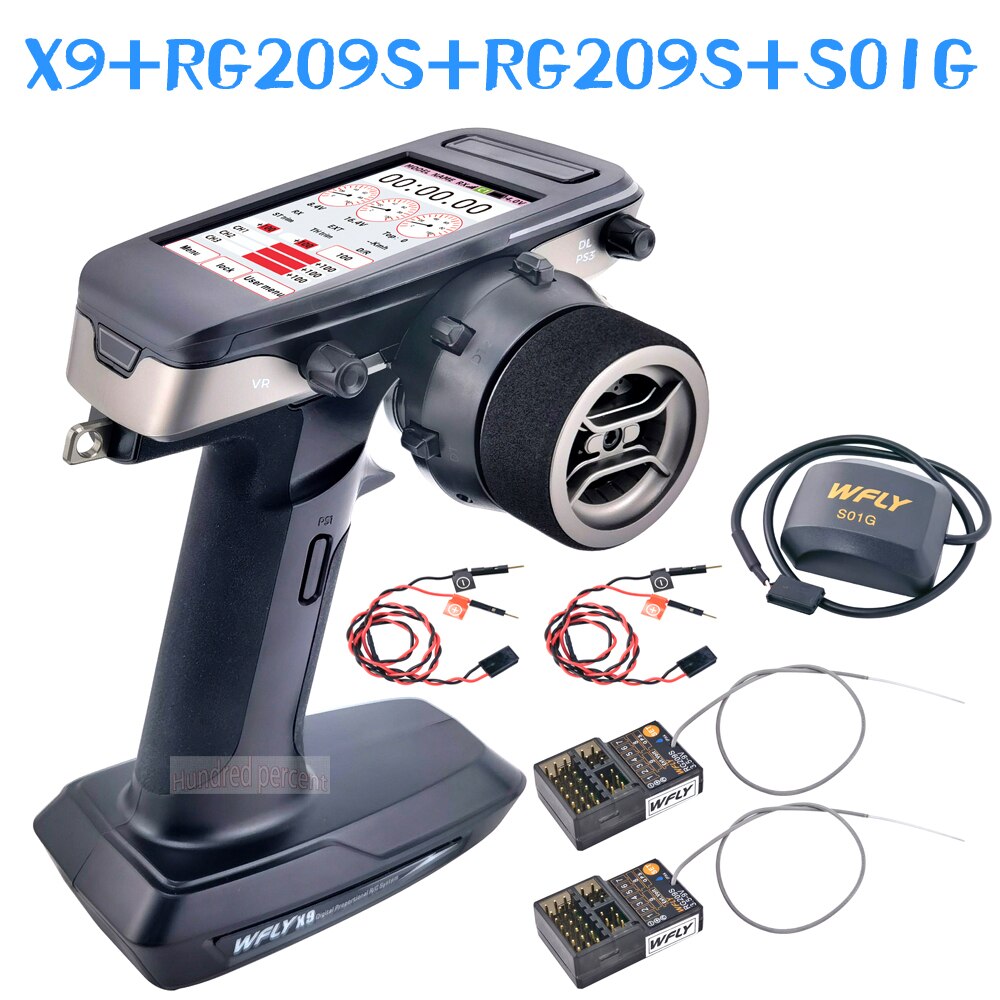

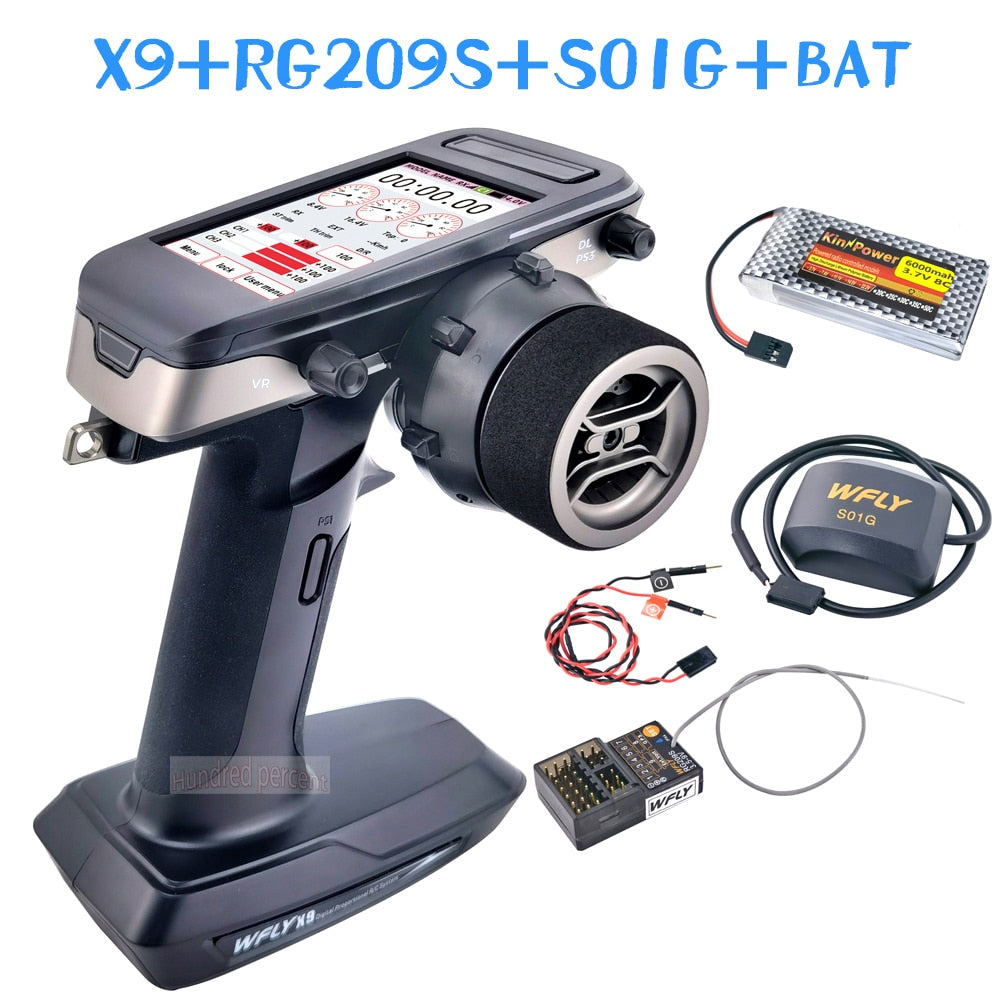

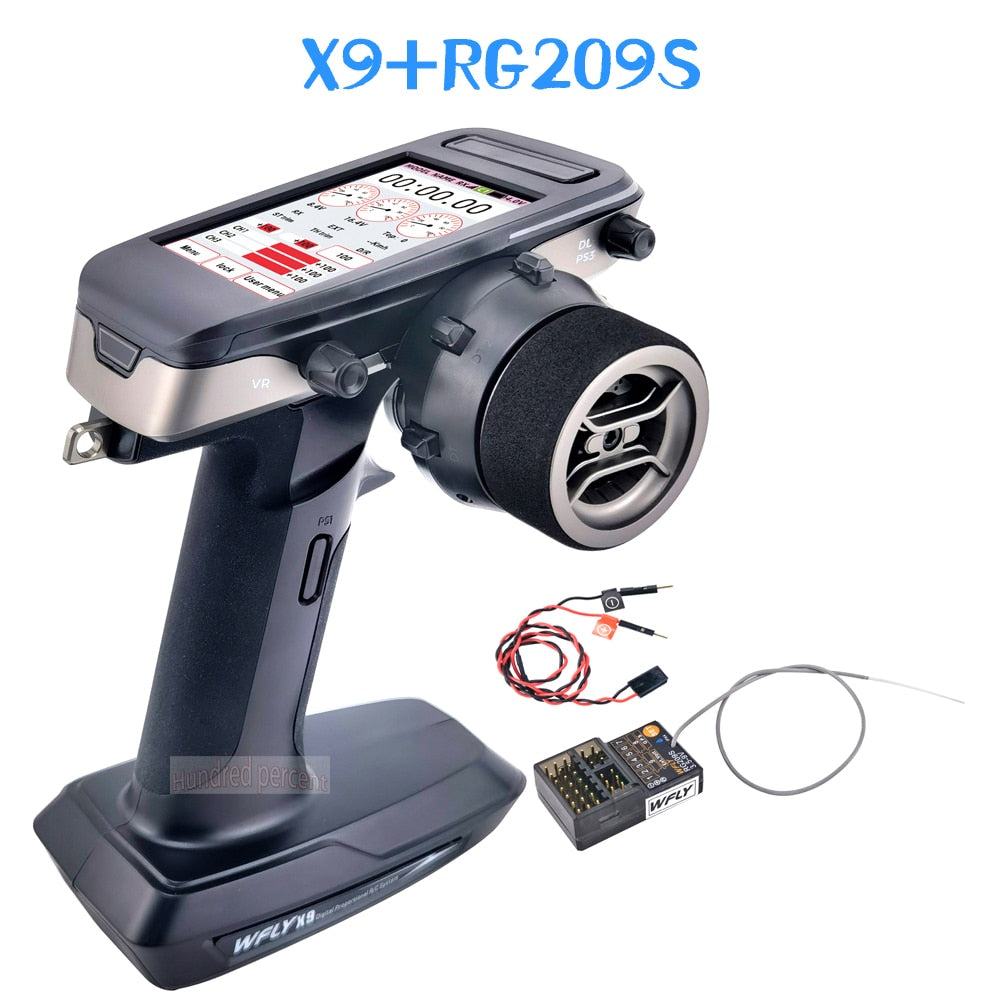

1 x X9 Transmitter
1 x RG209S Receiver
1 x Battery Tray

OR
1*RG206S Receiver

или
1 x GPS module-SG01(Non standard,need to buy it seperately)
1 x Руководство
1 x Foam Case
1x Package Case

Thank you for purchasing WFLY surface radio X9 kits! WFLY X9 is a great radio set with a lot of exciting functions.
We are confident that you will find lots of joy and fun with this radio system.
