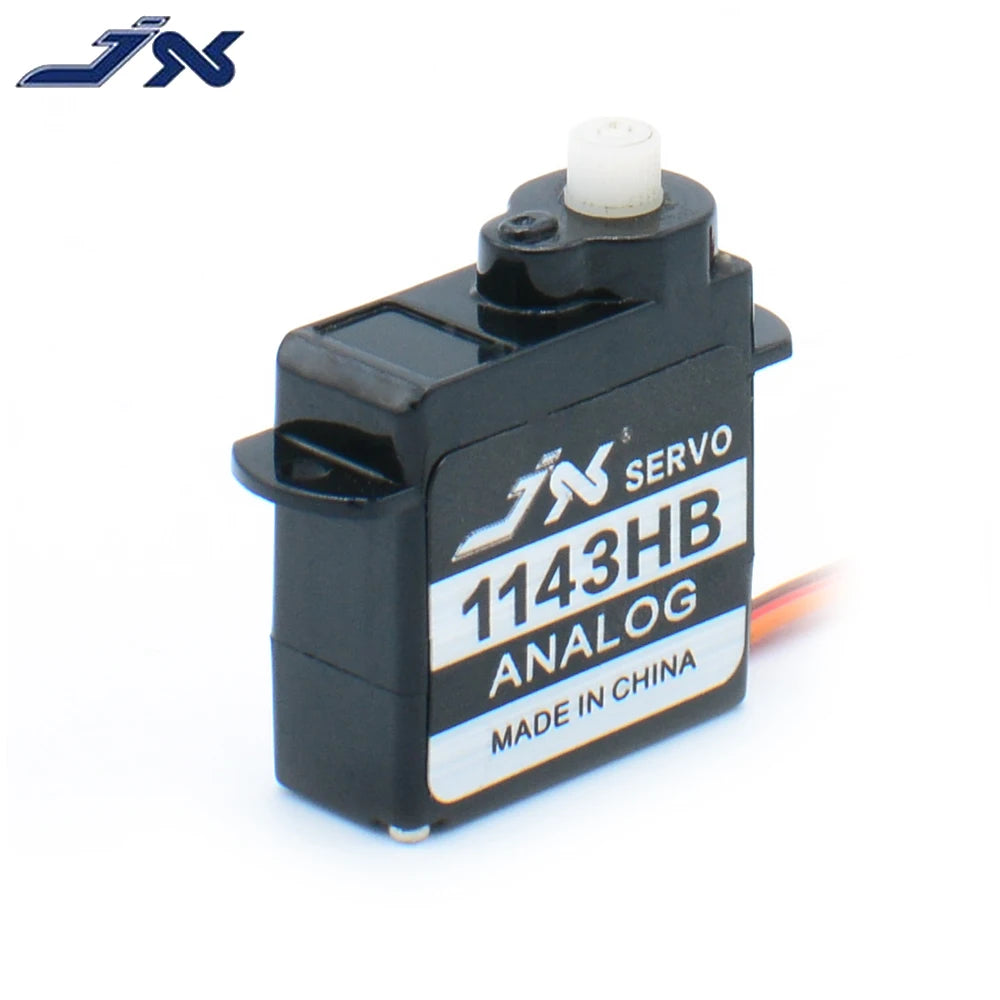

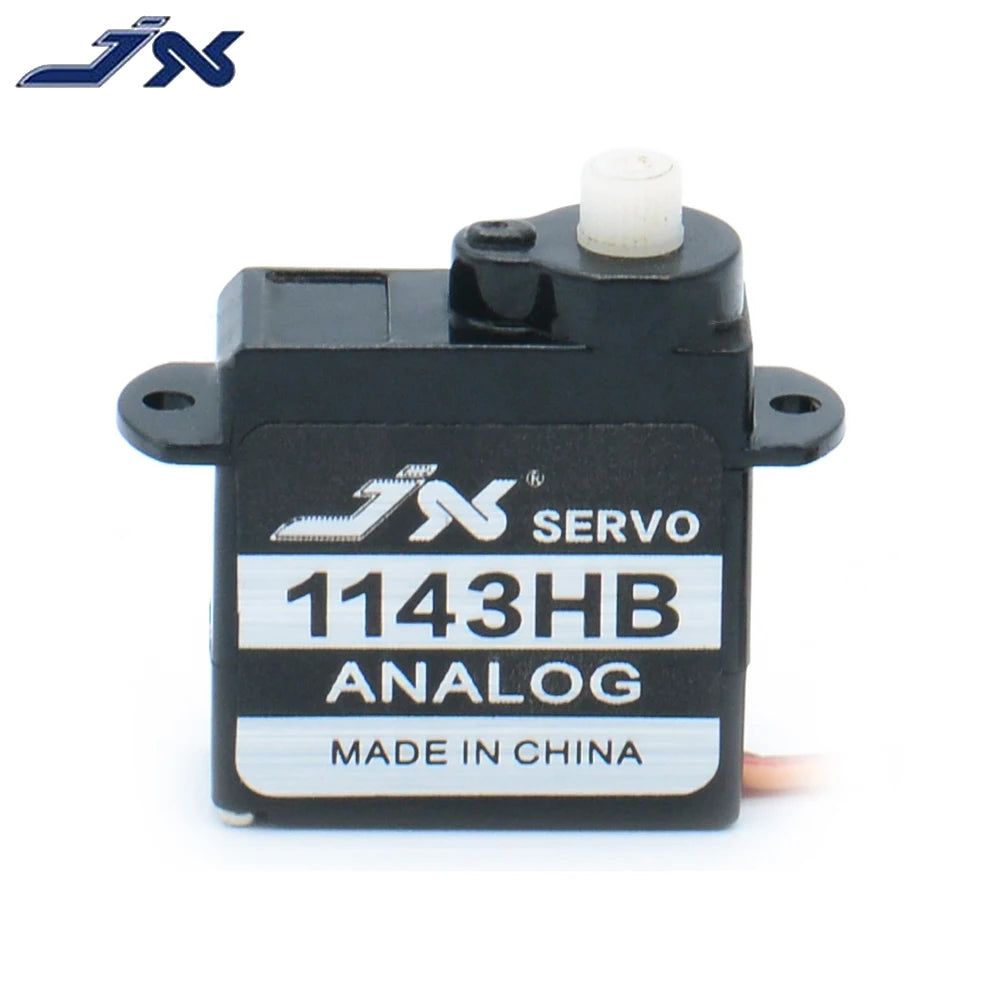

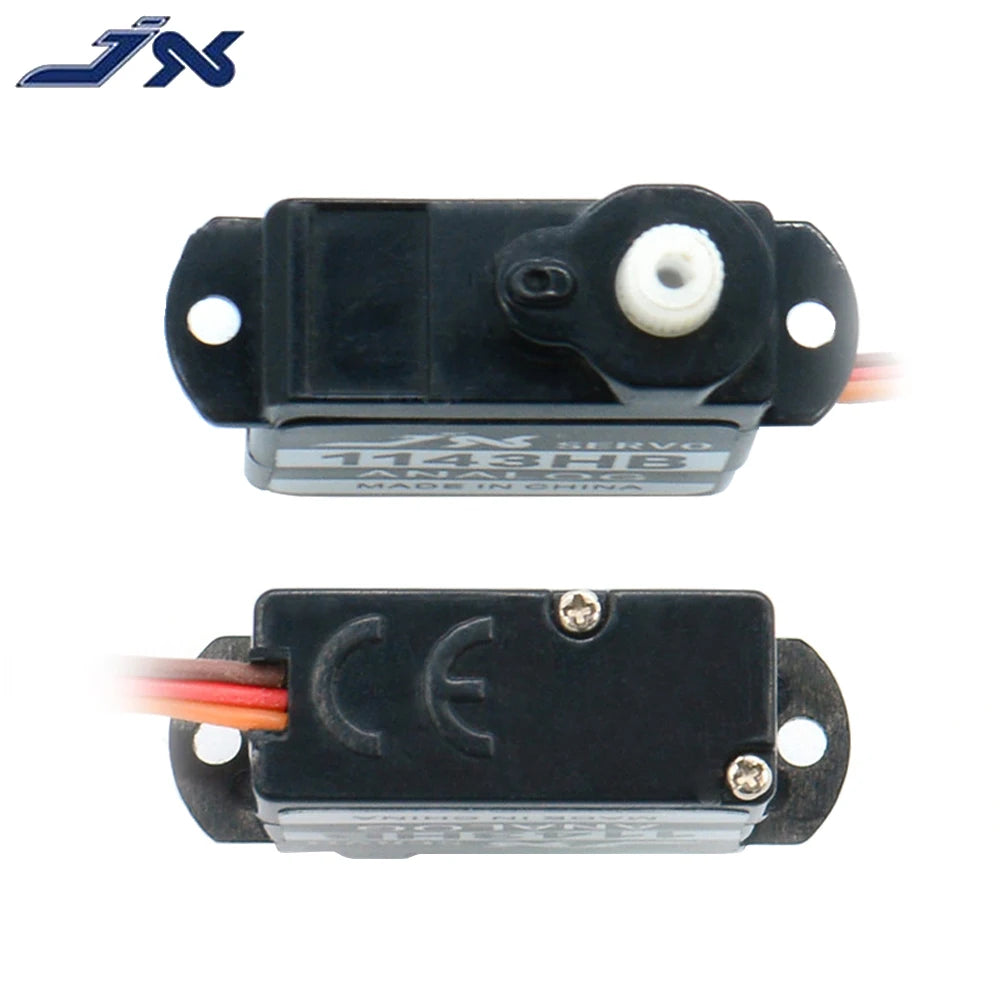

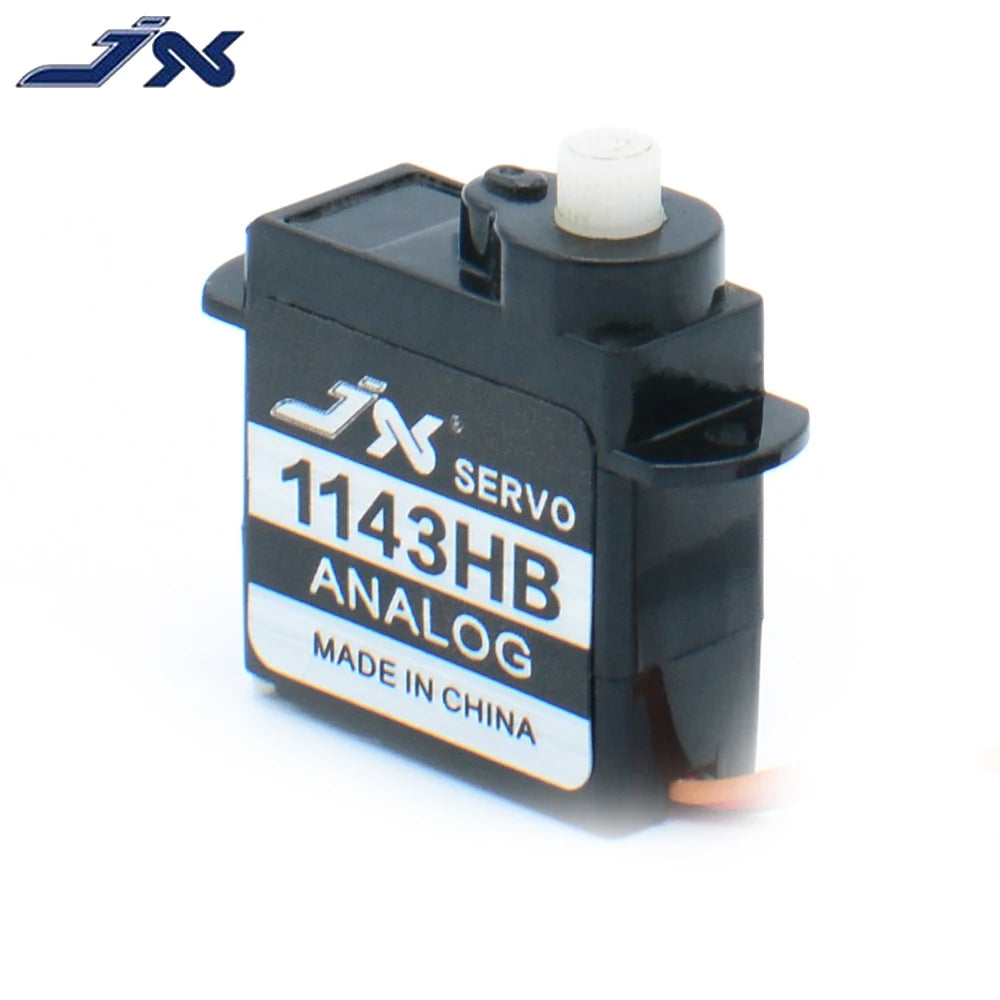

JX PS-1143HB 4.8-6.0V 0.55kg 3.7g Plastic Gear Mini Coreless Analog Servo

Особенности:
-High-performance mini coreless analog servo;
-3.7g / 0.55kg torque analog servo;
-plastic Mini Servo;

-Working voltage: DC4.8-6.0V;
-Working temperature: -20~+ 60℃;
-Dead zone setting: 2us microseconds;
-Maximum pulse width: 900-2100us microseconds;
-Maximum angle: 120°;
-Working frequency: 1520us/300Hz;
-Motor or motor: Coreless Motor;
-Operating speed (48V): 0.10sec/60 °;
-Operating speed (6.0V): 0.08sec/60;
Torque (4.8v): 045kg/cm (6.25oz/in);
Torque (6.0v): 0.55kg/cm (7.64oz/in);
Size: 19.8x82x220mm 0.78×0.32×0.87in;
Weight: 37g (0.130z);
Cable length: JR150mm (5.91in);
Gear material: Plastic Gear;
