The FS-i6X transmitter and FS-X6B receiver constitute a 2.4GHz AFHDS 2A digital proportional computerized RC system. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models.

Особенности:
Adopt AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity.
Receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel hopping frequency, hop between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters.
Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference.
Low power consumption, consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
The FS-X6B supports 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.
FS-X6B receiver fits for FS-i10, FS-i8, FS-i6, FS-i6s, FS-i6x, FS-i4, FS-i4x etc. FS series rc transmitter.

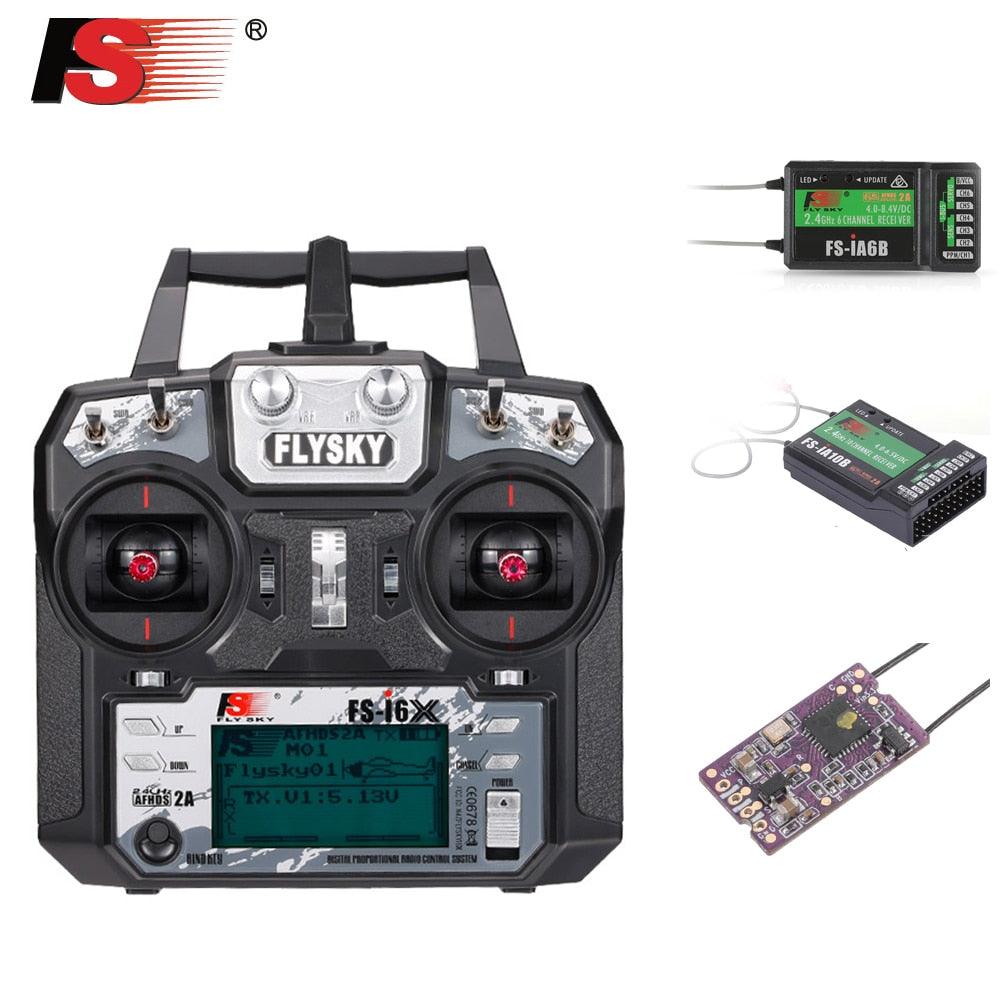

FS-i6X Transmitter Specifications:
Channels: 6-10 (default 6)
Model type: Fixed-Wing/Glider/Helicopter/Quadcopter
RF Range: 2.408-2.475GHz
RF power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Тип модуляции: GFSK
Stick resolution: 4096
Low voltage warning: <4.2V
DSC Port: PS/2 Port
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: About 400g
Power: 4 * AA battery (not included)
Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight
Size: 190 * 174 * 89mm
On-Line Update: Yes
Цвет: черный
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

FS-X6B Receiver Specifications:
Каналы: 6(ШИМ), 8(PPM), 18(i-BUS)
Протокол 2,4 ГГц: AFHDS 2A
Тип модели: Мультиротор
RF Range: 2.408-2.475GHz
Ширина полосы: 500 КГц
Количество полос: 135
RF power: No more than 20dBm
Чувствительность RX: -95 дБм
Тип модуляции: GFSK
Разрешение экрана: 1024
Сигнализация низкого напряжения: Да
Длина антенны: 93 мм (двойная антенна)
Вход питания: 4.0-8.4V

On-line Update: Yes (Wireless)
Дальность: >300m
Certification CE0678, FCC ID: N4ZX6B00

Ports: (These ports are for connecting the receiver to various models and flight controllers)

PWM signal port: GND, VCC. Outputs channels 1-6 PWM.
PPM signal port: Outputs standard PPM signal.
i-BUS signal port: Outputs i-Bus signal, up to 18 channels.

Voltage sensor port: External power sensor (1S-4S connector) +0 to +18V.
Size: 36 * 22 * 7.5mm / 1.4 * 0.86 * 0.29in
Weight: About 5g

Информация о пакете:
Package size: 23.2 * 20.8 * 10.5cm / 9.13 * 8.18 * 4.13in
Package weight: 670g / 1.47lb
Упаковка подарочной коробки

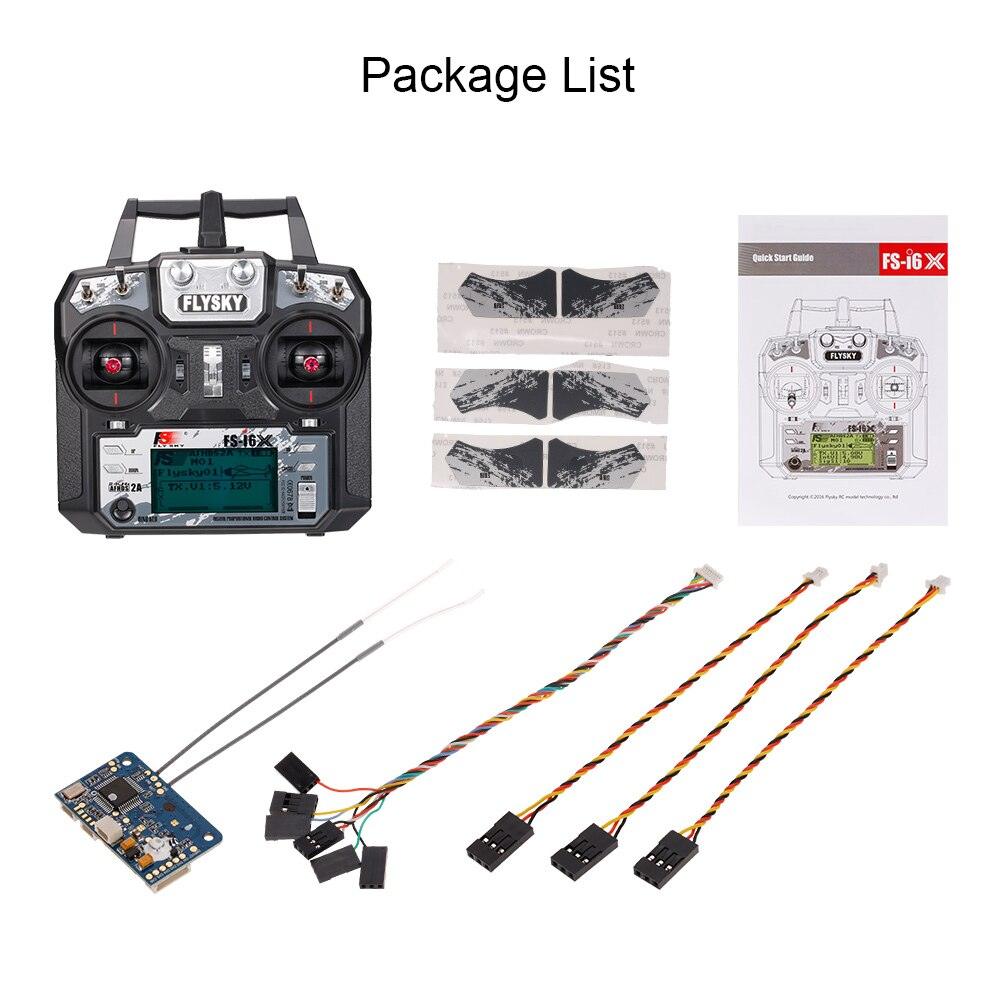

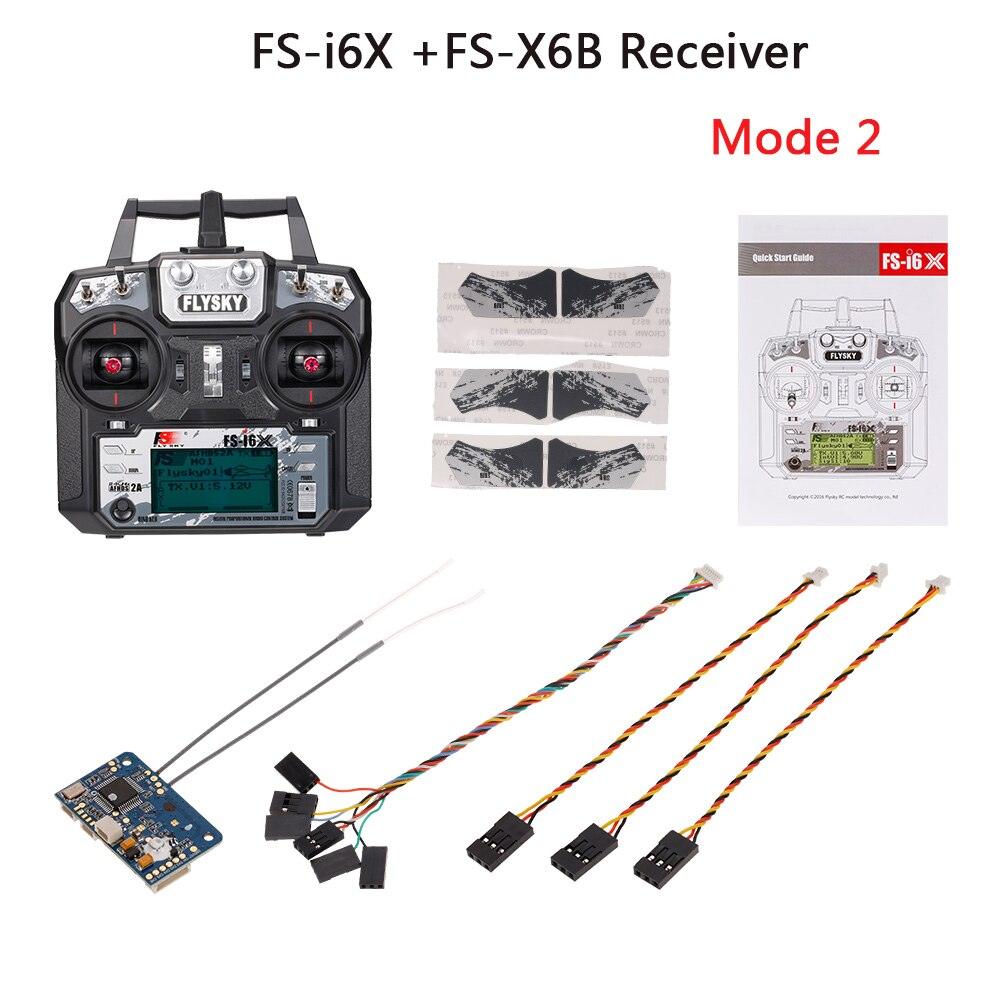

Package List:
1 * FS-i6X Remote Controller
1 * FS-X6B Receiver
1 * Cable Set
1 * Sticker Set
1 * Руководство

U1:S Z H 2 BIND hey DIOITAL FAOFORTLONIL AADIO COHTOL SUSIEM hey VRf VRB FLYSKY FS-16 FofhDS2A TX Moi DwI CELLE IF l9skyoi 64532

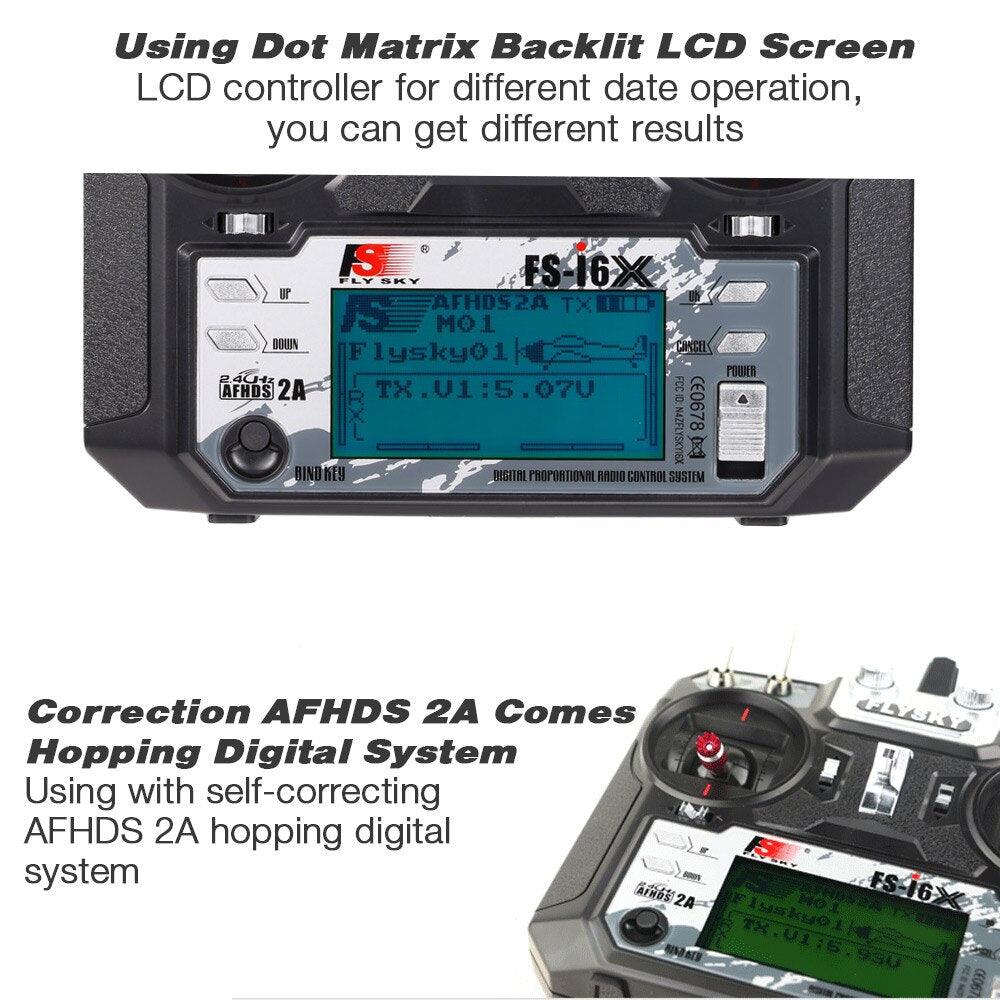

Using Dot Matrix Backlit LCD Screen LCD controller for different date operation, you can different results . AFHDS 2A Comes Hopping Digital System Using with self-correcting hopping digital system .

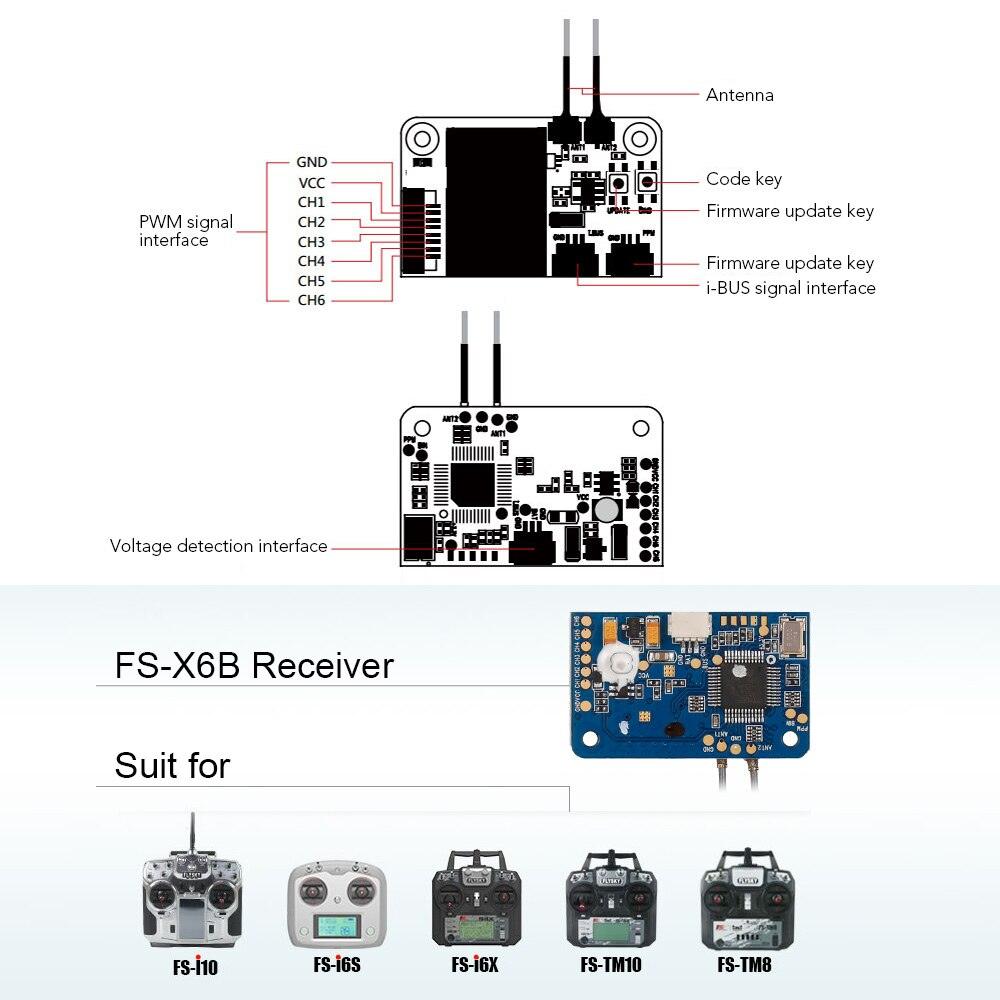

Antenna GND VCC Code key CHI PWM signal CHZ Firmware update key interface CH3 CH4 Firmware upgrade key CHS i-BUS signal interface CH6 Voltage detection interface QB FS-X6B Receiver Suit .

Stylish, ultra-thin, low-power Firmware upgrades are available to expand the channel External sensor module can transmit information (YSKY ES-6 Moi J Fluskyol Tx.01:5 AFHDSZA [n2a 1 EnacinaeWovehytiv]
