Описание：

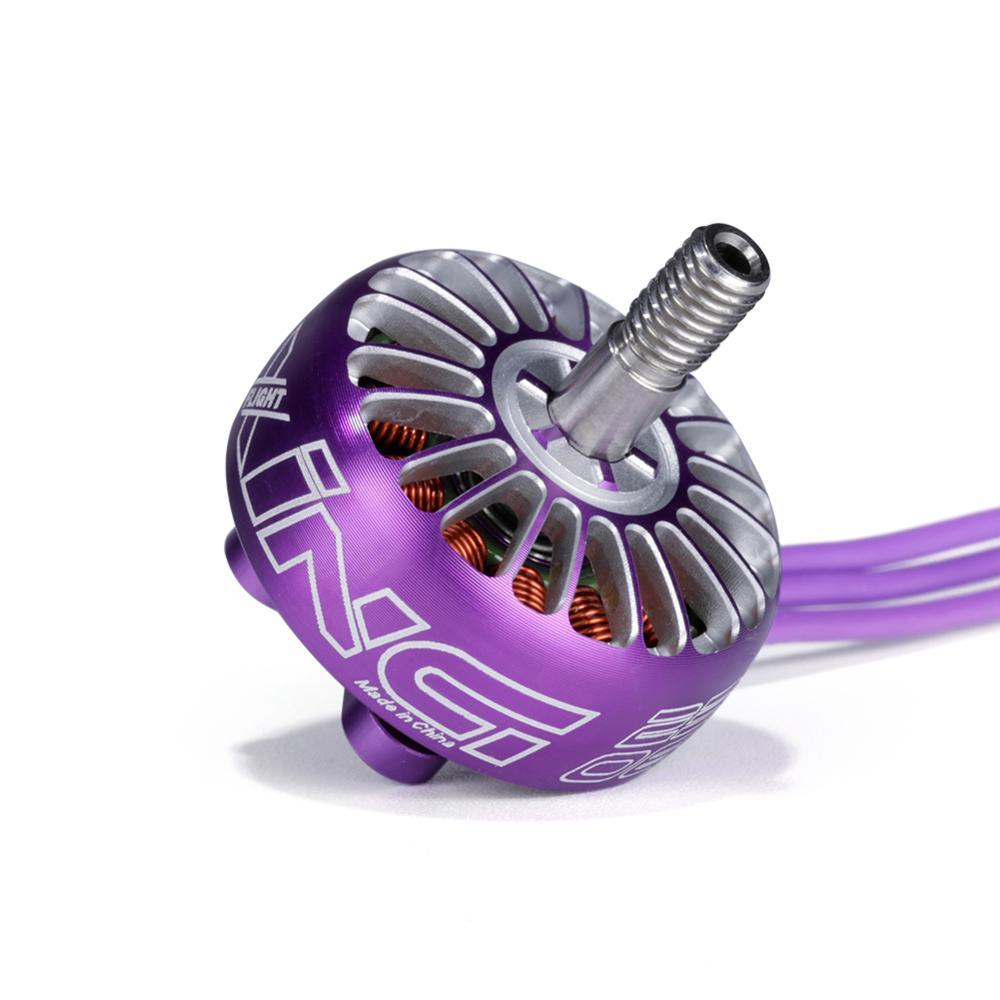

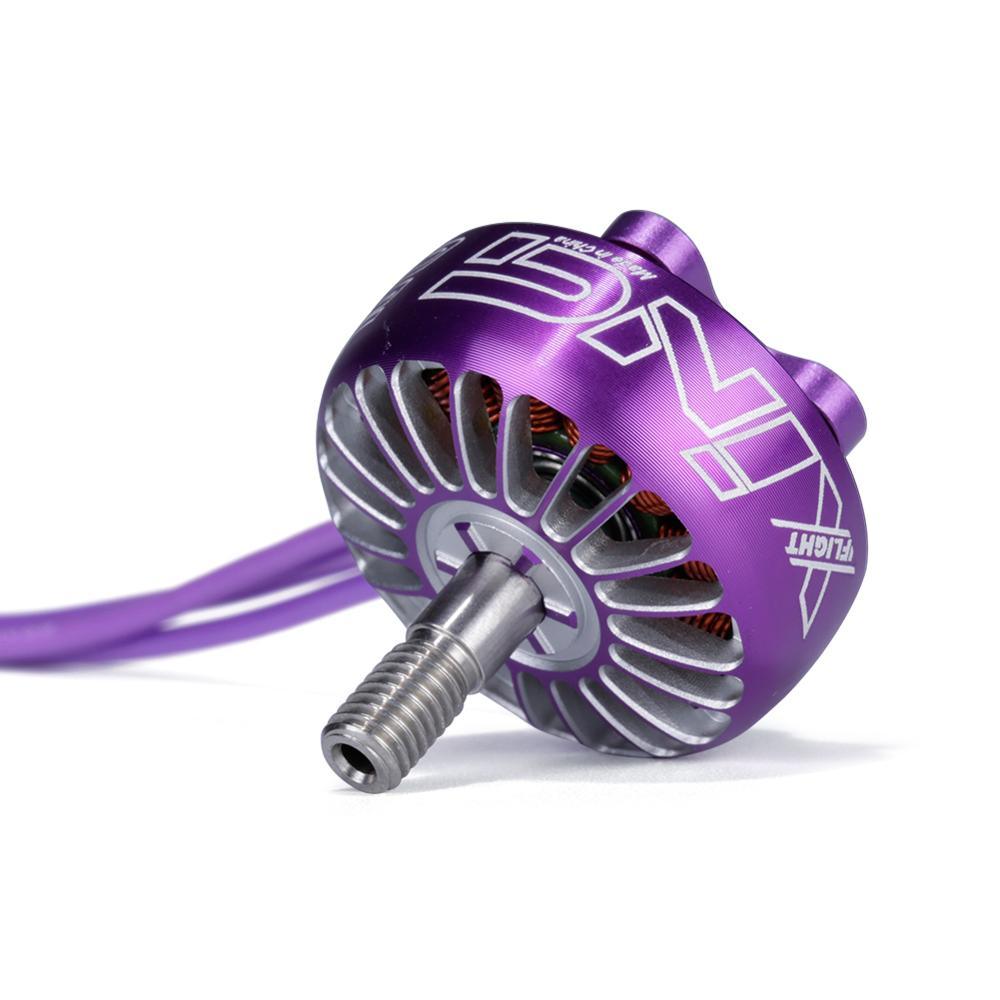

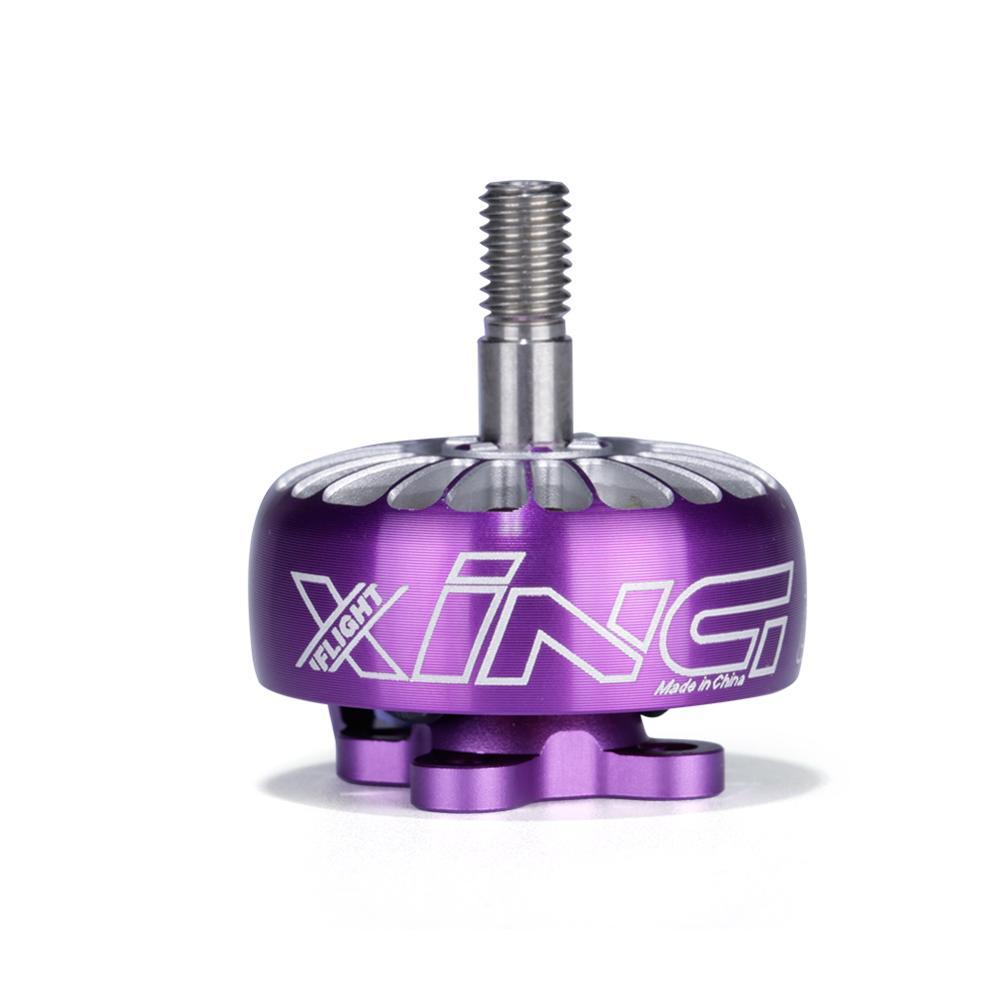

• The iFlight XING series motor is designed and named by FPV pilot & specialist Patrick Xing.

• Combining IFlight’s high-quality motor production technology with Patrick Xing’s technical expertise, a top-of-the-line motor has been produced.

• iFlight XING provides the most incredible power and thrust in the lightest weight.

• The elliptical body, powerful stator with N52H magnets and very small air gap makes iFlight XING series motor incredible new style motors.

• iFlight continues the tradition of making the best and most suitable products to offer different size and KV value to meet different pilots’ needs.

• The 4mm Titanium alloy shaft and high-quality N52H magnets surrounded by high-temperature resistant windings.

• It means that the iFlight XING series motor can be pushed to the limit. The sturdy structure and high-quality materials make iFlight XING performs like a beast.

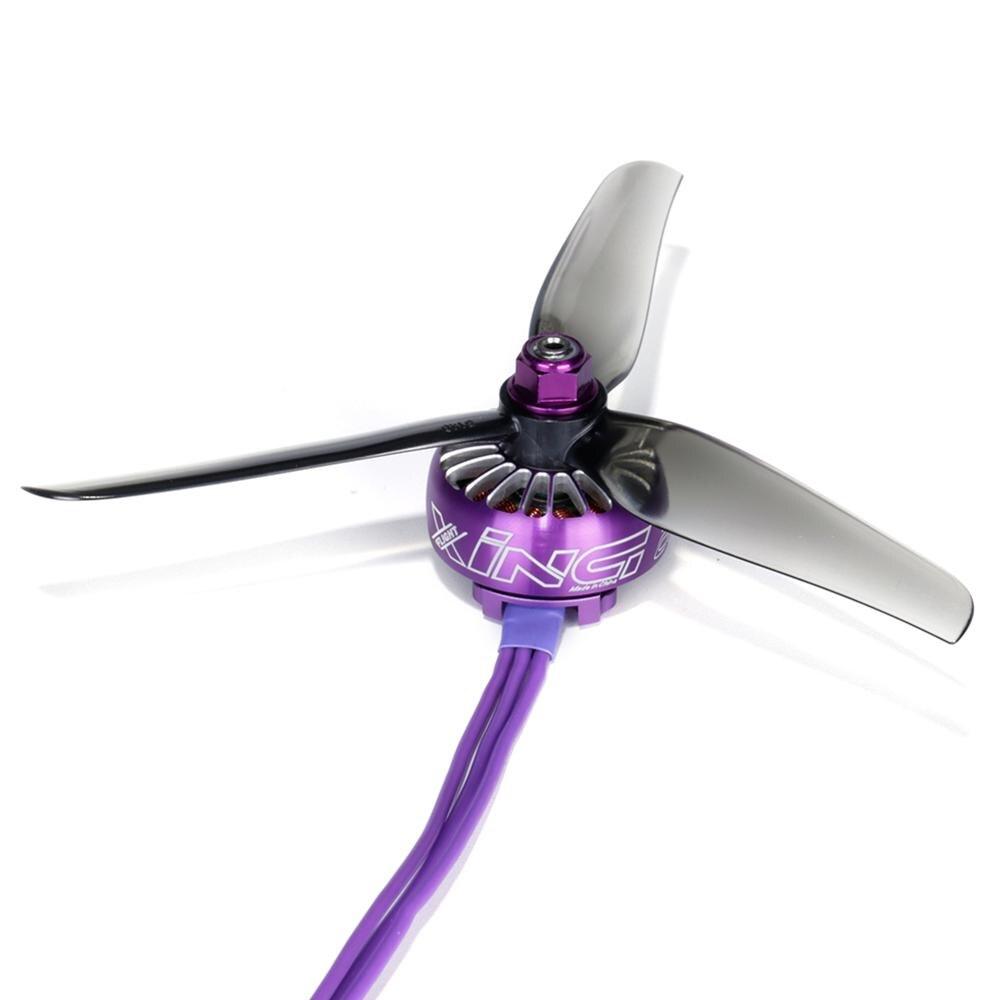

• There’s a non-slip design on the contact surface of iFlight XING motor and propellers to increase the friction and to improve durability; Multi-heat dissipation hole design helps to pull heat away continuously；

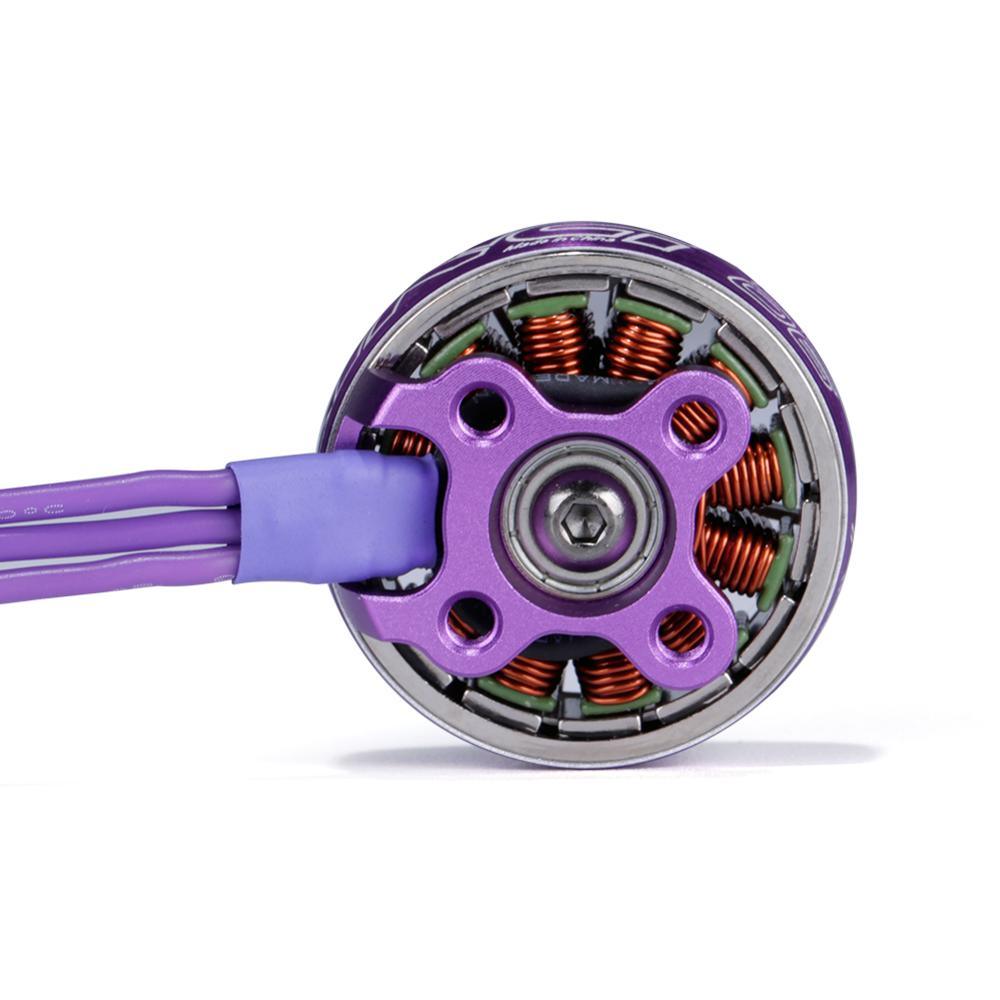

• Standard M3 16mm*16mm mounting pattern at the bottom, adapt to all frames on market;

• Motor cable length 160mm can meet different requirements whether connecting single or 4 in 1 ESC; Each motor has been dynamic balanced, all of them have passed the highest standard iFlight manufacturing and assembling procedure.

Особенности:

• Unibell design

• Elliptical body, high-strength Titanium alloy shaft

• Large heat dissipation holes design (15℃ reduced compared to same range motor)

• Crush resistant damping bearing, eliminate vibration effectively

• 50%-80% optimal throttle output, best efficiency

• 160mm cable length for different frames and setups

• CNC high-precision machining 7075 aluminum Bell and Base

• 220℃ Pacific Heat-Resistant Copper Wire, Solid Wire Winding

• Electromagnetically matched magnets and stator

• Japanese Kawasaki 1200 Iron Core

• N52H High-temperature magnets

• Motor wire protected

• Hex bolt shaft set screw

• Dynamically balanced

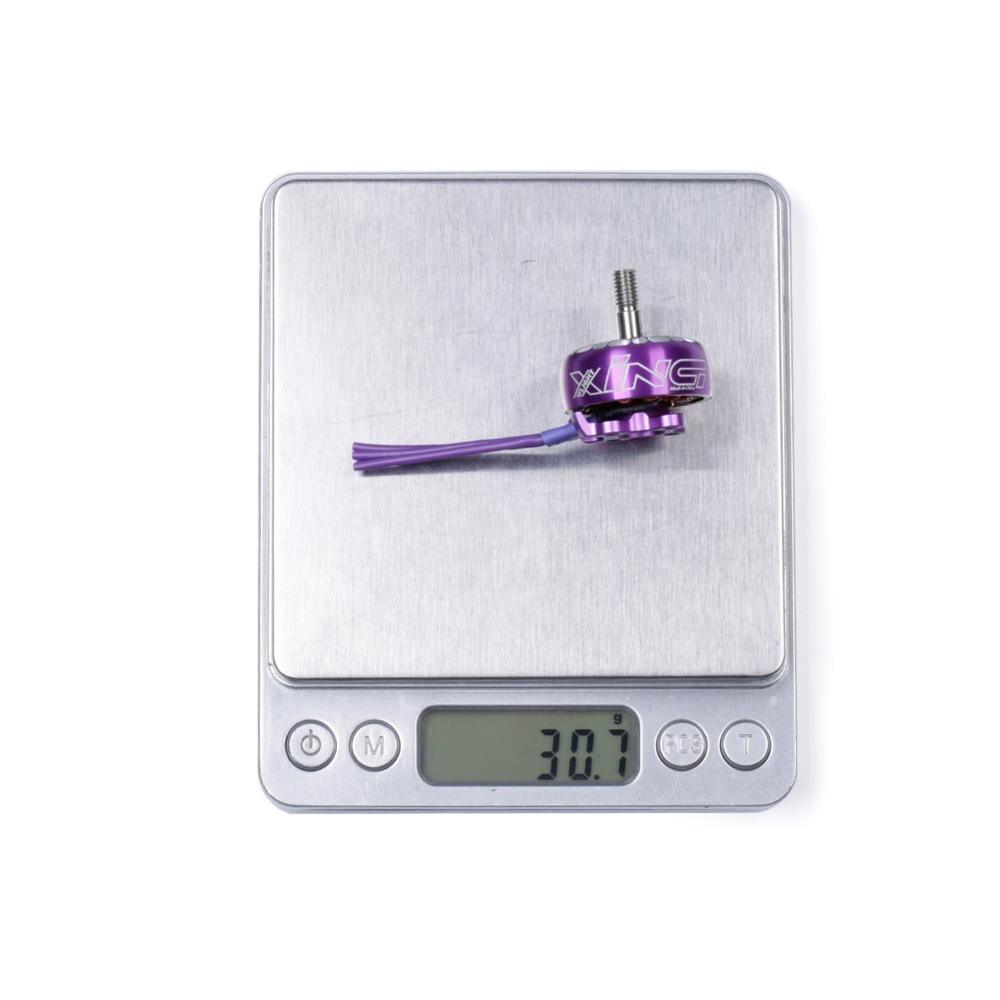

• 32.9g with wires

В комплект входят:

• XING 2306 Motor * 1pc

• Hardware set * 1 bag

iFlight Xing X2306 2450KV Technical Datas 2450 Configu-ration 12N14P Stator Diamter 23mm Stator Length 6mm Shaft Diameter 4mm Motor_Dimension(Dia :Len) p29.5+18.7mm Weightlo) 33.4 Idle_current(l0@1QV(A) KZu Noof Cells(Lipo) 2-4S 339 Max Continuous 7
