ToolkitRC WM150 WattMeter SPECIFICATIONS
Колесная база: Винты
Модернизация деталей/аксессуаров: Литиевая батарея
Поставки инструментов: Аккумулятор
Технические параметры: KV1100
Размер: Как описание
Периферийные устройства/устройства дистанционного управления: Аккумулятор
Рекомендуемый возраст: 12+y
Запчасти и принадлежности RC: Аккумуляторы - LiPo
Количество: 1 шт.
Происхождение: Материковый Китай
Номер модели: ToolkitRC WM150
Материал: Композитный материал
Атрибуты полного привода: Аккумулятор
Для типа автомобиля: Вертолеты

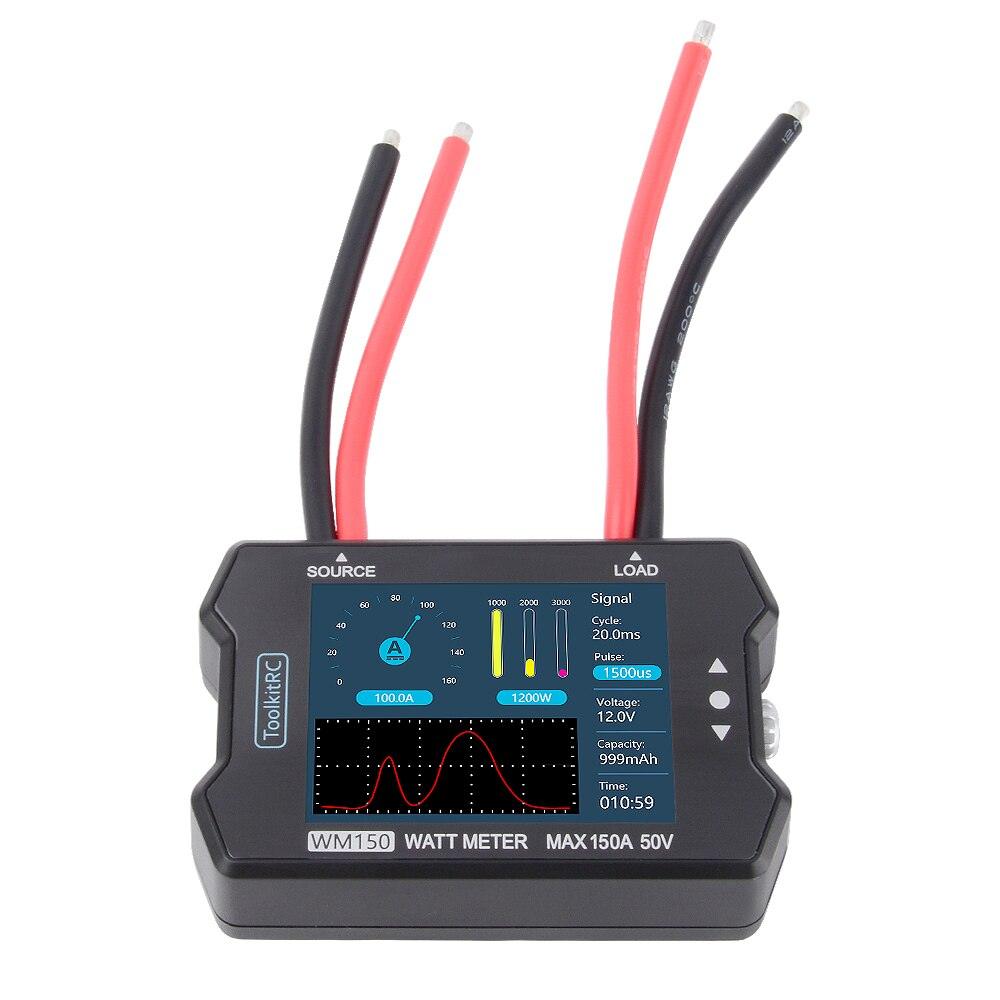

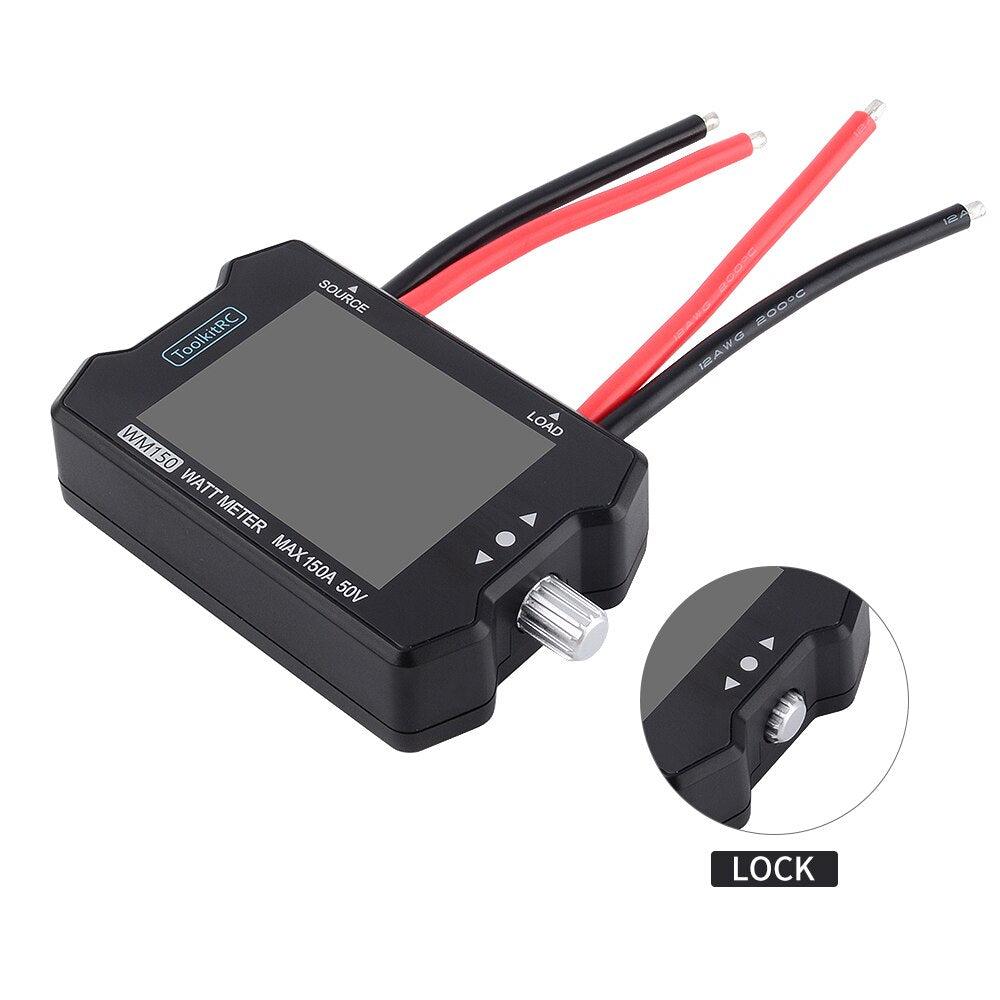

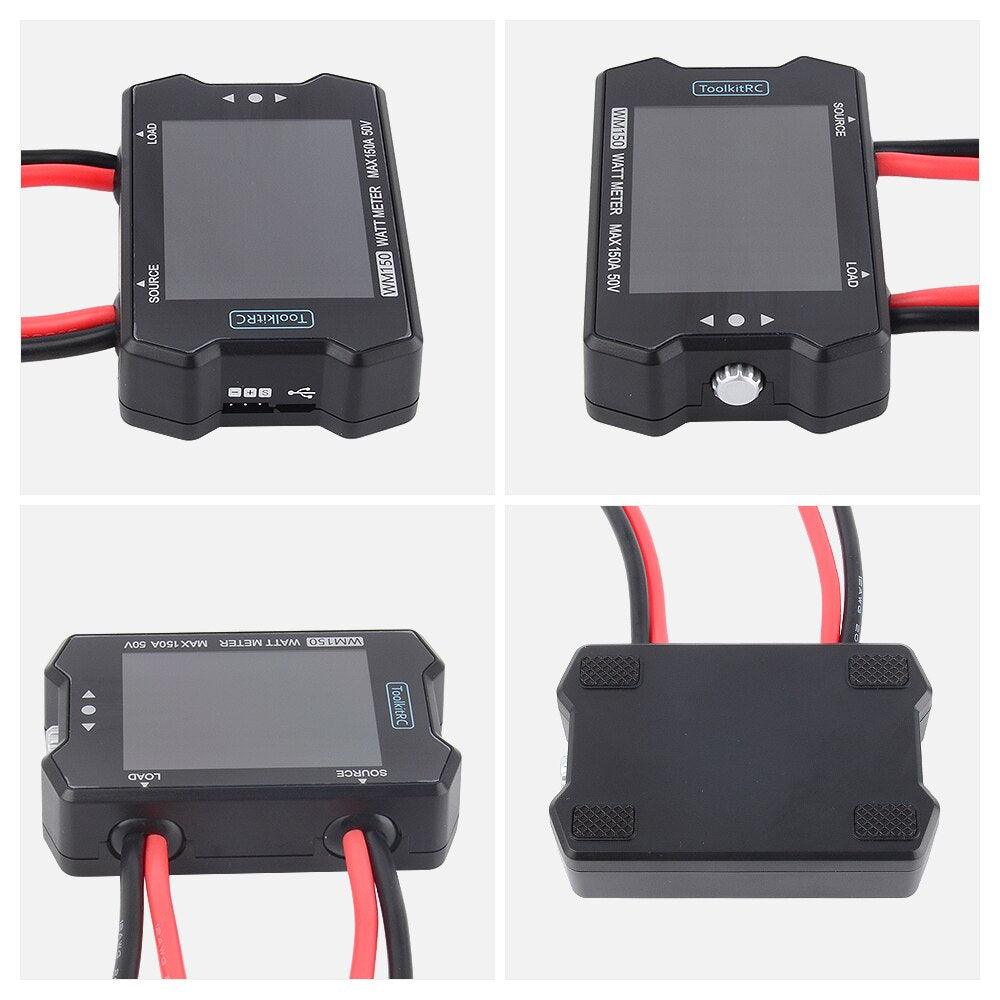

ToolkitRC WM150 150A 50V Watt Meter Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone

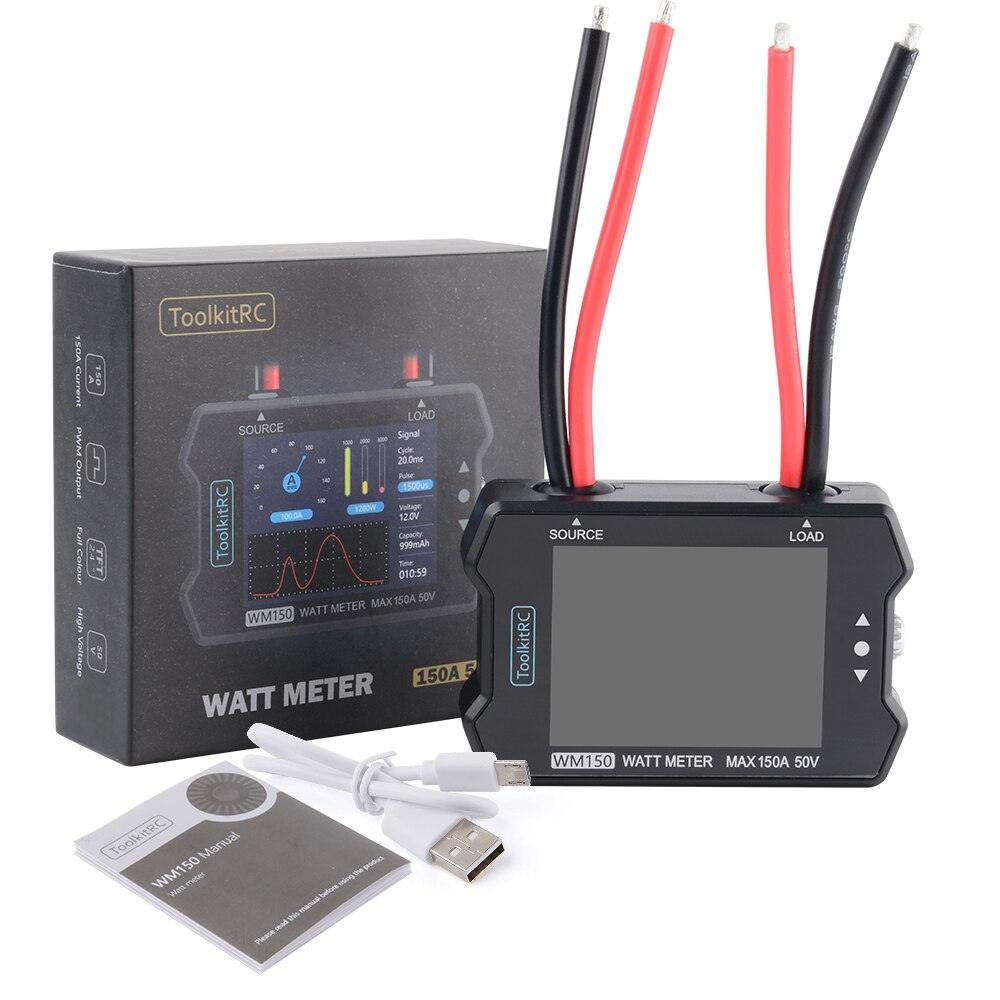

Упаковка:
1* ToolkitRC WM150 Watt Meter
1* USB Wire
1* Руководство
1* Руководство
Описание:
Brand: ToolkitRC
Item: WM150 Watt Meter
Input Voltage: 1-50V
Current(Max): 150A (precision:10mA)
USB: 5.0V@1A ( USB3.0 firmware update)
Output: PWM 1000-2000us@50Hz
Display: TFT 2.4″ LCD Screen(320*240 resolution)
Product Size: 80*54*23mm Approx.
Packing Size: 87*87*28mm Approx.
Net Weight(Approx): 120g
Gross Weight(Approx): 140g
Using Steps:
① Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power;
② After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;
③ Adjust the button if the data in the displaying screen are not in minimum data position.
Особенности:

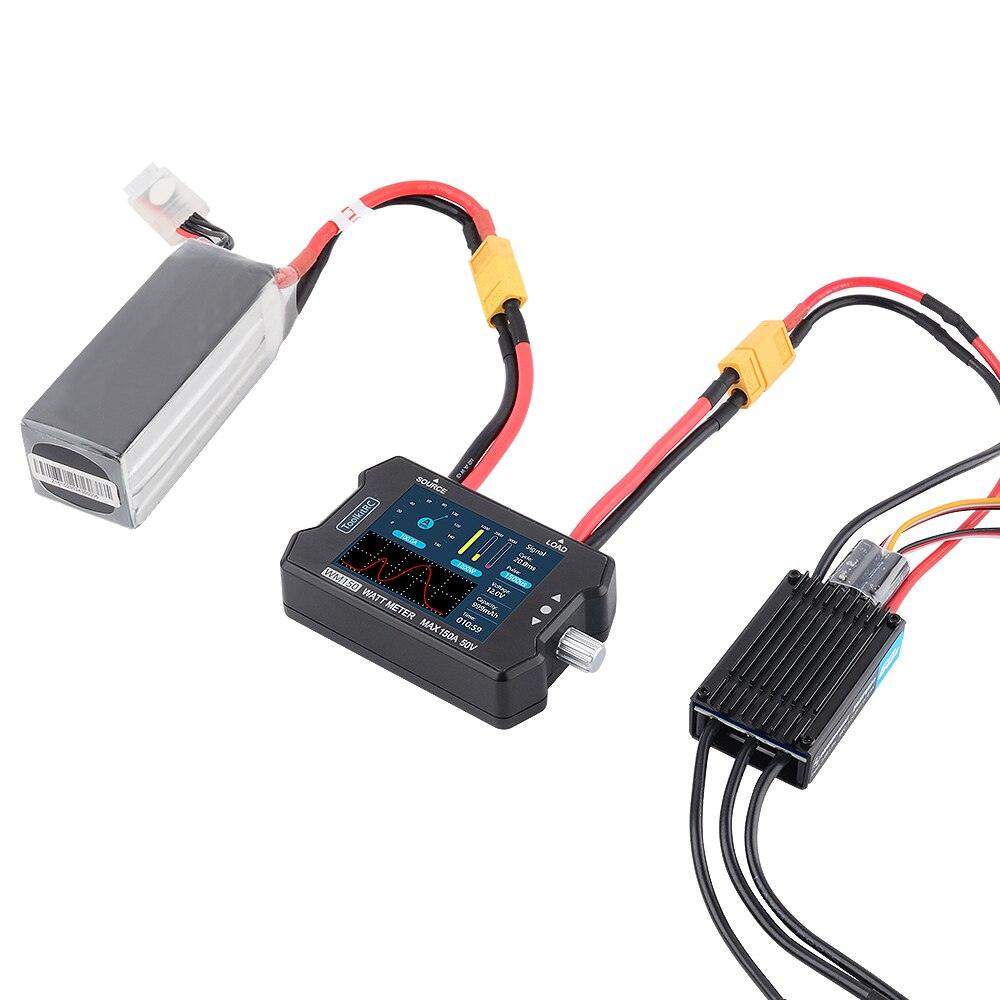

– ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc.
– 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.
– Support PWM signal, 1us precision, the pulse width is changable by adjusting the button.
– Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A.
– The watt meter is also supporting to display working hours.
– USB firmware update, easy to operate.
