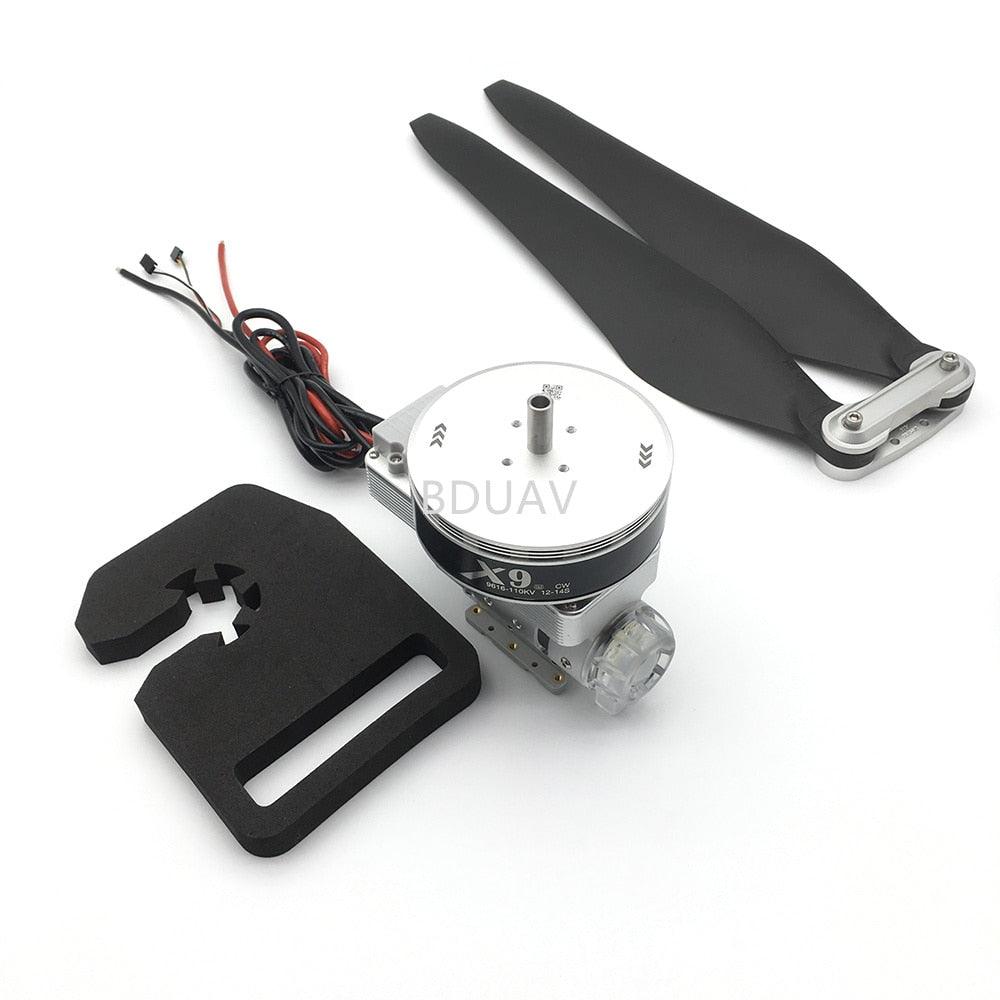

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone

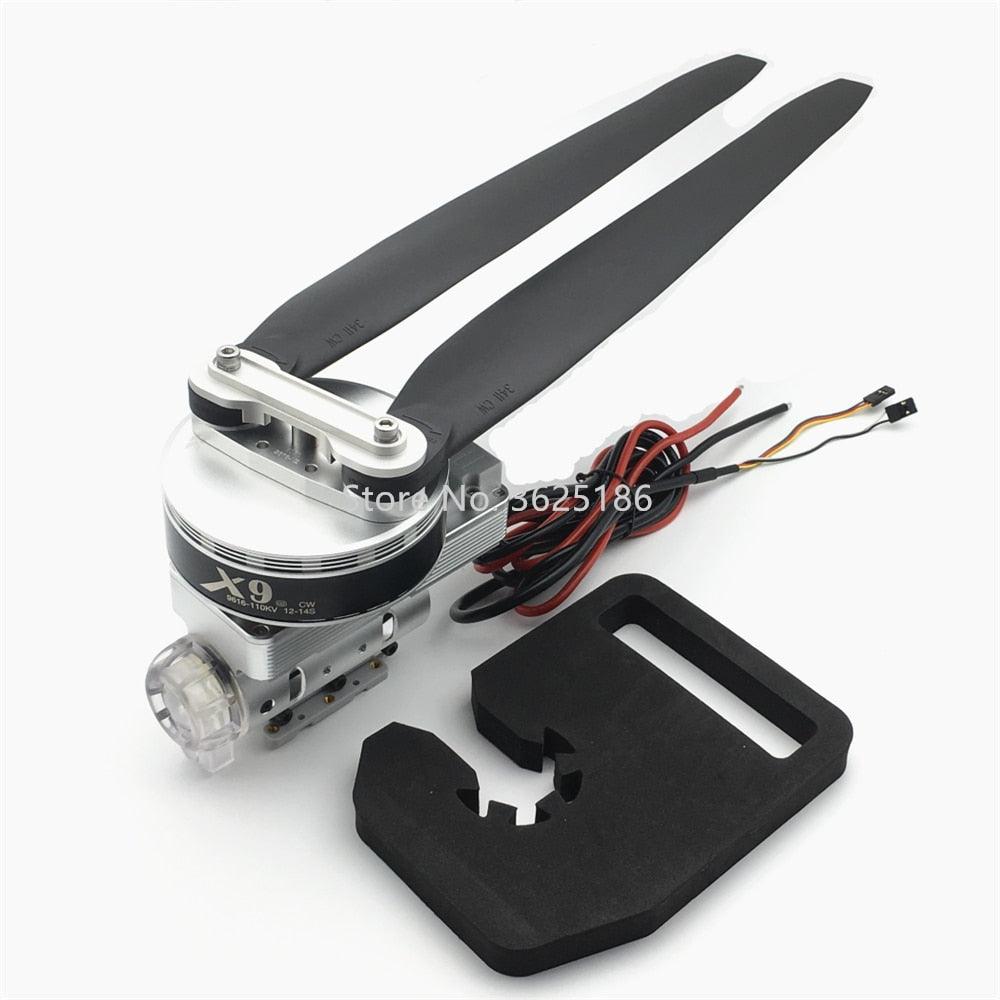

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 2

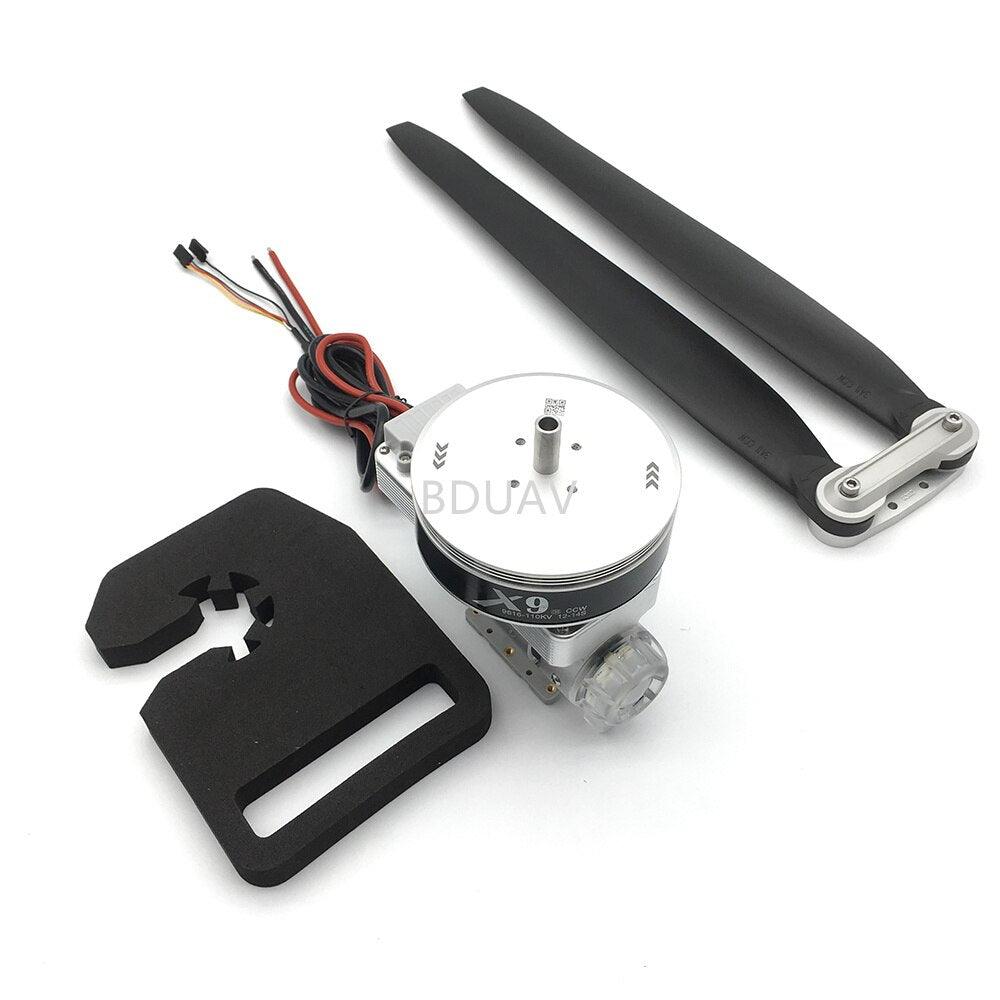

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 3

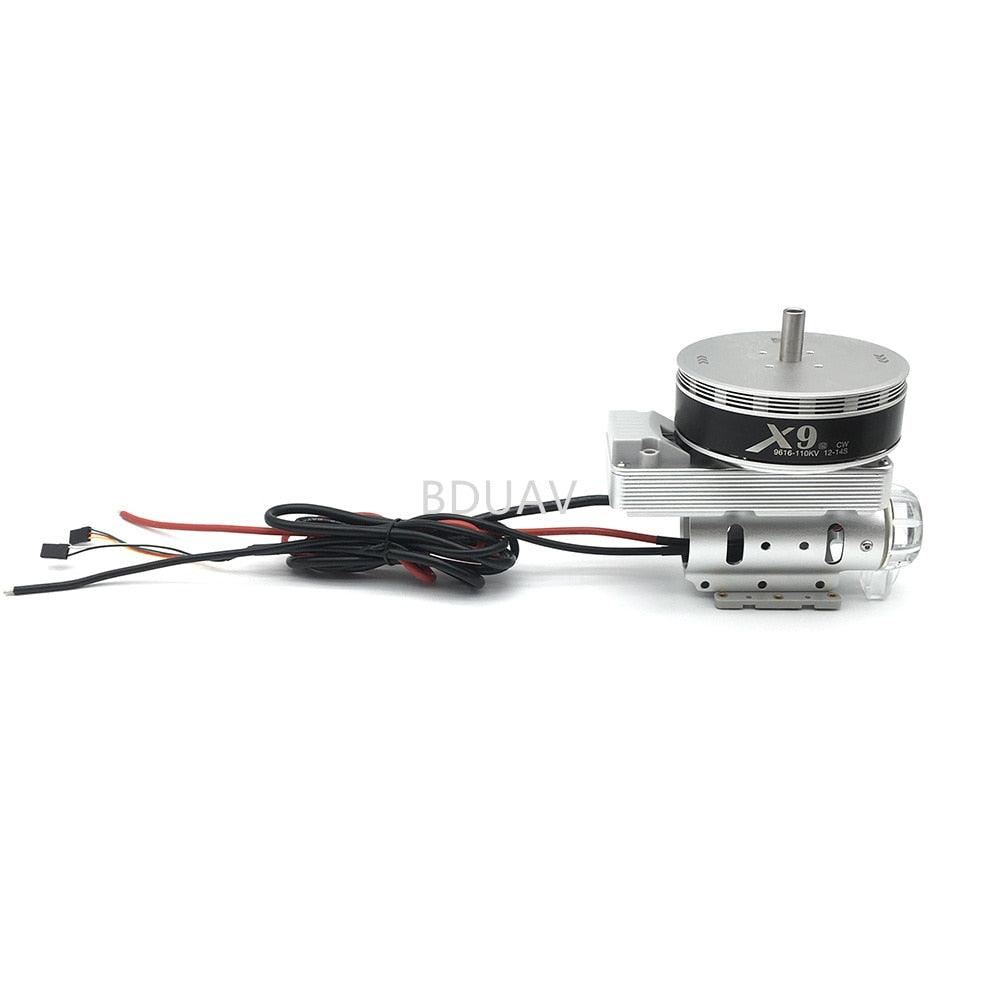

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 4

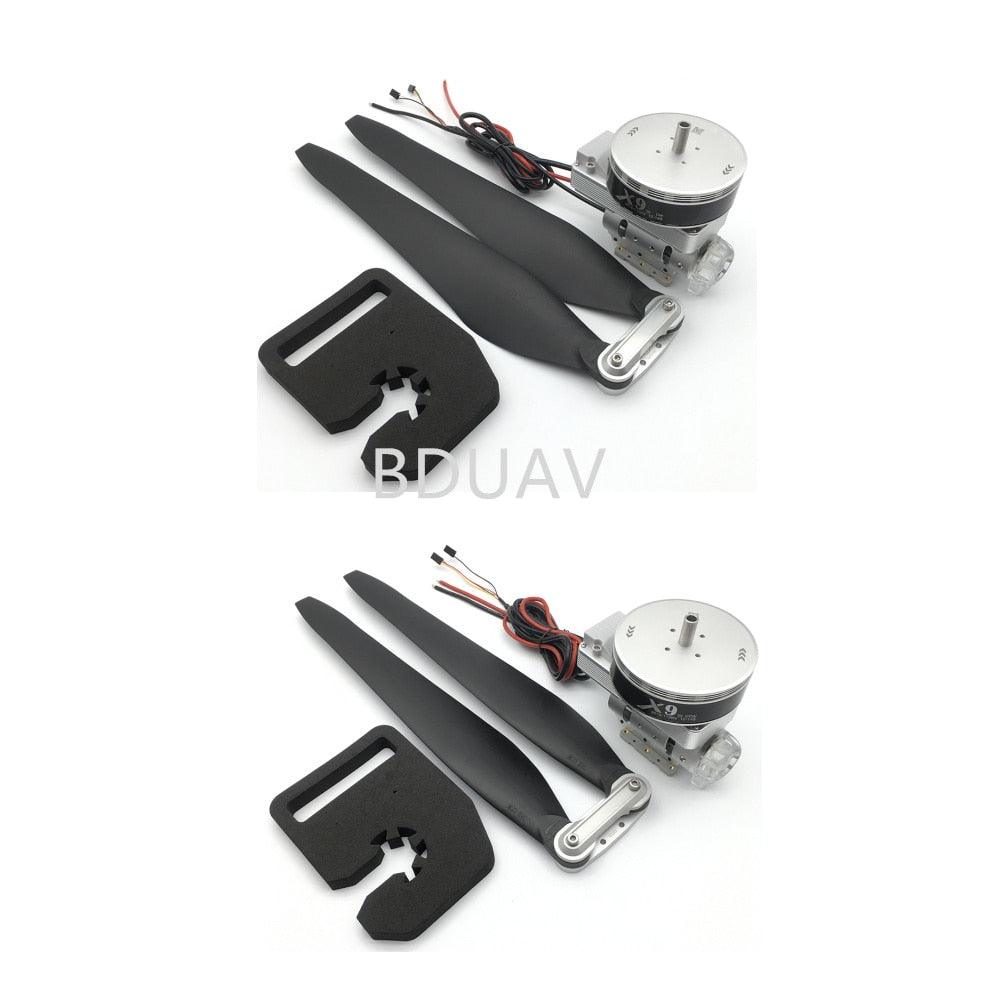

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 5

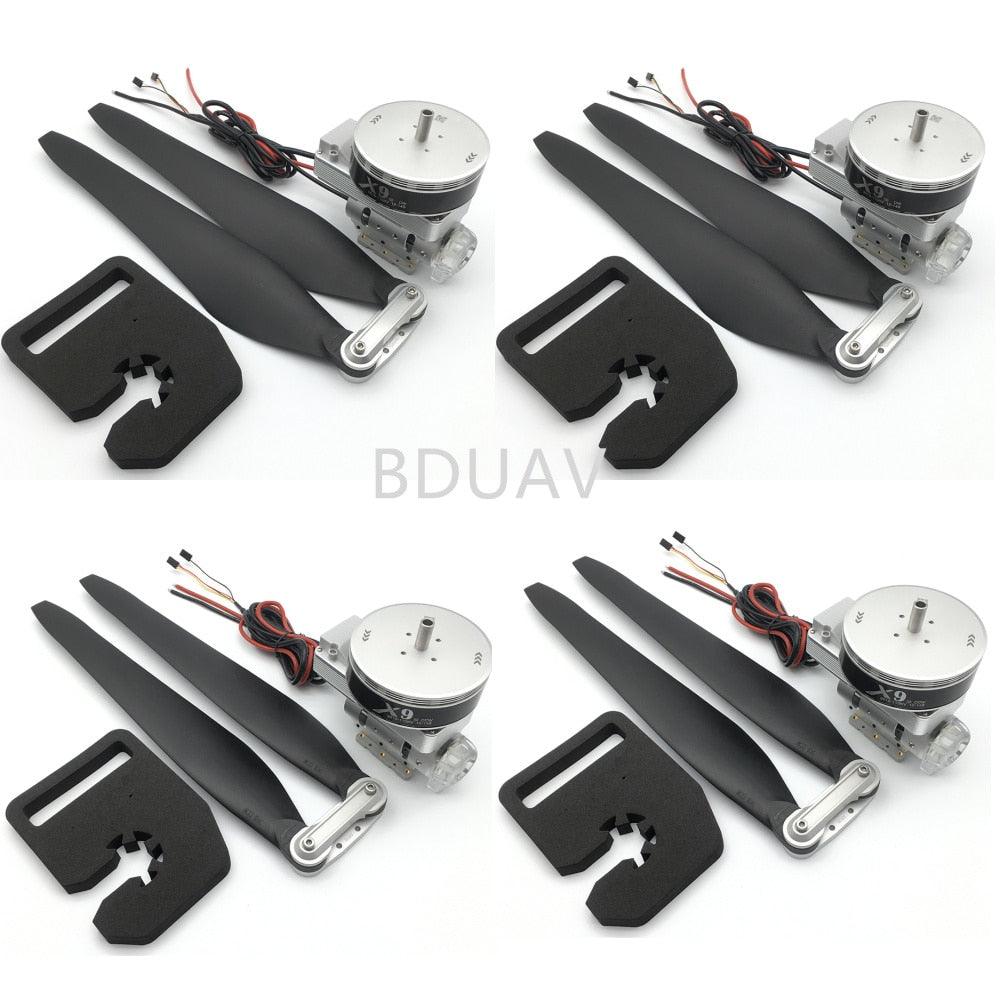

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 6

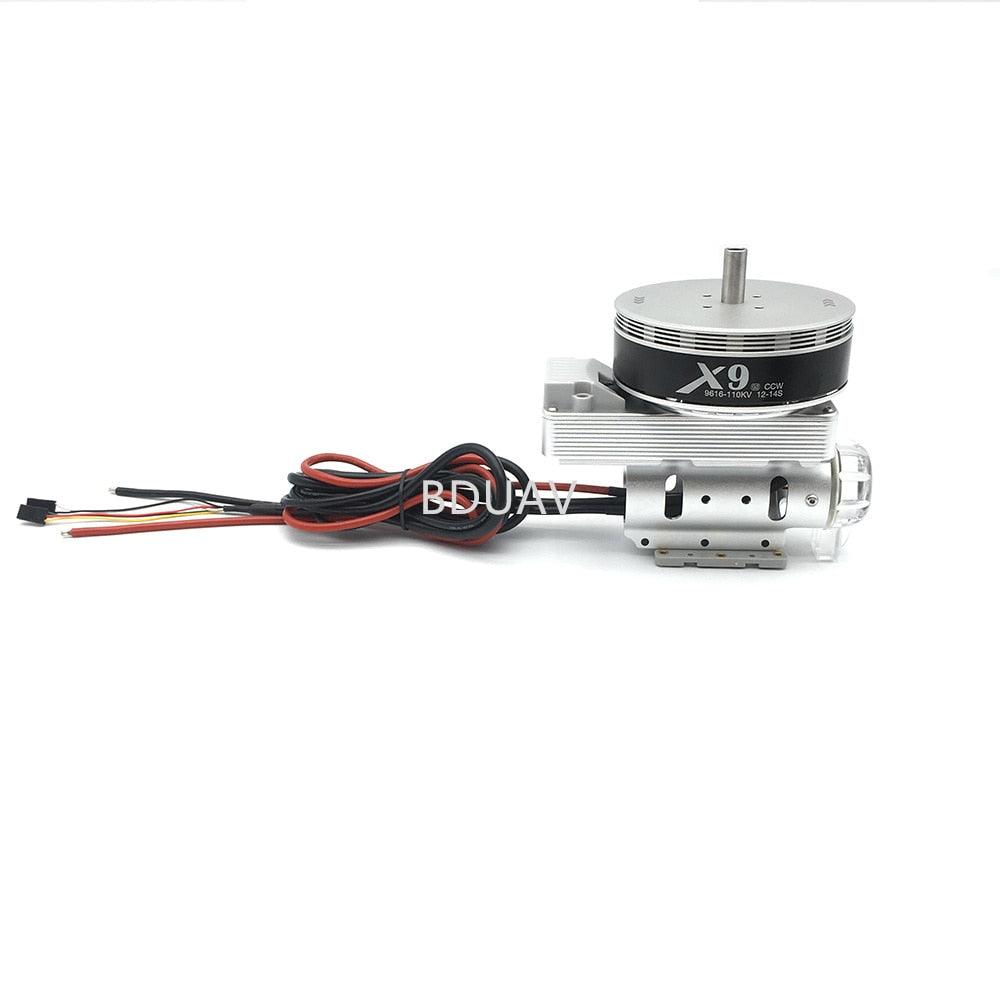

Hobbywing X9 Power System - 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone — изображение 7

Батарея сельскохозяйственного дрона, Двигатель сельскохозяйственного дрона, Двигатель сельскохозяйственного дрона

Hobbywing X9 Power System – 9616 110KV 12-14S with ESC+Propeller+Motor ComBo for 10L16L/22L multirotor Agriculture Drone

Диапазон цен: $206.04 - $920.13

+ Бесплатная доставка

Цвет	X9 Motor ESC CCW X9 Motor ESC CW X9 2CW 2CCW X9 1CW 1CCW X9 CCW 40mm X9 CW 40mm X9 Motor ESC CCWX9 Motor ESC CWX9 2CW 2CCWX9 1CW 1CCWX9 CCW 40mmX9 CW 40mm Очистить

Артикул: Н/Д Категории: Батарея сельскохозяйственного дрона, Двигатель сельскохозяйственного дрона, Двигатель сельскохозяйственного дрона

Запросите дополнительную информацию

Hobbywing X9 Power System SPECIFICATIONS

Колесная база: Винты

Используйте: Транспортные средства и игрушки с дистанционным управлением

Модернизация деталей/аксессуаров: power

Поставки инструментов: Собранный класс

Технические параметры: Значение 2

Размер: x9

Периферийные устройства/устройства дистанционного управления: Двигатель

Рекомендуемый возраст: 12+y

Запчасти и принадлежности RC: Двигатели

Количество: 1 шт.

Происхождение: Материковый Китай

Номер модели: X9

Материал: Металл

Атрибуты полного привода: Моторы

Для типа автомобиля: Самолеты

Dear. There are two versions of this Hobbywing X9 power set. The voltage of the new version is 12-14S. The old version is 6-12S. The new version and the old version cannot be used together. Please pay attention to the distinction. Thank you

Технические характеристики:

Technical Parameters

Maximum pulling force: 21.5KG/axis

Recommended battery: 12S lipo

Recommended takeoff weight (single axis): 7.0-9.5KG

Weight (including propeller) 1450g

Dimensions: 151.2×133.3mm

Двигатель

Stator size: 96x16mm

KV value: 110rpm/V

Internal resistance: 0.031ΩBE

Maximum current: 100A

Motor outer diameter: Φ103.5mm

Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3

Bearing: imported ball bearing (waterproof)

Applicable carbon tube outer diameter: 40mm

ESC

Model: X-rotor/120A-FOC

Battery: 12-14S lipo

PWM input signal level: 3.3V/5V

Working pulse width: 1100μs-1940μs (curing, calibration is not supported)

Maximum allowable voltage: 52.2V

Maximum allowable current (continuous): 120A

Maximum allowable peak current (3 seconds): 150A

BEC: none

propeller:

Diameter / pitch: 34×11 inch

Hobbywing X9 Power System, X93jZI #Rem COMBO-XRotor Pro

Hobbywing X9 Power System Combo – Propulsion System for Multirotor Agriculture Drone, Includes: ESC, Motor, and Propeller (22L, suitable for 10-16L multi-rotors), powered by 12S LiPo battery or compatible with 6-12S Lipo battery, with a maximum weight capacity of 93kg.

Hobbywing X9 Power System, voltage of the new version is 12-14S. Hobbywing X9 Power System, this Hobbywing X9 power set comes in two versions Hobbywing X9 Power System, ESC Model: X-rotor/120A-FOC Battery: 12-14 Hobbywing X9 Power System, 362 m acs #s #0 i% ias

Hobbywing X9 Power System SPECIFICATIONS Wheelbase : Screws Hobbywing X9 Power System, Please pay attention to the distinction Hobbywing X9 Power System, 362 m acs #s #0 i% ias Hobbywing X9 Power System - 9616 110KV 12-14S with Hobbywing X9 Power System, x9 9616-TTOKvO,2cC X9 Hobbywing X9 Power System, this Hobbywing X9 power set comes in two versions Hobbywing X9 Power System, ESC Model: X-rotor/120A-FOC Battery: 12-14 Hobbywing X9 Power System, the new version and the old version cannot be used together Hobbywing X9 Power System, 362 m acs #s #0 i% ias Hobbywing X9 Power System, Please pay attention to the distinction

Hobbywing X9 Power System, 362 m acs #s #0 i% ias Hobbywing X9 Power System, the new version and the old version cannot be used together Hobbywing X9 Power System, this Hobbywing X9 power set comes in two versions Hobbywing X9 Power System -

store no. 3625186 mjj u+c 1 8 cloovtzeoozozsl

Hobbywing X9 Power System, the new version and the old version cannot be used together Hobbywing X9 Power System SPECIFICATIONS Wheelbase : Screws Hobbywing X9 Power System - 9616 110KV 12-14S with

Hobbywing X9 Power System, this Hobbywing X9 power set comes in two versions

store no; 362 m acs #s #0 i% ias eeweight:80.7g ‘ n

Цвет	X9 Motor ESC CCW, X9 Motor ESC CW, X9 2CW 2CCW, X9 1CW 1CCW, X9 CCW 40mm, X9 CW 40mm
