X-UAV Talon EPO 1718mm SPECIFICATIONS
Разрешение видеозахвата: Другие
Тип: Airplane
Штат Ассамблеи: Почти готово
Удаленное расстояние: 10km
Пульт дистанционного управления: Да
Рекомендуемый возраст: 12+y
Источник питания: Электрический
Тип вилки: T
В комплект входит: Оригинальная коробка
Происхождение: Материковый Китай
Уровень квалификации оператора: Эксперт
Номер модели: Talon UAV 1720mm FPV plane
Материал: Foam
Внутреннее/наружное использование: Outdoor
Время полета: When flown properly the plane can have more than 1 hour of flight time
Характеристики: Другие
Размеры: 300x200x100
Режим контроллера: MODE2,MODE1
Батарея контроллера: 3S/4S
Каналы управления: 12 каналов и выше
Напряжение зарядки: 12
Время зарядки: 3
Тип крепления камеры: Другие
Аэрофотосъемка: Нет

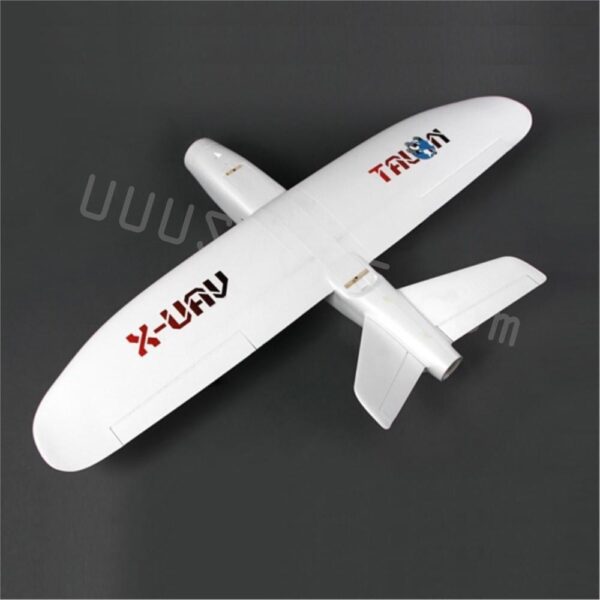

X-UAV Talon EPO 1718mm Wingspan V-tail white version FPV flying Glider RC Model Airplane
From the video,tester fly about 20km,Where can buy FPV Equipment like the video?
Please find from our store.
X-UAV Talon EPO 1718mm Wingspan V-tail white version FPV flying Glider RC Model Airplane
The Talon FPV V-tail Drone is an all EPO moulded airframe. The kit comes un-assembled with EPO

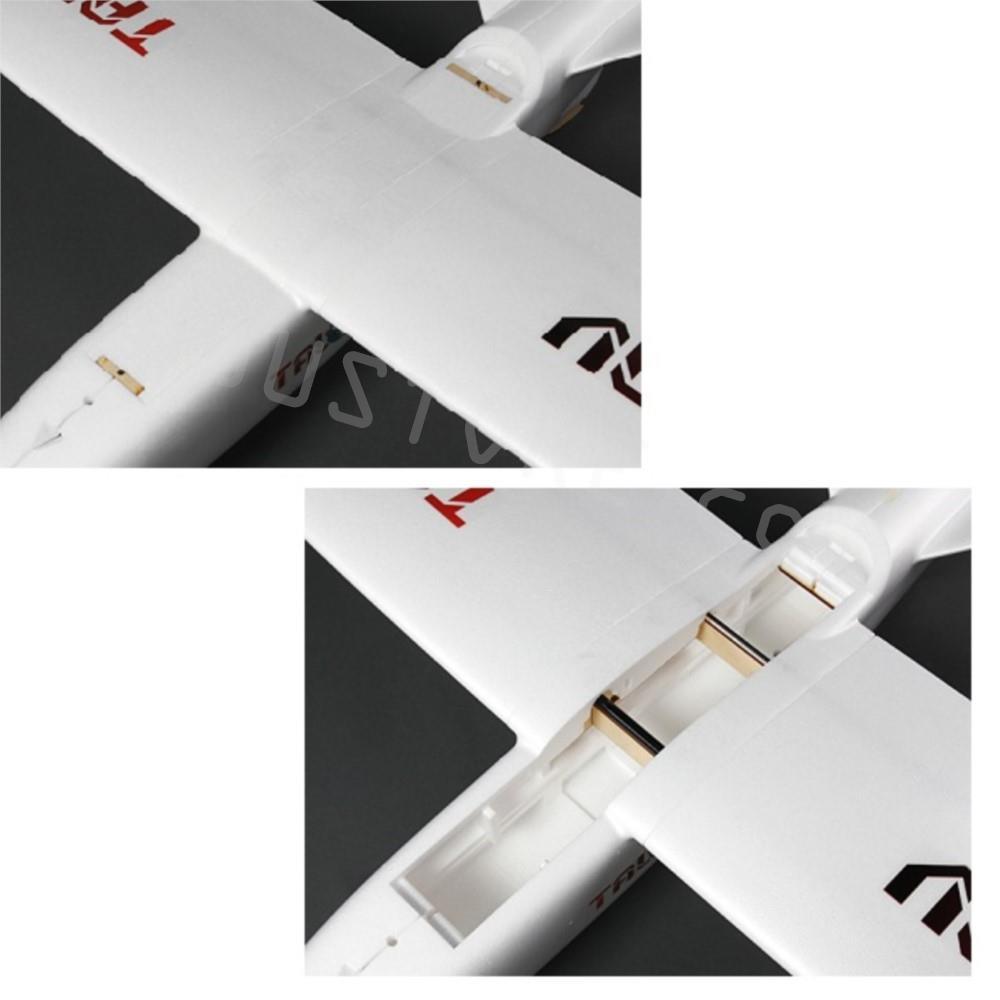

and laser cut plywood parts. This version 2 of the Talon has strengthened plywood wing saddle carbon support parts, and additional plywood pieces for easier FPV equipment mounting. Less guess work on your part. Also, the front wheel plywood mount has been strengthened to survive less than perfect arrivals better.
With a 4S 14.8V 10,000mAh LiPoly battery, flight times are long, and wing loading still low thanks to the generous wing area of the Talon. A generous fuselage compartment with large top hatch and removable nose bubble allows you to access your FPV equipment and flight battery in any configuration you choose. It is an open canvas for your FPV needs.




TALON Faxig PRODUCT PARAMETER Wingspan: 1718mm Lenath: 54.Sd m MIN: 10id P0 Unni BRAND: Xav/ Aar NAME: EM K# TALOVG;-MATERIAL EPO MOTOR: 3720KV-1200 ESC 60A SERVO: 2*96+2*176 PADDLE: 9*4.SIND BATTERY: 4S


Описание:
Brand:X-uav
Item:Talon RC Kit V3
Material:EPO
Wingspan:1718mm
Длина:1100 мм
FlyingWeight:2500~3000g
WingArea:60dm
Wingload:55~66g/dm
Recommend Drive System:
Drive System: 2820 or 3520 motor
Thrust Force:3000g
ESC:60A-70A
Servo: 2*9g 2*17g servos
Propeller:≤12in
Battery:14.8V, 4S 10000MAH Li-polymer
Control system:FS-TH9X+R9B Transmitte
Особенности:
– Kit – All assembly and equipment installation required
– Moulded EPO airframe
– Laser cut plywood motor mount and wing saddle frame
– Version 2 Talon features strengthened ply parts and improved equipment mounting options
– Removable nose bubble for quick access to camera equipement.
– Large fuselage compartment accomodates many battery and FPV equipement configurations.
– Two Piece plug-in wings with carbon wing tube
– Detachable outrigger wheels
Note: Kit only, does not include motor/ESC/Servos
