• The iFlight BumbleBee HD V3 BNF features the amazingCaddx Polar Vista Digital HD System which makes flying truly breathtaking.

• The whole frame was reduced to a minimum size and weight. We came up with a 145mm diagonal motor distance for our new V3 to fit the Caddx Unit inside.

• But there’s much more this time. NEW motor size and NEW software engineered ducts to increase power and decrease noise. Yeah, you heard right! FINALLY a CineWhoop without that high pitch noise waking up the last sleeping dogs in your whole neighborhood….

• No broken PLA Ducts anymore! Brand new lightweight Polycarbonate duct profile for minimum disturbance to channel thrust and efficiency.

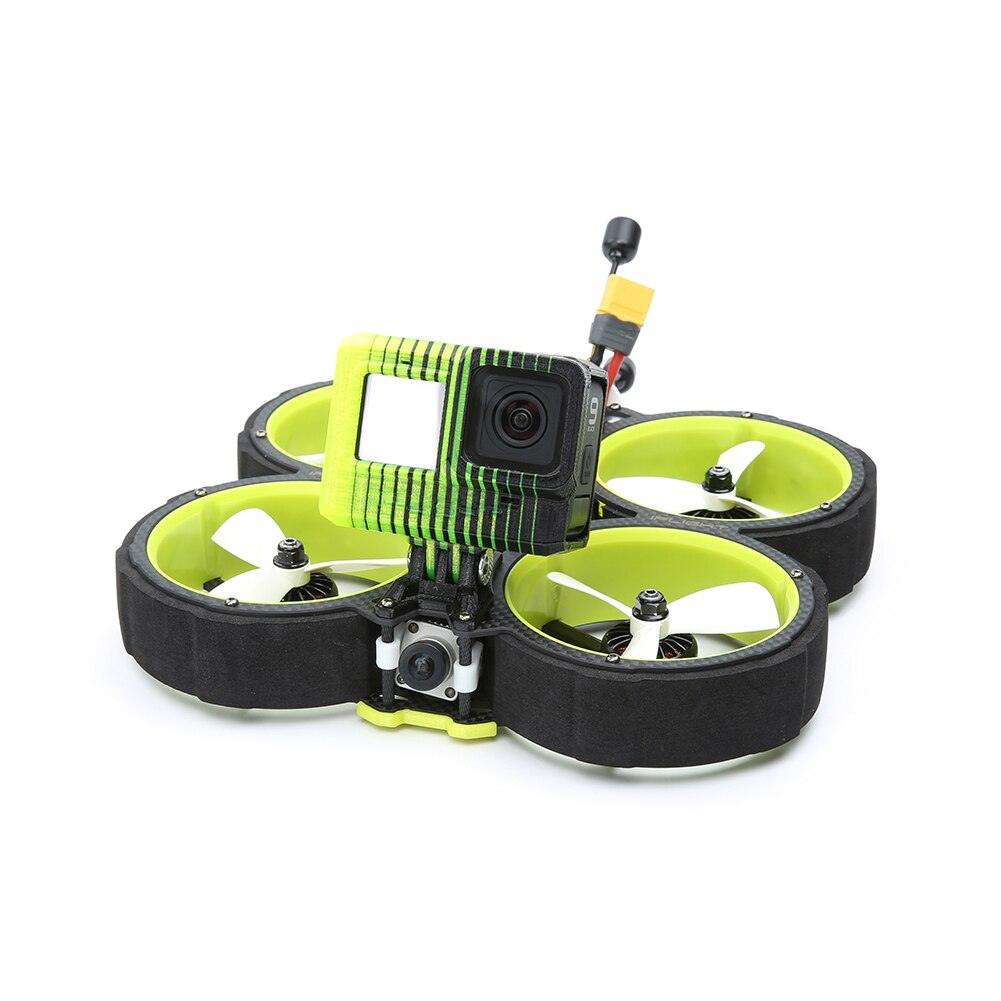

• Small space? Tight gaps? Indoor safety? But you need that 4K? Well, here goes your GoPro!

• There’s always that customer that has this indoor project but just want to get footage in 4K. Here’s the BNF you need to get the job done!

• You have this location you wanna fly in, but no way you’d fly your standard razor blades around you or your friends?

• Do you just love the style and the fact that “props just won’t break that often”? … GO FOR IT!

• R81-SPI Frsky (Compatible W/ Frsky ACCST D8）

Main Changelog from V2 to V3:

• 4S 1408 3600KV upgraded to 2203.5 3600KV(Φ12/M2)

• 6S 1408 2800KV upgraded to 2205 2300KV

• SucceX-A F4 AIO upgraded to Beast F7 55A AIO

• Upgraded polycarbonateducts for less noise and more durability

• Upgraded EVA protectors

Changelog:

• June,2021: Before Beast STD F7 changed to Beast F7 45A AIO.

• July,2021 : Beast F7 45A AIO changed to Beast F7 55A AIO

Особенности:

• Никакого реквизита или рамы в поле зрения!

• High performance True-AIO Board Beast F7 55A to save weight and space

• Карбон качества T700 (прочность на разрыв на 40% выше, чем у обычного карбона 3K)

• Легкая цельная конструкция рамы (меньше гибкости, больше жесткости, больше прочности)

• Низкорезонансная конструкция рамы (меньше желе, больше кинематографических кадров)

• Butter smooth 4S XING 2203.5 3600KV/ 6S2205 2300KVmotors

• Bumper prop guards to protect sensitive environment or yourself

• Предварительная настройка с плавными настройками для фристайла

PRE-TUNED & PRE-SETUP:

• Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

• To restore lost tunes or updates, please check our linked article on“Firmware/Factory Dumps”

• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

• Please check our linked article on“How to disable Angle-Mode, activate Acro-Mode”

• Beast F7 55A BLHeli-S true AIO board

• Motor:4S XING 2203.5 3600KV/ 6S2205 2300KV

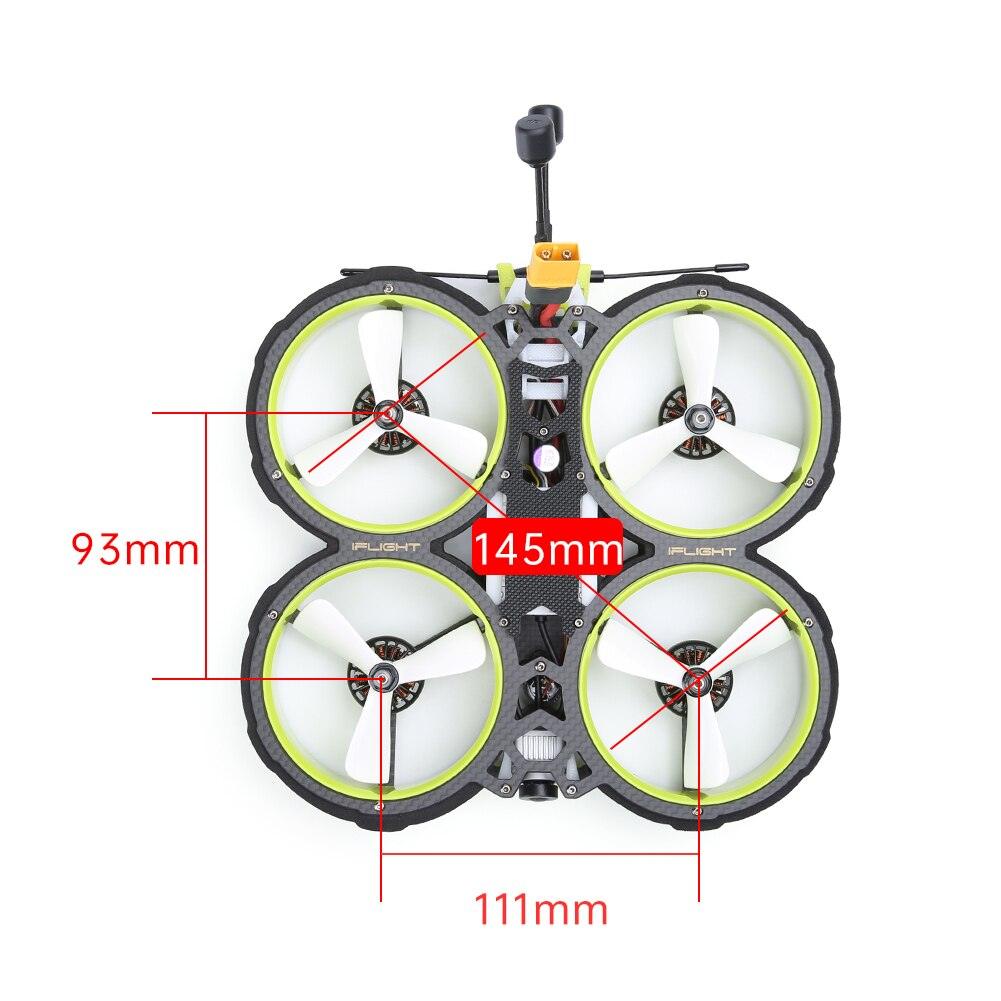

• Wheelbase: 145mm

• Body Size: 111*93mm

• Толщина нижней пластины: 2,5 мм

• Толщина верхней пластины: 2 мм

• Top and bottom plate spacing:27mm(aluminum standoff height)

• Propeller size: 3 inch

• FC pattern: 20*20mm，30.5*30.5mm

• FPV cam spacing: 19mm

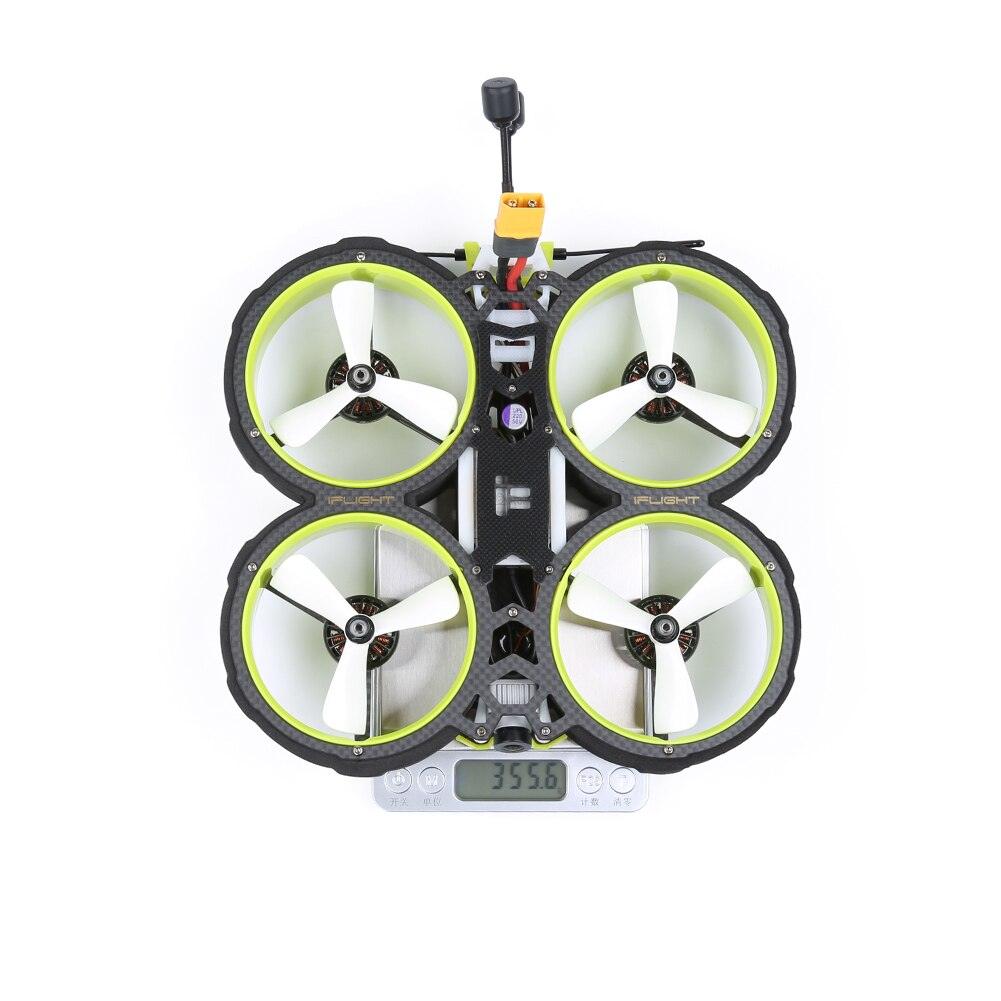

• Weight: 355.6g (without battery)

BumbleBeeHD Quad BNF Included Components and Parts

• предварительно собранный и протестированный квадрокоптер

• 1x BumbleBee HD V3 Frame

• 1xCaddx Polar Vista Digital HD System Kit

• 2xAlbatross LHCP RP-SMA 5.8g antenna

• 1x TPU Bracket for DJI Air Unit Module

• 1x TPU Antenna holder for DJI antenna

• 2x TPU camera side plate soft mount

• 2x Nazgul 3040 propeller (Set of 4 – Color May Vary)

• 2x MMCX to RP-SMA Female Adapter Cable

• 1x iFlight Lipo Strap

Рекомендации по использованию аккумулятора

• Fullsend 4S 95C 1300mAh（5-6 minutes flight time w/GoPro Hero8）

• Fullsend 4S 95C 1550mAh（6-7 minutes flight time w/GoPro Hero8）

• FULLSEND 6S 1050mAh

Additional Suggested Parts

• DJI HD FPV Goggles V2

• Радиоконтроллер

• DJI Remote Controller (Mode 2)

Important

The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.

• Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.

• If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.

• Барометр можно использовать только с Betaflight 4.3.0 и выше!
