Used XAG A20 Brushless Motor SPECIFICATIONS
Используйте: Транспортные средства и игрушки с дистанционным управлением
Рекомендуемый возраст: 14+y
Происхождение: Материковый Китай
Номер модели: A20
Материал: Металл
Сертификация: CE
Название бренда: byyourpower
uissmarqu one earth; one home; we will win the fight ‘together please understand the delay of goods transportatlon’
A20 Brushless Drone motor XAG Agricultural Intelligence engine outer rotor motor For XP2020 PLANT PROTECTION UAV
Motor Condition：All the functions could be work well, Test before shipping
Motor model: A20

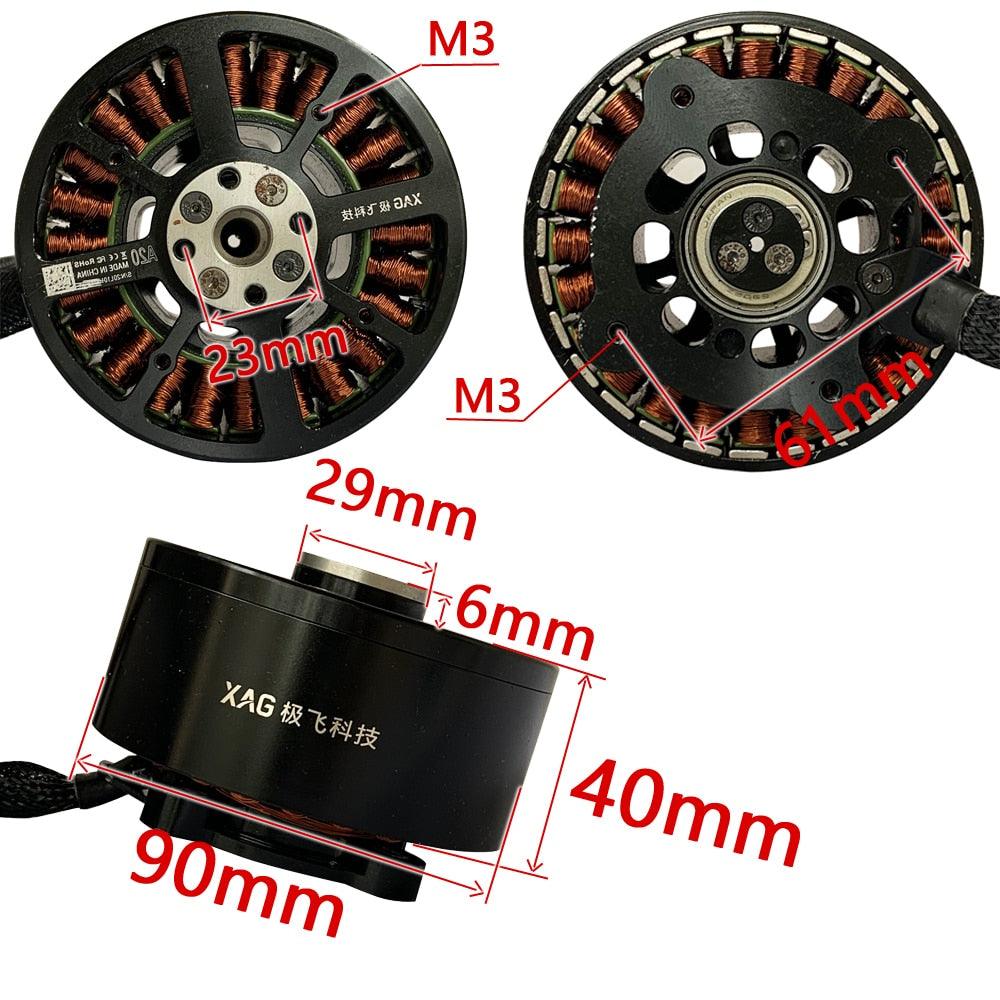

Motor size:90*60mm
Motor weight:1110g
Stator size: 80 × 30 mm
Slots：poles=24：28
KV value: 85 speed/volt
Maximum pulling force (single motor): 22 kg
Rated power (single motor): 1500 watts
Applicable ESC model: VC12100
Maximum continuous working current: 100 A
Maximum working voltage: 56.5 volts (13-cell lithium polymer battery)
Applicable foldable propeller model: P40128
Diameter × pitch: 40 × 12.8 inches
Weight of single blade: 162 grams
Total oar weight: 440 grams
XAG four-axis plant protection drone
Standard take-off weight: 46.62 kg (including battery and fully loaded operation box)
Maximum effective take-off weight: 48 kg (near sea level)
Maximum thrust-to-weight ratio: 1.9
Load ratio: 0.43
Recommended power battery: suitable for B13860S smart battery (when load ≤ 10 kg, compatible with B12800Q/B12620Q/B12800/B12620 smart battery)
Packing include:
one pc A20 motor
