ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Гарантия: —
Внимание: —
Разрешение видеозахвата: Другие
Тип: HELICOPTER
Штат Ассамблеи: Готовые к работе
Дистанционное расстояние: 10km
Пульт дистанционного управления: Да
Рекомендуемый возраст: 12+y
Источник питания: Электрический
Тип вилки: xt30
В комплект входит: Оригинальная коробка
Происхождение: Материковый Китай
Уровень квалификации оператора: Новичкам
Мотор: Бесщеточный двигатель
Номер модели: Happymodel Larva X
Материал: Углеродное волокно
Использование в помещении/на улице: Крытый и открытый
Время полета: —
Размеры: —
Режим контроллера: MODE2
Режим контроллера: MODE1
Батарея контроллера: —
Каналы управления: 8 каналов
Напряжение зарядки: —
Время зарядки: —
Тип крепления камеры: Фиксированное крепление камеры
Аэрофотосъемка: Да

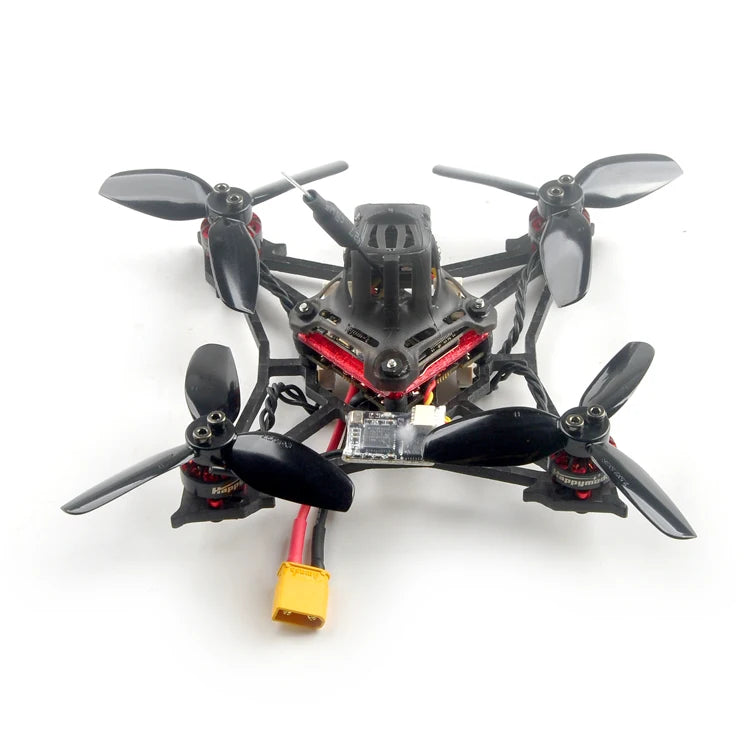

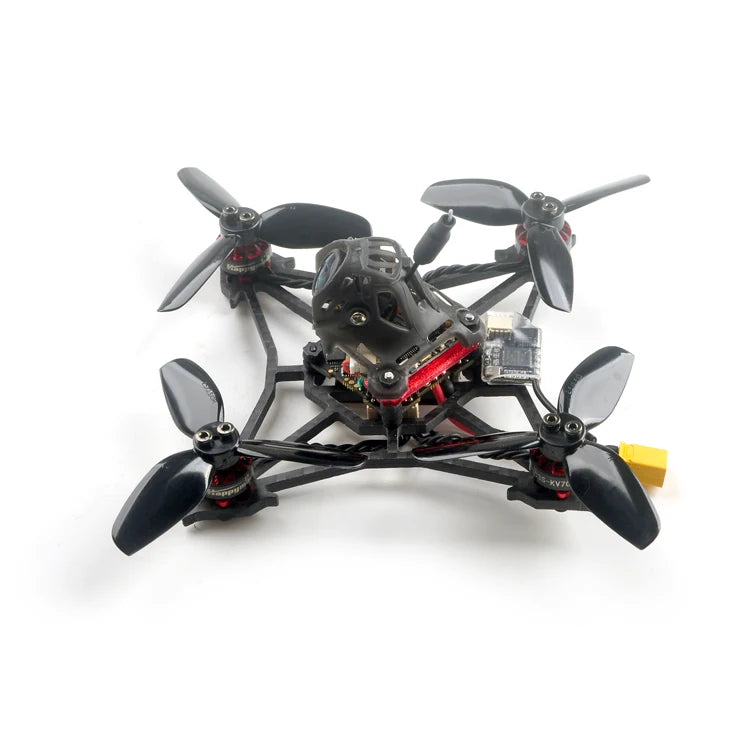

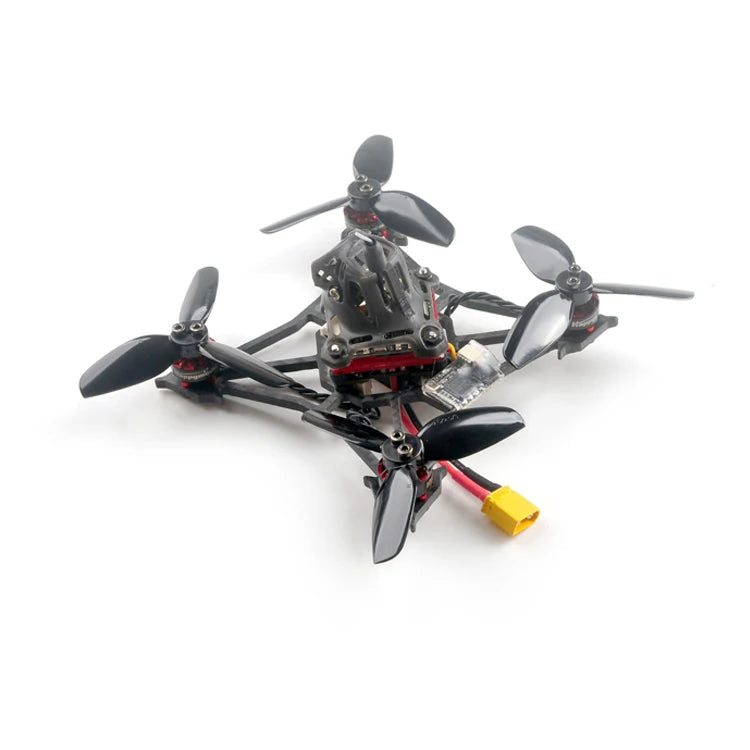

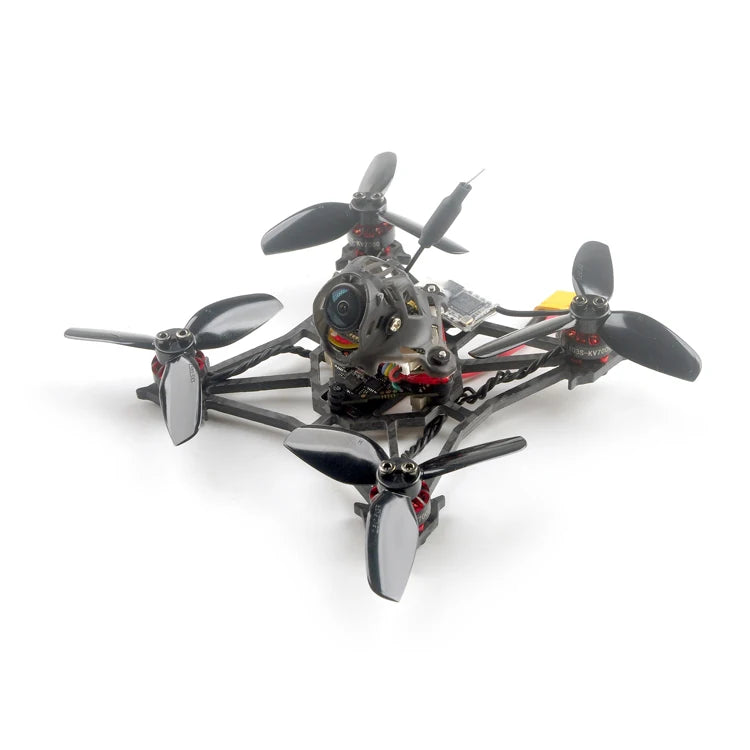

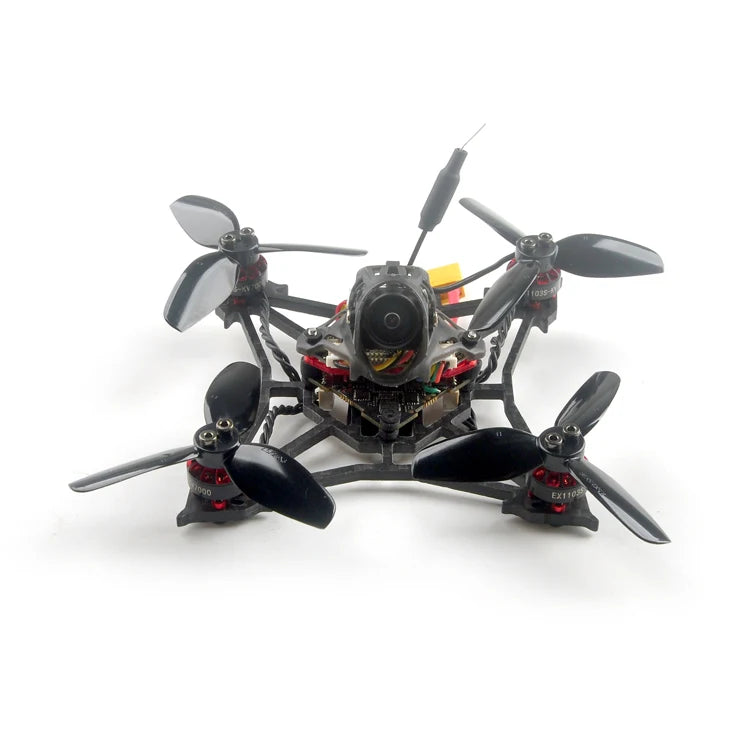

Happymodel Larva X 100mm Crazybee F4 PRO 2-3S 2.5 Inch FPV Racing Drone BNF w/ Runcam Nano2 Camera
Notices: Because Emax can’t provide Avan rush propellers in time,
so will send it w/ HQPROP T2.5*2.5*3 propellers and EMAX Avan rush propellers randomly .
so will send it w/ HQPROP T2.5*2.5*3 propellers and EMAX Avan rush propellers randomly .
Технические характеристики:
Brand Name: Happymodel
Model: Larva X
Item Name: 100mm 2-3S 2.5 Inch FPV Racing Drone
Wheelbase: 100mm
Size: 88x88x45mm (without propellers)

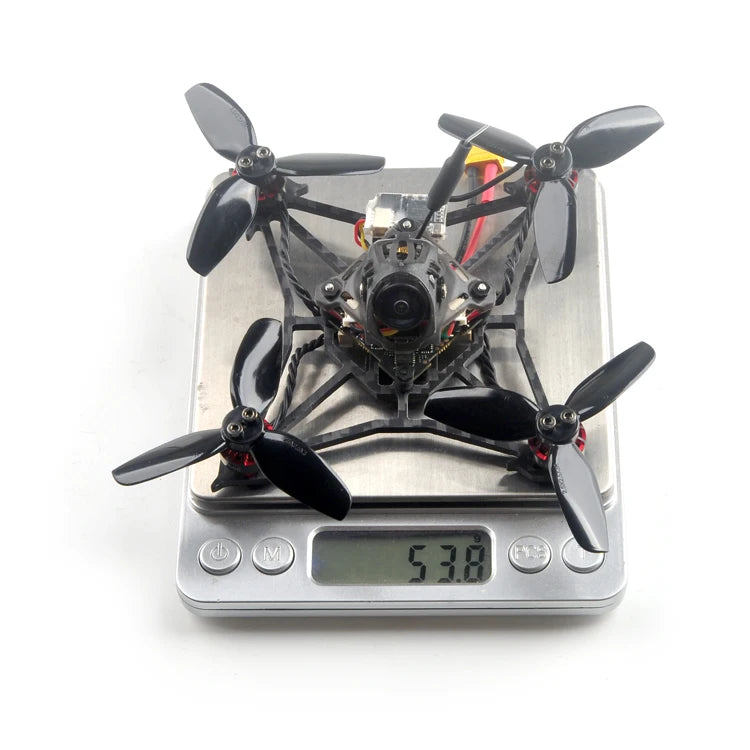

Weight: 50g (without battery)
Drone Version: BNF ( With Receiver & Without Battery)

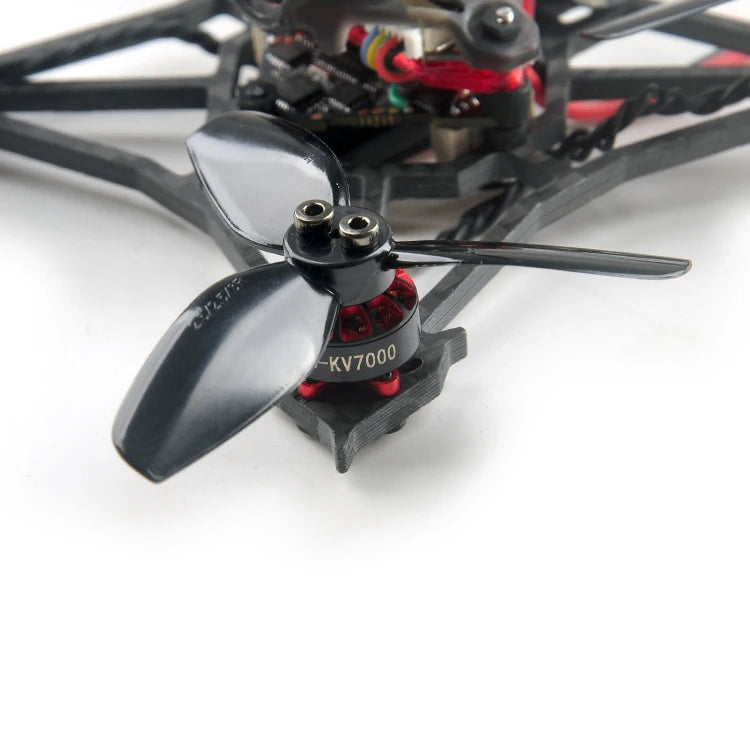

| Happymodel EX1103 7000KV Motor | Mode: EX1103 KV options: KV7000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5x16mm Weight:3.7g |
| Crazybee F4 Pro V3 Flight Controller | (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS (No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Board Size: 28.5x 28.5mm Power Supply: 2-4S battery input (DC 7-17V) Built-in 10A (each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 70A Current meter scale set to 470 Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 10A 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Con. Current: 10A Burst Current: 12A (5S) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_5.HEX Default protocol: DSHOT600 |
| Onboard Frsky D8 Receiver Version ( Internal Frsky NON-EU receiver Version) | SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m |
| Internal Flysky Receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
| External TBS Crossfire Receiver version | CRSF Protocol , Official TBS transmitter compatible |
| External DSMX Receiver version | Frequency range: 2.403-2.479Ghz Input power: 3.3V — 5V Response time: 22ms / 11ms Resolution: 1024/2048 Способ отображения: СВЕТОДИОД Operating voltage: 3.3V Working current: 60MA Size: 18mm*13mm*5mm Weight: 0.9 g Antenna length: 30mm Data format: Serial port Protocol: DSM2/DSMX Distance: no ground interference (1 m from the ground ) more than 300m |
| External Frsky RXSR Receiver version | Weight: 1.5g Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel) Operating Voltage Range: 3.5V~10V Operating Current:70mA@5V Firmware Upgradable Compatibility: FrSky X Series modules and radios in D16 mode Could support Frsky New ACCST Protocol ( Upgrade firmware) |

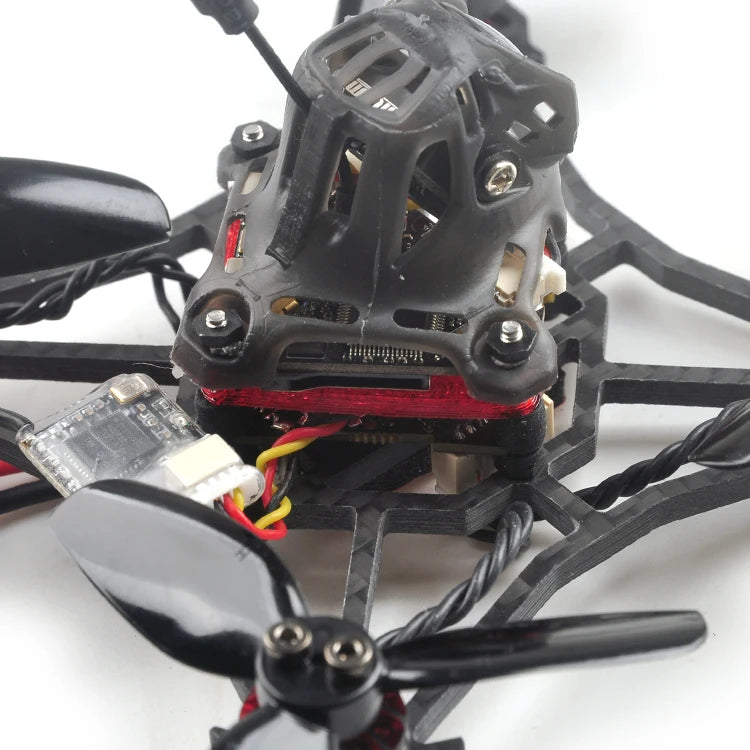

| Happymodel Diamond_VTX | Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 250mA~510mA(type) Antenna: RG178 antenna U.FL interface Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 3g without antenna Video Output Size: VGA (640×480) Video Output format: NTSC Record video size : 1280×720 @25FPS TF Card support: Max.32G Interface: JST SH1.0 3pin for Camera JST SH1.0 5pin for Connect with F3/F4 Flight controller Compress Format: AVI |

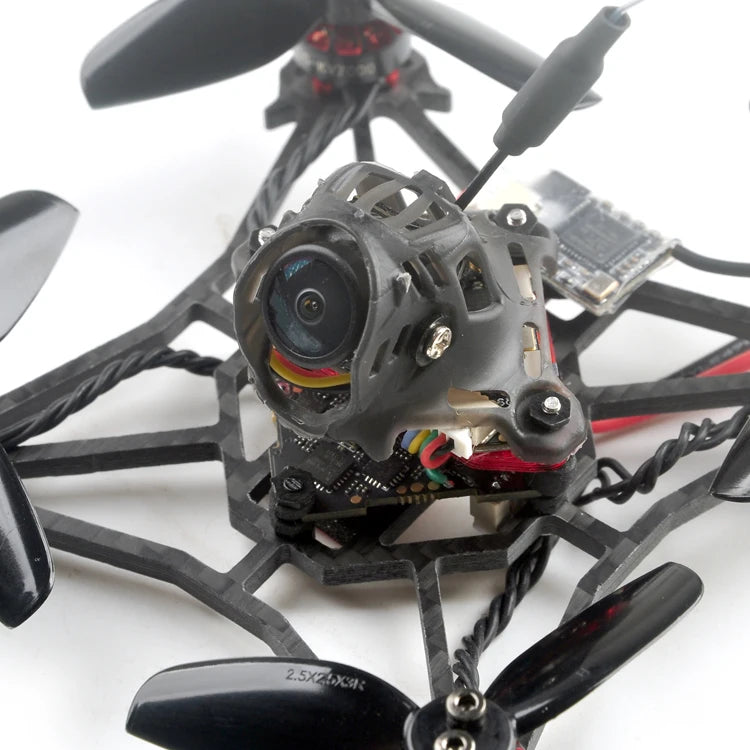

| Runcam NANO2 FPV Camera | Model: Nano 2 Image Sensor: 1/3″ CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Электронная выдержка: Авто Автоматическая регулировка усиления (AGC): Авто Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current : 110mA@5V [email protected] Housing Material: ABS Net Weight: 3.2g Dimensions: 14x14x16mm ( LxWxH) |
| Recommend Lipo Battery ( All Version Don’t Include) | Recommend 2S 450mAh Lipo / 3S 300mAh/350mAh/ 450mAh Lipo Battery |
Особенности:
– New Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
– Powerful and smoothly
– Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
– Camera Angle adjustable
– VTX power switchable 25mw~200mw
– Smartaudio ready , change VTX bands, powers, channels via OSD
– Receiver option: Frsky D8/ Flysky / DSMX / Frsky RXSR/ TBS CRSF
– Diamond VTX Ready
– Compatible both for 2-3S Lipo/LIHV

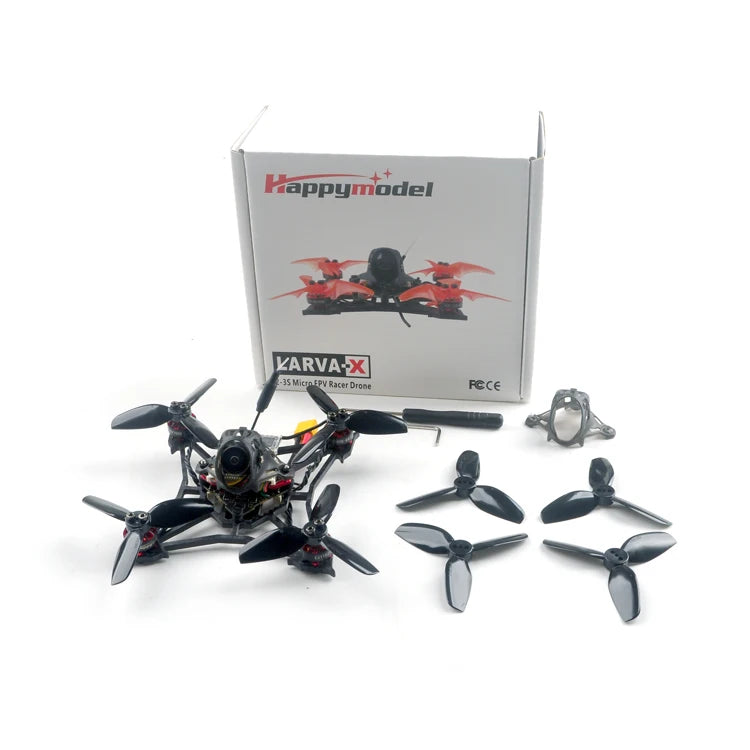

В комплект входят:
1X Larva X frame
1X Option1: Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
Option2: Crazybee F4FS V3.0 PRO FC built-in Flysky RX
Option3: Crazybee F4FS V3.0 PRO FC with DSM2/DSMX RX
Option4: Crazybee F4 V3.0 with external Frsky RXSR receiver
Option5: Crazybee F4 V3.0 with external TBS Crossfire Nano RX
4X 1103 KV7000 motor
4X Micro Avan Rush Propeller 2.5 Inch ( 4 CW & 4 CCW)
1X Runcam Nano2 Camera
1X 5.8G 25-200mW VTX
1X Propeller disassemble tool
1X Screwdriver
If need battery,you can buy it by the link.
