TOPOTEK TP18 is a UAV load system that integrates an 18x optical zoom camera and a 3-axis HDMI output gimbal. The MINI HDMI interface outputs 1080P 60FPS high-definition video, supporting gimbal control and zoom camera control. The gimbal uses a high-precision encoder FOC control scheme, which is characterized by high stability, small size, light weight, and low power consumption. The camera uses a low-illumination sensor with an effective pixel of 4 million, supporting 1080P local TF storage. Built-in camera core TOP-3082.

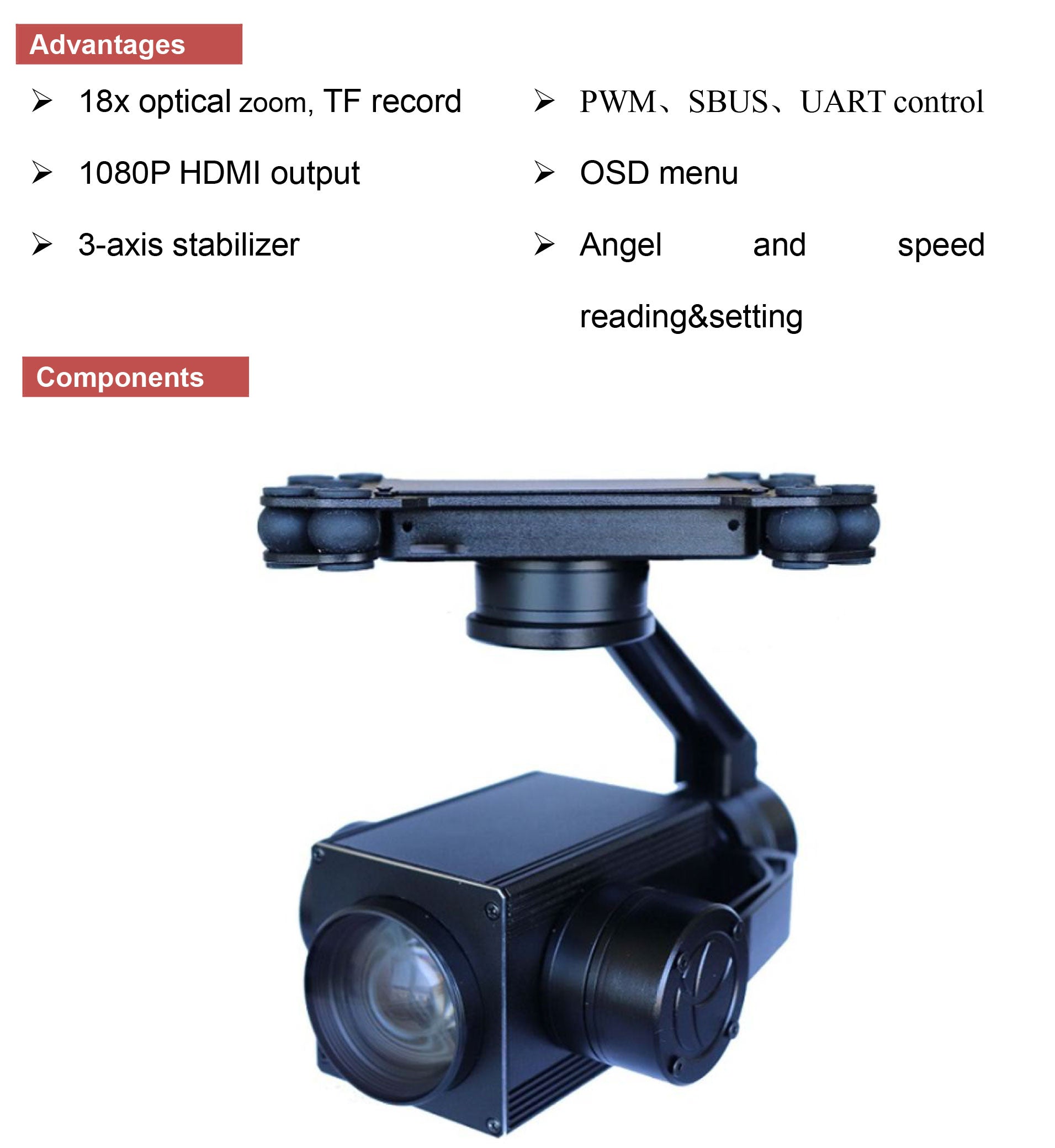

TOPOTEK TP18 Advantages：
- 18x optical zoom, TF record
- 1080P HDMI output
- 3-axis stabilizer
- PWM, SBUS, UART control
- OSD menu
- Support angle and speed reading & setting

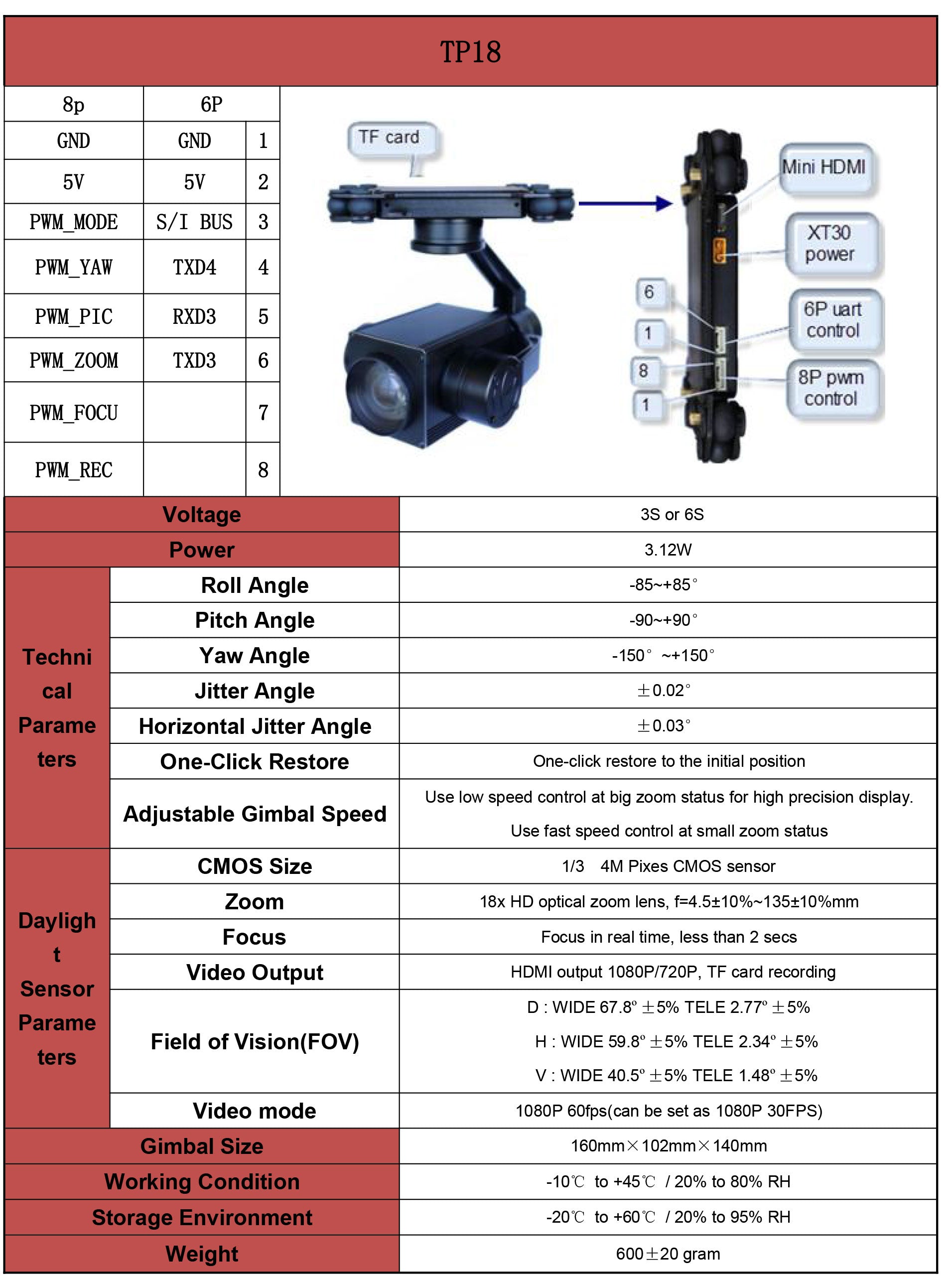

TOPOTEK TP18 Specifications
| Напряжение | 3S or 6S |
|---|---|
| Мощность | 3.12W |
| Technical Parameters | |
| Угол поворота | -85° ~ +85° |
| Угол продольного наклона | -90° ~ +90° |
| Угол рысканья | -150° ~ +150° |
| Угол джиттера | ±0.02° |
| Угол горизонтального джиттера | ±0.03° |
| Восстановление одним кликом | Восстановление исходного положения одним щелчком мыши |
| Регулируемая скорость вращения кардана | Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status |
| Daylight Sensor Parameters | |
| CMOS Size | 1/3 4M Pixels CMOS sensor |
| Zoom | 18x HD optical zoom lens, f=4.5±10%~135±10%mm |
| Фокус | Focus in real time, less than 2 secs |
| Видеовыход | HDMI output 1080P/720P, TF card recording |
| Поле зрения (FOV) | D : WIDE 67.8° ±5% TELE 2.77° ±5% |
| H : WIDE 59.8° ±5% TELE 2.34° ±5% | |
| V : WIDE 40.5° ±5% TELE 1.48° ±5% | |
| Режим видео | 1080P 60fps (can be set as 1080P 30FPS) |
| Размер карданного шарнира | 160mm x 102mm x 140mm |
| Рабочее состояние | -10°C to +45°C / 20% to 80% RH |
| Среда хранения | -20°C до +60°C / 20% до 95% RH |
| Вес | 600 ± 20 gram |
Enjoy the benefits of this drone camera’s 18x optical zoom, TF card recording, PWM and SBUS control, UART setting, 1080P HDMI output with on-screen display menu, and 3-axis stabilizer for smooth footage capture.
