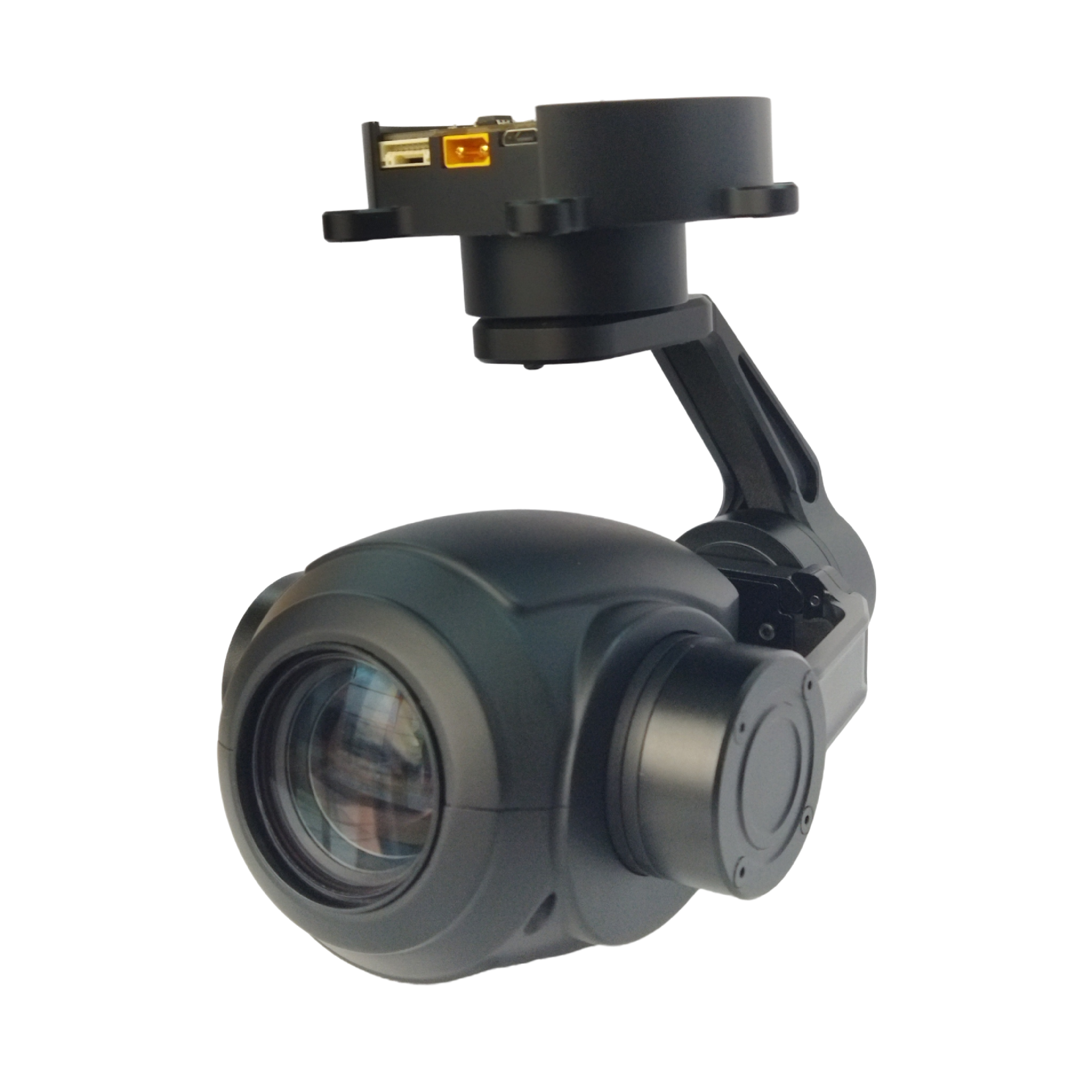

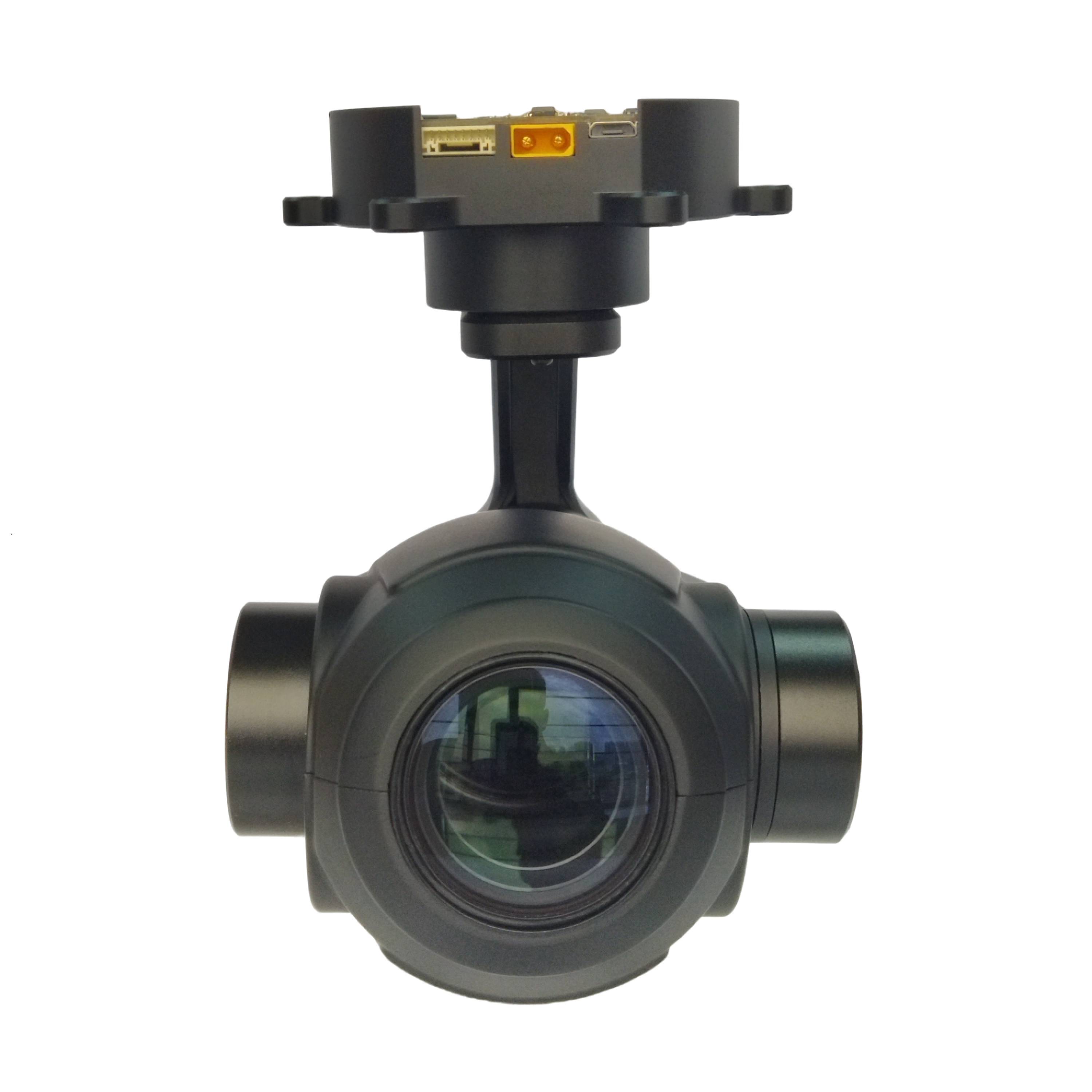

TOPOTEK SIP20S90 is a 20x optical zoom camera with a 3-axis IP net gimbal. It outputs RTSP stream video, video display, and camera & gimbal control via the ground software station. It is stable, lightweight, and has low power consumption. The camera supports 1080p 30fps HD output, a 2M HDR solution, local TF card storage, and dual video stream output via wireless transfer, with IP net support.
TOPOTEK SIP20S90 Advantages:
- 20x zoom camera with TF card recording
- 1080P IP output & control
- 3-axis stabilizer
- 170ms low delay video
- Video & control same link
- Ground software support
TOPOTEK SIP20S90 Specifications
| Параметр | Технические характеристики |
|---|---|
| Напряжение | 3S or 6S |
| Мощность | 7W |
| Technical Parameters | |
| Угол поворота | -85°~+85° |
| Угол продольного наклона | -90°~+90° |
| Угол рысканья | 360 cycle |
| Угол джиттера | ±0.02° |
| Угол горизонтального джиттера | ±0.03° |
| Восстановление одним кликом | Восстановление исходного положения одним щелчком мыши |
| Регулируемая скорость вращения кардана | Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status |
| Режим управления | UART or IP NET control mode |
| Daylight Sensor Parameters | |
| CMOS Size | 1/2.8 2M Pixels CMOS sensor |
| Zoom | 20x HD optical zoom lens, f=4.7±10%~94±10%mm |
| Фокус | Focus in real time, less than 2 secs |
| Видеовыход | IP NET RTSP 1080P 480P stream, Local TF 1080P record |
| Поле зрения (FOV) | D: WIDE 72°±5% TELE 3.8°±5% <br> H: WIDE 55.5°±5% TELE 3.0°±5% <br> V: WIDE 43°±5% TELE 2.2°±5% |
| Режим видео | 1080P 30fps / 480P 30fps |
| Wireless Video & Data (Optional) | |
| Частота работы | 806~826MHz |
| Мощность и расстояние беспроводной связи | 25 дБм 10 Км |
| Command Mode | IP & UART command |
| Размер карданного шарнира | 140mm x 162mm x 144mm |
| Рабочее состояние | -10°C to +50°C / 20% to 80% RH |
| Среда хранения | -20°C до +60°C / 20% до 95% RH |
| Вес | 635g±10g |
Features include a 20x optical zoom camera, TF card recording, and low latency video at 170ms. The 1080P IP output allows for remote control and monitoring via a single link. A 3-axis stabilizer ensures smooth footage, while ground software support provides additional delay compensation.
