TOPOTEK KHY10S90 is a drone gimbal system integrated with 10x optical zoom, 9x digital zoom, and 3-axis stabilized PTZ. It adopts IP/HDMI dual output. The PTZ adopts a high-precision encoder FOC control scheme, which is characterized by high stability, small volume, light weight, and low power consumption. The camera adopts a CMOS SENSOR with 2 mega effective pixels and supports 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and support local TF storage.
Характеристика：
- 10x optical zoom
- 1080P resolution, TF card storage
- HDMI/IP dual output
- 170ms low delay RTSP output
- TF card recording, IP reading & writing
- Multiple control modes
- Ground station display & control
- Light weight gimbal, 396g
- 3-axis stabilizer

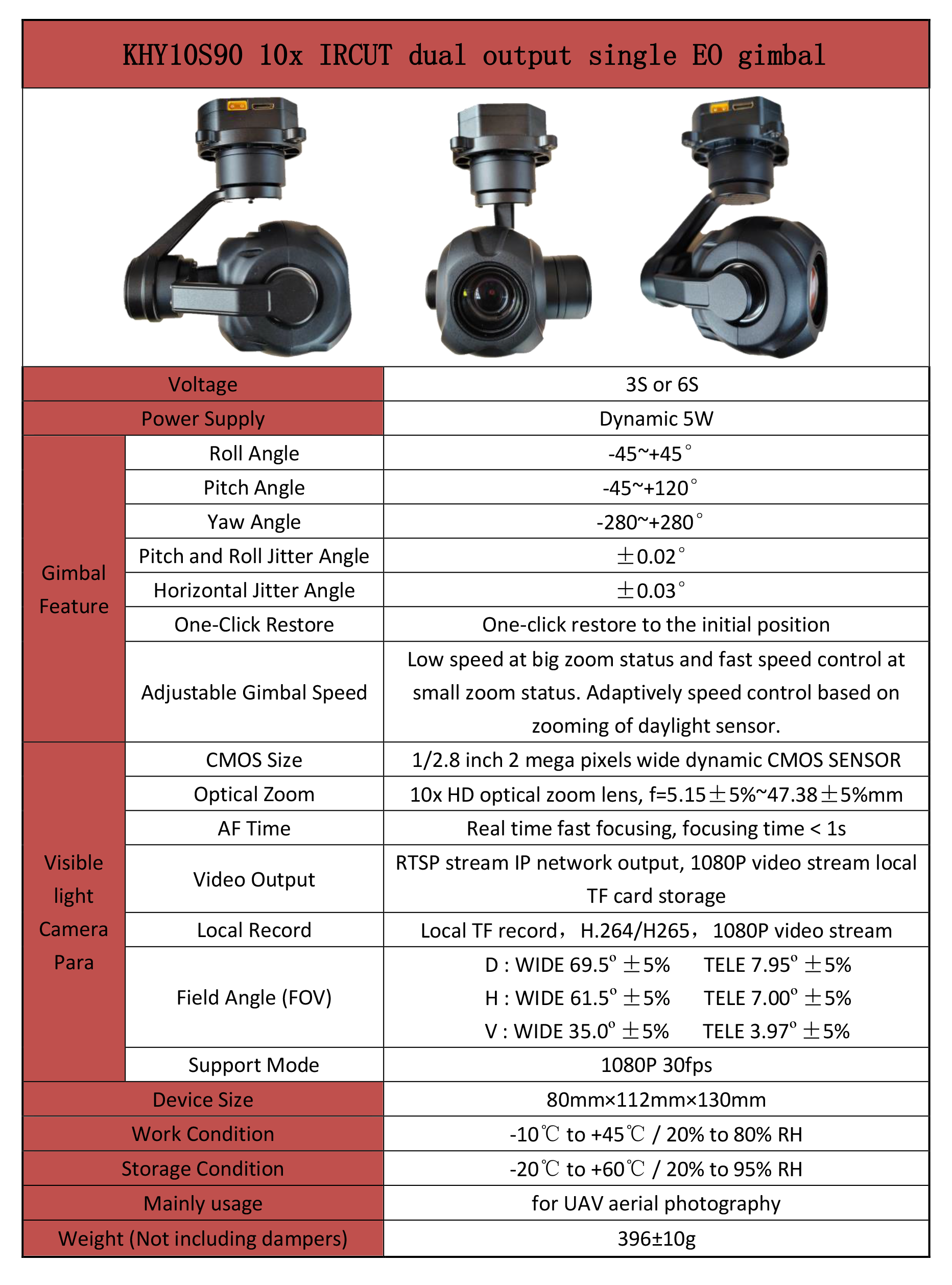

TOPOTEK KHY10S90 Specifications
| Напряжение | 3S or 6S |
|---|---|
| Источник питания | Dynamic 5W |
| Gimbal Feature | |
| Угол поворота | -45° ~ +45° |
| Угол продольного наклона | -45° ~ +120° |
| Угол рысканья | -280° ~ +280° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Угол горизонтального джиттера | ±0.03° |
| Восстановление одним кликом | Восстановление исходного положения одним щелчком мыши |
| Регулируемая скорость вращения кардана | Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
| Visible light Camera Para | |
| CMOS Size | 1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR |
| Optical Zoom | 10x HD optical zoom lens, f=5.15±5%~47.38±5%mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Видеовыход | RTSP stream IP network output, 1080P video stream local TF card storage |
| Local Record | Local TF record, H.264/H265, 1080P video stream |
| Field Angle (FOV) | D : WIDE 69.5° ±5% TELE 7.95° ±5% |
| H : WIDE 61.5° ±5% TELE 7.00° ±5% | |
| V : WIDE 35.0° ±5% TELE 3.97° ±5% | |
| Support Mode | 1080P 30fps |
| Device Size | 80mm x 112mm x 130mm |
| Work Condition | -10°C to +45°C / 20% to 80% RH |
| Storage Condition | -20°C до +60°C / 20% до 95% RH |
| Mainly usage | for UAV aerial photography |
| Weight (Not including dampers) | 396g ±10g |
Featuring a robust system structure with 3-axis gimbal control, this drone camera offers 10x optical zoom capabilities for precise movements in yaw, roll, and pitch directions.
