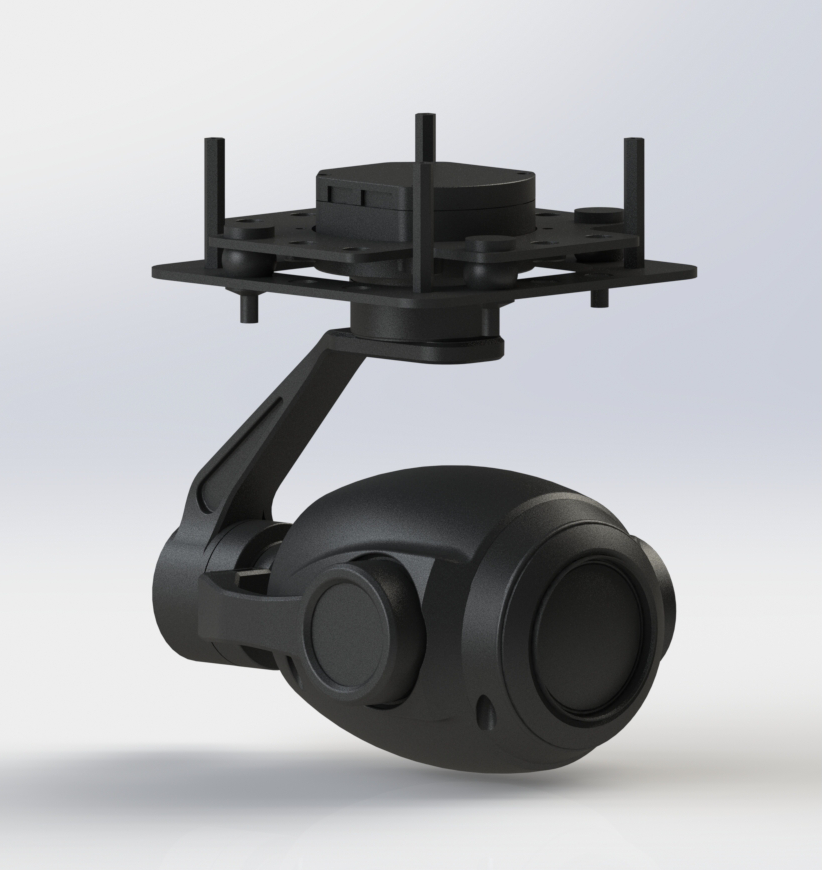

TOPOTEK KHP20S4K is a drone gimbal integrated 20x optical zoom, 9x digital zoom, 4K solution, and 3-axis stabilized PTZ. It adopts HDMI/IP dual output. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight, and low power consumption. The camera adopts CMOS SENSOR with 8 mega effective pixels; Supports 4K and 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and support local TF storage.
Характеристика：
- 20x optical and 4K resolution
- 4K 1080P resolution, TF card storage
- HDMI/IP dual output
- 170ms low delay RTSP output
- TF card recording, IP reading & writing
- Multiple control modes
- Ground station display & control
- Light weight gimbal, 378g
- 3-axis stabilizer

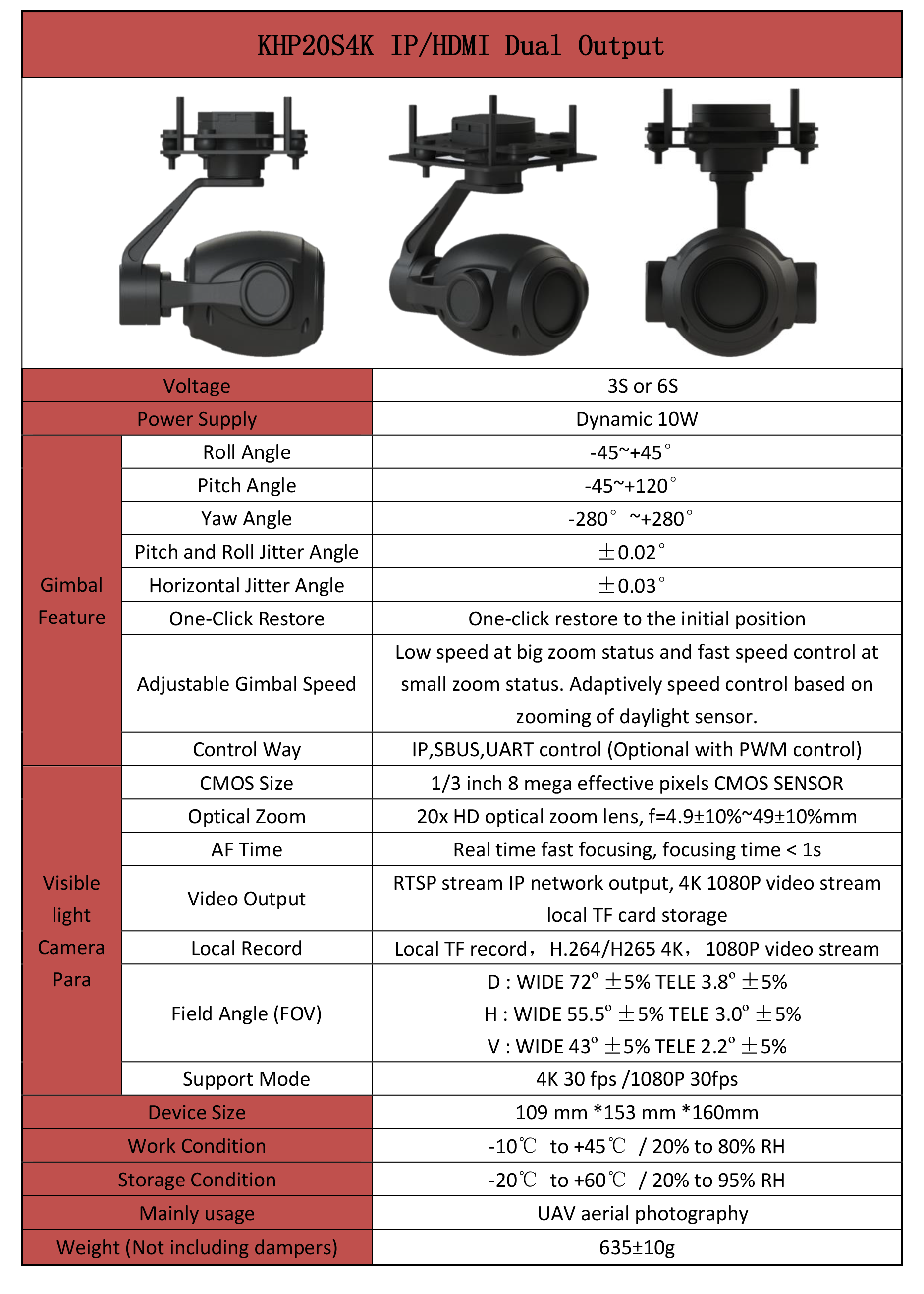

TOPOTEK KHP20S4K Gimbal Camera Specifications
| Напряжение | 3S or 6S |
|---|---|
| Источник питания | Динамический 10 Вт |
| Gimbal Feature | |
| Угол поворота | -45° ~ +45° |
| Угол продольного наклона | -45° ~ +120° |
| Угол рысканья | -280° ~ +280° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Угол горизонтального джиттера | ±0.03° |
| Восстановление одним кликом | Восстановление исходного положения одним щелчком мыши |
| Регулируемая скорость вращения кардана | Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
| Visible light Camera Para | |
| Control Way | IP, SBUS, UART control (Optional with PWM control) |
| CMOS Size | 1/3 inch 8 mega effective pixels CMOS SENSOR |
| Optical Zoom | 20x HD optical zoom lens, f=4.9 ±10% ~ 49 ±10% mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Видеовыход | RTSP stream IP network output, 4K 1080P video stream, local TF card storage |
| Local Record | Local TF record, H.264/H265 4K, 1080P video stream |
| Field Angle (FOV) | D : WIDE 72° ±5% TELE 3.8° ±5% |
| H : WIDE 55.5° ±5% TELE 3.0° ±5% | |
| V : WIDE 43° ±5% TELE 2.2° ±5% | |
| Support Mode | 4K 30 fps / 1080P 30fps |
| Device Size | 109 mm * 153 mm * 160 mm |
| Work Condition | -10°C to +45°C / 20% to 80% RH |
| Storage Condition | -20°C до +60°C / 20% до 95% RH |
| Mainly usage | UAV aerial photography |
| Weight (Not including dampers) | 635g ±10g |
Equipped with a 3-axis gimbal, this camera features a 20x optical zoom lens, allowing for precise control over pitch (up/down), roll (left/right), and yaw (rotation) movements.
