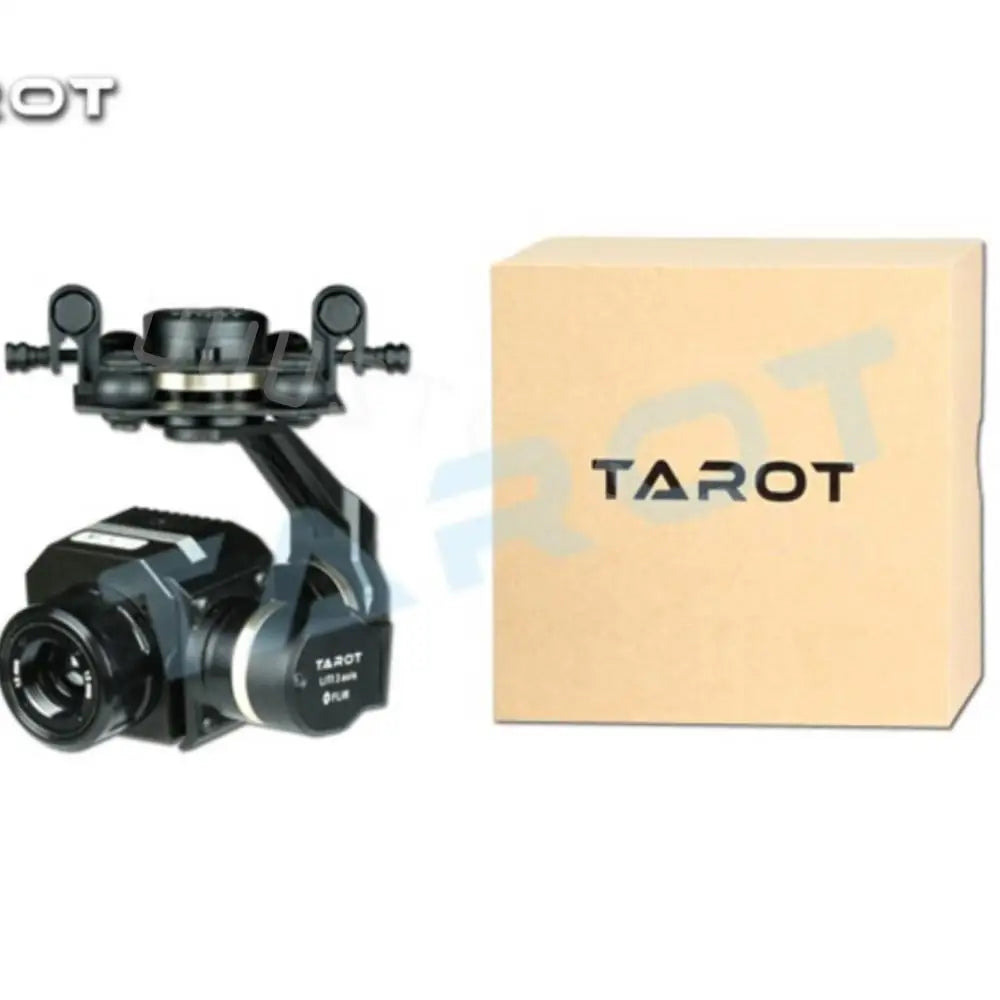

Tarot Metal 3 Axis Gimbal SPECIFICATIONS
Колесная база: Винты
Модернизация деталей/аксессуаров: Рама
Поставки инструментов: Класс шпатлевки
Технические параметры: Значение 2
Размер: Как описание
Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления
Рекомендуемый возраст: 14+y
Количество: 1 шт.
Происхождение: Материковый Китай
Номер модели: Tarot TL03FLIR
Материал: Композитный материал
Атрибуты полного привода: Сборка
Для типа автомобиля: Самолеты
Название бренда: uuustore
Пакет включает:
– Metal triaxial shaft FLIR PTZ 191 g × 1
– PTZ control module (36 × 25 × 11MM) × 1
– 8P PTZ master and PTZ main connection cable × 1
– 5V output, receiver and video cable × 1
– USB module (27 × 21 × 7MM) × 1
– Flight control cable
Технические характеристики:
Tarot metal tri-axis FLIR PTZ for: Philip Flir VUE PRO 320/640 high-sensitivity thermal imaging camera customized, integrated TAROT series PTZ all the high-end technology, the use of CNC with a whole industrial structure of the wall panel design, Bringing the most lightweight and stable. Break through the limitations of light and space, can capture anytime, anywhere, clear, accurate thermal images. The Tarot FLIR thermal imaging camera gives you a new dimension of vision, allowing you to quickly search large areas or close-range devices that are difficult to climb. Work becomes more efficient, easy and safe.
Mechanical / electrical characteristics:
– Applicable camera types: FLIR thermal imaging camera Flir 336Pro, 640Pro
– Input power: 3S-6S Li (11V-26V)
– Operating Current: 30mA (@ 25V) / 50mA (@ 12V)
– Stall current: 350mA (@ 25V) / 700mA (@ 12V)
– Attitude control accuracy: ± 0.02 degrees
– Maximum controllable speed
– Rotation direction (PAN): ± 200 ° / s
– Tilt direction (TILT): ± 200 ° / s
– Rolling direction (ROLL): ± 200 ° / s
– Controllable rotation range
– Rotation direction (PAN): ± 125 °
– Tilt direction (TILT): -120 ° to + 80 °
– Rolling direction (ROLL): ± 50 °
– S-Bus / PPM / DSM receiver support
– Working environment temperature: -20 ℃ ~ +50 ℃
– The maximum dimensions (with camera): 85mm * 100mm * 101mm
Installation software requirements:
– Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
– National intellectual property rights have been granted TAROT Model Co., Ltd. This product patent. Any unit or individual without the holder’s license, manufacture, copy, use, sell this product will face patent infringement litigation.
– The state intellectual property has been awarded the TAROT model., Ltd five patents. Any units orindividual without the license holder manufacture manufacture, copy, use and sale the product will be patent lawsuit.
– Patent number: 2014201546579
